TL-PS110P
Single Parallel Port Fast Ethernet Print
Server
Rev: 1.1.0
1910010382
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice.
is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com
I
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1)This device may not cause harmful interference.
2)This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Trademarks
NetWare is a registered trademark of Novell Inc and Windows 95/98/Me and Windows NT/2000/XP /2003/Vista/7 are registered trademarks of Microsoft Corp. All other brands and product names are trademarks or registered trademarks of their respective owners.
Copyright
No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976.
II
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
National Restrictions
2400.0-2483.5 MHz
Country |
Restriction |
Reason/remark |
|
|
|
Bulgaria
General authorization required for outdoor use and public service
Outdoor use limited to
France
10 mW e.i.r.p. within the band 2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy |
|
If used outside of own premises, general |
|
|
authorization is required |
||
|
|
||
|
|
|
|
Luxembourg |
None |
General authorization required for network and |
|
service supply(not for spectrum) |
|||
|
|
||
|
|
|
|
|
|
This subsection does not apply for the geographical |
|
Norway |
Implemented |
area within a radius of 20 km from the centre of |
|
|
|
Ny-Ålesund |
|
|
|
|
|
Russian Federation |
|
Only for indoor applications |
|
|
|
|
Note It not used outdoors in France.
All contents and specifications are subject to change without notice.
III
|
|
CONTENTS |
|
Chapter 1. |
Introduction......................................................................................... |
1 |
|
1.1 |
Product Overview ...................................................................................................... |
1 |
|
1.2 |
Components and Features ........................................................................................ |
1 |
|
1.3 |
LED Indicators ........................................................................................................... |
1 |
|
1.4 |
Factory Defaults ........................................................................................................ |
1 |
|
Chapter 2. |
Hardware Installation ......................................................................... |
2 |
|
2.1 |
Preparation ................................................................................................................ |
2 |
|
2.2 |
Connection ................................................................................................................ |
2 |
|
Chapter 3. How to Configure the Print Server .................................................... |
3 |
||
3.1 |
Using PSWizard in Windows XP/ Windows Vista/ Windows 7 .................................. |
3 |
|

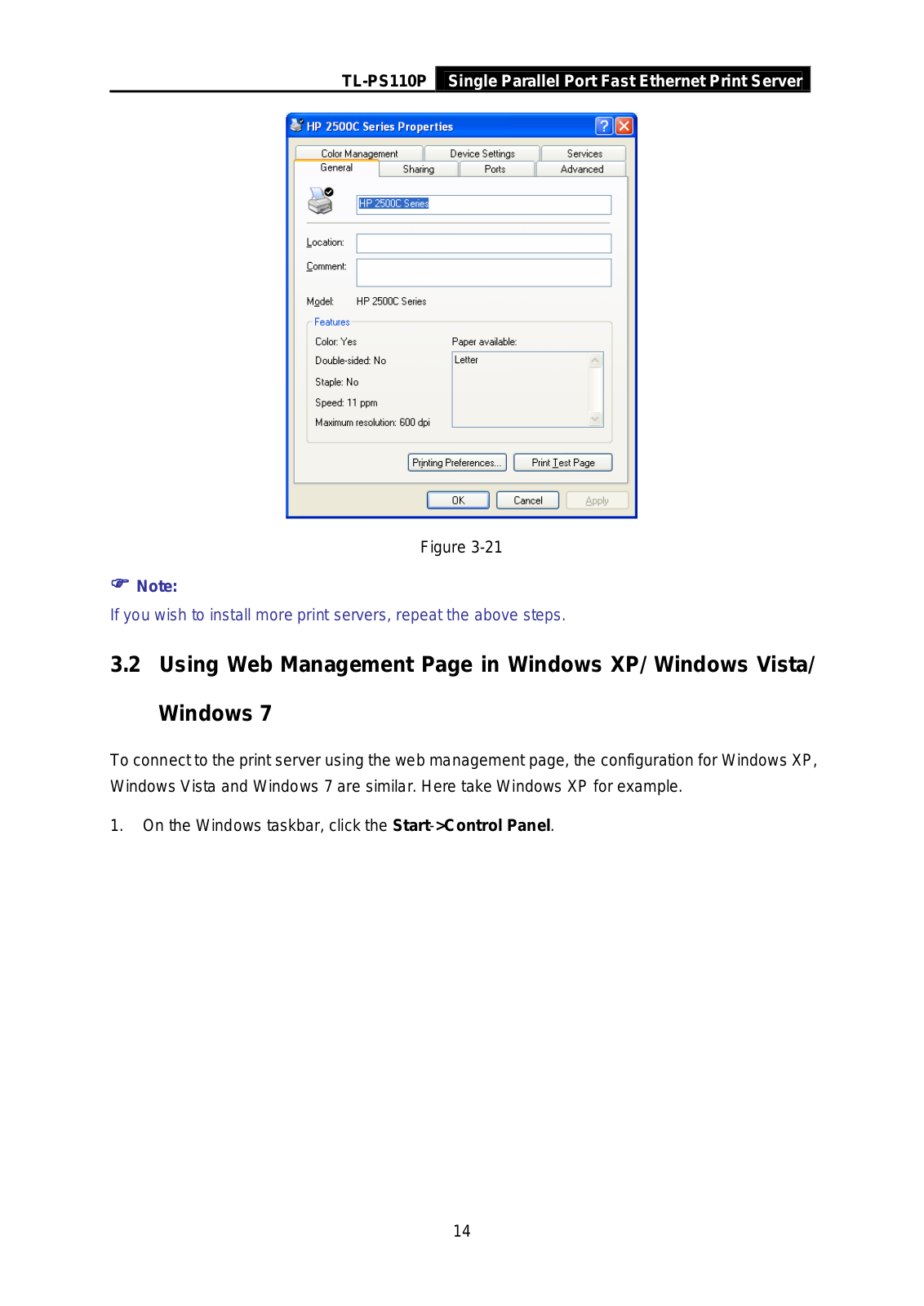

3.2 |
Using Web Management Page in Windows XP/ Windows Vista/ Windows 7 ......... |
14 |
|

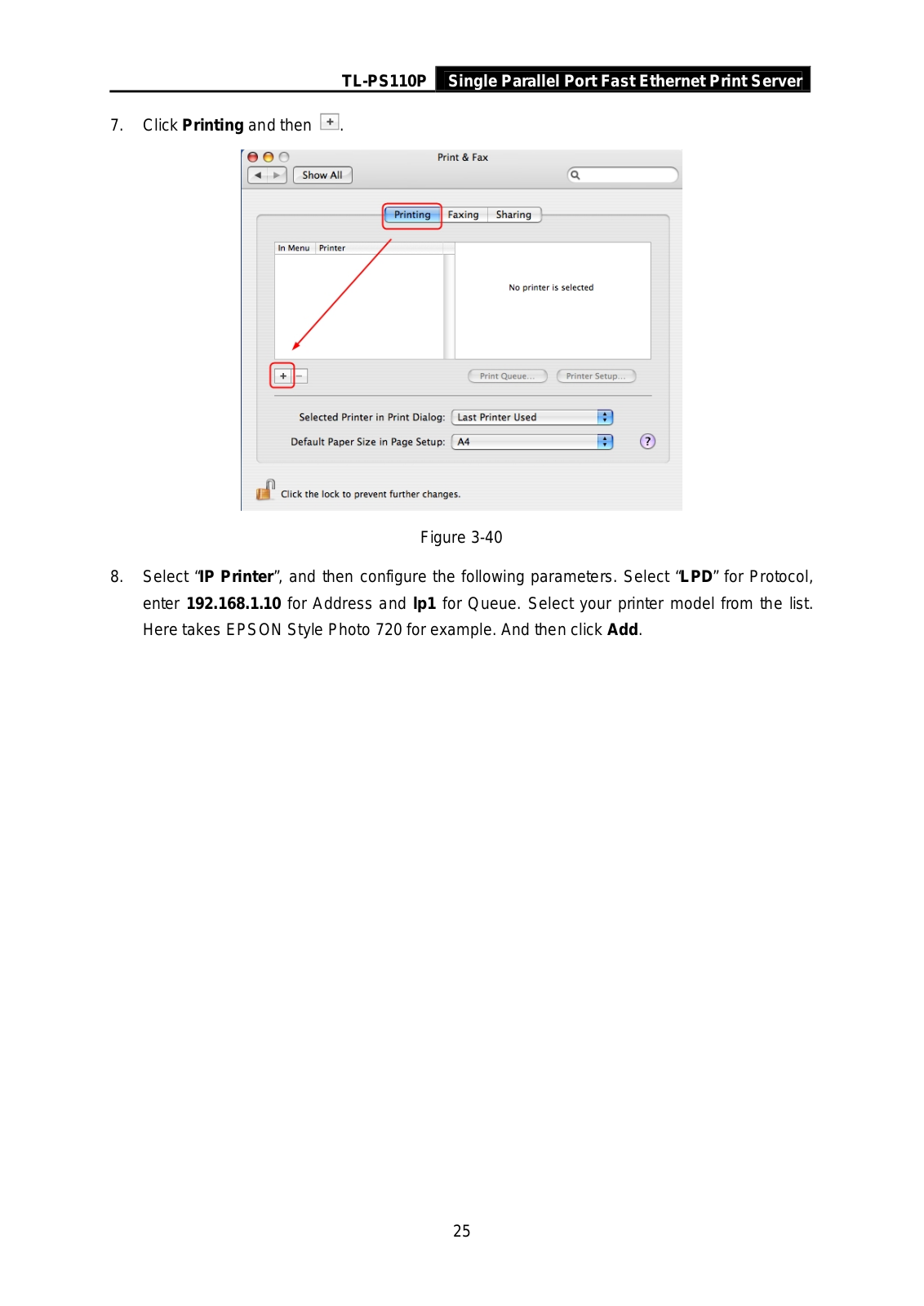

3.3 |
Using Web Management Page on MAC OS ........................................................... |
21 |
|

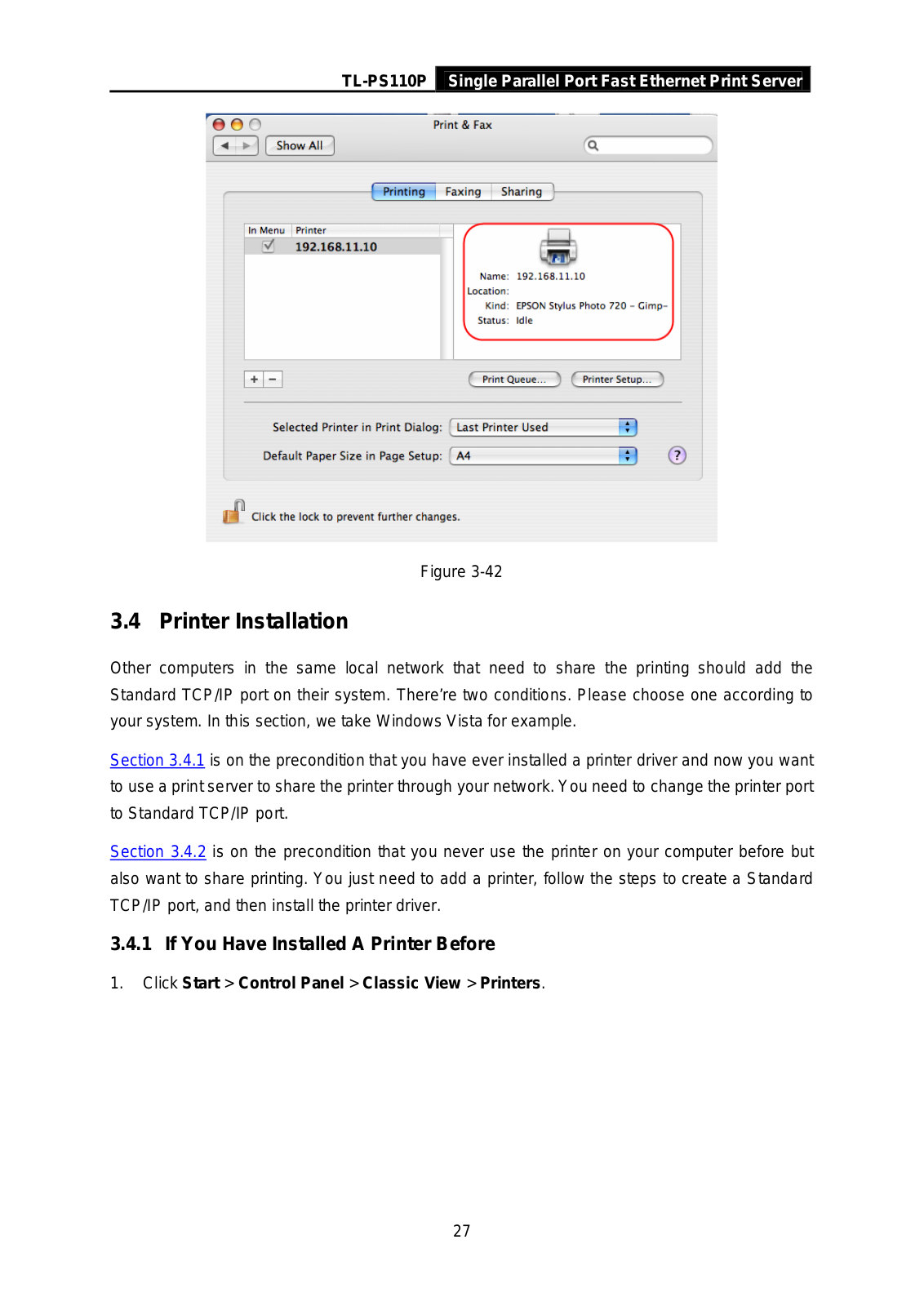

3.4 |
Printer Installation.................................................................................................... |
27 |
|
|
3.4.1 If You Have Installed A Printer Before........................................................................... |
27 |
|
|
3.4.2 If You Never Install A Printer Before.............................................................................. |
32 |
|
Chapter 4. More Configuration for the Print Server ......................................... |
38 |
||
4.1 |
Login........................................................................................................................ |
38 |
|
4.2 |
Status ...................................................................................................................... |
39 |
|
|
4.2.1 |
System........................................................................................................................... |
40 |
|
4.2.2 |
Printer ............................................................................................................................ |
41 |
|
4.2.3 |
TCP/IP ........................................................................................................................... |
42 |
4.3 |
Setup ....................................................................................................................... |
42 |
|
|

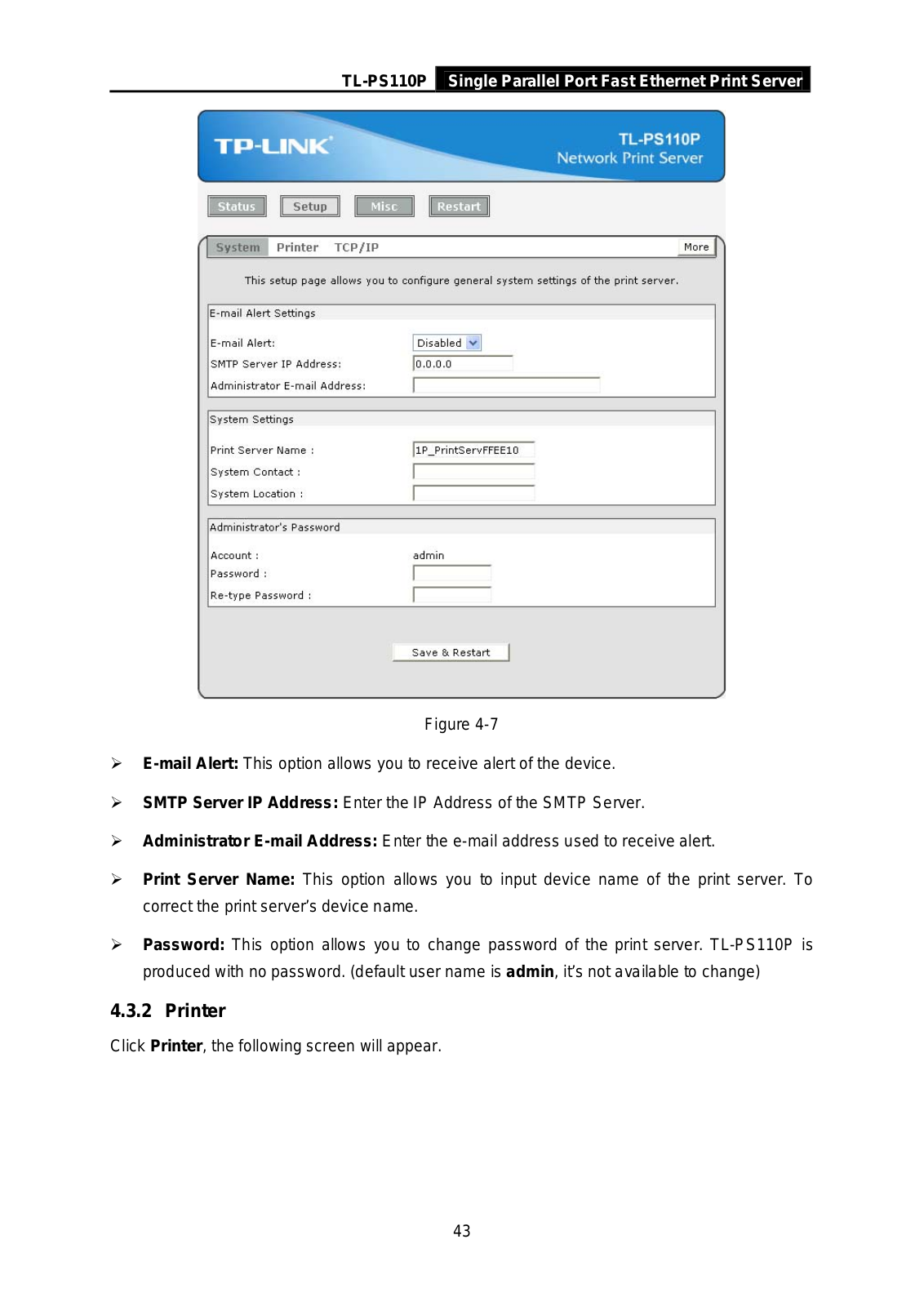

4.3.1 |
System........................................................................................................................... |
42 |
|
4.3.2 |
Printer ............................................................................................................................ |
43 |
|

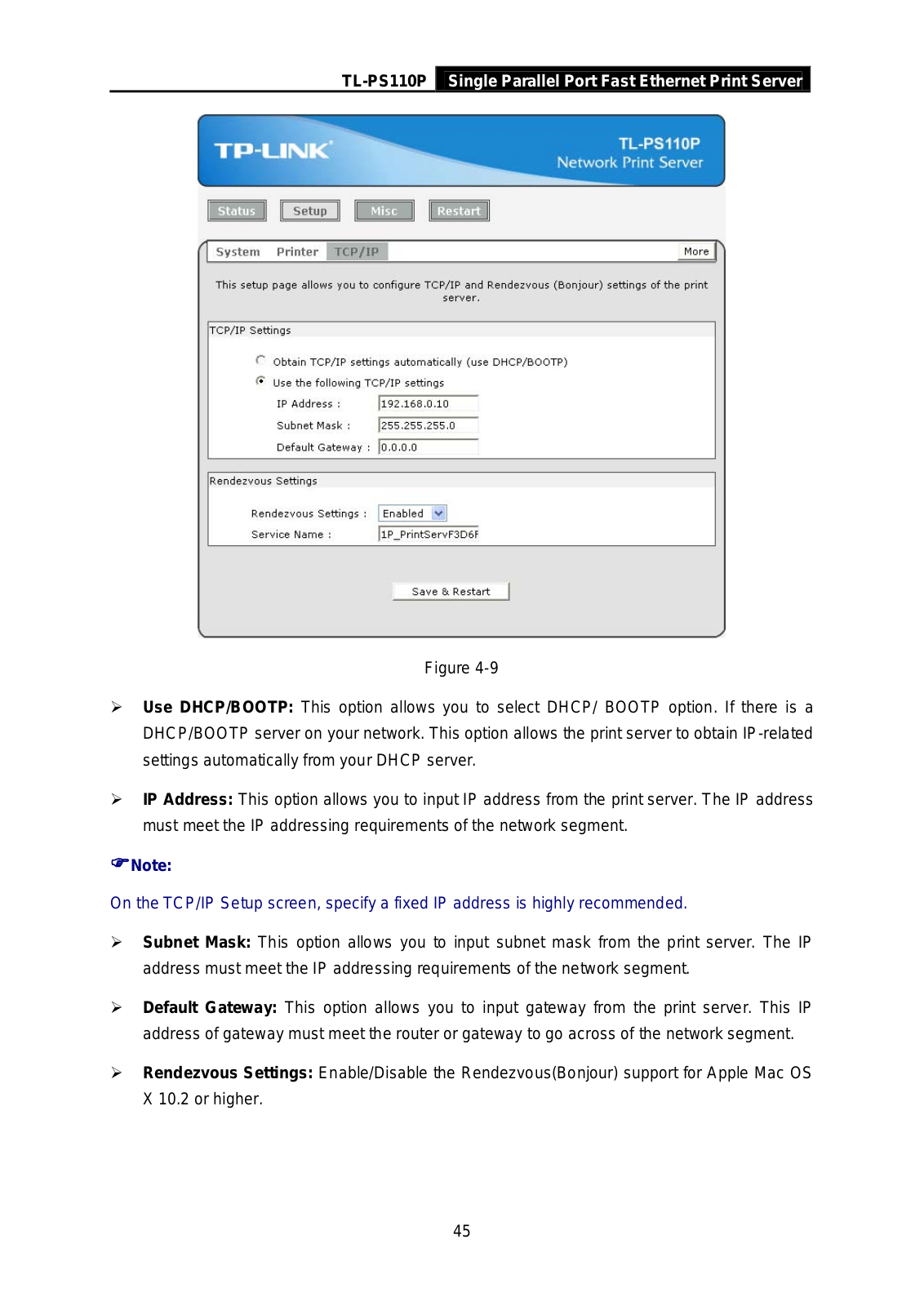

4.3.3 |
TCP/IP ........................................................................................................................... |
44 |
4.4 |
Misc ......................................................................................................................... |
46 |
|
|
4.4.1 |
Factory Default .............................................................................................................. |
46 |
|
4.4.2 |
Firmware Upgrade ......................................................................................................... |
46 |

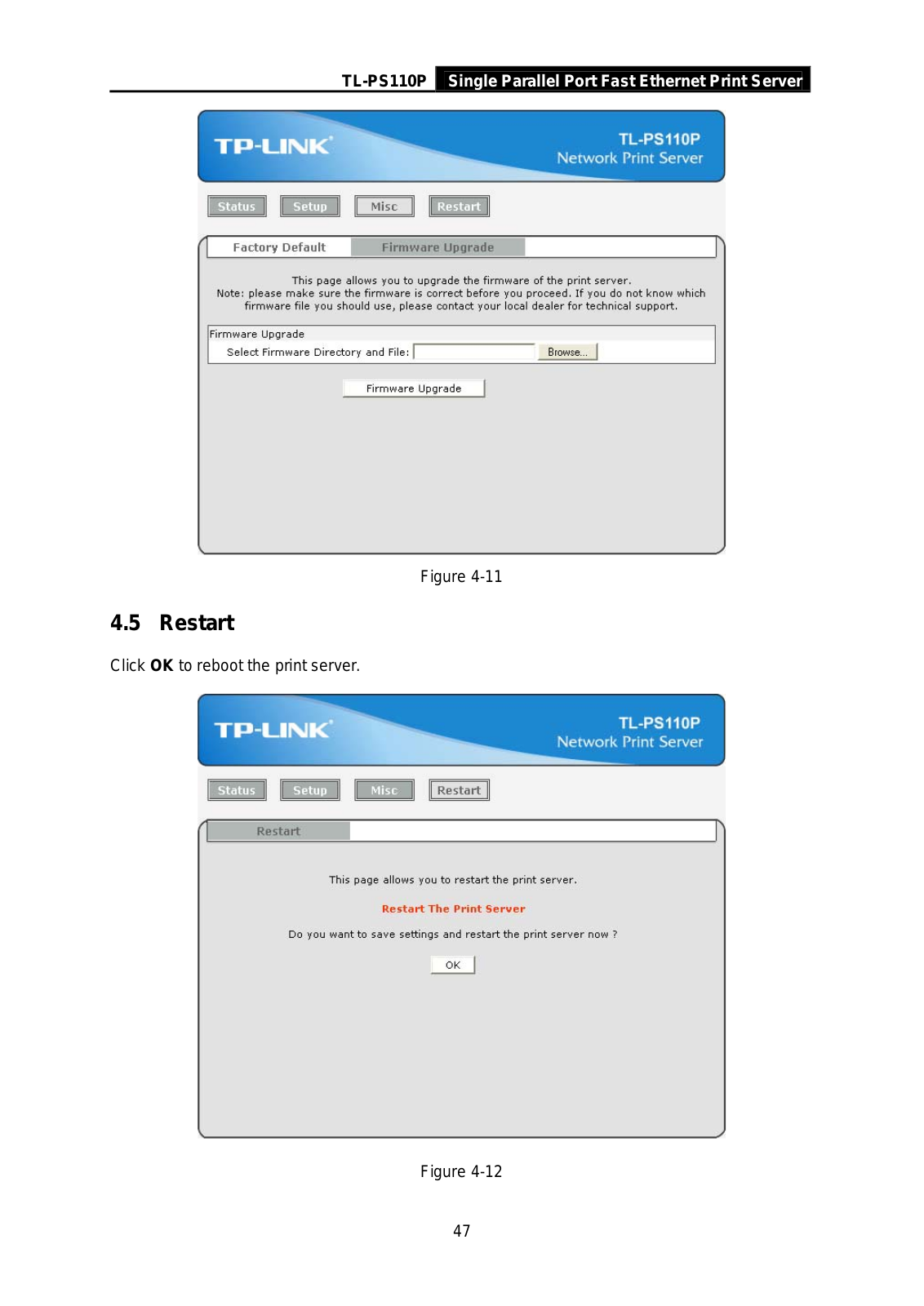

4.5 |
Restart ..................................................................................................................... |
47 |
|

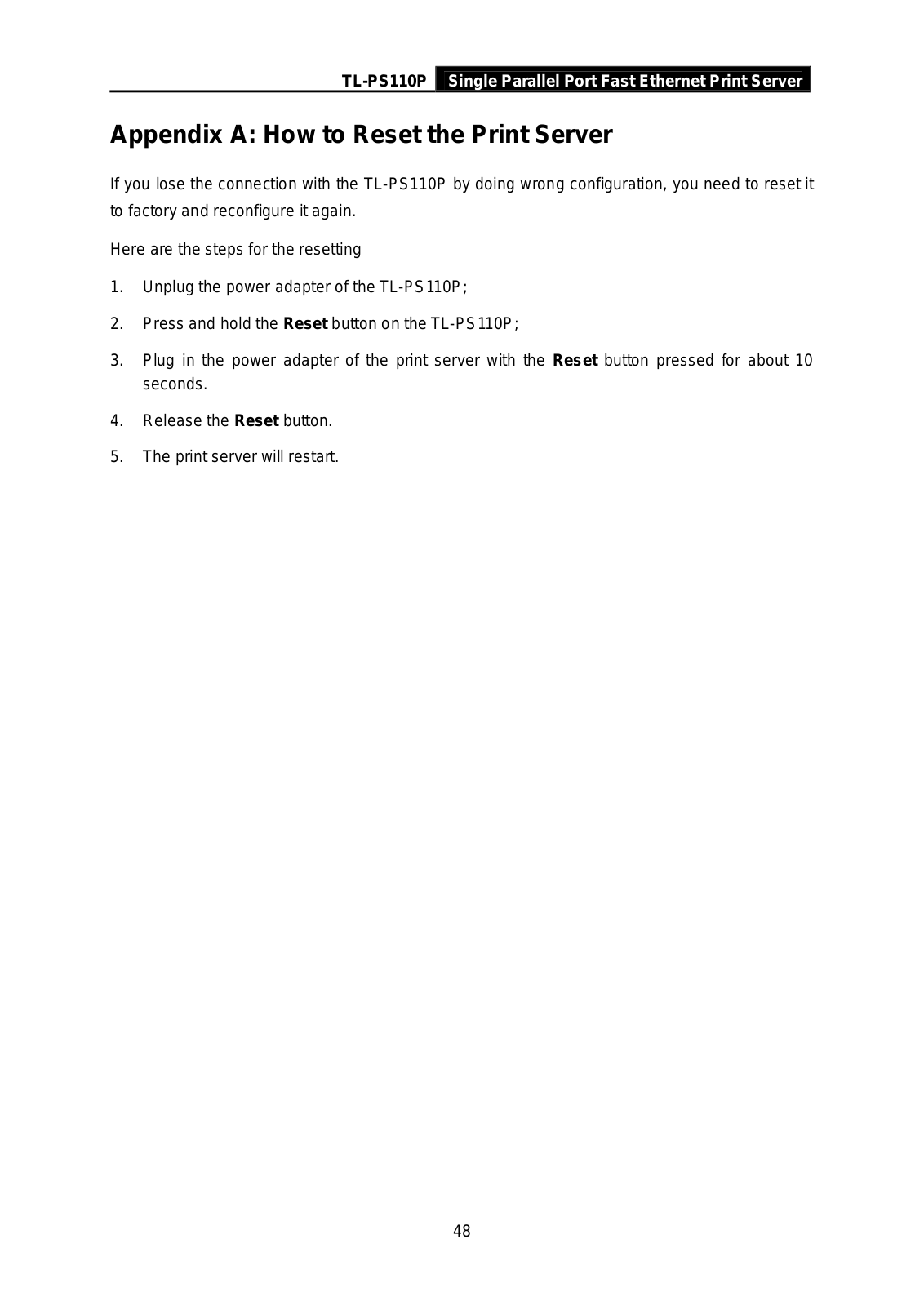

Appendix A: How to Reset the Print Server ......................................................... |
48 |
||

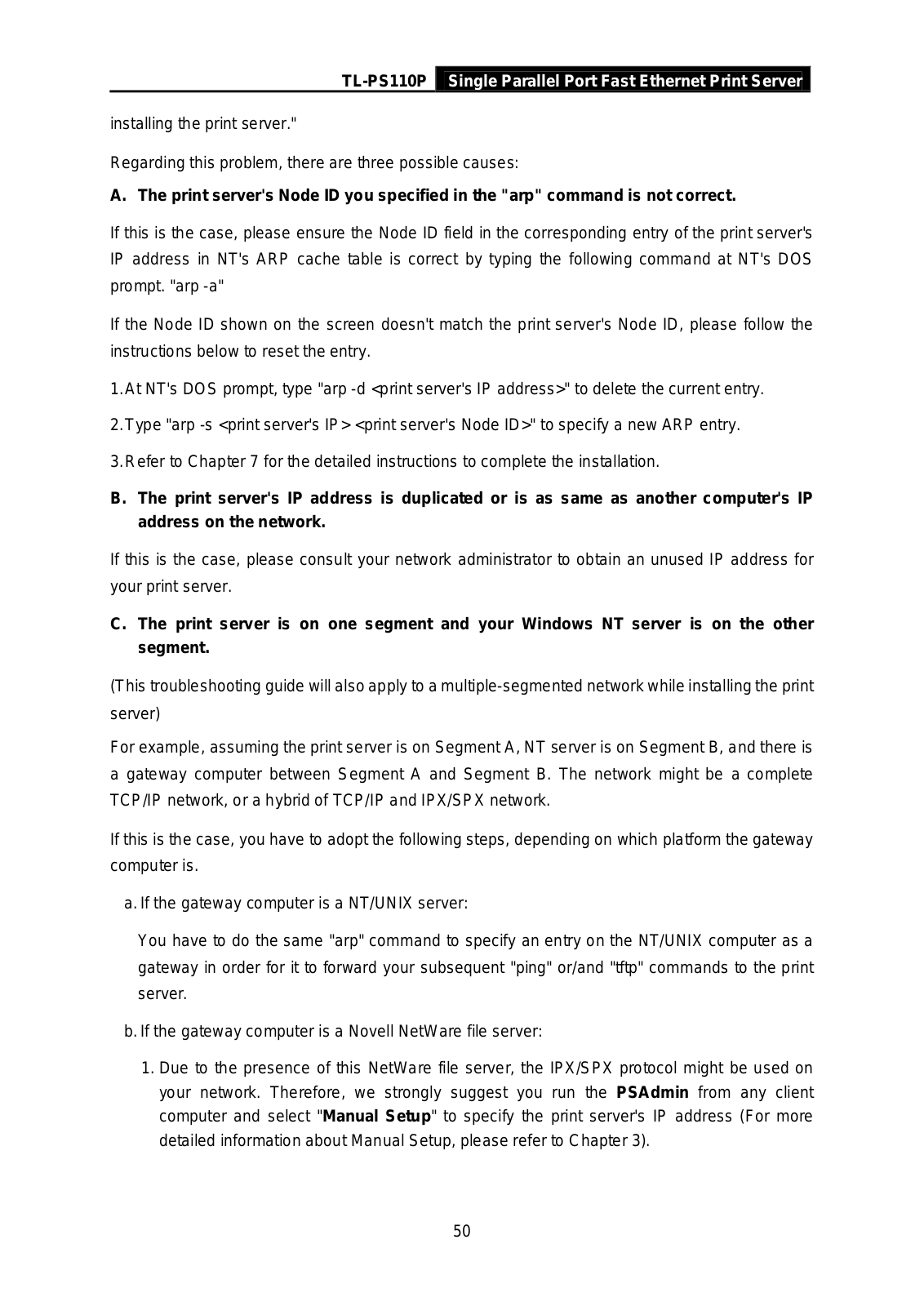

Appendix B: Troubleshooting ............................................................................... |
49 |
||
Appendix C: Frequently Asked Questions ........................................................... |
52 |
||
IV

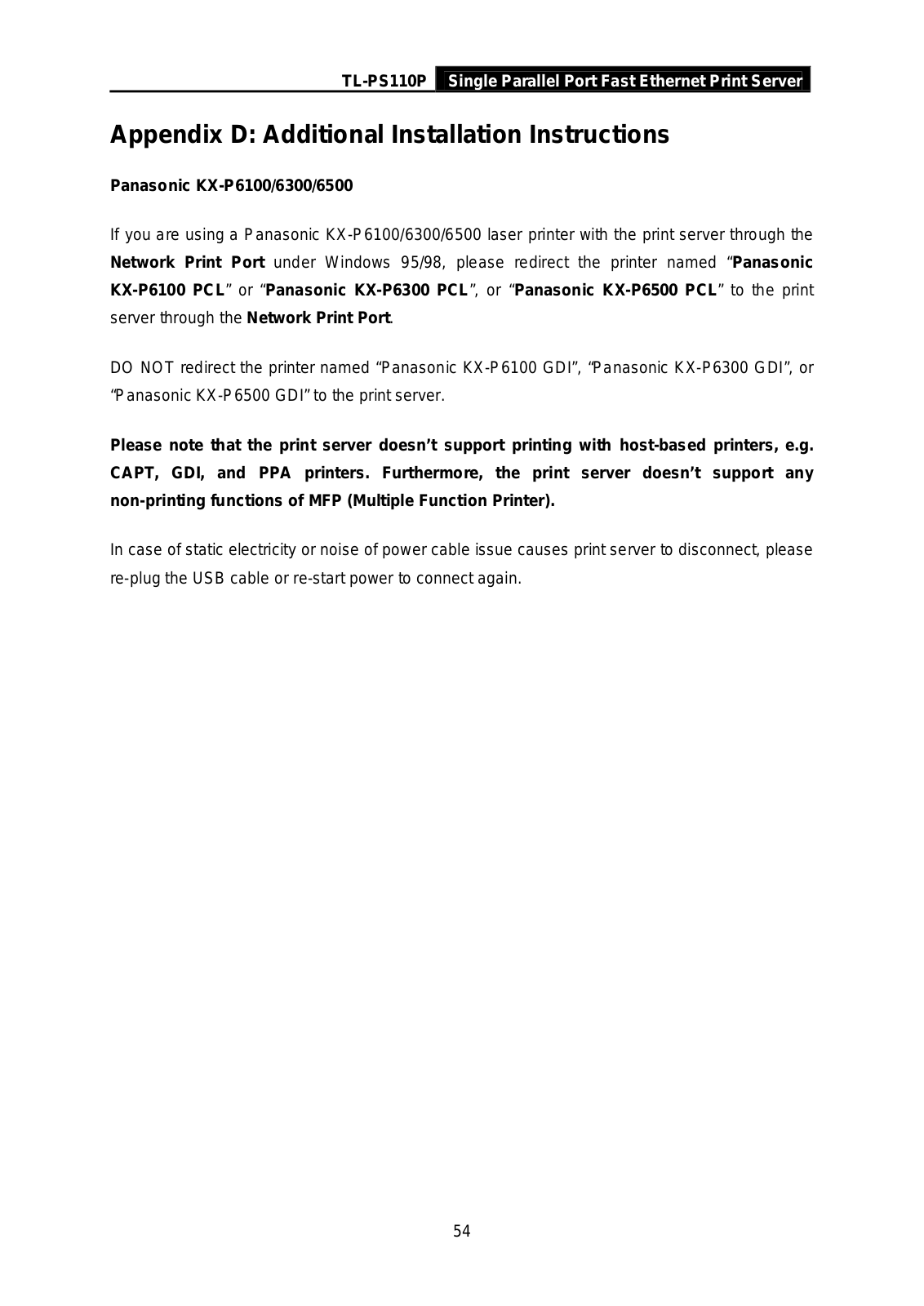

Appendix D: Additional Installation Instructions................................................. |
54 |
V
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Chapter 1. Introduction
1.1 Product Overview
The external print servers enhance capability by letting you place your printers at convenient locations directly on the Ethernet network, and by increasing network printer performance and management. Please note that the print server does not support printing with host-based printers, e.g. CAPT, GDI, PPA.
1.2 Components and Features
Dongle-sized Wireless Print Server
¾1 Parallel port
¾Fast Ethernet network port: RJ-45 for 10Base-T or 100Base-TX
¾1 Setup CD contains driver and manual for Windows system
¾One external AC power adapter
¾Built-in Reset Button
¾One Quick Installation Guide
1.3 LED Indicators
LED |
Status |
Indication |
|
|
|
|
|
Status |
Blinking (Orange) |
When power switched on, the Status indicator will flash five |
|
times, and then on. |
|||
|
|
||
|
|
|
|
100Mbps |
On (Green) |
LAN Port has a valid network connection at 100Mbps. |
|
|
|
|
|
10Mbps |
On (Orange) |
LAN Port has a valid network connection at 10Mbps. |
|
|
|
|
)Note:
The Status LED should be flash five times when POST. If not, please contact your local dealer for repair or replacement.
1.4 Factory Defaults
¾Username: admin
¾IP Address: 192.168.0.10
¾Subnet Mask: 255.255.255.0
)Note:
The TL-PS110P is produced without password by default.
1
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Chapter 2. Hardware Installation
2.1 Preparation
Before you start, you should prepare the following items:
¾One printer with a Parallel port
¾One printer cable
¾One Router
2.2 Connection
Follow the instructions below to connect the print server. Figure 2-1 is a typical typology for the print server.
¾Power off the printer.
¾Connect the print server to your printer with printer cable.
¾Connect the print server to your Router with an Ethernet cable.
¾Power on the printer.
¾Power on print server.
¾Wait 40 seconds as part of the print server’s Power On Self Test (POST).
Figure 2-1
2
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Chapter 3. How to Configure the Print Server
3.1 Using PSWizard in Windows XP/ Windows Vista/ Windows 7
To connect to the print server using PSWizard, the configuration for Windows XP, Windows Vista and Windows 7 are similar. Here take Windows XP for example.
1.Insert the setup CD into your CD-drive. The autorun program will be started as shown in Figure 3-1. Select the model (TL-PS110P) of your print sever.
Figure 3-1
2.Choose Setup Wizard.
Figure 3-2
)Note:
For setup wizard under Windows Vista, you have to choose the Run as administrator by right-click the icon on desktop.
3
TL-PS110P Single Parallel Port Fast Ethernet Print Server
3.Then you will enter to the “Welcome” page as shown in Figure 3-3. Click Next.
Figure 3-3
4.From the “Select A Print Server” screen as shown in Figure 3-4, select the print server that you want to configure and click Next.
Figure 3-4
4
TL-PS110P Single Parallel Port Fast Ethernet Print Server
5.On the Change Settings screen as shown in Figure 3-5, select Yes or No.
¾Select “Yes” if you want to change the settings. The TL-PS110P is produced with no password. Click Next and then appears “TCP/IP Settings” screen as shown in Figure 3-6. Proceed with Step 7.
¾Select “No” if you don’t need to change any settings. Click Next and then appears Figure 3-9. Skip to Step 23.
Figure 3-5
6.On “TCP/IP Settings” page shown in Figure 3-6, check the “Specify an IP address” radio button, and then fill in the following parameters.
¾IP Address: Specify an IP address for your print server. The IP address must be within the same subnet as your Router. For example, if the LAN IP address of your Router is 192.168.1.1, the IP address should be set to 192.168.1.X (1<X<255). 192.168.1.10 is suggested.
¾Mask IP Address: Enter the subnet mask of your network.
¾Gateway IP Address: Enter the LAN IP address of your Router. Here takes 192.168.1.1 for example.
5
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Figure 3-6
7.Confirm your settings on the screen in Figure 3-7. Click Next and your changes will be saved as shown in Figure 3-8.
Figure 3-7
6
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Figure 3-8
8.After that the “Select a Printer” page will appear, as shown in Figure 3-9.
¾If the printer desired has already existed in the list, select it and then click Next and skip to Step 16 to complete the installation.
¾If you never use a printer on your computer before but also want to share printing, click Add New Printer button in Figure 3-9 and then Figure 3-11 appears. Follow the steps below to install the printer driver.
7
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Figure 3-9
) Note:
To add a new printer, you can also go Start > Printers and Faxes, and then click “Add a printer” on the left to begin the following installation as shown in Figure 3-10.
Figure 3-10
9.Click Add New Printer to launch Windows Add Printer Wizard. Click Next.
8
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Figure 3-11
10.Make sure the Automatically detect and install my Plug and Play printer check box is
NOT checked. Then click Next.
Figure 3-12
11.Check “Use the following port” radio button and select “LPT1: (Recommended Printer Port)” from the pull-down list. Then click Next.
9
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Figure 3-13
12. Select Manufacturer and Printer from the lists of printer’s driver. Then click Next.
Figure 3-14
13.If you already have the printer’s driver installed, you will be asked whether to keep it or to replace it. Click Next. Supply a name for the printer and choose whether you want to make it your default printer. Then click Next.
10
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Figure 3-15
14.Then, choose whether you want to share the printer with other network users, print a test page (please select No.), etc. Select the appropriate radio-button and click Next.
Figure 3-16
15. Click Finish.
11
TL-PS110P Single Parallel Port Fast Ethernet Print Server
Figure 3-17
16.Then you will see the printer be added to the list. Select the printer and click Next. Follow the step by step instruction to finish the installation.
Figure 3-18
17.From Windows system, go to Start > Printers and Faxes and highlight your newly installed printer. Right-click it, and then select Properties.
12
