TDA7492P
25-watt + 25-watt dual BTL class-D audio amplifier
Features
■25 W + 25 W continuous output power at THD = 10% with VCC = 20 V and RL = 8 Ω
■Wide-range single-supply operation (8 - 26 V)
■High efficiency (η = 90%)
■Four selectable, fixed gain settings of nominally 21.6 dB, 27.6 dB, 31.1 dB and 33.6 dB
■Differential inputs minimize common-mode noise
PowerSSO-36 |
with exposed pad down |
■Standby and mute features
■Short-circuit protection
■Thermal overload protection
■Externally synchronizable
■ECOPACK®, environmentally-friendly package
Description
The TDA7492P is a dual BTL class-D audio amplifier with single power supply, designed for LCD TVs and monitors.
Thanks to the high efficiency and exposed-pad- down (EPD) package no heatsink is required.
Order code |
Operating temp. range |
Package |
Packaging |
|
|
|
|
TDA7492P |
-40 to 85 °C |
PowerSSO-36 EPD |
Tube |
|
|
|
|
TDA7492P13TR |
-40 to 85 °C |
PowerSSO-36 EPD |
Tape and reel |
|
|
|
|
September 2011 |
Doc ID 15068 Rev 5 |
1/26 |
www.st.com
Contents |
TDA7492P |
|
|
Contents
1 |
Device block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 5 |
|
2 |
Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6 |
|
|
2.1 |
Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6 |
|
2.2 |
Pin list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
3 |
Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
|
3.1 |
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
3.2 |
Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
3.3 |
Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
4 |
Characterization curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
|
|
4.1 |
Characterizations for 6 Ω loads with 18 V . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
|
4.2 |
Characterizations for 8 Ω loads with 20 V . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
5 |
Applications circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
|
6 |
Applications information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
|
|
6.1 |
Mode selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
|
6.2 |
Gain setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
19 |
|
6.3 |
Input resistance and capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
19 |
|
6.4 |
Internal and external clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
20 |
6.4.1 Master mode (internal clock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 6.4.2 Slave mode (external clock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.5 Output low-pass filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 6.6 Protection functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 6.7 Diagnostic output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7 |
Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
23 |
8 |
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
25 |
2/26 |
Doc ID 15068 Rev 5 |
TDA7492P |
List of tables |
|
|
List of tables
Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Table 2. Pin description list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Table 3. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Table 4. Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Table 5. Electrical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Table 6. Mode settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Table 7. Gain settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Table 8. How to set up SYNCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Table 9. PowerSSO-36 EPD dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Table 10. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Doc ID 15068 Rev 5 |
3/26 |
List of figures |
TDA7492P |
|
|
List of figures
Figure 1. |
Internal block diagram (showing one channel only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 5 |
Figure 2. |
Pin connections (top view, PCB view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 6 |
Figure 3. |
Output power vs. supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
Figure 4. |
THD at 1 kHz vs. output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
Figure 5. |
THD at 100 Hz vs. output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
Figure 6. |
THD at 1 W vs. frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
Figure 7. |
Frequency response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
Figure 8. |
Crosstalk vs frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
Figure 9. |
FFT 0 dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
Figure 10. |
FFT -60 dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
Figure 11. |
Output power vs supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
Figure 12. |
THD at 1 kHz vs output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
Figure 13. |
THD at 100 Hz vs output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
Figure 14. |
THD at 1 W vs frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
Figure 15. |
Frequency response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
Figure 16. |
Crosstalk vs frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
Figure 17. |
FFT 0 dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
Figure 18. |
FFT -60 dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
Figure 19. |

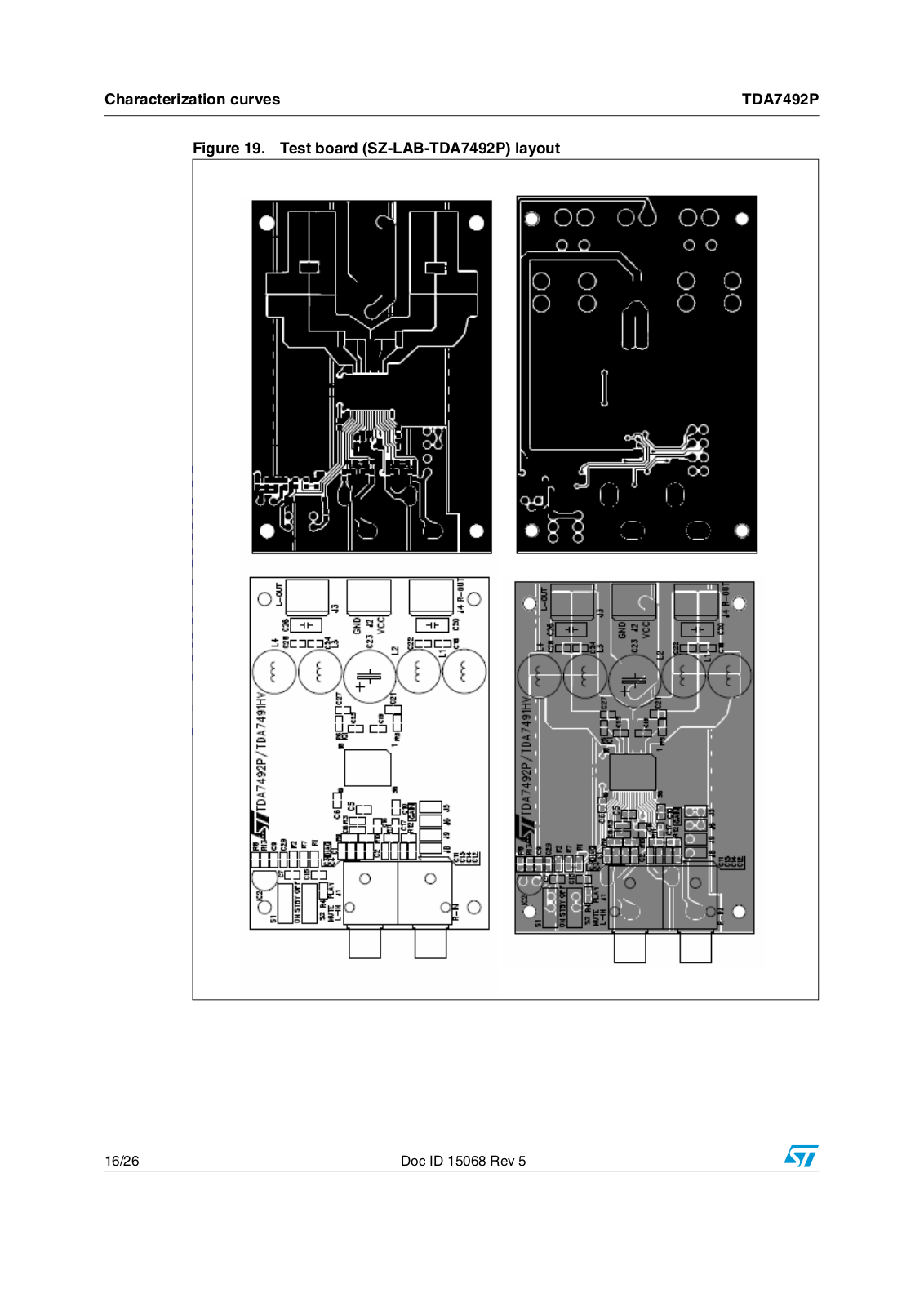

Test board (SZ-LAB-TDA7492P) layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
16 |
Figure 20. |
Applications circuit for class-D amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
Figure 21. |
Standby and mute circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
Figure 22. |
Turn-on/off sequence for minimizing speaker “pop” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
Figure 23. |
Device input circuit and frequency response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
19 |
Figure 24. |
Master and slave connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
20 |
Figure 25. Typical LC filter for a 8-Ω speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
21 |
|
Figure 26. Typical LC filter for a 4-Ω speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
21 |
|
Figure 27. |
Behavior of pin DIAG for various protection conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . |
22 |
Figure 28. |
PowerSSO-36 EPD outline drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
24 |
4/26 |
Doc ID 15068 Rev 5 |
TDA7492P |
Device block diagram |
|
|
Figure 1 shows the block diagram of one of the two identical channels of the TDA7492P.
Doc ID 15068 Rev 5 |
5/26 |
Pin description |
TDA7492P |
|
|
SUB_GND |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VSS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
36 |
|
|
||
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
OUTPB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
35 |
|
|
SVCC |
|
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
OUTPB |
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
34 |
|
|
VREF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
PGNDB |
|
|
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
33 |
|
|
INNB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
PGNDB |
|
|
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
32 |
|
|
INPB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
PVCCB |
|
|
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
31 |
|
|
GAIN1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
PVCCB |
|
|
7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
30 |
|
|
GAIN0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
OUTNB |
|
|
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
29 |
|
|
SVR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
OUTNB |
|
|
9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
28 |
|
|
DIAG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
OUTNA |
|
|
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
27 |
|
|
SGND |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
OUTNA |
|
|
11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
26 |
|
|
VDDS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
PVCCA |
|
|
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
25 |
|
|
SYNCLK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
PVCCA |
|
|
13 |
|
Exposed pad down |
|
24 |
|
|
ROSC |
||||||||||
|
|
|
|
|
|
|||||||||||||||
PGNDA |
|
|
14 |
|
|
23 |
|
|
INNA |
|||||||||||
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PGNDA |
|
|
15 |
|
(Connect to ground) |
|
|
22 |
|
|
INPA |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
OUTPA |
|
|
16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
21 |
|
|
MUTE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
OUTPA |
|
|
17 |
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
|
STBY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
PGND |
|
|
18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
19 |
|
|
VDDPW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6/26 |
Doc ID 15068 Rev 5 |
TDA7492P |
Pin description |
|
|
Table 2. |
Pin description list |
|||
Number |
Name |
Type |
Description |
|
|
|
|
|
|
1 |
SUB_GND |
PWR |
Connect to the frame |
|
|
|
|
|
|
2,3 |
OUTPB |
O |
Positive PWM for right channel |
|
|
|
|
|
|
4,5 |
PGNDB |
PWR |
Power stage ground for right channel |
|
|
|
|
|
|
6,7 |
PVCCB |
PWR |
Power supply for right channel |
|
|
|
|
|
|
8,9 |
OUTNB |
O |
Negative PWM output for right channel |
|
|
|
|
|
|
10,11 |
OUTNA |
O |
Negative PWM output for left channel |
|
|
|
|
|
|
12,13 |
PVCCA |
PWR |
Power supply for left channel |
|
|
|
|
|
|
14,15 |
PGNDA |
PWR |
Power stage ground for left channel |
|
|
|
|
|
|
16,17 |
OUTPA |
O |
Positive PWM output for left channel |
|
|
|
|
|
|
18 |
PGND |
PWR |
Power stage ground |
|
|
|
|
|
|
19 |
VDDPW |
O |
3.3-V (nominal) regulator output referred to ground for power stage |
|
|
|
|
|
|
20 |
STBY |
I |
Standby mode control |
|
|
|
|
|
|
21 |
MUTE |
I |
Mute mode control |
|
|
|
|
|
|
22 |
INPA |
I |
Positive differential input of left channel |
|
|
|
|
|
|
23 |
INNA |
I |
Negative differential input of left channel |
|
|
|
|
|
|
24 |
ROSC |
O |
Master oscillator frequency-setting pin |
|
|
|
|
|
|
25 |
SYNCLK |
I/O |
Clock in/out for external oscillator |
|
|
|
|
|
|
26 |
VDDS |
O |
3.3-V (nominal) regulator output referred to ground for signal |
|
blocks |
||||
|
|
|
||
|
|
|
|
|
27 |
SGND |
PWR |
Signal ground |
|
|
|
|
|
|
28 |
DIAG |
O |
Open-drain diagnostic output |
|
|
|
|
|
|
29 |
SVR |
O |
Supply voltage rejection |
|
|
|
|
|
|
30 |
GAIN0 |
I |
Gain setting input 1 |
|
|
|
|
|
|
31 |
GAIN1 |
I |
Gain setting input 2 |
|
|
|
|
|
|
32 |
INPB |
I |
Positive differential input of right channel |
|
|
|
|
|
|
33 |
INNB |
I |
Negative differential input of right channel |
|
|
|
|
|
|
34 |
VREF |
O |
Half VDDS (nominal) referred to ground |
|
|
|
|
|
|
35 |
SVCC |
PWR |
Signal power supply |
|
|
|
|
|
|
36 |
VSS |
O |
3.3-V (nominal) regulator output referred to power supply |
|
|
|
|
|
|
- |
EP |
PWR |
Exposed pad for connection to ground plane as heatsink |
|
|
|
|
|
Doc ID 15068 Rev 5 |
7/26 |
Electrical specifications |
TDA7492P |
|
|
3.1Absolute maximum ratings
Table 3. |
Absolute maximum ratings |
|
|
|
Symbol |
Parameter |
Value |
Unit |
|
|
|
|
|
|
VCCMAX |
DC supply voltage for pins PVCCA, PVCCB, SVCC |
30 |
V |
|
VI |
Voltage limits for input pins STANDBY, MUTE, INNA, INPA, |
-0.3 to 3.6 |
V |
|
INNB, INPB, GAIN0, GAIN1 |
||||
|
|
|
||
|
|
|
|
|
Top |
Operating temperature |
-40 to 85 |
°C |
|
Tj |
Junction temperature |
-40 to 150 |
°C |
|
Tstg |
Storage temperature |
-40 to 150 |
°C |
3.2Thermal data
Table 4. |
Thermal data |
|
|
|
|
Symbol |
Parameter |
Min |
Typ |
Max |
Unit |
|
|
|
|
|
|
Rth j-case |
Thermal resistance, junction to case |
- |
2 |
3 |
°C/W |
R |
Thermal resistance, junction to ambient |
- |
24 (1) |
- |
°C/W |
th j-amb |
|
|
|
|
|
1. FR4 with vias to copper area of 9 cm2
3.3Electrical specifications
Unless otherwise stated, the results in Table 5 below are given for the conditions:
VCC = 20 V, RL (load) = 8 Ω, ROSC = R3 = 39 kΩ, C8 = 100 nF, f = 1 kHz, GV = 21.6 dB, and Tamb = 25 °C.
Table 5. |
Electrical specifications |
|
|
|
|
|
|
Symbol |
Parameter |
Condition |
Min |
Typ |
Max |
Unit |
|
|
|
|
|
|
|
|
|
VCC |
Supply voltage for |
- |
8 |
- |
26 |
V |
|
pins PVCCA, PVCCB, SVCC |
|||||||
Iq |
Total quiescent |
- |
- |
26 |
35 |
mA |
|
IqSTBY |
Quiescent current in standby |
- |
- |
2.5 |
5.0 |
µA |
|
VOS |
Output offset voltage |
Play mode |
- |
- |
±100 |
mV |
|
|
|
|
|
|
|||
Mute mode |
- |
- |
±60 |
mV |
|||
|
|
||||||
|
|
|
|
|
|
|
|
IOCP |
Overcurrent protection threshold |
RL = 0 Ω |
3.8 |
4.2 |
- |
A |
|
TjSD |
Junction temperature at thermal |
- |
- |
150 |
- |
°C |
|
shutdown |
|||||||
Ri |
Input resistance |
Differential input |
48 |
60 |
- |
kΩ |

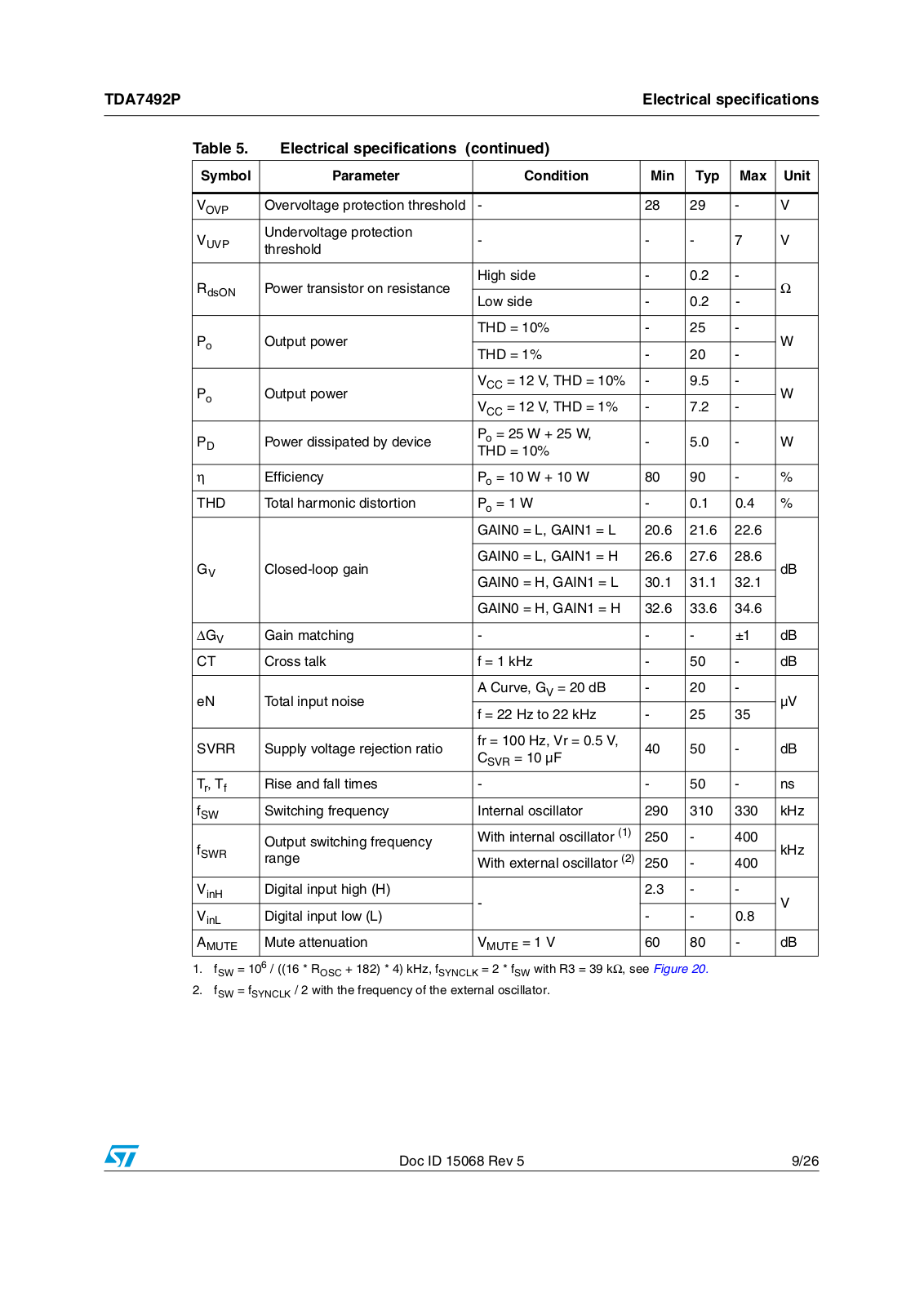

8/26 |
Doc ID 15068 Rev 5 |
