VCR
VR 170/07
Table of contents
AIntroduction .................................... |
2 |
Dear Philips customer, .................................................................................... 2 |
|
Specifications ..................................................................................................... |
3 |
Supplied accessories ........................................................................................ |
3 |
Important notes regarding operation .......................................................... |
4 |
Special functions of your new video recorder .......................................... |
5 |
Important information for customers in Great Britain ........................... |
6 |
BConnecting the video recorder ..... |
7 |
Preparing the remote control for operation ............................................. |
7 |
Connecting your video recorder to the TV set ........................................ |
7 |
Connecting with a scart cable ....................................................................... |
8 |
Connecting without a scart cable ................................................................. |
9 |
Connecting additional devices ..................................................................... |
10 |
CInstalling your video recording ... 11 |
|
Initial installation ............................................................................................. |
11 |
Decoder allocation ........................................................................................ |
12 |
Manual TV channel search ............................................................................ |
13 |
Using the satellite receiver ........................................................................... |
14 |
Sorting TV channels automatically (Follow TV) ...................................... |
15 |
Automatic TV channel search (Autoinstall) ............................................. |
17 |
Monitor function ............................................................................................ |
17 |
Sorting and clearing TV channels manually ............................................... |
18 |
Setting the time and date .............................................................................. |
19 |
DImportant notes for operation .... |
20 |
Navigation in the screen menu ................................................................... |
20 |
EPlayback ........................................ |
21 |
Playing cassettes .............................................................................................. |
21 |
Playing back NTSC cassettes ....................................................................... |
22 |
Displaying current tape position ................................................................. |
23 |
Searching for a tape position with picture (scanning) ............................ |
23 |
Still picture ....................................................................................................... |
24 |
Searching for tape position without picture (forward wind and |
|
rewind) ............................................................................................................. |
24 |
Instant View ..................................................................................................... |
24 |
Automatic search for a tape position (index search) ............................. |
25 |
Automatic search for a blank space on the tape ..................................... |
25 |
FEliminating picture interference . 26 |
|
Optimising tracking ........................................................................................ |
26 |
Optimising still picture .................................................................................. |
26 |
GManual recording .......................... |
27 |
General information ...................................................................................... |
27 |
Recording without automatic switch-off ................................................... |
27 |
Recording with automatic switch-off (OTR One-Touch-Recording) . 28 |
|
Preventing accidental erasing of cassettes ................................................ |
28 |
Lining up recordings (assemble cut) ........................................................... |
28 |
Selecting the recording speed (SP or LP) ................................................. |
29 |
'Direct Record' ............................................................................................... |
30 |
Switching 'Direct Record' on or off ........................................................... |
31 |
HProgramming a recording |
|
(TIMER) .............................................. |
32 |
General information ...................................................................................... |
32 |
Programming a recording (with 'VIDEO Plus+') ..................................... |
32 |
Problems and solutions for programmed recordings ............................ |
34 |
Programming a recording (without VIDEO Plus+) ................................. |
35 |
Problem solving for programmed recordings .......................................... |
36 |
Programming a recording with 'TURBO TIMER' .................................... |
37 |
Problems and solutions for programmed recordings ............................ |
38 |
How to check, change or delete a programmed recording (TIMER) . 39 |
|
IOther functions ............................ |
40 |
Changing the video (colour) system .......................................................... |
40 |
Child lock ......................................................................................................... |
41 |
Switching the on-screen display (OSD) off or on ................................... |
42 |
Switch off the clock display .......................................................................... |
43 |
Switching the remote control command .................................................. |
44 |
Continuous playback ..................................................................................... |
45 |
Automatic switch-off ..................................................................................... |
46 |
JSuppressing interference ............. |
47 |
Optimising the modulator ............................................................................ |
47 |
Switching the modulator on / off ................................................................ |
48 |
KBefore you call an engineer ......... |
49 |
HOTLINE telephone numbers .................................................................... |
49 |
Table of contents
The remote control
MONITOR |
TV monitor: To switch between TV reception and VCR playback |
|
|

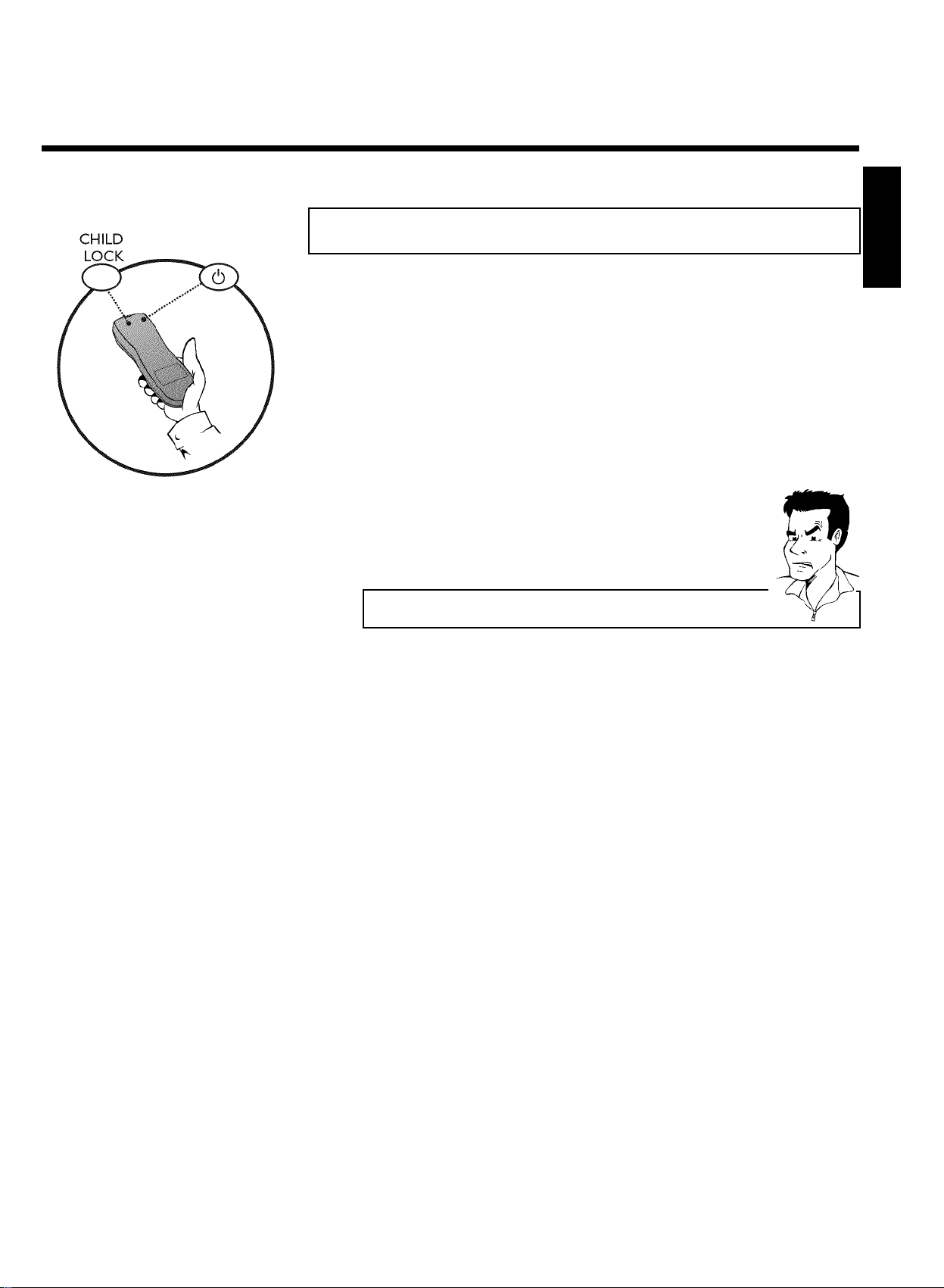

CHILD LOCK |
Child lock: To switch child lock on/off |
|
|
SELECT |
Select: Selecting functions |
|
|
STANDBY/ON m |
Switch on or off: To switch set on or off, interrupt menu function, |
|
interrupt a programmed recording (TIMER) |
|
|
0-9 |
Number buttons: 0 - 9 |
|
|
TV |
To call up additional TV functions: Additional TV functions for TV |
|
sets with the same remote control code (RC5) |
|
|
TURBO TIMER |
TurboTimer: To programme a recording with the function Turbo |
|
Timer |
|
|
TIMER k |
TIMER: To make a TIMER programming with VIDEO Plus+ or to alter |
|
or clear a programmed TIMER |
|
|
RECORD n |
Record: To record the TV channel selected at this moment |
|
|

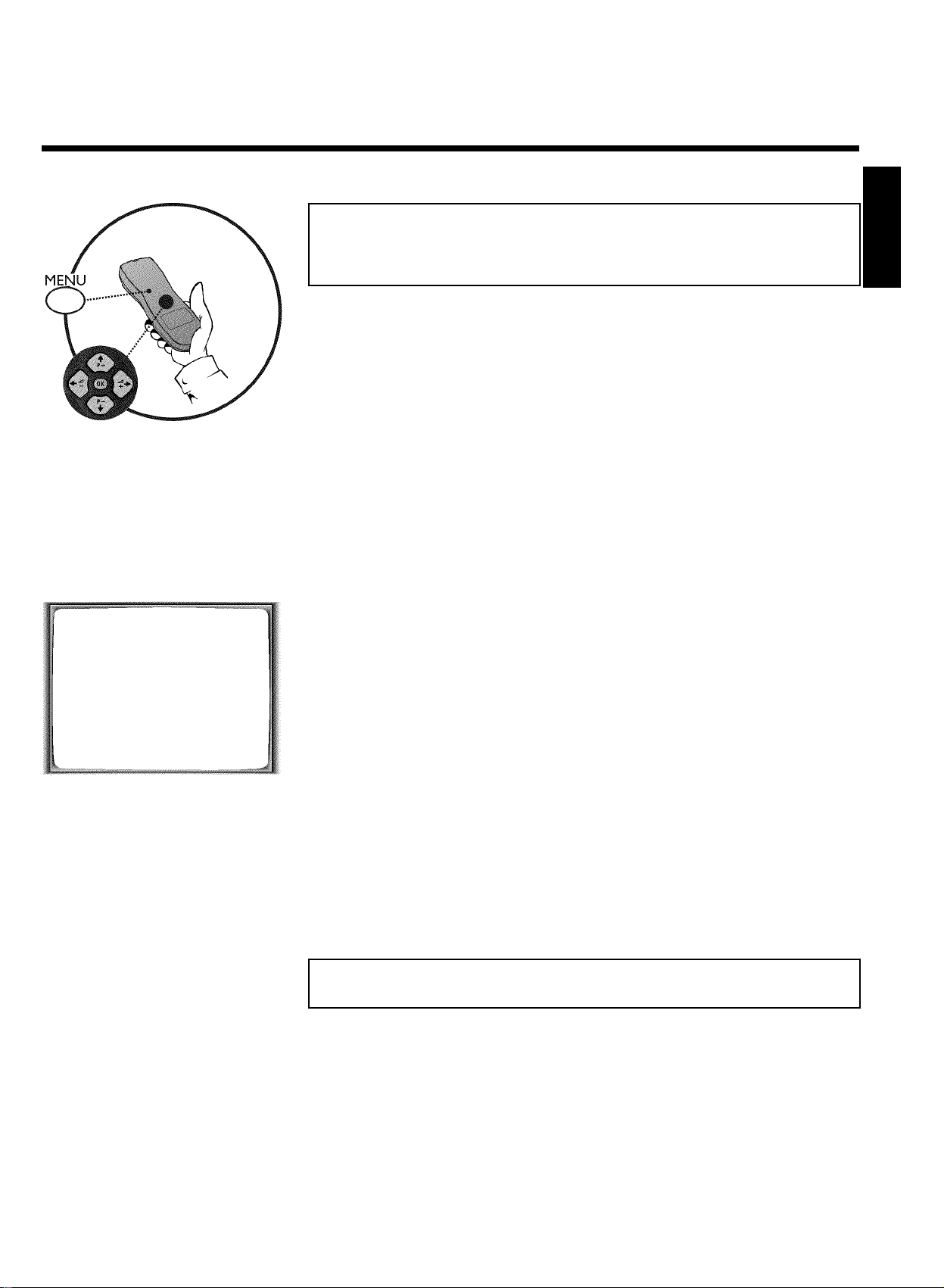

MENU |
Menu: To call up or end main menu |
|
|
CLEAR (CL) |
Delete: To delete last entry/Clear programmed recording (TIMER) |
|
|
P ;q |
Select: To select the next line or programme number |
|
|
P =r |
Select: To select the previous line or programme number |
|
|
QSr |
Select: Cursor left |
|
|
SqP |
Select: Cursor right |
|
|
OK |
Store/Confirm: To store or confirm entry |
|
|
INDEX E |
Index search: In combination with H / I : to search for previous |
|
or next recording on the cassette |
|
|
STILL R |
Still picture: To stop the tape and show a still picture |
|
|
H |
Rewind: During STOP and STANDBY: rewind, during PLAYBACK: |
|
reverse scanning |
|
|
STOP h |
Pause/Stop: To stop the tape, except during TIMER-recording |
|
|
PLAY G |
Playback: To play a cassette |
|
|
I |
Forward wind: During STOP and STANDBY: forward wind, during |
|
PLAYBACK: forward scanning |
ENGLISH
Additional TV functions
Hold down TV and select the corresponding function using the following buttons.
STANDBY/ON m Standby : To switch off the TV
MUTE y |
TV sound off: To switch the sound on or off |
|
|
AV |
To switch the TV to Audio/Video in-socket |
|
|
P ;q |
Select: To select a programme number |
|
|
P =r |
Select: To select a programme number |
|
|
QSr |
TV volume: TV volume down |
|
|
SqP |
TV volume: TV volume up |
|
|
Front of the device
STANDBY/ON m/I |
Switch on or off: To switch off or on, interrupt a function, interrupt a |
|
programmed recording (TIMER) |
|
|
RECORD n |
Record: To record the TV channel selected at this moment |
|
|
PROGRAMME r |
Select: One line or programme number down |
|
|
PROGRAMME q |
Select: One line or programme number up |
|
|
MONITOR |
TV monitor: To switch between TV reception and VCR playback |
|
|
STOP/EJECT ? |
Pause/Stop, eject cassette: To stop the tape and eject the cassette |
|
|
H |
Rewind: During STOP and STANDBY: rewind, during PLAYBACK: |
|
reverse scanning |
|
|
G |
Playback: To play a cassette |
|
|
I |
Forward wind: During STOP and STANDBY: forward wind, during |
|
PLAYBACK: forward scanning |
|
|
The symbols on your video recorder display
ENGLISH
These symbols can light up on your video recorder display:
|
This is where the current operating mode is shown as a symbol. |
|
|
LP |
When you have switched on the LP (Long Play) function or when you |
|
play a tape that has been recorded in LP (Long Play). |
|
|
|
When you have switched on the child lock. |
|
|
DEC |
When a decoder has been allocated to the TV channel (currently |
|
selected programme number on the video recorder) you have currently |
|
selected on the video recorder. |
|
|
|
When you are making a recording. |
|
|
k |
When you have programmed a recording or when a programmed |
|
recording is being made. |
|
|
D |
When you are programming daily recordings. |
|
|
W |
When you are programming weekly recordings. |
|
|
|
When you have put a cassette in the video recorder. |
|
|
DATE |
When the date of the programmed recording is shown. |
|
|
START |
When the start time of the programmed recording is shown. |
|
|
PROG. |
When the programme number of the programmed recording is shown. |
|
|
END |
When the end time of the programmed recording is shown. |
|
|
VPS/PDC |
Video Programming System / Programme Delivery Control: when a VPS |
|
or PDC code is being transmitted. |
|
|
|
Display of programme number of the TV channel / tape position / |
|
channel name / function. |
|
|
|
Tape position in seconds. |
AIntroduction
Dear Philips customer,
Instruction manuals are usually very dry since they are technically-oriented and often poorly translated. I have been employed by Philips for this reason.
Allow me to introduce myself.
My name is Phil. I will be guiding you through the instruction manual and try to be of help in operating your new device. At appropriate points along the way, I will be providing you with the following information:
Excuse me? |
Tip |
Here I will be |
Here I will be giving |
explaining seemingly |
you instructions on |
unimportant things. |
functions that help |
|
make it easier to use |
|
your device. |
Problem
Here I will help you to find the cause of problems and their solutions.
For experts
Here I will be giving you instructions on functions that are necessary for special applications.
I hope you have lots of fun with your new device.
Phil
P.S. If you have questions or if problems come up during operation, please see the helpful information in the chapter 'Before you call an engineer'. If this doesn't help you to resolve the problem, please call the customer support service for your country. The corresponding telephone numbers and e-mail addresses can be found on the last page of this instruction manual.
2 |
Introduction |
|
Welcome to the large family of owners of PHILIPS VHS video recorders.
Thank you for buying a VR170/07 .
Please take the time to read this operating manual before using your video recorder. It contains important information and notes regarding operation.
The video recorder should not be turned on immediately after transportation from a cold to a hot area or vice versa, or in conditions of extreme humidity.
Wait at least three hours after transporting the device. The video recorder needs this time in order to become acclimatised to its new environment (temperature, air humidity, etc.).
Your Philips team hopes that you will enjoy using your new video recorder.
This video recorder is used for the recording and playback of VHS video cassettes.
Cassettes with the VHS-C label (VHS cassettes for camcorders) may only be used with a suitable adapter.
This product complies with the requirements of Directive 73/23/EEC +89/336/EEC +93/68 EEC.
ENGLISH
Specifications
Voltage: 220-240V/50Hz
Energy consumption : 12,5W
Energy consumption (Standby): less than 4W (clock display switched off) Rewind time: approx. 100 seconds (cassette E-180)
Dimensions in cm (B/H/T): 38.0/9.3/26.0 Number of video heads: 2
Recording/playback time: 4 hours (SP) (cassette E-240)
8 hours (LP) (cassette E-240)
Supplied accessories
Operating instructions
Remote control and batteries
Antenna cable
Power cable
Quick install guide
Introduction |
3 |
|
Important notes regarding operation
Danger: High voltage!
Do not remove the top cover as there is a risk of an electrical shock!
The video recorder does not contain any components that can be repaired by the customer. Please leave all maintenance work for qualified personnel.
As soon as the video recorder is connected to the power supply, there are some components that are in constant operation. To switch off the video recorder completely you must disconnect it from the power supply.
These operating instructions have been printed on non-polluting paper.
Deposit old batteries at the appropriate collection points.
Please make use of the facilities available in your country for disposing of the packaging of the video recorder in a way that helps to protect the environment.
This electronic device contains many materials that can be recycled. Please enquire about the possibilities for recycling your old device.
Make sure that air can circulate freely through the ventilation slots on the video recorder. Do not place the device on an unsteady base.
Make sure that no objects or liquids enter the video recorder. Do not place vases or the like on the video recorder. If liquid is spilt into it, immediately disconnect the video recorder from the power supply and call After-sales Service for advice.
Do not place any combustible objects on the device (candles, etc.).
Make sure that children do not place any foreign objects within the openings or ventilation slots.
4 |
Introduction |
|
Special functions of your new video recorder
ENGLISH
Your PHILIPS video recorder is not just for recording and playing back VHS cassettes. It also has a whole range of special functions which will make the day-to-day use of your new video recorder much easier.
Philips has developed a system which produces the best possible playback quality. For old and often-used video cassettes, this system reduces interference. For new or high quality cassettes, it emphasises the details.
When you connect your video recorder to your television and plug it into the wall socket, you will be welcomed with a screen menu. All you have to do is follow the instructions in the 'intelligent help line' for the next step. Enjoy the automatic TV channel search/save function and the automatic time setting.
This function automatically transfers all the television channel settings onto your video recorder.
Your video recorder can ascertain which channel is currently playing on your television and record from it at the touch of a button.
The precision tape drive from Philips provides short rewind times and automatic tape length recognition.
Simple programming system for video recorders. Makes programming as easy as making a telephone call. Simply enter the number code associated with your television programme. This number is located in your favourite television listings magazine.
VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under licence from Gemstar Development Corporation.
So that you can identify your machine for service questions or in the event of theft, enter the serial number here. The serial number (PROD.NO.) is printed on the type plate fixed at the back of the device.
MODEL NO. |
VR170/07 |
PROD. NO. |
.................. |
|
|
Introduction |
5 |
|
Important information for customers in Great Britain
This set is fitted with an approved moulded 13 amp plug. To change the fuse in this plug or to attach a different plug, please proceed as follows:
1Take off the fuse cover and remove the old fuse.
2Insert a new fuse. Suitable fuses are those of the type BS 1362 3A, A.S.T.A. standard or BSI standard.
3Close the fuse cover.
If the attached plug does not meet your requirements, you can cut it off and replace it with a suitable plug. Please observe the following conditions:
If your new plug uses a built-in fuse, this should be a 3A fuse.
If your new plug does not contain a built-in fuse, please do not use any fuses in your fusebox with a rating of more than 5A.
Please destroy the old, cut-off plug so that it cannot be used elsewhere.
Connect the blue cable (neutral 'N') to the terminal in the plug which is marked with the letter 'N' or coloured black.
Connect the brown cable (live, 'L') to the terminal in the plug which is marked with the letter 'L' or coloured red.
Do not in any circumstances connect either of the two cables to the terminal in the plug which is marked with the letter 'E', the symbol "\" or coloured green or green / yellow.
Before you refit the plug cover, make sure, that the grip at the bottom of the plug is clamped over the plastic cover of the lead, not just over the two wires.
6 |
Introduction |
|
BConnecting the video recorder
Preparing the remote control for operation
ENGLISH
The remote control and its batteries are packed separately in the original video recorder packaging. You must install the batteries in the remote control before use - described in the following section.
1Take the remote control and the enclosed batteries (2 batteries).
2Open the remote control's battery compartment and place the batteries in it as shown in the picture and close the battery compartment.
The remote control is now ready to use. Its range is approximately 5 meters.
Connecting your video recorder to the TV set
The necessary cable connections must be made before you can record or playback TV programmes using your video recorder.
We recommend that you use a scart cable to connect your TV set and video recorder.
What is a scart cable?
The scart or Euro AV cable serves as the universal connector for picture, sound and control signals. With this type of connection, there is practically no loss of quality during the picture or sound transfer.
When you install your video recorder for the first time, select one of the following options:
'Connecting with a scart cable'
If your TV set has a scart socket and you are using a scart cable.
'Connecting without a scart cable'
If you do not wish to use a scart cable.
Connecting the video recorder |
7 |
|
Connecting with a scart cable
Have the following cables ready:
an aerial cable (1, supplied), a mains cable (2, supplied), a scart cable (3).
1Remove the aerial cable plug from your TV set. Insert it into the socket 2 at the back of the video recorder.
2Insert one end of the supplied aerial cable into the socket 3 at the back of the video recorder and the other end into the aerial input socket at the back of the TV set.
3 |
Plug one end of a scart cable into the scart socket EXT.1 AV 1 at |
|
|
|
the back of the video recorder and the other end into the suitable |
|
|
|
scart socket on your TV set (see your TV's operating instructions). |
|
|
|
|
|
|
|
My TV set has several scart sockets. Which one should I use? |
|
|
|
Select that scart socket which is suited for the video output as well as for the |
|
|
|
video input. |
|
|
|
My TV offers me a selection menu for the scart socket. |
|
|
|
Select 'TV' as a connection source of this scart socket. |
|
|
|
|
|
|
4Switch on the TV set.
5 Insert one end of the supplied mains cable into the mains socket 4 at the back of the video recorder and the other end into the wall socket.
6If the connection was properly made and your TV was automatically switched to the programme number for the scart socket, e.g. 'EXT', '0', 'AV', you will see the following picture:
8 |
Connecting the video recorder |
|
CONGRATULATIONS
YOU NOW OWN A NEW
PHILIPS
VIDEO RECORDER
CONTINUEpOK
aMy screen is empty
bMany TV sets are switched to the programme number for the scart socket by way of a control signal sent through the scart cable.
bIf the TV set does not automatically switch to the scart socket programme number, manually change to the corresponding programme number on your TV set (see your TV's operating instructions).
Then, read the paragraph 'Initial installation' in the chapter 'Installing your video recorder'.
Connecting without a scart cable
Have the following cables ready:
an aerial cable (1, supplied), a mains cable (2, supplied).
1Switch off your TV set.
2Remove the aerial cable plug from the aerial input socket of the TV set. Insert it into the socket 2 at the back of the video recorder.
3Insert one end of the supplied aerial cable into the socket 3 at the back of the video recorder and the other end into the aerial input socket at the back of the TV set.
4 Insert one end of the supplied mains cable into the mains socket 4 at the back of the video recorder and the other end into the wall socket.
5Switch on your TV set and select the programme number used for video playback on your TV set (see your TV's operating instructions).
Which programme number is used for video recorder operation?
To ensure the stability of the television picture during cassette playback (prevention of waves or streaks), special programme numbers have been set aside on the TV for the use of video recorders. This is usually the highest possible programme number, e.g. '12', '16', '99' or even programme number '0'. For more information, please see your TV's operating instructions.
ENGLISH
Connecting the video recorder |
9 |
|
CONGRATULATIONS
YOU NOW OWN A NEW
PHILIPS
VIDEO RECORDER
CONTINUEpOK
6Select this programme number and manually start the TV's channel search as if you wanted to save a new TV channel until the 'test image' appears.
aI do not see a test screen'
bCheck the cable connections.
bThe video recorder 'transmits' on the 583MHz frequency (channel 35) Repeat the channel search on your TV set.
7Save this programme number setting on your TV set for video recorder operation.
Programme number for video recorder operation
You have now saved a programme number for use by your video recorder as you would a regular TV channel. This programme number must now be used in future for video recorder playback ('video recorder' TV channel).
You can find more details in chapter 'Initial Installation'.
Connecting additional devices
You can connect additional devices such as decoders, satellite receivers, camcorders, etc. to the socket EXT.2 AV 2 .
10 |
Connecting the video recorder |
|
CInstalling your video recording
AUTO INSTALL
SEARCHING
00 TV CHANNELS FOUND
ƒƒƒƒƒƒƒ__________________
PLEASE WAIT...
Initial installation
This chapter shows you how to start the initial installation. The video recorder automatically seeks out and stores all available TV channels.
|
'Aim' correctly |
|
In the following sections, you require the remote control for the first time. |
|
When using, always aim the front of the remote control at the video recorder |
|
and not at the TV set. |
|
Connecting additional devices |
|
After you have connected additional devices (satellite receiver, etc.) through |
|
the aerial cable, switch them on. The automatic channel search will recognise |
|
them and save them. |
1 |
|
Confirm the image on the TV screen by pressing the OK button on |
|
|
the remote control. |
Autoinstall starts. This picture will appear on the screen:
aThe video recorder does not find any TV channels during the search
bSelect channel 1 on the TV set. Can you see the saved TV channel on the TV set?
If not, check the cable connection of the aerial (aerial socket), video recorder, TV set.
bPlease have patience.
The video recorder searches the entire frequency range in order to find and save the largest possible number of TV channels. It is possible that the TV channels in your country are broadcast in a higher frequency range. As soon as this range is reached during the search, the video recorder will find the TV channels.
2When 'Autoinstall' is complete, 'STORED' will briefly appear on the TV screen.
The initial installation is now complete.
Check the date and time. Please read 'Setting the time and date' in this chapter.
Satellite receiver
If you are connecting a satellite receiver, please read the section 'Using the satellite receiver'.
Decoder
If you are connecting a decoder, you must install it as described in the next section.
ENGLISH
Installing your video recording |
11 |
|
Loading...
