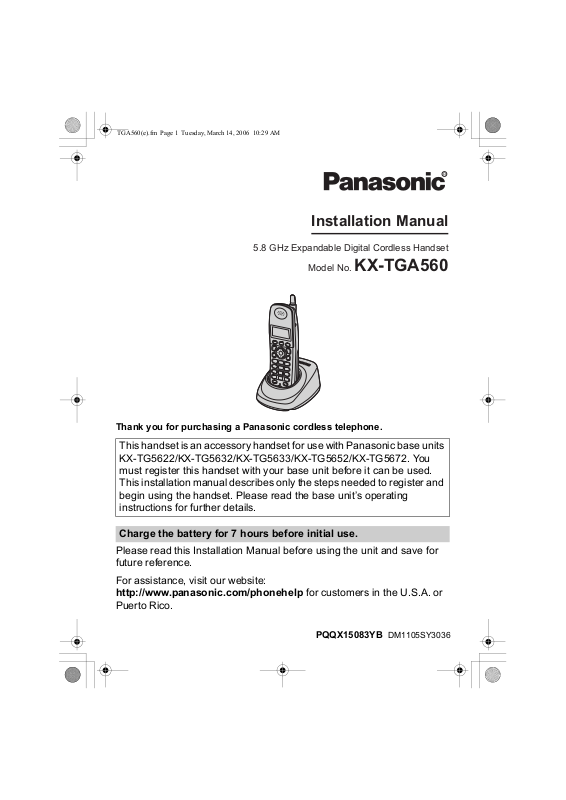

Installation Manual
5.8 GHz Expandable Digital Cordless Handset
Model No. KX-TGA560
Thank you for purchasing a Panasonic cordless telephone.
This handset is an accessory handset for use with Panasonic base units KX-TG5622/KX-TG5632/KX-TG5633/KX-TG5652/KX-TG5672. You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit’s operating instructions for further details.
Charge the battery for 7 hours before initial use.
Please read this Installation Manual before using the unit and save for future reference.
For assistance, visit our website: http://www.panasonic.com/phonehelp for customers in the U.S.A. or Puerto Rico.
PQQX15083YB DM1105SY3036
TGA560(e).fm Page 2 Tuesday, March 14, 2006 10:29 AM
Accessory information
Included accessories
Accessory item |
Order number |
Quantity |
|
|
KX-TGA560B |
KX-TGA560M |
|||
|
|
|||
Charger |
PQLV30042ZB |
1 |
– |
|
|
|
|
|
|
|
PQLV30042ZM |
– |
1 |
|
|
|
|
|
|
AC adaptor for charger |
KX-TCA1-2 or PQLV256*1 |
1 |
1 |
|
Battery |
HHR-P104 |
1 |
1 |
|
|
|
|
|
|
Handset cover*2 |
PQYNTG5633BR |
1 |
– |
|
|
PQYNTG5632MR |
– |
1 |
|
|
|
|
|
*1 Both of the AC adaptors function well with the charger. *2 The handset cover comes attached to the handset.
Sales and support information
LTo order replacement accessories, call 1-800-332-5368.
LTTY users (hearing or speech impaired users) can call 1-866-605-1277.
Setting up the handset
Connecting the charger
(120 V AC, 60 Hz)
Note:
Bottom of |
Hooks |
|
the charger |
||
|
Fasten the AC adaptor cord to prevent it from being disconnected.
LUse only the included Panasonic AC adaptor KX-TCA1 or PQLV256.
LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
2 For assistance, please visit http://www.panasonic.com/consumersupport
TGA560(e).fm Page 3 Tuesday, March 14, 2006 10:29 AM
LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become disconnected.
Battery installation
1 Press the notch of the handset cover firmly, and slide it in the direction of the arrow.
2 Insert the battery (A), and press it down until it snaps into the compartment (B). Then close the handset cover.
B |
A |
Attention:
A nickel metal hydride battery that is recyclable powers the product you have purchased.
Please call 1-800-8-BATTERY (1-800- 822-8837) for information on how to recycle this battery.
Battery charge
Place the handset on the charger for 7 hours before initial use.
Note:
LIf you want to use the unit immediately, charge the battery for at least 15 minutes.
LTo ensure that the battery charges properly, clean the charge contacts of the handset and charger with a soft, dry cloth once a month. Clean more often if the unit is subject to the exposure of grease, dust, or high humidity.
Panasonic battery performance
Operation |
Operating time |
|
|
While in use |
Up to 5 hours |
(talking) |
|
While not in use |
Up to 11 days |
(standby) |
|
|
|
While using the |
Up to 3 hours |
clarity booster |
|
feature |
|
Note: |
|
LThe handset can be left on the charger without any ill effect on the battery.
LThe battery level may not be displayed correctly after you replace the battery. In this case, place the handset on the charger and let charge for 7 hours.
|
|
|
For assistance, please visit http://www.panasonic.com/consumersupport |
3 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TGA560(e).fm Page 4 Tuesday, March 14, 2006 10:29 AM
Registration
Register the handset to a KX-TG5622/KX- TG5632/KX-TG5633/KX-TG5652/KX- TG5672 base unit.
Important:
LIf you accidentally assign another handset’s extension number to the base unit, the originally assigned handset stops functioning. Confirm the extension number of a previously registered handset by placing it on the base unit or charger. Lift the handset from the charger before registering.
1 Base unit:
Select an unregistered extension number.
KX-TG5622:
Press and hold {1}, {2}, or {3} until the CHARGE indicator flashes.
KX-TG5632/KX-TG5633/KX-TG5652:
Press {SELECT} until the desired extension number (H1, H2, H3, or H4) is displayed on the base unit, then press and hold {CALL} until the CHARGE indicator flashes.
KX-TG5672:
Press and hold {INTERCOM} until the CHARGE indicator flashes, then press
{1}, {2}, or {3}.
LAfter the CHARGE indicator starts flashing, the rest of the procedure must be completed within 1 minute.
2 Handset:
Press {OK}, then wait until the handset beeps.
Changing the display language
1 {MENU} i{0}{8}
2 Select the desired setting.
3 Press the right soft key to save. i
{OFF}
Headset (optional)
Connecting a headset to the handset allows hands-free phone conversations. Please use only a Panasonic KX-TCA60/ KX-TCA86/KX-TCA88HA/KX-TCA91/KX- TCA92/KX-TCA98 headset. See page 2 for ordering information.
LHeadset shown is KX-TCA86.
Note:
LTo switch to the handset speakerphone, press {s}. To return to the headset, press {C}.
4 For assistance, please visit http://www.panasonic.com/consumersupport
TGA560(e).fm Page 5 Tuesday, March 14, 2006 10:29 AM
Wall mounting
1 Drive the screws (not included) into the wall using the wall template as a guide.
25.4 mm (1 inch)
Screws
(120 V AC, 60 Hz)
2 Mount the charger (A), then slide it down (B) and to the right (C) until it is secure.
A
B
C
25.4 mm (1 inch)
Specifications
General
Operating environment:
5 °C – 40 °C (41 °F – 104 °F)
Handset
Frequency:
5.76 GHz – 5.84 GHz
Dimensions:
Approx. height 173 mm x width 48 mm x depth 33 mm (613/16" x 17/8" x 15/16")
Mass (Weight):
Approx. 170 g (0.37 lb.)
Power output:
200 mW (max.)
Power supply:
Ni-MH battery (3.6 V, 830 mAh)
Charger
Dimensions:
Approx. height 51 mm x width 88 mm x depth 100 mm (2" x 315/32" x 315/16")
Mass (Weight):
Approx. 94 g (0.21 lb.)
Power consumption:
Standby: Approx. 0.8 W/0.3 W (KX-TCA1/PQLV256) Maximum: Approx. 3.6 W/2.4 W (KX-TCA1/PQLV256)
Power supply:
AC adaptor (120 V AC, 60 Hz)
|
|
|
For assistance, please visit http://www.panasonic.com/consumersupport |
5 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
