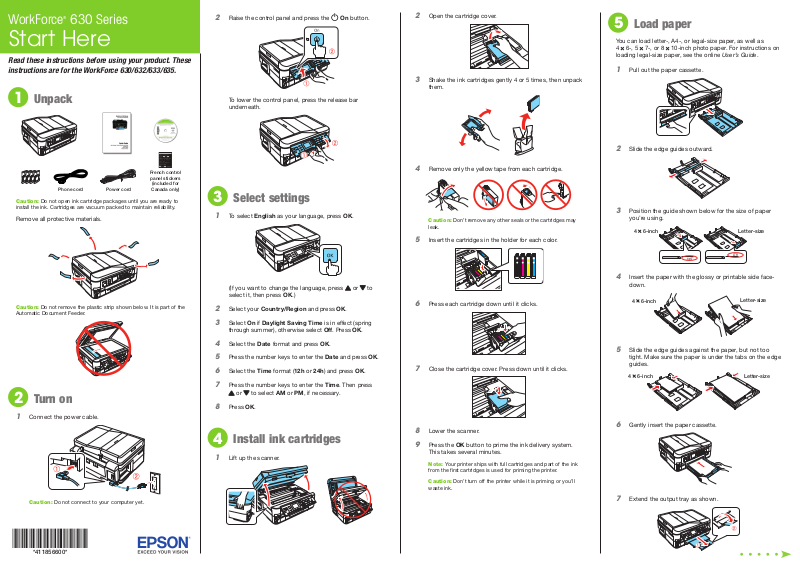

WorkForce® 630 Series
Start Here
Read these instructions before using your product. These instructions are for the WorkForce 630/632/633/635.
1 Unpack
|
|
French control |
|
|
panel stickers |
|
|
(included for |
Phone cord |
Power cord |
Canada only) |
Caution: Do not open ink cartridge packages until you are ready to install the ink. Cartridges are vacuum packed to maintain reliability.
Remove all protective materials.
Caution: Do not remove the plastic strip shown below. It is part of the Automatic Document Feeder.
2 Turn on
1 Connect the power cable.
Caution: Do not connect to your computer yet.
*411856600*
*411856600*
2 Raise the control panel and press the
On button.
To lower the control panel, press the release bar underneath.
3 Select settings
1 To select English as your language, press OK.
(If you want to change the language, press
or
to select it, then press OK.)
2Select your Country/Region and press OK.
3Select On if Daylight Saving Time is in effect (spring through summer), otherwise select Off. Press OK.
4Select the Date format and press OK.
5Press the number keys to enter the Date and press OK.
6Select the Time format (12h or 24h) and press OK.
7Press the number keys to enter the Time. Then press
or
to select AM or PM, if necessary.
8Press OK.
4 Install ink cartridges
1 Lift up the scanner.
2 Open the cartridge cover.
3Shake the ink cartridges gently 4 or 5 times, then unpack them.
4Remove only the yellow tape from each cartridge.
Caution: Don’t remove any other seals or the cartridges may leak.
5Insert the cartridges in the holder for each color.
6 Press each cartridge down until it clicks.
7Close the cartridge cover. Press down until it clicks.
8Lower the scanner.
9Press the OK button to prime the ink delivery system. This takes several minutes.
Note: Your printer ships with full cartridges and part of the ink from the first cartridges is used for priming the printer.
Caution: Don’t turn off the printer while it is priming or you’ll waste ink.
5 Load paper
You can load letter-, A4-, or legal-size paper, as well as
4
6-, 5
7-, or 8
10-inch photo paper. For instructions on loading legal-size paper, see the online User’s Guide.
1 Pull out the paper cassette.
2Slide the edge guides outward.
3Position the guide shown below for the size of paper you’re using.
4 6-inch |
Letter-size |
|
LTR |
4Insert the paper with the glossy or printable side facedown.
4 6-inch |
Letter-size |
5Slide the edge guides against the paper, but not too tight. Make sure the paper is under the tabs on the edge guides.
4 6-inch |
Letter-size |
6 Gently insert the paper cassette.
7 Extend the output tray as shown.
