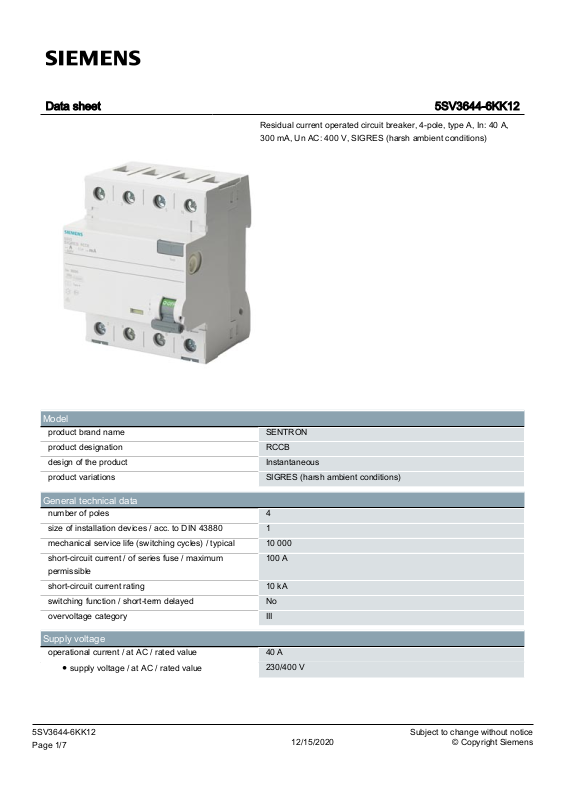

Data sheet |
5SV3644-6KK12 |
Residual current operated circuit breaker, 4-pole, type A, In: 40 A, 300 mA, Un AC: 400 V, SIGRES (harsh ambient conditions)
Model
product brand name
product designation
design of the product
product variations
SENTRON
RCCB
Instantaneous
SIGRES (harsh ambient conditions)
General technical data
number of poles
size of installation devices / acc. to DIN 43880
mechanical service life (switching cycles) / typical
short-circuit current / of series fuse / maximum permissible
short-circuit current rating
switching function / short-term delayed
overvoltage category
4
1
10 000
100 A
10 kA
No
III
Supply voltage
operational current / at AC / rated value |
40 A |
|
230/400 V |
● supply voltage / at AC / rated value |
|
|
|
5SV3644-6KK12 |
12/15/2020 |
Subject to change without notice |
Page 1/7 |
© Copyright Siemens |
|
|
|
● supply voltage / for testing equipment / minimum
operating frequency
supply voltage frequency
● rated value
100 V
50 Hz
50 Hz
Protection class
protection class IP |
IP20, if the distribution board is installed, with connected |
|
conductors |
|
|
|
|
Switching capacity |
|
switching capacity current
●acc. to EN 60898 / rated value
●according to IEC 61008-1 / rated value
0.8 kA
0.8 kA
Dissipation
power loss [W]
●for rated value of the current / at AC / in hot operating state / per pole
●maximum
1.9 W
5.7 W
Current
tripping fault current / rated value
residual current type
let-through current / permissible
I2t value / permissible
surge current resistance / rated value
operational current
●at 40 °C / rated value
●at 45 °C / rated value
●at 50 °C / rated value
●at 55 °C / rated value
●at 60 °C / rated value
●at 65 °C / rated value
●at 70 °C / rated value
300 mA
A
5 200 kA
58 000 A²·s
1 kA
40 A
40 A
40 A
40 A
40 A
40 A
40 A
Product details
product feature / silicon-free |
Yes |
|
Yes |
product extension / installable / supplementary |
|
devices |
|
|
|
|
|
Connections |
|
connectable conductor cross-section / solid
●minimum
●maximum
connectable conductor cross-section / stranded
0.75 mm²
35 mm²
5SV3644-6KK12 |
12/15/2020 |
Subject to change without notice |
Page 2/7 |
© Copyright Siemens |
|
|
|
●minimum
●maximum
tightening torque / with screw-type terminals
●minimum
●maximum
position / of power supply cord
0.75 mm²
35 mm²
2.5 N·m
3 N·m
top or bottom
Mechanical Design
height
width
depth
installation depth
number of modular width units
fastening method
mounting position
90 mm
72 mm
70 mm
70 mm
4
DIN rail (REG)
any
Environmental conditions
ambient temperature / during operation
●minimum
●maximum
ambient temperature / during storage
●minimum permissible
●maximum permissible
number of test cycles / for environmental testing / acc. to IEC 60068-2-30
-25 °C
45 °C
-40 °C
75 °C
28
Certificates
|
reference code |
|
|
|
● acc. to DIN EN 61346-2 |
F |
|
|
● acc. to IEC 81346-2 |
F |
|
|
|
|
|
|
|
|
|
General Product Approval
Confirmation Miscellaneous
Declaration of |
Test Certific- |
other |
|
|
|
Railway |
|
|
|
||
Conformity |
ates |
|
|
|
|
|
|
|
|
|
|
|
|
Miscellaneous |
|
Miscellaneous |
|
Confirmation |
Vibration and Shock |
|
Confirmation |
||
|
|
|
|
|
|
|
|
|
|
|
|
