11-400060-02 TITAN 2100 IPL 98346 Page 1 of 9
www.ktoutdoor.com

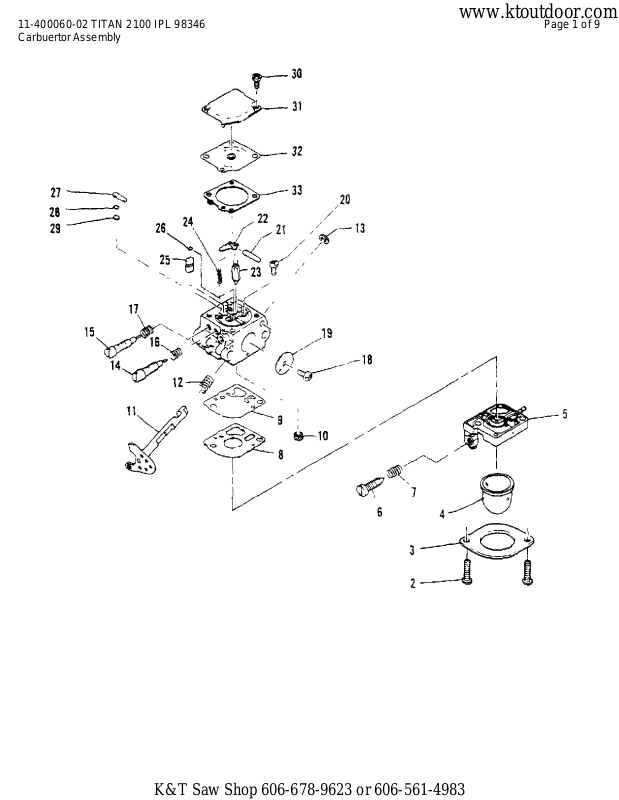

Carbuertor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400060-02 TITAN 2100 IPL 98346 Page 2 of 9
www.ktoutdoor.com
Carbuertor Assembly
Ref # Part Number DescriptionQty
1 224142-02 Carburetor Asy (WT 211)1
2 Screw-Pump Cover Not available separately.2
3 Cover-Primer Pump Not available separately.1
4 223077 Primer-Pump1
5 223913 Cover Asy Fuel-Pump1
6 Screw-Idle Adjustment Not available separately.1
7 Spring-Idle Screw Not available separately.1
8 Gasket-Fuel Pump Not available separately.1
9 Diaphragm-Fuel Pump Not available separately.1
10 Screen-Fuel Pump Inlet Not available separately.1
11 Shaft Assembly Throttle Not available separately.1
12 Spring-Throttle Return Not available separately.1
13 Ring-Shaft Retainer Not available separately.1
14 Needle-Idle Not available separately.1
15 Needle-High Speed Not available separately.1
16 Spring-Idle Needle Not available separately.1
17 Spring-High Speed Needle Not available separately.1
18 Screw-Valve Not available separately.1
19 Valve-Throttle Not available separately.1
20 Screw-Metering Lever Pin Not available separately.1
21 Pin-Metering Lever Not available separately.1
22 Lever-Metering Not available separately.1
23 Valve-Inlet Needle Not available separately.1
24 Spring-Metering Lever Not available separately.1
25 Seat Asy Check-Valve Not available separately.1
26 Plug-Welch 5/16 Not available separately.1
27 Plug-Welch 1/4 Not available separately.1
28 Ring-Screen Retainer Not available separately.1
29 Screen-Check Valve Not available separately.4
30 Screw-Metering Cover Not available separately.1
31 Cover-Metering Lever Not available separately.1
32 Diaphragm Asy-Metering Not available separately.1
33 Gasket-Metering Diaph. Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400060-02 TITAN 2100 IPL 98346 Page 3 of 9
www.ktoutdoor.com
Shaft/Shield/Cutter/Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
