Page 1
11-400048E GAS BLOWER 03/85 to 10/85 IPL 219060 Page 1 of 9
www.ktoutdoor.com

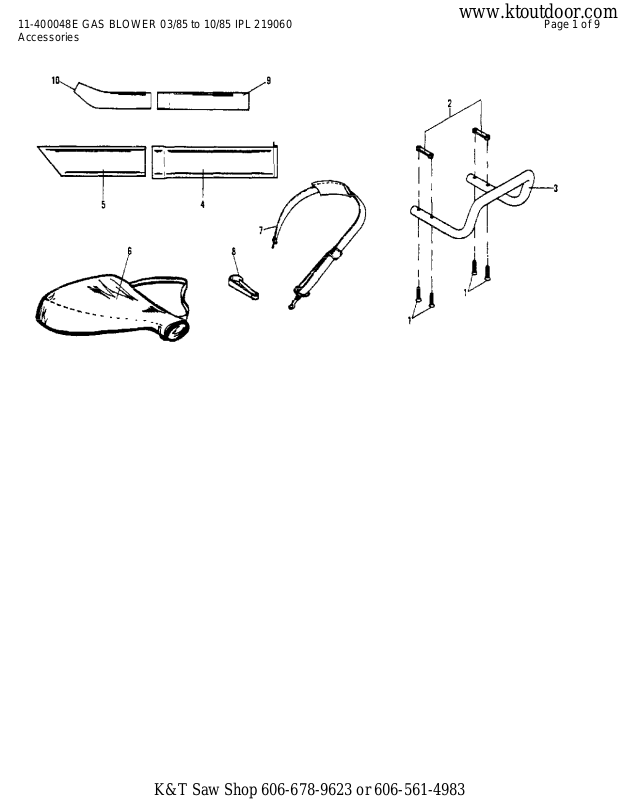

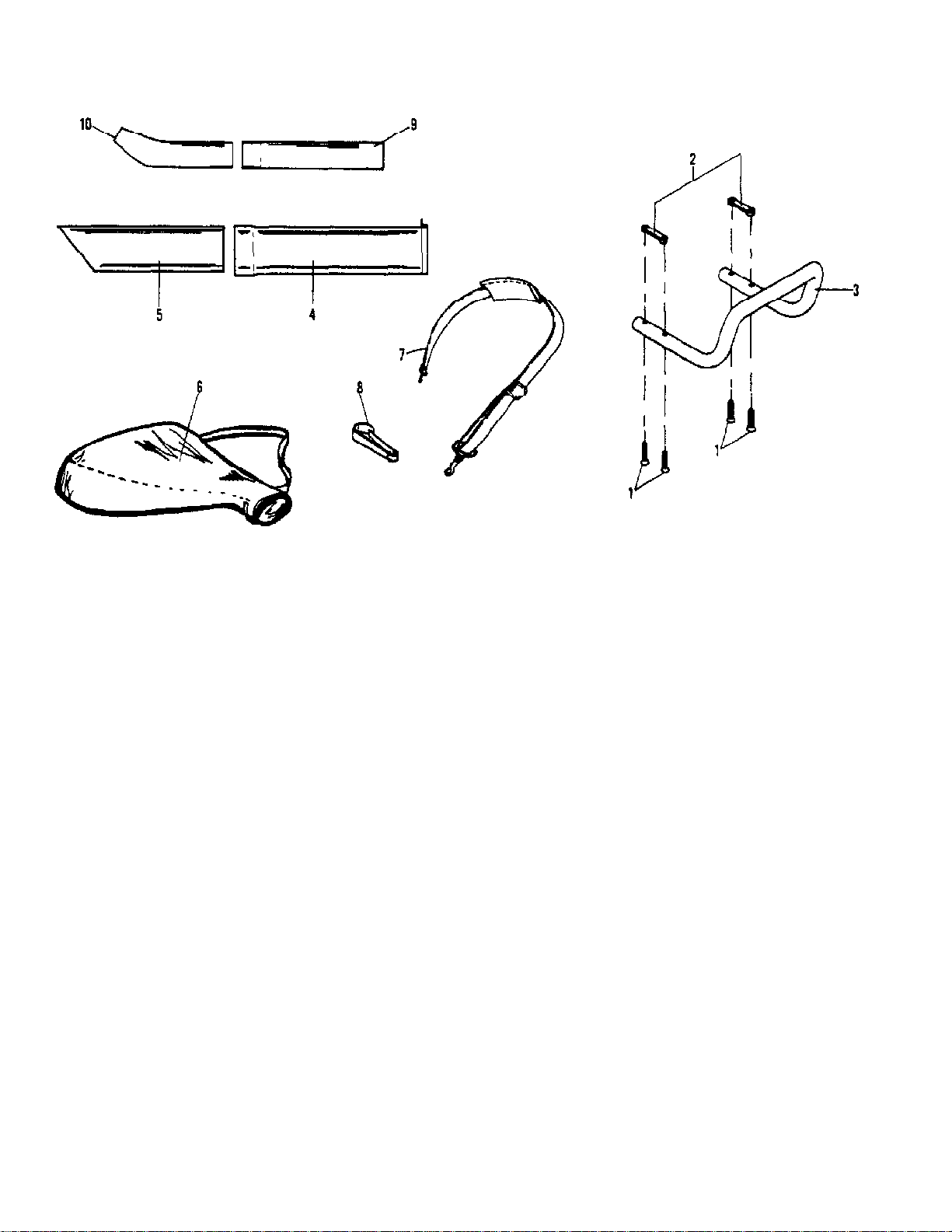

Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400048E GAS BLOWER 03/85 to 10/85 IPL 219060 Page 2 of 9
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
218717 Kit - Vacuum1
1 218947 Screw 10-24 x 1.12 Torx - Frame (35-45 in lb. torque)4
2 216117 Plate - Nut2
3 218545 Frame1
4 218657 Vacuum Tube - Upper Section1
5 218684 Vacuum Tube - Lower Section1
6 218660 Bag Assembly1
7 218666 Harness1
8 218938 Hook - Snap1
9 218663 Blower Tube - Straight1
10 218665 Blower Nozzle - Curved1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400048E GAS BLOWER 03/85 to 10/85 IPL 219060 Page 3 of 9
www.ktoutdoor.com

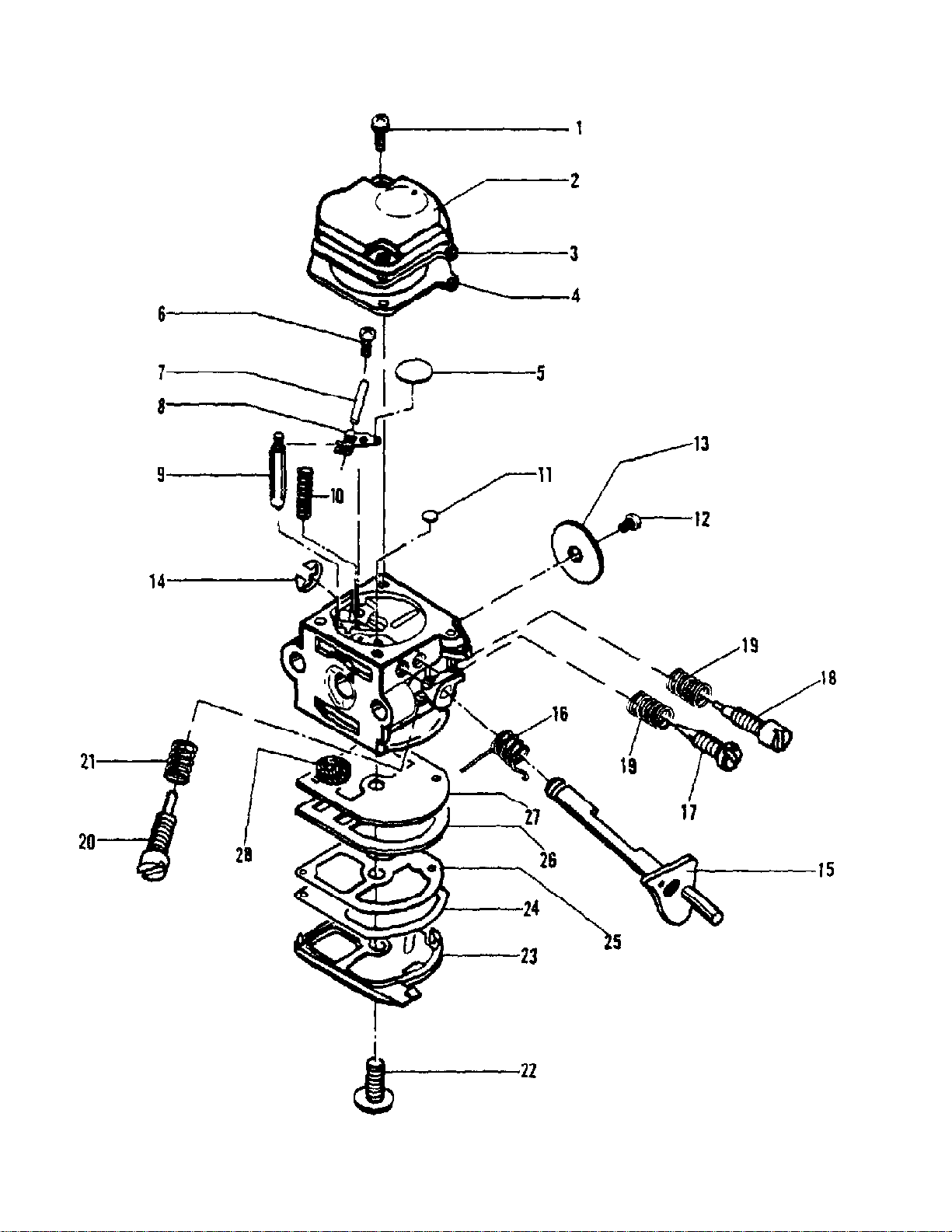

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400048E GAS BLOWER 03/85 to 10/85 IPL 219060 Page 4 of 9
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
218647 Zama M-121
1 Screw Not available separately.2
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Main Not available separately.1
4 Gasket - Main Not available separately.1
5 Disc Not available separately.1
6 Screw - Pin Not available separately.1
7 Pin - Arm Not available separately.1
8 Arm - Needle Valve Not available separately.1
9 Valve - Needle Not available separately.1
10 Spring - Arm Not available separately.1
11 Plug - Welch Not available separately.1
12 Screw - Throttle Valve Not available separately.1
13 Valve - Throttle Not available separately.1
14 E-Ring Not available separately.1
15 Shaft Asy. - Throttle Not available separately.1
16 Spring - Throttle Return Not available separately.1
17 Needle - High Speed Adj. Not available separately.1
18 Needle - Low Speed Adj. Not available separately.1
19 Spring - Needle Not available separately.2
20 Screw - Throttle Adj. Not available separately.1
21 Spring - Throttle Adj. Screw Not available separately.1
22 Screw - Cover Not available separately.1
23 Cover - Fuel Pump Not available separately.1
24 Diaphragm - Surge Not available separately.1
25 Gasket - Fuel Pump Not available separately.1
26 Retainer - Fuel Pump Not available separately.1
27 Diaphragm - Fuel Pump Not available separately.1
28 Strainer - Fuel Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400048E GAS BLOWER 03/85 to 10/85 IPL 219060 Page 5 of 9
www.ktoutdoor.com

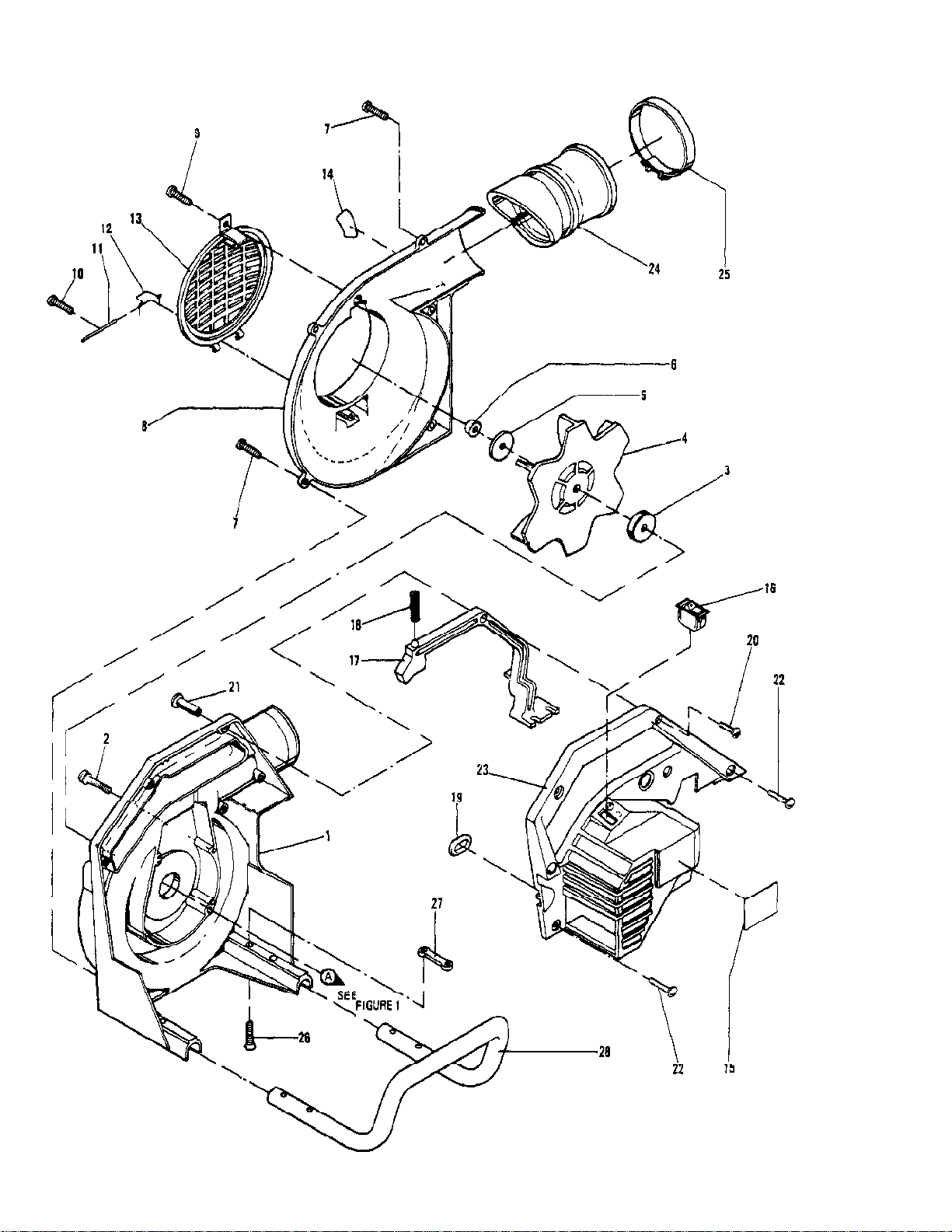

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400048E GAS BLOWER 03/85 to 10/85 IPL 219060 Page 6 of 9
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 218547 Housing Inner1
2 216022 Screw - M4 x 23.4 Torx (40-50 in. lb. torque)4
3 218655 Disc - Drive1
4 218518 Impeller1
5 218656 Washer - Impeller1
6 213169 Nut - Hx Flange M-8 (90 - 100 in. lb. torque)1
7 218644 Screw - 10-14 x .75 Torx (35 - 45 in. lb. torque)5
8 218546 Housing - Outer Impeller1
9 216535 Screw 8-16 x .625 - Cover (25 - 35 in. lb. torque)1
10 218643 Screw 8-16 x .50 Torx - Pin Cover (25 - 35 in. lb.
torque)
11 218538 Pin - Cover1
12 218539 Spring - Cover1
13 218580 Cover - Inlet
14 218852 Decal - Warning Inlet1
15 218797 Decal - Warning1
16 218648 Switch1
17 218935 Trigger1
18 218646 Spring - Trigger1
19 218667 Link - Harness2
20 217935 Screw - 10-24 x .50 Torx (45 - 55 in lb. torque)1
21 218676 Eyelet - Threaded1
22 218644 Screw - 10-14 x .75 Torx (35 - 45 in. lb. torque)1
23 218548 Shroud - Engine1
24 218664 Adapter - Tube1
25 219073 Clamp - Tube1
26 Screw - 10-24 x 1.12 Torx - Frame, (35-45 in. lb.
4
torque)
27 Plate - Nut See Accessories Illustration and parts list2
28 Frame See Accessories Illustration and parts list1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400048E GAS BLOWER 03/85 to 10/85 IPL 219060 Page 7 of 9
www.ktoutdoor.com

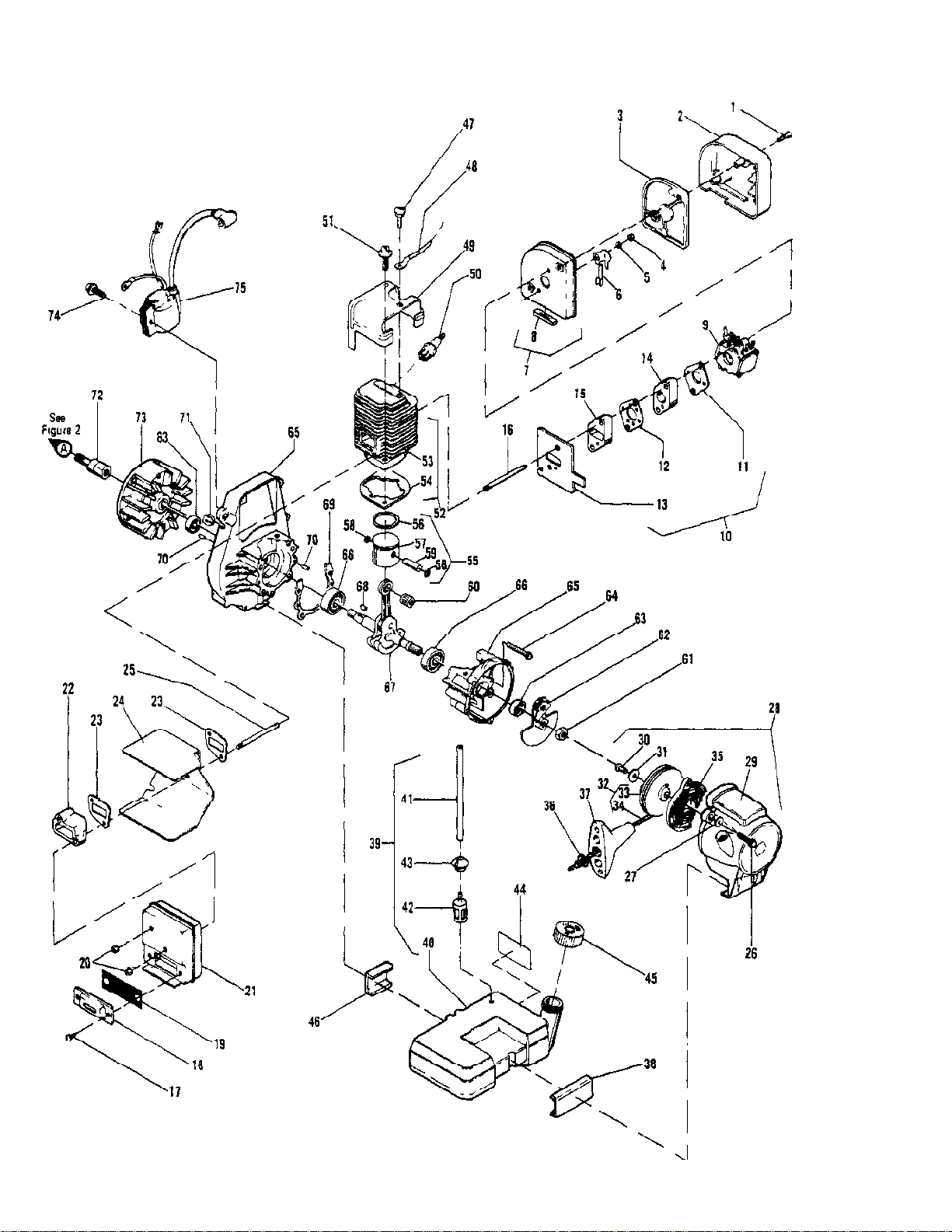

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400048E GAS BLOWER 03/85 to 10/85 IPL 219060 Page 8 of 9
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 217669 Screw - M4 x 25 torx (6-9 in lb. torque)2
2 215988 Cover - Air Cleaner1
3 217376 Filter Assembly - Air1
4 217275 Nut - Flange M-52
5 215993 Spacer - Shutter1
6 215991 Shutter - Choke1
7 216108 Air Box/Grommet Asy1
8 215992 Grommet - Choke1
9 Carburetor Asy. See Carburetor Assembly Illustration
10 219080 Gasket - Kit1
11 218919 Gasket - Carburetor1
12 218933 Gasket - Spacer1
13 218918 Gasket/Shield Insulator1
14 218931 Spacer - Carburetor1
15 215771 Insulator - Carburetor1
16 218631 Stud - M5 x 792
17 216025 Screw M4 x 8 Torx - Outlet (13-17 in. lb. torque)2
18 218553 Outlet - Muffler1
19 215516 Screen - Spark Arrestor1
20 217275 Nut - Flange M.5 (32-51 in. lb. torque)2
21 218651 Muffler Assembly1
22 218632 Spacer - Muffler1
23 218920 Gasket - Muffler2
24 218652 Shield - Muffler1
25 218631 Stud - M5 x 79 - Muffler (40-51 in. lb. torque)2
26 213177 Screw M4.2 x 18.5 Torx (12-16 in. lb. torque)3
27 217672 Washer - M4 Flat - Starter3
28 217388 Starter Assembly1
29 217389 Housing - Starter Assembly1
30 215874 Screw - M4 x 9.5 Torx - Drum (17-22 in. lb. torque)1
31 216590 Washer M4 - Flat1
32 216092 Drum/Rope Assembly1
33 215770 Drum - Starter1
34 216093 Rope - Starter1
35 217482 Spring - Starter1
36 218941 Washer - Nylon1
37 216792 Handle - Starter1
38 217382 Cushion - Fuel Tank/Starter1
39 218650 Fuel Tank/Hose Assembly1
40 218576 Tank - Fuel1
41 218915 Hose - Fuel1
42 216985 Pickup - Fuel1
43 215495 Grommet1
44 217383 Decal 40:11
45 216346 Cap - Fuel1
46 217390 Cushion - Fuel Tank/Crankcase1
47 213178 Screw - M5 x 8.5 Torx (15-26 in. lb. torque)1
48 218649 Terminal Assembly - Ground1
49 218586 Cover - Cylinder1
50 62345 Spark Plug - AC - C545T (109-135 in. lb. hand torque)1
51 217320 Screw - M6 x 18 Torx (72-83 in. lb. hand torque)2
52 219081 Cylinder/Gasket Kit1
53 217296 Cylinder1
54 215542 Gasket - Cylinder/Crankcase1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
and parts list.
Page 9
11-400048E GAS BLOWER 03/85 to 10/85 IPL 219060 Page 9 of 9
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 219082 Piston Kit1
56 217475 Ring - Piston1
57 218273 Piston1
58 111026 Snap Ring - Wrist Pin2
59 218275 Pin - Wrist1
60 110984 Bearing - Needle1
61 216583 Nut - Hex M-8 - Ratchet Asy (156-17) in. lb. torque)1
62 215525 Ratchet Assembly (Hand Tighten Only)1
63 83859 Oil Seal - C-Shaft/Crankcase2
64 213179 Screw - M5 x 28.5 Torx (35-42 in. lb. hand torque)4
65 218185 Crankcase Assembly1
66 213282 Bearing - C-Shaft/Crankcase2
67 218106 Crankshaft/Con Rod Assembly1
68 102164 Key - Flywheel1
69 215545 Gasket - Crankcase Halves1
70 213191 Pin4
71 215541 Grommet1
72 218654 Extension - Shaft (150-168 in. lb. torque)1
73 217378 Flywheel1
74 213177 Screw - M4.2 x 18.5 Torx - Ignition (13-16 in. lb.
2
torque)
75 217439 Ignition1
K&T Saw Shop 606-678-9623 or 606-561-4983
