Page 1
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 1 of 12
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 2 of 12
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
216513 Pkg - Weed/Grass Blade (E.B.III)
216514 Pkg - Brush Blade (E.B. III)
216898 Pkg - 40' .095" Line (E.B.II)
216899 pkg - 1 lb. .095" Line (E.B.II)
216900 Pkg - 5 lb. .095" Line (E.B.II)
217719 Kit - Brush Cutter
217350 40' Line on Spool (.080")
215516 Pkg - Spark Arrester Screen (E.B.I)
216767 Spindle Lock
216821 Replacement String Head (S/L - E.B.II)
216822 Replacement String Head (D/L - E.B.III)
217351 Pkg - 1 lb. .080" Line (S/L - E.B.I)
217749 Kit - Grass Blade/Shield
217353 Replacement String Head (S/L - E.B.I)
217352 Pkg - 5 lbs. .080" Line (E.B.I)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 3 of 12
www.ktoutdoor.com

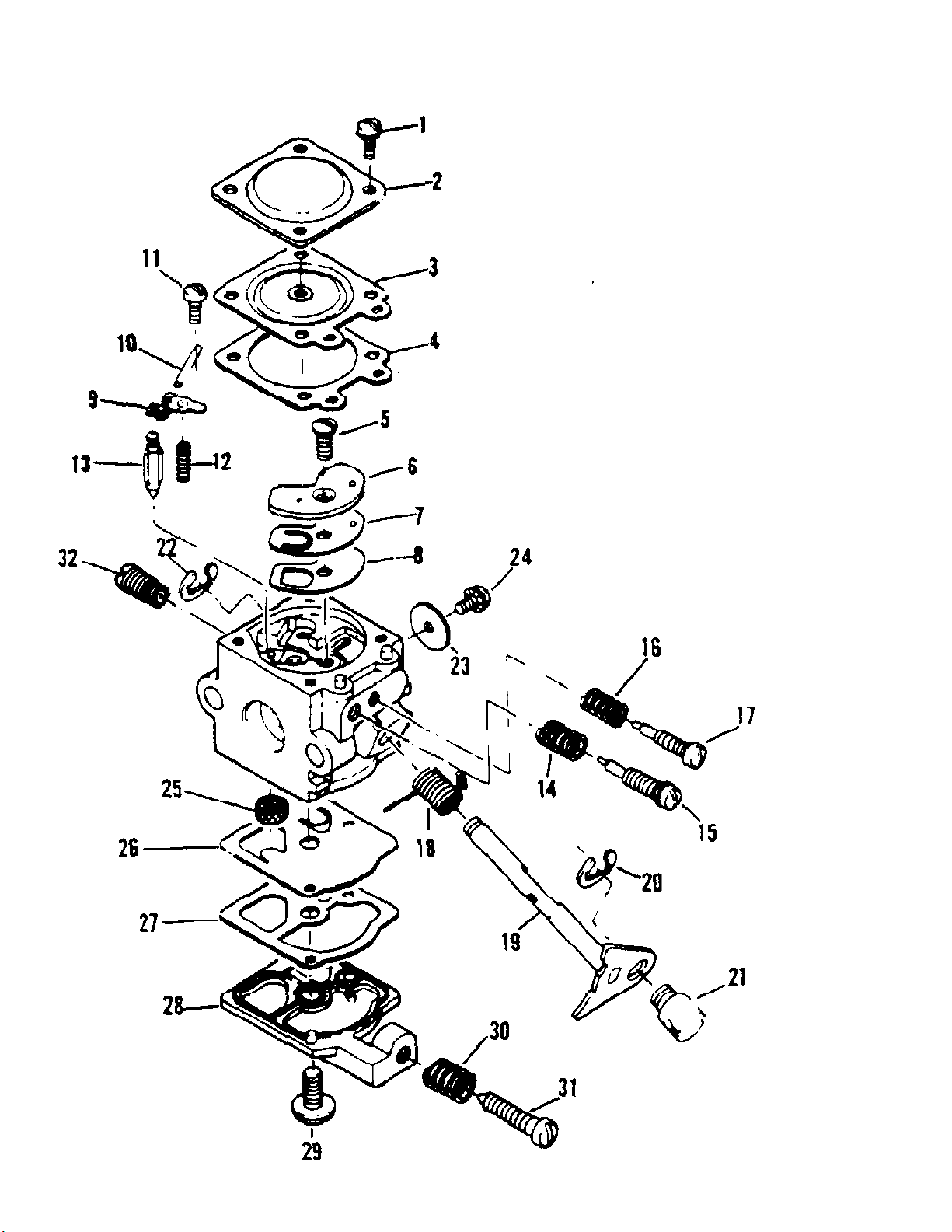

Carburetor Assembly (Part 1)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 4 of 12
www.ktoutdoor.com
Carburetor Assembly (Part 1)
Ref # Part Number DescriptionQty
217274 Carburetor Assembly-Governed) (WA - 152)1
215494 Carburetor Assembly (WA - 146)1
1 Screw - Cover Not available separately.A/R
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Metering Not available separately.1
4 Gasket - Diaphragm Not available separately.1
5 Screw - Circuit Plate Not available separately.1
6 Plate - Circuit Not available separately.1
7 Diaphragm - Circuit Plate Not available separately.1
8 Gasket - Circuit Plate Not available separately.1
9 Lever - Metering Not available separately.1
10 Pin - Lever Not available separately.1
11 Screw - Lever Pin Not available separately.1
12 Spring - Lever Not available separately.1
13 Valve - Inlet Needle Not available separately.1
14 Spring - High Speed Needle Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Needle - Idle Not available separately.1
18 Spring - Throttle Return Not available separately.1
19 Shaft - Throttle Not available separately.1
20 Clip Not available separately.1
21 Swivel Not available separately.1
22 Valve - Throttle Not available separately.1
23 Screw - Throttle Valve Not available separately.1
24 Screen - Inlet Not available separately.1
25 Diaphragm - Fuel Pump Not available separately.1
26 Gasket - Fuel Pump Not available separately.1
27 Cover - Fuel Pump Not available separately.1
28 Screw - Pump Cover Not available separately.1
29 Spring - Idle Screw Not available separately.1
30 Screw - Idle Adjusting Not available separately.1
31 Governor - Sealed Not available separately.1
32 Clip - Throttle Shaft Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 5 of 12
www.ktoutdoor.com

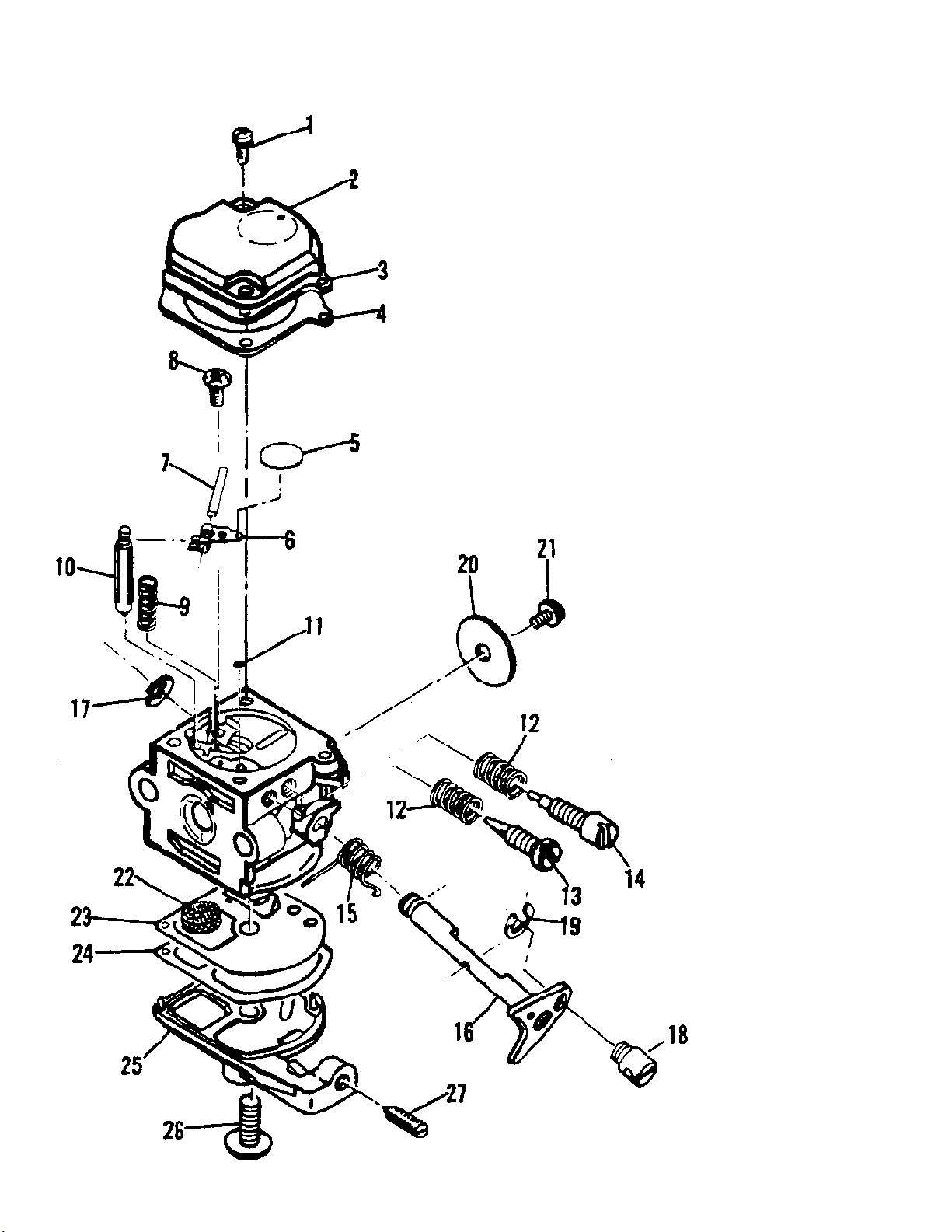

Carburetor Assembly (Part 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 6 of 12
www.ktoutdoor.com
Carburetor Assembly (Part 2)
Ref # Part Number DescriptionQty
215494A Carburetor Assembly (Zama C1S-M8)
1 Screw - Cover Not available separately.2
2 Cap - Main Not available separately.1
3 Diaphragm - Main Not available separately.1
4 Gasket - Main Not available separately.1
5 Disk Not available separately.1
6 Arm - Needle Valve Not available separately.1
7 Pin - Arm Not available separately.1
8 Screw - Pin Not available separately.1
9 Spring - Arm Not available separately.1
10 Valve - Needle Not available separately.1
11 Plug - Welch Not available separately.1
12 Spring - Needle Not available separately.2
13 Needle - High Speed Not available separately.1
14 Needle - Idle Not available separately.1
15 Spring - Throttle Return Not available separately.1
16 Shaft Asy - Throttle Not available separately.1
17 "E" Ring Not available separately.1
18 Post Not available separately.1
19 "E" Ring Not available separately.1
20 Valve - Throttle Not available separately.1
21 Screw - Throttle Valve Not available separately.1
22 Strainer Not available separately.1
23 Diaphragm - Fuel Pump Not available separately.1
24 Gasket - Pump Not available separately.1
25 Cover - Fuel Pump Not available separately.1
26 Screw - Pump Cover Not available separately.1
27 Screw - Idle Adjusting Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 7 of 12
www.ktoutdoor.com

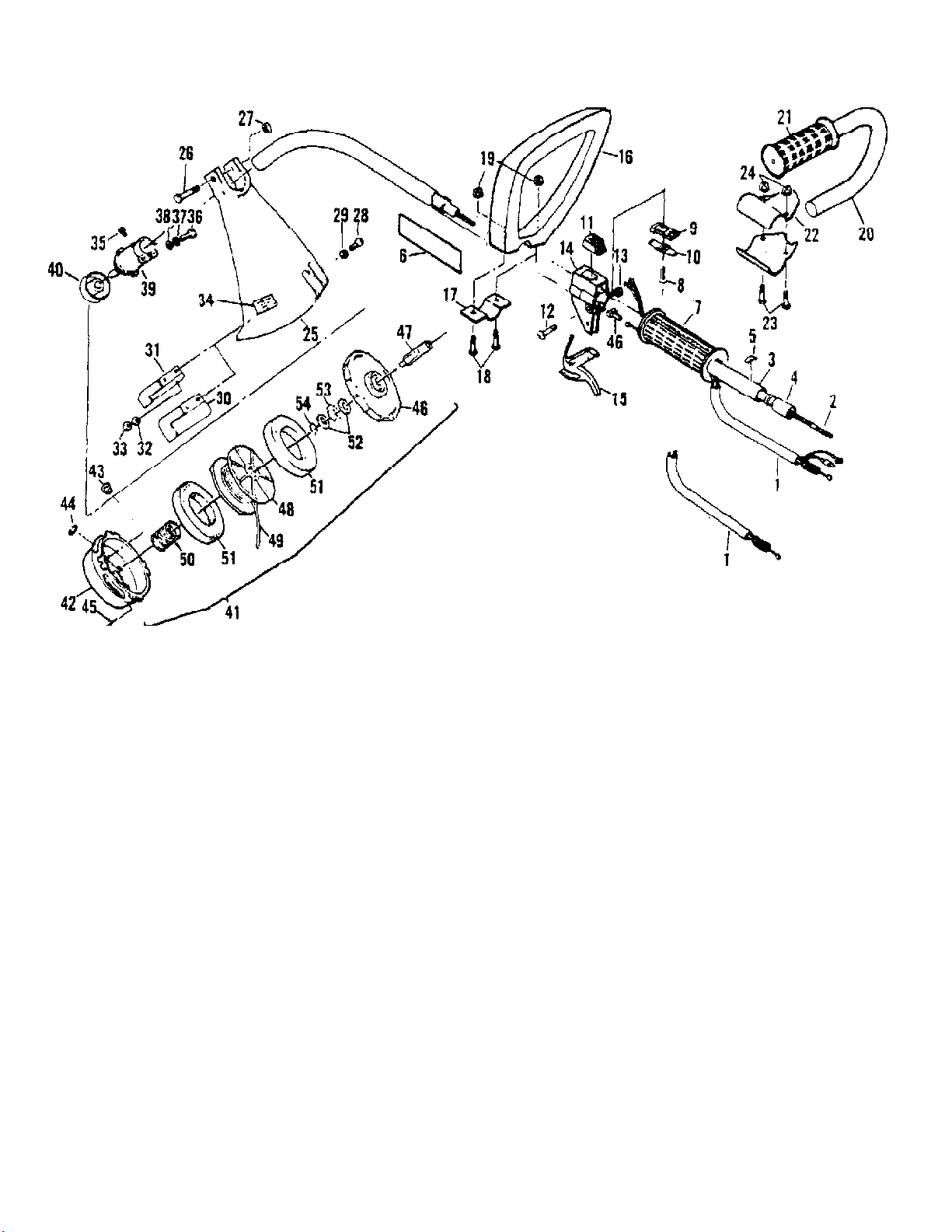

Drive Shaft/String Head Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 8 of 12
www.ktoutdoor.com
Drive Shaft/String Head Assembly
Ref # Part Number DescriptionQty
1 217360 Cable - Throttle1
1 215306 Wiring Harness Assembly1
2 215324 Shaft - Flex1
2 217369 Shaft - Flex1
3 217361 Housing Assembly - Outer1
4 217366 Sleeve1
5 216603 Decal - Position1
6 217464 Decal - Name1
3 217362 Housing Assembly - Outer1
4 217367 Sleeve1
5 216603 Decal - Position1
6 217468 Decal - Name/Warning1
7 215322 Grip1
8 110706 Screw - Pn Hd 8-18 x 1/21
9 215319 Base - Stop Switch1
10 215320 Contact - Switch1
11 68846 2 Button - Stop Switch1
12 216027 Screw - M5 x 28.501
13 217159 Nut - Hx M51
14 217337 Housing - Trigger1
14 215317 Housing - Trigger1
15 215318 Trigger - Throttle1
16 217444 Handle - Delta1
17 217442 Clamp1
18 120041 Screw - Hx M5 x 222
19 217159 Nut - Hx M52
20 217856 "J" Handle/Grip Assembly1
21 94212 Grip1
22 215337 Clamp - Handle1
23 120019 Screw - Hx M5 x 132
24 217159 Nut - Hx M52
25 217386 Shield Assembly - Grass1
25 216659 Shield Assembly - Grass1
26 216595 Screw - Hx Hd M6 x 501
27 215871 Nut - Hx Hd M61
28 213147 Screw - M5 x 162
29 216591 Washer - Flat M52
30 217364 Housing - Knife1
31 216587 Housing - Knife1
32 216593 Washer - Lock M52
33 217159 Nut - Hx M52
34 216601 Decal - Warning1
35 216025 Screw - M4 x 81
36 216594 Screw - Hx Hd M5 x 251
37 216593 Washer - Lock M51
38 216591 Washer - Flat M51
39 217363 Housing Assembly - Spindle1
40 217474 Collar - Gear1
41 217353 String Head Assembly (S/L)1
41 216821 String Head Assembly (S/L)1
42 217626 Hub Assembly1
43 217624 Eyelet1
44 217625 Ring Retaining1
45 217623 Pin - Cotter1
46 217615 Plate - Rear1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 9 of 12
www.ktoutdoor.com
Drive Shaft/String Head Assembly
Ref # Part Number DescriptionQty
47 217614 Drive - Adaptor1
48 217350 Spool/Line1
49 217351 Line - .080"1
48 217621 Spool/Line1
49 216899 Line - .095"1
50 217622 Spring - Compression1
51 217619 Pad - Foam2
52 217616 Washer Retaining2
53 217617 Ring - Retaining1
54 217618 Ring - Retaining1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 10 of 12
www.ktoutdoor.com

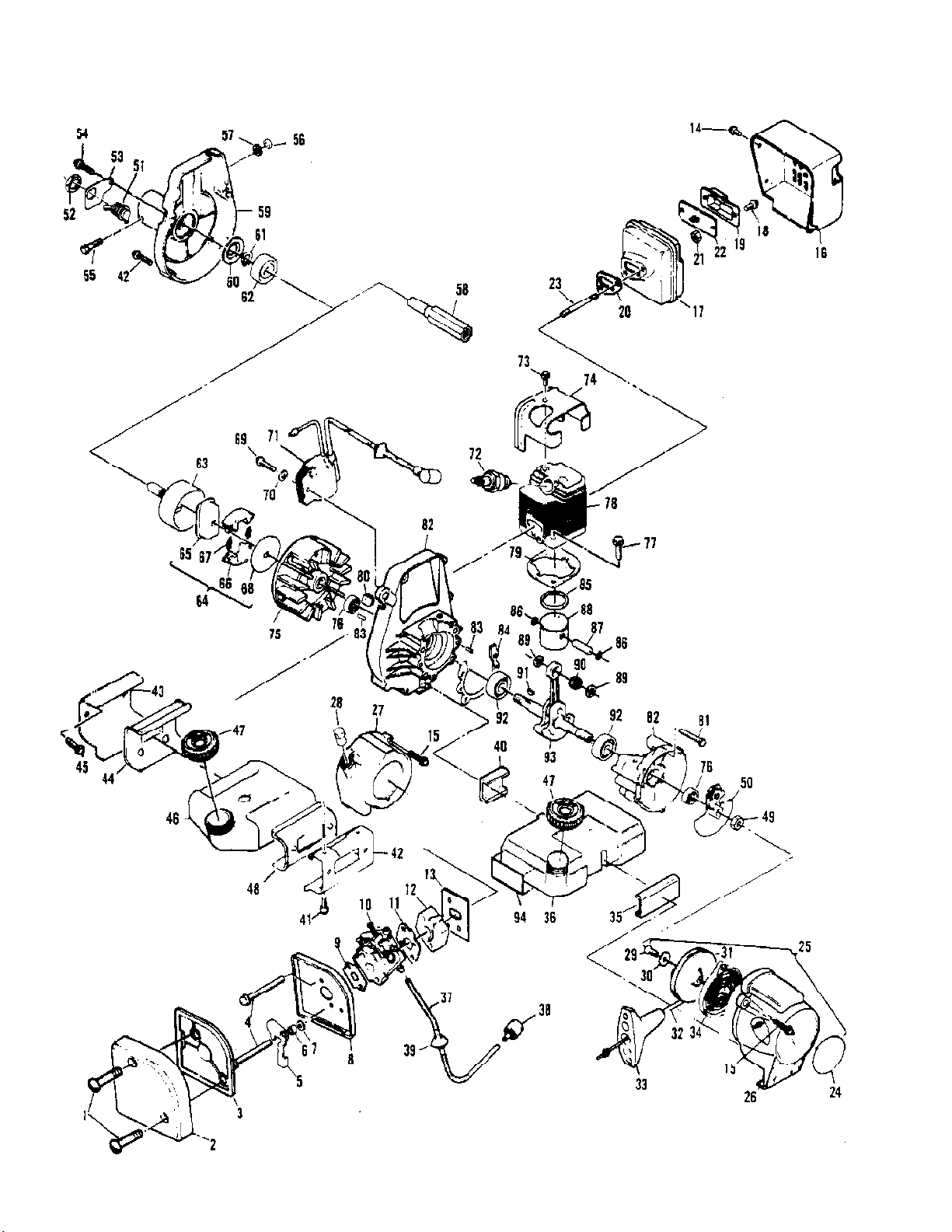

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 11 of 12
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 217669 Screw - M4 x 252
2 215988 Cover - Air Cleaner1
3 217376 Filter - Air1
4 216903 Screw - M5 x 552
5 215991 Shutter - Choke1
6 215993 Spacer1
7 216591 Washer - Flat M51
8 216108 Kit - Airbox/Grommet1
9 216226 Gasket - Air Filter1
10 Carburetor Asys. Not available separately. See
11 215491 Gasket - Carburetor1
12 215771 Insulator - Carburetor1
13 216575 Gasket - Insulator1
14 216025 Screw - M4 x 82
15 213177 Screw - M4 x 18.503
16 215753 Shield - Muffler1
17 216920 Kit - Muffler1
18 216025 Screw - M4 x 82
19 215507 Cover/Cap Assembly1
20 215515 Gasket - Muffler1
21 217275 Nut - Flange M51
22 215516 Spark Arrester Screen1
23 215517 Stud - Bolt2
24 217056 Decal - Name1
25 217388 Starter Assembly1
25 216919 Kit - Starter1
26 217389 Housing - Starter1
27 216325 Housing - Starter1
28 217030 Guide - Rope1
29 215874 Screw - M4 x 9.50 11
30 216590 Washer - Flat M4 11
31 216092 Drum/Rope Assembly 11
32 216093 Rope - Starter 11
33 216792 Handle - Starter 11
34 217482 Spring - Starter1
34 215522 Spring - Starter1
35 217382 Cushion - Fuel Tank1
36 217387 Fuel Tank/Hose Assembly1
37 217264 Hose - Fuel1
38 216985 Pickup - Fuel1
39 215495 Grommet1
40 217390 Cushion - Fuel Tank1
41 213177 Screw - M4 x 18.502
42 215501 Bracket Assembly - Back1
43 217455 Bracket - Tank/Shield1
44 215504 Cushion - Bracket1
45 216025 Screw - M4 x 82
46 217021 Kit - Fuel Tank1
47 216346 Cap - Fuel Tank1
48 215500 Cushion - Fuel Tank1
49 216583 Nut - M81
50 215525 Ratchet - Assembly1
51 217648 Switch - Toggle1
52 104810 Nut - Hex Electric1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
"Carburetor Assembly" illustration and parts list.
Page 12
11-400032B EAGER BEAVER II 01/84 to 10/84 IPL 217746-R1 Page 12 of 12
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
53 217381 Plate - Switch1
54 213177 Screw - M4 x 18.504
55 217158 Screw - Hex M5 x 351
56 217159 Nut - Hex M51
57 216591 Washer - Flat M51
58 217477 Coupling1
59 217533 Housing - Fan1
59 217548 Housing - Fan1
60 215534 Plate - Thrust1
61 213186 Ring - Retaining1
62 213187 Bearing - Ball1
63 216837 Drum - Clutch1
64 216060 Kit - Clutch1
65 215536 Rotor - Clutch1
66 215538 Shoe - Clutch2
67 215537 Spring - Clutch2
68 215539 Plate - Side1
69 213177 Screw-M4 x 18.501
70 110613 Washer - #8 Hard2
71 217439 Coil - Ignition1
72 214233 Spark Plug AC-CS45T1
73 213178 Screw - M5 X 8.501
74 215540 Cover - Cylinder1
75 217378 Flywheel - Assembly1
76 216500 Seal - Oil2
77 217320 Screw - Socket Cap2
78 215690 Cylinder1
78 217296 Cylinder1
79 215542 Gasket - Cylinder1
80 215541 Grommet1
81 213179 Screw - M5 x 28.504
82 217373 Crankcase Assembly1
83 213191 Pin4
84 215545 Gasket - Crankcase1
85 217475 Ring - Piston4
86 216343 Ring - Snap1
87 215551 Pin - Wrist1
88 217295 Piston1
88 215544 Piston1
89 213196 Washer2
90 213195 Bearing - Needle1
91 102164 Key - Woodruff1
92 216143 Bearing - Ball2
93 216444 Crankshaft Assembly1
94 217383 Decal - 40:11
K&T Saw Shop 606-678-9623 or 606-561-4983
