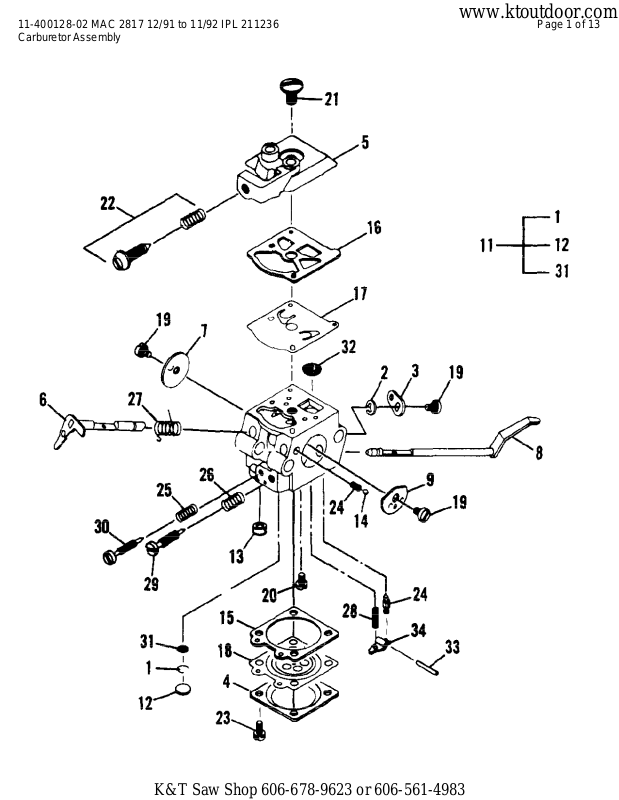

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 2 of 13
www.ktoutdoor.com

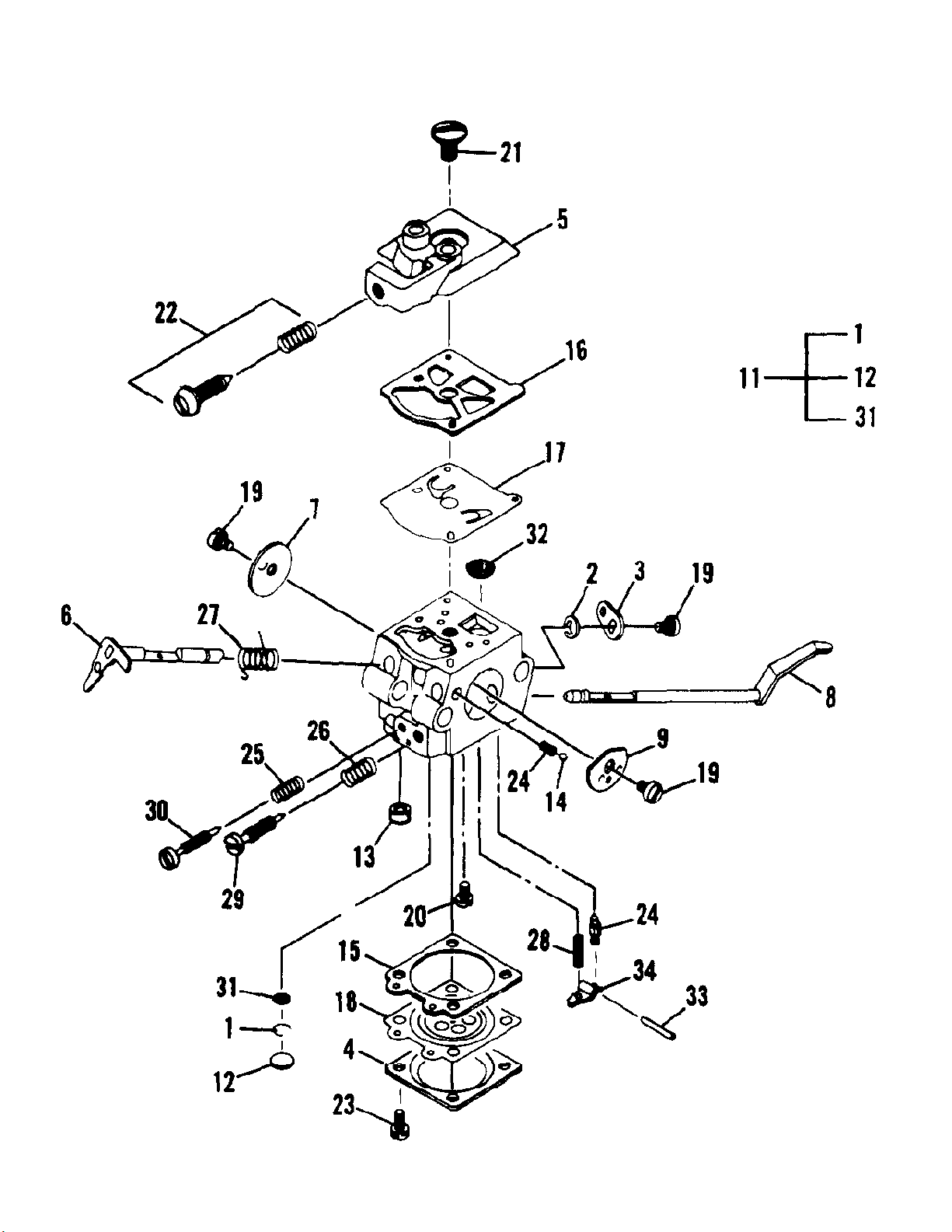

Carburetor Assembly
Ref # Part Number DescriptionQty
224033-02 Carburetor w/Choke Walbro WT-231A
1 Ring, Screen Retainer1
2 Ring, Shaft Retainer1
3 Lever, Throttle1
4 Cover, Metering Lever1
5 Cover, Fuel Pump1
6 Shaft Assembly, Throttle1
7 Valve, Throttle1
8 Shaft Assembly, Choke1
9 Valve, Choke1
10 Valve, Inlet Needle1
11 Seat Assembly, Check Valve1
12 Plug, Cup 5mm1
13 Plug, Welch 5/161
14 Ball, Choke Friction1
15 Gasket, Metering Diaphragm1
16 Gasket, Fuel Pump1
17 Diaphragm, Fuel Pump1
18 Diaphragm Assembly, Metering1
19 Screw, Valve3
20 Screw, Metering Lever Pin1
21 Screw, Pump Cover1
22 Screw, Idle Adjust Kit1
23 Screw, Metering Cover4
24 Spring, Choke Friction1
25 Spring, Idle Needle1
26 Spring, High Speed Needle1
27 Spring, Throttle Return1
28 Spring, Metering Lever1
29 Needle, High Speed1
30 Needle, Idle1
31 Screen, Check Valve1
32 Screen, Fuel Inlet1
33 Pin, Metering Lever1
34 Lever, Metering1
300457 Kit, Carburetor Repair
224460 Kit, Gasket/Diaphragm
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 3 of 13
www.ktoutdoor.com

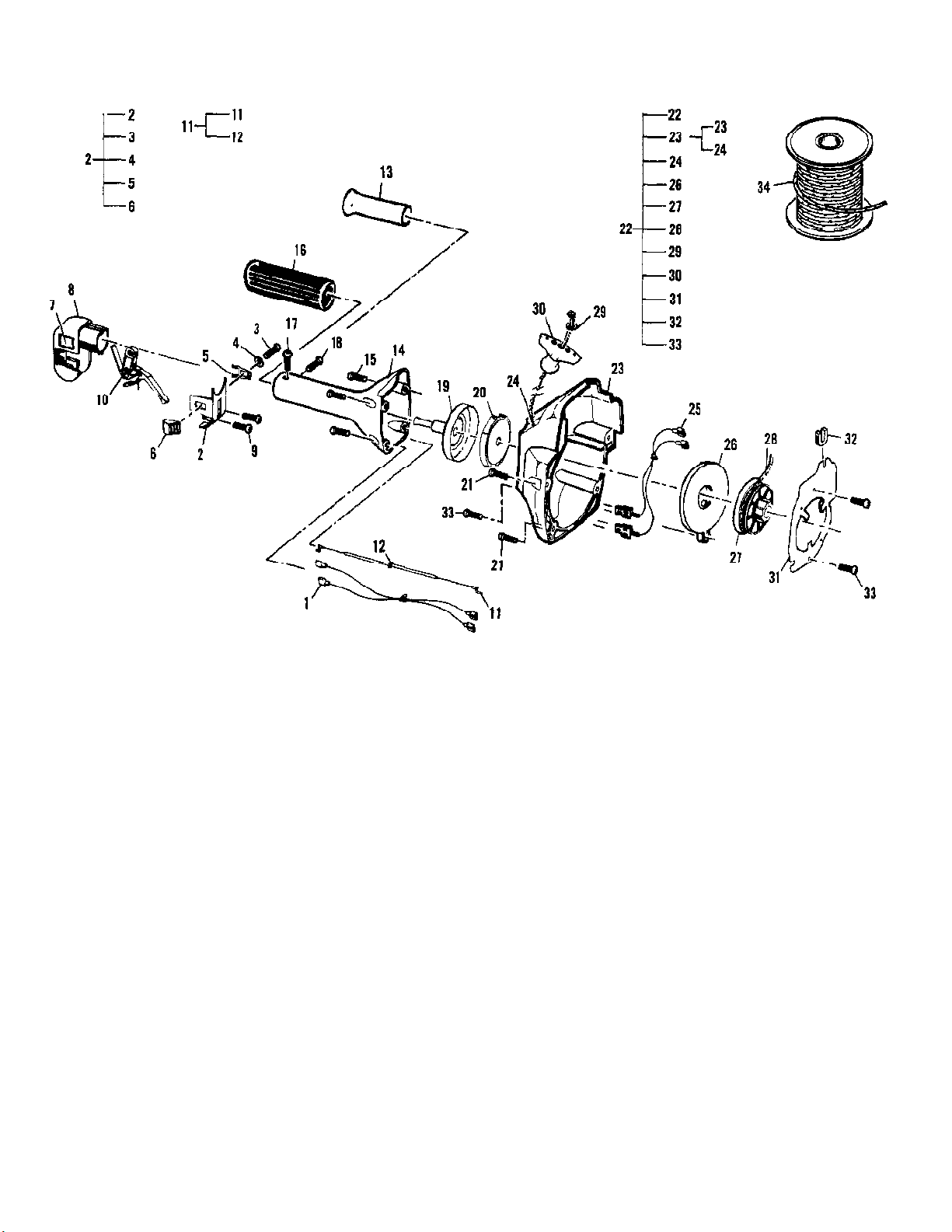

Clutch/Starter Housing Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 4 of 13
www.ktoutdoor.com
Clutch/Starter Housing Assembly
Ref # Part Number DescriptionQty
1 224204 Wire Assembly, Switch1
2 300064 Cover Assembly, Switch1
3 111069 Screw, 8-16 x .3751
4 105497 Washer, Flat (.180 IDmax)1
5 224246 Contact, Switch1
6 224245 Button, Stop Switch1
7 322081 Label, ON/OFF Switch1
8 224234 Trigger Housing Assembly1
9 111061 Screw, 6-19 x .622
10 300361 Trigger, Throttle1
11 300372 Throttle Cable Assembly1
12 111074 Nut, Speed .188 ID1
13 322234 Sleeve, Protecting1
14 224912 Housing, Clutch (Yellow)1
300014 Housing, Clutch (Grey)1
15 224919 Screw, 10-14 x 1.04
16 322140 Grip1
17 111070 Screw, 12-11 x .5 Torx (top)1
18 111059 Screw, 10-14 x .5 Torx1
19 224045 Drum Assembly, Clutch1
20 300459 Kit, Clutch1
21 111054 Screw 10-24 x .6254
22 224916 Starter Housing Assembly (Yel)1
23 300616 Housing/Guide, Rope (Yel)1
300013 Starter Housing Assembly (Grey)1
300618 Housing/Guide, Rope (Grey)1
24 Guide, Rope Not available separately1
25 300369 Wire Assembly1
26 300475 Package, Spring/Starter Rwnd1
27 219496 Pulley, Starter1
28 222869 Rope, Starter (46")1
29 218941 Washer, Nylon1
30 216792 Handle, Starter1
31 224927 Plate, Baffle1
32 215533-01 Grommet, H/T Lead1
33 223357 Screw, 8-163
34 300415 Rope, Bulk1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 5 of 13
www.ktoutdoor.com

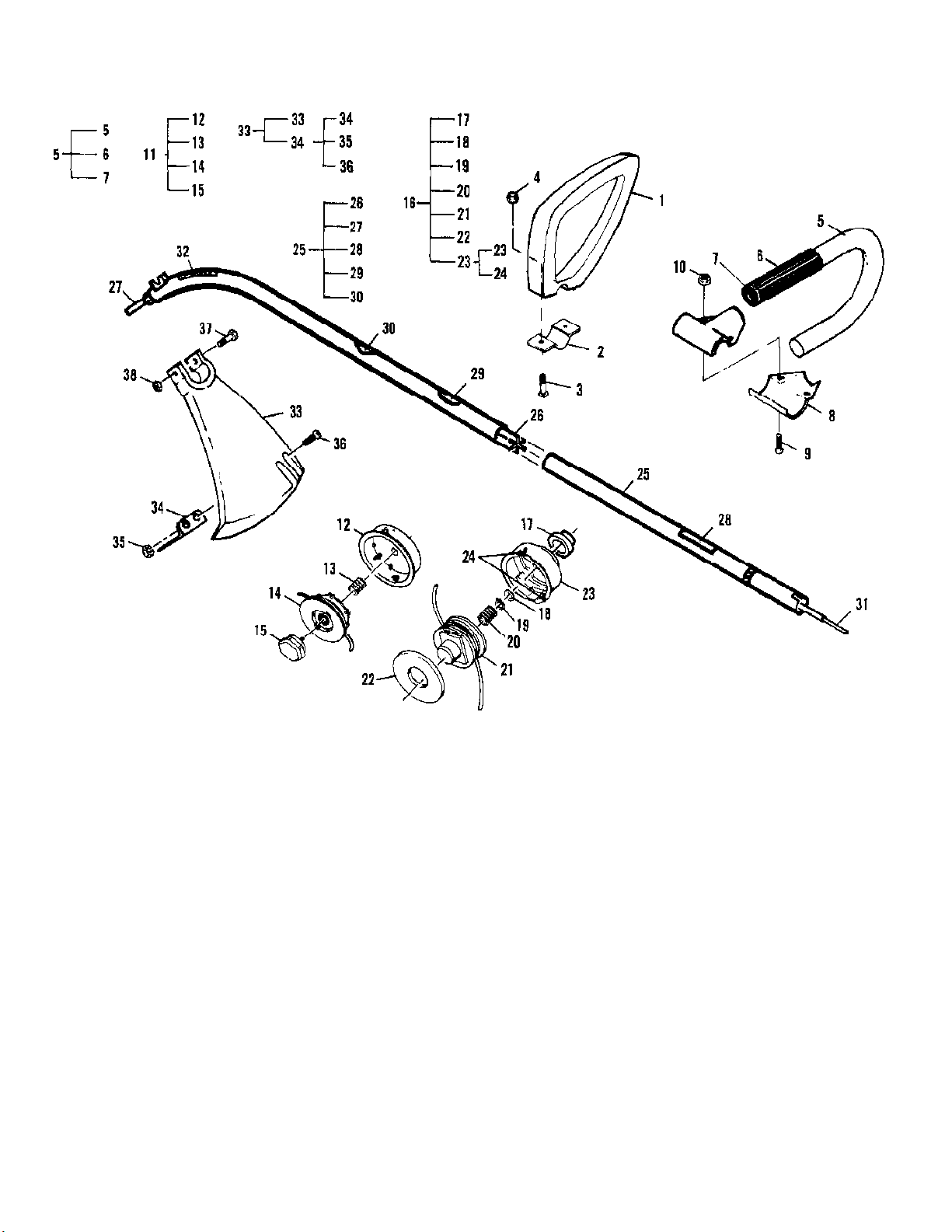

Shaft/Handle And Cutter Assembies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 6 of 13
www.ktoutdoor.com
Shaft/Handle And Cutter Assembies
Ref # Part Number DescriptionQty
1 217444 Handle Delta1
2 217442 Clamp1
3 216595 Screw HX M6 x .502
4 215871 Nut Hex M6 x 1.02
5 300540 Handle 'J'/Grip Asy1
6 322139 Grip1
7 218328 Plug1
8 215337 Clamp - Handle2
9 217935 Screw - TR 10-24 x .50 TOR2
10 218315 Nut2
11 300651 String Head Assembly (McM)1
12 322025 Housing/eyelet Asy w/Collar1
13 225206 Spring, Left1
14 300688 Spool Assembly w/.095 Line
15 300736 Knob Assembly, Right1
16 300110 Kit, String Head1
17 224998 Collar1
18 224986 Washer, Plain (.390ld x 5/8)1
19 222403 Ring, Retaining1
20 223740 Spring, String Head1
21 224268 Spool w/.095 Line1
22 224305 Cover, String Head1
23 224303 Housing/Eyelet Assembly1
24 223739 Eyelet2
25 300424 Housing Asy, Outer - 48"1
26 217366 Sleeve1
27 Spindle Not available separately1
28 218295 Decal, Warning1
29 223407 Decal, Eye/Ear Cover1
30 211214 Decal, Warning (15M)1
31 215324 Shaft - Flex1
300429 Housing Asy Outer - 44"1
218282 Sleeve1
Spindle Not available separately
218295 Decal, Warning1
223407 Decal, Eye/Ear Cover1
211214 Decal, Warning (15M)1
218285 Shaft, Flex (44")1
32 322099 Label, Debris Shield Warning1
33 224062 Kit, Grass Shield1
34 300626 Kit, Knife1
35 216682 Nut - HX Lock 10-242
36 217935 Screw - TR 10-24 x .50 TOR2
37 216595 Screw - HX M6 x .501
38 215871 Nut - Hex M6 x 1.01
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 7 of 13
www.ktoutdoor.com

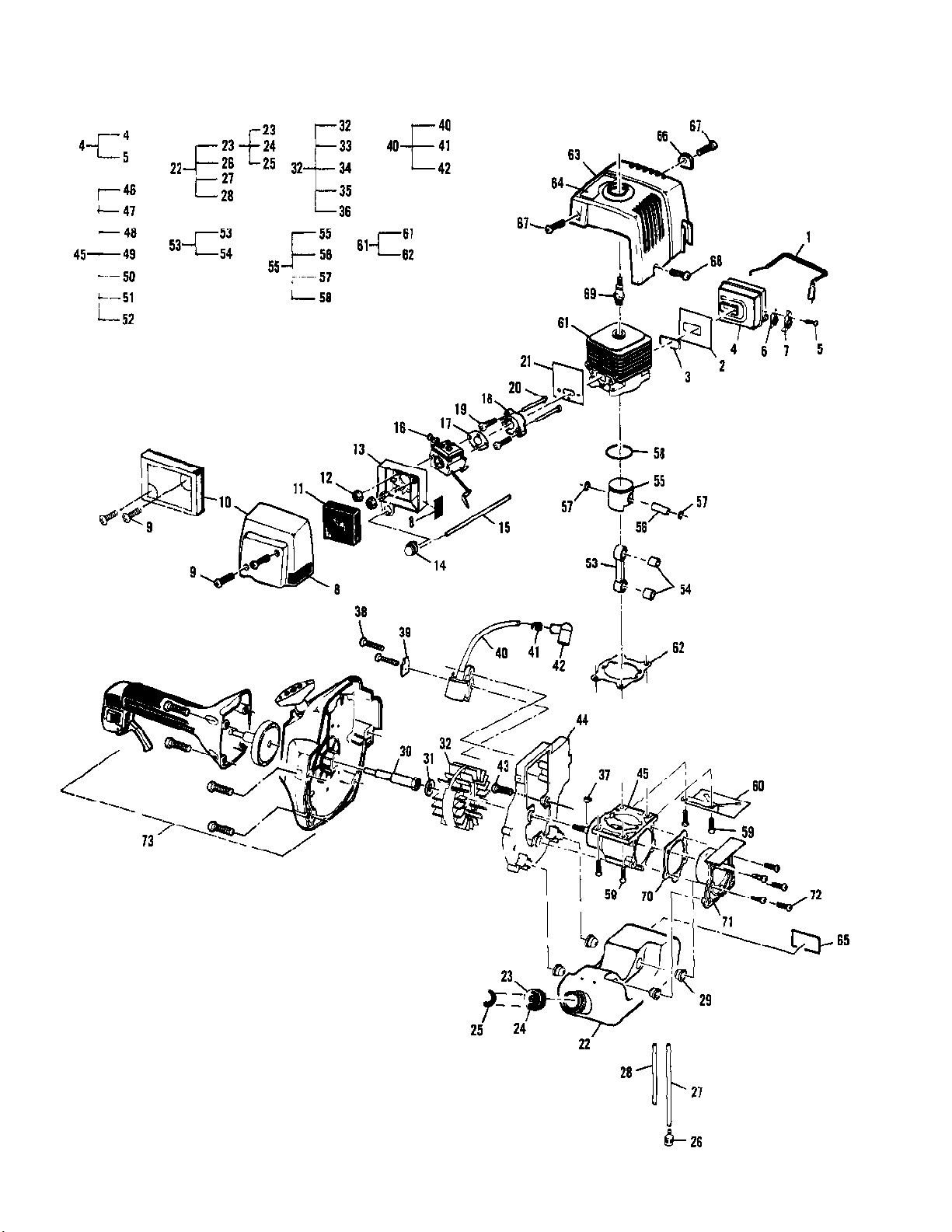

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 8 of 13
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 224044 Spring, Muffler1
2 224228 Gasket, Muffler1
3 224922 Gasket, Exhaust Port1
4 224034 Muffler Assembly1
5 111072 Screw, 8-18 x .31 PN HD Torx1
6 224040 Screen, Spark Arrestor1
7 322032 Cover, Spark Arrestor1
8 322101 Label, Choke1
322096 Label, Choke1
9 111055 Screw, 10-14 x .6252
10 224237 Cover, Air Cleaner (Small)1
224236 Cover, Air Cleaner (Large/Blk)1
11 224239 Filter, Air1
12 111058 Nut, 10-24 Flange / Hex2
13 224238 Box, Air (Blk)1
14 224242-02 Primer, Remote1
15 225163 Hose, Fuel1
16 224033-02 Carburetor w/Choke See "Carburetor Assembly"
1
illustration and parts list.
17 218933 Gasket, Carburetor1
18 224041 Manifold, Carburetor1
19 111053 Screw, 10-24 x .882
20 111057 Screw, 10-24 SPL2
21 322031 Gasket, Manifold1
22 300669 Kit, Fuel Tank / Cap1
23 300700 Kit, Fuel Cap1
24 211242 Decal (OPEN SLOWLY)1
25 322250 Decal, Fuel Cap (INTL.)1
26 216985 Pickup, Fuel1
27 225162 Hose, Fuel1
28 225163 Hose, Fuel Return1
29 322105 Isolator, Fuel Tank4
30 224025 Adapter, Clutch1
31 105989 Washer, .32 ID1
32 224021 Flywheel / Pawl Assembly1
33 Pin, Starter Pawl2
34 Pawl2
35 Spring, Starter Pawl2
36 Washer, Starter Pawl2
37 102164 Key, Flywheel1
38 111053 Screw, 10-24 x .882
39 300321 Terminal Tab1
40 300519 Ignition Assembly1
41 102556 Connector, Spark1
42 95266 Boot, Spark Plug1
43 111054 Screw, 10-24 x .6253
44 224042 Shroud, Engine Machined1
45 224020 Crankcase / Shaft Assembly1
46 Crankshaft Assembly1
47 Crankcase, Machined1
48 Bearing 62021
49 Bearing 6202RS1
50 Seal1
51 Spacer1
52 O-Ring1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 9 of 13
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
53 224009 Connecting Rod Assembly1
54 91117 Bearing2
55 300662 Kit, Piston, 28cc Chrome1
56 300482 Pin, Piston (10mm dia)1
57 215876 Ring, Retaining2
58 224224 Ring, Piston 35mm1
59 111065 Screw, 10-24 x .6884
60 322030 Shield, Muffler1
61 300451 Kit, Cylinder 28cc Aluminum1
62 224022 Gasket, Cylinder1
63 224235 Cover, Cylinder/Muffler (Blk)1
64 322346 Label, Start Instructions1
65 322100 Label, Storage1
66 322210 Washer, Plastic1
67 111067 Screw, 10-24 x .63 Torx2
68 111068 Screw, 10-14 x 1.38 Taptite1
69 62345 Spark Plug / DJSJ1
70 224023 Gasket, Crankcase1
71 224024 Plug, Crankcase1
72 111065 Screw, 10-24 x .6885
73 Clutch/Starter Assemblies See "Clutch/Starter
Housing Assembly" illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 10 of 13
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 11 of 13
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235 LOCTITE KIT
322236 RETAINING COMPOUND 620 (10 ml)
322237 THREAD LOCKER 242 (10 ml)
322238 GASKET ELIMINATOR 518 (50 ml)
322239 BLACK MAX ADHESIVE 380 (01 oz)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 12 of 13
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400128-02 MAC 2817 12/91 to 11/92 IPL 211236 Page 13 of 13
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
215432 PRESSURE TEST TOOL
217720 KIT, TORX WRENCHES
222785 T-25 TORX DRIVE
K&T Saw Shop 606-678-9623 or 606-561-4983
