Page 1
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 1 of 11
www.ktoutdoor.com

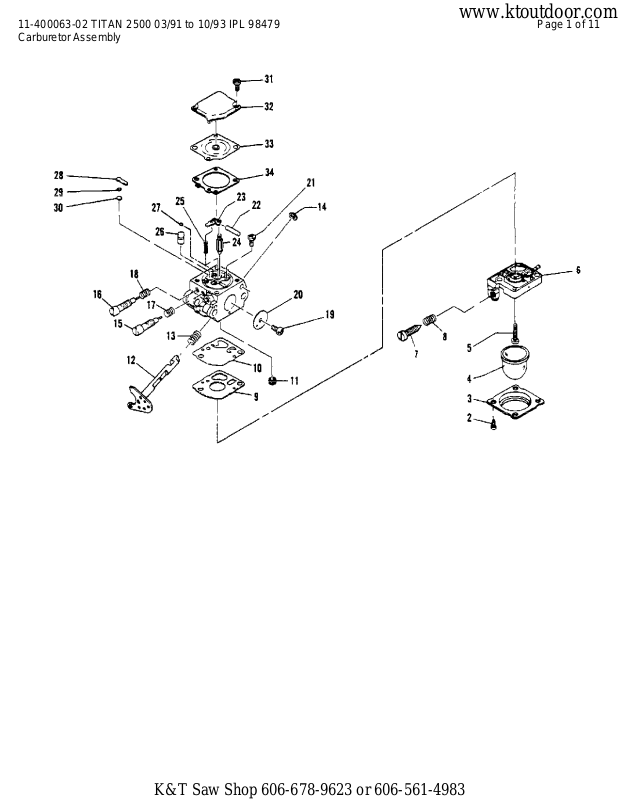

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 2 of 11
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
1 224142-02 Carburetor Assy (WT 211)1
2 Screw-Pump Cover2
3 Cover Primer Pump1
4 223077 Primer-Pump1
5 Screw-Pump Cover1
6 223913 Cover Asy Fuel-Pump1
7 Screw-Idle Adjustment1
8 Spring-Idle Screw1
9 Gasket-Fuel Pump1
10 Diaphragm-Fuel Pump1
11 Screen-Fuel Pump Inlet1
12 Shaft Assembly Throttle1
13 Spring-Throttle Return1
14 Ring-Shaft Retainer1
15 Needle-Idle1
16 Needle-High Speed1
17 Spring-Idle Needle1
18 Spring-High Speed Needle1
19 Screw-Valve1
20 Valve-Throttle1
21 Screw-Metering Lever Pin1
22 Pin-Metering Lever1
23 Lever-Metering1
24 Valve-Inlet Needle1
25 Spring-Metering Lever1
26 Seat Asy Check-Valve1
27 Plug-Welch 5/161
28 Plug-Welch 1/41
29 Ring-Screen Retainer1
30 Screen-Check Valve1
31 Screw-Metering Cover4
32 Cover-Metering Lever1
33 Diaphragm Asy-Metering1
34 Gasket-Metering Diaph.1
224462 Major Repair Kit
223833 Gasket/Diaphragm Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 3 of 11
www.ktoutdoor.com
Shaft/Shield/Cutter/Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 4 of 11
www.ktoutdoor.com
Shaft/Shield/Cutter/Assembly
Ref # Part Number DescriptionQty
1 217403 Nut-Hex M6 x 1.02
2 216596 Washer-Flat M62
3 224150 Harness-Wiring1
4 217752 Shaft-Drive1
5 224121 Housing Asy-Outer1
6 216518 Grip1
7 110706 Screw-Pn 8-18 x .50 St H1
8 215320 Contact-Switch1
9 215319 Base-Stop Switch1
10 68846 Button-Stop Switch1
11 215323 Guide1
12 216027 Screw-Pn M5 x 28.5 SEMS1
13 217159 Nut-Hex M51
14 223200 Screw-Self Tapping 10-161
15 215318 Trigger-Throttle1
16 222795 Housing-Trigger Throttle1
17 224457 kit-Gear Housing Assy1
18 224181 Housing-Gear1
19 216795 Screw-Phl M5 x 121
20 216832 Bolt-Hx M8 x 81
21 217159 Nut-Hx M52
22 216824 Washer-Lock M52
23 216591 Washer-Flat M54
24 216828 Bolt-Hx M5 x 402
25 224133 Decal-Foil1
26 216752 Collar-Spindle1
27 218075 Flange-Spindle1
28 216751 Nut-Hex M10 LH1
29 218159 Pin-Cotter1
30 217936 Screw-Tr 10-24 x .75 Torx3
31 224145 Shield-Grass1
32 217935 Screw-Tr 10-24 x .50 Torx2
33 110582 Washer-#10 Plain2
34 224153 Knife1
35 103174 Washer-Lock #102
36 218315 Nut2
37 224277 String Head Assembly1
38 224905 Cover1
39 224904 Knob1
40 224903 Spool-W/Line (.095)1
41 218907 Spring1
42 219760 Nut1
43 224902 Housing1
44 219159 Eyelets2
45 224901 Bolt1
46 224977 Kit Loop-Handle1
47 228320 Screw-M6 x 0.8 x 454
48 236936 Washer4
49 227045 Loop-Handle1
50 227046 Clamp-Handle1
51 236642 Nut4
52 224127 Spacer Handle1
53 225151 Kit-Harness1
54 218002 Ring-Harness1
55 Screw-1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 5 of 11
www.ktoutdoor.com
Shaft/Shield/Cutter/Assembly
Ref # Part Number DescriptionQty
56 224083 Harness1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 6 of 11
www.ktoutdoor.com

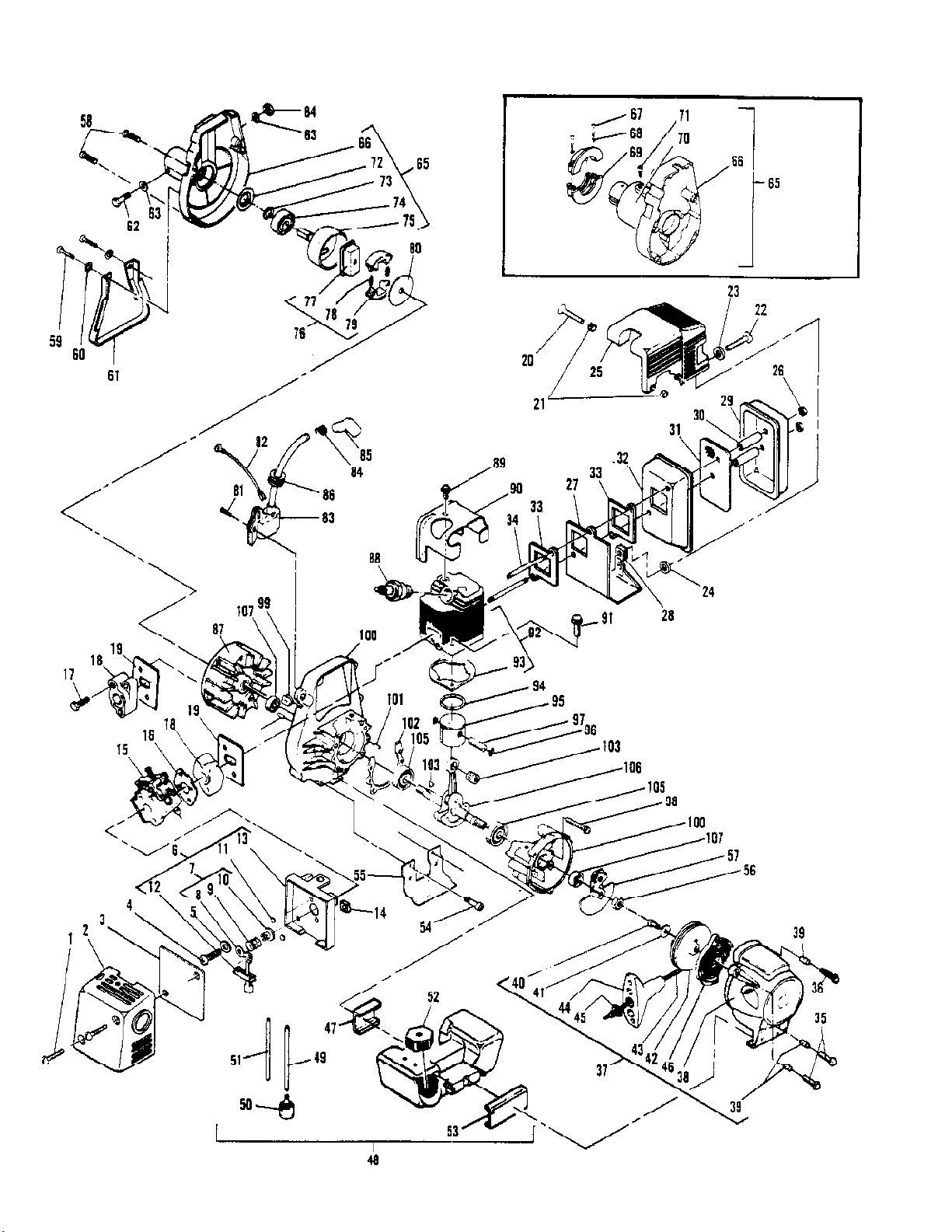

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 7 of 11
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 216027 Screw-Pn M5 x 28.5 SEMS2
2 227024 Cover Air-Cleaner1
3 227023 Filter-Air1
4 224326 Screw-Pn M5 x 55 TORX SS2
213104 Screw-Hx M5 x .8 x 182
5 216591 Washer-Flat M52
6 223895 Case Asy-Air Box1
7 223730 Kit Choke Assembly1
8 Shutter-Choke Lever1
9 219016 Spring-Shutter1
10 Plate-Choke Shutter1
11 227022 Bushing2
12 215992 Grommet-Choke1
13 Air-Box1
14 229524 Nut2
15 Carburetor Assembly1
16 224148 Gasket-Spacer2
17 120098 Screw-Hx M5 x .8 x 182
18 223984 Insulator-S/T1
224319 Insulator Carburetor1
19 224315 Gasket-Shield Insulator1
224318 Gasket-Shield Insulator1
20 219508 Screw-Pn M4 x 17 SEMS TORX2
21 229121 Bushing4
22 215874 Screw-Pn M4 x 9.5 TORX1
23 120045 Washer-M51
24 68497 Washer1
25 224351 Shield-Muffler1
26 222247 Nut-Stud2
27 224266 Shield-Muffler Heat1
28 224350 Nut-M4 Speed1
29 224452 Cover-Muffler Asy1
30 227036 Spacer-Muffler2
31 224492 Kit-Spark Arrestor1
32 227028 Muffler-Body1
33 215515 Gasket-Muffler2
34 224354 Stud-Muffler2
35 218022 Screw-Pn M4 x 23.4 TORX2
36 217669 Screw-Pn M4 x 25 TORX S1
37 224111 Starter Assembly1
38 224110 .Housing-Starter Asy1
39 219585 Spacer-Starter Hsg3
40 215874 Screw-Pn M4 x 9.5 TORX1
41 216590 Washer-Flat M41
42 216092 Drum/Rope Assembly1
43 216093 Rope-Starter1
44 216792 Handle-Starter1
45 218941 Washer-Nylon1
46 217482 Spring-Starter1
47 217382 Cushion-Fuel Tank1
48 223898 Tank Assembly Fuel1
49 225057 Hose Fuel1
50 216985 Pickup-Fuel1
51 225058 Hose Return1
52 224993 Cap-Fuel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 8 of 11
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
53 217390 Cushion-Fuel Tank1
54 216025 Screw-Pn M4 x 8 TORX SEM2
55 225060 Stand Engine1
56 216583 Nut-Hex M81
57 215525 Rachet Assembly1
58 213177 Screw-Pn M4 2 x 18.5 Torx4
59 213178 Screw-Pn M5 x 8.5 SEMS T2
60 100002 Washer 10 Plain2
61 224126 Stand-Engine1
62 217158 Screw-Hex M5 x 351
63 216591 Washer-Flat M52
64 217159 Nut-Hex M51
65 224118 Housing Asy Fan1
224125 Housing-Asy Fan A.V.1
66 224116 Housing-Fan1
224439 Housing-A.V. Assembly1
67 235804 Screw M5 x 302
68 236529 Washer2
69 Clamp2
70 A.V Mount1
71 236381 Screw1
72 215534 Plate-Thrust1
73 213186 Ring-Retaining1
74 213187 Bearing-Ball1
75 218063 Drum-Clutch1
76 217554 Clutch Assembly1
77 215536 Rotor-Clutch1
78 223770 Spring-Clutch2
79 Shoe-Clutch2
80 215539 Plate-Side1
81 216022 Screw-Pn M4 x 23.4 TORX2
82 219383 Wire Asy-Switch1
83 219848 Ignition Assembly1
84 102556 .Connector-Spark1
85 95266 . Boot-Spark Plug1
86 215533-01 Grommet H/T Lead1
87 222308 Flywheel1
88 62345 Spark Plug DJ8J1
89 213178 Screw-Pn M5 x 8.5 SEMS T1
90 215540 Cover-Cylinder1
224165 Cover-Cylinder1
91 217320 Screw-Pn M6 x 18 TORX SE2
92 219084-01 Kit Cylinder/Gasket1
225059 Kit Cylinder (Pltd)/Gasket1
93 215542 Gasket-Cylinder1
223925 Gasket-Cylinder1
94 223455 Ring-Piston1
224314 Ring-Piston1
95 224075 Piston-Mach1
224164 Piston1
96 111026 Ring-Snap2
97 218275 Pin-Wrist1
223589 Pin-Wrist1
98 216027 Screw-Pn M5 x 28.5 SEMS4
99 215541 Grommet1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 9 of 11
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
100 223902 Crankcase Assembly1
101 213191 Pin4
102 215545 Gasket-Crankcase1
103 110984 Bearing-Needle1
104 102164 Key-Flywheel1
105 216143 Bearing-Ball2
106 222960 Crankshaft Asy1
107 216500 Seal2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 10 of 11
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400063-02 TITAN 2500 03/91 to 10/93 IPL 98479 Page 11 of 11
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
215437 Tool-Oil Seal
215438 Tool-Bearing Removal
215441 Tool Clutch Puller
215439 Tool Piston Driving
215443 Plate-Pressure Test
215444 Gasket Intake Pressure Test
215445 Gasket-Exhaust Pressure Test
217355 Wrench 8/10 mm (open end)
216767 Lock Spindle
217585 Wrench 17 mm
218175 Socket-Wrench 9/16
222785 T-25 TORX Drive 3.5"
K&T Saw Shop 606-678-9623 or 606-561-4983
