Page 1

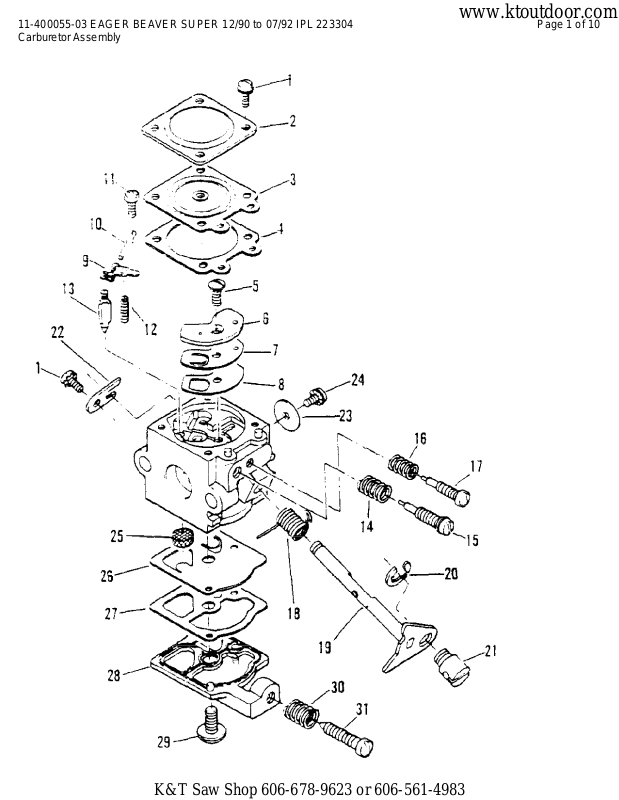

11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 1 of 10
www.ktoutdoor.com

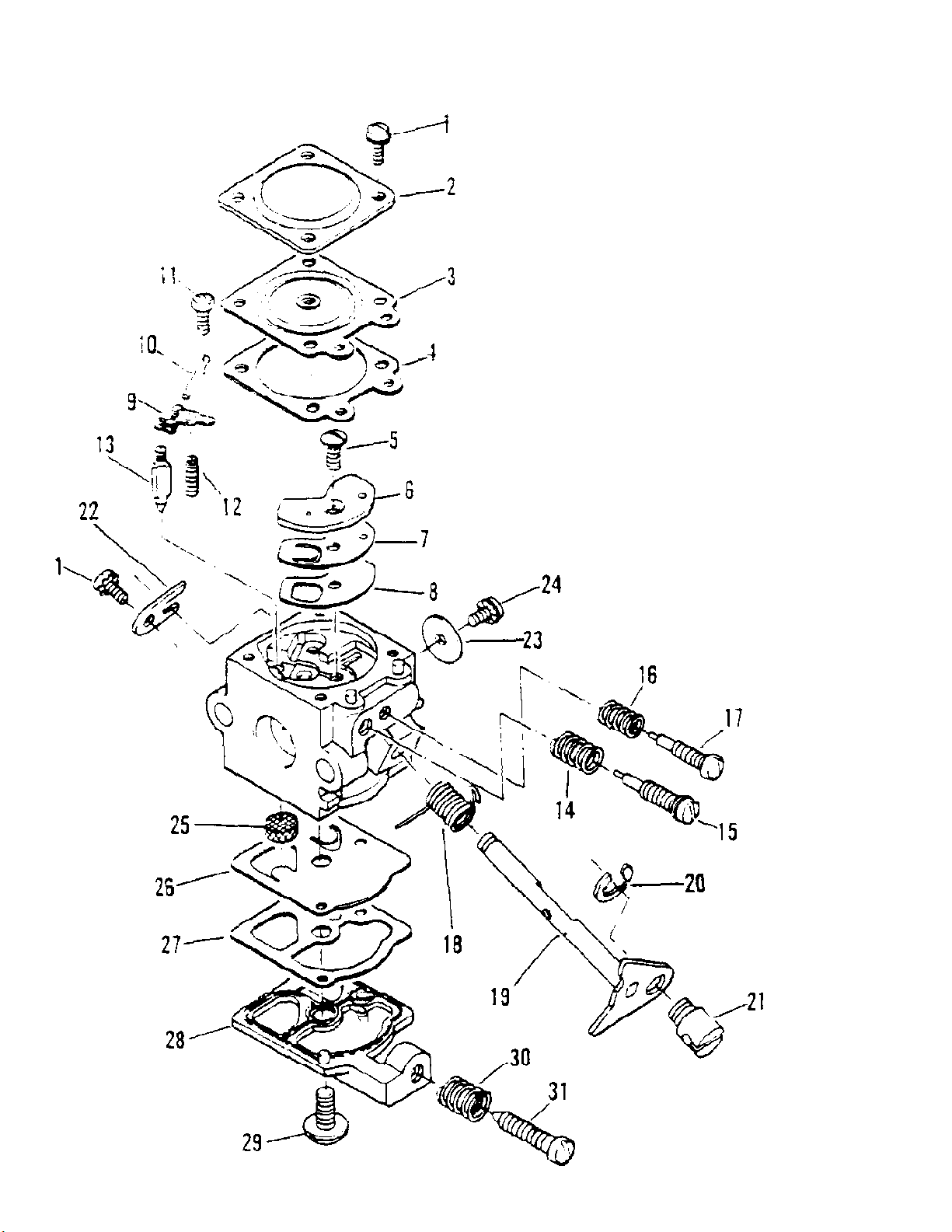

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 2 of 10
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
215494 Carburetor - (WA-146)1
1 Screw - Cover Not available separately.1
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Metering Not available separately.1
4 Gasket - Diaphragm Not available separately.1
5 Screw - Circuit Plate Not available separately.1
6 Plate - Circuit Not available separately.1
7 Diaphragm - Circuit Plate Not available separately.1
8 Gasket - Circuit Plate Not available separately.1
9 Lever - Metering Not available separately.1
10 Pin - Lever Not available separately.1
11 Screw - Lever Pin Not available separately.1
12 Spring - Lever Not available separately.1
13 Valve - Inlet Needle Not available separately.1
14 Spring - High Speed Needle Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Needle - Idle Not available separately.1
18 Spring - Throttle Return Not available separately.1
19 Shaft - Throttle Not available separately.1
20 Clip Not available separately.1
21 Swivel Not available separately.1
22 Clip - Throttle Shaft Not available separately.1
23 Valve - Throttle Not available separately.1
24 Screw - Throttle Valve Not available separately.1
25 Screen - Inlet Not available separately.1
26 Diaphragm - Fuel Pump Not available separately.1
27 Gasket - Fuel Pump Not available separately.1
28 222950 Cover - Fuel Pump1
29 Screw - Pump Cover Not available separately.1
30 Spring - Idle Screw Not available separately.1
31 Screw - Idle Adjusting Not available separately.1
222953 Major Repair Kit Not available separately.
217110 Minor Repair Kit Not available separately.
222954 Gasket/Diaphragm Kit Not available separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 3 of 10
www.ktoutdoor.com

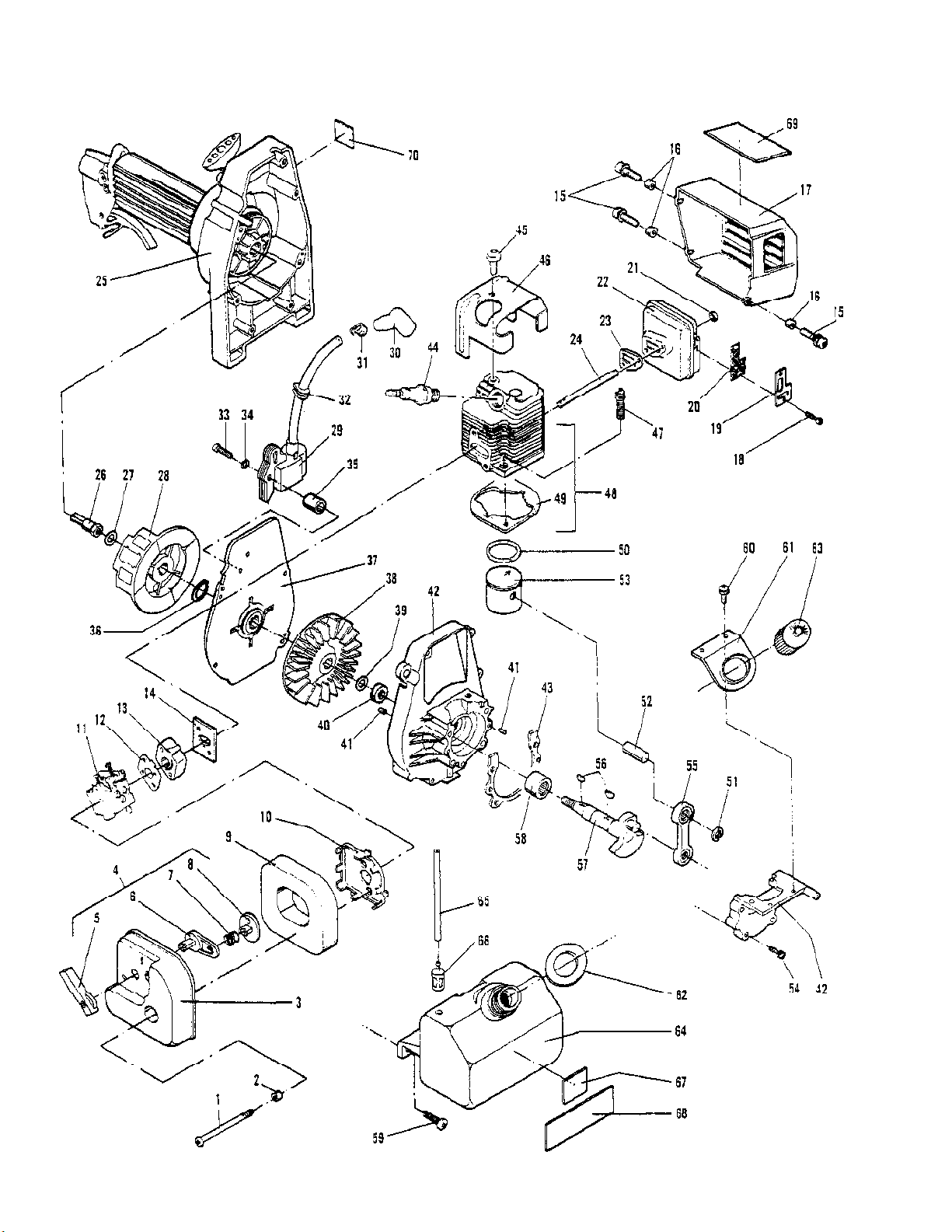

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 4 of 10
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 219078 Screw - PN M5 x 69 (18-23 in. lb. torque)2
2 219023 Insert - A/C Cover2
3 223196 Cover Assembly - Choke1
4 223520 Kit, Choke Knob1
5 Lever - Choke Not available separately.1
6 Lever - Shutter Not available separately.1
7 219016 Spring - Shutter1
8 Shutter - Choke1
9 219145 Filter - Air (Foam)1
10 222758 Box - Air1
11 Carburetor1
12 218933 Gasket - Spacer1
13 219070 Insulator - Carb/C'Case1
14 216575 Gasket Shield - Insulator1
15 219508 Screw - M4 x 17 (13-15 in. lb. torque)3
16 219079 Spacer - Muffler Shield3
17 218962 Shield - Muffler (Plastic)1
18 219194 Screw 5-20 x .438 (12-16 in lb. torque)2
19 219150 Cover - Screen1
20 219149 Screen - Spark Arrester1
21 222247 Nut - Stud (41-50 in. lb. torque)2
22 219152 Muffler Assembly1
23 215515 Gasket - Muffler1
24 222480 Stud - Muffler2
25 Starter Assembly See "General Assembly" illustration
and parts list.
26 222849 Coupling1
27 110879 Washer1
28 222941 Flywheel/Pawl Assembty1
29 219848 Ignition Assembly (Cream)1
30 95266 Boot - Sparkplug1
31 102556 Connector - Spark1
32 215533-01 Grommet1
33 222944 Screw2
34 213196 Washer2
35 222877 Spacer - Ignition Coil2
36 222965 Ring - Snap1
37 222876 Bulkhead Assembly1
38 219498 Fan - Cooling1
39 222837 Washer1
40 83859 Seal - Crankshaft/Oil1
41 213191 Pin4
42 222879 Crankcase Assembly1
43 215545 Gasket - Crankcase1
44 62345 Plug - Spark DJ8J (105-130 in. lb. torque)1
45 213178 Screw - M5 x 8.5 (15-25 in. 1b. torque)1
46 215540 Cover - Cylinder1
47 217320 Screw - M6 x 18 (70-80 in. lb. torque)2
48 223716 Kit - Cyl (Alum)/Gasket1
49 215542 Gasket - Cylinder/C'Case1
50 223455 Ring - Piston1
51 111026 Ring - Snap2
52 218275 Pin - Wrist1
53 222836 Piston (Plated)1
54 213179 Screw M5 x 28.5 (35-40 in. lb. torque)4
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 5 of 10
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
55 223744 Connecting Rod Assembly1
56 102164 Key - Flywheel2
57 219489 Crankshaft Assembly1
58 213282 Bearing - Crankshaft2
59 218644 Screw - Pan M4 x 122
60 120001 Screw - PN MAX 12.02
61 222873 Bracket - Fuel Tank1
62 222874 Cushion - Fuel Tank1
63 222347-01 Cap - Fuel1
64 222912 Tank Assembly - Fuel1
65 217264 Hose - Fuel1
66 216985 Pick-up - Fuel1
67 217383 Decal - 40:11
68 222506 Decal - Storage1
69 223215 Decal - Starting1
70 223214 Decal - Stop1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 6 of 10
www.ktoutdoor.com

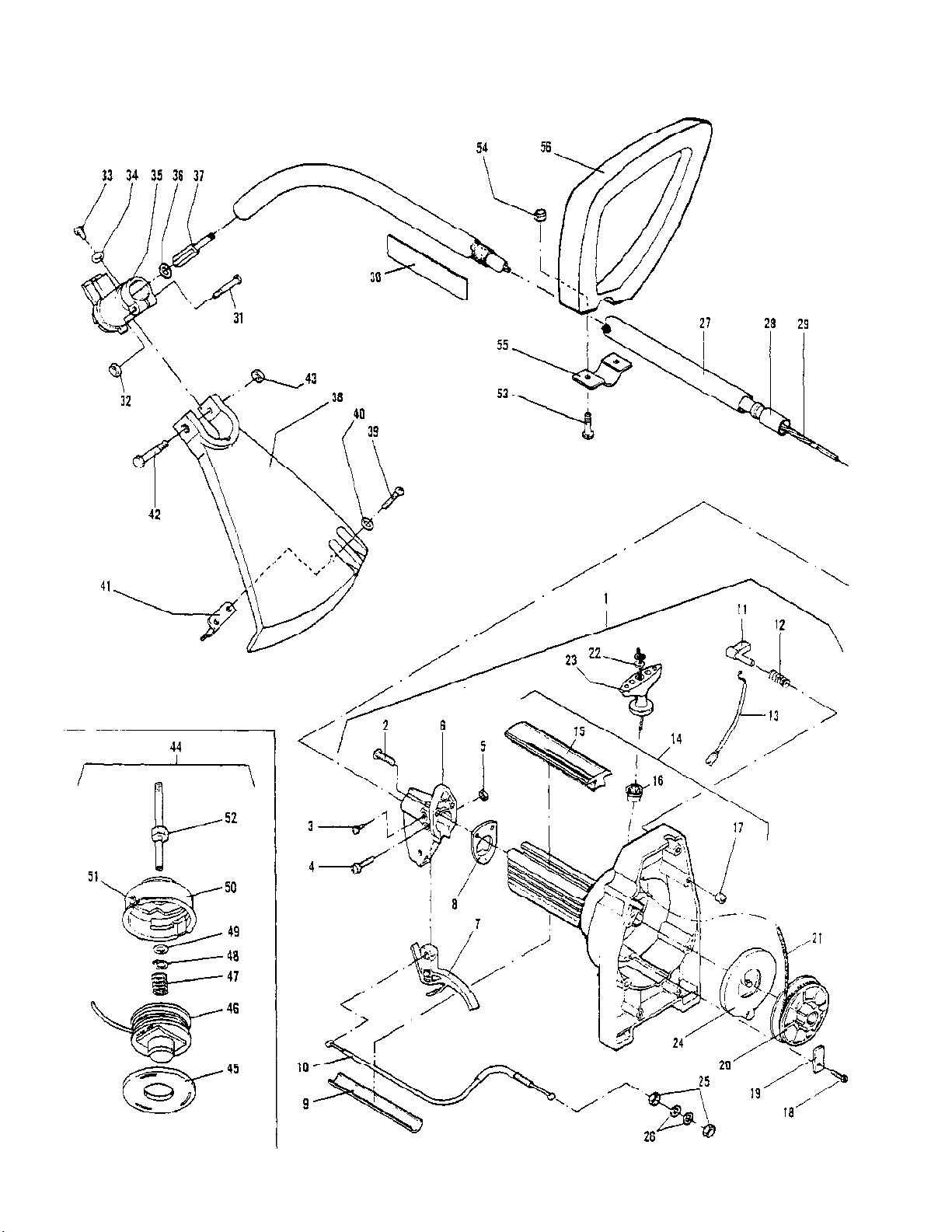

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 7 of 10
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 222930 Starter Assembly1
2 222931 Screw - Trigger Housing2
3 223200 Screw - Self Tapping1
4 216027 Screw - M5 x 28.51
5 217159 Nut - Hex, M51
6 222832 Housing - Trigger1
7 215318 Trigger - Throttle1
8 222835 Guide - Throttle Cable1
9 222834 Retainer - Cable1
10 222927 Cable - Throttle1
11 222914 Button - Stop1
12 222913 Spring - Stop Button1
13 222926 Wire Assembly - Switch1
14 222907 Housing Assy - Starter1
15 222833 Cushion - Grip1
16 223385 Guide - Rope1
17 219024 Spacer - Fan Housing4
18 223357 Screw 8-16 Plastite1
19 222911 Retainer - Pulley1
20 219496 Pulley - Starter1
21 222869 Starter Rope1
22 218941 Washer - Nylon1
23 216792 Handle - Starter1
24 222797 Spring - Starter1
25 217403 Nut - Hex M6 x 1.0 (18-26 in. lb. torque)2
26 216596 Washer - Flat M62
27 223018 Housing Assembly - Outer1
28 218282 Sleeve1
29 218285 Shaft - Flexible Drive 44"1
30 218295 Decal - Warning1
31 217937 Screw 10-24 x 11
32 218315 Nut1
33 215874 Screw M4 x 9.51
34 217672 Washer M4 Flat1
35 222468 Hsg. Assy. - Spindle1
36 222402 Washer - Thrust1
37 217477 Coupling (70 in. lbs. torque)1
38 215314 Shield - Grass1
39 217936 Screw 10-25 x .75 TORX2
40 216596 Washer - Flat M61
41 218516 Housing - Knife1
42 216595 Screw - Hex M6 x 501
43 215871 Nut - Hex M6 x 1 (18-26 in. lb. torque)1
44 223734 String Head Assy, (.095)1
45 223741 Cover - Spool1
46 223736 Spool/Line Assy. (.095)1
47 223740 Spring1
48 222403 Ring - Retaining1
49 222401 Washer - Plain1
50 223737 Housing/Eyelet Assembly1
51 223739 Eyelet1
52 222400 Spindle1
53 120041 Screw - Hex M5 x 22 (18-26 in. lb. torque)2
54 217159 Nut - Hex M52
55 217442 Clamp - Delta Handle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 8 of 10
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
56 217444 Handle - Delta1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 9 of 10
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400055-03 EAGER BEAVER SUPER 12/90 to 07/92 IPL 223304 Page 10 of 10
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
215439 TOOL - Piston Driving
215443 PLATE - Pressure Test
215444 GASKET - Intake Plate
215445 GASKET - Exhaust
222785 TORX Drive
K&T Saw Shop 606-678-9623 or 606-561-4983
