Page 1
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 1 of 14
www.ktoutdoor.com

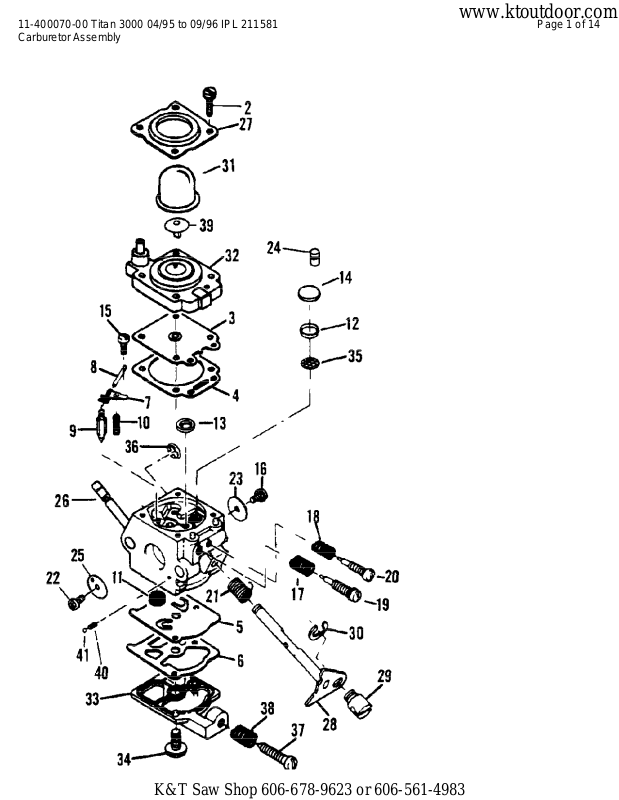

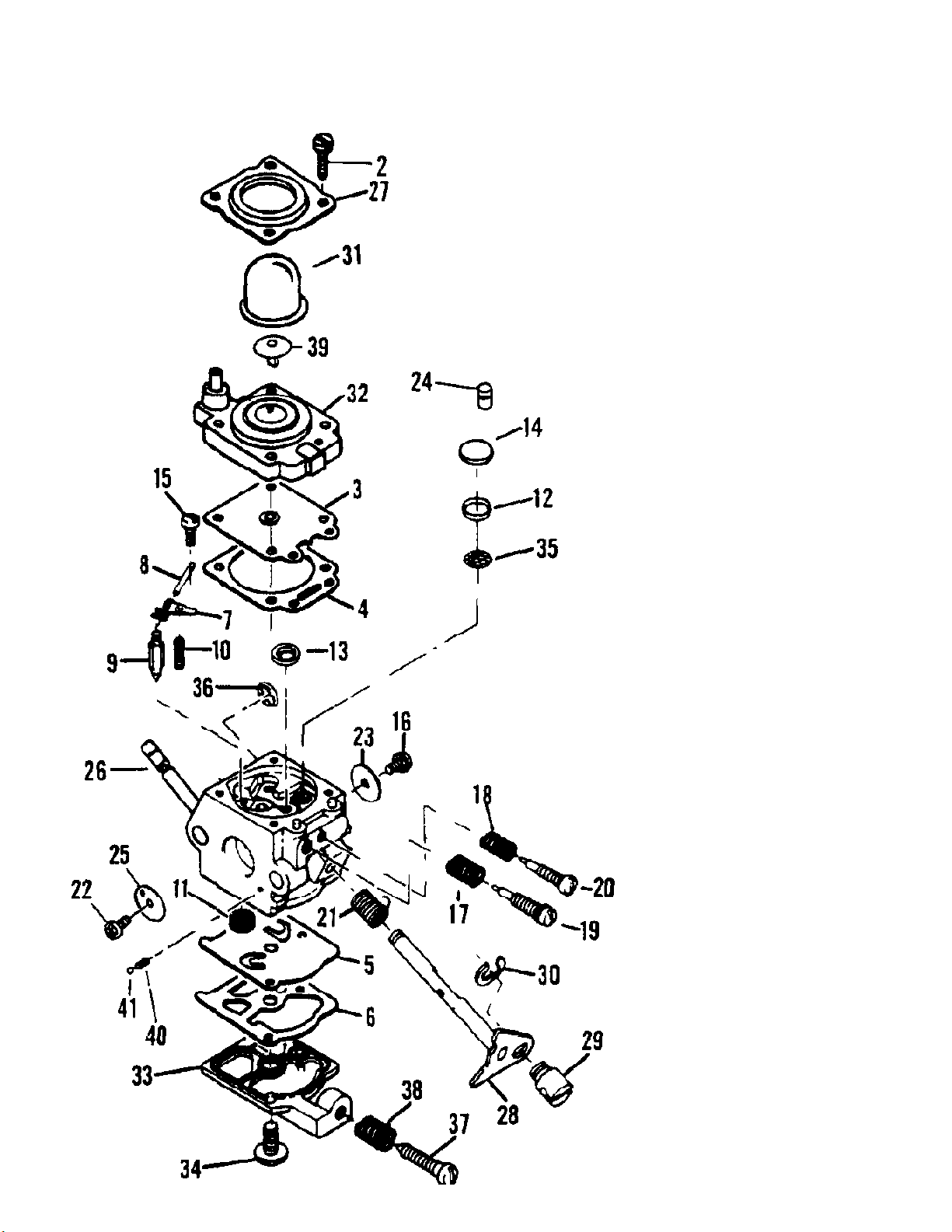

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 2 of 14
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
1 240048 Carburetor, Walbro WT255B
2 Screw, Metering Cover Not available separately. Kit,
4
Carb Repair A1118-WT. Distributor stocked. Medium
to slow moving part.
3 Diaphragm Assy, Metering Not available separately.
4 Gasket, Metering Diaph. Not available separately. Kit,
5 Diaphragm, Fuel Pump Not available separately. Kit,
6 Gasket, Fuel Pump Not available separately. Kit, Carb
7 Lever, Metering Not available separately. Kit, Carb
8 Pin, Metering Lever Not available separately. Kit,
1
Kit, Carb Repair A1118-WT. Distributor stocked.
Medium to slow moving part. Kit, Gasket-Repair
B1107-WT. Dealer stocked. Fast to medium moving
part.
1
Carb Repair A1118-WT. Distributor stocked. Medium
to slow moving part. Kit, Gasket-Repair B1107-WT.
Dealer stocked. Fast to medium moving part.
1
Carb Repair A1118-WT. Distributor stocked. Medium
to slow moving part. Kit, Gasket-Repair B1107-WT.
Dealer stocked. Fast to medium moving part.
1
Repair A1118-WT. Distributor stocked. Medium to
slow moving part. Kit, Gasket-Repair B1107-WT.
Dealer stocked. Fast to medium moving part.
1
Repair A1118-WT. Distributor stocked. Medium to
slow moving part.
1
Carb Repair A1118-WT. Distributor stocked. Medium
to slow moving part.
9 Valve, Inlet Needle Not available separately. Kit, Carb
10 Spring, Metering Lever Not available separately. Kit,
11 Screen, Fuel Inlet Not available separately. Kit, Carb
12 Ring, Screen Retainer Not available separately. Kit,
13 Plug, Welch (5/16) Not available separately. Kit, Carb
14 Plug, Welch (1/4) Not available separately. Kit, Carb
15 Screw, Metering Lever Pin Not available separately.
1
Repair A1118-WT. Distributor stocked. Medium to
slow moving part.
1
Carb Repair A1118-WT. Distributor stocked. Medium
to slow moving part.
1
Repair A1118-WT. Distributor stocked. Medium to
slow moving part.
1
Carb Repair A1118-WT. Distributor stocked. Medium
to slow moving part.
1
Repair A1118-WT. Distributor stocked. Medium to
slow moving part.
1
Repair A1118-WT. Distributor stocked. Medium to
slow moving part.
1
Kit, Carb Repair A1118-WT. Distributor stocked.
Medium to slow moving part.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 3 of 14
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
16 Screw, Valve/Throttle Not available separately. Kit,
1
Carb Repair A1118-WT. Distributor stocked. Medium
to slow moving part.
17 Spring, High Speed Needle Not available separately.
18 Spring, Idle Needle Not available separately. Kit, Carb
19 Needle, High Speed Not available separately. Kit,
20 Needle, Idle Not available separately.1
21 Spring, Throttle Return Not available separately.1
22 Screw, Valve/Choke Not available separately. Kit,
23 Valve, Throttle Not available separately. Kit, Carb
24 Seat Asy., Check Valve Not available separately.1
25 Valve, Choke Not available separately.1
26 Shaft Asy., Choke Not available separately.1
27 Cover, Primer Not available separately.1
28 Shaft Assembly, Throttle Not available separately.1
29 Swivel Not available separately.1
30 E-ring Not available separately.1
31 Pump, Primer Not available separately.1
32 Body, Air Purge Not available separately.1
33 Cover Assy, Fuel Pump Not available separately.1
34 Screw, Pump Cover Not available separately.1
35 Screen, Check Valve Not available separately.1
36 Ring, Shaft Retainer Not available separately.1
37 Screw, Idle Adjust Kit Not available separately.1
38 Spring, Tension-Idle Adj. Not available separately.1
39 Valve, Check Valve Not available separately.1
40 Spring, Choke Friction Not available separately.1
41 Ball, Choke Friction Not available separately.1
323750 Kit, Carb Repair A1118-WT Distributor stocked.
1
Kit, Carb Repair A1118-WT. Distributor stocked.
Medium to slow moving part.
1
Repair A1118-WT. Distributor stocked. Medium to
slow moving part.
1
Carb Repair A1118-WT. Distributor stocked. Medium
to slow moving part.
1
Carb Repair A1118-WT
1
Repair A1118-WT
Medium to slow moving part.
323751 Kit, Gasket-Repair B1107-WT Dealer stocked. Fast
to medium moving part.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 4 of 14
www.ktoutdoor.com

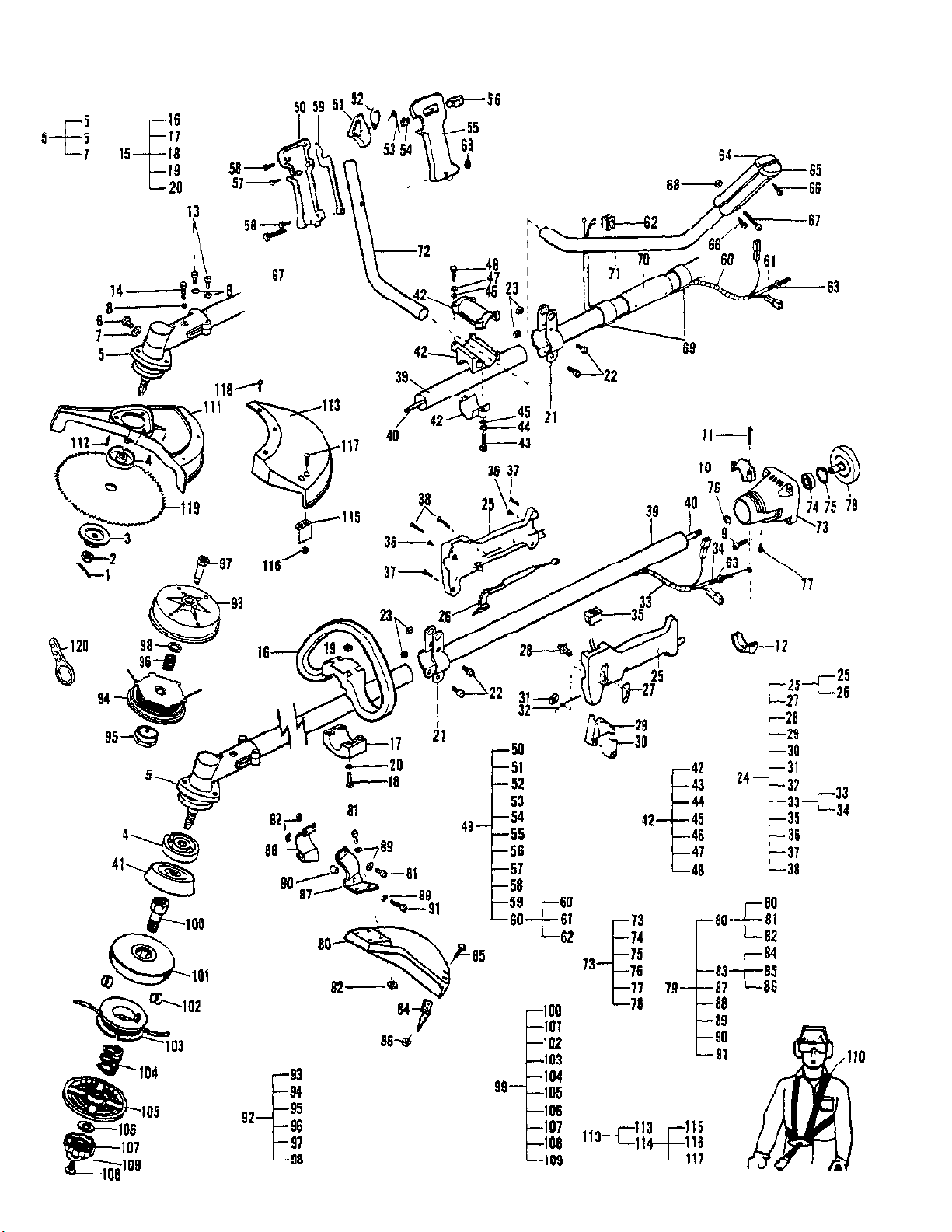

Shaft/Sheild/Cutter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 5 of 14
www.ktoutdoor.com
Shaft/Sheild/Cutter Assembly
Ref # Part Number DescriptionQty
1 218159 Cotter Pin1
2 216751 Nut, Hex M10 LH1
3 218075 Flange, Spindle1
4 225053-01 Collar1
5 240476 Gearbox Assembly (D=25)1
6 216832 Bolt, Hex M8 x 81
7 235906 Washer1
8 236529 Washer3
9 235214 Screw, M6 x 204
10 227700 Clamp, (Upper) Grey1
11 235804 Screw, M5 x 302
12 227701 Clamp, (Lower) Grey1
13 235803 Screw, M5 x 252
14 216795 Screw, PHL M5 x 121
15 224977 Kit, Loop Handle1
16 227045 Loop, Handle (25mm)1
17 227046 Clamp, Handle (25mm)1
18 228320 Screw, M6 x 0.8 x 454
19 236642 Nut4
20 236936 Washer4
21 218002-01 Ring Asy. - Harness2
22 217935 Screw, TR 10-24 x .502
23 218315 Nut, 10-242
24 240487 Handle Assembly & Cable1
25 246955 Kit, Handle1
26 229819 Trigger, Safety1
27 229824 Slide, Throttle Cable1
28 229823 Pin1
29 227064 Trigger1
30 240091 Spring, Trigger1
31 227065 Ring1
32 229973 Spring1
33 240488 Throttle Cable/Wire Assy1
34 240489 Wire, Throttle1
35 236394 Switch1
36 236981 Screw2
37 240618 Screw, 3 x 162
38 240833 Screw, Tapping 3 x 204
39 227233 Shaft, Outer D1
40 228109 Drive Shaft-SM261
41 240482 Collar, Spindle1
42 218391 Clamp Assembly1
43 235921 Screw2
44 236528 Washer2
45 236936 Washer2
46 216591 Washer Flat M54
47 236529 Washer4
48 235803 Screw M5 x 254
49 240504 Handle Assembly & Cable1
50 227764 Handle, Right- 22mm B/Horn1
51 229818 Trigger1
52 240091 Spring1
53 229973 Spring1
54 229823 Pin1
55 227763 Handle, Left- 22mm B/Horn1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 6 of 14
www.ktoutdoor.com
Shaft/Sheild/Cutter Assembly
Ref # Part Number DescriptionQty
56 229824 Slide, Throttle Cable1
57 240833 Screw3
58 240618 Screw, 3 x 162
59 229820 Lever, Throttle Lock1
60 240505 Throttle Cable/Wire Assy1
61 240506 Wire, Throttle1
62 236394 Switch1
63 235912 Nut1
64 229985 Half Housing, Right1
65 229984 Half Housing Handle, Left1
66 240833 Screw, Tapping 3 x 202
67 235211 Screw, M5 x 302
68 235216 Nut2
69 229850 Ring2
70 228942 Cushion1
71 229832 Half Handle Left1
72 229831 Half Handle Right1
73 240521 Housing TD D251
74 235918 Bearing1
75 235899 Seeger Ring1
76 236378 Retaining Clip1
77 236381 Screw, M5 x 101
78 227284 Clutch Drum1
79 240501 Guard Assembly-Nylon Head1
80 246861 Guard Assembly, Grass1
81 235802 Screw, M5 x 146
82 236732 Nut, M5 Sq.7
83 300626 Kit, Knife1
84 224497-01 Cutter1
85 217935 Screw, M5 x 142
86 216682 Nut, Lock 10-242
87 240803 Clamp, Left1
88 240804 Clamp, Right1
89 236529 Washer1
90 229971 Spacer1
91 235803 Screw, M5 x 251
92 300078-01 Stringhead Assembly1
93 300091 Hsg./Eyelet Asy.1
94 300690 Spool Assy1
95 300737 Knob Assy-Left1
96 322626 Spring1
97 322106 Stud, Left1
98 111073 Ring, Retainer1
99 228148-02 Stringhead Assembly1
100 229697 Bolt1
101 229726 Hsg., Stringhead1
102 227693 Eyelet2
103 229860 Spool1
104 229695 Spring1
105 229727 Cover, Stringhead1
106 229692 Washer1
107 229859 Knob1
108 229287 Screw, M6 x 121
109 236934 Washer1
110 240813 Harness Assembly1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 7 of 14
www.ktoutdoor.com
Shaft/Sheild/Cutter Assembly
Ref # Part Number DescriptionQty
111 224177-01 Shield, Blade1
112 240688 Screw, M5 x 14 Hex Socket3
113 300318 Kit, Grass Shield1
114 300626 Kit, Knife1
115 224497-01 Cutter1
116 216682 Nut, Lock 10-242
117 217935 Screw 10-24 x 5 TORX2
118 224175 Screw, M6 x 153
119 322217 Package, Blade 80T x 9" x 1"1
120 322344 Wrench1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 8 of 14
www.ktoutdoor.com

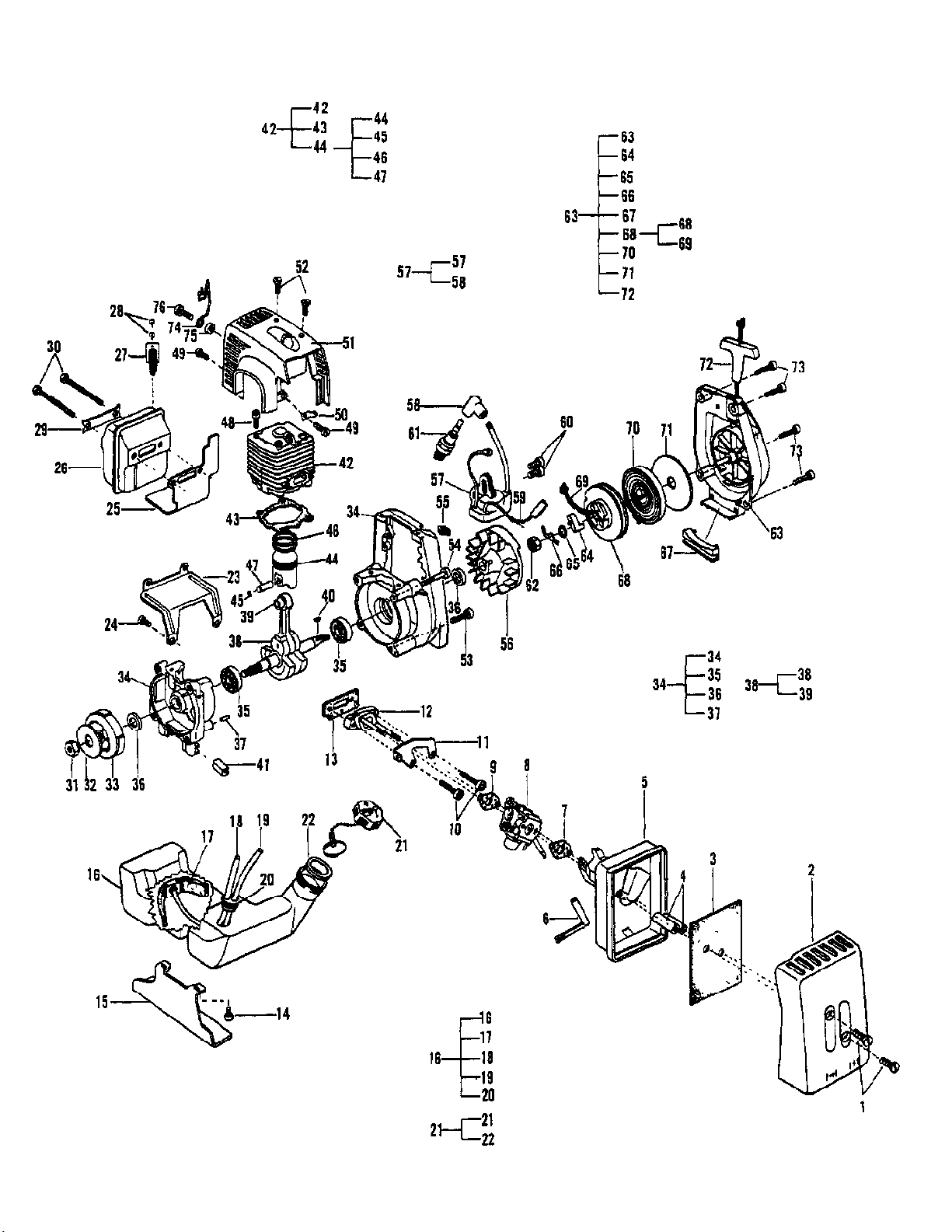

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 9 of 14
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 240688 Screw, M5 x 14 Hex Socket2
2 227784 Cover, Air Filter1
3 227145 Air Filter1
4 227143 Stud2
5 237452 Air Filter Box1
6 227255 Choke, Knob1
7 227692 Gasket, Insulator/Carburetor1
8 Carburetor See "Carburetor Assembly" illustration and
parts list.
9 227417 Gasket1
10 235803 Screw, M5 x 252
11 227244 Gas Cable Plate1
12 237451 Insulator, Carburetor1
13 227239 Gasket, Cylinder1
14 235911 Screw2
15 229301 Protector, Fuel Tank1
16 227787 Fuel Tank Assembly1
17 227260 Pick-up, Fuel1
18 229809 Hose, Fuel1
19 227139 Hose, Fuel1
20 235675 Grommet, Fuel1
21 216157 Cap, Fuel1
22 94707 Gasket1
23 227242 Plate1
24 240688 Screw, M5 x 14 Hex Socket2
25 227243 Gasket, Muffler1
26 240554 Muffler Assembly1
27 240558 Screen, Spark Arrestor1
28 236981 Screw2
29 227236 Clamp, Muffler1
30 227274 Screw, M5 x 602
31 228294 Nut1
32 236739 Washer, Clutch1
33 227282 Clutch Assembly1
34 227187 Crankcase Assembly1
35 235900 Bearing, Crankshaft2
36 235229 Seal2
37 236365 Pin1
38 236680-01 Crankshaft1
39 235742 Bearing, Piston Pin1
40 102164 Key, WDF #2061
41 229280 Cushion. Crankcase/Fuel Tank2
42 240007 Kit, Cylinder/Piston (30 cc)1
240008 Kit, Cylinder/Piston (38 cc)1
43 227286 Gasket, Cylinder1
44 240001 Kit, Piston (30 cc)1
240004 Kit, Piston (38 cc)1
45 235008 Retaining Ring2
46 240002 Ring, Piston (30 cc)2
240005 Ring, Piston (38 cc)2
47 Pin, Piston Not available separately.1
48 235214 Screw, M6 x 204
49 240688 Screw, M5 x 14 Hex Socket2
50 228139 Contact1
51 240835 Shroud, Cylinder1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 10 of 14
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
52 240688 Screw, M5 x 14 Hex Socket2
53 235804 Screw, M5 x 302
54 235919 Bolt, M5 x 402
55 236322 Grommet1
56 227862 Flywheel1
57 227874 Ignition Assembly1
58 95266 Boot, Spark Plug1
59 227774 Wire/Grommet Assembly1
60 235806 Screw, M5 x 202
61 92879 Spark Plug (RDJ8)1
62 236617 Nut1
63 227780 Starter Assembly1
64 227182 Pawl, Starter1
240492 Pawl, Starter1
65 227470 Spacer, Drum1
66 227183 Spring, Pawl1
240485 Spring, Pawl1
67 227186 Cushion, Rubber1
68 227194 Drum, Rope1
69 227703 Rope, Starter1
70 227300 Spring, Rewind1
71 227467 Shield, Starter Spring1
72 227472 Handle, Starter1
73 240688 Screw, M5 x 14 Hex Socket4
74 240568 Shield, Muffler1
75 240801 Spacer1
76 240802 Screw, SEMS M5 x 201
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 11 of 14
www.ktoutdoor.com
Torque Values
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 12 of 14
www.ktoutdoor.com
Torque Values
Ref # Part Number DescriptionQty
227143 227143 Fastener Carburetor Nuts Torque to 35.4 in. lbs.
235803 235803 Insulator Screws Torque to 53 - 62 in. lbs.
227274 227274 Muffler Bolts Torque to 70.8 in. lbs.
235214 235214 Cylinder Screws Torque to 115 - 124 in. lbs.
235804 235804 Crankcase Screws Torque to 115 - 124 in. lbs.
235919 235919 Crankcase Screws Torque to 88.5 - 97.3 in. lbs.
235806 235806 Ignition Screws Torque to 44.2 - 53 in. lbs.
93018 93018 Spark Plug Torque to 88.5 - 115 in. lbs.
236617 236617 Flywheel Nut Torque to 177 in. lbs.
235214 235214 Clutch Housing Torque to 53 - 62 in. lbs.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 13 of 14
www.ktoutdoor.com
Torx Supplies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400070-00 Titan 3000 04/95 to 09/96 IPL 211581 Page 14 of 14
www.ktoutdoor.com
Torx Supplies
Ref # Part Number DescriptionQty
222785 222785 T-25 Torx Drive 3.5"
111124 111124 T-27 Torx Drive 3.5"
217720 217720 Torx Drive Set
91424 91424 Tachometer
215432 215432 Pressure Test Tool
323330 323330 Ignition Tester
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
