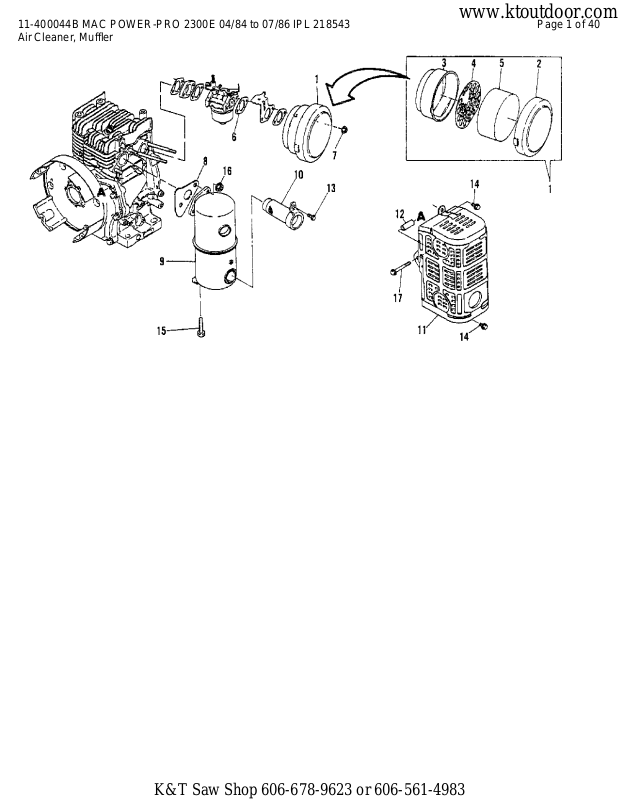

Page 1
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 1 of 40
www.ktoutdoor.com

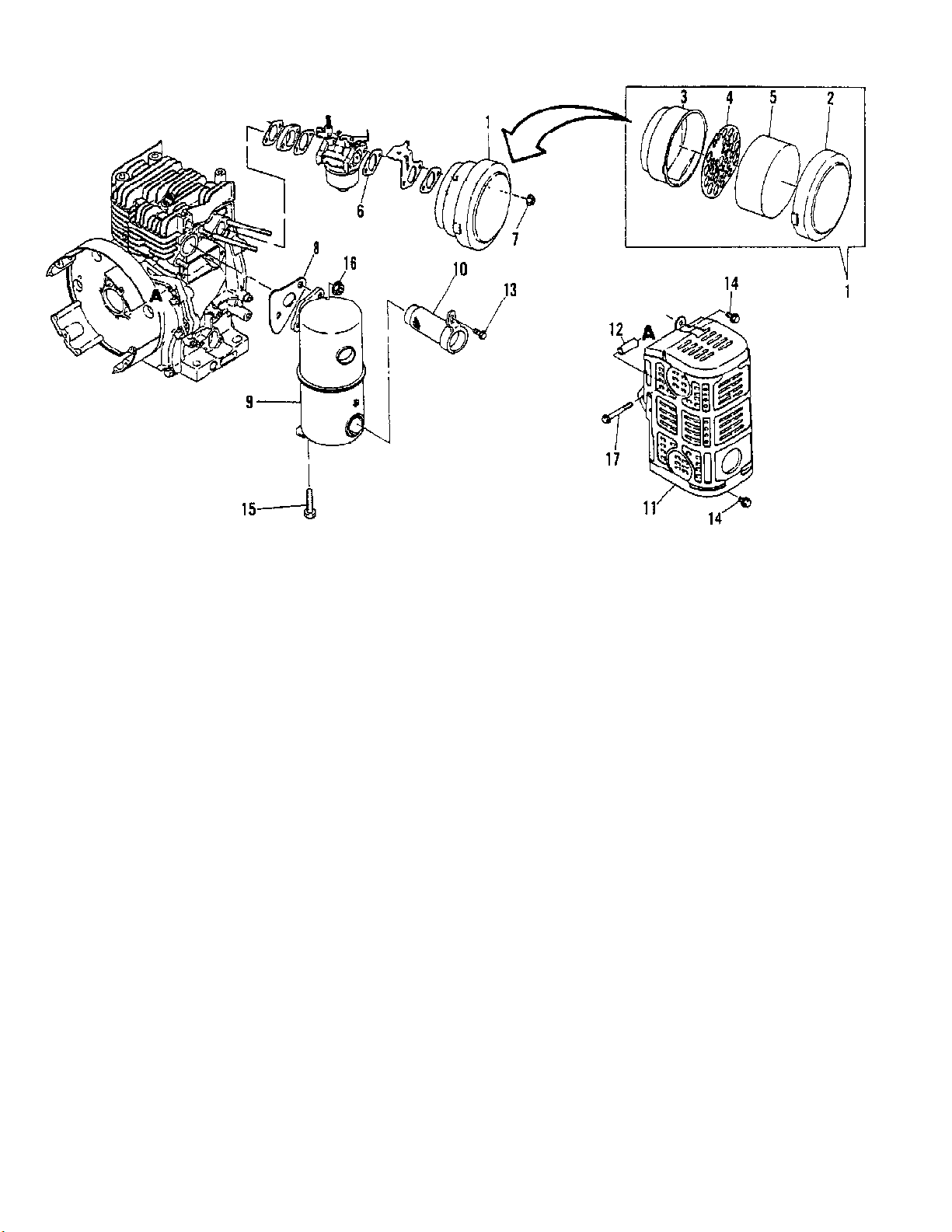

Air Cleaner, Muffler
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 2 of 40
www.ktoutdoor.com
Air Cleaner, Muffler
Ref # Part Number DescriptionQty
1 222045 Air Cleaner Assy.1
2 222046 Cap - Air Cleaner1
3 221490 Body - Air Cleaner1
4 221491 Plate - Element1
5 221233 Element - Air Cleaner1
6 221325 Gasket1
7 221940 Nut M62
8 221492 Gasket - Air Cleaner1
9 222047 Muffler1
10 222018 Spark Arrester1
11 221547 Cover - Muffler1
12 221373 Piece1
13 222025 Bolt M6 X 101
14 221932 Bolt M6 X 162
15 221937 Bolt M8 X 301
16 221941 Nut M82
17 221949 Bolt M6 X 551
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 3 of 40
www.ktoutdoor.com

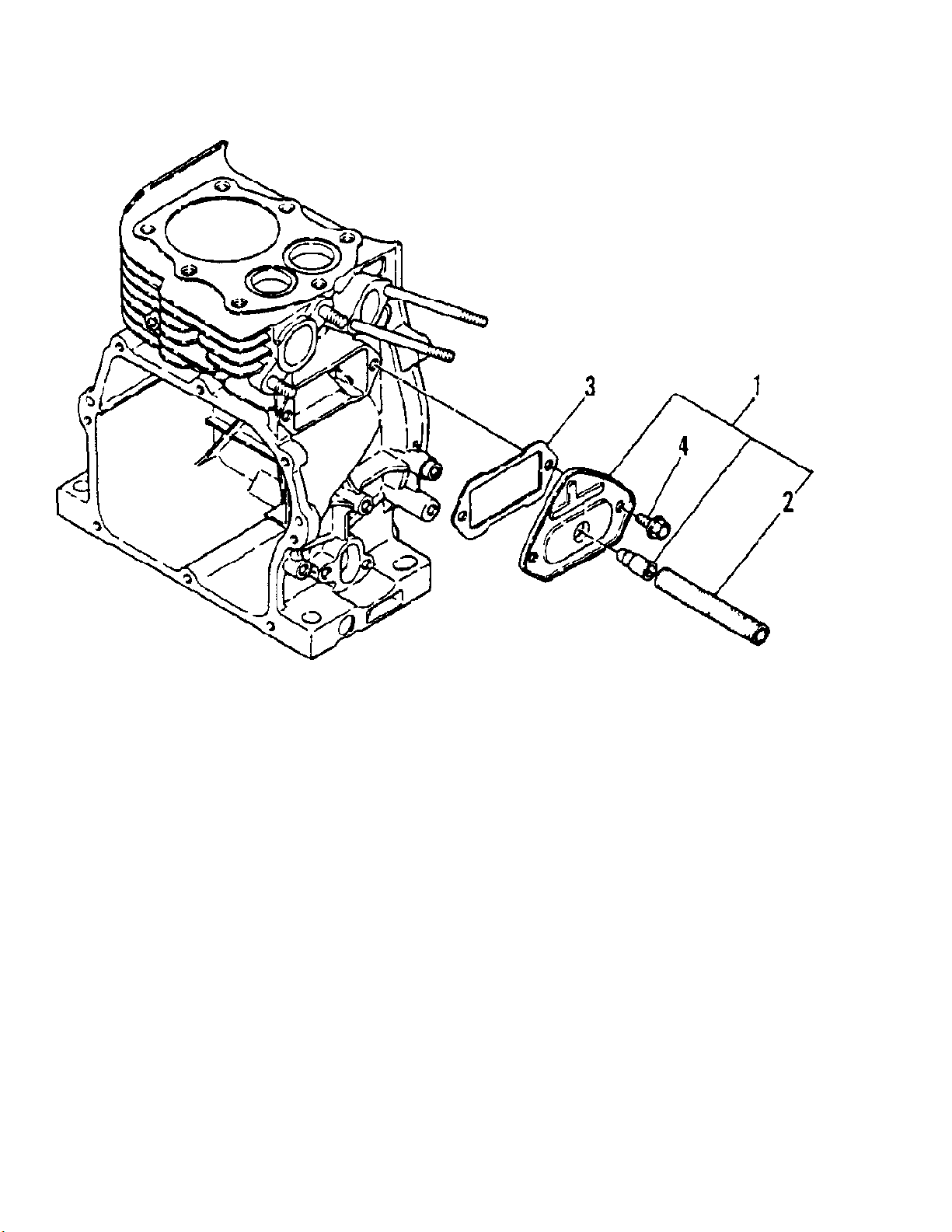

Breather
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 4 of 40
www.ktoutdoor.com
Breather
Ref # Part Number DescriptionQty
1 221478 Breather Assy.1
2 221481 Pipe - Breather1
3 221480 Gasket1
4 221944 Bolt M6 X 142
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 5 of 40
www.ktoutdoor.com

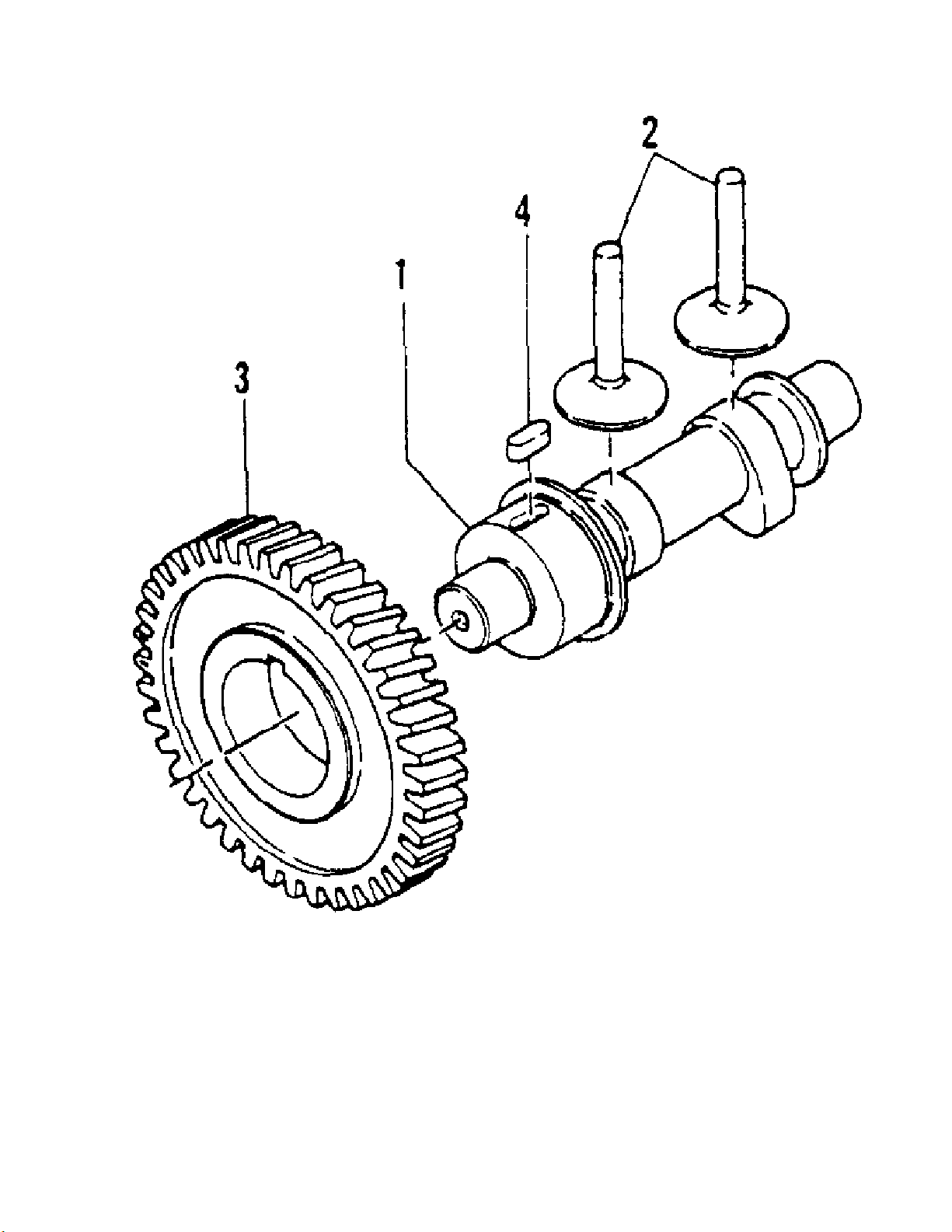

Camshaft
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 6 of 40
www.ktoutdoor.com
Camshaft
Ref # Part Number DescriptionQty
1 221536 Camshaft1
2 221493 Tappet2
3 221532 Gear - Camshaft1
4 221916 Key 4 X 121
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 7 of 40
www.ktoutdoor.com

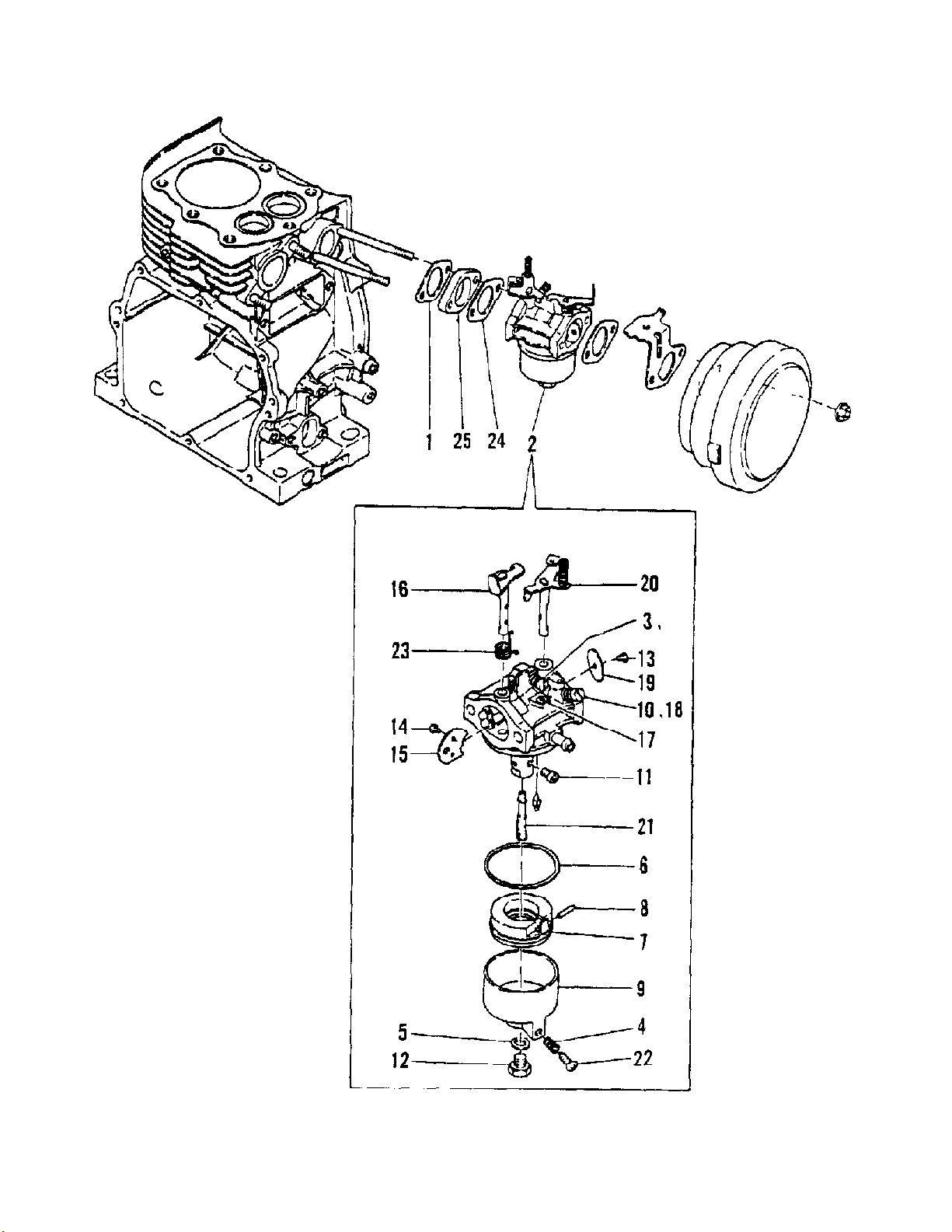

Carburetor
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 8 of 40
www.ktoutdoor.com
Carburetor
Ref # Part Number DescriptionQty
1 221238 Gasket - Silencer1
2 221550 Carburetor1
3 221656 Screw1
4 221657 Spring1
5 221327 Washer1
6 221328 Gasket1
7 221329 Float1
8 221331 Pin1
9 221332 Body1
10 221653 Spring2
11 221517 Jet - Main1
12 221333 Bolt1
13 221223 Screw1
14 221519 Screw1
15 221518 Valve - Choke1
16 221552 Shaft - Choke1
17 221521 Jet - Pilot1
18 221522 Screw1
19 221337 Valve - Throttle1
20 221553 Shaft - Throttle1
21 221523 Nozzle - Main1
22 221339 Screw1
23 221520 Spring1
24 221325 Gasket1
25 221326 Spacer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 9 of 40
www.ktoutdoor.com

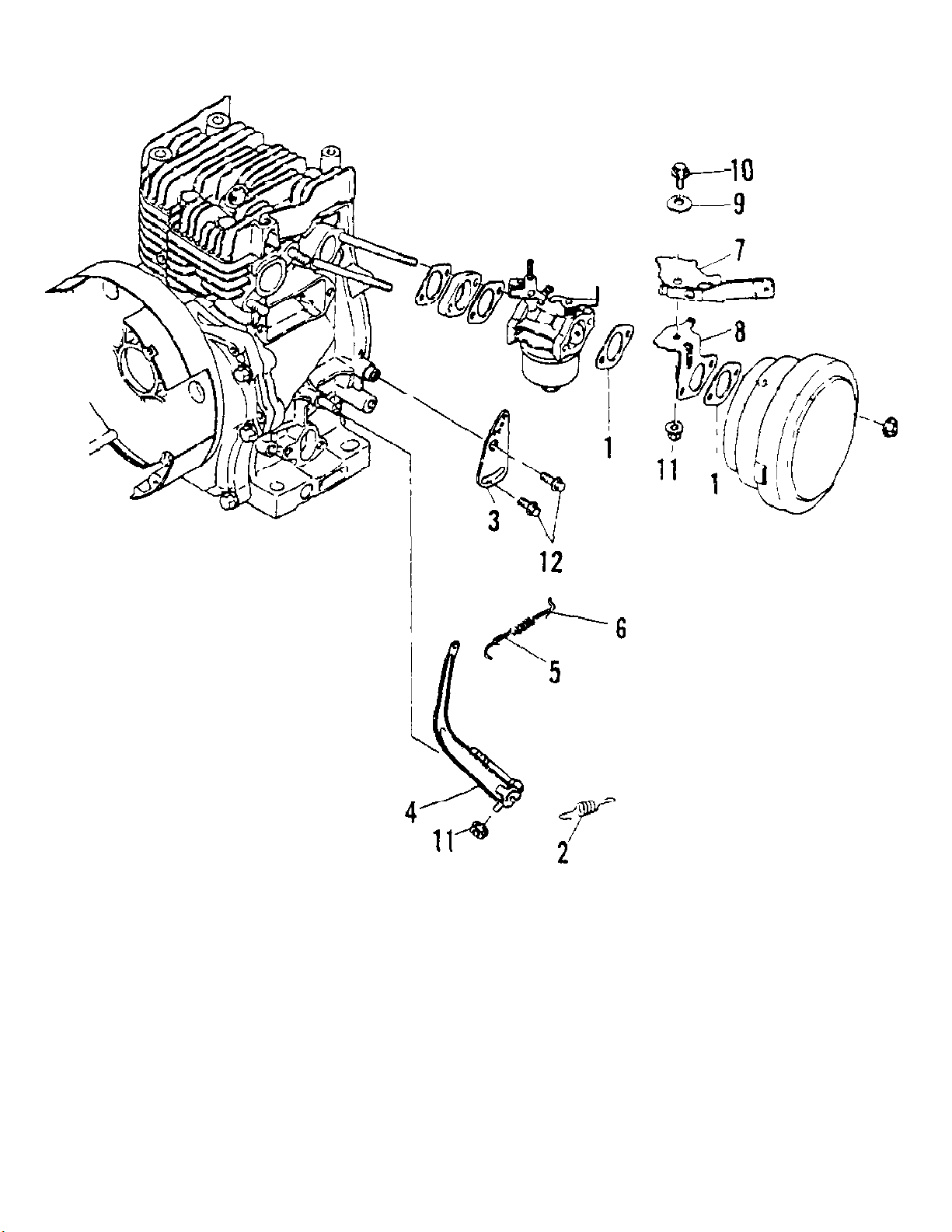

Control Device
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 10 of 40
www.ktoutdoor.com
Control Device
Ref # Part Number DescriptionQty
1 221325 Gasket2
2 221348 Spring - Regulator1
3 221652 Handle - Regulator1
4 221341 Lever - Governor1
5 221350 Link -Throttle1
6 221526 Spring - Tension1
7 221554 Lever1
8 221555 Bracket1
9 221469 Collar1
10 221931 Bolt M6 X 122
11 221940 Nut M62
12 221944 Bolt M6 X 142
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 11 of 40
www.ktoutdoor.com

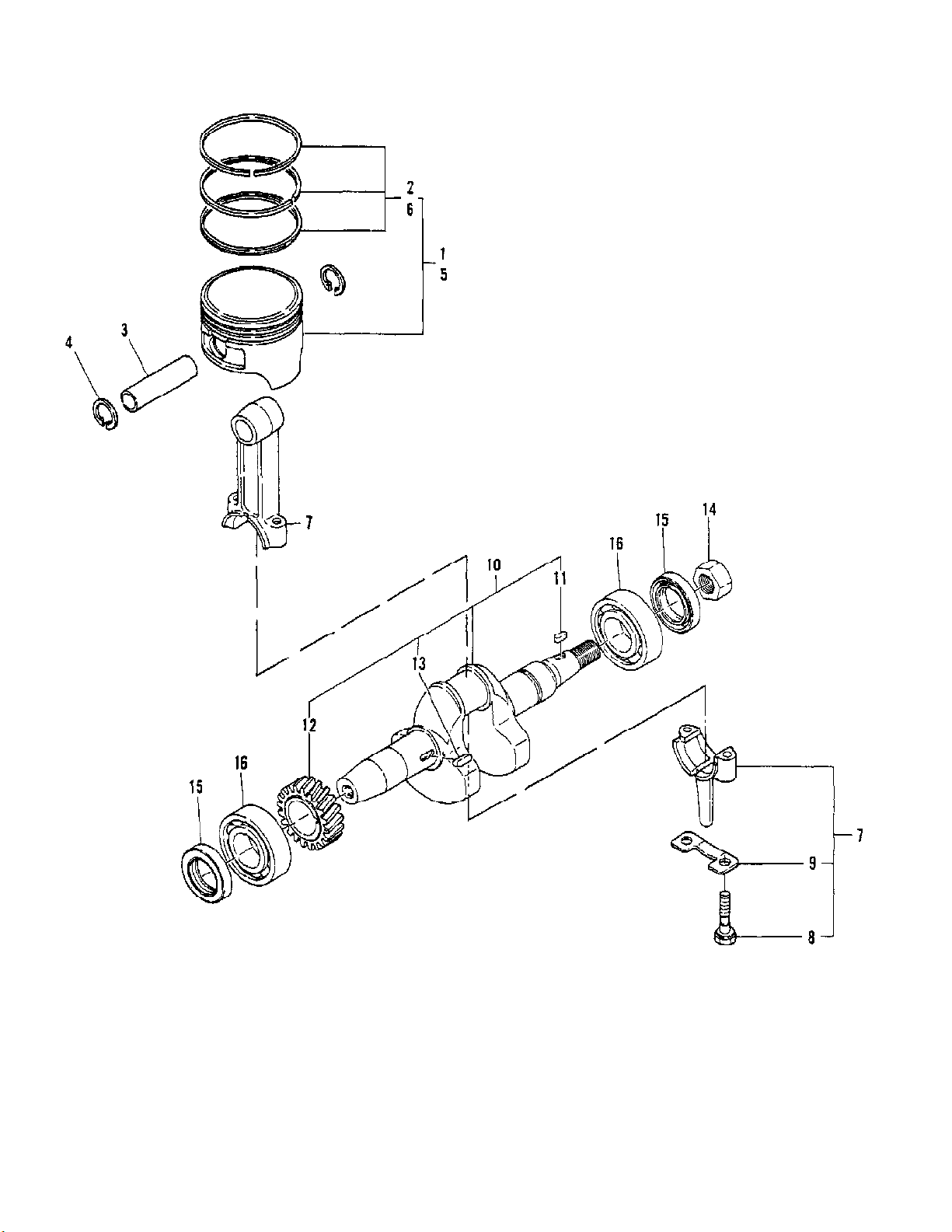

Crankshaft,Piston
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 12 of 40
www.ktoutdoor.com
Crankshaft,Piston
Ref # Part Number DescriptionQty
1 221494 Piston - W/Ring1
2 221969 Piston Ring Assy.1
3 221499 Pin - Piston1
4 221910 Ring2
5 221501 Piston1
6 221970 Ring - W/Ring1
7 221971 Rod Assy. - Connecting1
8 221503 Bolt -Rod2
9 221504 Washer1
10 222048 Camshaft Assy.1
11 221320 Key 4 X 101
12 221533 Gear - Crankshaft1
13 221916 Key 4 X 121
14 222049 Nut M141
15 221226 Oil Seal2
16 221922 Bearing2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 13 of 40
www.ktoutdoor.com

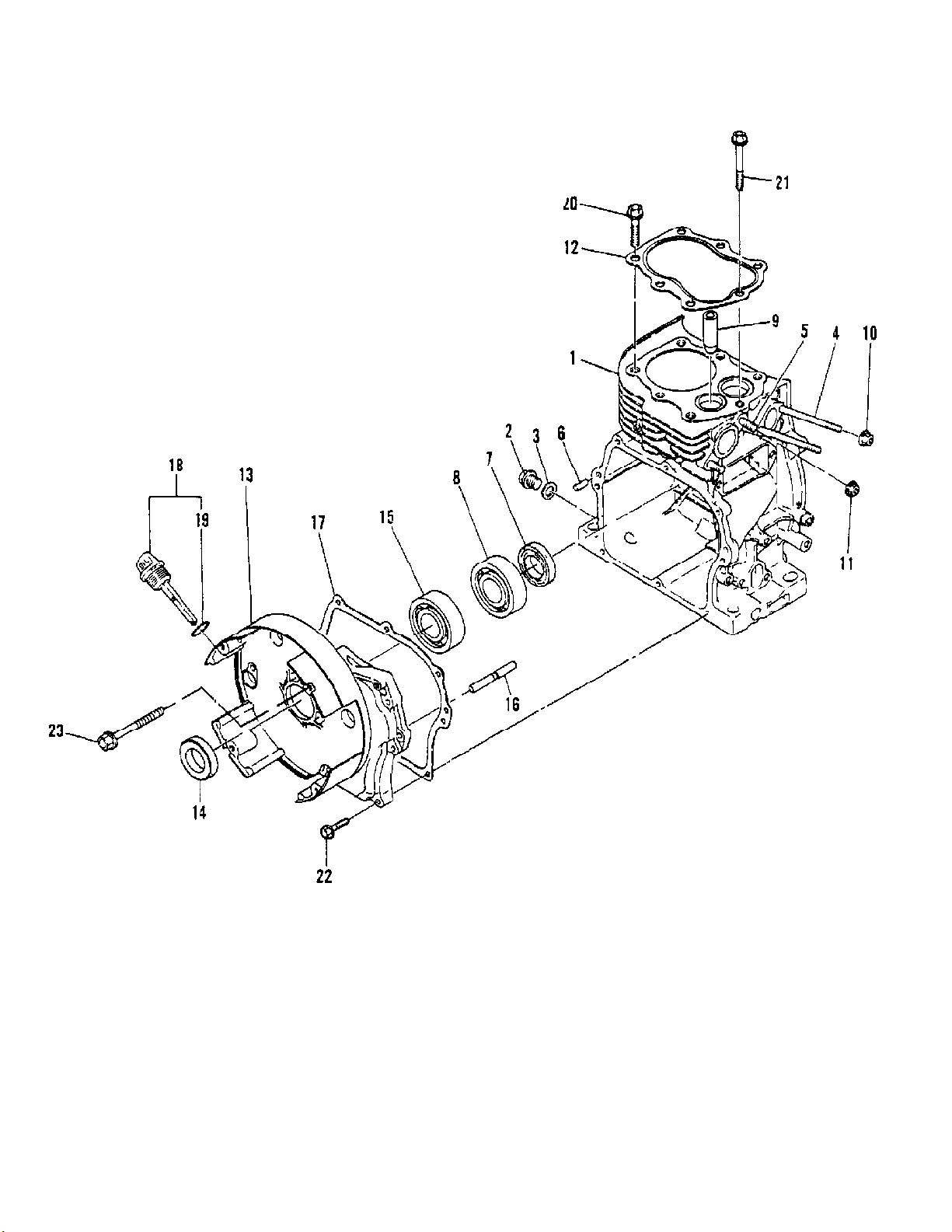

Cylinder Body
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 14 of 40
www.ktoutdoor.com
Cylinder Body
Ref # Part Number DescriptionQty
1 221968 Body Assy. - Cylinder1
2 221291 Plug -Drain1
3 221982 Gasket1
4 221304 Bolt M6 X 702
5 221939 Bolt M6 X 182
6 221913 Parallel Pin 6 X 162
7 221226 Oil Seal1
8 221922 Bearing1
9 221311 Valve Guide1
10 221940 Nut M62
11 221941 Nut M82
12 211474 Gasket - Cyl. Head1
13 221972 Cover Assy. - Side1
14 221226 Seal - Oil1
15 221922 Bearing1
16 221341 Shaft - Governor1
17 221475 Gasket1
18 221476 Cap Camp.1
19 221925 O-Ring1
20 221298 Bolt M8 X 384
21 221302 Bolt M8 X 653
22 221946 Bolt M6 X 258
23 221949 Bolt M6 X 551
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 15 of 40
www.ktoutdoor.com

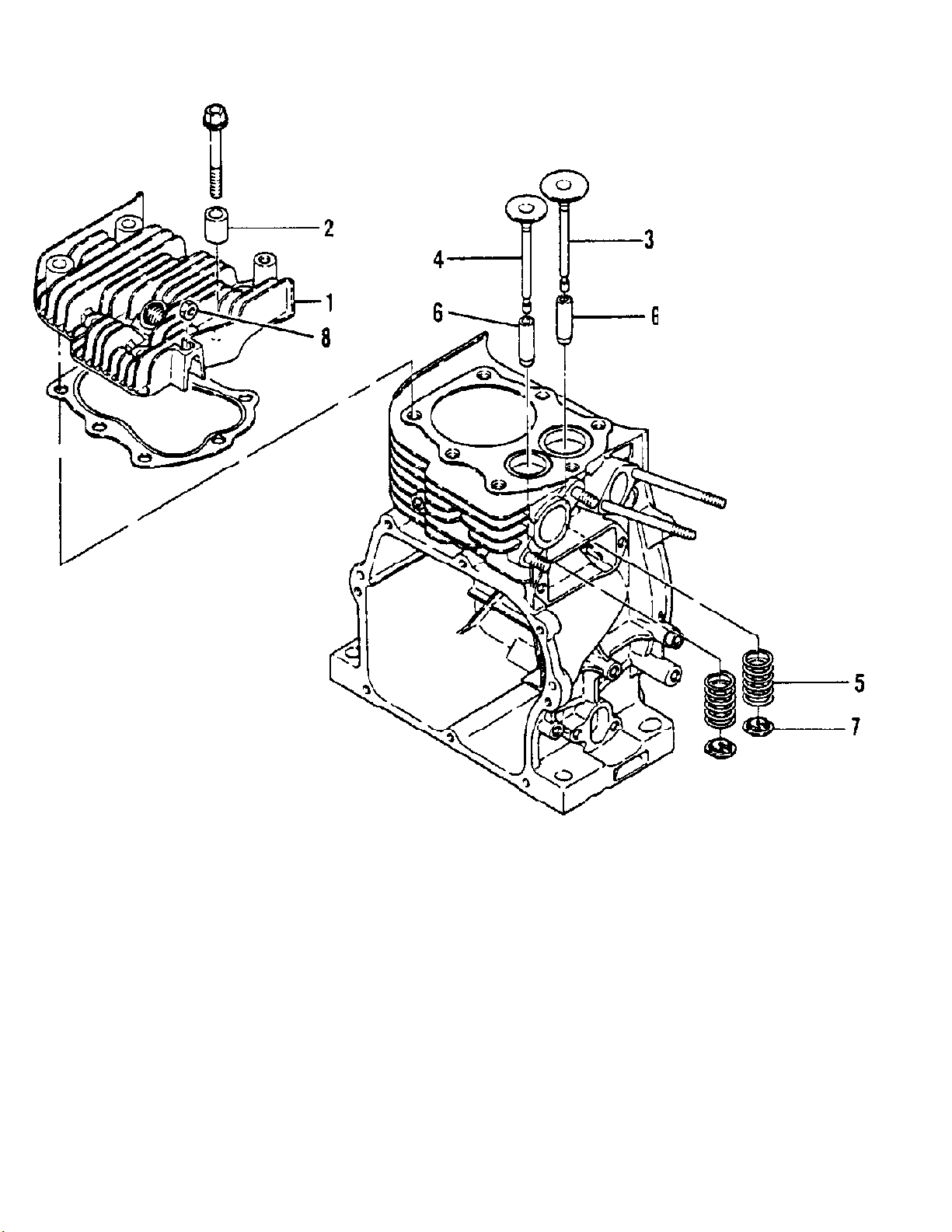

Cylinder Head
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 16 of 40
www.ktoutdoor.com
Cylinder Head
Ref # Part Number DescriptionQty
1 221483 Head - Cylinder1
2 221484 Spacer1
3 221485 Valve - Intake1
4 221486 Valve - Exhaust1
5 221487 Spring - Valve2
6 221311 Guide - Valve2
7 221312 Retainer2
8 221952 Nut M61
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 17 of 40
www.ktoutdoor.com

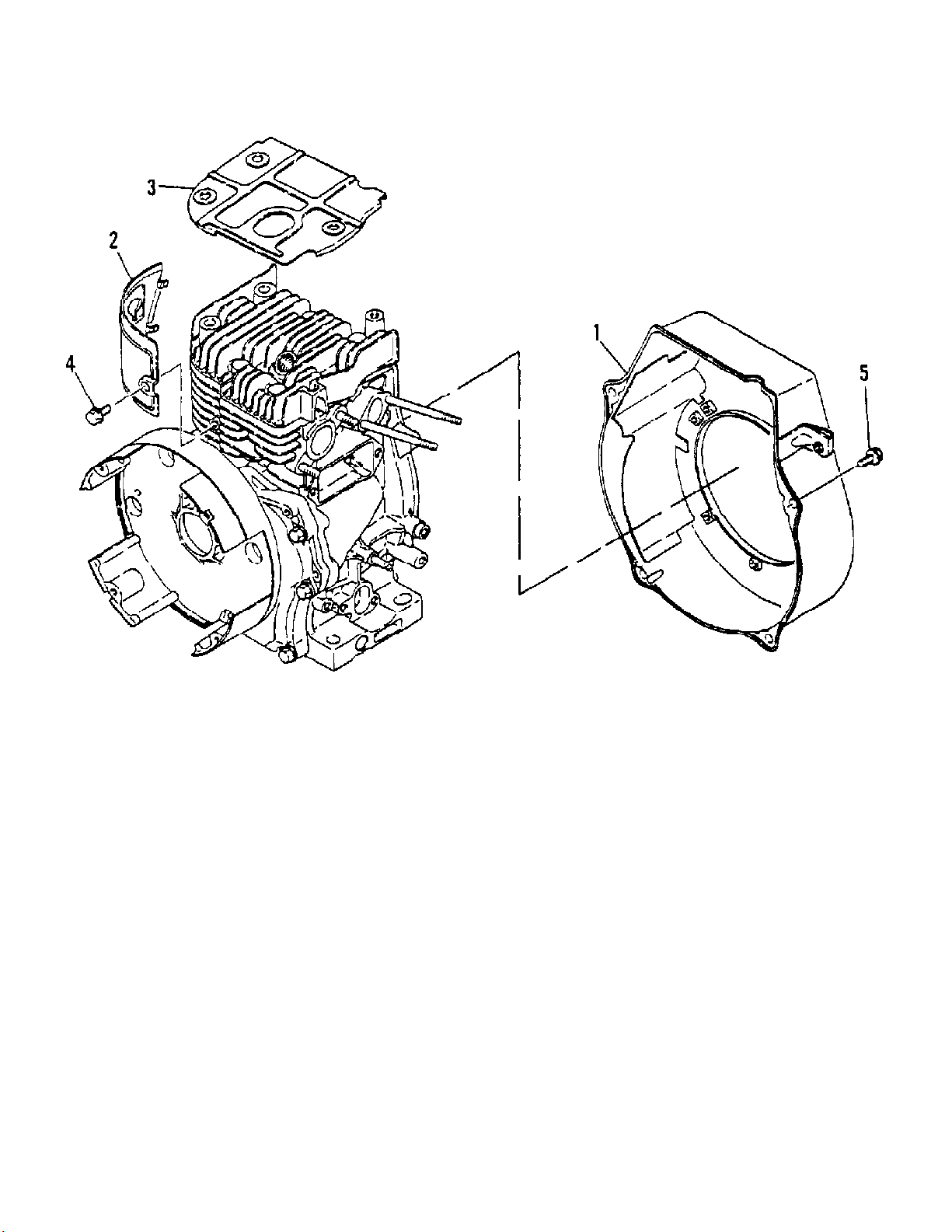

Fan Case
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 18 of 40
www.ktoutdoor.com
Fan Case
Ref # Part Number DescriptionQty
1 222050 Fan Case1
2 222051 Plate1
3 221506 Cover - Head1
4 221944 Bolt M6 X 141
5 221944 Bolt M6 X 144
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 19 of 40
www.ktoutdoor.com

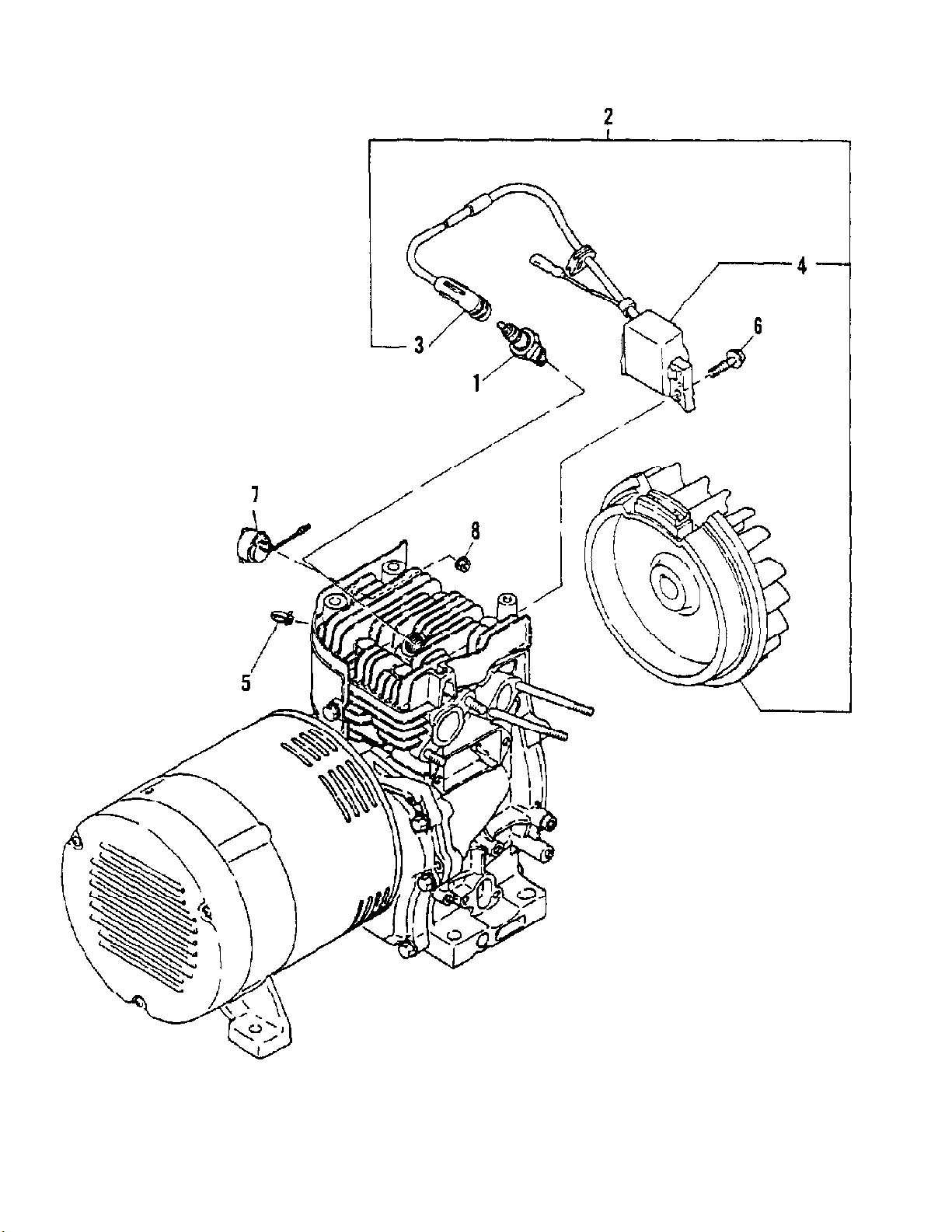

Stop Switch, Flywheel
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 20 of 40
www.ktoutdoor.com
Stop Switch, Flywheel
Ref # Part Number DescriptionQty
1 222016 Plug - Spark1
2 221542 Flywheel Mag. Assy.1
3 221240 Cap - Plug1
4 221530 Coil - Ignition1
5 221531 Clamp1
6 221947 Bolt M6 X 302
7 221356 Switch1
8 221941 Nut M81
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 21 of 40
www.ktoutdoor.com

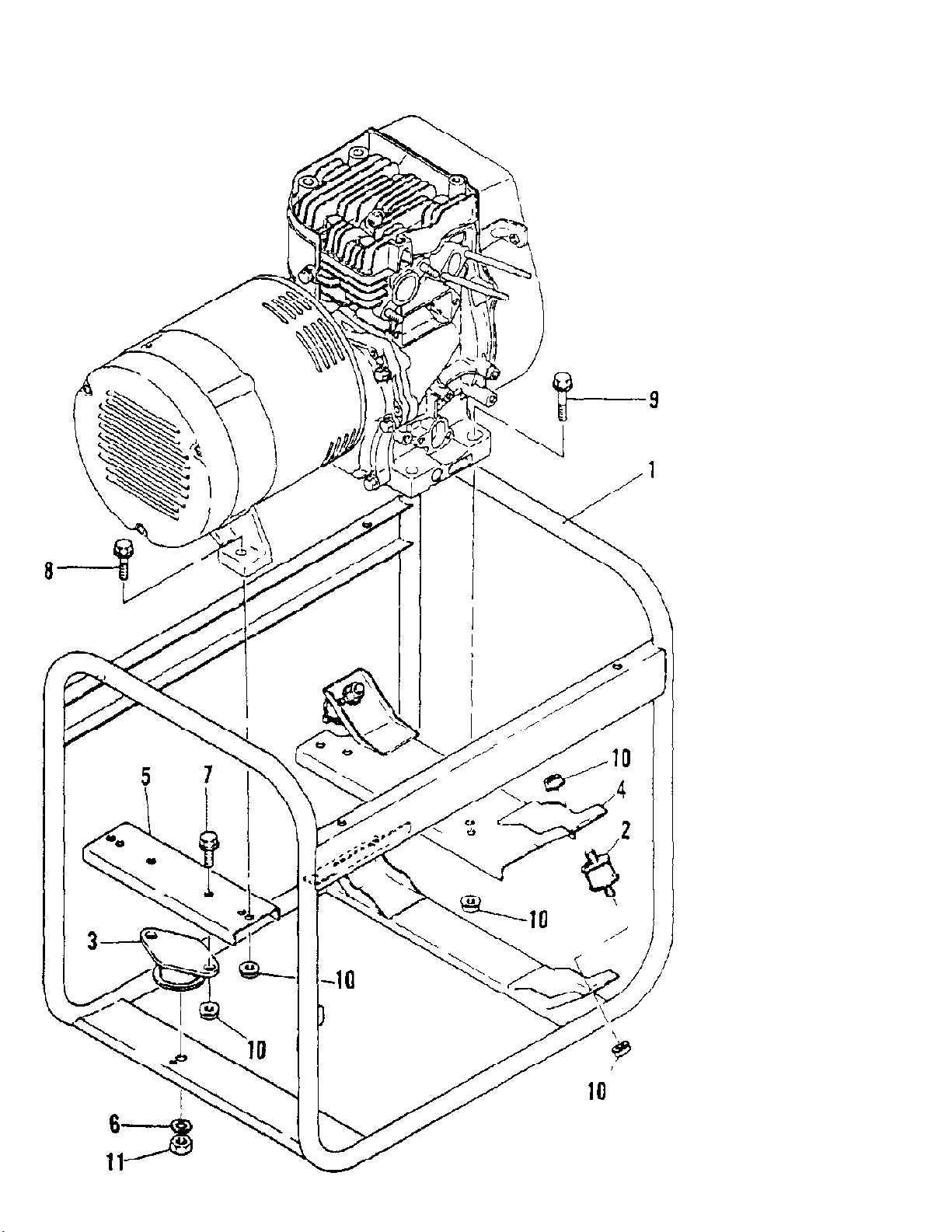

Frame
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 22 of 40
www.ktoutdoor.com
Frame
Ref # Part Number DescriptionQty
1 222043 Frame1
2 221800 Damper - Front2
3 221801 Damper - Rear1
4 221761 Stay - Damper1
5 221802 Stay - Rear Damper1
6 221906 Washer1
7 221936 Bolt M8 X 202
8 221937 Bolt M8 X 304
9 222044 Bolt M8 X 382
10 221941 Nut M810
11 221950 Nut M101
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 23
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 23 of 40
www.ktoutdoor.com

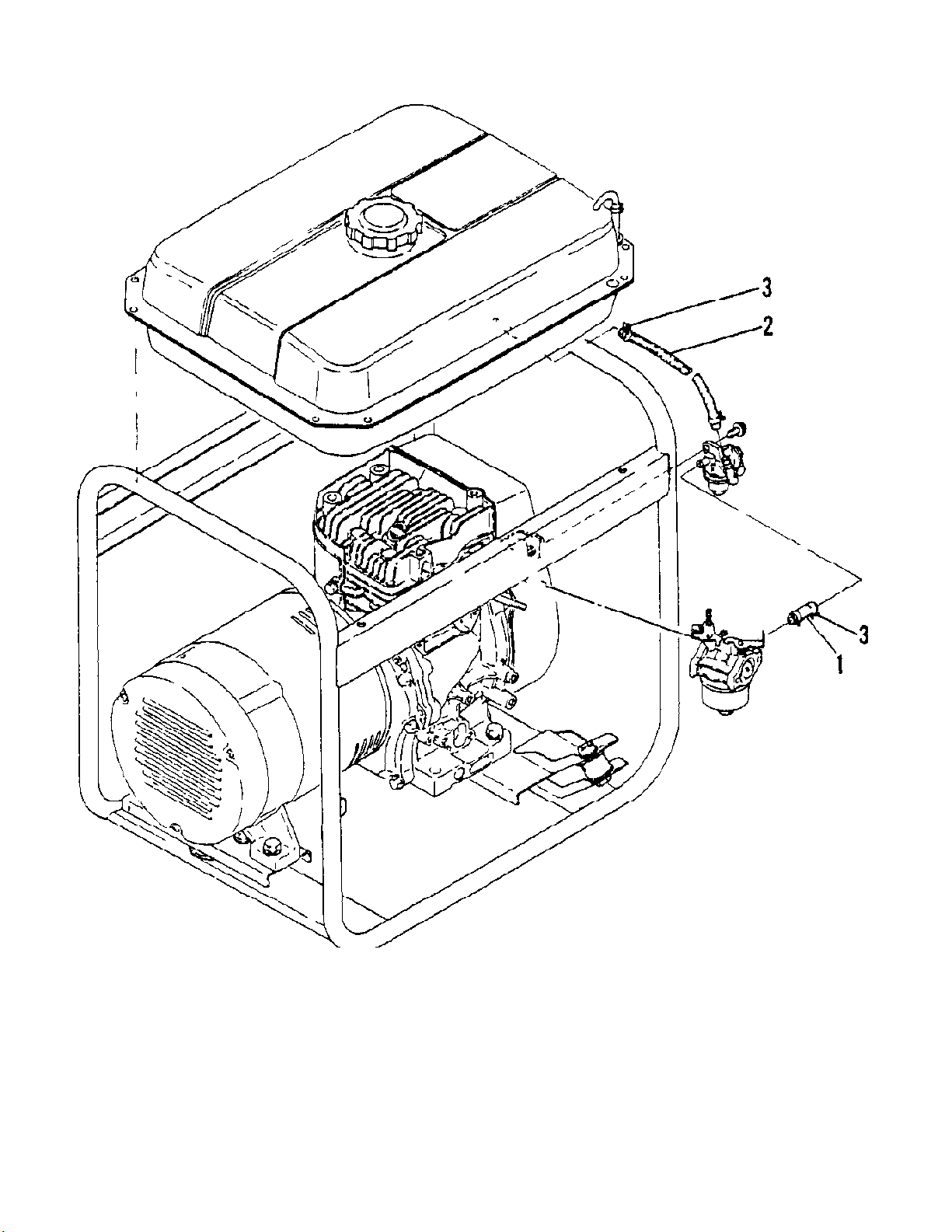

Fuel Pipe
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 24
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 24 of 40
www.ktoutdoor.com
Fuel Pipe
Ref # Part Number DescriptionQty
1 221340 Pipe - Fuel1
2 221806 Pipe - Fuel1
3 221220 Clamp1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 25
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 25 of 40
www.ktoutdoor.com

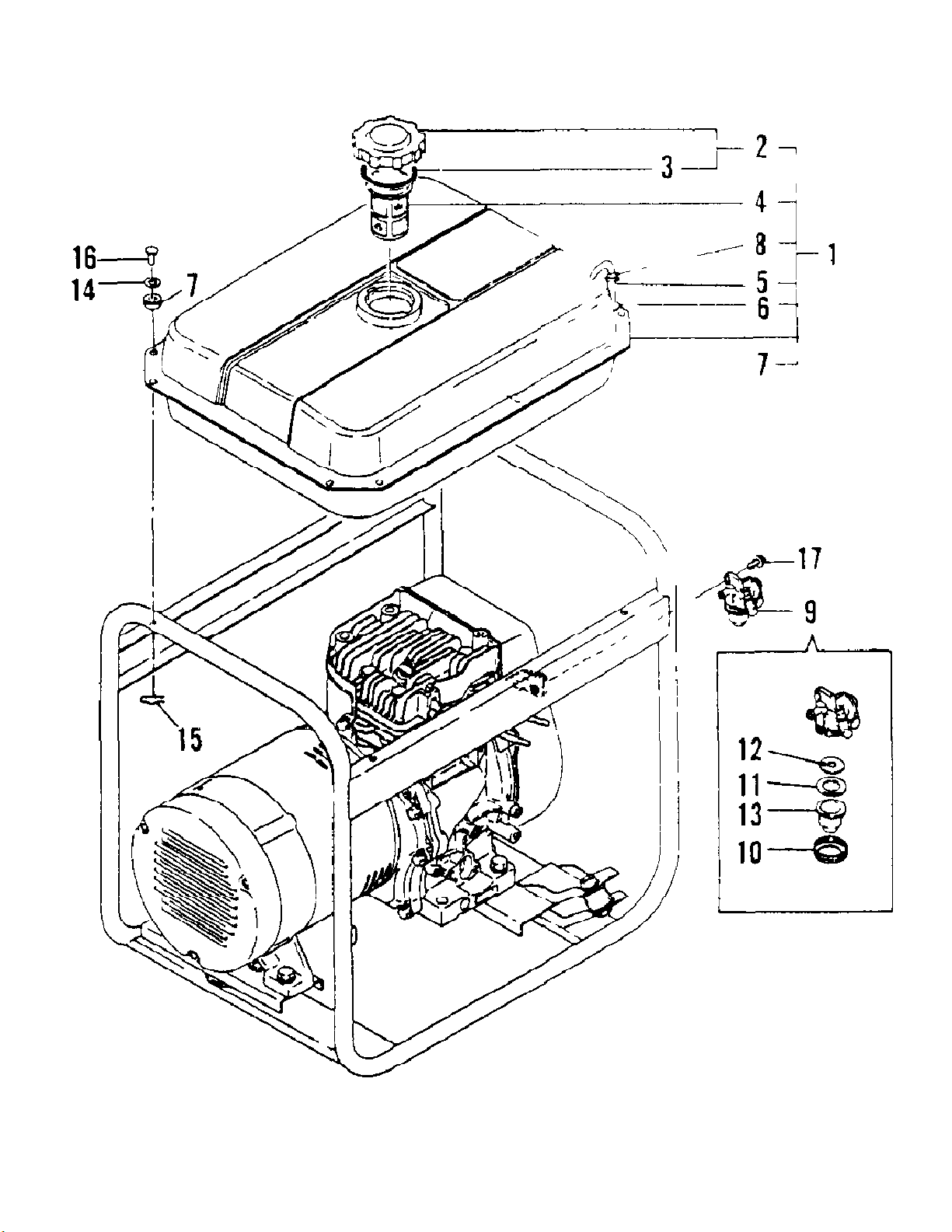

Fuel Tank
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 26
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 26 of 40
www.ktoutdoor.com
Fuel Tank
Ref # Part Number DescriptionQty
1 222052 Fuel Tank Assy.1
2 221508 Cap Assy. - Fuel Tank1
3 221241 Gasket1
4 221509 Strainer1
5 221510 Pipe - Gauge1
6 221804 Grommet1
7 221805 Grommet4
8 221221 Clamp1
9 221511 Cock Assy. - Fuel1
10 221513 Retainer1
11 221514 Gasket1
12 221515 Strainer - Fuel1
13 221516 Bowl - Strainer1
14 221224 Washer4
15 221914 Pin - Snap4
16 221915 Pin 6 X 144
17 221930 Bolt M6 X 141
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 27
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 27 of 40
www.ktoutdoor.com

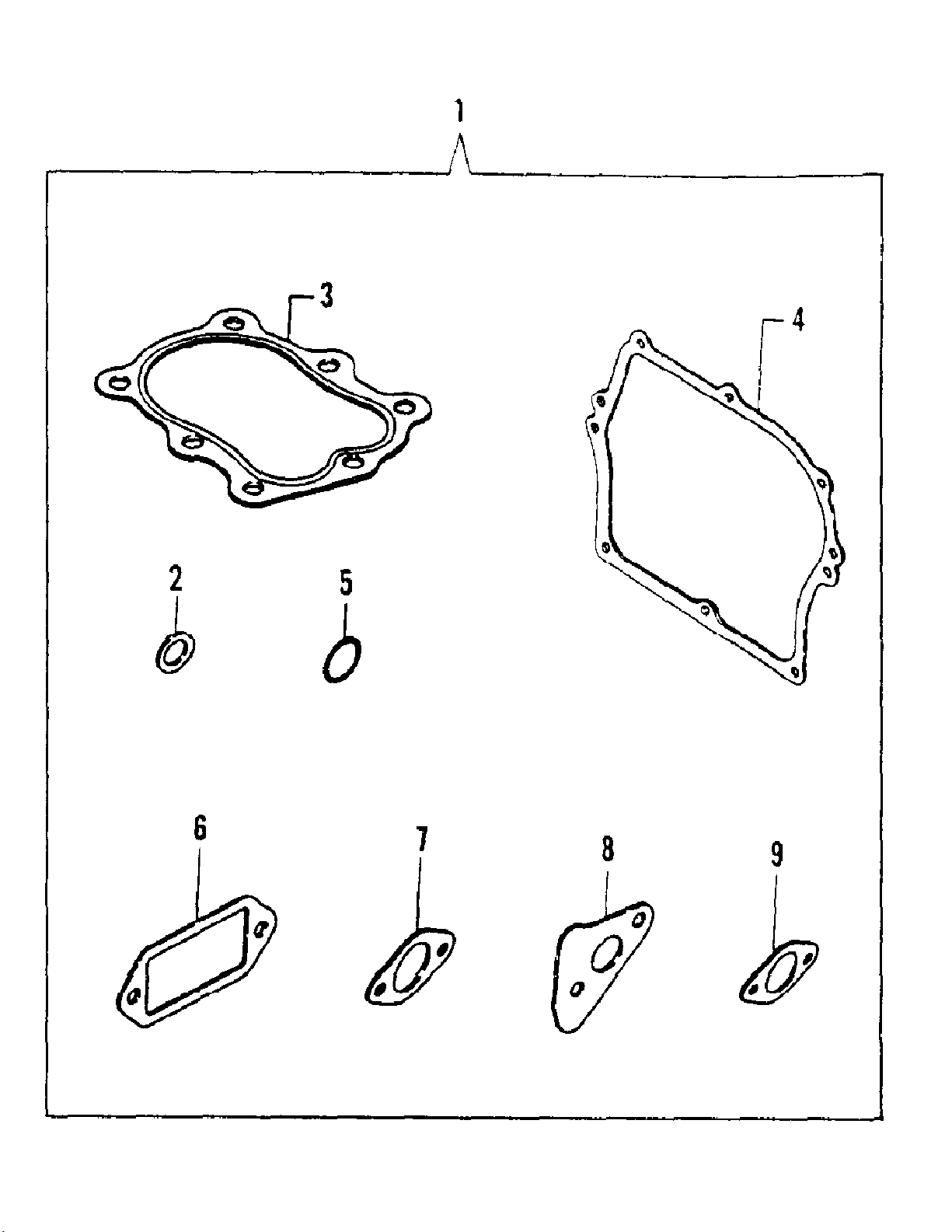

Gasket Set
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 28
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 28 of 40
www.ktoutdoor.com
Gasket Set
Ref # Part Number DescriptionQty
1 222058 Gasket1
2 221982 Gasket1
3 221474 Gasket - Cyl. Head1
4 221475 Gasket1
5 221925 O-Ring1
6 221480 Gasket1
7 221325 Gasket4
8 221492 Gasket - Air Cleaner1
9 221238 Gasket - Muffler1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 29
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 29 of 40
www.ktoutdoor.com

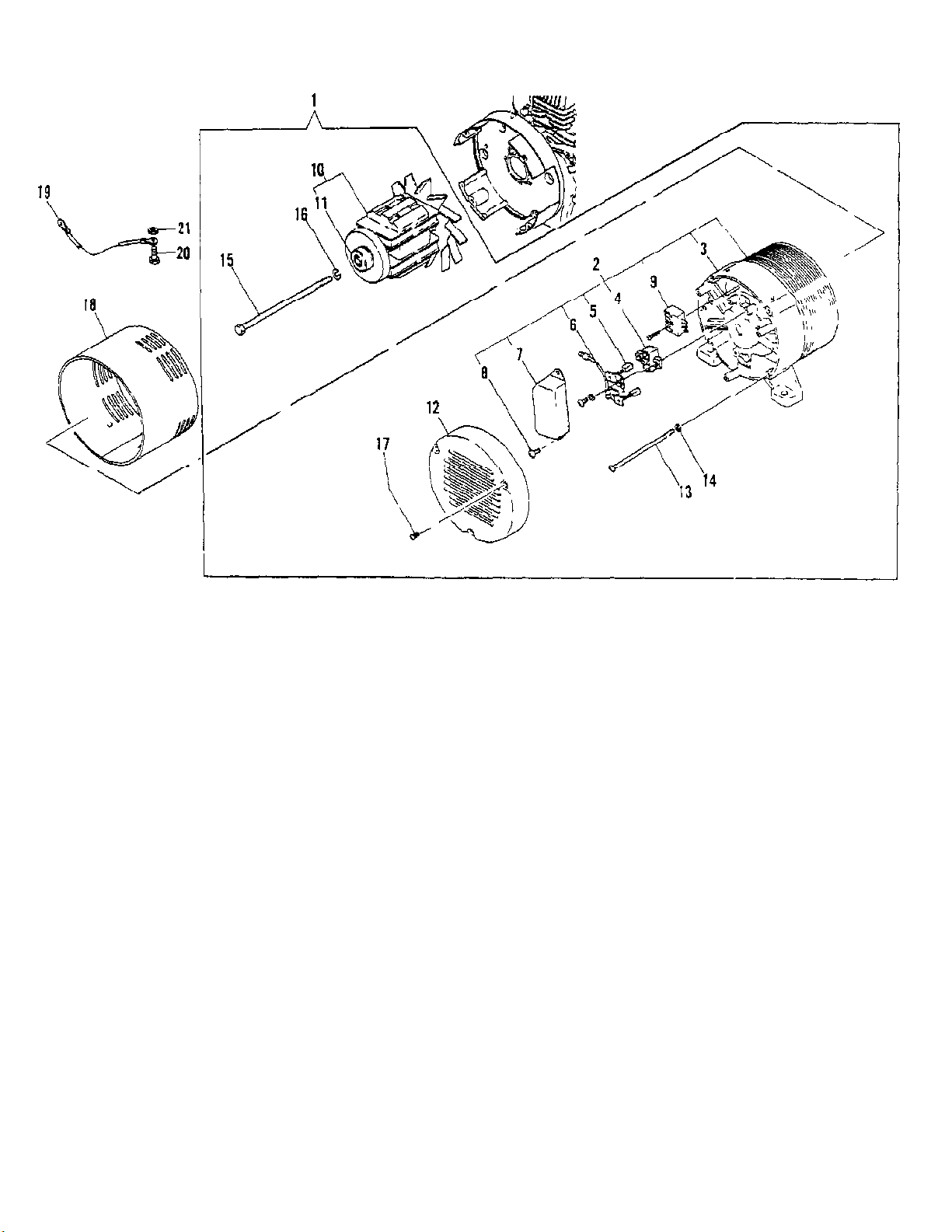

Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 30
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 30 of 40
www.ktoutdoor.com
Generator
Ref # Part Number DescriptionQty
1 222012 Generator1
2 222054 Stator Assy.1
3 221812 Cover - Rear1
4 221746 Holder - Brush1
5 221744 Brush (+)1
6 221745 Brush1
7 221809 A. V. R.1
8 221867 Screw M5 X 142
9 221817 Rectifier1
10 221814 Rotor Assy.1
11 221748 Bearing1
12 221749 Cover1
13 221815 Bolt4
14 221904 Spring Washer4
15 221816 Bolt1
16 221905 Spring Washer1
17 221722 Screw M4 X 83
18 222055 Band1
19 222034 Wire - Ground1
20 221932 Bolt M6 X 161
21 221952 Nut M61
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 31
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 31 of 40
www.ktoutdoor.com

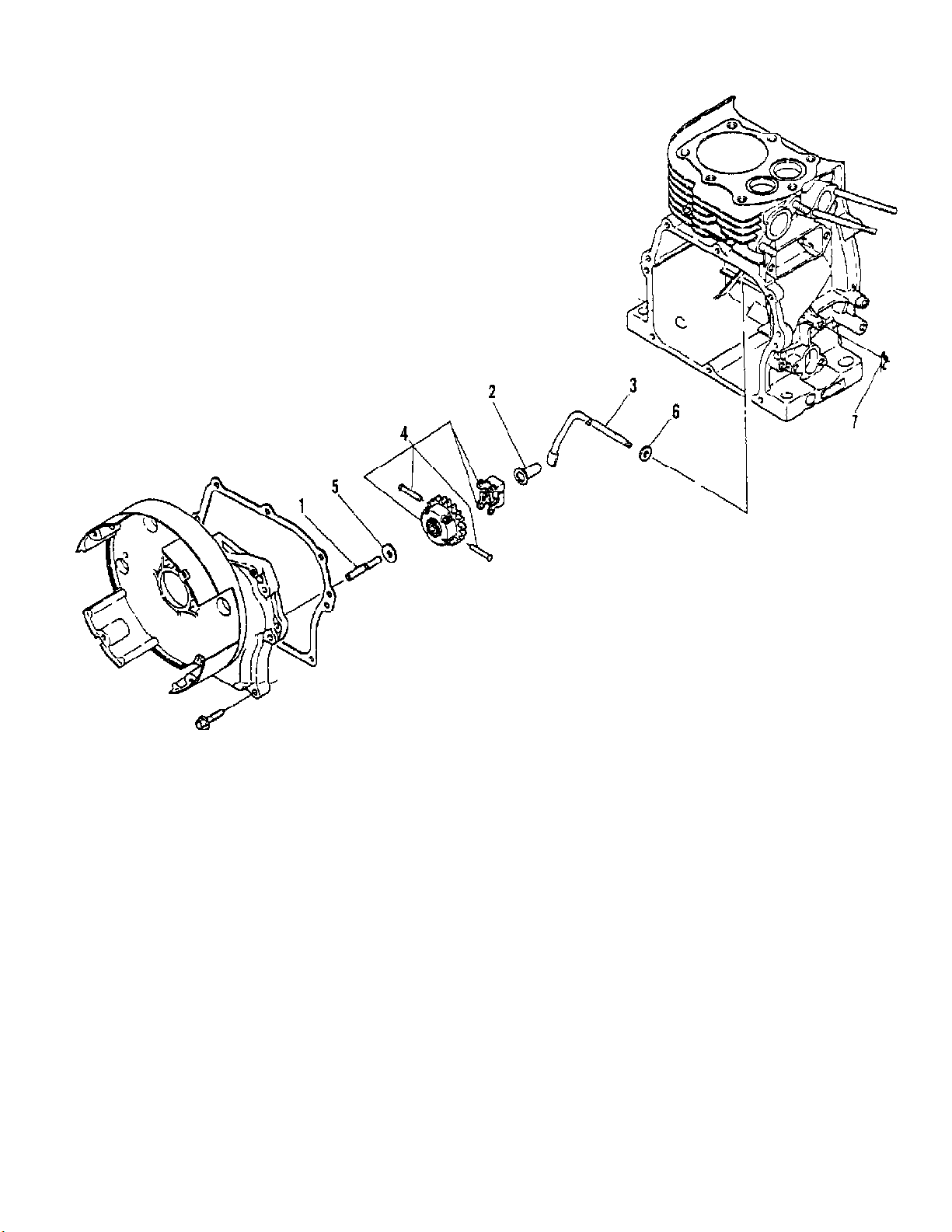

Governor
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 32
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 32 of 40
www.ktoutdoor.com
Governor
Ref # Part Number DescriptionQty
1 221341 Shaft -Governor1
2 221345 Spindle1
3 221524 Yoke1
4 221347 Gear Assy. - Governor1
5 221224 Washer1
6 221902 Washer1
7 221914 Snap Pin1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 33
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 33 of 40
www.ktoutdoor.com

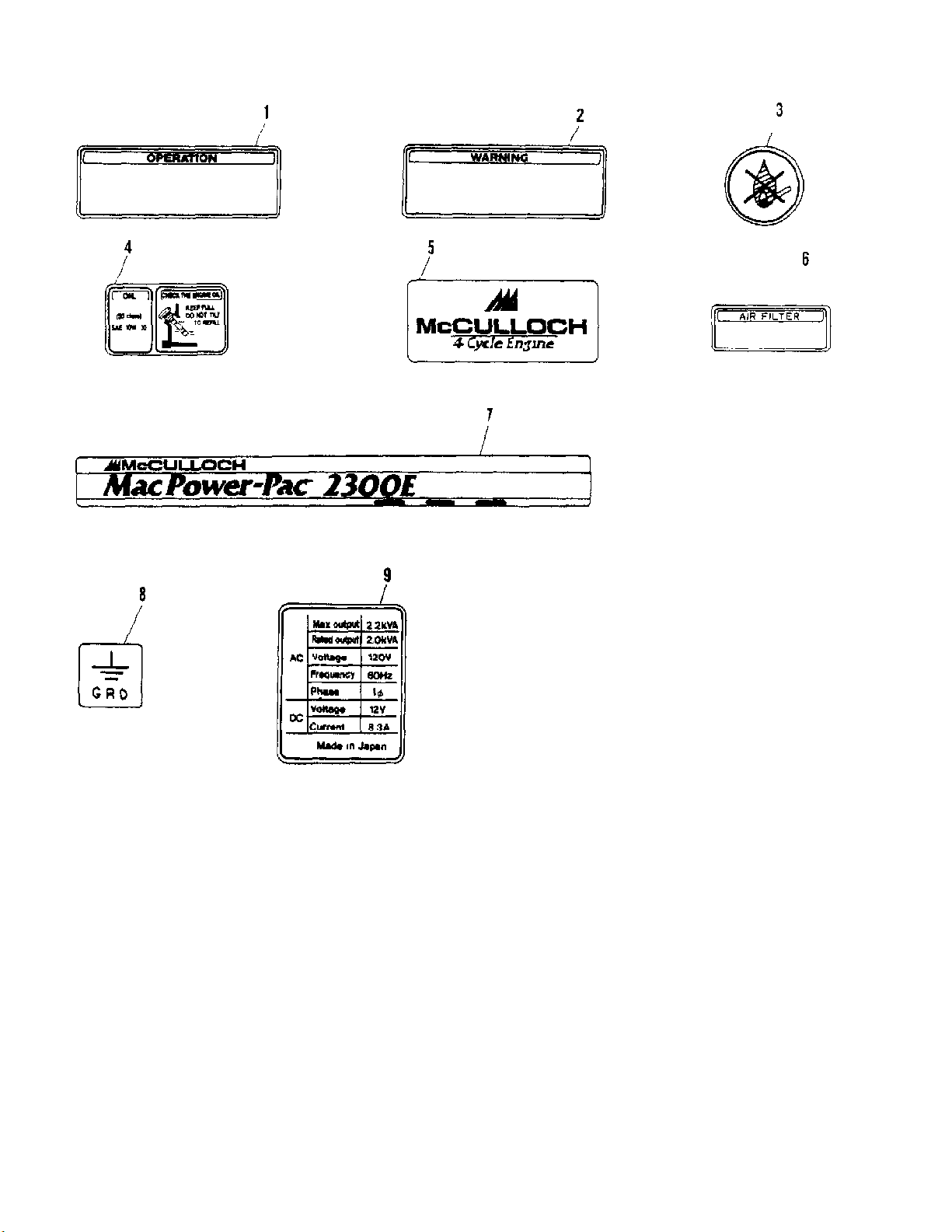

Labels
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 34
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 34 of 40
www.ktoutdoor.com
Labels
Ref # Part Number DescriptionQty
1 221756 Operation Mark1
2 221999 Warning Mark1
3 222000 Non Fire Mark1
4 222001 Oil Label1
5 222068 Label - Mac1
6 222002 Label - Air Cleaner1
7 222041 Generator Label1
8 222004 Label - Ground1
9 222042 Label - Generator1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 35
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 35 of 40
www.ktoutdoor.com

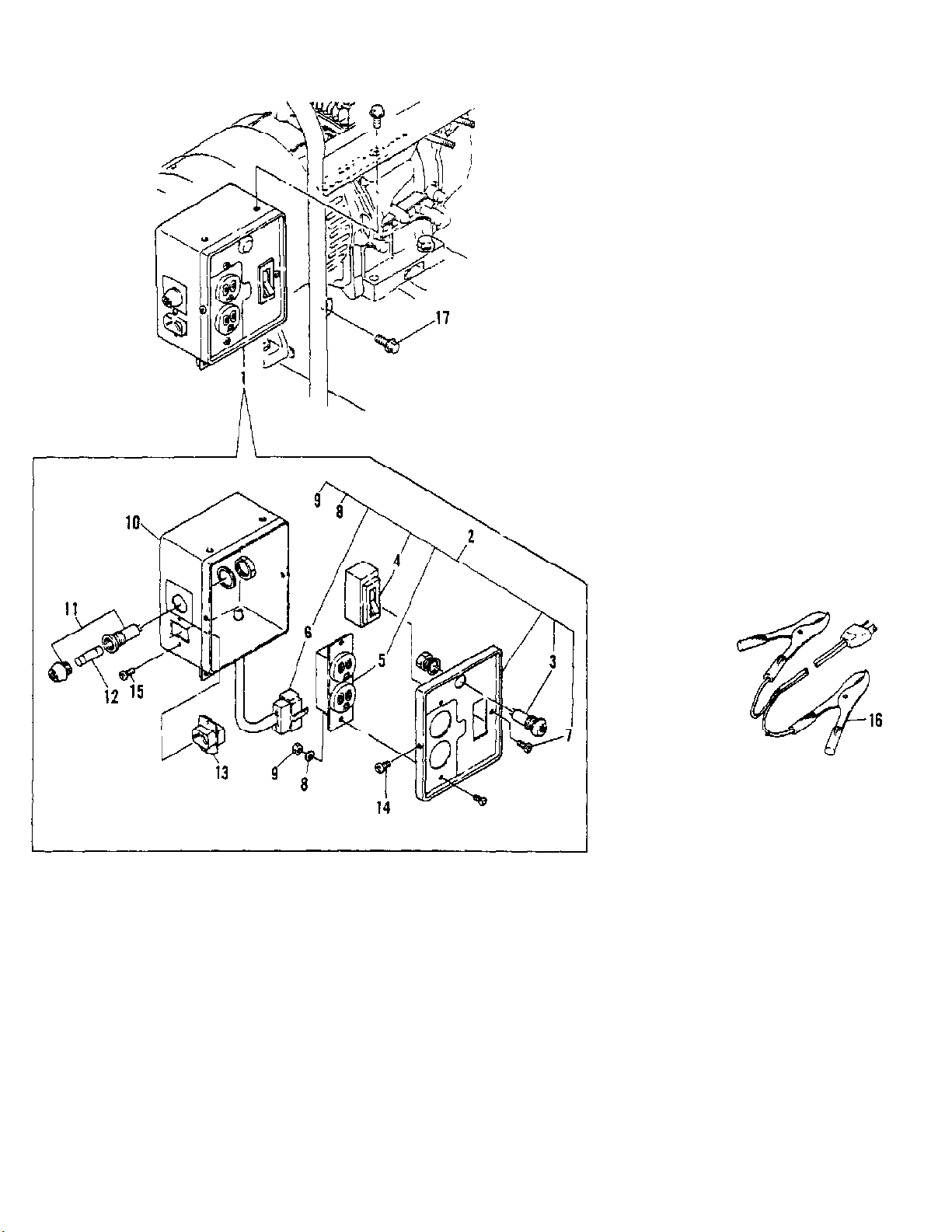

Panel
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 36
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 36 of 40
www.ktoutdoor.com
Panel
Ref # Part Number DescriptionQty
1 222057 Panel Box Assy.1
2 221821 Panel Assy.1
3 221881 Lamp1
4 221823 Breaker1
5 221897 Plug Socket1
6 221827 Wire Harness1
7 221927 Screw M4 X 83
8 221901 Washer2
9 221900 Nut M42
10 221826 Sox Assy.1
11 221752 Holder - Fuse1
12 221824 Fuse1
13 221825 Plug Socket1
14 221927 Screw M4 X 82
15 221926 Screw M3 X 102
16 221719 Cable1
17 221930 Bolt M6 X 83
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 37
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 37 of 40
www.ktoutdoor.com

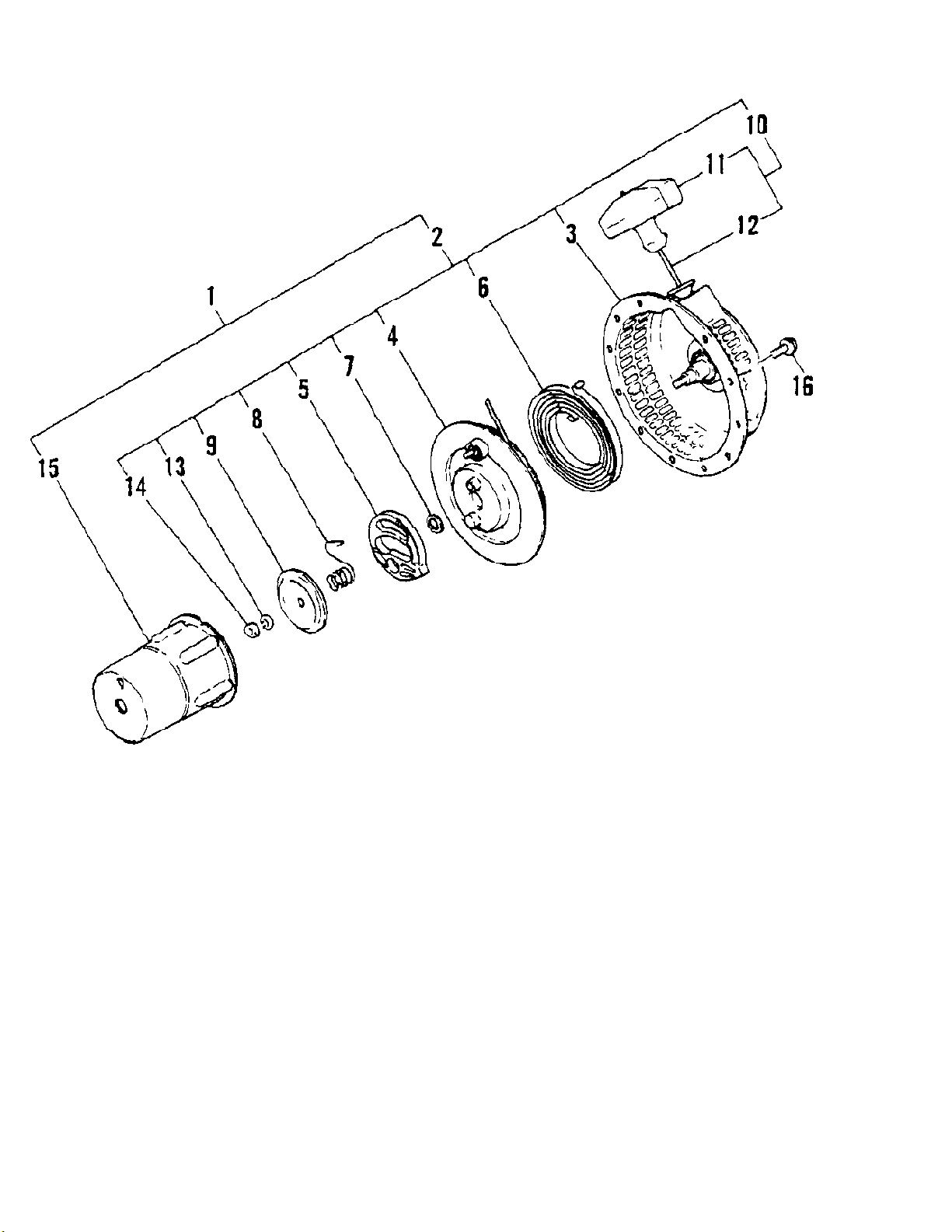

Starting Device
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 38
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 38 of 40
www.ktoutdoor.com
Starting Device
Ref # Part Number DescriptionQty
1 221538 Starter Assy. - Recoil1
2 221539 Re-Coil Assy.1
3 221540 Case - Starter1
4 221527 Reel1
5 221352 Ratchet1
6 221528 Spring - Spiral1
7 221353 Washer1
8 221541 Spring - Friction1
9 221354 Plate - Friction1
10 221234 Rope Assy. - Starter1
11 221235 Knob - Starter1
12 221236 Rope - Starter1
13 221904 Spring Washer1
14 222056 Nut M61
15 221529 Pulley -Starter1
16 221930 Bolt M6 X 83
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 39
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 39 of 40
www.ktoutdoor.com

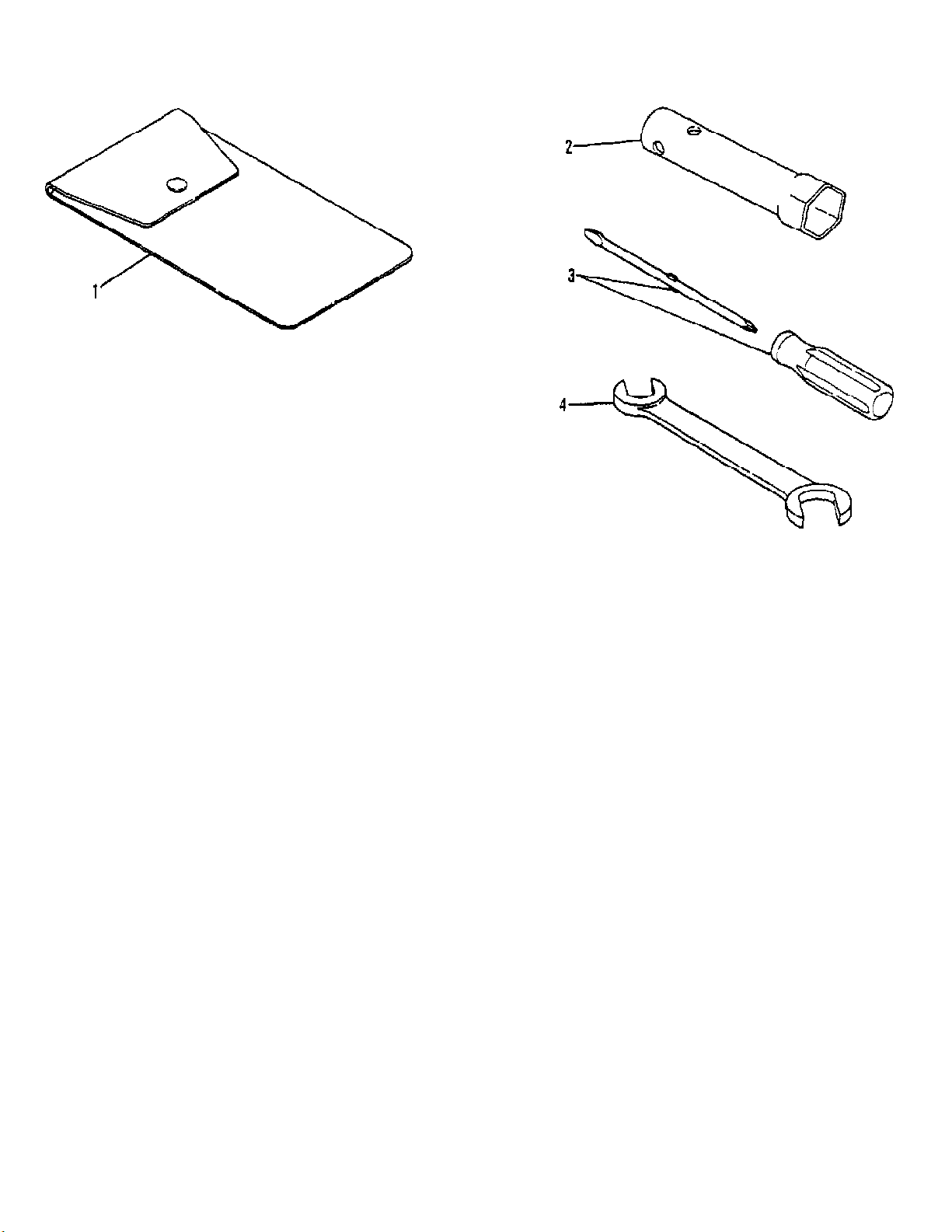

Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 40
11-400044B MAC POWER-PRO 2300E 04/84 to 07/86 IPL 218543 Page 40 of 40
www.ktoutdoor.com
Tools
Ref # Part Number DescriptionQty
1 221222 Tool Bag1
2 221225 Box Spanner1
3 221239 Screwdriver1
4 221954 Spanner1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
