Page 1
11-400030B MAC 90A 01/85 to 11/86 IPL 218826-R1 Page 1 of 9
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400030B MAC 90A 01/85 to 11/86 IPL 218826-R1 Page 2 of 9
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
216898 40' Line .095"
216899 1 lb. Bulk Line .095"
216863 Spark Arrester Screen
216513 Weed/Grass Blade 8-Tooth
216514 Brush Blade 80-Tooth
217868 Guard Kit (Blade)
218213 4-Tooth Metal Weed/Grass Blade
218212 3-Point Plastic Weed/Grass Blade
217749 8-Tooth Blade & Guard Kit
217719 80-Tooth Blade & Guard Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400030B MAC 90A 01/85 to 11/86 IPL 218826-R1 Page 3 of 9
www.ktoutdoor.com

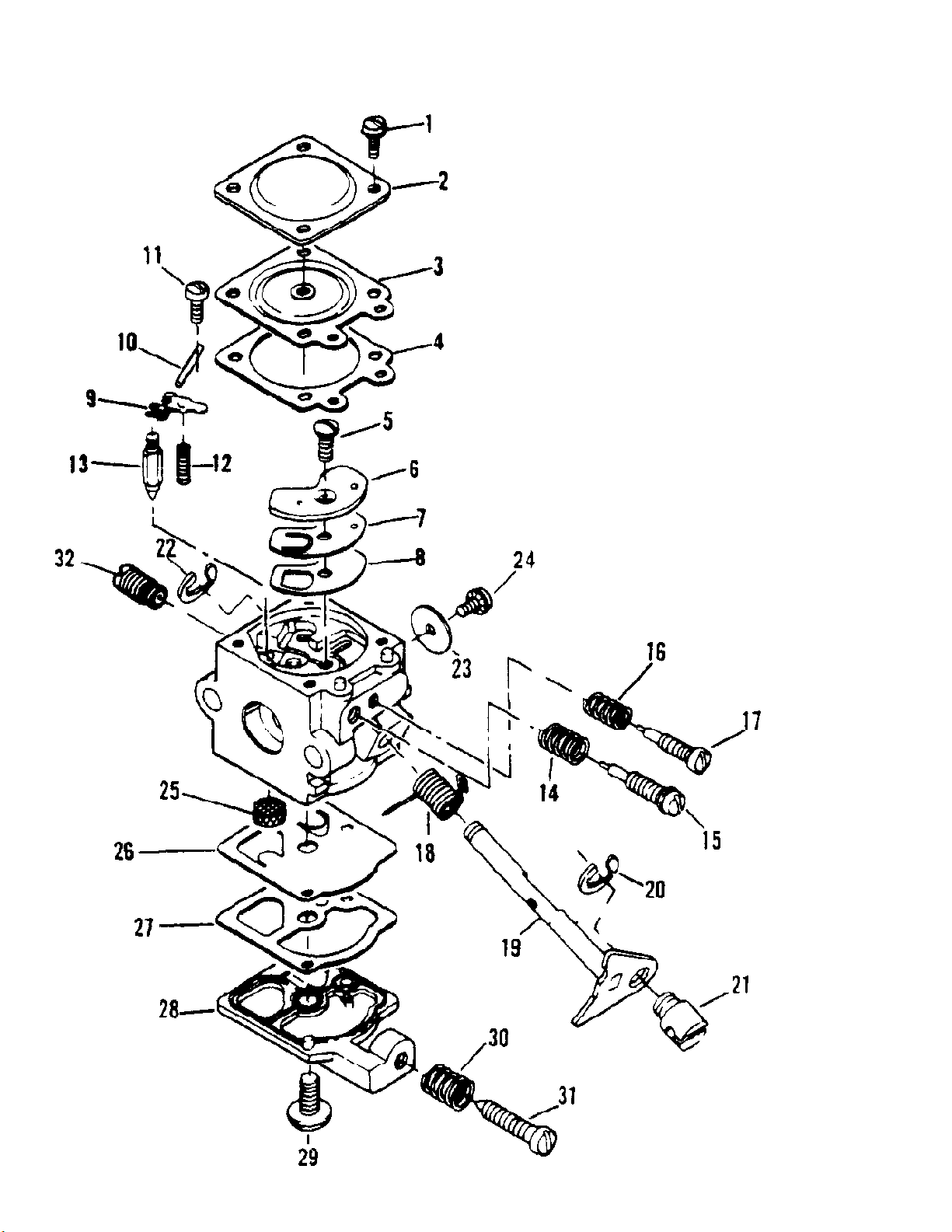

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400030B MAC 90A 01/85 to 11/86 IPL 218826-R1 Page 4 of 9
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
217274 Carburetor Assembly (Governed)1
1 Screw - Cover Not available separately.4
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Metering Not available separately.1
4 Gasket - Diaphragm Not available separately.1
5 Screw - Circuit Plate Not available separately.1
6 Plate Circuit Not available separately.1
7 Diaphragm - Circuit Plate Not available separately.1
8 Gasket - Circuit Plate Not available separately.1
9 Lever - Metering Not available separately.1
10 Lever Not available separately.1
11 Screw - Lever Pin Not available separately.1
12 Spring - Lever Not available separately.1
13 Valve - Inlet Needle Not available separately.1
14 Spring - High Speed Needle Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Needle - Low Speed Not available separately.1
18 Spring - Throttle Return Not available separately.1
19 Shaft - Throttle Not available separately.1
20 Clip Not available separately.1
21 Swivel Not available separately.1
22 Clip - Throttle Not available separately.1
23 Valve - Throttle Not available separately.1
24 Screw - Throttle Valve Not available separately.1
25 Screen - Inlet Not available separately.1
26 Diaphragm - Fuel Pump Not available separately.1
27 Gasket - Fuel Pump Not available separately.1
28 Cover - Fuel Pump Not available separately.1
29 Screw - Pump Cover Not available separately.1
30 Spring - Idle Screw Not available separately.1
31 Screw - Idle Adjusting Not available separately.1
32 Governor - Fixed Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400030B MAC 90A 01/85 to 11/86 IPL 218826-R1 Page 5 of 9
www.ktoutdoor.com

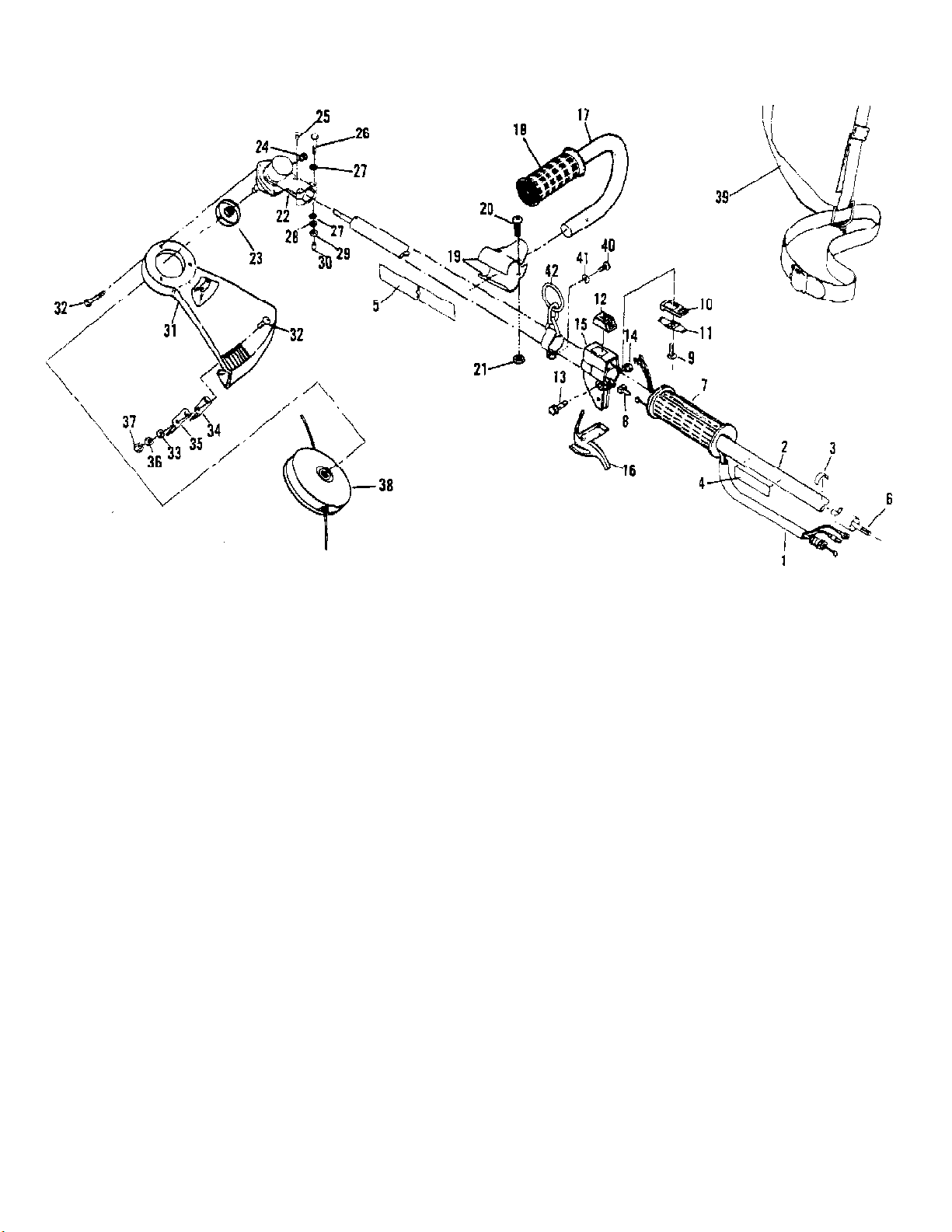

Drive Shaft, String Head Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400030B MAC 90A 01/85 to 11/86 IPL 218826-R1 Page 6 of 9
www.ktoutdoor.com
Drive Shaft, String Head Assembly
Ref # Part Number DescriptionQty
1 215306 Harness Assembly - Wiring1
2 216922 Kit - Outer Housing1
3 Decal Position Not available separately.1
4 Decal Warning Not available separately.1
5 218167 Decal Name - Pro Scaper II1
6 216747 Shaft - Drive1
7 216518 Grip1
8 215323 Guide1
9 110706 Screw1
10 215319 Base - Stop Switch1
11 215320 Contact - Switch1
12 68846 Button - Stop Switch1
13 216027 Screw - M5 x 28.51
14 217159 Nut - Hex Lock1
15 216323 Housing - Trigger1
16 215318 Trigger Throttle1
17 217856 'J' Handle/Grip Assembly1
18 94212 Grip - Handle1
19 217292 Clamp - Handle2
20 120019 Screw - M5 x 132
20 217935 Screw - 10-24 x .50 torx2
21 217159 Nut - Hex M52
21 218315 Nut2
22 216777 Housing Assembly - Gear1
23 216752 Collar - Gear1
24 Bolt - Hex M5 x 8 Not available separately.1
25 Screw - Phl M5 x 12 Not available separately.1
26 Bolt - Hex M5 x 40 Not available separately.2
27 Washer - Flat M5 Not available separately.4
28 Washer - Lock M5 Not available separately.2
29 Nut - Hex M5 Not available separately.2
30 218378 Spacer2
31 217868 SHIELD ASSEMBLY - GRASS See Service Bulletin
1
1798
32 213147 Screw - Pn M5 x 165
32 217936 Screw - 10-24 x .75 torx3
32 217935 Screw - 10-24 x .50 torx2
33 216591 Washer Flat M52
33 110582 Washer Flat2
34 215316 Cutter1
35 215315 Bracket1
36 216593 Washer Lock M52
36 103174 Washer Lock2
37 217159 Nut - Hex M52
37 218315 Nut2
38 218386 STRING HEAD ASSEMBLY (D/L)1
39 218158 Harness Assembly1
40 216789 Screw1
41 216826 Washer1
42 218002 Ring - Harness Assembly1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400030B MAC 90A 01/85 to 11/86 IPL 218826-R1 Page 7 of 9
www.ktoutdoor.com

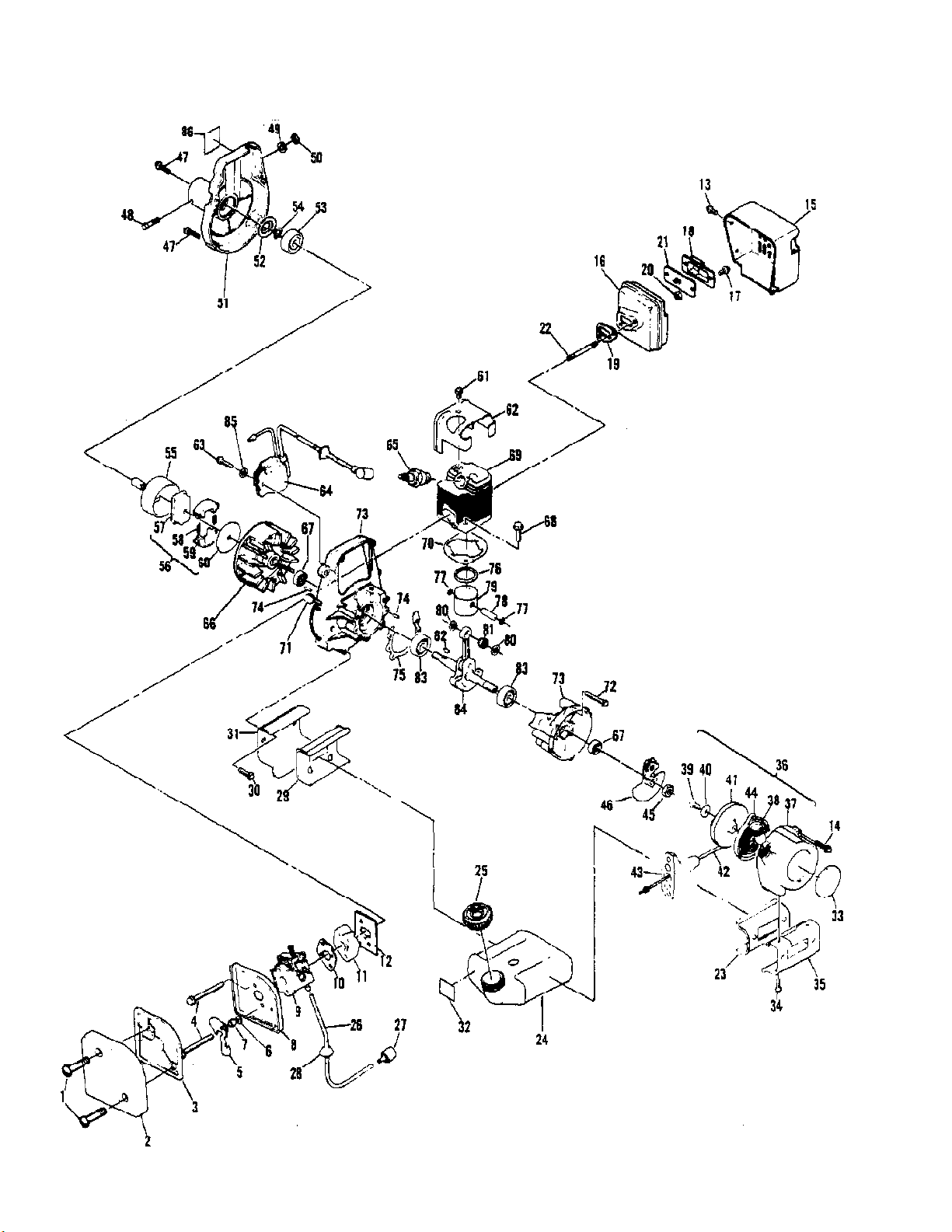

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400030B MAC 90A 01/85 to 11/86 IPL 218826-R1 Page 8 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 217669 Screw - M4 x 252
2 215988 Cover - Air Cleaner1
3 217376 Filter - Air1
4 216903 Screw - M5 x 552
5 215991 Shutter - Choke1
6 216591 Washer - Flat M51
7 215993 Spacer1
8 216108 Kit - Air Box Grommet1
9 Carburetor Assembly See "Carburetor Assembly"
illustration and parts list.
10 215491 Gasket - Carburetor1
11 215771 Insulator - Carburetor1
12 216575 Gasket - Insulator1
13 216025 Screw - M4 x 82
14 213177 Screw - M4 x 18.53
15 215753 Shield Muffler1
16 216920 Kit Muffler1
17 216025 Screw - M4 x 82
18 215507 Cover Cap Assembly - Screen1
19 215515 Gasket Muffler1
20 217275 Nut - Flange M52
21 215516 Spark Arrester Screen1
22 215517 Stud - Bolt2
23 215504 Cushion - Fuel Tank1
24 217021 Kit - Fuel Tank1
25 216346 Cap - Fuel Tank1
26 217264 Hose - Pickup1
27 216985 Pikup - Fuel1
28 215495 Grommet1
29 215500 Cushion - Bracket1
30 216025 Screw - M4 x 82
31 217455 Bracket Asy. - Tank/Shield1
32 217383 Decal - 40:11
33 216604 Decal - Logo1
34 213177 Screw - M4 x 18.502
35 215501 Bracket - Back1
36 216919 Kit - Starter1
37 216325 Housing - Starter1
38 217030 Guide - Rope1
39 215874 Screw - M4 x 9.501
40 216590 Washer - Flat M41
41 216092 Drum/Rope Assembly1
42 216093 Rope - Starter1
43 216792 Handle - Starter1
44 217482 Spring - Starter1
45 216583 Nut - M81
46 215525 Ratchet Assembly1
47 213177 Screw - M4 x 18.504
48 217158 Screw - Hex M5 x 251
49 216591 Washer - Flat M51
50 217159 Nut - Hex M5 x .081
51 217548 Housing - Fan1
52 215534 Plate - Thurst1
53 213187 Bearing - Ball1
54 213186 Ring Retaining1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400030B MAC 90A 01/85 to 11/86 IPL 218826-R1 Page 9 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
55 216837 Drum - Clutch
56 216060 Kit - Clutch1
57 215536 Rotor - Clutch1
58 215537 Spring Clutch2
59 215538 Shoe Clutch2
60 215539 Plate - Side1
61 213178 Screw - M5 x 8.501
62 215540 Cover - Cylinder1
63 213177 Screw - M4 x 18.502
64 217439 Coil - Ignition1
65 214223 Spark Plug1
66 217378 Flywheel1
67 216500 Seal - Oil2
68 217320 Screw - Socket cap2
69 215690 Cylinder1
70 215542 Gasket - Cylinder1
71 215541 Grommet1
72 213179 Screw - M5 x 28.504
73 217373 Crankcase Assembly1
74 213191 Pin4
75 215545 Gasket Crankcase1
76 217475 Ring - Piston1
77 216343 Ring - Snap2
78 215551 Pin - Wrist1
79 217248 Piston1
80 213196 Washer1
81 213195 Bearing - Needle1
82 102164 Key - Woodruff1
83 216143 Bearing - Ball2
84 216444 Crankshaft Assembly1
85 110613 Washer 8 Hard2
86 218342 Decal S/Mac 90-A1
K&T Saw Shop 606-678-9623 or 606-561-4983
