Page 1
11-400061-02 TITAN 2200 IPL 98346 Page 1 of 9
www.ktoutdoor.com

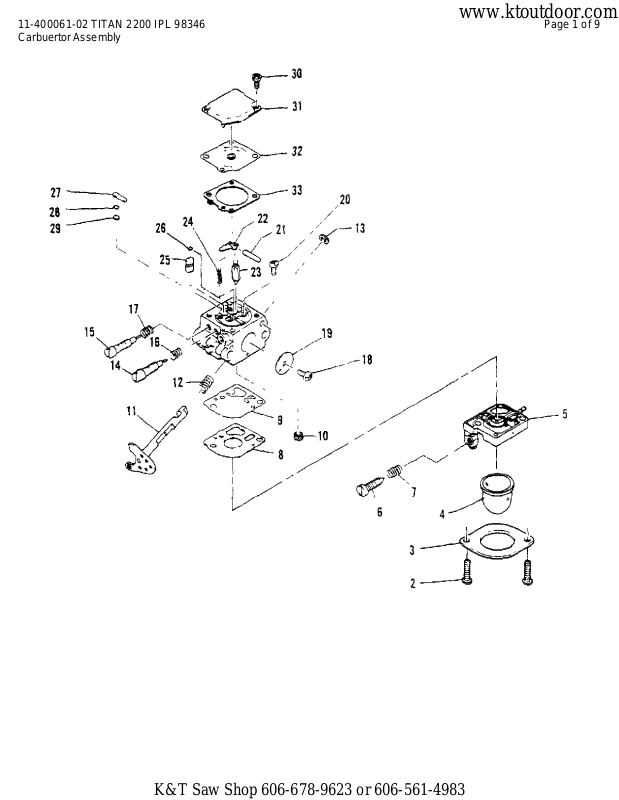

Carbuertor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400061-02 TITAN 2200 IPL 98346 Page 2 of 9
www.ktoutdoor.com
Carbuertor Assembly
Ref # Part Number DescriptionQty
1 224142-02 Carburetor Asy (WT 211)1
2 Screw-Pump Cover Not available separately.2
3 Cover-Primer Pump Not available separately.1
4 223077 Primer-Pump1
5 223913 Cover Asy Fuel-Pump1
6 Screw-Idle Adjustment Not available separately.1
7 Spring-Idle Screw Not available separately.1
8 Gasket-Fuel Pump Not available separately.1
9 Diaphragm-Fuel Pump Not available separately.1
10 Screen-Fuel Pump Inlet Not available separately.1
11 Shaft Assembly Throttle Not available separately.1
12 Spring-Throttle Return Not available separately.1
13 Ring-Shaft Retainer Not available separately.1
14 Needle-Idle Not available separately.1
15 Needle-High Speed Not available separately.1
16 Spring-Idle Needle Not available separately.1
17 Spring-High Speed Needle Not available separately.1
18 Screw-Valve Not available separately.1
19 Valve-Throttle Not available separately.1
20 Screw-Metering Lever Pin Not available separately.1
21 Pin-Metering Lever Not available separately.1
22 Lever-Metering Not available separately.1
23 Valve-Inlet Needle Not available separately.1
24 Spring-Metering Lever Not available separately.1
25 Seat Asy Check-Valve Not available separately.1
26 Plug-Welch 5/16 Not available separately.1
27 Plug-Welch 1/4 Not available separately.1
28 Ring-Screen Retainer Not available separately.1
29 Screen-Check Valve Not available separately.4
30 Screw-Metering Cover Not available separately.1
31 Cover-Metering Lever Not available separately.1
32 Diaphragm Asy-Metering Not available separately.1
33 Gasket-Metering Diaph. Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400061-02 TITAN 2200 IPL 98346 Page 3 of 9
www.ktoutdoor.com
Shaft/Shield/Cutter/Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400061-02 TITAN 2200 IPL 98346 Page 4 of 9
www.ktoutdoor.com
Shaft/Shield/Cutter/Assembly
Ref # Part Number DescriptionQty
1 217403 Nut-Hex M6 x 1.02
2 216596 Washer-Flat M62
3 224150 Harness-Wiring1
4 215324 Shaft-Flex1
218326 Shaft-Flex Drive1
5 224101 Housing Asy-Outer1
224113 Housing Asy-Outer1
6 217366 Sleeve1
217367 Sleeve1
7 215322 Grip1
8 110706 Screw-Pn 8-18 x .50 St H1
9 215320 Contact-Switch1
10 215319 Base-Stop Switch1
11 68846 Button-Stop Switch1
12 215323 Guide1
13 216027 Screw-Pn M5 x 28.5 SEMS1
14 217159 Nut-Hex M51
15 215318 Trigger-Throttle1
16 222794 Housing-Trigger Throttle1
17 223200 Screw-Self Tapping 10-161
18 218295 Decal-Warning1
19 217937 Screw-Tr 10-24 x 1 T1
20 218315 Nut1
21 217672 Washer-M4 Flat1
22 215874 Screw-Pn M4 x 9.5 TORX1
23 218283 Housing Asy-Spindle1
24 217471 Coupling1
25 218214 D/C Collar1
26 216595 Screw-Hx M6 x 501
27 215871 Nut-Hex M6 x 11
28 229956 Shield-Grass1
29 235802 Screw-M5 x 142
30 235248 Washer-M52
31 229916 Knife1
32 236732 Nut-M5 Square2
33 224084 String Head Assembly1
34 224909 Cover1
35 224910 Button1
36 224289 Spool W/Line (.095)1
37 223740 Spring-String Head1
38 224907 Adapter R.H.1
39 224908 Housing-Eyelet1
40 219759 Eyelets2
41 224977 Kit Loop-Handle1
42 228320 Screw-M6 x 0.8 x 454
43 236936 Washer4
44 227045 Loop-Handle1
45 227046 Clamp-Handle1
46 236642 Nut4
47 224127 Spacer Handle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400061-02 TITAN 2200 IPL 98346 Page 5 of 9
www.ktoutdoor.com

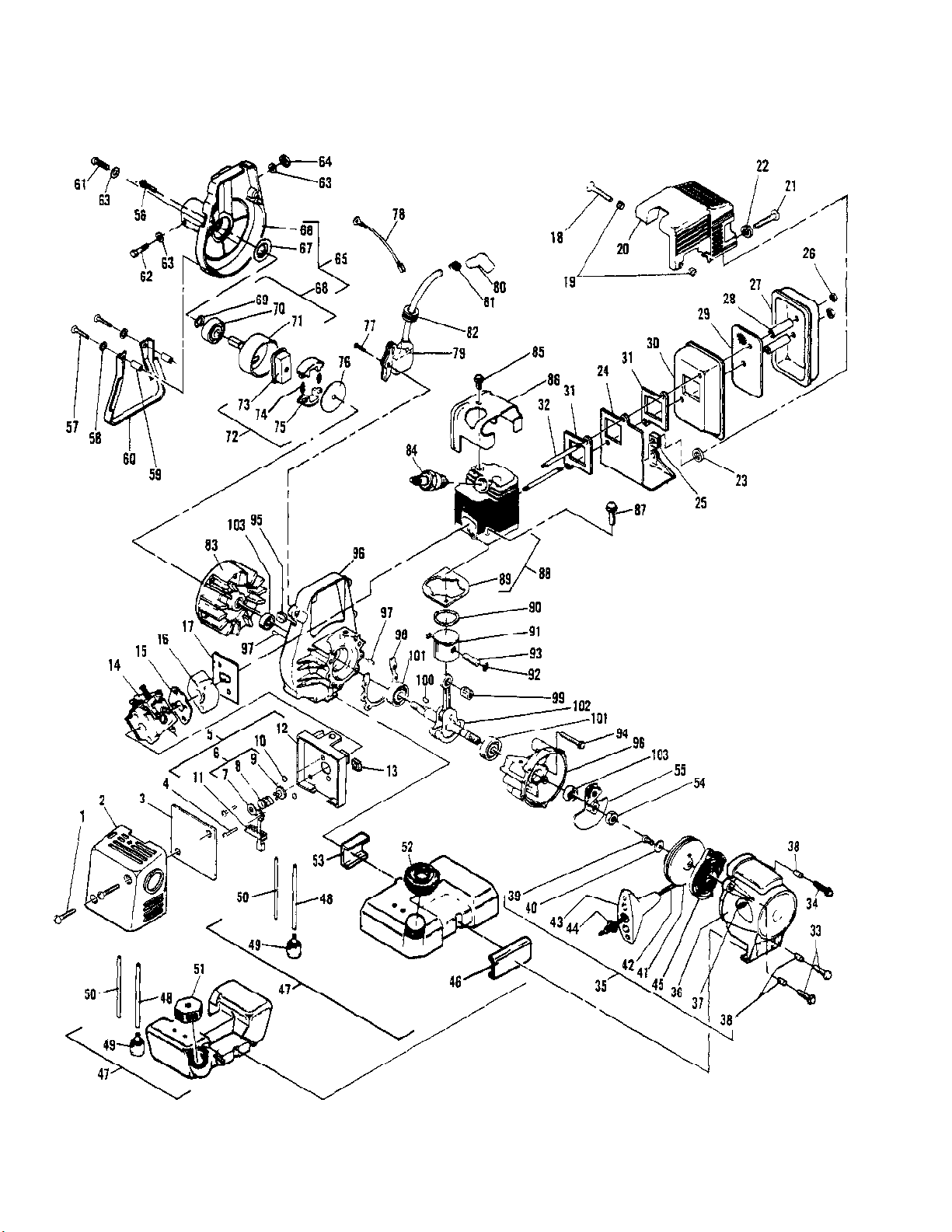

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400061-02 TITAN 2200 IPL 98346 Page 6 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 216027 Screw-Pn M5 x 28.5 SEMS2
2 227024 Cover Air-Cleaner1
3 227023 Filter-Air1
4 224326 Screw-Pn M5 x 55 TORX SS2
5 223895 Case Asy-Air Box1
6 223730 Kit Choke Assembly1
7 Shutter-Choke Lever Not available separately.1
8 219016 Spring-Shutter1
9 Plate-Choke Shutter Not available separately.1
10 227022 Bushing2
11 215992 Grommet1
12 Air Box Not available separately.1
13 229524 Nut2
14 Carburetor Assembly1
15 224148 Gasket-Spacer2
16 223984 Insulator-S/T1
17 224315 Gasket-Shield Insulator1
18 219508 Screw-Pn M4 x 17 SEMS TORX2
19 227022 Bushing4
20 224351 Shield-Muffler1
21 215874 Screw-Pn M4 x 9.5 TORX1
22 120045 Washer-M51
23 68497 Washer1
24 224266 Shield-Muffler Heat1
25 224350 Nut-M4 Speed1
26 222247 Nut-Stud2
27 224452 Cover-Muffler Asy1
28 227036 Spacer-Muffler2
29 224492 Kit-Screen Spark Arrestor1
30 227028 Muffler-Body1
31 215515 Gasket-Muffler2
32 224354 Stud-Muffler2
33 216022 Screw-Pn M4 x 23.4 TORX2
34 217669 Screw-Pn M4 x 25 TORX S1
35 224111 Starter Assembly1
36 224110 Housing-Starter Asy1
37 218932 Guide-Rope1
38 219585 Spacer-Starter Hsg3
39 215874 Screw-Pn M4 x 9.5 TORX1
40 216590 Washer-Flat M41
41 216092 Drum-Rope Assembly1
42 216093 Rope-Starter (36")1
43 216792 Handle- Starter1
44 218941 Washer-Nylon1
45 217482 Spring-Starter1
46 217382 Cushion-Fuel Tank1
47 222239 Fuel Tank Assembly1
223898 Fuel Tank Assembly1
48 217264 Hose Fuel1
225057 Hose-Fuel1
49 216985 Pickup-Fuel1
50 222238 Hose-Fuel Return1
225058 Hose-Return1
51 224993 Cap-Fuel1
52 222347-01 Cap Fuel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400061-02 TITAN 2200 IPL 98346 Page 7 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
53 217390 Cushion-Fuel Tank1
54 216583 Nut-Hex M81
55 215525 Racthet Assembly1
56 213177 Screw-Pn M4 2 x 18.5 Torx4
57 222944 Screw-Tr Hd M4 x 0.7 x 352
58 100002 Washer 10 Plain2
59 224940 Spacer Engine Stand2
60 224126 Stand-Engine1
61 213178 Screw-Pn M5 x 8.5 SEMS T2
62 217158 Screw-Hex M5 x 351
63 216591 Washer-Flat M54
64 217159 Nut-Hex M51
65 224117 Housing Asy-Fan1
66 224108 Housing-Fan1
67 215534 Plate-Thrust1
68 218065 Drum Asy-Clutch1
69 213186 Ring-Retaining1
70 213187 Bearing Ball1
71 218063 Drum-Clutch1
72 217554 Clutch Assembly1
73 215536 Rotor-Clutch1
74 223770 Spring-Clutch2
75 Not available separately.2
76 215539 Plate-Side1
77 216022 Screw-Pn M4 x 23.4 TORX2
78 219383 Wire Asy-Switch1
79 219848 Ignition Assembly1
80 95266 Boot-Spark Plug1
81 102556 Connector-Spark1
82 215533-01 Grommet H/T Lead1
83 222308 Flywheel1
84 62345 Spark Plug DJ8J1
85 213178 Screw-Pn M5 x 8.5 SEMS T1
86 215540 Cover Cylinder1
87 217320 Screw-Pn M6 x 18 TORX SE2
88 219084-01 Kit-Cylinder Gasket1
89 215542 Gasket Cylinder1
90 223455 Ring-Piston1
91 224075 Piston-Mach1
92 111026 Ring-Snap2
93 218275 Pin-Wrist1
94 216027 Screw-Pn M5 x 28.5 SEMS4
95 215541 Grommet1
96 223902 Crankcase Assembly1
97 213191 Pin4
98 215545 Gasket-Crankcase1
99 110984 Bearing Needle1
100 102164 Key-Flywheel1
101 213282 Bearing Crankshaft2
216143 Bearing-Ball2
102 218106-01 Crankshaft Asy1
222960 Crankshaft Asy1
103 83859 Seal-Crankshaft Oil2
216500 Seal2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400061-02 TITAN 2200 IPL 98346 Page 8 of 9
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400061-02 TITAN 2200 IPL 98346 Page 9 of 9
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
215437 Tool-Oil Seal
215438 Tool-Bearing Removal
215441 Tool Clutch Puller
215439 Tool Piston Driving
215443 Plate-Pressure Test
215444 Gasket Intake Pressure Test
215445 Gasket-Exhaust Pressure Test
217355 Wrench 8/10 mm (open end)
216767 Lock Spindle
218175 Socket-Wrench 9/16
222785 T-25 TORX Drive 3.5"
K&T Saw Shop 606-678-9623 or 606-561-4983
