Page 1
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 1 of 11
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 2 of 11
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
216513 Pkg - Weed/Grass Blade (E.B.III)
216514 Pkg - Brush Blade (E.B. III)
216898 Pkg - 40' .095" Line (E.B.II)
216899 pkg - 1 lb. .095" Line (E.B.II)
216900 Pkg - 5 lb. .095" Line (E.B.II)
217719 Kit - Brush Cutter
217350 40' Line on Spool (.080")
215516 Pkg - Spark Arrester Screen (E.B.I)
216767 Spindle Lock
216821 Replacement String Head (S/L - E.B.II)
216822 Replacement String Head (D/L - E.B.III)
217351 Pkg - 1 lb. .080" Line (S/L - E.B.I)
217749 Kit - Grass Blade/Shield
217353 Replacement String Head (S/L - E.B.I)
217352 Pkg - 5 lbs. .080" Line (E.B.I)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 3 of 11
www.ktoutdoor.com

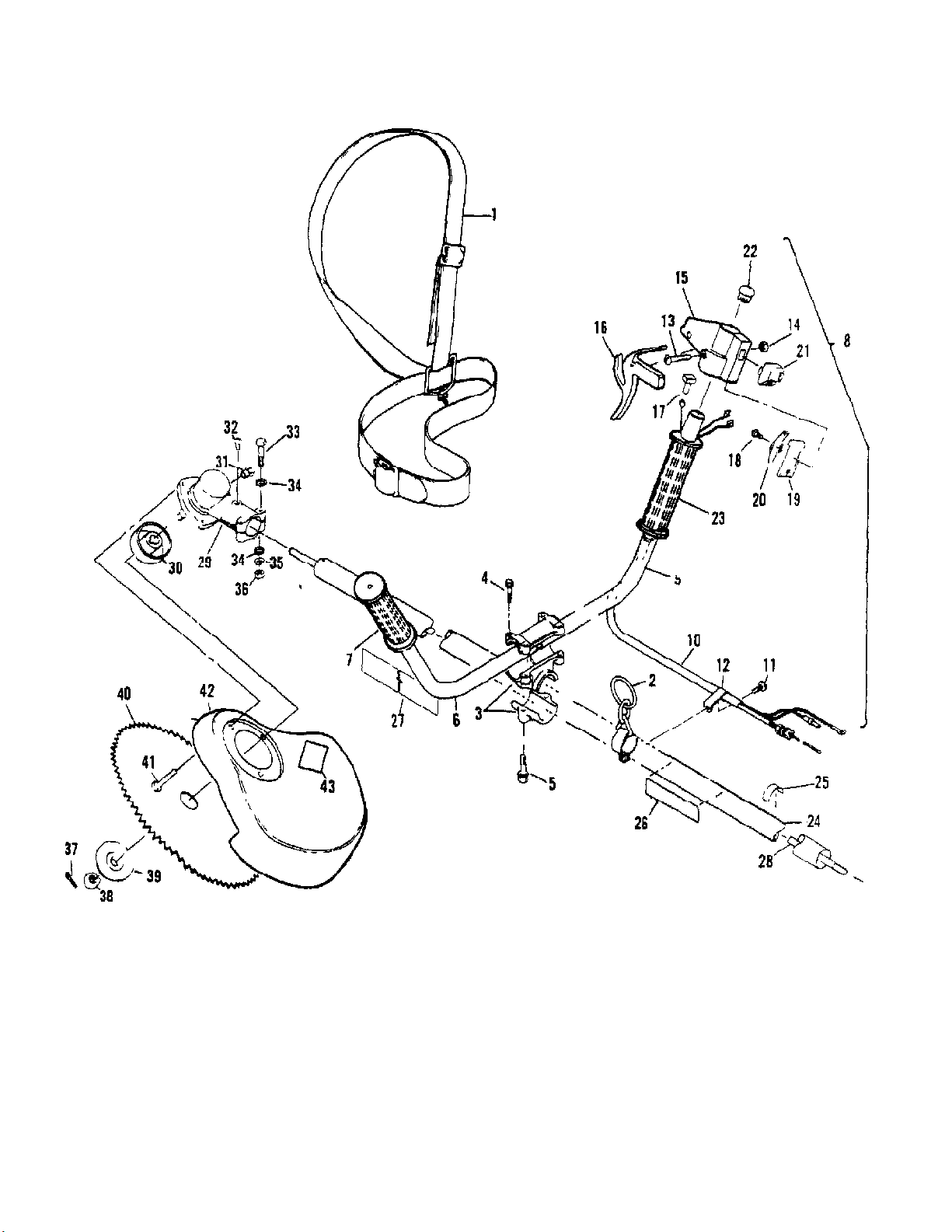

Drive Shaft/Brush Shield/Blade Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 4 of 11
www.ktoutdoor.com
Drive Shaft/Brush Shield/Blade Assembly
Ref # Part Number DescriptionQty
1 216790 Harness Assembly1
2 216748 Ring Assembly - Harness1
3 216753 Yoke - Handle Bar1
4 216781 Bolt - Hx M5 x 254
5 216782 Bolt - Hx M6 x 302
6 216868 Bar Assembly - Handle1
7 94212 Grip - Left Hand1
8 216867 Bar Assembly - Handle/Harness1
9 216787 Bar - Handle1
10 216372 Harness Assembly - Wiring1
11 216789 Bolt - M5 x 131
12 216788 Clip - Wiring Harness1
13 216027 Screw - Pn M5 x 28.501
14 217159 Nut Hx M5 x 11
15 215317 Housing - Trigger1
16 215318 Trigger - Throttle1
17 215323 Guide1
18 110706 Screw - PN 8-18 x 1/21
19 215319 Base - Stop Switch1
20 215320 Contact - Switch1
21 68846 Button - Stop Switch1
22 95153 Plug - Tubing1
23 215322 Grip - Right Hand1
24 216922 Kit - Outer Housing1
25 216603 Decal - Position1
26 216605 Decal - Caution1
27 217471 Decal - Name1
28 216747 Shaft - Drive1
29 216777 Housing Assembly - Gear1
30 216752 Collar - Gear1
31 216832 Bolt - Hex M8 x 81
32 216795 Screw - Phl M5 x 121
33 216828 Bolt - Hex M5 x 402
34 216826 Washer - Flat M54
35 216824 Washer - Lock M52
36 216823 Nut - Hex M52
37 216778 Pin - Cotter1
38 216751 Nut - Hex M10 (L/H)1
39 216749 Flange - Collar1
40 216514 Blade - Brush1
41 213178 Screw - Pn M5 x 8.503
42 216499 Shield - Brush Cutter1
43 216600 Decal - Warning1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 5 of 11
www.ktoutdoor.com

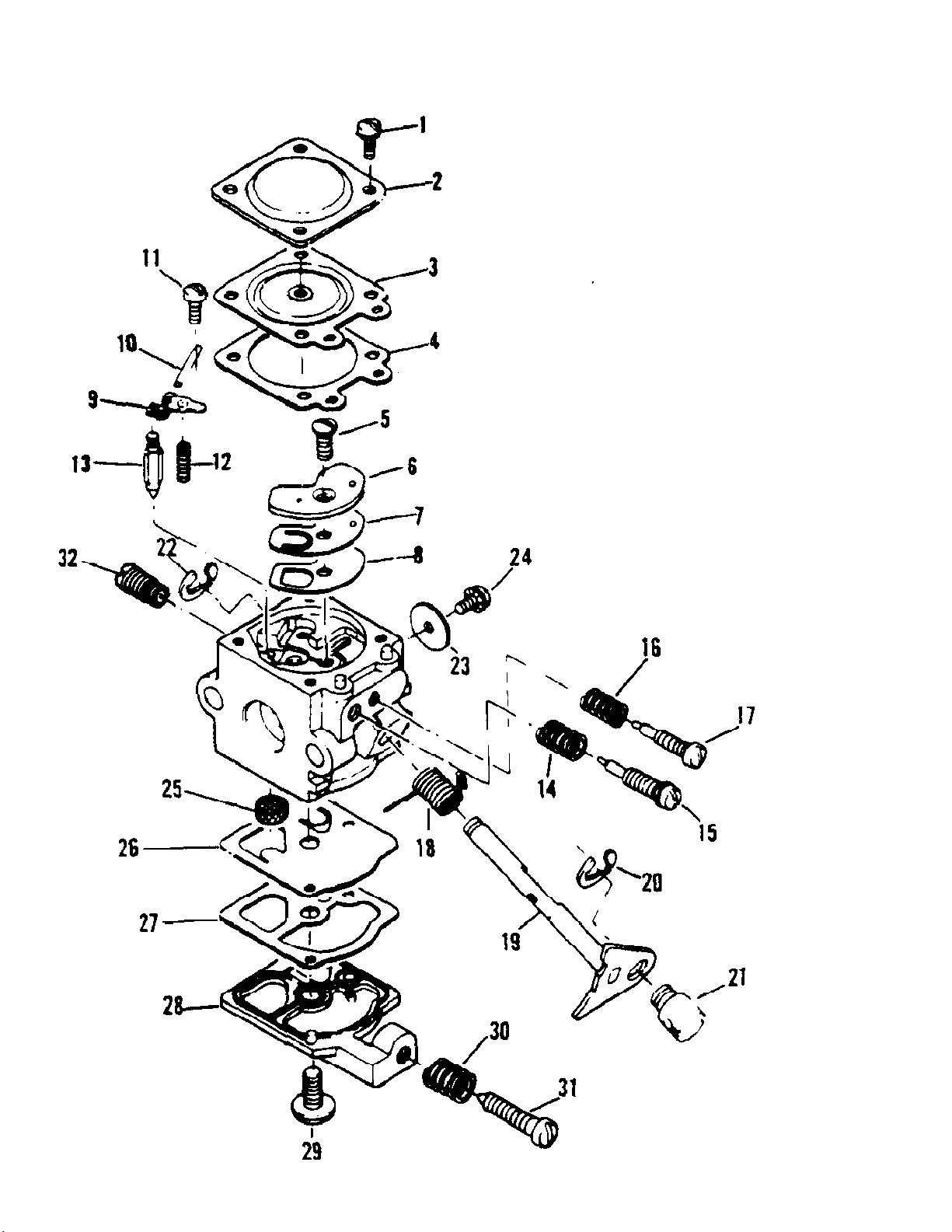

Carburetor Assembly (Part 1)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 6 of 11
www.ktoutdoor.com
Carburetor Assembly (Part 1)
Ref # Part Number DescriptionQty
217274 Carburetor Assembly-Governed) (WA - 152)1
215494 Carburetor Assembly (WA - 146)1
1 Screw - Cover Not available separately.A/R
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Metering Not available separately.1
4 Gasket - Diaphragm Not available separately.1
5 Screw - Circuit Plate Not available separately.1
6 Plate - Circuit Not available separately.1
7 Diaphragm - Circuit Plate Not available separately.1
8 Gasket - Circuit Plate Not available separately.1
9 Lever - Metering Not available separately.1
10 Pin - Lever Not available separately.1
11 Screw - Lever Pin Not available separately.1
12 Spring - Lever Not available separately.1
13 Valve - Inlet Needle Not available separately.1
14 Spring - High Speed Needle Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Needle - Idle Not available separately.1
18 Spring - Throttle Return Not available separately.1
19 Shaft - Throttle Not available separately.1
20 Clip Not available separately.1
21 Swivel Not available separately.1
22 Valve - Throttle Not available separately.1
23 Screw - Throttle Valve Not available separately.1
24 Screen - Inlet Not available separately.1
25 Diaphragm - Fuel Pump Not available separately.1
26 Gasket - Fuel Pump Not available separately.1
27 Cover - Fuel Pump Not available separately.1
28 Screw - Pump Cover Not available separately.1
29 Spring - Idle Screw Not available separately.1
30 Screw - Idle Adjusting Not available separately.1
31 Governor - Sealed Not available separately.1
32 Clip - Throttle Shaft Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 7 of 11
www.ktoutdoor.com

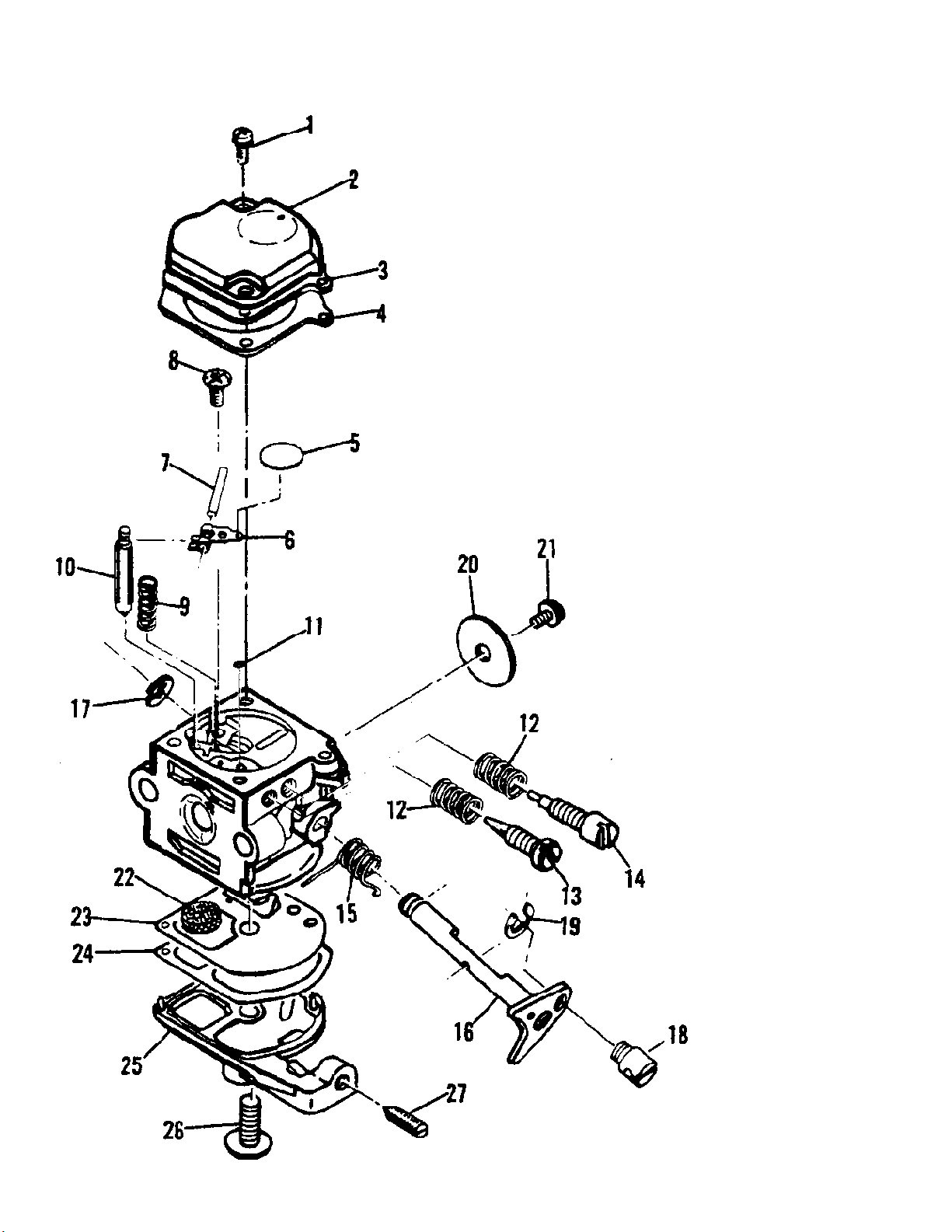

Carburetor Assembly (Part 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 8 of 11
www.ktoutdoor.com
Carburetor Assembly (Part 2)
Ref # Part Number DescriptionQty
215494A Carburetor Assembly (Zama C1S-M8)
1 Screw - Cover Not available separately.2
2 Cap - Main Not available separately.1
3 Diaphragm - Main Not available separately.1
4 Gasket - Main Not available separately.1
5 Disk Not available separately.1
6 Arm - Needle Valve Not available separately.1
7 Pin - Arm Not available separately.1
8 Screw - Pin Not available separately.1
9 Spring - Arm Not available separately.1
10 Valve - Needle Not available separately.1
11 Plug - Welch Not available separately.1
12 Spring - Needle Not available separately.2
13 Needle - High Speed Not available separately.1
14 Needle - Idle Not available separately.1
15 Spring - Throttle Return Not available separately.1
16 Shaft Asy - Throttle Not available separately.1
17 "E" Ring Not available separately.1
18 Post Not available separately.1
19 "E" Ring Not available separately.1
20 Valve - Throttle Not available separately.1
21 Screw - Throttle Valve Not available separately.1
22 Strainer Not available separately.1
23 Diaphragm - Fuel Pump Not available separately.1
24 Gasket - Pump Not available separately.1
25 Cover - Fuel Pump Not available separately.1
26 Screw - Pump Cover Not available separately.1
27 Screw - Idle Adjusting Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 9 of 11
www.ktoutdoor.com

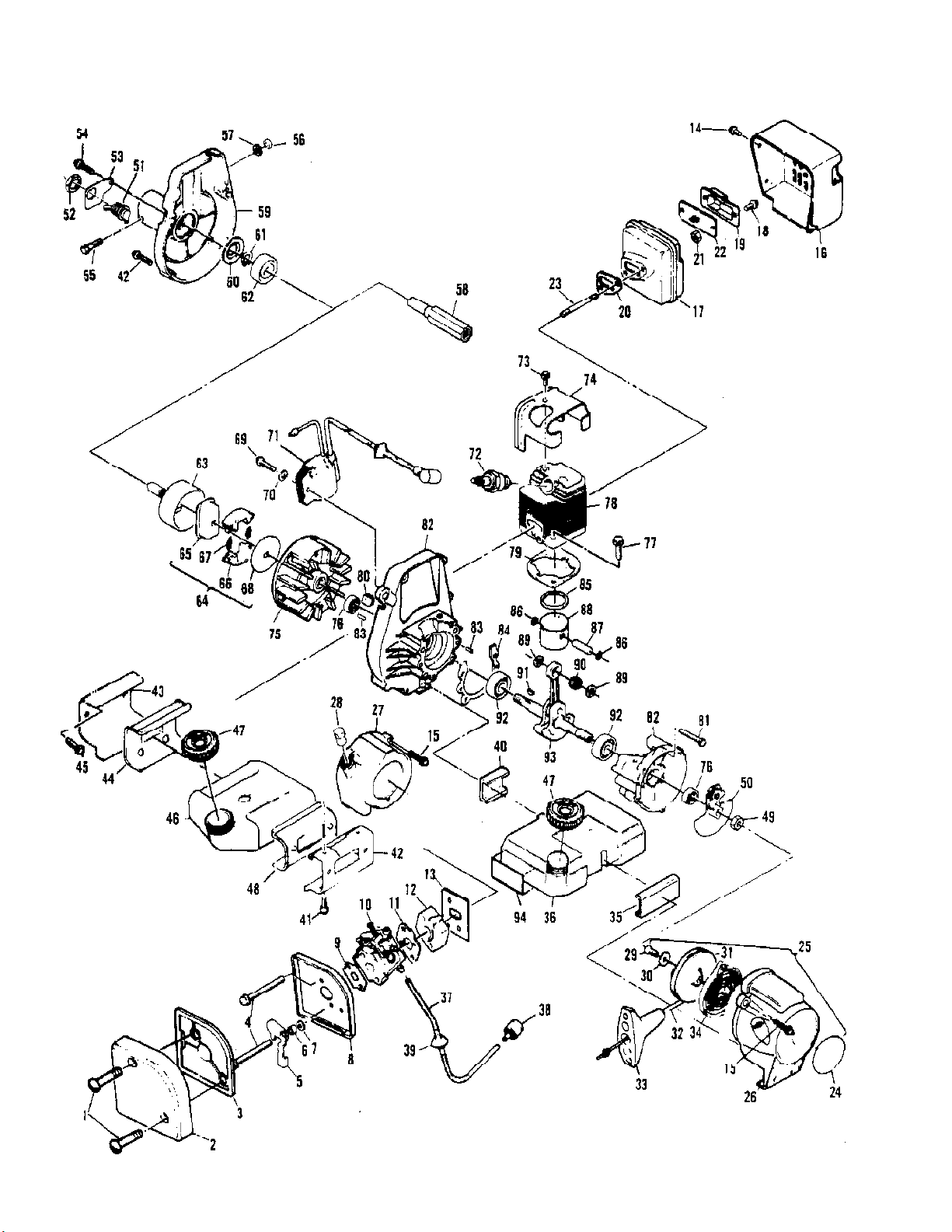

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 10 of 11
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 217669 Screw - M4 x 252
2 215988 Cover - Air Cleaner1
3 217376 Filter - Air1
4 216903 Screw - M5 x 552
5 215991 Shutter - Choke1
6 215993 Spacer1
7 216591 Washer - Flat M51
8 216108 Kit - Airbox/Grommet1
9 216226 Gasket - Air Filter1
10 Carburetor Asys. Not available separately. See
11 215491 Gasket - Carburetor1
12 215771 Insulator - Carburetor1
13 216575 Gasket - Insulator1
14 216025 Screw - M4 x 82
15 213177 Screw - M4 x 18.503
16 215753 Shield - Muffler1
17 216920 Kit - Muffler1
18 216025 Screw - M4 x 82
19 215507 Cover/Cap Assembly1
20 215515 Gasket - Muffler1
21 217275 Nut - Flange M51
22 215516 Spark Arrester Screen1
23 215517 Stud - Bolt2
24 217056 Decal - Name1
25 217388 Starter Assembly1
25 216919 Kit - Starter1
26 217389 Housing - Starter1
27 216325 Housing - Starter1
28 217030 Guide - Rope1
29 215874 Screw - M4 x 9.50 11
30 216590 Washer - Flat M4 11
31 216092 Drum/Rope Assembly 11
32 216093 Rope - Starter 11
33 216792 Handle - Starter 11
34 217482 Spring - Starter1
34 215522 Spring - Starter1
35 217382 Cushion - Fuel Tank1
36 217387 Fuel Tank/Hose Assembly1
37 217264 Hose - Fuel1
38 216985 Pickup - Fuel1
39 215495 Grommet1
40 217390 Cushion - Fuel Tank1
41 213177 Screw - M4 x 18.502
42 215501 Bracket Assembly - Back1
43 217455 Bracket - Tank/Shield1
44 215504 Cushion - Bracket1
45 216025 Screw - M4 x 82
46 217021 Kit - Fuel Tank1
47 216346 Cap - Fuel Tank1
48 215500 Cushion - Fuel Tank1
49 216583 Nut - M81
50 215525 Ratchet - Assembly1
51 217648 Switch - Toggle1
52 104810 Nut - Hex Electric1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
"Carburetor Assembly" illustration and parts list.
Page 11
11-400033C EAGER BEAVER III 01/84 to 10/84 IPL 217746-R1 Page 11 of 11
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
53 217381 Plate - Switch1
54 213177 Screw - M4 x 18.504
55 217158 Screw - Hex M5 x 351
56 217159 Nut - Hex M51
57 216591 Washer - Flat M51
58 217477 Coupling1
59 217533 Housing - Fan1
59 217548 Housing - Fan1
60 215534 Plate - Thrust1
61 213186 Ring - Retaining1
62 213187 Bearing - Ball1
63 216837 Drum - Clutch1
64 216060 Kit - Clutch1
65 215536 Rotor - Clutch1
66 215538 Shoe - Clutch2
67 215537 Spring - Clutch2
68 215539 Plate - Side1
69 213177 Screw-M4 x 18.501
70 110613 Washer - #8 Hard2
71 217439 Coil - Ignition1
72 214233 Spark Plug AC-CS45T1
73 213178 Screw - M5 X 8.501
74 215540 Cover - Cylinder1
75 217378 Flywheel - Assembly1
76 216500 Seal - Oil2
77 217320 Screw - Socket Cap2
78 215690 Cylinder1
78 217296 Cylinder1
79 215542 Gasket - Cylinder1
80 215541 Grommet1
81 213179 Screw - M5 x 28.504
82 217373 Crankcase Assembly1
83 213191 Pin4
84 215545 Gasket - Crankcase1
85 217475 Ring - Piston4
86 216343 Ring - Snap1
87 215551 Pin - Wrist1
88 217295 Piston1
88 215544 Piston1
89 213196 Washer2
90 213195 Bearing - Needle1
91 102164 Key - Woodruff1
92 216143 Bearing - Ball2
93 216444 Crankshaft Assembly1
94 217383 Decal - 40:11
K&T Saw Shop 606-678-9623 or 606-561-4983
