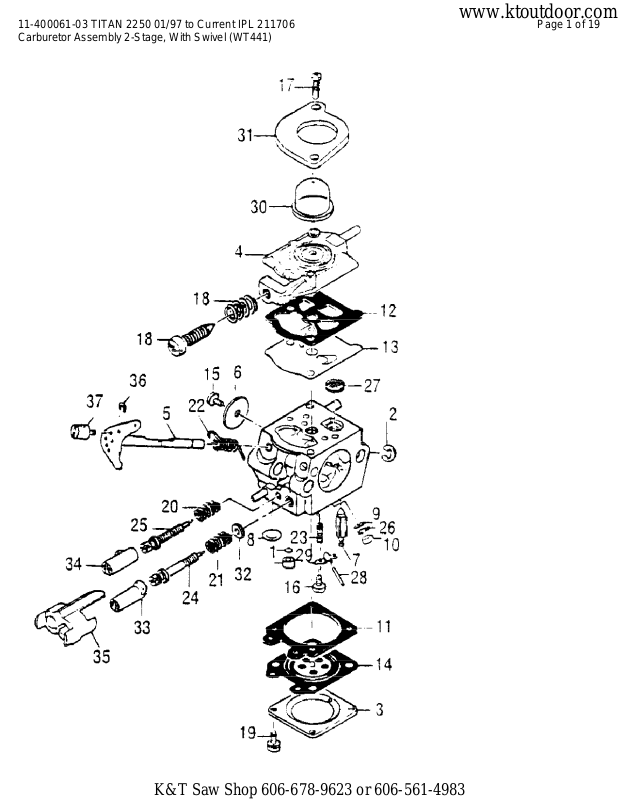

Page 1
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 1 of 19
www.ktoutdoor.com

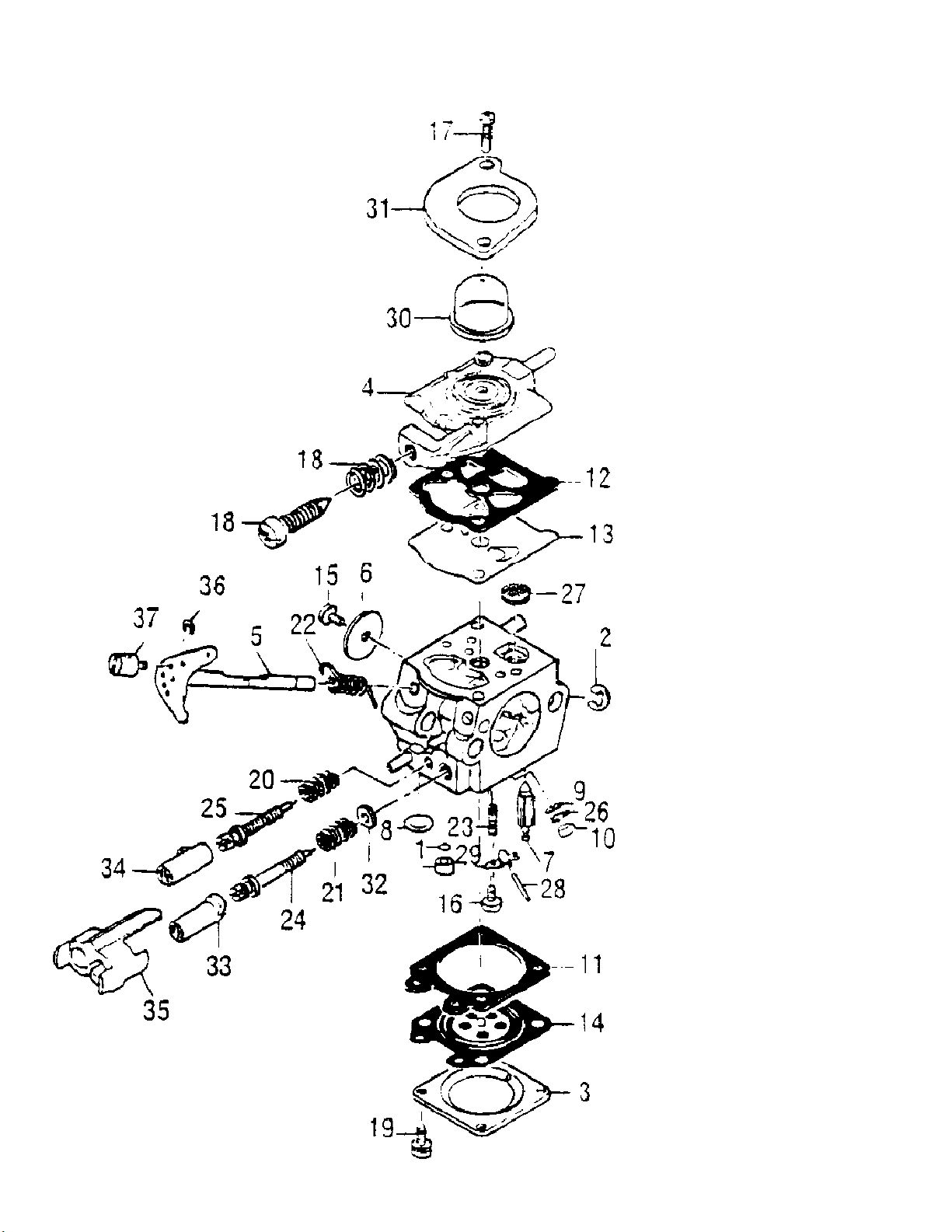

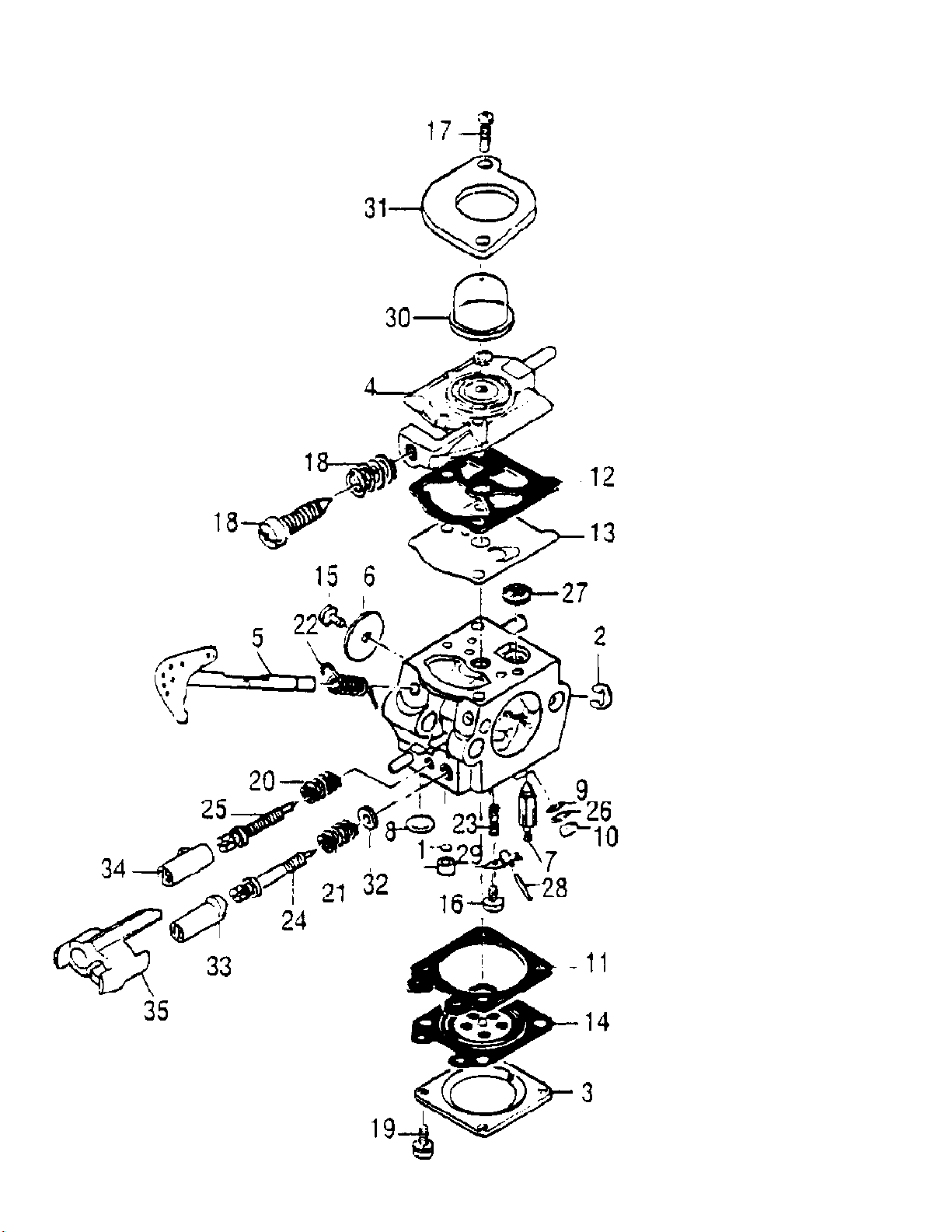

Carburetor Assembly 2-Stage, With Swivel (WT441)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 2 of 19
www.ktoutdoor.com
Carburetor Assembly 2-Stage, With Swivel (WT441)
Ref # Part Number DescriptionQty
323700-04 Carburetor, 2-Stage, with Swivel WT4411
1 Ring, Screen Retainer Not available separately.1
2 Ring, Shaft Retainer Not available separately.1
3 Cover, Metering Lever Not available separately.1
4 300072 Cover, Fuel Pump1
5 Shaft Asy. Throttle Not available separately.1
6 Valve, Throttle Not available separately.1
7 Valve, Inlet Needle Not available separately.1
8 Seat Asy, Check Valve Not available separately.1
9 Plug, Welch Not available separately.1
10 Plug, Welch Not available separately.1
11 Gasket, Metering Diaphragm Not available
12 Gasket, Fuel Pump Not available separately.1
13 Diaphragm, Fuel Pump Not available separately.1
14 Diaphragm Asy, Metering Not available separately.1
15 Screw, Valve Not available separately.1
16 Screw, Metering Lever Pin Not available separately.1
17 Screw, Pump Cover Not available separately.2
18 Spring, Idle Adjust Kit Not available separately.1
19 Screw, Metering Cover Not available separately.4
20 Spring, Idle needle Not available separately.1
21 Spring, High Speed Needle Not available separately.1
22 Spring, Throttle Return Not available separately.1
23 Spring, Metering Lever Not available separately.1
24 Needle, High Speed Not available separately.1
25 Needle, Low Speed Not available separately.1
26 Screen, Check Valve Not available separately.2
27 Screen, Fuel Inlet Not available separately.1
28 Pin, Metering Lever Not available separately.1
29 Lever, Metering1
30 225834 Primer, Pump Not available separately.1
31 Cover, Primer Not available separately.1
32 Washer, High Speed1
33 323601 Cap, Limiter, High, Slack1
34 323602 Cap, Limiter, Low, White1
35 Retainer, Limiter Cap Not available separately.1
36 Ring, Spring Retaining Not available separately.1
37 Swivel, Throttle Lever Not available separately.1
324011 Major Repair Kit
324009 Gasket/Diaphragm Kit
1
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 3 of 19
www.ktoutdoor.com
Carburetor Assembly Non/Swivel (WT436/Z M296)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 4 of 19
www.ktoutdoor.com
Carburetor Assembly Non/Swivel (WT436/Z M296)
Ref # Part Number DescriptionQty
323700-04 Carburetor, 2-Stg, non/Swivel WT436/Z M2961
1 Ring, Screen Retainer Not available separately.1
2 Ring, Shaft Retainer Not available separately.1
3 Cover, Metering Lever Not available separately.1
4 300072 Cover, Fuel Pump1
5 Shaft Asy, Throttle Not available separately.1
6 Valve, Throttle Not available separately.1
7 Valve, Inlet Needle Not available separately.1
8 Seat Asy, Check Valve Not available separately.1
9 Plug, Welch Not available separately.1
10 Plug, Welch Not available separately.1
11 Gasket, Metering Diaphragm Not available
12 Gasket, Fuel Pump Not available separately.1
13 Diaphragm, Fuel Pump Not available separately.1
14 Diaphragm Asy, Metering Not available separately.1
15 Screw, Valve Not available separately.1
16 Screw, Metering Lever Pin Not available separately.1
17 Screw, Pump Cover Not available separately.2
18 Spring, Idle Adjust Kit Not available separately.1
19 Screw, Metering Cover Not available separately.4
20 Spring, Idle Needle Not available separately.1
21 Spring, High Speed Needle Not available separately.1
22 Spring, Throttle Return Not available separately.1
23 Spring, Metering Lever Not available separately.1
24 Needle, High Speed Not available separately.1
25 Needle, Low Speed Not available separately.1
26 Screen, Check Valve Not available separately.2
27 Screen, Fuel Inlet Not available separately.1
28 Pin, Metering Lever Not available separately.1
29 Lever, Metering Not available separately.1
30 225834 Primer, Pump1
31 Cover, Primer Not available separately.1
32 Washer, High Speed Not available separately.1
33 323601 Cap, Limiter, High, Black1
34 323602 Cap, Limiter, Low, White1
35 Retainer, Limiter Cap Not available separately.1
324011 Major Repair Kit
324009 Gasket/Diaphragm Kit
1
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 5 of 19
www.ktoutdoor.com

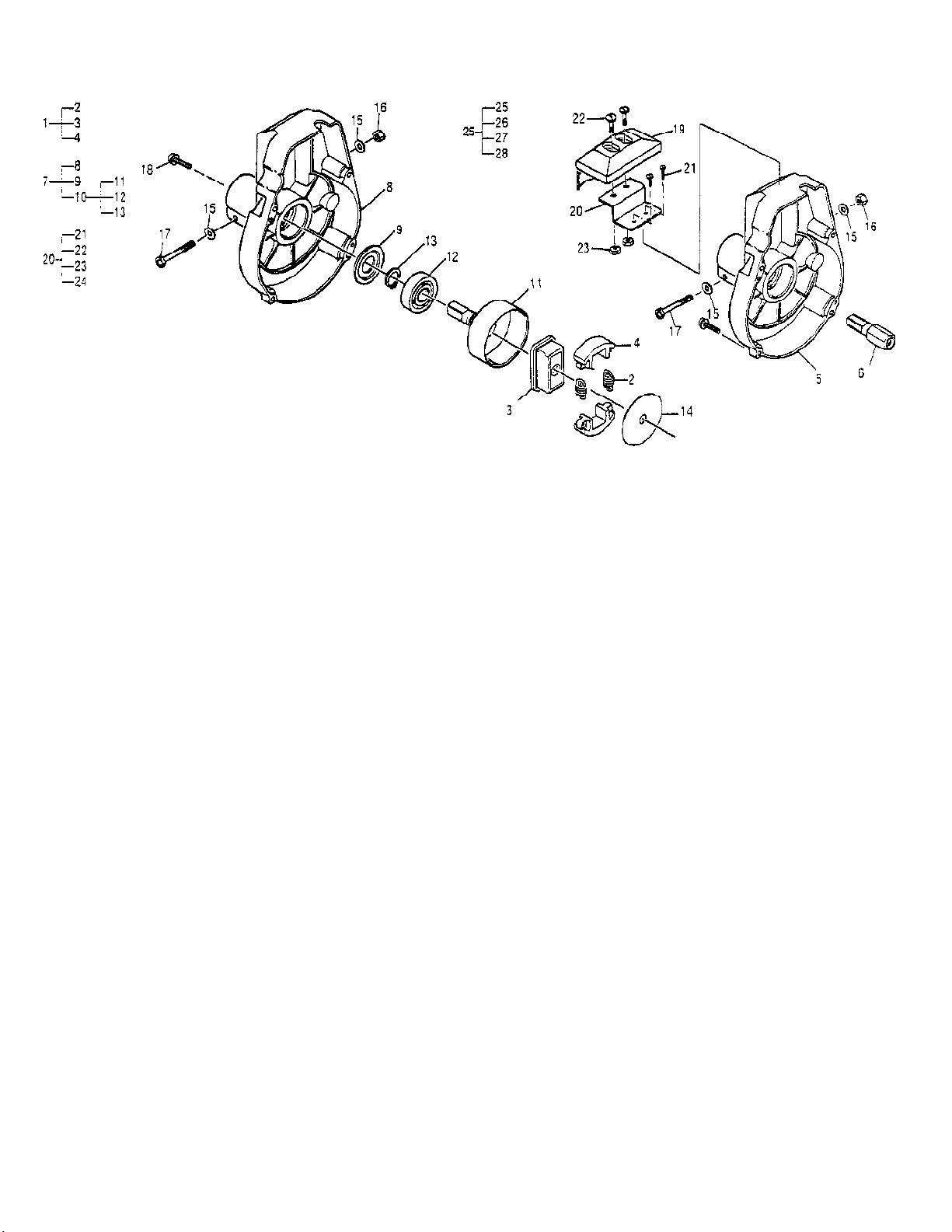

Fan Housing and Clutch Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 6 of 19
www.ktoutdoor.com
Fan Housing and Clutch Assembly
Ref # Part Number DescriptionQty
1 217554 Clutch Assembly1
2 223770 Spring, Clutch2
3 215536 Rotor, Clutch1
4 Shoe Not available separately.2
5 224108 Fan Housing1
6 217477 Coupling1
7 224117 Housing Asy, Fan1
8 224108 Housing, Fan1
9 215534 Plate, Thrust1
10 218065 Drum Asy, Clutch1
11 Drum, Clutch Not available separately.1
12 213187 Bearing, Ball1
13 213186 Ring, Retaining1
8 217533 Fan Housing1
8 218057 Fan Housing1
9 215534 Plate, Thrust1
10 218065 Drum Asy, Clutch1
11 Drum, Clutch Not available separately.1
12 213187 Bearing, Ball1
13 213186 Ring, Retainer1
14 215539 Plate, Side1
15 216591 Washer, Flat M51
15 216591 Washer, Flat M52
16 217159 Nut, Hex M51
17 217158 Screw, Hex M5 x 351
18 219508 Screw, Pan M4 x 17 Sems Torx4
18 213177 Screw, Pan M4.2 x 18.5 Torx4
19 300653 Kit, Heat Shield1
20 Bracket Not available separately.1
21 219194 Screw, Pan 5-20 x 0.4382
22 300296 Screw, 10-24 x 0.5 Pn Hd Torx2
23 216682 Nut, Hex Lock 10-242
24 UNKNOWN
25 UNKNOWN
26 UNKNOWN
27 UNKNOWN
28 UNKNOWN
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 7 of 19
www.ktoutdoor.com

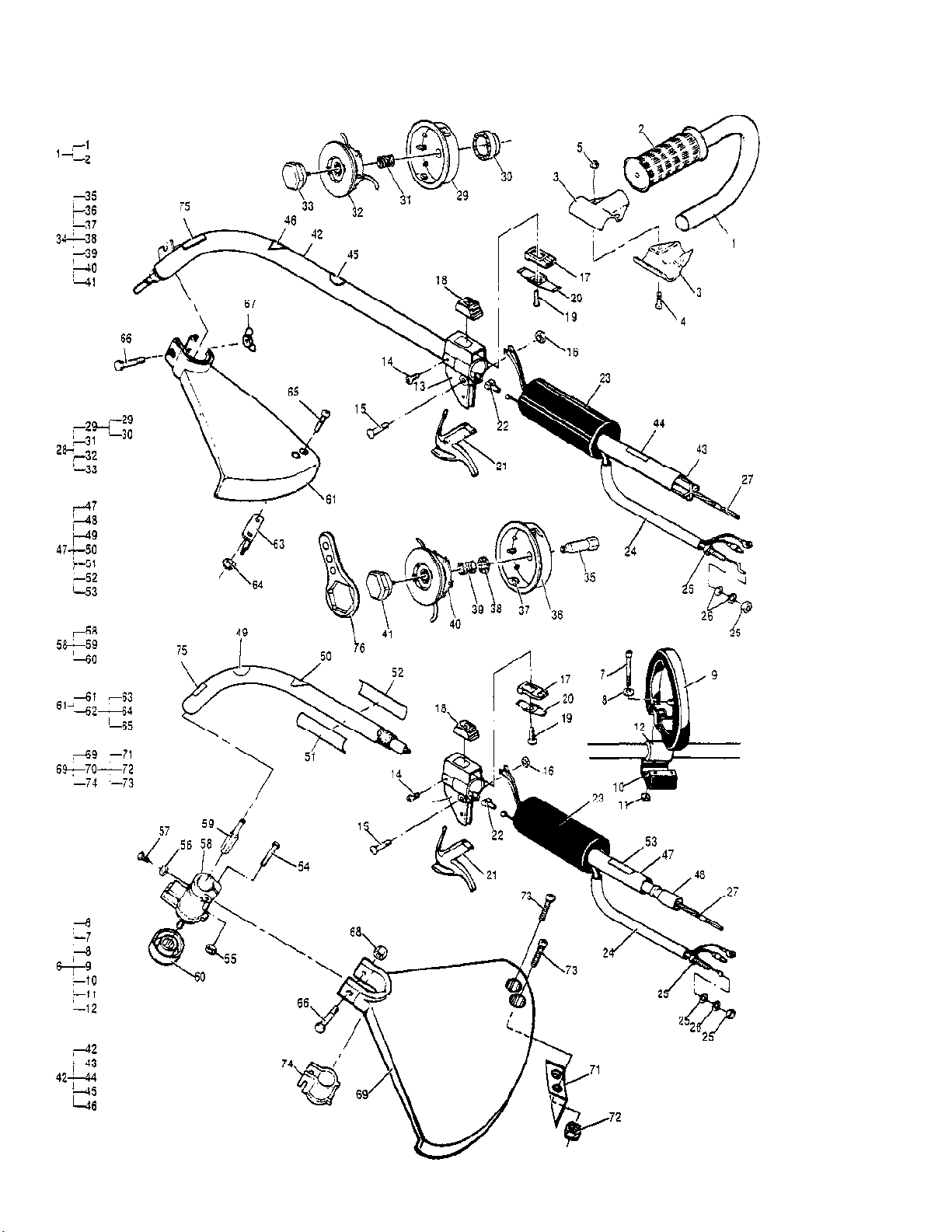

Shaft/Shield/Cutter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 8 of 19
www.ktoutdoor.com
Shaft/Shield/Cutter Assembly
Ref # Part Number DescriptionQty
1 217856 J-Handle/Grip Assembly1
2 94212 Grip, Handle1
3 215337 Clamp, Handle2
4 217935 Screw, Tr 10-24 x .5 Torx2
5 218315 Nut, 10-242
6 224977 Kit, Loop Handle1
7 228320 Screw, M6 x 0.8 x 454
8 236936 Washer4
9 227045 Loop Handle, 25mm1
10 227046 Clamp, Handle, 25mm1
11 236642 Nut4
12 224127 Spacer, Handle1
13 222794 Housing, Trigger Throttle1
14 223200 Screw, Self-tapping 10-161
15 216027 Screw, Pn M5 x 28.5 Sems1
16 217159 Nut, Hex M51
17 215319 Base, Stop Switch1
18 68846 Button, Stop Switch1
19 110706 Screw, Pn 8-18 x .5 S/T H1
20 215320 Contact, Switch1
21 300361 Trigger, Throttle1
22 215323 Guide1
23 322141 Grip, 7/8 inch1
24 224150 Harness, Wiring1
24 215306 Harness, Wiring1
25 217403 Nut, Hex M6 x 1.02
26 216596 Washer, Flat M62
27 301024 Drive Asy w/Clip, 481
27 302164 Drive Asy w/Clip, 481
27 215324 Shaft, Flex1
27 322023 Shaft, Flex1
28 300651 Kit, Stringhead, Small1
29 322025 Housing/Eyelet Asy w/Collar1
30 224998 Collar1
31 322626 Spring, McC St/Head1
32 300688 Kit, Line on Spool, M-SM1
33 300736 Kit, Knob Asy, Right1
34 225196-02 Stringhead Asy, Right, Alum1
35 323681 Stud, 3/8-24, Right, Steel1
36 300115 Housing/Eyelet Asy, M1
37 Eyelets Not available separately.2
38 111073 Ring, Retainer1
39 322626 Spring, ST Head1
40 300689 Kit, Line on Spool, M-MR1
41 300736 Kit, Knob Asy, Right1
42 300428 Housing Asy, Outer1
43 217366 Sleeve1
44 218295 Decal, Warning1
45 223407 Decal, Ear/Eye Cover1
46 211214 Decal, Warning 15m1
47 216912 Housing Asy, Outer1
48 217366 Sleeve1
49 223407 Decal, Ear/Eye Cover1
50 211214 Decal, Warning, 15m1
51 211215 Decal, Thrown Objects1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 9 of 19
www.ktoutdoor.com
Shaft/Shield/Cutter Assembly
Ref # Part Number DescriptionQty
52 218295 Decal, Warning1
47 300421 Housing Asy, Outer1
48 217367 Sleeve1
49 223407 Decal, Ear/Eye Cover1
50 211214 Decal, Warning, 15m1
53 219030 Decal, Caution (S/T Shaft)1
54 217937 Screw, Tr 10-24 x 1 Torx1
55 218315 Nut, 10-241
56 217672 Washer, M4 Flat1
57 215874 Screw, Pn M4 x 9.5 Torx1
58 218283 Housing Asy, Spindle1
59 217477 Coupling1
60 218214 D/C Coupling1
61 224062 Shield Asy, Grass, 17 in. R1
62 300626 Kit, Knife1
63 224497-01 Cutter1
64 216682 Nut Hex Lock 10-242
65 217935 Screw, Tr 10-24 x .5 Torx2
66 216595 Screw, Hex M6 x 1.01
67 111102 Nut, Wing M6 x 1.01
68 215871 Nut, Hex M6 x 1.01
69 300317 Kit, 90ΓΈ Grass Shield Asy1
70 300626 Kit, Knife2
71 224497-01 Cutter1
72 216682 Nut, Hex Lock 10-242
73 217935 Screw, Tr 10-24 x .5 Torx2
74 224499 Spacer1
75 46754-60 Label, Debris1
75 322099 Label, Debris Shield Warning1
76 322344 Wrench, Stringhead1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 10 of 19
www.ktoutdoor.com

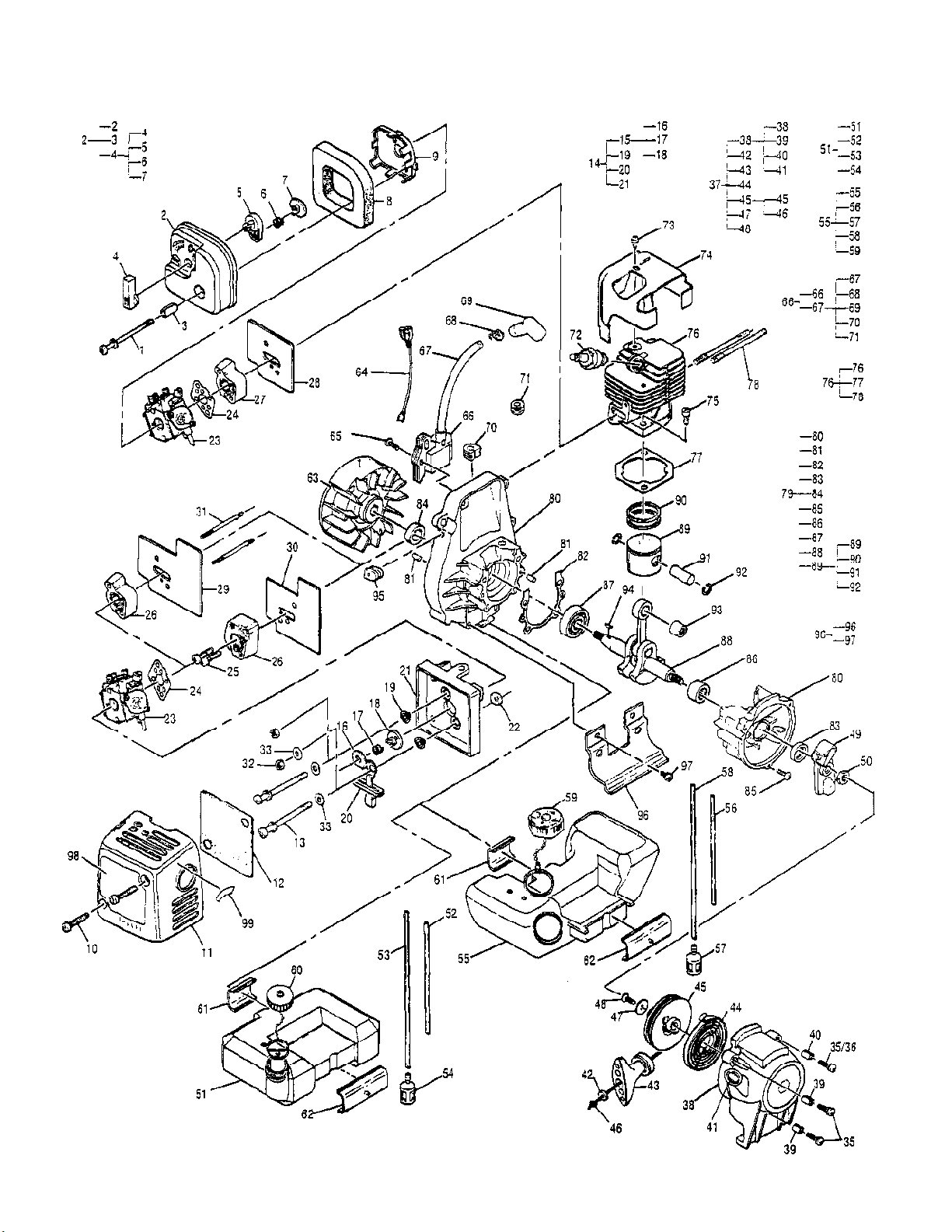

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 11 of 19
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 224327 Carburetor Torque 25-30 in/lbs Loctite 242
1 224327 Screw, Pn M5 x 69 Torx Sems2
2 223196 Cover Asy, Choke1
3 219023 Insert, A/C Cover2
4 223520 Kit, Choke Knob1
5 Lever, Choke Not available separately.1
6 219016 Spring, Shutter1
7 Plate, Choke Shutter Not available separately.1
8 219145 Filter, Air1
9 222758 Box, Air1
10 216027 Air Box Torque 25-30 in/lbs
10 216027 Screw, Pn M5 x 28.5 Sems2
11 227024 Cover, Air Cleaner1
11 323057 Cover, Air Cleaner, 25cc Yellow1
12 227023 Filter, Air1
13 111064 Screw, M5 x 0.8 x 482
14 300069-01 Case Asy1
15 223730 Kit, Choke Asy1
16 Shutter, Choke Lever Not available separately.1
17 219016 Spring, Shutter1
18 219076-01 Plate, Choke Shutter Not available separately.1
19 227022 Bushing2
20 215992 Grommet1
21 Air Box1
22 229524 Nut2
23 Carburetor Asy See "Carburetor Assembly"
1
illustration and parts list
24 224148 Gasket, Carburetor1
24 224148 Gasket, Carburetor2
25 111063 Screw, M5 x .8 x 21.52
26 223984 Insulator, S/T1
27 323323-01 Insulator, Carburetor 25cc1
28 223986 Gasket, Shield Insulator1
29 224315 Gasket, Shield Insulator1
30 224318 Gasket, Shield Insulator1
31 300139 Stud, Intake M5 x 66.52
32 216585 Nut, Lock M52
33 216591 Washer, Flat M51
34 216591 Washer, Flat M51
35 216022 Screw, Pn M4 x 23.4 Torx1
35 216022 Screw, Pn M4 x 23.4 Torx3
36 217669 Screw, Pn M4 x 25 Torx Sems1
37 301164 Starter Asy, Grey1
38 301163 Housing, Starter Asy, Grey1
39 219585 Spacer, Starter Housing2
40 219584 Spacer, Muffler Shield1
41 218932 Guide, rope1
42 218941 Washer, Nylon1
43 216792 Handle, Starter1
44 300474 Spring, Starter Rewind1
45 301252 Kit, Drum/Rope1
46 216093 Rope, Starter 36 inch1
47 216590 Washer, Flat M41
48 215874 Screw, Pn M4 x 9.5 Torx1
37 224111 Starter Asy, Grey1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 12 of 19
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
38 224110 Housing, Starter Asy1
39 219585 Spacer, Starter Housing3
40 218932 Guide, rope1
42 218941 Washer, Nylon1
43 216792 Handle, Starter1
44 300474 Spring, Starter Rewind1
45 301252 Kit, Drum/Rope1
46 216093 Rope, Starter 36 inch1
47 216590 Washer, Flat M41
48 215874 Screw, Pn M4 x 9.5 Torx1
37 217388 Starter Asy, Yellow1
38 223331 Housing, Starter Asy1
39 219585 Spacer, Starter Housing3
41 218932 Guide, rope1
42 218941 Washer, Nylon1
43 216792 Handle, Starter1
44 300474 Spring, Starter Rewind1
45 301252 Kit, Drum/Rope1
46 216093 Rope, Starter 36 inch1
47 216590 Washer, Flat M41
48 215874 Screw, Pn M4 x 9.5 Torx1
49 225037 Starter Pawl Asy1
49 216583 Starter Pawl Torque 150-170 in/lbs
50 216583 Nut, Hex M81
51 222239 Tank Assembly, Fuel1
52 222238 Hose, Fuel Return1
53 300289 Hose, Fuel1
54 300869 Filter, Fuel1
55 301816 Tank, Fuel Asy1
56 225057 Hose, Fuel1
57 216985 Pickup, Fuel1
58 225058 Hose, Return1
59 236563 Cap Asy1
60 223508 Cap Asy w/Retainer1
61 217390 Cushion, Fuel Tank1
62 217382 Cushion, Fuel Tank1
63 222308 Flywheel1
64 219383 Wire Asy, Switch1
65 216022 Ignition Module Torque 30-35 in/lbs Loctite 242
65 216022 Screw, Pn M4 x 23.4 Torx2
66 302138 Ignition Asy1
67 223884 Kit, Spark Plug Wire1
68 102556 Connector, Spark Plug1
69 95266 Boot, Spark Plug1
70 215533-01 Grommet, H/T Lead1
71 110995 Grommet, Spark Plug Wire1
72 322208 Spark Plug, RDJ7Y Torque 110-120 in/lbs1
72 62345 Spark Plug, DJ8J1
73 213178 Screw, Pn M5 x 3.5 Torx Sems1
74 215540-01 Cover, Cylinder1
74 224165 Cover, Cylinder1
75 217320 Cylinder Torque 70-80 in/lbs
75 217320 Screw, Pn M6 x 18 Torx Sems2
76 224448-01 Kit, Cylinder/Gasket/Stud 21cc1
76 225059-02 Kit, Cylinder/Gasket/Stud 25cc1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 13 of 19
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
77 323716 Gasket, Cylinder 21/25cc1
78 323419 Stud, Muffler 1/4-202
79 302151 Kit, C'case/C'shaft/Piston (21)1
80 302026 C'case Assy1
81 213191 Pin4
82 215545 Gasket1
83 83859 Seal, C'shaft Oil1
84 216500 Seal1
85 216027 Crankcase Torque 45-50 in/lbs Loctite 242
85 216027 Screw, Pn M5 x 28.5 Sems4
86 213282 Bearing, C'shaft1
87 216143 Bearing, 6201 Open1
88 302004 C'shaft/Piston Asy (21)1
89 301443 Kit, Piston - Alum (21)1
90 323611 Ring, Compressed/Dished1
91 218275 Pin, Wrist1
92 111025 Ring, Snap Internal2
79 302150 Kit, C'case/C'shaft/Piston (25)1
80 C'case Not available separately.1
81 213191 Pin4
82 215545 Gasket1
83 83859 Seal, C'shaft Oil1
84 216500 Seal1
85 21602 Screw, Pn M5 x 28.5 Sems4
86 213232 Bearing1
87 216143 Bearing, 6201 Open1
88 302003 C'shaft/Piston Asy (25)1
89 301317-01 Kit, Piston 2 ring (25)1
90 323678 Ring, Compressed/Dished2
91 223589 Pin, Wrist1
92 111025 Ring, Snap Internal2
93 110984 Bearing, Needle1
94 102164 Key, Flywheel1
95 215541 Grommet1
96 300794 Kit, Engine Stand1
97 216025 Screw Pn M4 x 8 Torx Sems2
98 224287 Label, Air Cover1
98 322376 Label, Air Cover1
99 224967 Label, Primer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 14 of 19
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 15 of 19
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235-02 Loctite Kit
322236 Retaining Compound 620 (10ml)
322237 Thread Locker 242 (10ml)
322238 Gasket Eliminator 518 (50ml)
322239-01 Black Max 380 (3ml)
323749 Thread Locker 262 (10ml)
323762 Anti-Seize Lubricant 767 (30ml)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 16 of 19
www.ktoutdoor.com

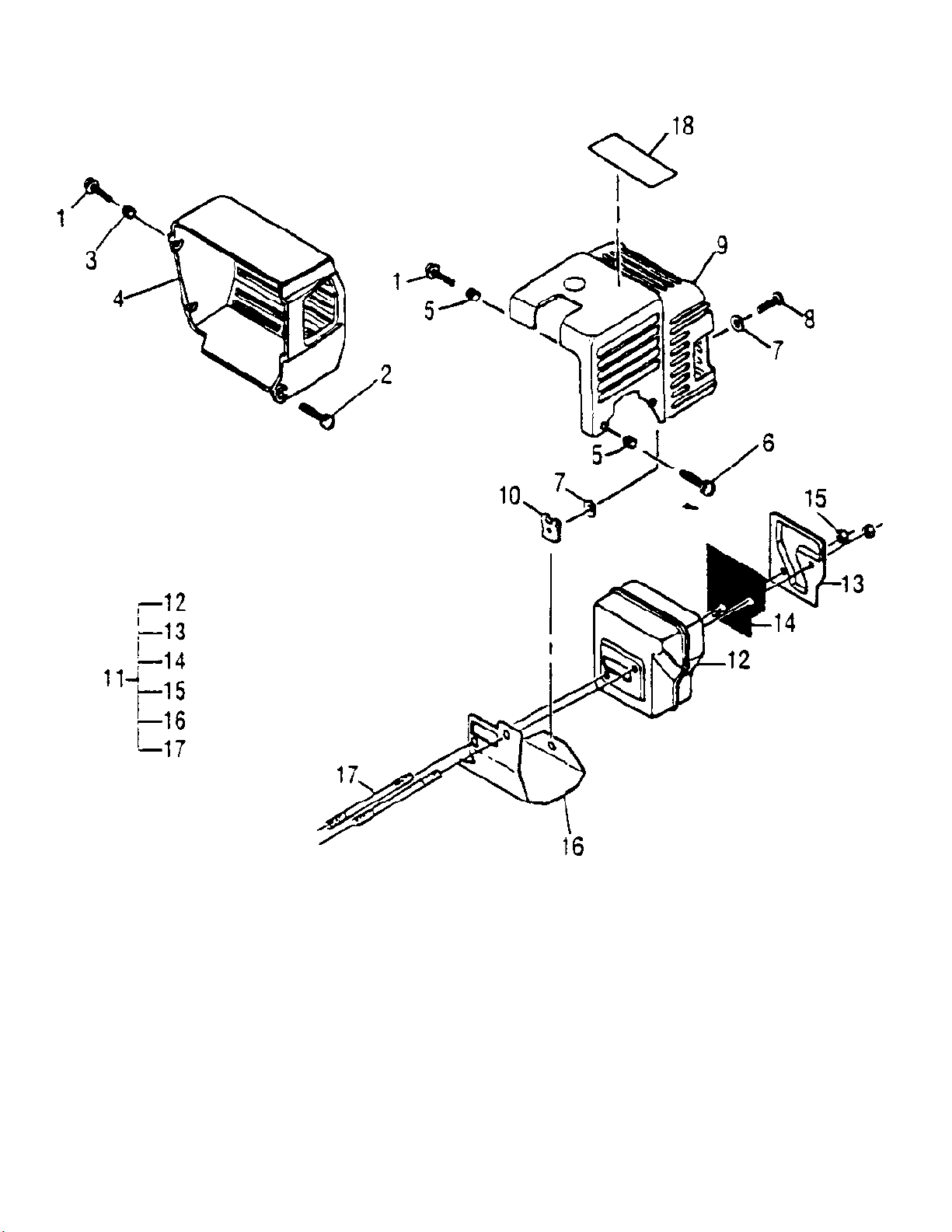

Muffler/Muffler Shield Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 17 of 19
www.ktoutdoor.com
Muffler/Muffler Shield Assembly
Ref # Part Number DescriptionQty
1 219508 Screw, Pn M4 x 17 Torx Sems2
2 217669 Screw, Pn M4 x 25 Torx Sems1
2 217669 Screw, Pn M4 x 25 Torx Sems2
3 219079 Spacer, Muffler Shield2
4 323525 Shield, Muffler1
5 229121 Bushing4
6 215874 Screw, Pn M4 x 9.5 Torx2
6 213178 Screw, Pn M5 x 3.5 Sem T1
7 68497 Washer2
8 215874 Screw, Pn M4 x 9.5 Torx2
8 215874 Screw, Pn M4 x 9.5 Torx1
9 224351 Shield, Muffler1
9 323058 Shield, Muffler, 25cc, Yellow1
10 224350 Nut, Speed M41
11 300632-01 Kit, Univ Muffler, 251
12 301833-01 Universal Muffler1
13 322017 Plate, Deflector1
14 322018 Screen, Spark Arrester1
15 235642 Muffler Torque 40-50 in/lbs
15 325642 Nut, M52
16 323760 Shield Muffler Heat1
17 222480 Stud, Muffler, M5 x 0.82
17 323419 Stud, Muffler, 1/4-202
18 223215 Starting Instr1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 18 of 19
www.ktoutdoor.com

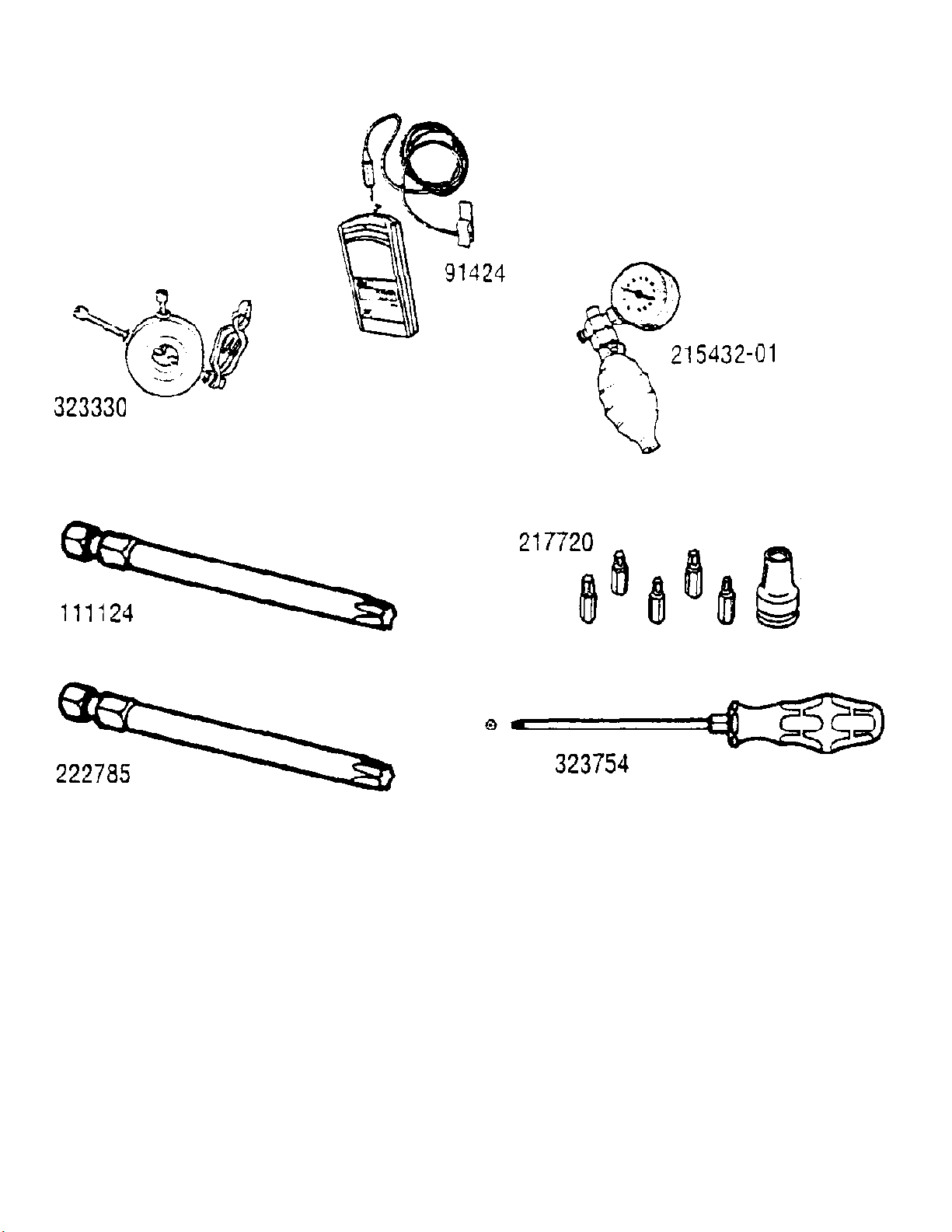

Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-400061-03 TITAN 2250 01/97 to Current IPL 211706 Page 19 of 19
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
111124 111124 T-27 Torx Dr 3.5 in.
222785 222785 T-25 Torx Dr 3.5 in.
217720 217720 Torx Dr Set
323754 323754 Torx Dr Set of 6 Bit Sizes: Tx 10,15,20,25,27,30
323330 323330 Ignition Tester
215432-01 215432-01 Pressure Test Tool
91424 91424 Tachometer
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
