Page 1
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 1 of 12
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 2 of 12
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
84992 Muffler - Reed
85933 Kit - Spark arrester screen (Reed muffler)
68768 Kit - Muffler
69162 Screen - Spark arrester (PM 6 muffler)
88756 Scrench
85687 Wrench - Screwdriver
85924 Kit - Spark Arrester
62849 Tool - Pressure test
89787 Manual - Owner's
89792 Chuck - Jacobs
89817 Auger - 1 in. Wood
89818 Auger - 2 in. Earth
89819 Auger - 4 in. Earth
89820 Auger - 6 in. Earth
89821 Auger - 8 in. Earth
85062 Kit - Piston tool
83687 Guide - Timing
68916 Kit - Pressure testing
85229 Kit - Pressure testing (Fuel tank)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 3 of 12
www.ktoutdoor.com

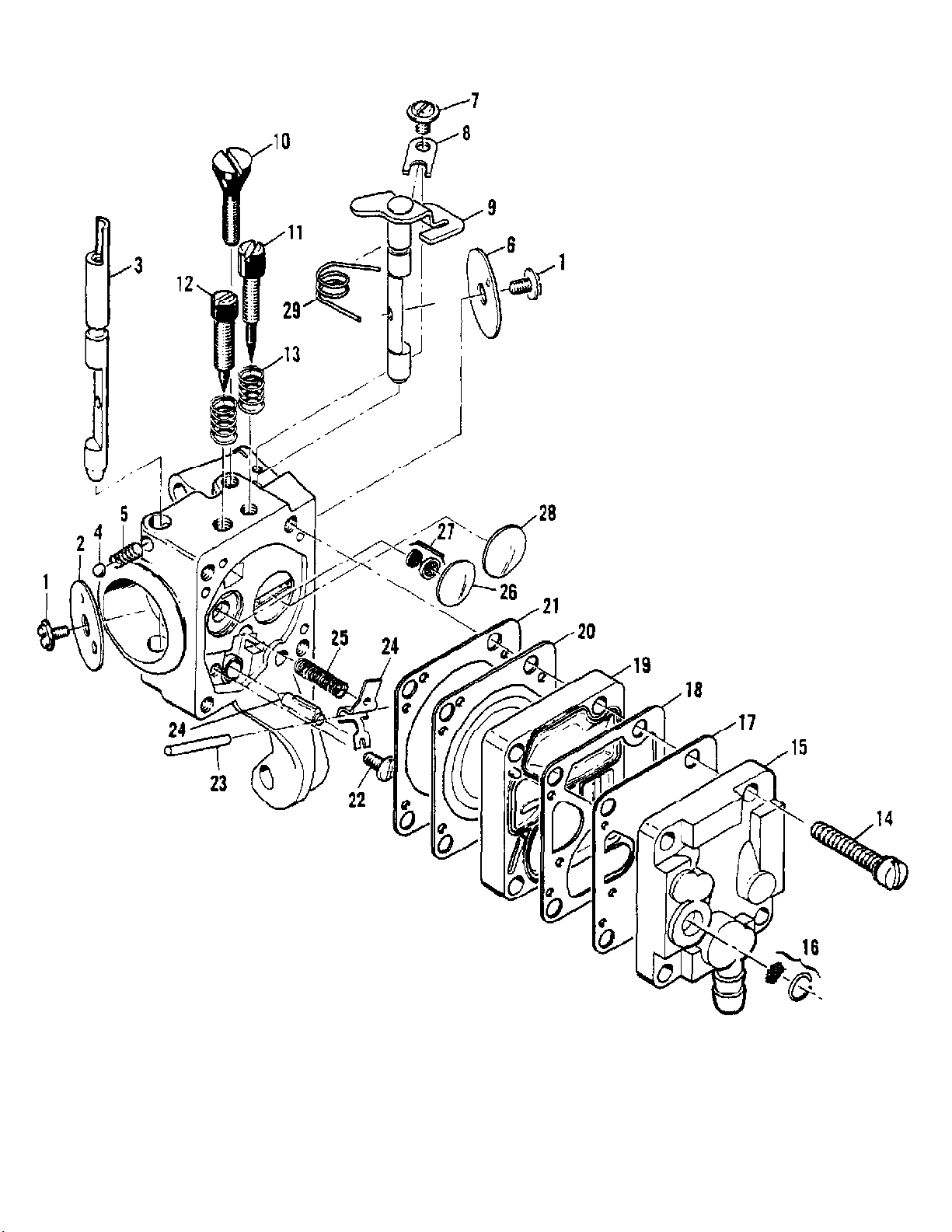

Carburetor
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 4 of 12
www.ktoutdoor.com
Carburetor
Ref # Part Number DescriptionQty
89273 Carburetor Assy1
1 83755 Screw - Plate2
2 68556 Plate - Choke1
3 85033 Shaft - Choke1
4 100302 Ball - Choke friction1
5 67504 Spring - Choke friction1
6 68553 Plate - Throttle1
7 70798 Screw - Clip1
8 68554 Clip - Throttle shaft1
9 85032 Shaft Assy - Throttle1
10 68566 Screw - Idle speed1
11 86446 Needle - Idle1
12 86447 Needle - High speed1
13 67502 Spring - Needle2
14 68564 Screw Assy - Body4
15 88786 Cover Assy - Pump1
16 85629 Kit - Vent screen1
17 68563 Diaphragm - Fuel pump1
18 88785 Gasket - Pump diaphragm1
19 85030 Body - Fuel pump1
20 85036 Diaphragm -Metering1
21 85034 Gasket - Diaphragm1
22 67500 Screw - Lever pin1
23 67508 Pin - Lever1
24 85059 Inlet Needle and Lever Kit1
25 68567 Spring - Lever1
26 68559 Plug - Welsh 7/161
27 83758 Kit - Check valve1
28 68560 Plug - Welsh 1/21
29 89785 Spring - Throttle return1
86463 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 5 of 12
www.ktoutdoor.com

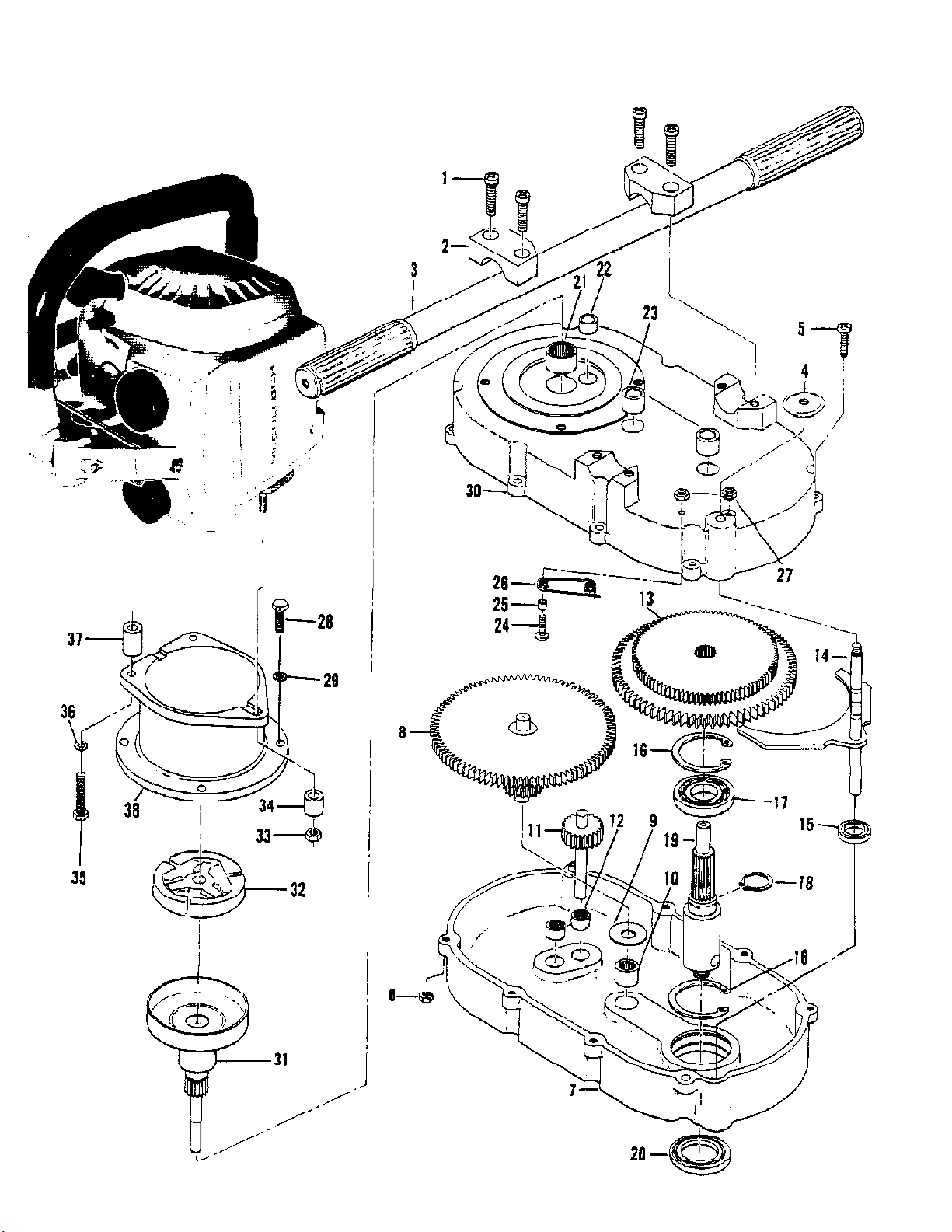

Drill Attachment
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 6 of 12
www.ktoutdoor.com
Drill Attachment
Ref # Part Number DescriptionQty
1 103267 Screw - Fil hd 1/4-20 x 14
2 89797 Clamp - Handle2
3 89798 Handle Assy1
4 89800 Knob - Shifter1
5 102760 Screw - Fil hd 10-24 x 18
6 101326 Nut - Hex 10-248
7 89814 Gearcase - Lower1
8 89806 Gear/Shaft Assy1
9 89811 Washer - Spacer1
10 104783 Bearing - Needle1
11 89809 Idler Assy1
12 89810 Bearing - Needle1
13 89804 Gear - Sliding1
14 89805 Lever - Shifter1
15 89816 Seal - Lever1
16 89807 Ring - Retainer2
17 89808 Bearing - Ball1
18 89813 Ring - Retainer1
19 89812 Shaft Assy - Output1
20 89815 Seal - Output shaft1
21 104299 Bearing - Needle1
22 89799 Bearing - Needle1
23 104783 Bearing - Needle1
24 110560 Screw - Pan hd 8-32 x 5/81
25 89803 Spacer - Shifter1
26 89802 Spring - Shifter detent1
27 100955 Nut - Hex 8-321
28 110795 Screw - Hex hd 1/4-20 x 3/44
29 105473 Lockwasher - 1/44
30 89801 Gearcase - Upper1
31 89796 Clutch Drum/Shaft Assy1
32 Clutch Assy See "General Assembly" illustration and
1
parts list
33 100640 Nut - Hex 1/4-281
34 89793 Spacer - Short1
35 110570 Screw - Hex hd 12-24 x 1-1/22
36 105457 Lockwasher - #122
37 89794 Spacer - Long2
38 89795 Housing - Clutch
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 7 of 12
www.ktoutdoor.com

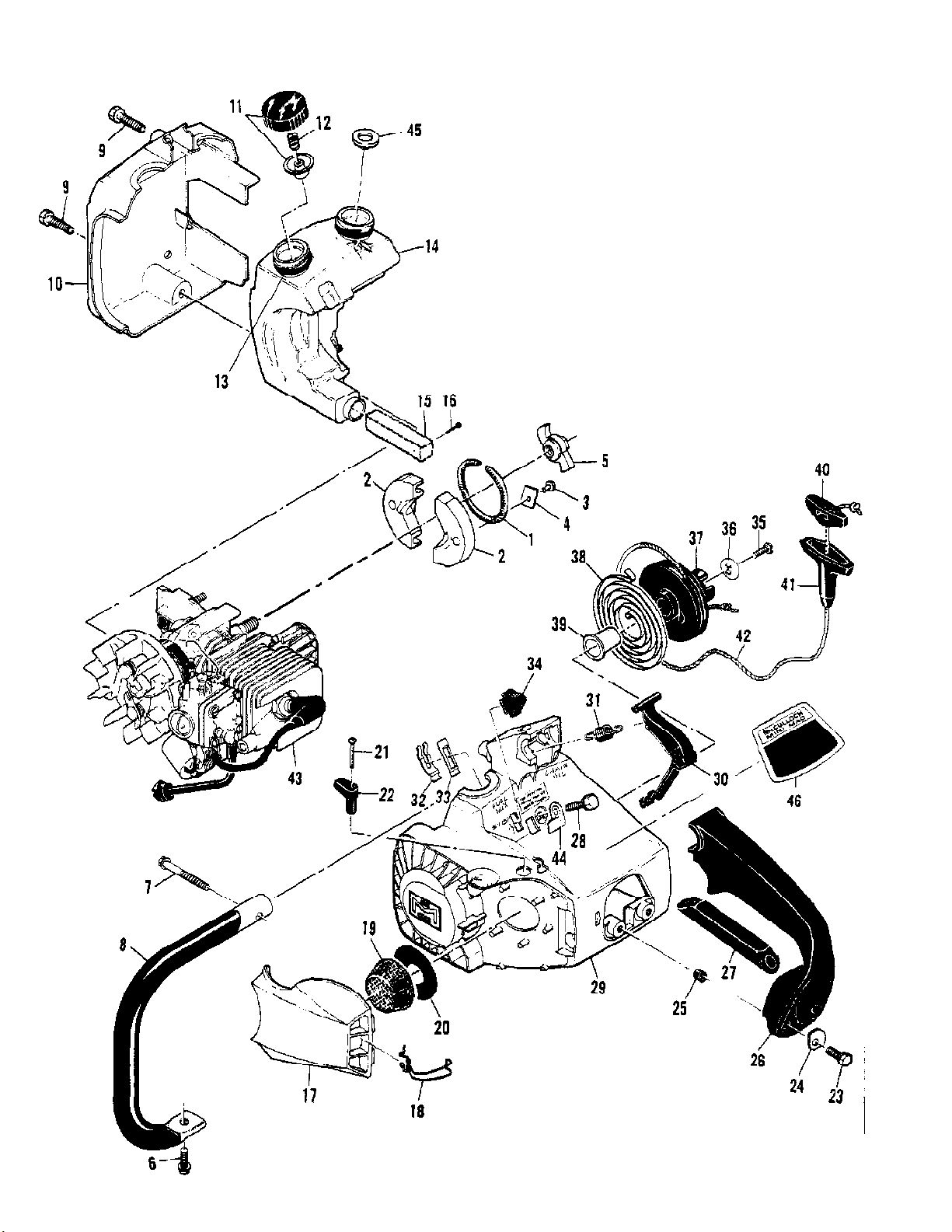

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 8 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
85450 Clutch Assy1
1 69358 Spring - Clutch1
2 85202 Shoe Assy - Clutch2
3 110709 Rivet2
4 85064 Plate2
5 83907 Spider1
6 110640 Screw - Hex hd 12-24 x 5/8 s/t1
7 110686 Screw - Hex hd 13-16 x 21
8 84791 Frame & Grip Assy1
9 110639 Screw - Hex hd 12-24 x 12
10 88591 Cover - Fuel tank1
11 83905 Cap - Fuel & Oil2
12 85079 Spring - Cap2
13 110732 "O" Ring2
14 83899 Tank Assy - Fuel & Oil1
15 84956 Pickup - Fuel1
16 85057 Pin - Pickup1
17 87852 Cover Assy - Air cleaner 11
18 83882 Retainer - Cover1
19 85127 Filter - Air1
20 84918 Washer - Air seal1
21 110672 Screw - Oval hd 4-40 x 11
22 83870 Knob - Choke1
23 110640 Screw - Hex hd 12-24 x 5/8 s/t2
24 84520 Washer - Handle2
25 84519 Sleeve - Handle2
26 83852 Handle1
27 64872 Grip - Handle1
28 110640 Screw - Hex hd 12-24 x 5/8 s/t3
29 83872 Fan Housing1
30 83878 Trigger - Throttle1
31 83940 Spring - Trigger1
32 83935 Contact - Switch1
33 83936 Protector - Switch1
34 83934 Button - Switch1
35 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)1
36 84467 Washer - Special1
37 83876 Drum - Starter1
38 83078 Spring - Rewind1
39 83874 Bushing - Starter1
40 68810 Insert - Handle1
41 67158 Handle - Starter1
42 83203 Rope - Starter1
43 Powerhead Assy See "Powerhead" illustration and
parts list.
44 89767 Limiter - Throttle1
45 110896 Plug - Oil tank1
46 89758 Nameplate - Hedge Trimmer1
46 89759 Nameplate - Drill1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 9 of 12
www.ktoutdoor.com

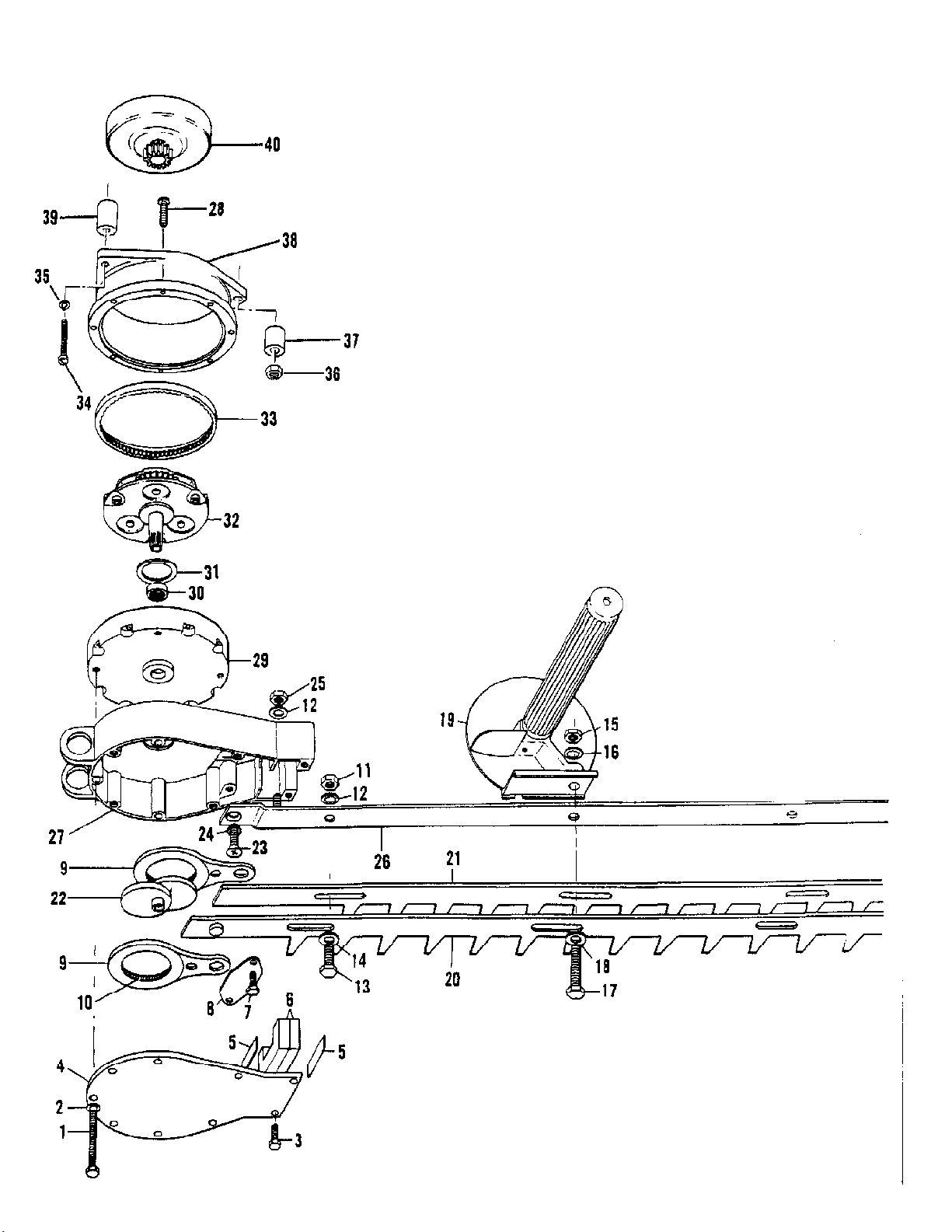

Hedge Trimmer Attachment
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 10 of 12
www.ktoutdoor.com
Hedge Trimmer Attachment
Ref # Part Number DescriptionQty
1 89844 Screw - Eccentric housing mounting3
2 105466 Lockwasher - #103
3 103740 Screw - Eccentric housing cover6
4 89843 Cover - Eccentric Housing1
5 89841 Retainer - Seal2
6 89840 Seal - Felt2
7 103748 Screw - Hex hd 8-32 x 1/22
8 89842 Retainer - Blade1
9 89832 Rod - Connecting2
10 89845 Roller - Needle (Set of 32)2
11 100248 Nut - Hex 1/4-284
12 105473 Lockwasher - 1/45
13 89836 Bolt - Blade4
14 89837 Washer - Blade4
15 100640 Nut - Hex 1/4-281
16 105473 Lockwasher - 1/41
17 89839 Screw - Special1
18 89837 Washer - Blade1
19 89838 Handle Assy - Blade1
20 89835 Blade - Lower1
21 89834 Blade - Upper1
22 89833 Eccentric Assy1
23 89830 Screw - Fl hd 10-32 x 3/41
24 89831 Lockwasher1
25 105394 Nut - Hex 1/4-201
26 89829 Back-up Bar Assy1
27 89828 Housing - Eccentric1
28 110805 Screw - Pan hd 6-32 x 7/88
29 89827 Housing - Gear1
30 103512 Bearing - Needle1
31 89826 Washer - Thrust1
32 89825 Planetary Gear Assy1
33 89824 Gear - Ring1
34 110570 Screw - Rd hd 12-28 x 1-1/2
35 105457 Lockwasher - #12
36 110640 Nut - Hex 1/4-281
37 89793 Spacer - Short1
38 89822 Housing - Clutch1
39 89794 Spacer - Long2
40 89823 Drum - Clutch1
41 Powerhead Assy (See "Powerhead" illustration and
parts list.)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 11 of 12
www.ktoutdoor.com

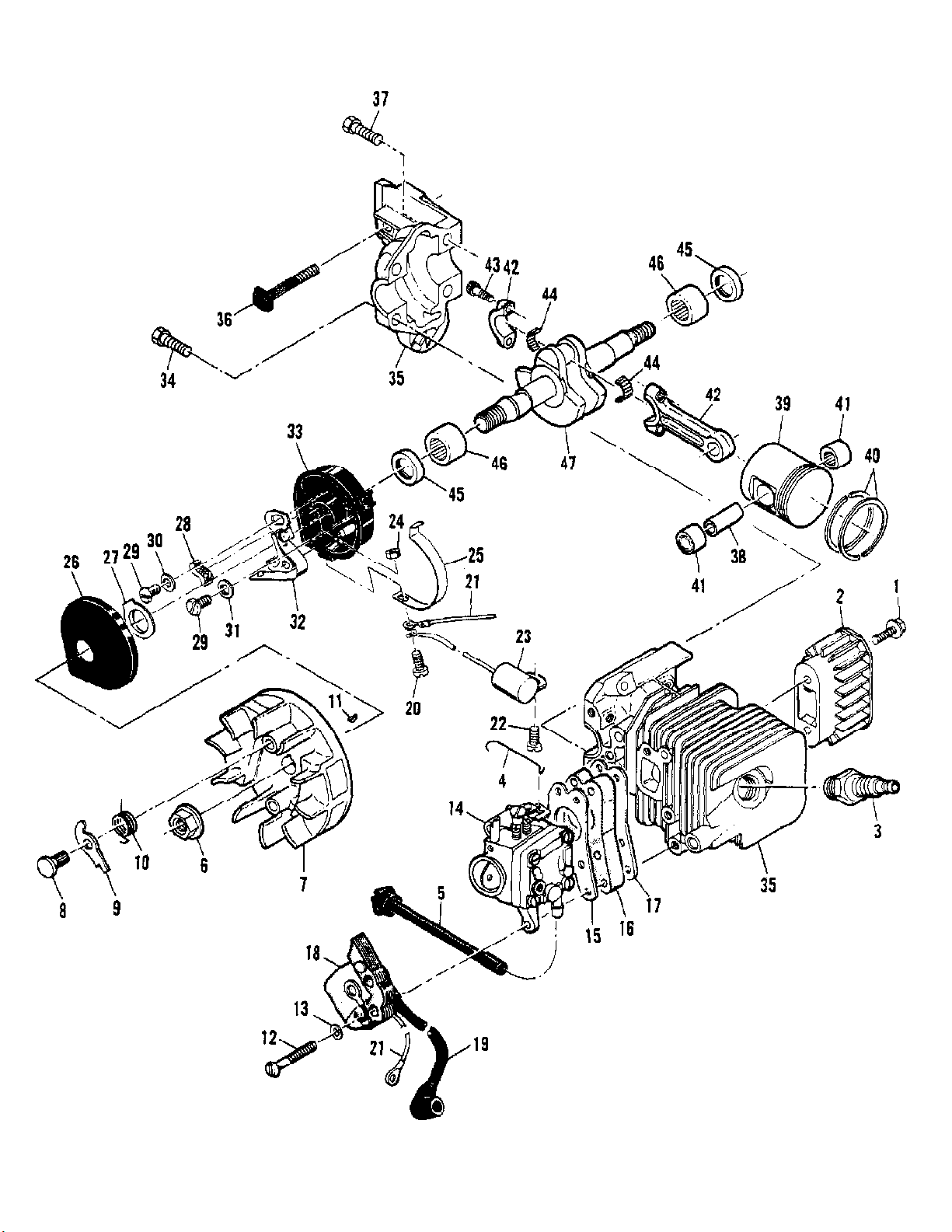

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400084 MINI MAC HEDGE TRIMMER 06/73 to 04/75 IPL 89764 Page 12 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110682 Screw - Hex hd 10-24 x 5/82
2 83947 Stack - Exhaust1
3 63097 Spark Plug - AC CS 45T1
4 83879 Rod - Throttle1
5 83904 Hose - Fuel1
6 110678 Nut - Hex 3/8-241
7 69806 Flywheel & Pawl Assy1
8 69102 Pin - Pawl2
9 69103 Pawl - Starter2
10 67814 Spring - Pawl2
11 103879 Key - Woodruff1
12 110586 Screw - Pan hd 8-32 x 1-3/43
13 100080 Washer - #83
14 Carburetor Assy See "Carburetor" illustration and
parts list.
15 68197 Gasket - Carburetor1
16 68195 Insulator - Carburetor1
17 68196 Gasket - Insulator1
18 84957 Coil & Lamination Assy1
19 50120 Wire Assy - Spark plug1
20 110364 Screw - Pan hd 6-32 x 5/81
21 69344 Wire Assy - Coil1
22 110041 Screw - Pan hd 8-32 x 1/2 s/t1
23 85358 Condenser1
24 100035 Nut - Hex 6-321
25 84502 Connector - Stop switch1
26 67841 Cover - Breaker box1
27 69323 Seal - Breaker box1
28 54184 Wiper - Cam1
29 110041 Screw - Pan hd 8-32 x 1/2 s/t2
30 69322 Washer - Special1
31 105976 Washer - #81
32 88811 Breaker Assy1
33 84505 Box - Breaker1
34 110639 Screw - Hex hd 12-24 x 12
35 86498 Crankcase Assy1
36 83856 Bolt - Mounting1
37 110639 Screw - Hex hd 12-24 x 12
38 66867 Pin - Piston1
39 84981 Piston Assy1
40 87164 Ring Set - Piston1
41 110538 Bearing - Needle2
42 68097 Connecting Rod Assy1
43 66853 Screw - Special2
44 68095 Roller - Needle (Set of 20)1
45 83859 Seal - Oil2
46 66854 Bearing - Needle2
47 85598 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
