11-400030L MAC 100A 02/84 to 01/85 IPL 217748-R1 Page 1 of 9
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400030L MAC 100A 02/84 to 01/85 IPL 217748-R1 Page 2 of 9
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
216513 Pkg - Weed/Grass Blade
216514 Pkg - Brush Blade
216899 Pkg - 1 lb. .095" Line
217719 Kit - Brush Cutter
216900 Pkg - 5 lbs. .095" Line
216767 Spindle Lock
217749 Kit - 8-tooth Blade/Shield
216499 Brush Cutter Shield Optional equipment
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400030L MAC 100A 02/84 to 01/85 IPL 217748-R1 Page 3 of 9
www.ktoutdoor.com

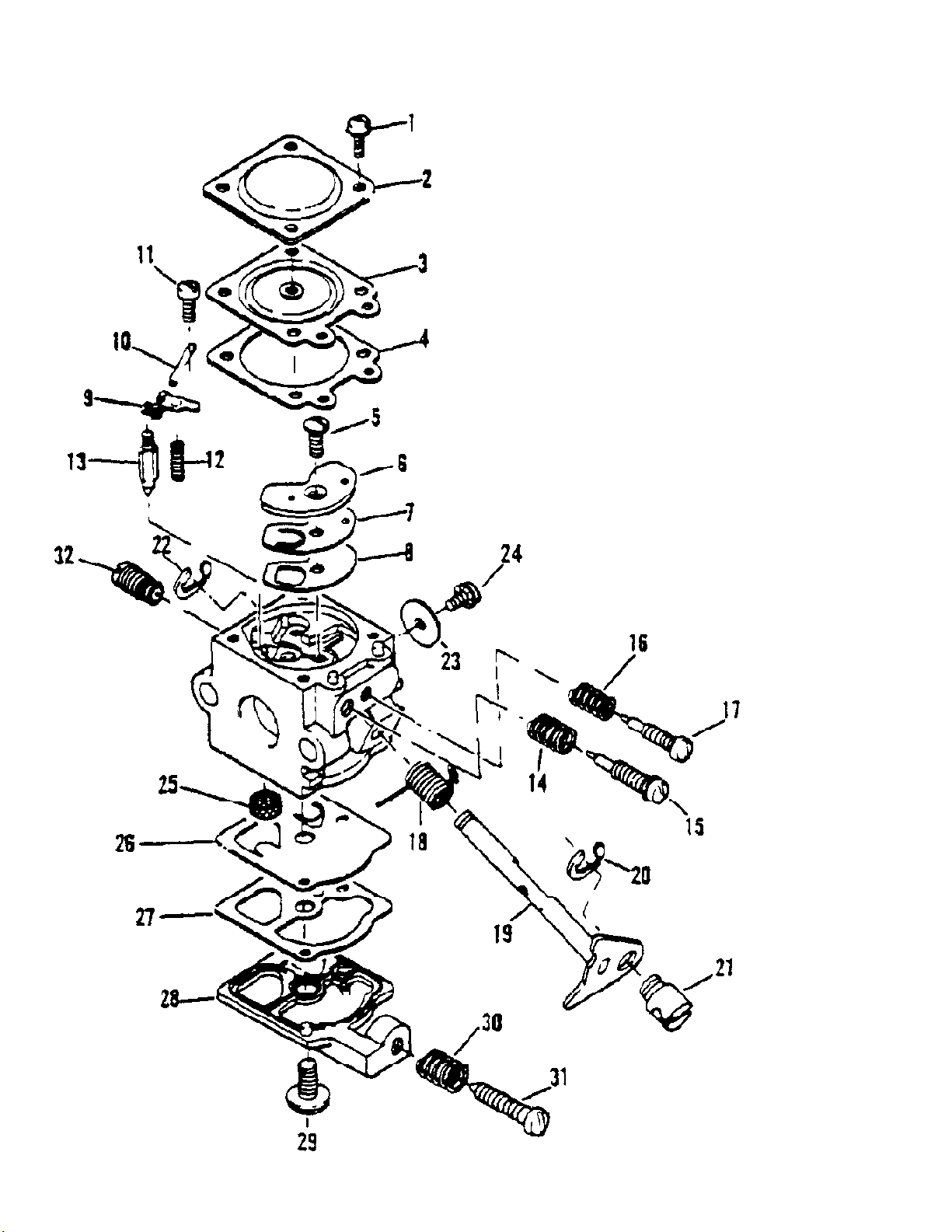

Carbuertor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400030L MAC 100A 02/84 to 01/85 IPL 217748-R1 Page 4 of 9
www.ktoutdoor.com
Carbuertor Assembly
Ref # Part Number DescriptionQty
217274 Carburetor Assembly (Governed)1
1 Screw - Cover Not available separately.4
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Metering Not available separately.1
4 Gasket - Diaphragm Not available separately.1
5 Screw - Circuit Plate Not available separately.1
6 Plate Circuit Not available separately.1
7 Diaphragm - Circuit Plate Not available separately.1
8 Gasket - Circuit Plate Not available separately.1
9 Lever - Metering Not available separately.1
10 Pin - Lever Not available separately.1
11 Screw - Lever Pin Not available separately.1
12 Spring - Lever Not available separately.1
13 Valve - Inlet Needle Not available separately.1
14 Spring - High Speed Needle Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Needle - Low Speed Not available separately.1
18 Spring - Throttle Return Not available separately.1
19 Shaft - Throttle Not available separately.1
20 Clip Not available separately.1
21 Swivel Not available separately.1
22 Clip - Throttle Not available separately.1
23 Valve - Throttle Not available separately.1
24 Screw - Throttle Valve Not available separately.1
25 Screen - Inlet Not available separately.1
26 Diaphragm - Fuel Pump Not available separately.1
27 Gasket - Fuel Pump Not available separately.1
28 Cover - Fuel Pump Not available separately.1
29 Screw - Pump Cover Not available separately.1
30 Spring - Idle Screw Not available separately.1
31 Screw - Idle Adjusting Not available separately.1
32 Governor - Fixed Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400030L MAC 100A 02/84 to 01/85 IPL 217748-R1 Page 5 of 9
www.ktoutdoor.com

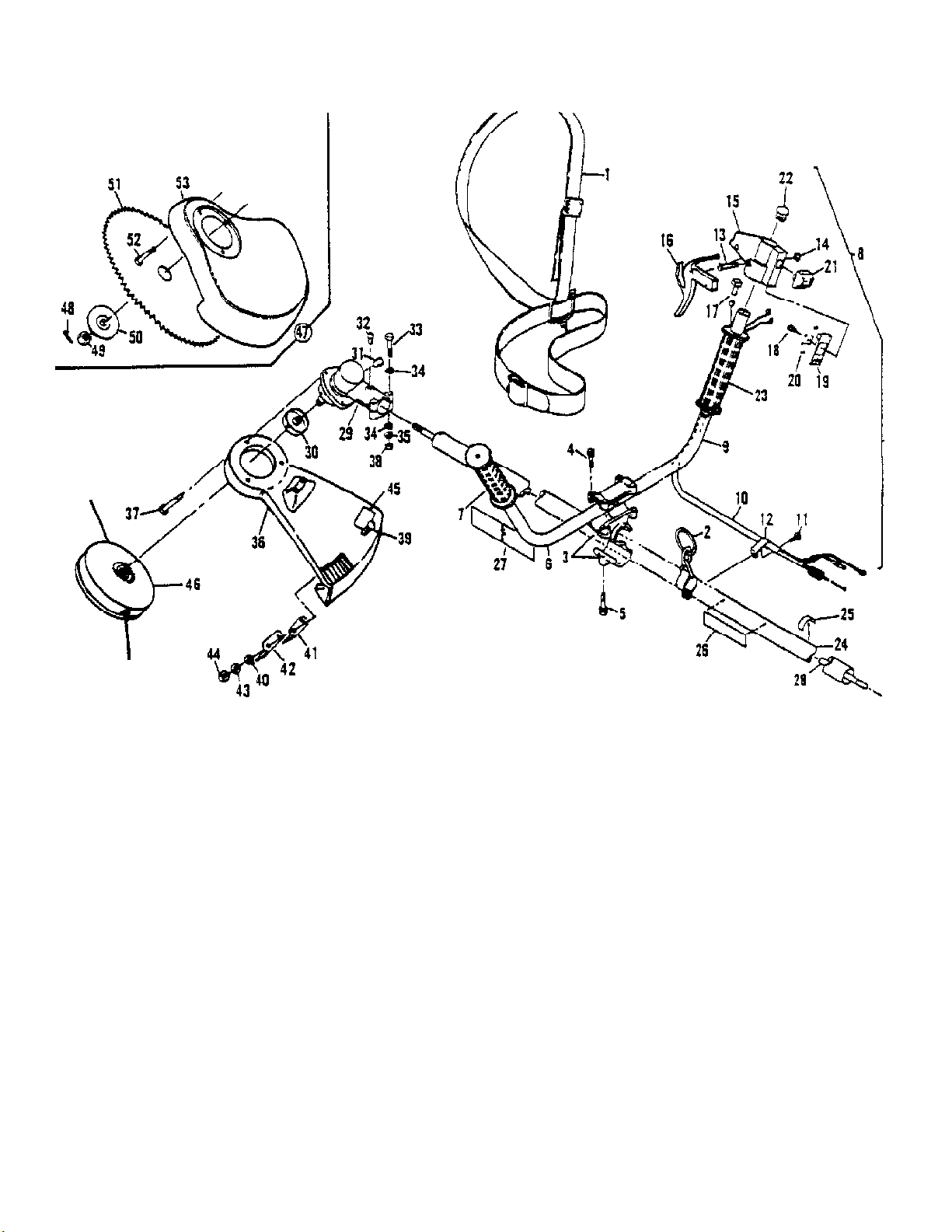

Drive Shaft/String Head/Shield Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400030L MAC 100A 02/84 to 01/85 IPL 217748-R1 Page 6 of 9
www.ktoutdoor.com
Drive Shaft/String Head/Shield Assembly
Ref # Part Number DescriptionQty
1 216790 Harness Assembly1
2 216748 Ring Assembly - Harness1
3 216753 Yoke - Handle Bar1
4 216781 Bolt - HX M5 x 251
5 216782 Bolt - HX M6 x 301
6 216868 Bar Assembly - Handle1
7 94212 Grip - Left Hand1
8 216867 Bar Assembly - Handle/Harness1
9 216787 Bar - Handle1
10 216372 Harness Assembly - Wiring1
11 216789 Bolt - M5 x 131
12 216788 Clip - Wiring Harness1
13 216027 Screw - PN M5 x 28.51
14 216585 Nut - Lock M51
15 215317 Housing - Trigger1
16 215318 Trigger - Throttle1
17 215323 Guide1
18 110706 Screw - PN 8-18 x 1/21
19 215319 Base - Stop Switch1
20 215320 Contact - Switch1
21 68846 Button - Stop Switch1
22 95153 Plug - Tubing1
23 215322 Grip - Right Hand1
24 216922 Kit - Outer Housing1
25 216603 Decal - Position1
26 216605 Decal - Caution1
27 217684 Decal - MAC 100A1
28 216747 Shaft - Drive1
29 216777 Housing Assembly - Gear1
30 216752 Collar - Gear1
31 216832 Bolt - Hex M8 x 81
32 216795 Screw - Ph M5 x 121
33 216828 Bolt - Hex M5 x 402
34 216826 Washer - Flat M54
35 216824 Washer - Lock M52
36 216827 Shield Assembly - Grass1
37 213147 Screw - M5 x 163
38 216823 Nut - Hex M52
39 213147 Screw - M5 x 162
40 216591 Washer - Flat M52
41 215316 Cutter1
42 215315 Bracket1
43 216593 Washer - Lock M52
44 217159 Nut - Hex M52
45 216601 Decal - Warning2
46 216822 String Head Assembly (D/L)1
47 217719 Kit - Brush Cutter1
48 216778 Pin - Cotter1
49 216751 Nut - Hex M10 (L/H)1
50 216749 Flange - Collar1
51 216514 Blade - Brush1
52 213178 Screw - Pn M5 x 8.53
53 216499 Shield - Brush Cutter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400030L MAC 100A 02/84 to 01/85 IPL 217748-R1 Page 7 of 9
www.ktoutdoor.com

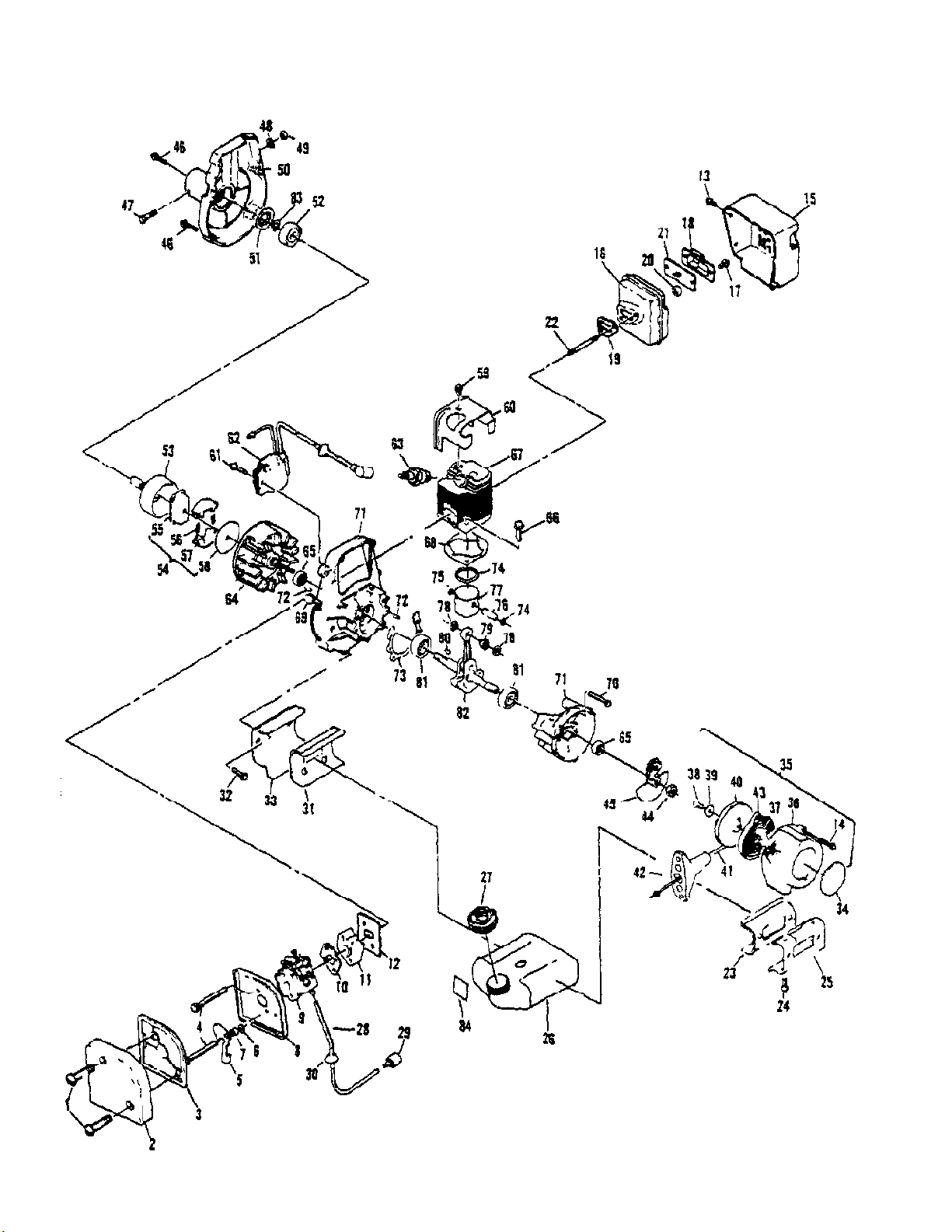

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400030L MAC 100A 02/84 to 01/85 IPL 217748-R1 Page 8 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 217669 Screw - M4 x 252
2 215988 Cover - Air Cleaner1
3 217376 Filter - Air1
4 216903 Screw - M5 x 552
5 215991 Shutter - Choke1
6 216591 Washer - Flat M51
7 215993 Spacer1
8 216108 Kit - Airbox/Grommet1
9 Carburetor Assembly See "Carburetor Assembly"
10 215491 Gasket - Carburetor1
11 215771 Insulator - Carburetor1
12 216575 Gasket - Insulator1
13 216025 Screw - M4 x 82
14 213177 Screw - M4 x 18.503
15 215753 Shield - Muffler1
16 216920 Kit - Muffler1
17 216025 Screw - M4 x 0.82
18 217318 Cover/Cap Assembly1
19 215515 Gasket - Muffler1
20 217275 Lock Nut - M52
21 215516 Spark Arrester Screen1
22 215517 Stud - Bolt2
23 215504 Cushion - Fuel Tank1
24 213177 Screw - M4 x 18.52
25 215501 Bracket - Back1
26 217021 Kit - Fuel Tank1
27 216346 Cap Fuel Tank1
28 217264 Hose - Pickup1
29 216985 Pickup - Fuel1
30 215495 Grommet1
31 215500 Cushion - Bracket1
32 216025 Screw - Special2
33 217455 Bracket Asy - Tank/Shield1
34 216604 Decal - Logo1
35 216919 Kit - Starter1
36 216325 Housing Starter (Painted)1
37 217030 Guide - Rope1
38 215874 Screw - M4 x 9.51
39 216590 Washer - Flat M41
40 216092 Drum/Rope Assembly1
41 216093 Rope - Starter1
42 216792 Handle - Starter1
43 215522 Spring - Starter1
44 216583 Nut - M81
45 215525 Ratchet Assembly1
46 213177 Screw - M4 x 18.504
47 217158 Screw - HX M5 x 251
48 216591 Washer - Flat M51
49 217159 Nut - Hx M5 x 0.81
50 217548 Housing - Fan1
51 215534 Plate - Thrust1
52 213187 Bearing - Ball1
53 216837 Drum - Clutch1
54 216060 Kit - Clutch1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
Illustration and parts list
Page 9
11-400030L MAC 100A 02/84 to 01/85 IPL 217748-R1 Page 9 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
55 215536 Rotor - Clutch1
56 215537 Spring - Clutch2
57 215538 Shoe - Clutch2
58 215539 Plate - Side1
59 213178 Screw - M5 x 8.51
60 215540 Cover - Cylinder1
61 213177 Screw - M4 x 18. 502
62 217439 Coil - Ignition1
63 214223 Spark Plug1
64 217378 Flywheel1
65 216500 Seal - Oil2
66 217320 Screw - Socket Cap HO2
67 215690 Cylinder1
68 215542 Gasket - Cylinder1
69 215541 Grommet1
70 213179 Screw - M5 x 28.504
71 215718 Crankcase Assembly1
72 213191 Pin4
73 215545 Gasket - Crankcase1
74 217475 Ring - Piston1
75 216343 Ring - Snap2
76 215551 Pin - Wrist1
77 215544 Piston1
78 213196 Washer - Piston Pin2
79 213195 Searing - Needle1
80 102164 Key - Woodruff1
81 216143 Bearing - Ball2
82 216444 Crankshaft Assembly1
83 213186 Ring - Retaining1
84 217383 Decal - 40:11
K&T Saw Shop 606-678-9623 or 606-561-4983
