Page 1
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 1 of 19
www.ktoutdoor.com

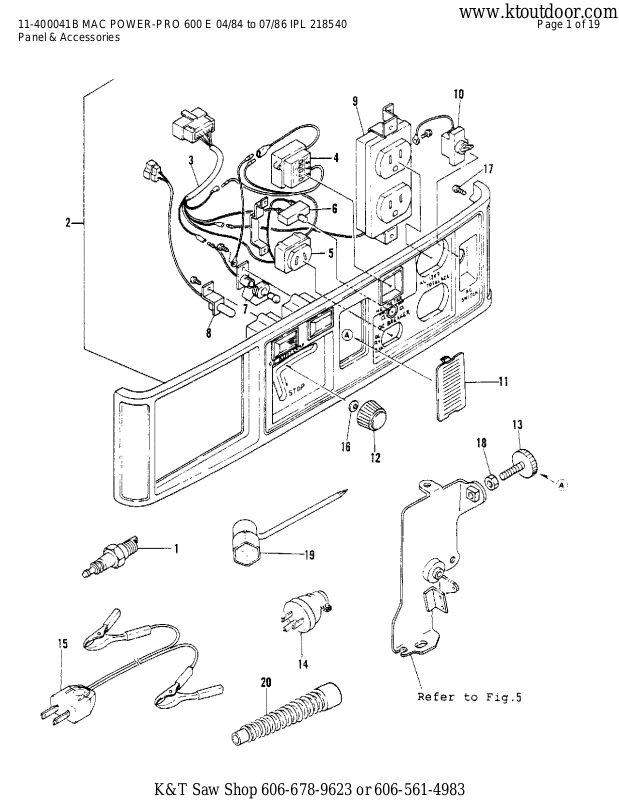

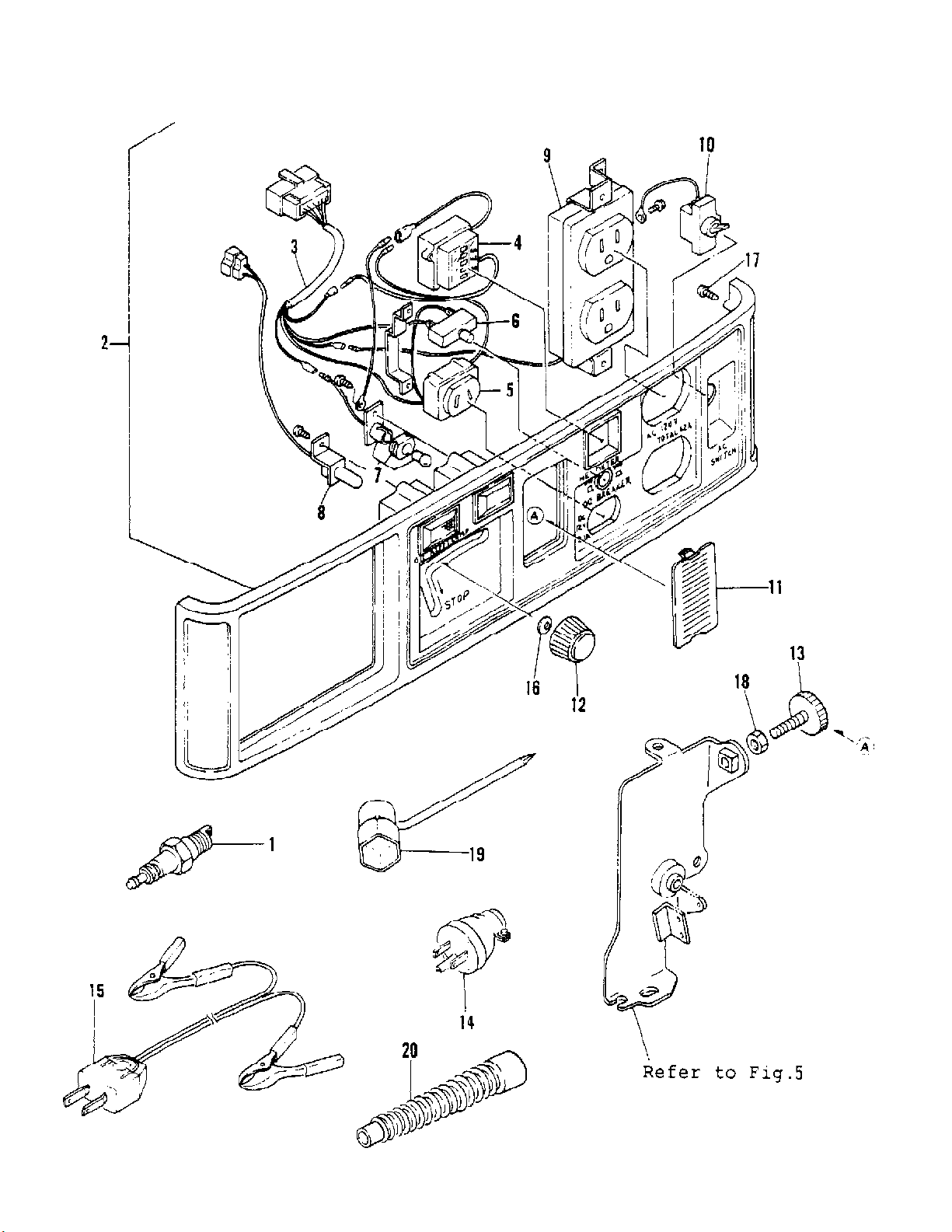

Panel & Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 2 of 19
www.ktoutdoor.com
Panel & Accessories
Ref # Part Number DescriptionQty
1 221250 Spark Plug1
2 221672 Panel Board Assembly1
3 221673 Wire Harness1
4 221712 Frequency Meter1
5 221713 DC Outlet1
6 221714 DC Breaker1
7 221715 Pilot Lamp1
8 221716 Signal Lamp - Oil1
9 221717 AC Outlet1
10 221674 AC Breaker1
11 221709 Cover - Blind1
12 221711 Knob1
13 221985 Adjustment Screw1
14 221835 Plug - 125V x 15A1
15 221719 Cable - Charging1
16 221912 Washer - 41
17 221919 Screw M4 x 88
18 221986 Lock Nut M6 - Plated1
19 221468 Box Spanner1
20 221987 Oil Funnel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 3 of 19
www.ktoutdoor.com

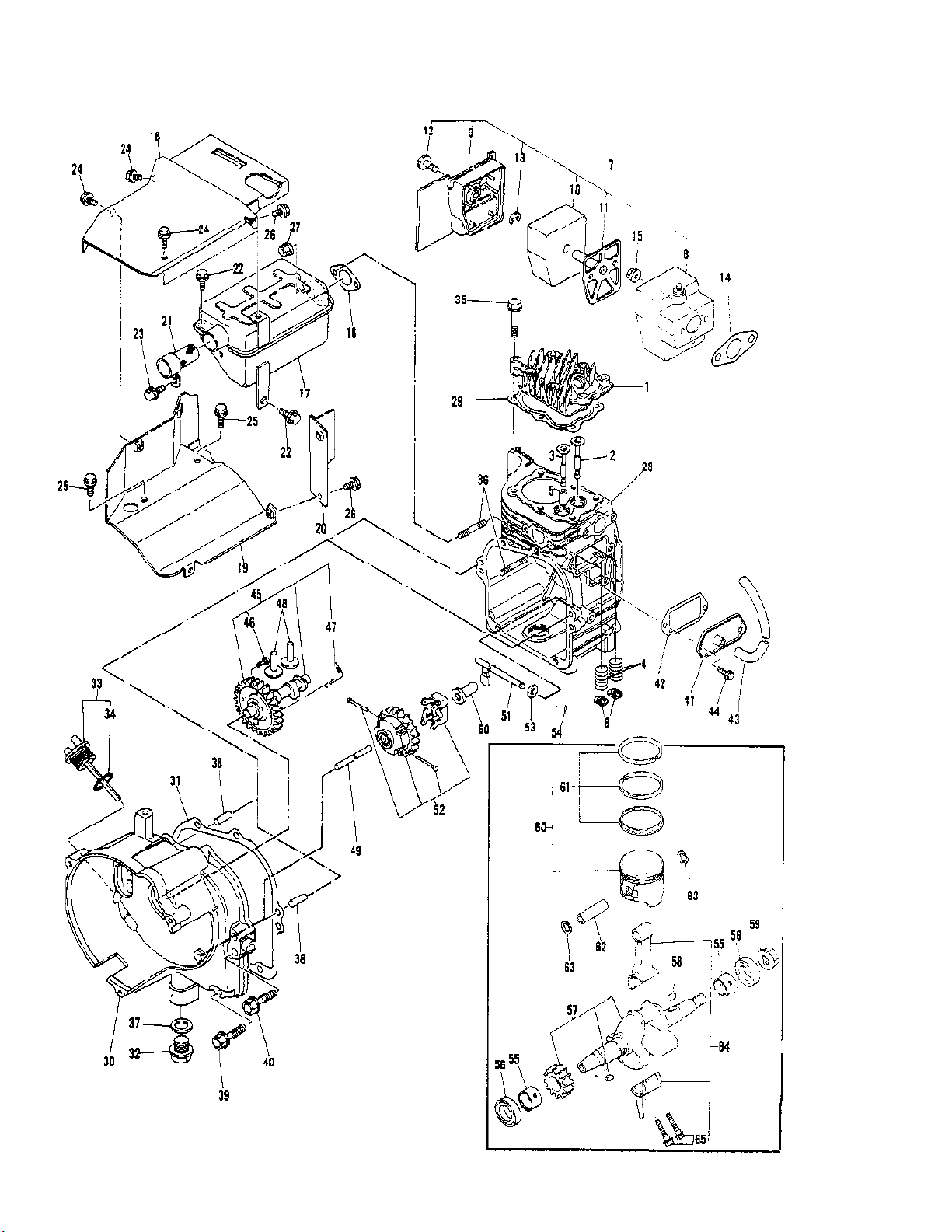

Engine Assembly, Air Cleaner And Muffler
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 4 of 19
www.ktoutdoor.com
Engine Assembly, Air Cleaner And Muffler
Ref # Part Number DescriptionQty
1 221270 Head - Cylinder1
2 221258 Valve - Intake1
3 221259 Valve - Exhaust1
4 221260 Spring - Valve2
5 221261 Valve - Guide1
6 221402 Retainer2
7 221957 Cleaner Assembly - Air1
8 221271 Body - Air Cleaner1
9 221272 Cap - Air Cleaner1
10 221273 Element - Air Cleaner1
11 221274 Holder - Element1
12 221422 Screw1
13 221911 Snap Ring 51
14 221244 Gasket - Carburetor1
15 221940 Nut M6 - Flange2
16 221261 Gasket - Muffler1
17 221423 Muffler1
18 221275 Guide A1
19 221276 Guide B1
20 221277 Guide C1
21 221427 Spark Arrester1
22 221930 Bolt M6 x 8 - Plated2
23 221930 Bolt M6 x 8 - Plated1
24 221930 Bolt M6 x 8 - Plated3
25 221930 Bolt M6 x 8 - Plated3
26 221930 Bolt M6 x 8 - Plated2
27 221940 Nut M6 - Flange2
28 221267 Block - Cylinder1
29 221253 Gasket - Cylinder Head1
30 221268 Cover1
31 221254 Gasket - Crank Case1
32 221291 Plug - Drain1
33 221255 Cap Asy. - Lub. Oil1
34 221924 O-Ring - 15-P1
35 221303 Bolt M6 x 356
36 221305 Bolt M6 x 162
37 221982 Gasket 121
38 221913 Parallel Pin 6 x 162
39 221946 Bolt M6 x 255
40 221947 Bolt M6 x 301
41 221269 Breather Assembly1
42 221257 Gasket - Tappet1
43 221416 Pipe - Breather1
44 221944 Bolt M6 x 142
45 221265 Camshaft Assembly1
46 221406 Pin2
47 221407 Spring1
48 221405 Tappet2
49 221341 Shaft - Governor1
50 221345 Spindle1
51 221280 Shaft - Governor1
52 221249 Gear - W/Weight1
53 221902 Washer 61
54 221914 Snap Pin 61
55 221256 Bearing2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 5 of 19
www.ktoutdoor.com
Engine Assembly, Air Cleaner And Muffler
Ref # Part Number DescriptionQty
56 221243 Seal Tc17 - Oil2
57 221958 Crankshaft Asy.1
58 221320 Key 4 x 101
59 221942 Nut M10 - Flange1
60 221263 Piston W/Rings1
61 221955 Ring Set - Piston1
62 221264 Pin - Piston1
63 221907 Circlip 10H2
64 221956 Connecting Rod Assy.1
65 221410 Bolt - Rod2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 6 of 19
www.ktoutdoor.com

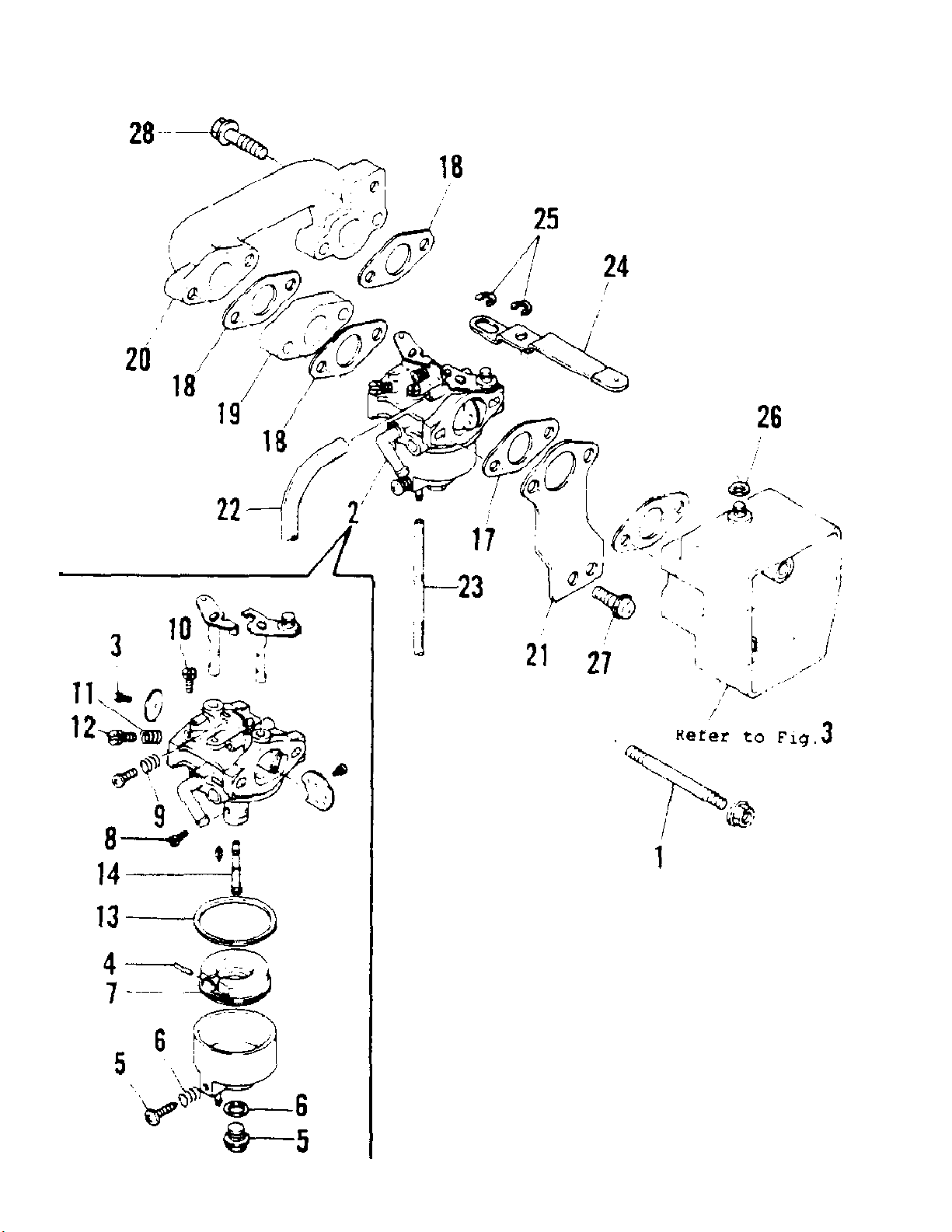

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 7 of 19
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
1 221307 Bolt M6 x 1032
2 221279 Carburetor1
3 221519 Spring3
4 221331 Pin1
5 221324 Screw1
6 221567 Spring1
7 221252 Float Assembly1
8 221246 Jet - Main1
9 221653 Spring1
10 221247 Jet - Pilot1
11 221653 Spring1
12 221336 Screw1
13 221245 Gasket1
14 221248 Nozzle - Main1
15 221648 Washer1
16 221649 Bolt1
17 221244 Gasket - Carburetor1
18 221430 Gasket - Carburetor3
19 221431 Spacer - Carburetor1
20 221432 Intake Manifold1
21 221433 Support1
22 221434 Hose1
23 221534 Hose1
24 221435 Lever - Choke1
25 221911 Snap Ring 52
26 221920 Nylon Packing 61
27 221929 Screw M6 x 122
28 221933 Bolt M6 x 20 - Plated2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 8 of 19
www.ktoutdoor.com

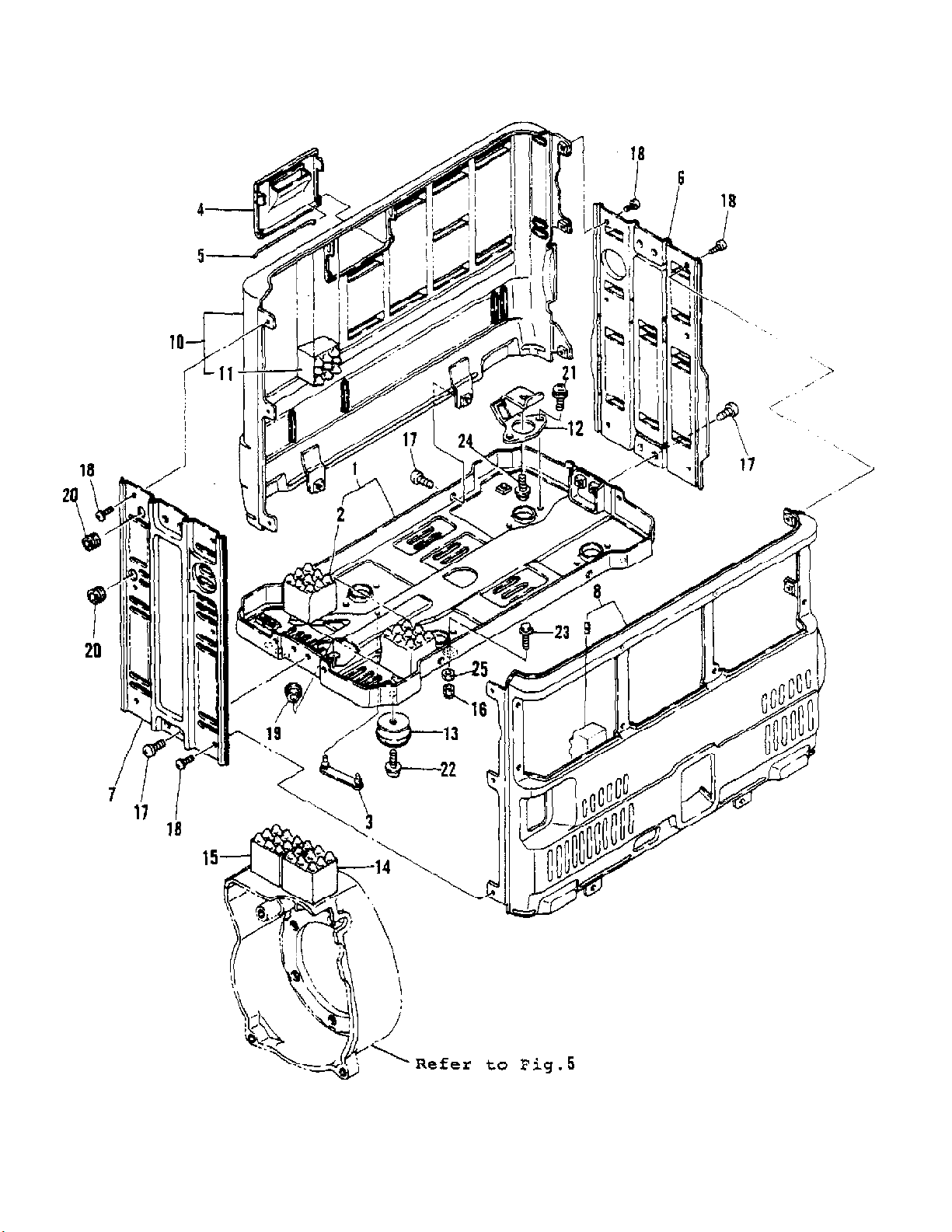

Case Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 9 of 19
www.ktoutdoor.com
Case Assembly
Ref # Part Number DescriptionQty
1 221675 Case - Bottom1
2 221689 Urethane Foam1
3 221676 Holder - Tool1
4 221677 Cover - Blind1
5 221678 Spring - Hinge1
6 221558 Side Case - Right1
7 221659 Side Case - Left1
8 221660 Case - Front1
9 221662 Urethane Foam1
10 221661 Case - Rear1
11 221688 Urethane Foam1
12 221683 Damper4
13 221684 Damper4
14 221685 Urethane Foam1
15 221686 Urethane Foam1
16 221690 Nut - Grounding1
17 221691 Screw M6 x 1012
18 221692 Screw M4 x 812
19 221805 Grommet1
20 221899 Grommet 122
21 221929 Screw M6 x 128
22 221929 Screw M6 x 124
23 221932 Bolt M6 x 16 - Plated1
24 221935 Bolt M8 x 14 - Plated4
25 221952 Lock Nut M6 - Plated1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 10 of 19
www.ktoutdoor.com

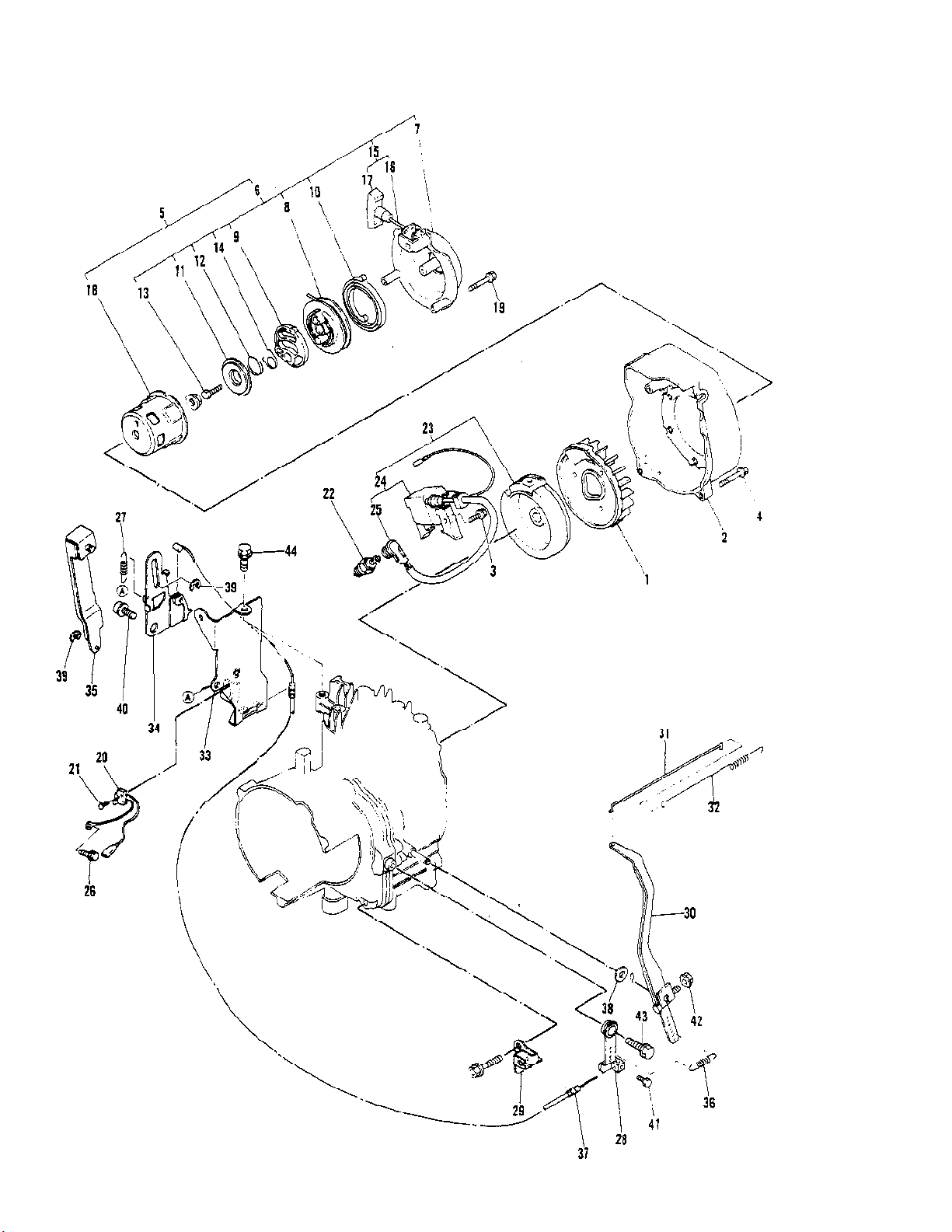

Fan Case, Starter & Controls
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 11 of 19
www.ktoutdoor.com
Fan Case, Starter & Controls
Ref # Part Number DescriptionQty
1 221266 Fan - Cooling1
2 221278 Case - Fan1
3 221946 Bolt - M6 x 252
4 221948 Bolt - M6 x 402
5 221284 Starter - Re-coil1
6 221286 Re-Coil Assembly1
7 221287 Case - Starter1
8 221451 Reel1
9 221452 Ratchet1
10 221453 Spring - Spiral1
11 221457 Plate1
12 221455 Spring - Friction1
13 221456 Bolt1
14 221454 Spring1
15 221459 Rope Assembly1
16 221460 Rope1
17 221461 Starter Handle1
18 221288 Pulley - Starter1
19 221934 Bolt - 6 x 35 Plated3
20 221462 Switch - Stop1
21 221918 Screw - M2 x 102
22 221250 Spark Plug1
23 221285 Flywheel - Magneto1
24 221289 Igniter1
25 221251 Cap - Spark Plug1
26 221945 Bolt - M6 x 201
27 221281 Spring - Regulater1
28 221438 Handle Assembly1
29 221439 Wire Holder1
30 221282 Lever - Govenor1
31 221441 Link - Throttle1
32 221442 Spring - Tension1
33 221283 Bracket - Cont. Lever1
34 221444 Control Lever1
35 221445 Lever - Cont. Shift1
36 221446 Spring - Cont. Lever1
37 221447 Throttle Wire Assembly1
38 221224 Washer1
39 221911 Snap Ring 52
40 221929 Screw - M6 x 121
41 221938 Bolt - M4 x 8 Plated1
42 221940 Nut M6 - Flange1
43 221944 Bolt - M6 x 141
44 221944 Bolt - M6 x 142
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 12 of 19
www.ktoutdoor.com

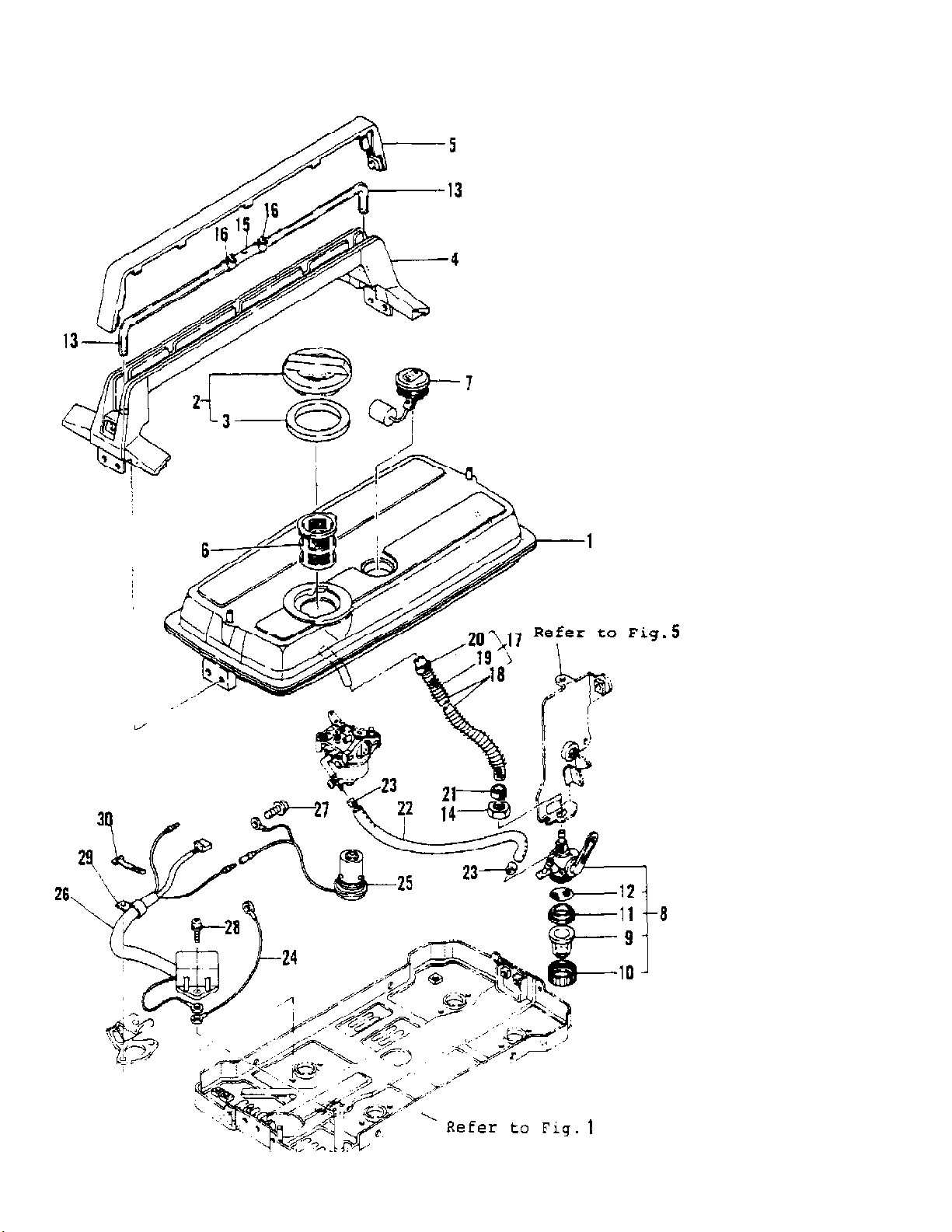

Fuel Tank, Oil Sender Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 13 of 19
www.ktoutdoor.com
Fuel Tank, Oil Sender Assembly
Ref # Part Number DescriptionQty
1 221663 Fuel Tank Assembly1
2 221694 Cap Assembly1
3 221241 Gasket1
4 221988 Grip Asy. - Fuel Tank1
5 221695 Cap - Grip1
6 221696 Filter - Fuel1
7 221664 Gauge - Fuel1
8 221698 Cock - Fuel1
9 221516 Bowl - Strainer1
10 221513 Retainer1
11 221514 Gasket1
12 221227 Strainer - Fuel1
13 221534 Hose2
14 221953 Lock Nut M12 - Plated1
15 221983 Joint1
16 221220 Clamp2
17 221232 Pipe Assembly - Fuel1
18 221231 Pipe - Fuel1
19 221229 Spring - Protective1
20 221220 Clamp1
21 221220 Clamp1
22 221651 Pipe A3 - Fuel1
23 221220 Clamp2
24 221464 Wire A1
25 221467 Sensor - Oil Level1
26 221989 Unit - Oil Sensor
27 221929 Screw M6 x 121
28 221929 Screw M6 x 121
29 221237 Clamp1
30 221982 Band1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 14 of 19
www.ktoutdoor.com

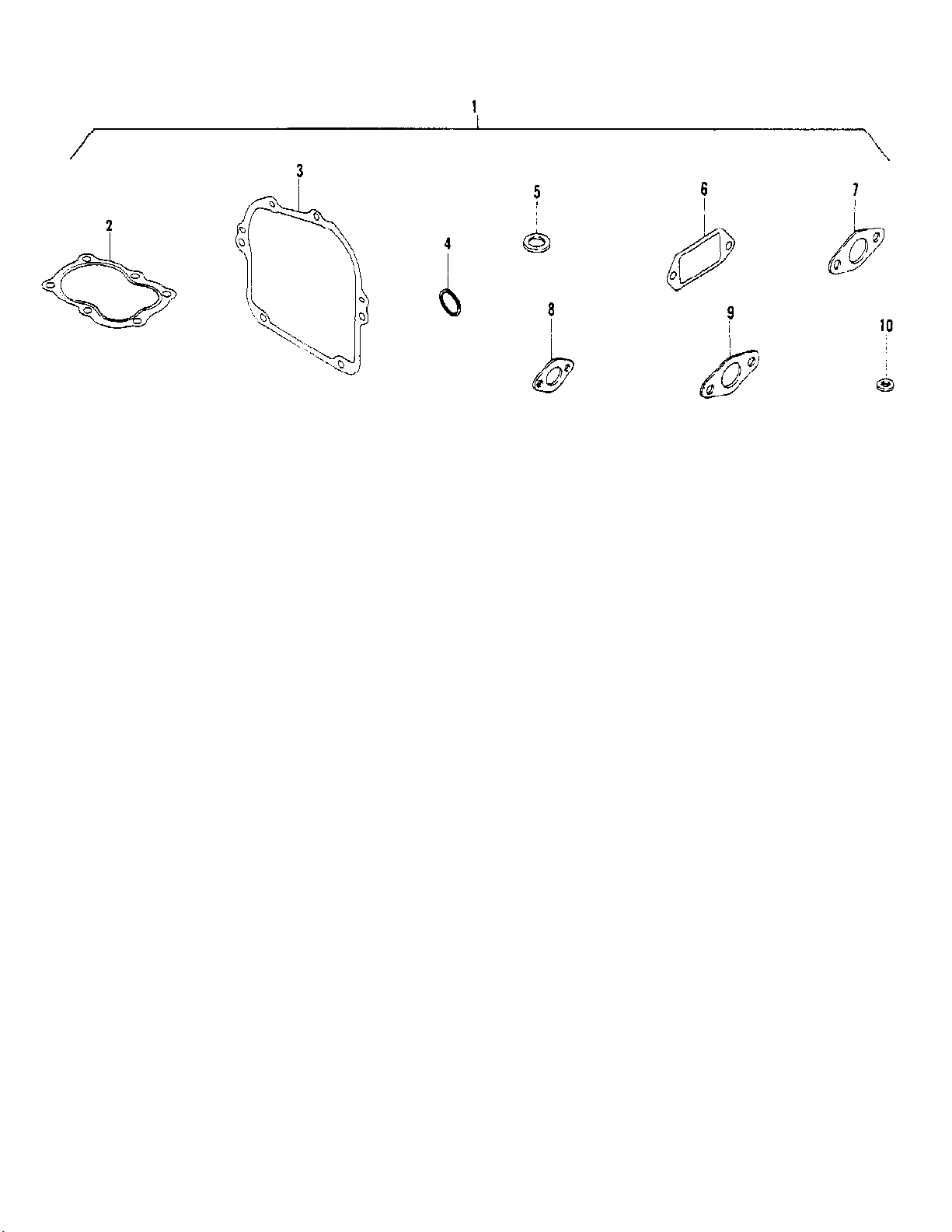

Gaskets
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 15 of 19
www.ktoutdoor.com
Gaskets
Ref # Part Number DescriptionQty
1 221990 Gasket Set1
2 221253 Gasket - Cylinder Head1
3 221254 Gasket - Crank Case1
4 221924 O-Ring 15-P1
5 221982 Gasket 121
6 221257 Gasket - Tappet1
7 221244 Gasket - Carburetor2
8 221262 Gasket - Muffler1
9 221430 Gasket - Carburetor3
10 221920 Nylon Packing - 61
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 16 of 19
www.ktoutdoor.com

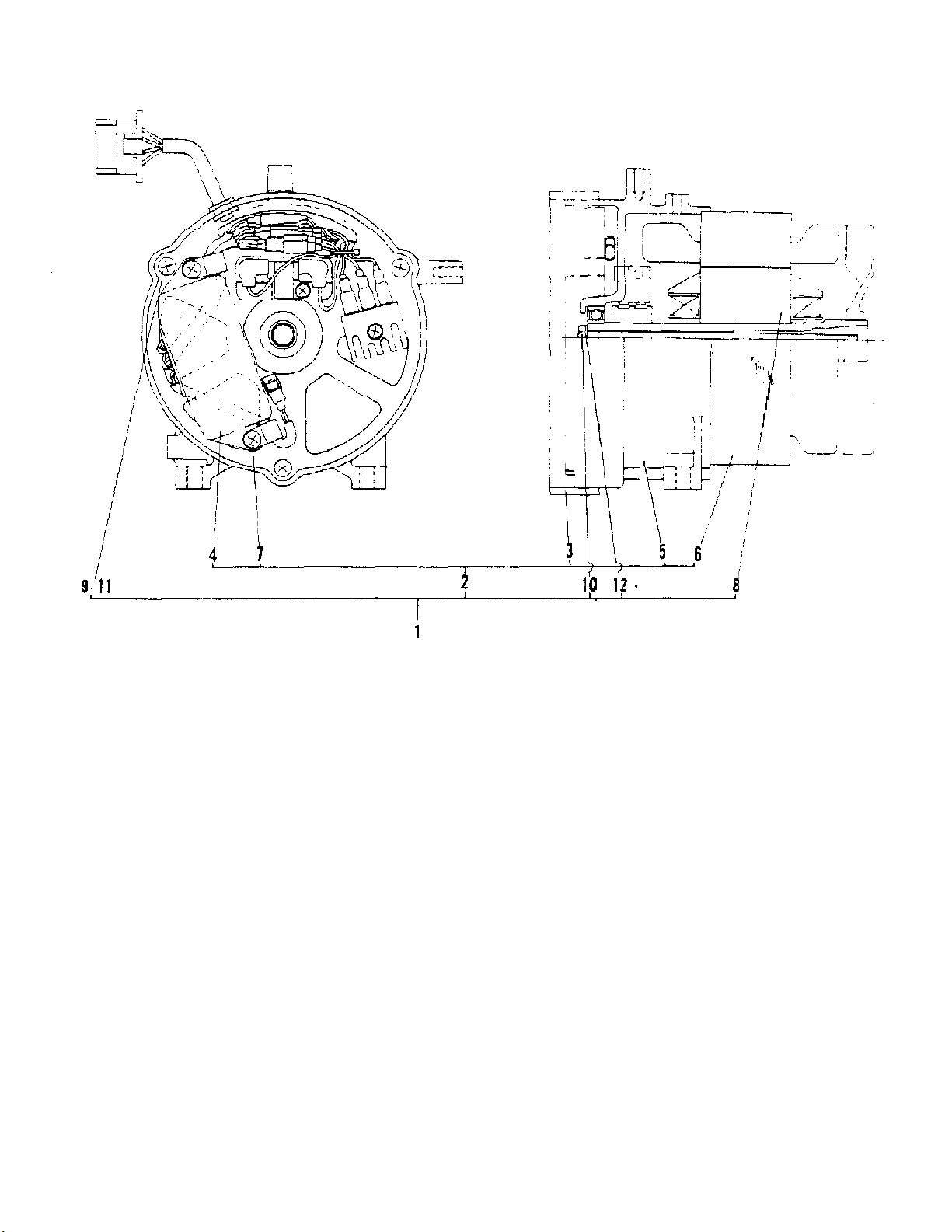

Generator Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 17 of 19
www.ktoutdoor.com
Generator Assembly
Ref # Part Number DescriptionQty
1 221665 Generator1
2 221666 Stater Assembly1
3 221701 Urethane Foam1
4 221702 Condencer1
5 221667 Cover - Rear1
6 221668 Stator1
7 221747 Screw - M5 x 102
8 221669 Rotor Assembly1
9 221670 Bolt - Through3
10 221671 Bolt - Hard1
11 221903 Washer - Lock 53
12 221904 Washer - Lock 61
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 18 of 19
www.ktoutdoor.com

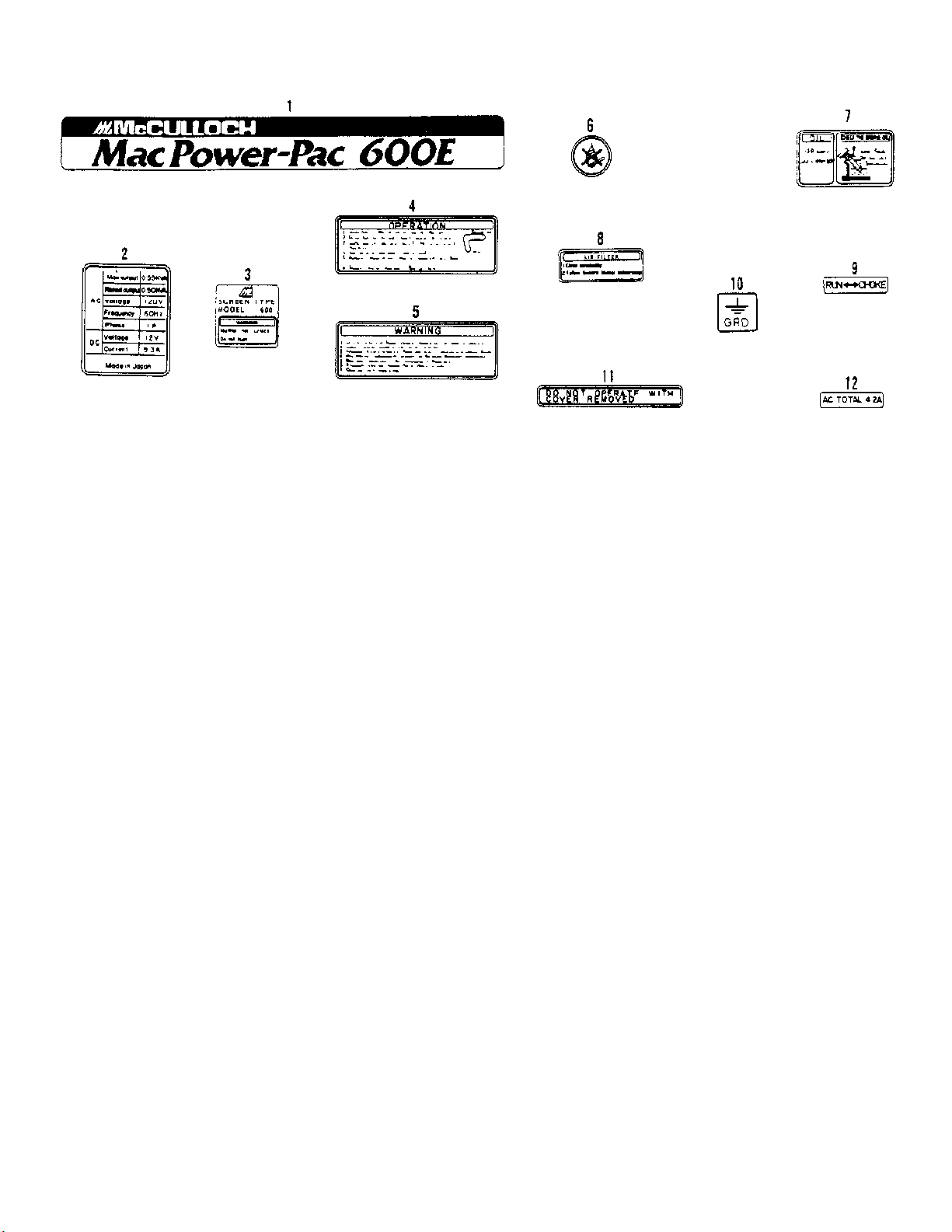

Labels
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-400041B MAC POWER-PRO 600 E 04/84 to 07/86 IPL 218540 Page 19 of 19
www.ktoutdoor.com
Labels
Ref # Part Number DescriptionQty
1 221991 Label - Mac1
2 221992 Label - Generator1
3 221993 Label - Muffler Caution1
4 221998 Operation Mark1
5 221999 Warning Mark1
6 222000 Non Fire Mark1
7 222001 Oil Label1
8 222002 Label - Air Cleaner1
9 222003 Label - Choke1
10 222004 Label - Ground1
11 222005 Case Label - Caution2
12 222006 Label - Ampere1
K&T Saw Shop 606-678-9623 or 606-561-4983
