Page 1
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 1 of 12
www.ktoutdoor.com

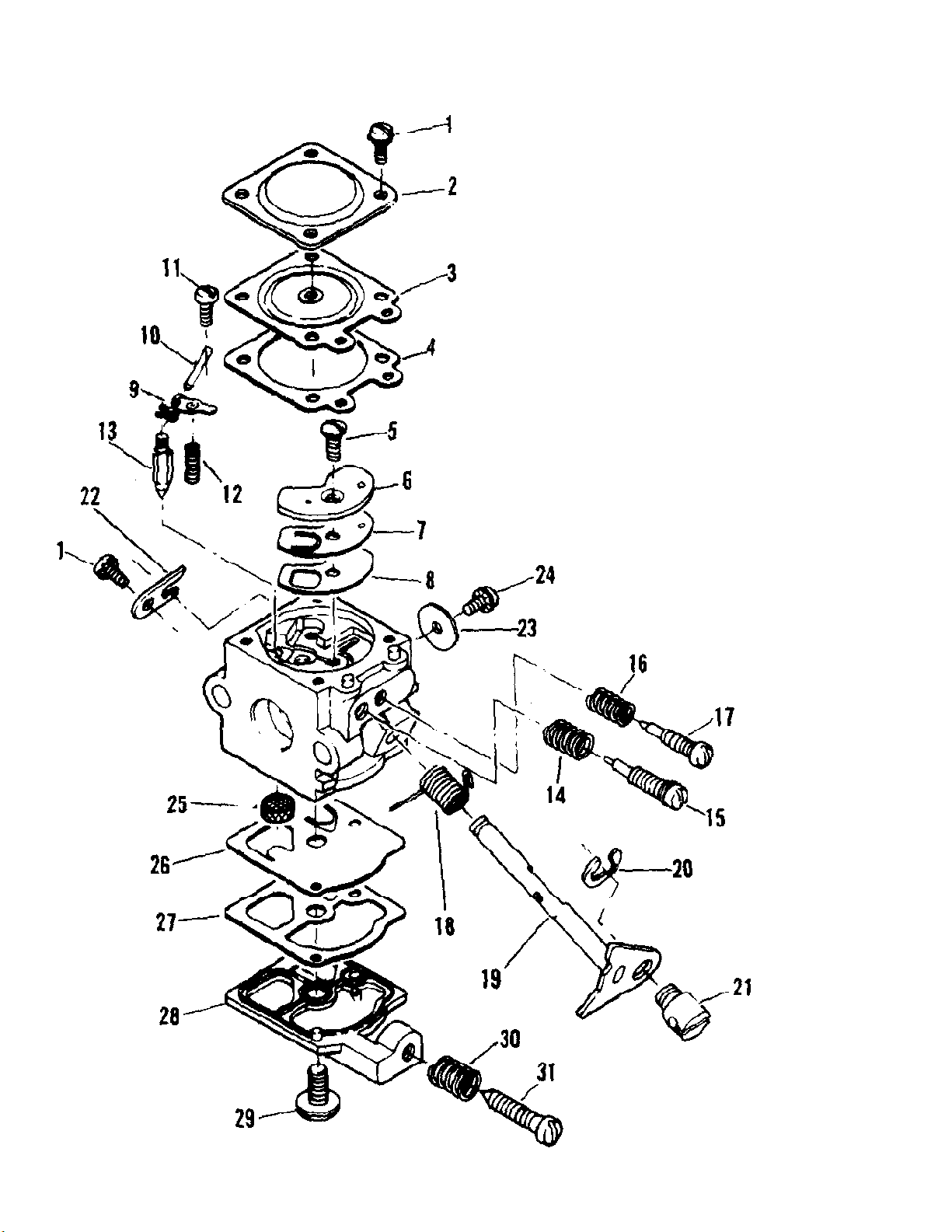

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 2 of 12
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
215494 CARBURETOR (WA-146)1
1 SCREW - COVER Not available separately.1
2 COVER - DIAPHRAGM Not available separately.1
3 DIAPHRAGM - METERING Not available separately.1
4 GASKET -- DIAPHRAGM Not available separately.1
5 SCREW - CIRCUIT PLATE Not available separately.1
6 PLATE - CIRCUIT Not available separately.1
7 DIAPHRAGM - CIRCUIT PLATE Not available
8 GASKET - CIRCUIT PLATE Not available separately.1
9 LEVER - METERING Not available separately.1
10 PIN - LEVER Not available separately.1
11 SCREW - LEVER PIN Not available separately.1
12 SPRING - LEVER Not available separately.1
13 VALVE - INLET NEEDLE Not available separately.1
14 SPRING - HIGH SPEED NEEDLE Not available
1
separately.
1
separately.
15 NEEDLE - HIGH SPEED Not available separately.1
16 SPRING - IDLE NEEDLE Not available separately.1
17 NEEDLE - IDLE Not available separately.1
18 SPRING - THROTTLE RETURN Not available
19 SHAFT - THROTTLE Not available separately.1
20 CLIP Not available separately.1
21 SWIVEL Not available separately.1
22 CLIP - THROTTLE SHAFT Not available separately.1
23 VALVE - THROTTLE Not available separately.1
24 SCREW - THROTTLE VALVE Not available
25 SCREEN - INLET Not available separately.1
26 DIAPHRAGM - FUEL PUMP Not available
27 GASKET - FUEL PUMP Not available separately.1
28 COVER - FUEL PUMP Not available separately.1
29 SCREW - PUMP COVER Not available separately.1
30 SPRING - IDLE SCREW Not available separately.1
31 SCREW - IDLE ADJUSTING Not available
217111 Major Repair Kit
217110 Minor Repair Kit
1
separately.
1
separately.
1
separately.
1
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 3 of 12
www.ktoutdoor.com

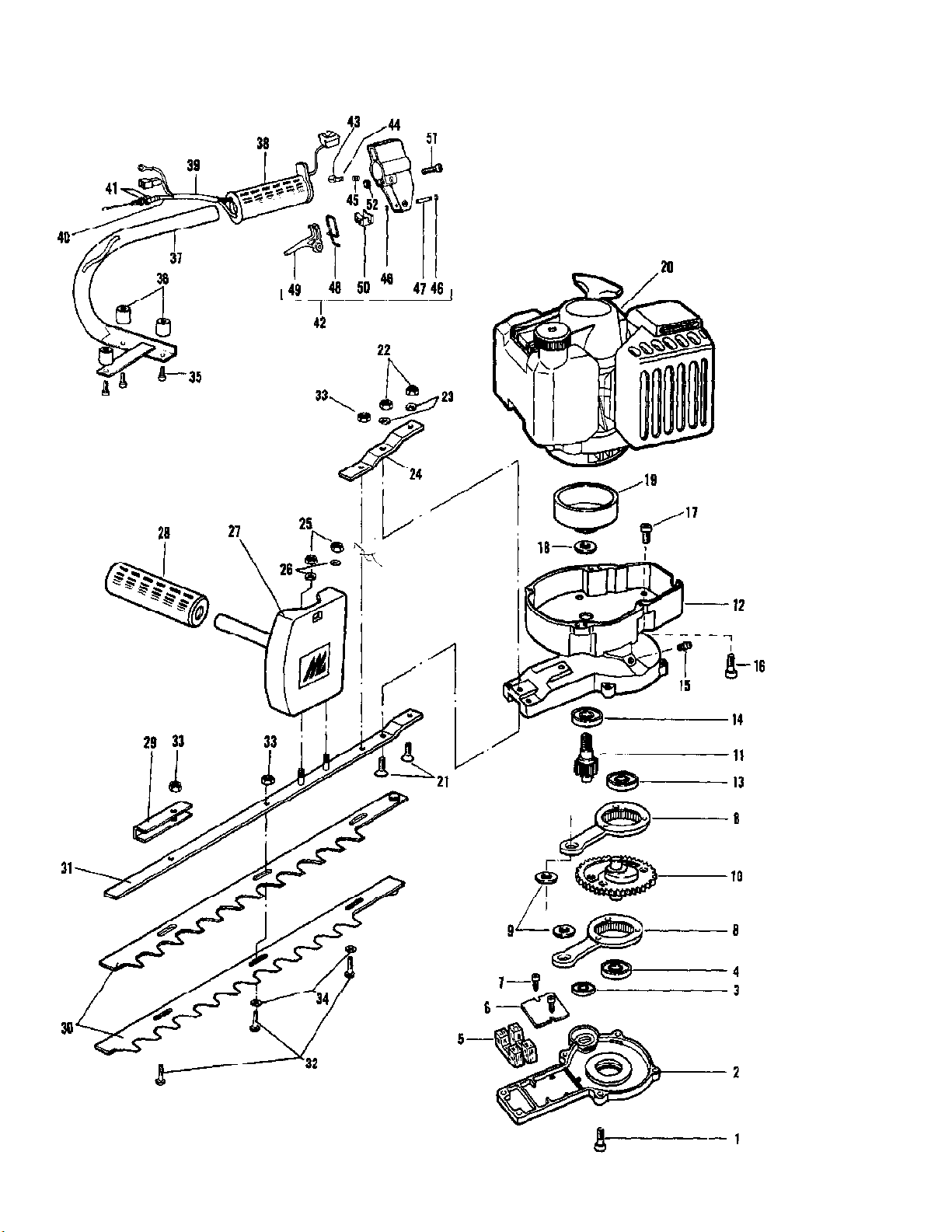

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 4 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 229077 Screw - M5 x 186
2 229078 Cover - Gear Box1
3 219810 Bearing - Ball 608-2z1
4 228958 Bearing - Ball 6000-2z1
5 228921 Dust Protector - Felt2
6 228891 Plate - Gear1
7 228945 Screw - M3 x 52
8 228761 Rod - Connecting2
9 228728 Washer2
10 228804 Gear1
11 228806 Pinion1
12 229079 Box - Gear1
13 228958 Bearing - Ball1
14 235897 Bearing - Ball1
15 228861 Nipple - Grease1
16 235801 Screw - M4 x 164
17 236389 Screw3
18 235164 Washer1
19 228888 Drum1
20 Powerhead Asy See "Powerhead Assembly"
1
illustration and part list.
21 228924 Screw - M5 x 202
22 222247 Nut - M52
23 236529 Washer2
24 228757 Plate - Blade1
25 228926 Nut2
26 236934 Washer2
27 229080 Handle1
28 235895 Grip1
29 228758 Blade - Protection1
30 228916 Blade Set - 18"1
228917 Blade Set - 24"1
219436 Blade Set - 30"1
31 228876 Guide - Blade - 18"1
228875 Guide - Blade - 24"1
219437 Guide - Blade - 30"1
32 228925 Screw - M6 x 203-5
33 228926 Nut3-5
34 236934 Washer2-4
35 236512 Screw3
36 235987 Mount - Rear3
37 228897 Handle1
38 235894 Grip1
39 228900 Cable Asy - Throttle1
40 Cable - Throttle Not available separately.1
41 235912 Nut2
42 229081 Trigger Box Asy1
43 235892 Button1
44 235923 Pin1
45 235933 Spring1
46 235811 Clip - C1
47 235934 Pin1
48 235932 Spring1
49 236616 Trigger1
50 235893 Guide - Wire1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 5 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
51 235921 Screw1
52 215871 Nut1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 6 of 12
www.ktoutdoor.com
Lubricants
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 7 of 12
www.ktoutdoor.com
Lubricants
Ref # Part Number DescriptionQty
93770 Two-Cycle Custom Lubricant - Case of 48 (6 Ounce
Cans)
85709 Two-Cycle Custom Lubricant - Case of 12 (1 Quart
Bottles)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 8 of 12
www.ktoutdoor.com

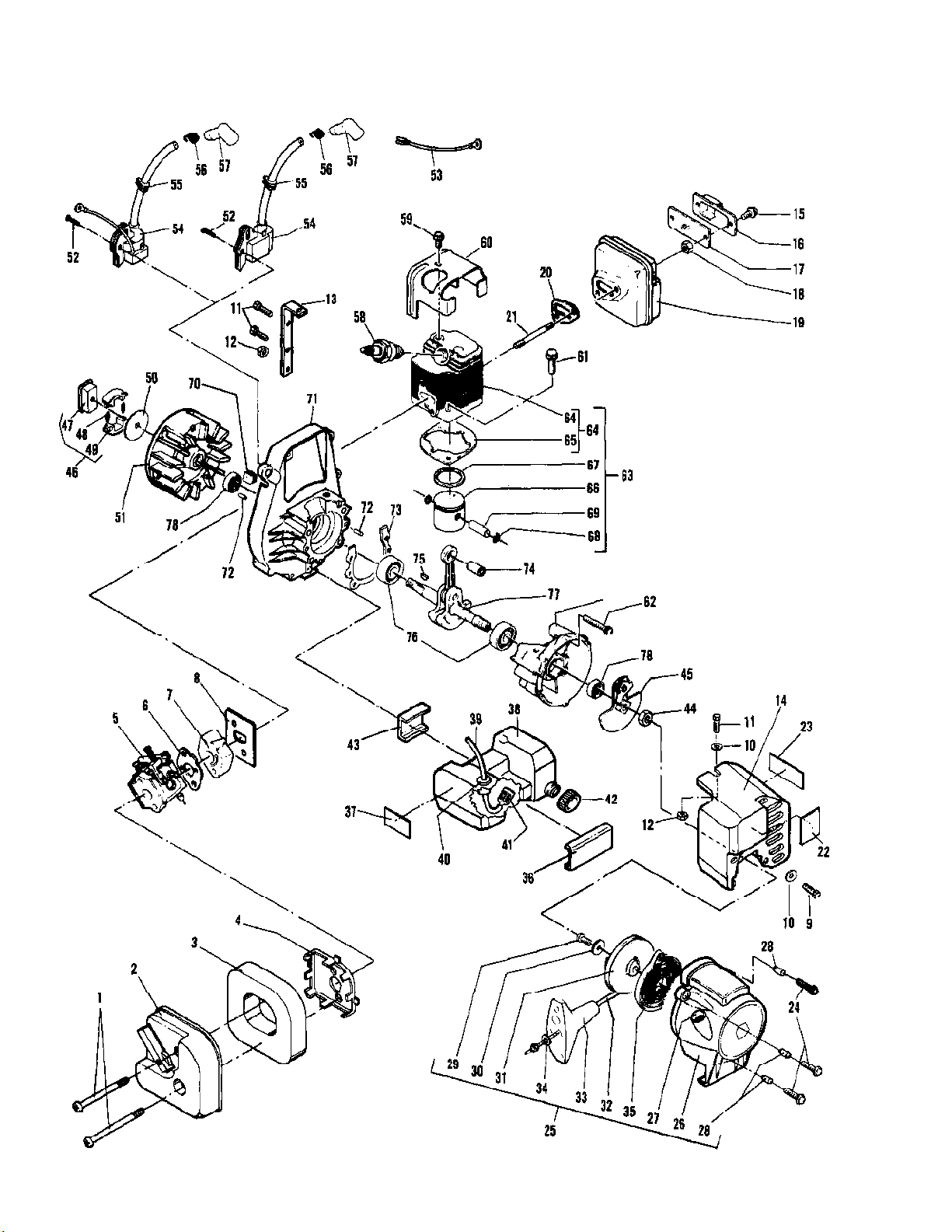

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 9 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 219078 Screw - M5 x 69 Torx 19-25 in. lb. torque2
2 219098 Cover Asy - Choke1
3 219145 Filter - Air1
4 219144 Box - Air1
5 Carburetor Assembly See "Carburetor Assembly"
6 218933 Gasket - Carburetor1
7 219070 Insulator - Carb/Cylinder1
8 216575 Gasket - Insulator/Cylinder1
9 228908 Screw - M4 x 14 20-25 in. lb. torque1
10 235612 Washer2
11 215874 Screw - M4 x 9.5 Torx3
12 235431 Nut2
13 228884 Plate - Muffler Shield1
14 228946 Shield - Muffler1
15 216025 Screw - M4 x 8 Torx 13-17 in. lb. torque2
16 217318 Cover - Screen1
17 215516 Screen - Spark Arrestor1
18 222247 Nut - Flange M5 41-50 in. lb. torque2
19 215506 Muffler Asy1
20 215515 Gasket - Muffler1
21 222480 Stud - Muffler 41-50 in. lb. torque2
22 222541 Decal - Starting Instructions1
23 222506 Decal - Storing Instructions1
24 217669 Screw - M4 x 25 12-16 in. lb. torque3
25 219590 Starter Assembly1
26 219588 Housing - Starter1
27 218932 Guide - Rope1
28 219585 Spacer - Housing3
29 215874 Screw - Drum1
30 216590 Washer - Flat M41
31 216092 Drum/Rope Asy1
32 216093 Rope Starter1
33 216792 Handle - Starter1
34 218941 Washer Nylon1
35 217482 Spring - Starter1
36 217382 Cushion - Starter/Fuel Tank1
37 217383 Decal - 40:11
38 228858 Fuel Tank Assembly1
39 217264 Hose - Fuel1
40 236321 Grommet1
41 216985 Pickup - Fuel1
42 222347 Cap - Fuel Tank1
43 217390 Cushion - C'Case/Fuel Tank1
44 216583 Nut - Starter Ratchet 149-176 in. lb. torque1
45 215525 Ratchet1
46 216060 Clutch Assembly1
47 215536 Rotor1
48 215537 Spring2
49 Shoe Not available separately.2
50 215539 Plate1
51 222308 Flywheel Assembly1
219951 Flywheel Assembly1
52 216022 Screw - M4 x 23.4 25-30 in. lb. torque2
53 219383 Wire Asy - Switch1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
illustration and parts list.
Page 10
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 10 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
54 219782 Ignition (Cream)1
219386 Ignition (Black)1
55 215533 Grommet1
56 102556 Connector - Spark1
57 95266 Boot - Spark Plug1
58 62345 Plug - Spark 105-130 in. lb. torque1
59 213178 Screw - M5 x 8.5 15-25 in. lb. torque1
60 215540 Cover - Cylinder1
61 217320 Screw - M6 x 18 70-80 in. lb. torque2
62 213179 Screw - M5 x 28.5 35-40 in. lb. torque4
63 222594 Kit - Cylinder/Piston1
64 219084 Kit - Cyl(Plated)/Gasket1
65 215542 Gasket1
66 218264 Piston (Alum)1
67 217475 Ring - Piston1
68 111026 Ring - Retaining2
69 218275 Pin - Wrist1
70 215541 Grommet1
71 218185 Crankcase Assembly1
72 213191 Pin4
73 215545 Gasket - C'Case1
74 110984 Bearing - Needle Roller1
75 102164 Key - Flywheel1
76 213282 Bearing - Roller2
77 21810601 Crankshaft Assembly1
78 83859 Seal - Oil2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 11 of 12
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400054-03 MAC GHT 24 08/88 to 05/93 IPL 222546 Page 12 of 12
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
226004 Tool - Clutch Drum
226005 Tool - Pinion Shaft
215439 Piston - Driving
215441 Puller - Clutch
215443 Plate - Pressure Intake
215444 Plate - Gasket Intake
215445 Gasket - Exhaust
222785 Torx Drive T-25 (Cylinder)
K&T Saw Shop 606-678-9623 or 606-561-4983
