11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 1 of 12
www.ktoutdoor.com

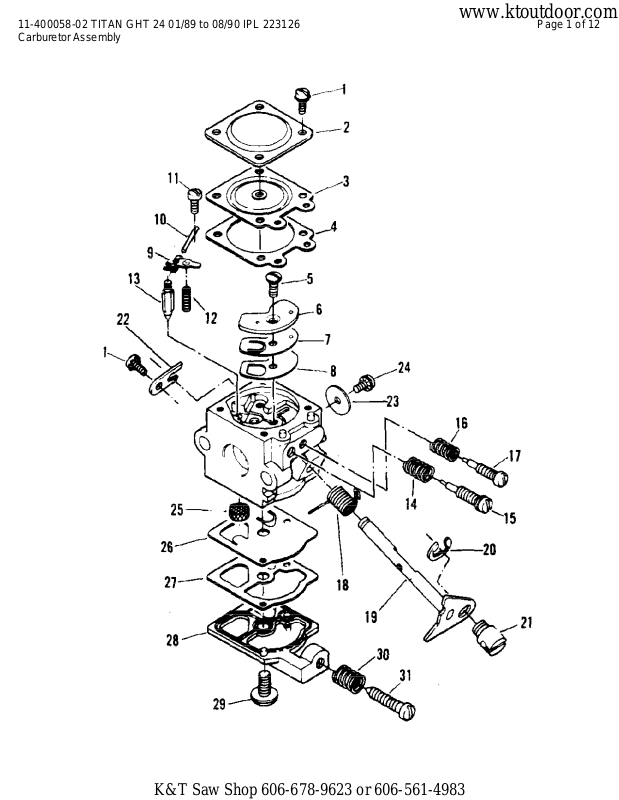

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 2 of 12
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
215494 Carburetor (WALBRO-146)1
1 Screw - Cover Not available separately.1
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Metering Not available separately.1
4 Gasket - Diaphragm Not available separately.1
5 Screw - Circuit Plate Not available separately.1
6 Plate - Circuit Not available separately.1
7 Diaphragm - Circuit Plate Not available separately.1
8 Gasket - Circuit Plate Not available separately.1
9 Lever - Metering Not available separately.1
10 Pin - Lever Not available separately.1
11 Screw - Lever Pin Not available separately.1
12 Spring - Lever Not available separately.1
13 Valve - Inlet Needle Not available separately.1
14 Spring - High Speed Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Needle - Idle Not available separately.1
18 Spring - Throttle Return Not available separately.1
19 Shaft - Throttle Not available separately.1
20 Clip Not available separately.1
21 Swivel Not available separately.1
22 Clip - Throttle Shaft Not available separately.1
23 Valve - Throttle Not available separately.1
24 Screw - Throttle Valve Not available separately.1
25 Screen - Inlet Not available separately.1
26 Diaphragm - Fuel Pump Not available separately.1
27 Gasket - Fuel Pump Not available separately.1
28 222950 Cover - Fuel Pump1
29 Screw - Pump Cover Not available separately.1
30 Spring - Idle Screw Not available separately.1
31 Screw - Idle Adjusting Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 3 of 12
www.ktoutdoor.com
Ignition & Flywheel Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 4 of 12
www.ktoutdoor.com
Ignition & Flywheel Assembly
Ref # Part Number DescriptionQty
1 219383 Wire - Switch2
2 216022 Screw - M4 x 23.4 (12-16 in. lb. torque)2
3 219386 Ignition Assembly (Black)1
4 219848 Ignition Assembly (Cream)1
5 95266 Boot - Spark Plug1
6 102556 Connector1
7 215533-01 Grommet1
8 222430 Flywheel (Stamped "S")1
9 222308 Flywheel (Stamped "FL")1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 5 of 12
www.ktoutdoor.com

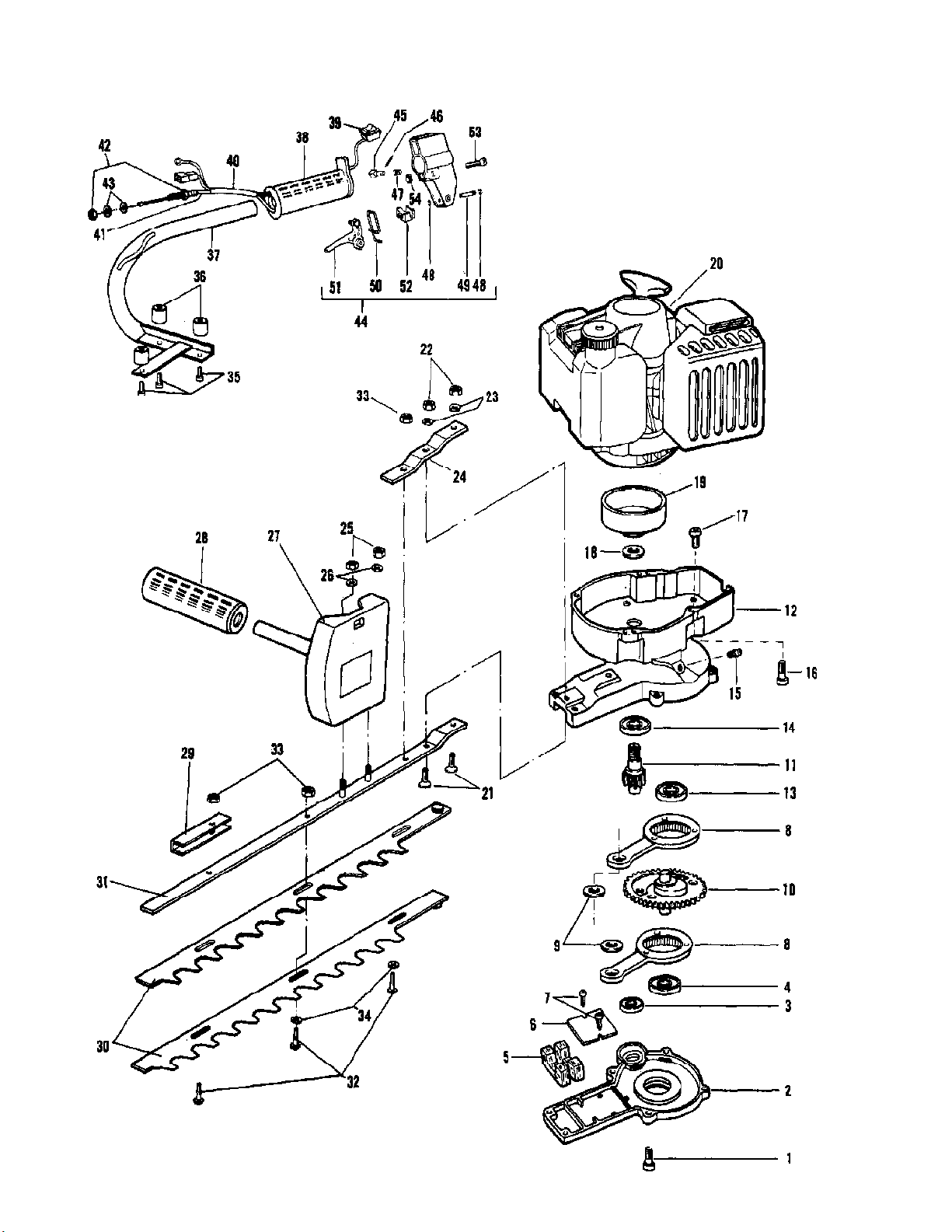

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 6 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 229077 Screw - M5 x 186
2 229078 Cover - Gear Box1
3 219810 Bearing - Ball 608-2z1
4 228958 Bearing - Ball 6000-2z1
5 228921 Dust Protector - Felt2
6 228891 Plate - Gear1
7 228945 Screw - M3 x 52
8 228761 Rod - Connecting2
9 228728 Washer2
10 228804 Gear1
11 228806 Pinion1
12 229079 Box - Gear1
13 228958 Bearing - Ball1
14 235897 Bearing - Ball1
15 228861 Nipple - Grease1
16 235801 Screw - M4 x 164
17 236389 Screw3
18 235164 Washer1
19 228888 Drum1
20 Powerhead Assembly See "Powerhead Assembly"
1
Illustration And Parts List.
21 228924 Screw - M5 x 202
22 222247 Nut - M52
23 236529 Washer2
24 228757 Plate - Blade1
25 228926 Nut2
26 236934 Washer2
27 223120 Handle Assembly1
28 235895 Grip1
29 228758 Blade - Protection1
30 228917 Blade Set - 24"1
219436 Blade Set - 30"1
31 228875 Guide - Blade - 24"1
219437 Guide - Blade - 30"1
32 22892 Screw - M6 x 203-5
33 228926 Nut3-5
34 236934 Washer2-4
35 236512 Screw3
36 235987 Mount - Rear3
37 228897 Handle1
38 235894 Grip1
39 236394 Switch1
40 228900 Cable Assembly - Throttle1
41 Cable - Throttle Not available separately.1
42 229207 Nut M6 x .751
43 216596 Washer - Flat M62
44 229081 Trigger Box Assembly1
45 235892 Button1
46 235923 Pin1
47 235933 Spring1
48 235811 Clip - C2
49 235934 Pin1
50 235932 Spring1
51 236616 Trigger1
52 235893 Guide - Wire1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 7 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
53 235921 Screw1
54 215871 Nut M6 x 1.01
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 8 of 12
www.ktoutdoor.com

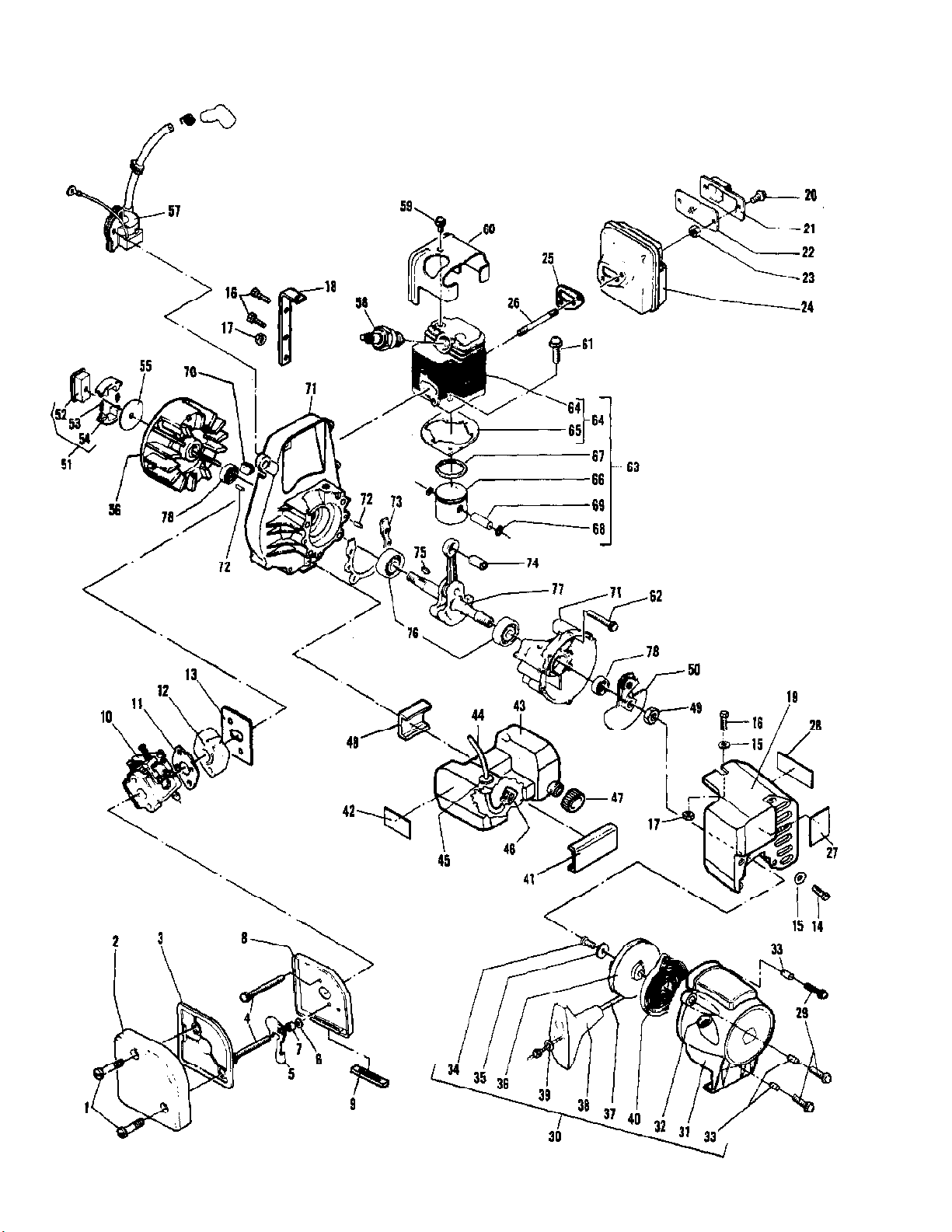

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 9 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 217669 Screw M4 x 25 TORX S (6-9 Inch Pound Torque).2
2 223118 Cover Air Cleaner1
3 217376 Filter - Air1
4 216903 Screw - M5 x 69 TORX (18-25 in. lb. torque).2
5 215991 Shutter - Choke1
6 216591 Washer - Flat M52
7 215993 Spacer - Shutter1
8 216108 Air Box/Grommet Asy1
9 215992 Grommet Choke1
10 Carburetor Assembly See "Carburetor Assembly"
11 218933 Gasket - Carburetor1
12 219070 Insulator - Carb/Cylinder1
13 216575 Gasket - Insulator/Cylinder1
14 228908 Screw - M4 x 14 (20-25 in. lb. torque).1
15 235612 Washer2
16 215874 Screw - M4 x 9. 5 TORX3
17 235431 Nut2
18 228884 Plate - Muffler Shield1
19 223119 Shield - Muffler1
20 216025 Screw - M4 x 8 TORX SEM (13-17 in. lb. torque).2
21 217318 Cover - Screen1
22 215516 Screen - Spark Arrestor1
23 222247 Nut - Flange M5 (41-50 in. lb. torque).2
24 215506 Muffler Assembly1
25 215515 Gasket - Muffler1
26 222480 Stud - Muffler (41-50 in. lb. torque).2
27 222541 Decal - Starting Instruct.1
28 222506 Decal - Storing Instruct.1
29 217669 Screw - M4 x 25 (12-16 in. lb. torque).3
30 219590 Starter Assembly1
31 219588 Housing Starter1
32 218932 Guide Rope1
33 219585 Spacer - Housing3
34 215874 Screw - Drum1
35 216590 Washer - Flat M41
36 216092 Drum - Rope Assembly1
37 216093 Rope Starter1
38 216792 Handle - Starter1
39 218941 Washer - Nylon1
40 217482 Spring - Starter1
41 217382 Cushion - Starter/Fuel Tank1
42 217383 Decal - 40:11
43 228858 Fuel Tank Assembly1
44 223246 Hose - Fuel1
45 236321 Grommet1
46 216985 Pickup - Fuel1
47 222347-01 Cap - Fuel Tank1
48 217390 Cushion - C'Case/Fuel Tank1
49 216583 Nut - Starter Rachet (149-176 in. lb. torque).1
50 215525 Rachet1
51 216060 Clutch Assembly1
52 215536 Rotor1
53 215537 Spring2
54 Shoe Not available separately.2
K&T Saw Shop 606-678-9623 or 606-561-4983
1
Illustration And Parts List.
Page 10
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 10 of 12
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 215539 Plate1
56 Flywheel Assemblies See "Flywheel Assemblies"
1
Illustration And Parts List.
57 Ignition Assemblies See "Ignition Assemblies"
58 62345 Plug - Spark1
59 213178 Screw - M5 x 8. 5 SEMS T (15-25 in. lb. torque).1
60 215540 Cover - Cylinder1
61 217320 Screw - M6 x 18 TORX SE2
62 213179 Screw - M5 x 28. 5 TORX (35-40 in. lb. torque).4
63 222594 Cylinder/Piston Kit1
64 219084 Cyl. (Plated)/Gasket Kit1
65 215542 Gasket1
66 218264 Piston (Alum)1
67 217475 Ring - Piston1
68 111026 Ring - Retaining2
69 218275 Pin - Wrist1
70 215541 Grommet1
71 218185 Crankcase Assembly1
72 213191 Pin4
73 215545 Gasket - Crankcase1
74 110984 Bearing - Needle Roller1
75 102164 Key - Flywheel1
76 213282 Bearing - Roller2
77 218106-01 Crankshaft Assembly1
78 83859 Seal - Oil2
1
Illustration And Parts List.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 11 of 12
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400058-02 TITAN GHT 24 01/89 to 08/90 IPL 223126 Page 12 of 12
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
226004 Clutch Drum
226005 Pinion Shaft
215439 Piston Pin
215441 Clutch Puller
215443 Plate - Pressure Intake
215444 Plate/Gasket - Intake
215445 Gasket - Exhaust
222785 T-25 TORX Drive (Cylinder)
K&T Saw Shop 606-678-9623 or 606-561-4983
