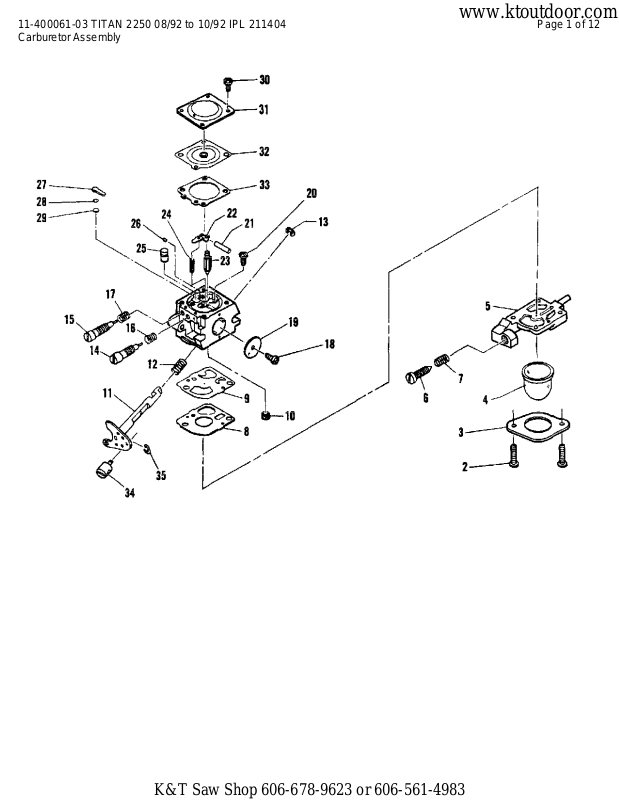

Page 1
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 1 of 12
www.ktoutdoor.com

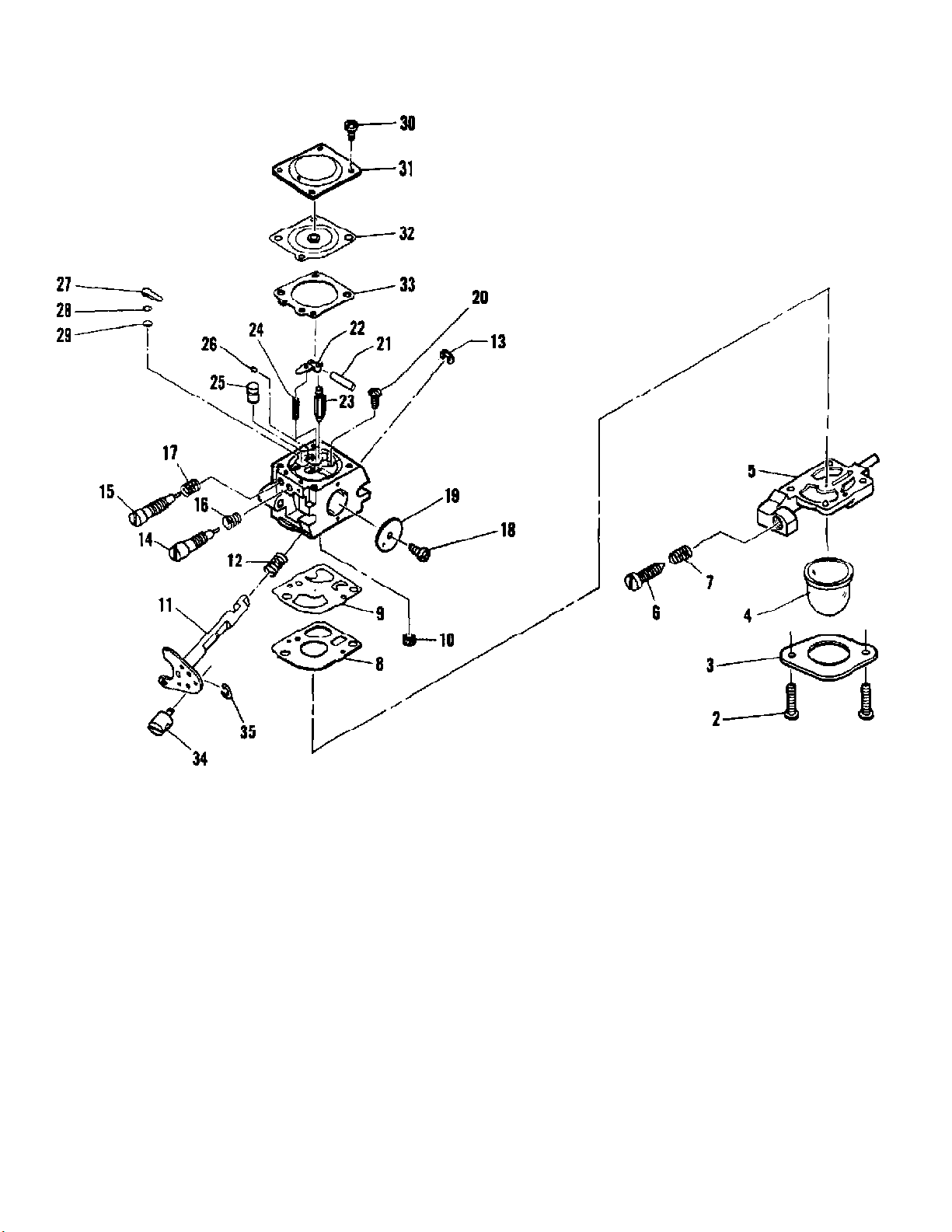

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 2 of 12
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
1 224142-03 Carburetor Assembly (WT 238)1
2 Screw - Pump Cover Not available separately.2
3 Cover - Primer Pump Not available separately.1
4 223077 Primer - Pump1
5 223913 Cover Assembly Fuel - Pump1
6 Screw - Idle Adjustment Not available separately.1
7 Spring - Idle Screw Not available separately.1
8 Gasket - Fuel Pump Not available separately.1
9 Diaphragm - Fuel Pump Not available separately.1
10 Screen - Fuel Pump Inlet Not available separately.1
11 Shaft Assembly Throttle Not available separately.1
12 Spring - Throttle Return Not available separately.1
13 Ring - Shaft Retainer Not available separately.1
14 Needle - Idle Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Spring - High Speed Needle Not available separately.1
18 Screw - Valve Not available separately.1
19 Valve - Throttle Not available separately.1
20 Screw - Metering Lever Pin Not available separately.1
21 Pin - Metering Lever Not available separately.1
22 Lever - Metering Not available separately.1
23 Valve - Inlet Needle Not available separately.1
24 Spring - Metering Lever Not available separately.1
25 Seat Assembly Check - Valve Not available
1
separately.
26 Plug - Welch 5/16 Not available separately.1
27 Plug - Welch 1/4 Not available separately.1
28 Ring - Screen Retainer Not available separately.1
29 Screen - Check Valve Not available separately.1
30 Screw - Metering Cover Not available separately.4
31 Cover - Metering Lever Not available separately.1
32 Diaphragm Assembly - Metering Not available
33 Gasket - Metering Diaph. Not available separately.1
34 Swivel Not available separately.1
35 Clip Not available separately.1
224462 Major Repair Kit Not available separately.
223833 Gasket/Diaphragm Kit Not available separately.
224466 Swivel-Carb Kit Not available separately.
1
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 3 of 12
www.ktoutdoor.com

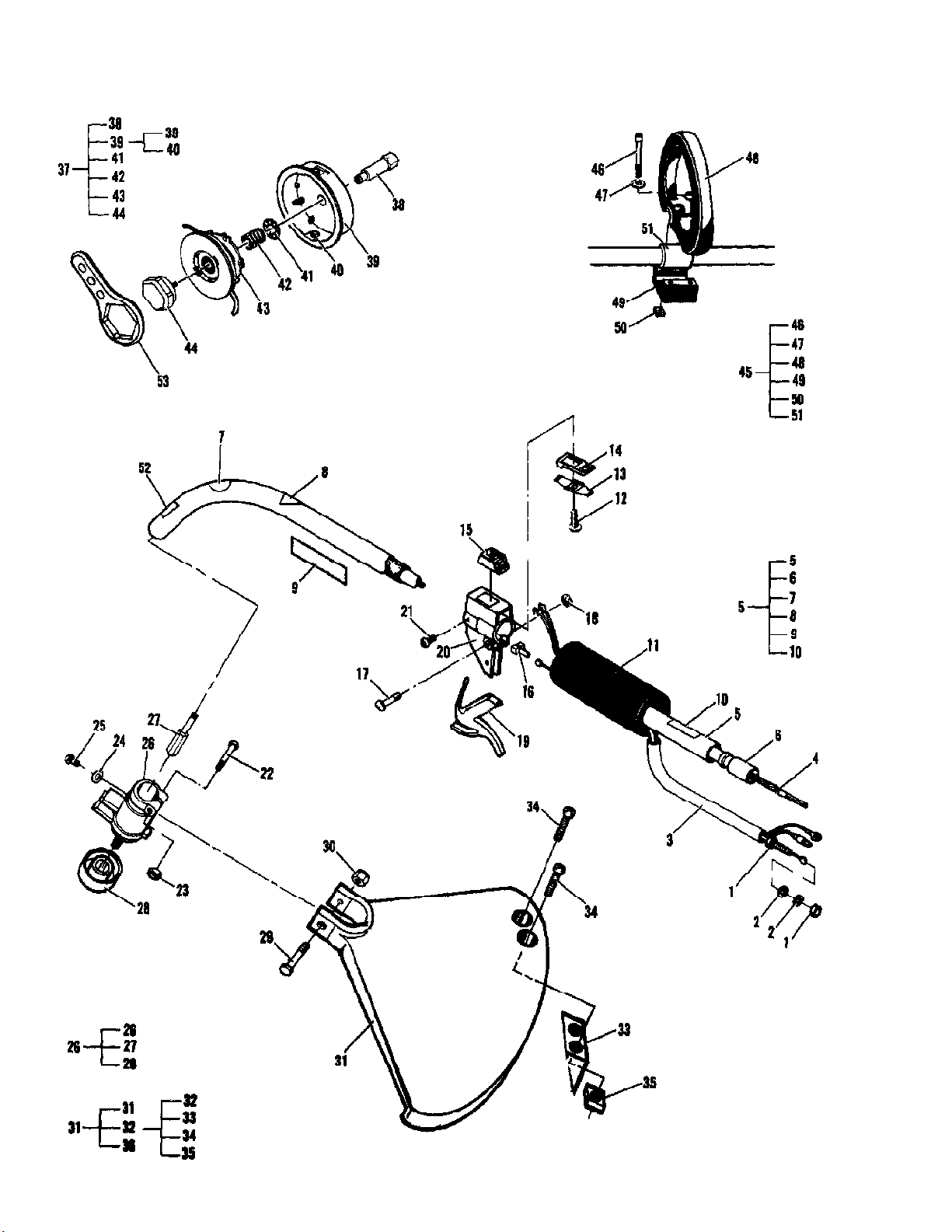

Shaft/Shield/Cutter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 4 of 12
www.ktoutdoor.com
Shaft/Shield/Cutter Assembly
Ref # Part Number DescriptionQty
1 217403 Nut - Hex M6 x 1.02
2 216596 Washer - Flat M62
3 215306 Harness - Wiring1
4 215324 Shaft - Flex1
322023 Shaft - Flex1
5 216912 Housing Assembly - Outer1
300421 Housing Assembly - Outer1
6 217367 Sleeve1
7 223407 Decal, Ear/Eye Cover1
8 211214 Decal, Warning 15m1
9 211215 Decal, Thrown Objects1
10 219030 Decal, Caution (S/T Shaft)1
11 322141 Grip1
12 110706 Screw - Pn 8-18 x.50 St H1
13 215320 Contact - Switch1
14 215319 Base - Stop Switch1
15 68846 Button - Stop Switch1
16 215323 Guide1
17 216027 Screw - Pn M5 x 28.5 SEMS1
18 217159 Nut - Hex M51
19 300361 Trigger Throttle1
20 222794 Housing - Trigger Throttle1
21 223200 Screw - Self Tapping 10 - 161
22 217937 Screw Tr 10-24 x 1 T1
23 218315 Nut1
24 217672 Washer - M4 Flat1
25 215874 Screw - Pn M4 x 9.5 TORX1
26 218283 Housing Assembly - Spindle1
27 217477 Coupling1
28 218214 D/C Collar1
29 216595 Screw - Hx M6 x 1.01
30 215871 Nut - Hex M6 x 11
31 300317 Kit, 90ΓΈ Grass Shield Assembly1
32 300626 Kit, Knife1
33 Cutter Not available separately.1
34 217935 Screw - Tr 10-24 x 50 TORX2
35 216682 Nut - Hx Lock 10 x 242
36 224499 Spacer1
37 225196-01 String Head Assembly1
38 225193 Stud, Right1
39 300115 Housing/Eyelet Assembly1
40 Eyelets Not available separately.2
41 111073 Ring, Retainer1
42 322626 Spring - Left1
43 300689 Kit, Line on Spool1
44 300736 Kit, Knob Assembly1
45 224977 Kit Loop - Handle1
46 228320 Screw - M6 x 0.8 x 454
47 236936 Washer4
48 227045 Loop - Handle (25 mm)1
49 227046 Clamp - Handle (25 mm)1
50 236642 Nut4
51 224127 Spacer - Handle1
52 322099 Label, Debris Shield Warning1
53 322344 Wrench, String Head1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 5 of 12
www.ktoutdoor.com

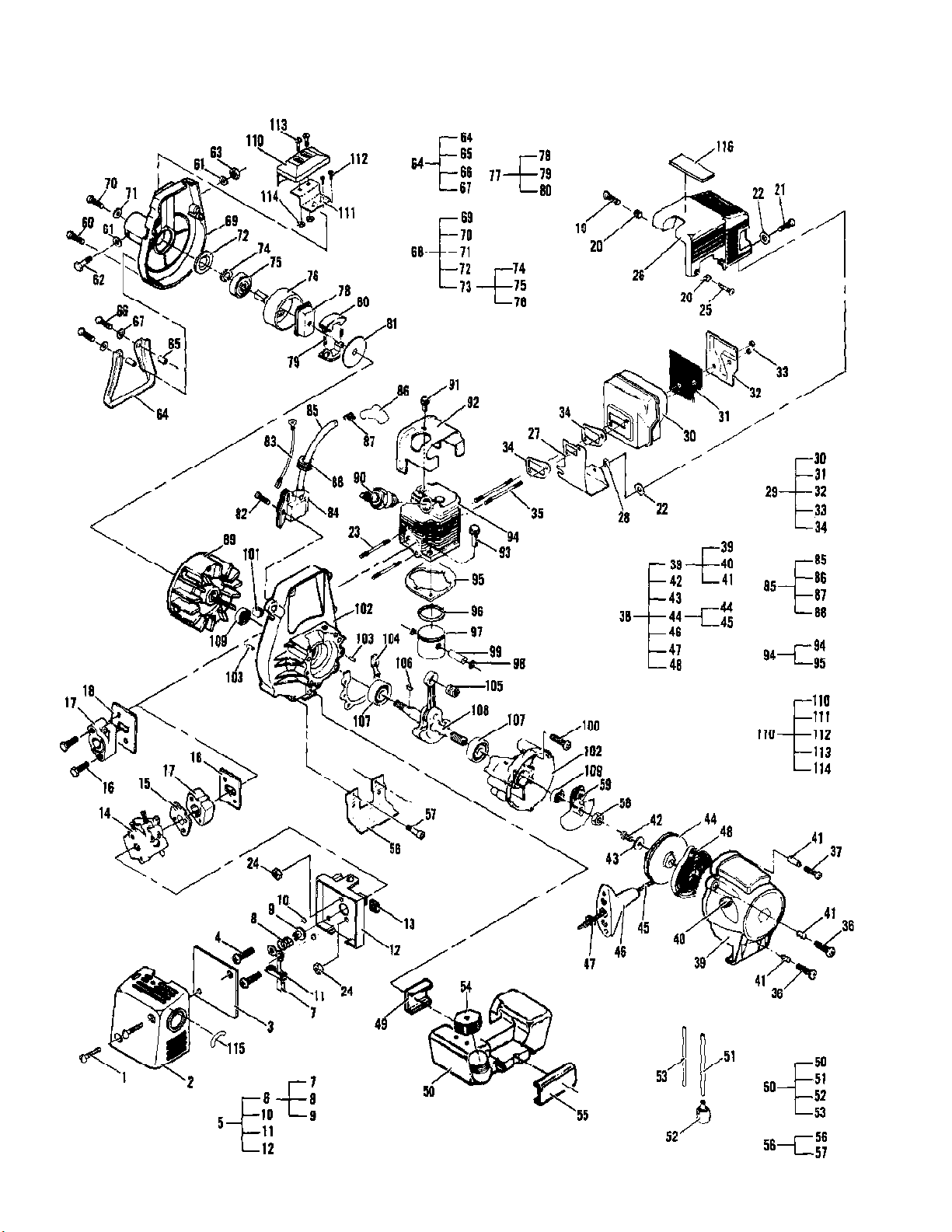

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 6 of 12
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 216027 Screw - Pn M5 x 28.5 SEMS2
2 227024 Cover Air - Cleaner1
3 227023 Filter - Air1
4 111064 Screw, M5 x .8 x 482
5 300069 Case Assembly1
6 223730 Kit, Choke Assembly1
7 Shutter - Choke Lever Not available separately.1
8 219016 Spring - Shutter1
9 Plate - Choke Shutter1
10 227022 Bushing2
11 215992 Grommet1
12 Air Box Not available separately.1
13 229524 Nut2
14 CARBURETOR ASSEMBLY1
15 224148 Gasket - Carburetor1
16 111063 Screw, M5 x .8 x 21.52
17 223984 Insulator, S/T1
224319 Insulator - Carburetor1
18 224315 Gasket - Shield Insulator1
224318 Gasket - Shield Insulator1
19 219508 Screw - Pn M4 x 17 SEMS TORX2
20 229121 Bushing4
21 215874 Screw, Pan M4 x 9.5 TORX2
22 68497 Washer2
23 300139 Stud, Intake M5 x 66.52
24 216585 Nut, Lock M52
25 215874 Screw - Pn M4 x 9.5 TORX1
26 224351 Shield - Muffler1
27 224266 Shield - Muffler Heat1
28 224350 Nut - M4 Speed1
29 300632 Kit, Muffler/Unvi.1
30 322011 Muffler Asy, Unvi.1
31 322018 Screen, Spark Arrester1
32 322017 Plate, Deflector1
33 235642 Nut - M52
34 215515 Gasket - Muffler2
35 222480 Stud - Muffler2
36 216022 Screw - Pn M4 x 23.4 TORX2
37 217669 Screw - Pn M4 x 25 TORX S1
38 224111 Starter Assembly1
39 224110 Housing - Starter Assembly1
40 218932 Guide - Rope1
41 219585 Spacer - Starter Hsg3
42 215874 Screw - Pn M4 x 9.5 TORX1
43 216590 Washer - Flat M41
44 216092 Drum - Rope Assembly1
45 216093 Rope - Starter (36")1
46 216792 Handle - Starter1
47 218941 Washer - Nylon1
48 300474 Spring - Starter1
49 217390 Cushion - Fuel Tank1
50 223898 Fuel Tank Assembly1
51 225057 Hose - Fuel1
52 216985 Pickup - Fuel1
53 225058 Hose - Return1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 7 of 12
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
54 224993 Fuel Cap1
55 217382 Cushion - Fuel Tank1
56 300794 Kit, Engine Stand1
57 216025 Screw, PN M4 x 8 TORX SEM2
58 216583 Nut - Hex M81
59 225037 Starter Pawl Asy1
60 213177 Screw - Pn M4.2 x 18.5 TORX4
61 216591 Washer, Flat M52
62 217158 Screw, Hex M5 x 351
63 217159 Nut, Hex M51
64 300793 Kit, Engine Stand1
65 224940 Spacer2
66 222944 Screw2
67 100002 Washer2
68 224117 Housing Assembly, Fan1
69 224108 Housing - Fan1
70 213178 Screw, M5 x 8 5 SEMS T2
71 216591 Washer, M52
72 215534 Plate - Thrust1
73 218065 Drum Assembly Clutch1
74 213186 Ring - Retaining1
75 213187 Bearing - Ball1
76 218063 Drum - Clutch1
77 217554 Clutch Assembly1
78 215536 Rotor - Clutch1
79 223770 Spring - Clutch2
80 Shoe - Clutch Not available separately.2
81 215539 Plate - Side1
82 216022 Screw - Pn M4 x 23.4 TORX2
83 219383 Wire Assembly - Switch1
84 219848-01 Ignition Assembly1
85 223884 Kit, Spark Plug Wire1
86 95266 Boot - Spark Plug1
87 102556 Connector - Spark1
88 215533-01 Grommet H/T Lead1
89 222308 Flywheel1
90 62345 Spark Plug DJSJ1
91 213178 Screw - Pn M5 x 8.5 SEMS T1
92 215540-01 Cover - Cylinder1
224165 Cover - Cylinder1
93 217320 Screw - Pn M6 x 18 TORX SE2
94 224448 Kit, Cyl Plated/Gasket1
225059 Kit, Cyl Plated/Gasket1
95 223925 Gasket - Cylinder1
96 223455 Ring - Piston1
224314 Ring - Piston1
97 224075 Piston - Mach1
224164 Piston - Mach1
98 111026 Ring - Snap2
99 218275 Pin - Wrist1
223589 Pin - Wrist1
100 216027 Screw - Pn M5 x 28.5 SEMS4
101 215541 Grommet1
102 223902 Crankcase Assembly1
223887 Crankcase Assembly1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 8 of 12
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
103 213191 Pin4
104 215545 Gasket - Crankcase1
105 110984 Bearing - Needle1
106 102164 Key - Flywheel1
107 213282 Bearing Crankshaft2
216143 Bearing - Ball2
108 218106-01 Crankshaft Asy1
222960 Crankshaft Asy1
109 83859 Seal, Crankshaft Oil2
216500 Seal2
110 300653 Kit, Heat Shield1
111 Bracket Not available separately.1
112 219194 Screw - PN 5 - 20 x.438 ST2
113 300296 Screw - Pn 10 - 24 x .5 Tx2
114 216682 Nut, HX Lock 10 - 24 NC - 282
115 224967 Label, Primer1
116 224968 Label, Starting Instructions1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 9 of 12
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 10 of 12
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235 LOCTITE KIT
322236 RETAINING COMPOUND 620 (10ml)
322237 THREAD LOCKER 242 (10ml)
322238 GASKET ELIMINATOR 518 (50ml)
322239 BLACK MAX ADHESIVE 380 (1 oz)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 11 of 12
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400061-03 TITAN 2250 08/92 to 10/92 IPL 211404 Page 12 of 12
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
215432 Pressure Test Tool
217720 Torx Kit
222785 T-25 Torx
