Page 1
11-400030C MAC 95A 06/84 to 02/86 IPL 218827 Page 1 of 9
www.ktoutdoor.com
Accessories & Replacement Parts
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400030C MAC 95A 06/84 to 02/86 IPL 218827 Page 2 of 9
www.ktoutdoor.com
Accessories & Replacement Parts
Ref # Part Number DescriptionQty
216863 Spark Arrester Screen
218575 8-Tooth Weed/Grass Blade and Debris Shield Kit
218213 4-Tooth Metal Weed/Grass Blade
216513 8-Tooth Metal Weed/Grass Blade
218212 3-Point Plastic Blade
216514 80-Tooth Metal Blade
95372 Safety Goggles
218201 Harness Kit
217868 String Trimmer Debris Shield Kit
216822 Cutter Head Manual Two-Line
217613 Manual Cutter Head & Debris Shield Kit
218199 Semi-Automatic Cutter Head and Debris Shield Kit
218198 Semi-Automatic Cutter Head With Line
216898 40' Replacement Line
216899 Replacement Line - 1 Pound Bulk
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400030C MAC 95A 06/84 to 02/86 IPL 218827 Page 3 of 9
www.ktoutdoor.com

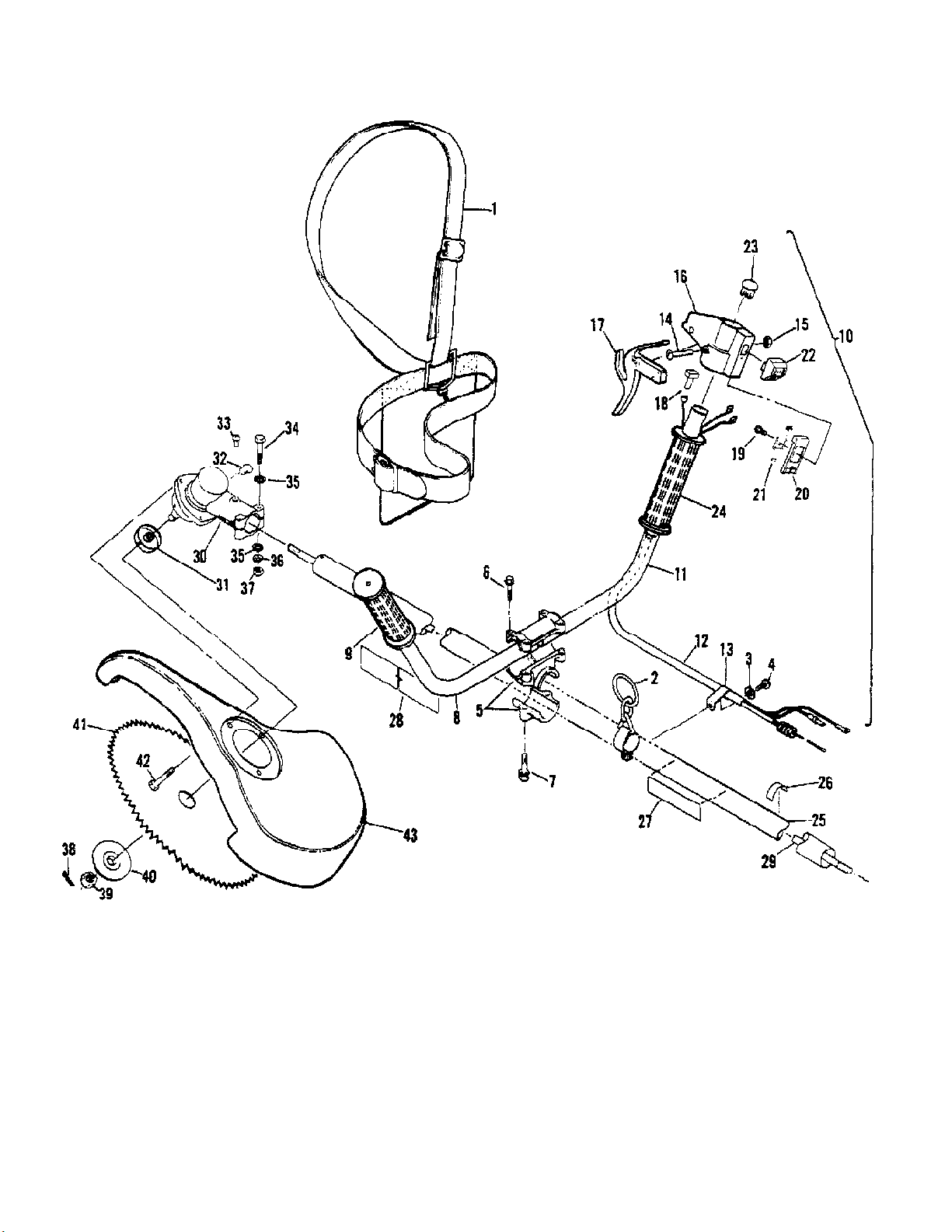

Drive Shaft, Brush Shield, Blade Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400030C MAC 95A 06/84 to 02/86 IPL 218827 Page 4 of 9
www.ktoutdoor.com
Drive Shaft, Brush Shield, Blade Assembly
Ref # Part Number DescriptionQty
1 216790 Harness Assembly1
2 218002 Ring Assembly - Harness1
3 216826 Washer1
4 216789 Bolt - M5 x 131
5 216753 Yolk - Handlebar1
6 216781 Bolt - Hex M5 x 254
7 216782 Bolt - Hex M6 x 302
8 216868 Bar Assembly - Handle1
9 94212 Grip - Left Hand1
10 216867 Bar Assembly - Handle/Harness1
11 216787 Bar - Handle1
12 216372 Harness Assembly - Wiring1
13 216788 Clip - Wiring Harness1
14 216027 Screw - Pn M5 x 28.51
15 217159 Nut Hex M51
16 215317 Housing Trigger1
17 215318 Trigger Throttle1
18 215323 Guide1
19 110706 Screw - Pn 8-18 x 1/21
20 215319 Base - Stop Switch1
21 215320 Contact - Switch1
22 68846 Button - Stop Switch1
23 95153 Plug - Tubing1
24 215322 Grip - Right Hand1
25 216922 Kit - Outer Housing1
25 218000 Kit - Outer Housing1
26 216603 Decal - Position1
27 218309 Decal - Warning1
28 216607 Decal - Name (Mac-95A)1
29 216747 Shaft - Drive1
29 217753 Shaft - Drive1
30 216777 Housing Assembly - Gear1
30 218162 Housing Assembly - Gear1
31 216752 Collar - Gear1
32 216832 Bolt - Hex M8 x 81
33 216795 Screw - Phl M5 x 121
34 216828 Bolt - Hex M5 x 402
35 216826 Washer - Flat M54
36 216824 Washer - Lock M52
37 216823 Nut - Hex M52
38 216778 Pin - Cotter1
39 216751 Nut - Hex M10 (L/H)1
40 216749 Flange - Collar1
41 216514 Blade - Brush1
42 213178 Screw - Pn M5 x 8.53
42 217935 Screw - 10-24 x .503
43 218409 Shield - Brush Cutter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400030C MAC 95A 06/84 to 02/86 IPL 218827 Page 5 of 9
www.ktoutdoor.com

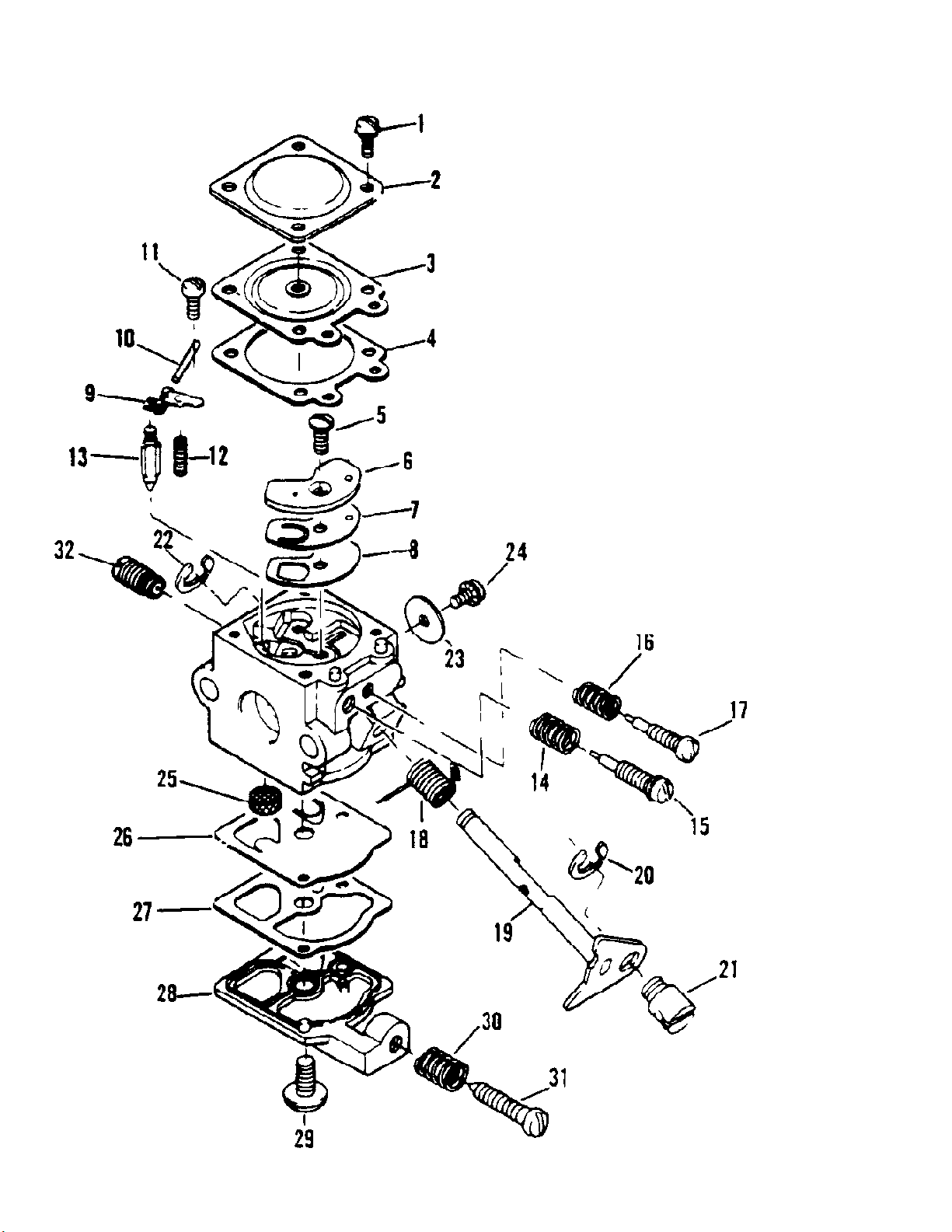

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400030C MAC 95A 06/84 to 02/86 IPL 218827 Page 6 of 9
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
217274 Carburetor Assembly (Governed)1
1 Screw - Cover Not available separately.4
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Metering Not available separately.1
4 Gasket - Diaphragm Not available separately.1
5 Screw - Circuit Plate Not available separately.1
6 Plate Circuit Not available separately.1
7 Diaphragm - Circuit Plate Not available separately.1
8 Gasket - Circuit Plate Not available separately.1
9 Lever - Metering Not available separately.1
10 Pin - Lever Not available separately.1
11 Screw - Lever Pin Not available separately.1
12 Spring - Lever Not available separately.1
13 Valve - Inlet Needle Not available separately.1
14 Spring - High Speed Needle Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Needle - Low Speed Not available separately.1
18 Spring - Throttle Return Not available separately.1
19 Shaft - Throttle Not available separately.1
20 Clip Not available separately.1
21 Swivel Not available separately.1
22 Clip - Throttle Not available separately.1
23 Valve - Throttle Not available separately.1
24 Screw - Throttle Valve Not available separately.1
25 Screen - Inlet Not available separately.1
26 Diaphragm - Fuel Pump Not available separately.1
27 Gasket - Fuel Pump Not available separately.1
28 Cover - Fuel Pump Not available separately.1
29 Screw - Pump Cover Not available separately.1
30 Spring - Idle Screw Not available separately.1
31 Screw - Idle Adjusting Not available separately.1
32 Governor - Fixed Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400030C MAC 95A 06/84 to 02/86 IPL 218827 Page 7 of 9
www.ktoutdoor.com

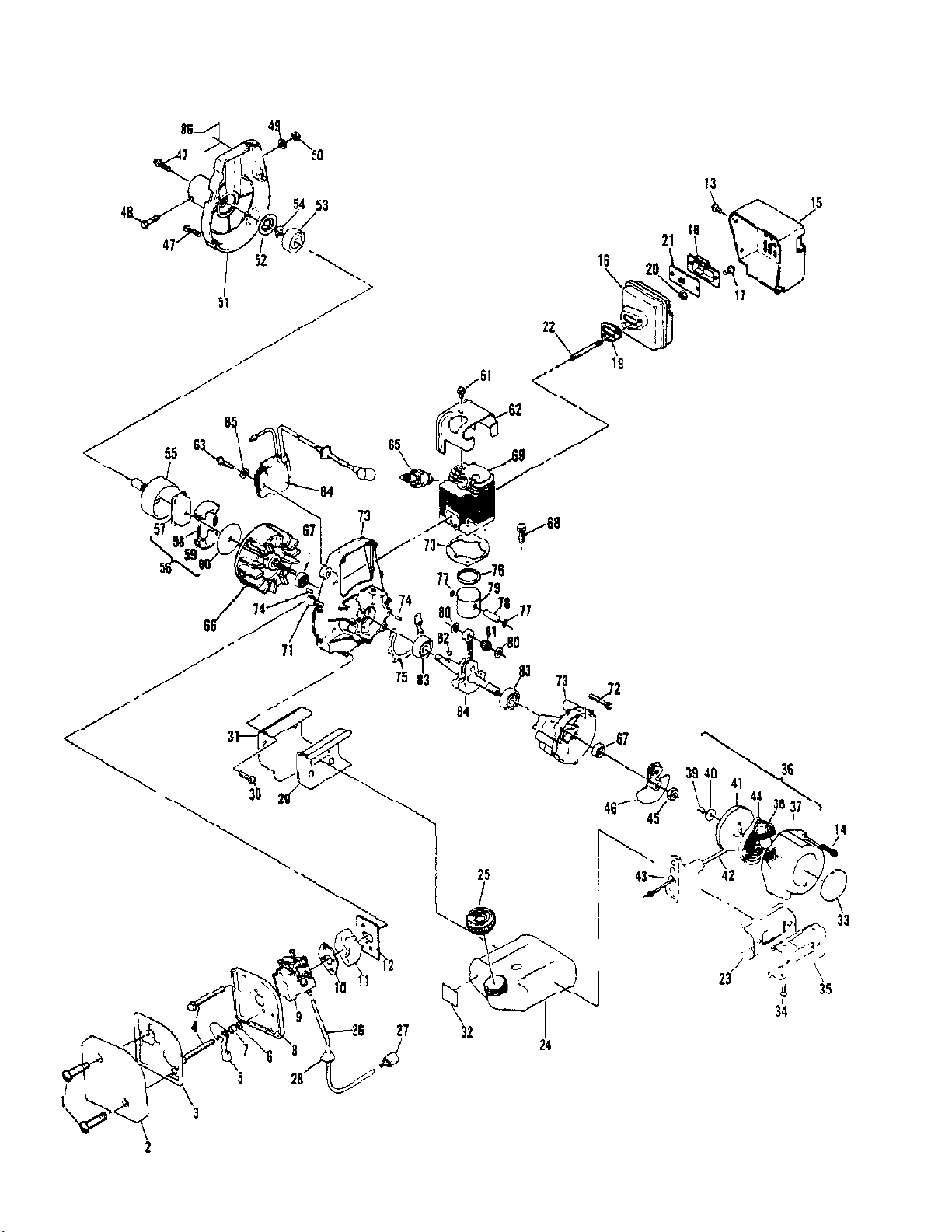

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400030C MAC 95A 06/84 to 02/86 IPL 218827 Page 8 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 217669 Screw - M4 x 252
2 215988 Cover - Air Cleaner1
3 217376 Filter - Air1
4 216903 Screw - M5 x 552
5 215991 Shutter - Choke1
6 216591 Washer - Flat M51
7 215993 Spacer1
8 216108 Kit - Airbox/Grommet1
9 Carburetor Assembly See "Carburetor Assembly"
illustration and parts list.
10 215491 Gasket - Carburetor1
11 215771 Insulator - Carburetor1
12 216575 Gasket - Insulator1
13 216025 Screw - M4 x 82
14 213177 Screw - M4 x 18.503
15 215753 Shield - Muffler1
16 216920 Kit - Muffler1
17 216025 Screw - M4 x 82
18 217318 Cover/Cap Assembly - Screen1
19 215515 Gasket - Muffler1
20 217275 Nut - Flange M52
21 215516 Spark Arrester Screen1
22 215517 Stud - Bolt2
23 215504 Cushion - Fuel Tank1
24 217021 Kit - Fuel Tank1
25 216346 Cap - Fuel Tank1
26 217264 Hose - Pickup1
27 216985 Pickup - Fuel1
28 215495 Grommet1
29 215500 Cushion - Bracket1
30 216025 Screw - M4 x 82
31 217455 Bracket Asy. - Tank/Shield1
32 217383 Decal - 40:11
33 216604 Decal - Logo1
34 213177 Screw - M4 x 18.502
35 215501 Bracket - Back1
36 216919 Kit - Starter1
37 217711 Housing - Starter1
38 217030 Guide - Rope1
39 215874 Screw - M4 x 9.501
40 216590 Washer - Flat M41
41 216092 Drum/Rope Assembly1
42 216093 Rope - Starter1
43 216792 Handle - Starter1
44 215522 Spring - Starter1
45 216583 Nut - M81
46 215525 Ratchet - Assembly1
47 213177 Screw - M4 x 18.504
48 217158 Screw - Hex M5 x 251
49 216591 Washer - Flat M51
50 217159 Nut - Hex M5 x 0.81
51 217548 Housing - Fan1
52 215534 Plate - Thrust1
53 213187 Bearing - Ball1
54 213186 Ring - Retaining1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400030C MAC 95A 06/84 to 02/86 IPL 218827 Page 9 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
55 216837 Drum - Clutch1
56 216060 Kit - Clutch1
57 215536 Rotor - Clutch1
58 215537 Spring - Clutch2
59 215538 Shoe - Clutch2
60 215539 Plate - Side1
61 213178 Screw - M5 x 8.51
62 215540 Cover - Cylinder1
63 213177 Screw - M4 x 18.502
64 217439 Coil - Ignition1
65 214223 Spark Plug1
66 217378 Flywheel1
67 216500 Seal - Oil2
68 217320 Screw - Socket Cap2
69 215690 Cylinder1
70 215542 Gasket - Cylinder1
71 215541 Grommet1
72 213179 Screw - M5 x 28.504
73 217373 Crankcase Assembly1
74 213191 Pin4
75 215545 Gasket - Crankcase1
76 217475 Ring - Piston1
77 216343 Ring - Snap2
78 215551 Pin - Wrist1
79 217248 Piston1
80 213196 Washer2
81 213195 Bearing - Needle1
82 102164 Key - Woodruff1
83 216143 Bearing - Ball2
84 216444 Crankshaft Assembly1
85 110613 Washer - No. 8 Hard2
86 218343 Decal - Super Mac 95A1
K&T Saw Shop 606-678-9623 or 606-561-4983
