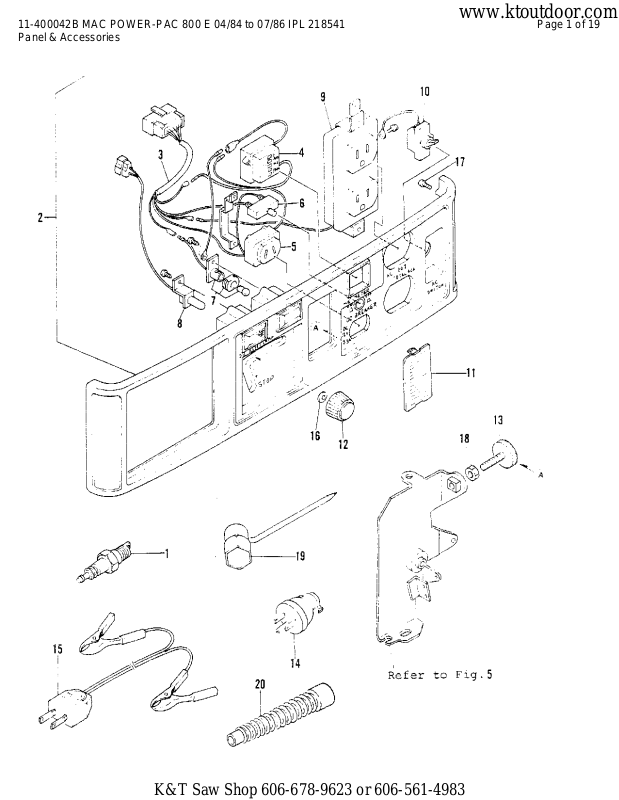

11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 1 of 19
www.ktoutdoor.com

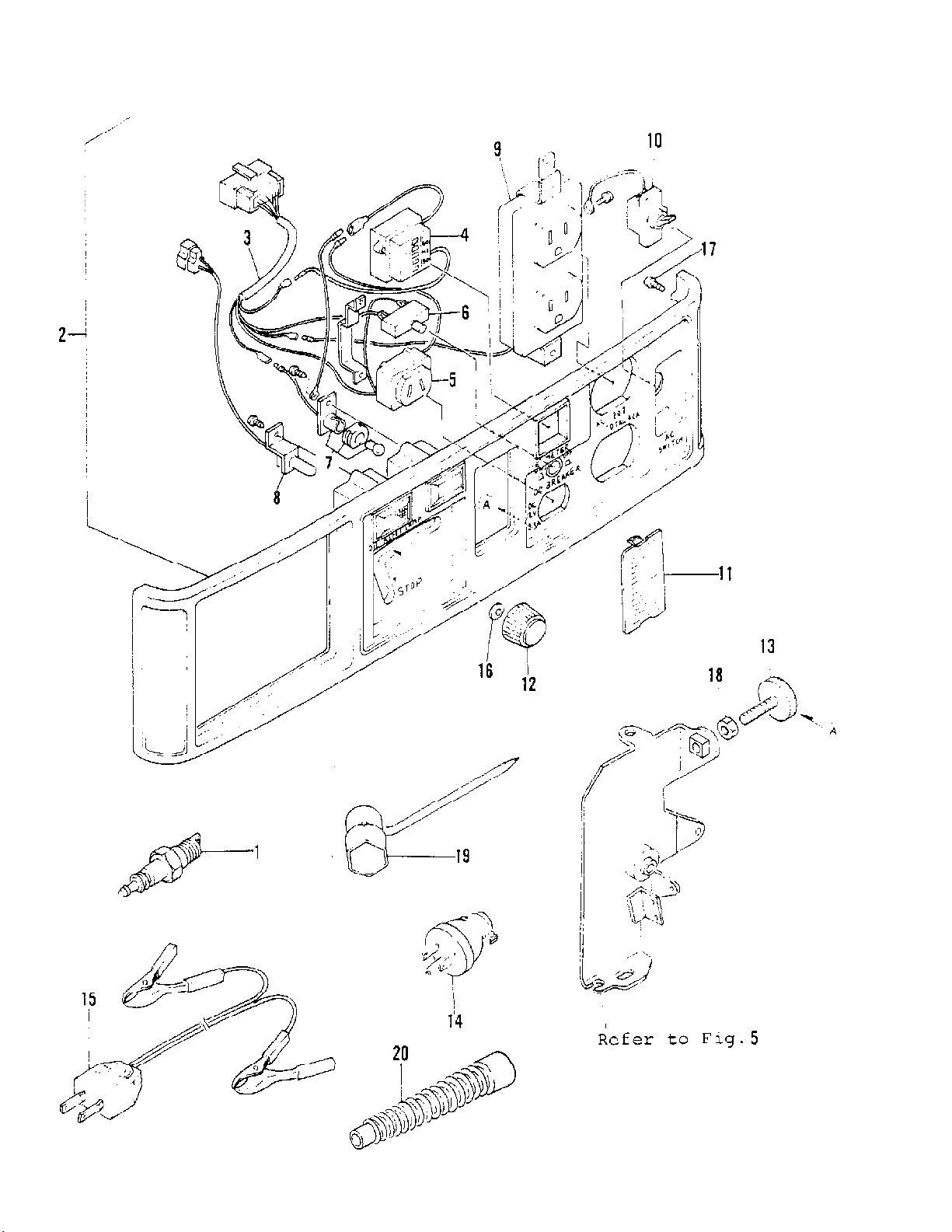

Panel & Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 2 of 19
www.ktoutdoor.com
Panel & Accessories
Ref # Part Number DescriptionQty
1 221250 Spark Plug1
2 221708 Panel Board Asy.1
3 221710 Wire Harness1
4 221712 Frequency Meter1
5 221713 DC Outlet1
6 221714 DC Breaker1
7 221715 Pilot Lamp1
8 221716 Signal Lamp1
9 221717 AC Outlet1
10 221718 AC Breaker1
11 221709 Cover - Blind1
12 221711 Knob1
13 221985 Plug - 125V x 15A1
14 221835 Cable - Charging1
15 221719 Washer 41
16 221912 Screw M4 x 88
17 221919 Box - Spanner1
18 221986 Lock Nut M6 - Plated1
19 221468 Box Spanner1
20 221987 Oil Funnel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 3 of 19
www.ktoutdoor.com

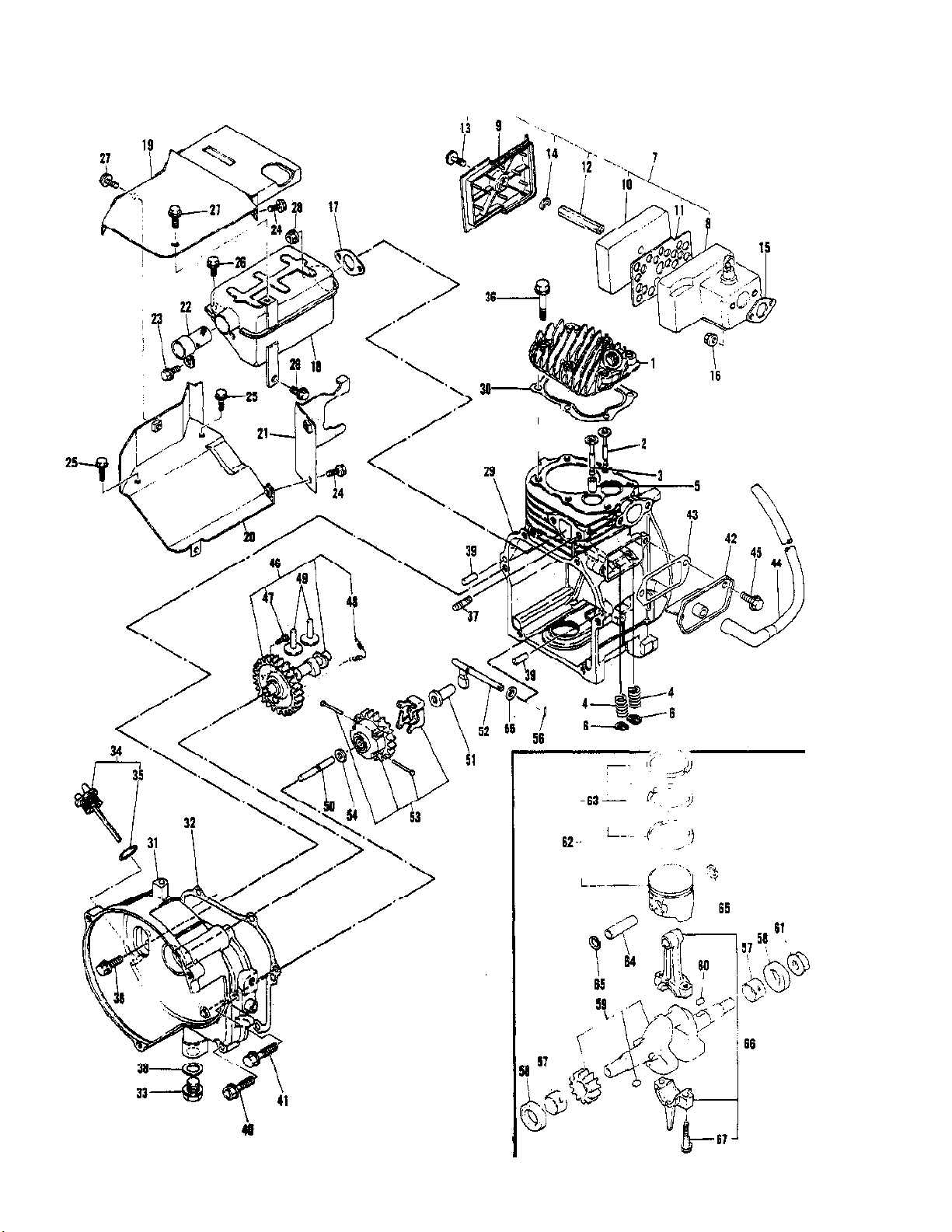

Engine Assembly, Air Cleaner & Muffler
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 4 of 19
www.ktoutdoor.com
Engine Assembly, Air Cleaner & Muffler
Ref # Part Number DescriptionQty
1 221397 Head - Cylinder1
2 221398 Valve - Intake1
3 221399 Valve - Exhaust1
4 221400 Spring - Valve2
5 221401 Guide - Valve1
6 221402 Retainer2
7 221966 Cleaner Asy. - Air1
8 221417 Body - Air Cleaner1
9 221418 Cap - Air Cleaner1
10 221419 Element - Air Cleaner1
11 221420 Holder Element1
12 221421 Nut1
13 221422 Screw1
14 221911 Ring - Snap 51
15 221244 Gasket - Carburetor1
16 221940 Nut - Flange M61
17 221403 Gasket - Muffler1
18 221423 Muffler1
19 221424 Guide A1
20 221425 Guide B1
21 221426 Guide C1
22 221427 Spark Arrester1
23 221930 Bolt - Plated M6 x 81
24 221930 Bolt - Plated M6 x 82
25 221930 Bolt - Plated M6 x 83
26 221930 Bolt - Plated M6 x 82
27 221930 Bolt - Plated M6 x 82
28 221940 Nut - Flange M62
29 221414 Block - Cylinder1
30 221392 Gasket - Head1
31 221415 Cover - Crank Case1
32 221393 Gasket - Crank Case1
33 221291 Plug - Drain1
34 221255 Cap Asy. - Lub.1
35 221924 O-Ring 15-P1
36 221303 Bolt M6 x 356
37 221305 Bolt - M6 x 162
38 221982 Packing 121
39 221913 Parrallel Pin 6 x 161
40 221946 Bolt - M6 x 255
41 221947 Bolt - M6 x 301
42 221395 Breather Asy.1
43 221396 Gasket - Breather1
44 221416 Pipe - Breather1
45 221944 Bolt - M6 x 141
46 221404 Camshaft Asy.1
47 221406 Pin2
48 221407 Spring1
49 221405 Tappet2
50 221341 Shaft - Govenor1
51 221345 Spindle1
52 221412 Shaft - Govenor1
53 221413 Gear - W/Weight1
54 221224 Washer1
55 221902 Washer - 61
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 5 of 19
www.ktoutdoor.com
Engine Assembly, Air Cleaner & Muffler
Ref # Part Number DescriptionQty
56 221914 Pin - Snap 61
57 221394 Bearing2
58 221243 Seal - Oil TC17 3062
59 221967 Crankshaft Asy.1
60 221320 Key - 4 x 101
61 221942 Nut - Flange M101
62 221408 Piston W/Rings1
63 221964 Piston Rings - Set1
64 221409 Pin - Piston1
65 221908 Circlip 11-H2
66 221965 Connecting Rod Asy.1
67 221410 Bolt - Rod2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 6 of 19
www.ktoutdoor.com

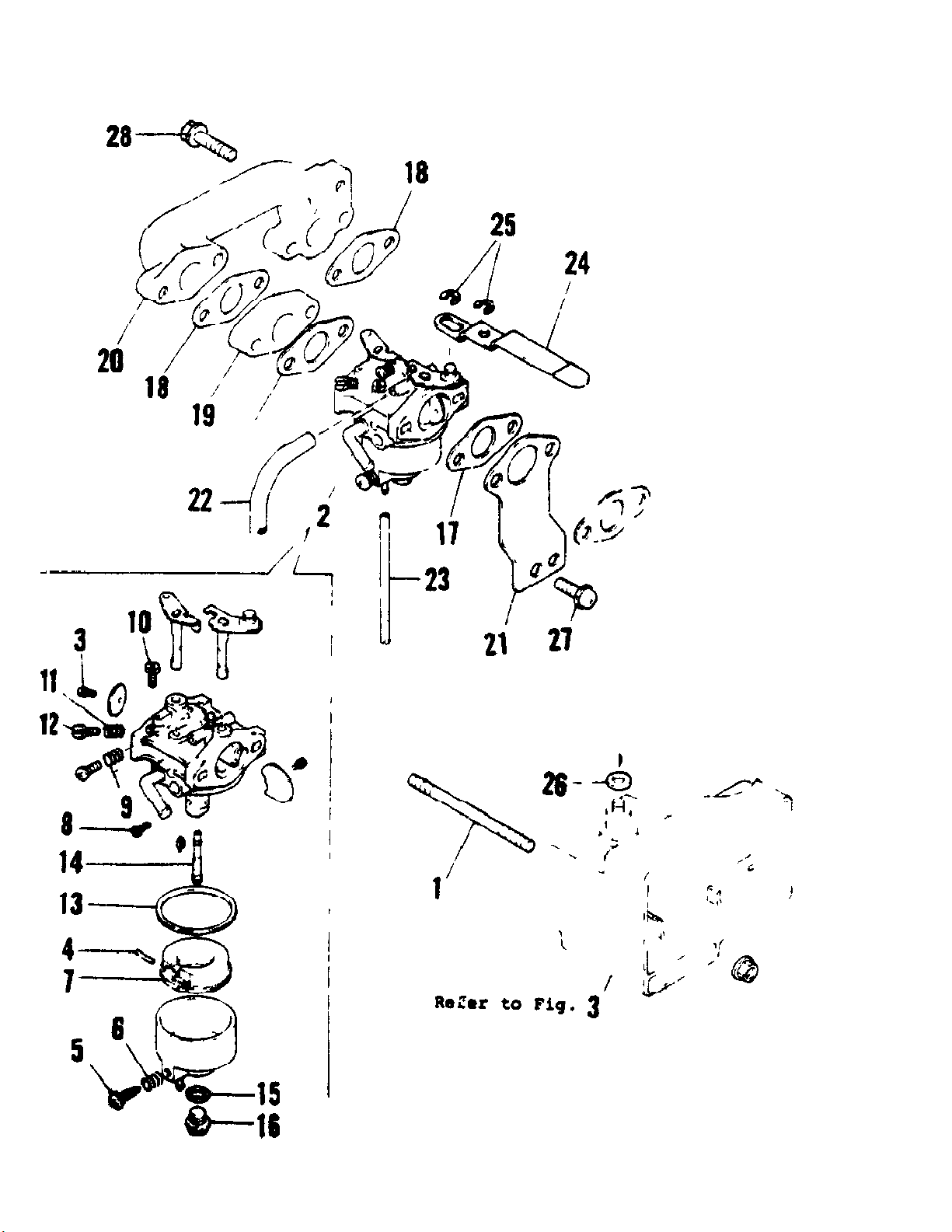

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 7 of 19
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
1 221306 Bolt - M6 x 822
2 221429 Carburetor1
3 221519 Screw3
4 221331 Pin1
5 221324 Screw1
6 221657 Spring1
7 221252 Float asy.1
8 221246 Jet - Main1
9 221653 Spring1
10 221247 Jet - Pilot1
11 221653 Spring1
12 221336 Screw1
13 221245 Gasket1
14 221248 Nozzle - Main1
15 221648 Washer1
16 221649 Bolt1
17 221244 Gasket2
18 221430 Gasket3
19 221431 Spacer - Manifold1
20 221432 Intake - Manifold1
21 221433 Support1
22 221434 Hose1
23 221534 Nose1
24 221435 Lever - Choke1
25 221911 Snap Ring2
26 221920 Nylon Packing1
27 221929 Screw M6 x 122
28 221933 Bolt - Plated M6 x 202
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 8 of 19
www.ktoutdoor.com

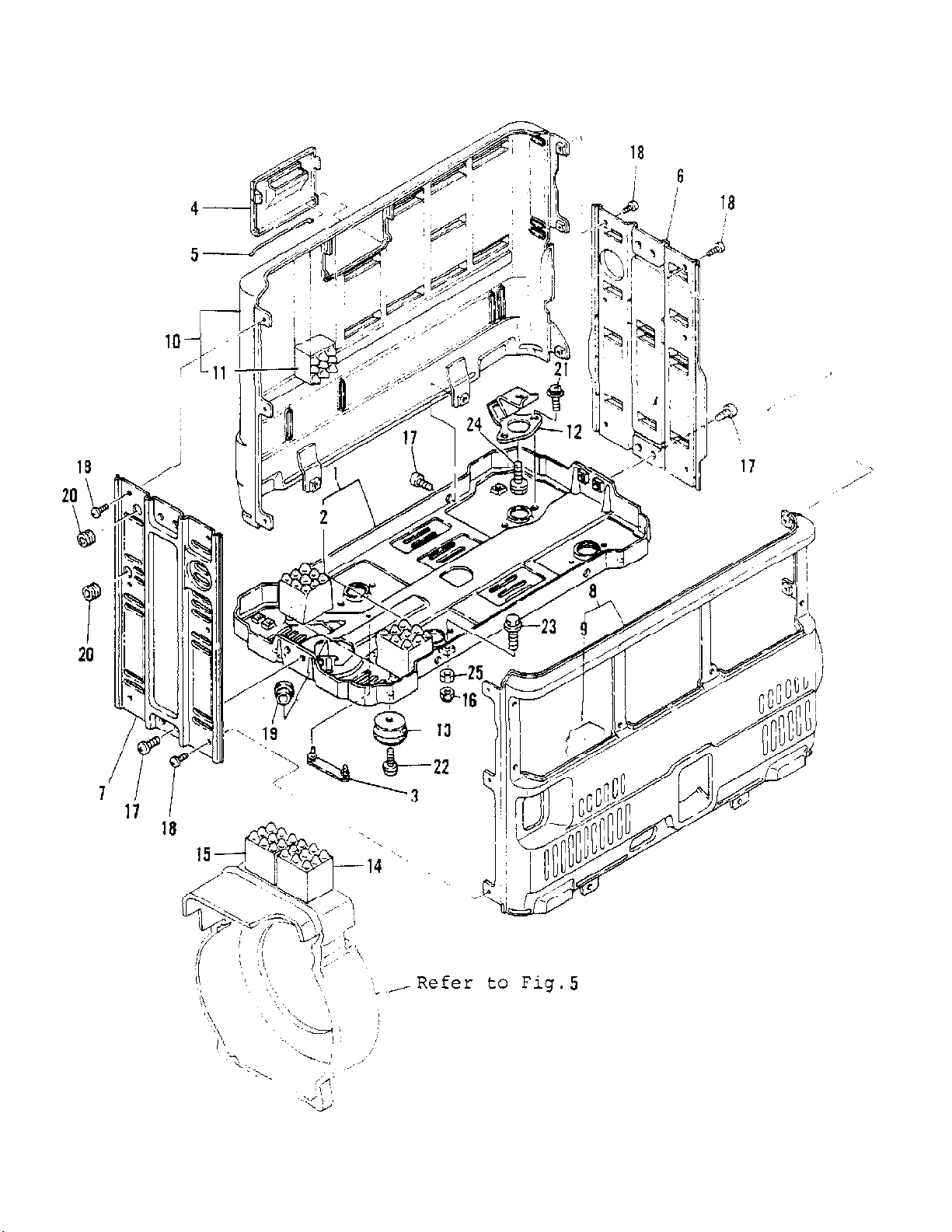

Case Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 9 of 19
www.ktoutdoor.com
Case Assembly
Ref # Part Number DescriptionQty
1 221675 Case - Bottom1
2 221689 Urethane - Foam E1
3 221676 Holder - Tool1
4 221677 Plug - Blind1
5 221678 Spring - Hinge1
6 221679 Side Case - Right1
7 221680 Side Case - Left1
8 221681 Case - Front1
9 221687 Urethane Foam C1
10 221682 Case - Rear1
11 221688 Urethane Foam D1
12 221683 Damper Foam A4
13 221684 Damper - Foam B4
14 221685 Urethane Foam A1
15 221686 Urethane Foam B1
16 221690 Nut - Ground1
17 221691 Screw - M6 x 1012
18 221692 Screw M4 x 812
19 221805 Grommet1
20 221899 Grommet 122
21 221929 Screw M6 x 128
22 221929 Screw M6 x 124
23 221932 Bolt - Plated M6 x 161
24 221935 Bolt - Plated M8 x 144
25 221952 Nut M6 - Plated1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 10 of 19
www.ktoutdoor.com

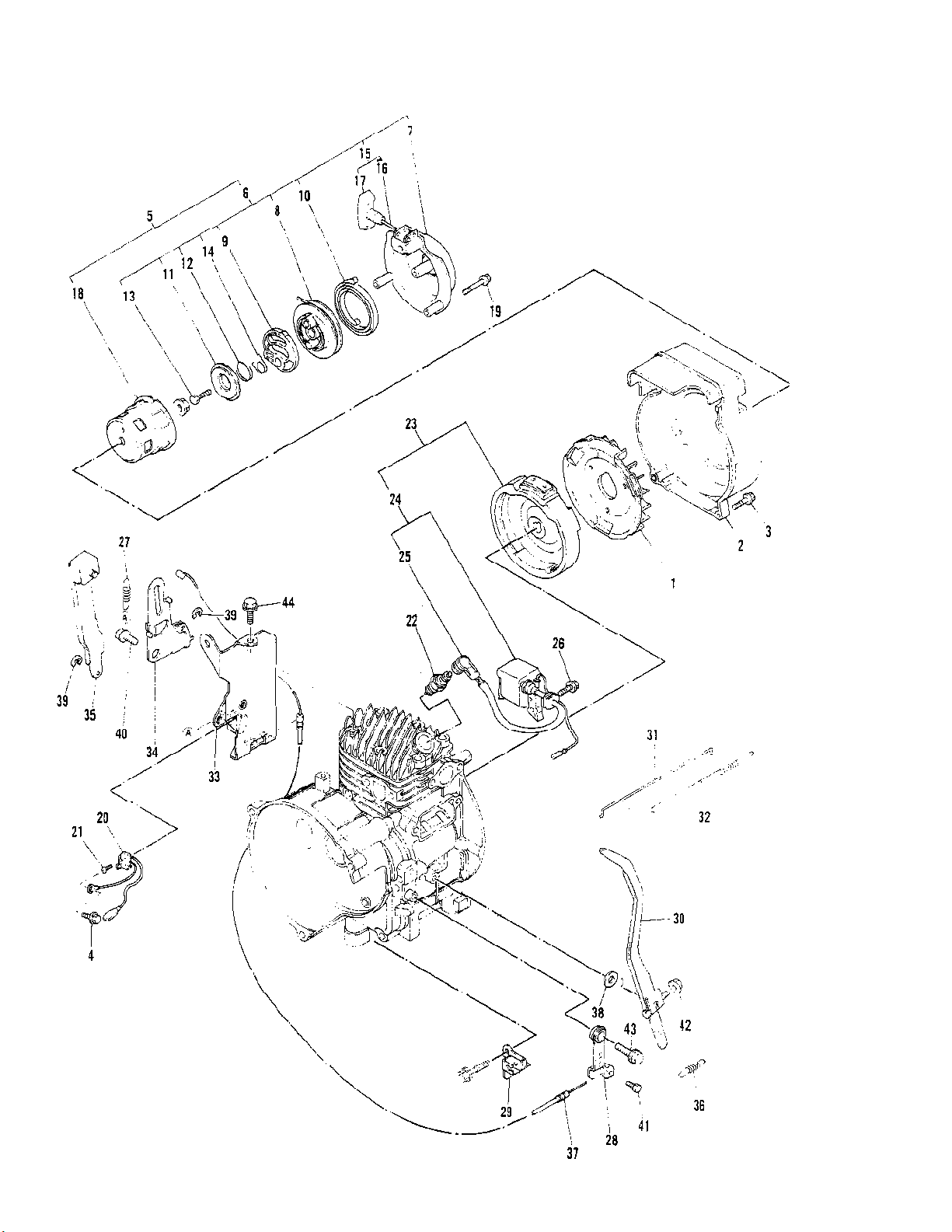

Fan Case, Starter & Controls
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 11 of 19
www.ktoutdoor.com
Fan Case, Starter & Controls
Ref # Part Number DescriptionQty
1 221411 Fan - Cooling1
2 221428 Case - Fan1
3 221946 Bolt - M6 x 253
4 221947 Bolt - M6 x 301
5 221448 Starter - Recoil1
6 221449 Recoil Asy.1
7 221450 Case - Starter1
8 221451 Reel1
9 221391 Ratchet1
10 221453 Spring - Spiral1
11 221457 Plate1
12 221455 Spring - Friction1
13 221456 Bolt1
14 221454 Spring1
15 221459 Rope Asy.1
16 221460 Rope1
17 221461 Handle - Starter1
18 221458 Pulley - Starter1
19 221934 Bolt - Plated M6 x 353
20 221356 Switch - Stop1
21 221918 Screw M2 x 102
22 221250 Spark Plug1
23 221463 Flywheel Magneto1
24 221466 Igniter1
25 221251 Cap - Spark Plug1
26 221946 Bolt - M6 x 252
27 221437 Spring - Regulator1
28 221438 Handle Asy.1
29 221439 Wire Holder1
30 221440 Lever - Govenor1
31 221443 Link - Throttle1
32 221442 Spring1
33 221443 Bracket - Govenor1
34 221444 Lever - Control1
35 221445 Lever - Cont. Shift1
36 221446 Spring - Cont. Shift1
37 221447 Throttle Wire Asy.1
38 221224 Washer1
39 221911 Snap Ring 52
40 221929 Screw - M6 x 121
41 221938 Bolt - Plated M4 x 81
42 221940 Nut - Flange M61
43 221944 Bolt - M6 x 141
44 221944 Bolt - M6 x 142
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 12 of 19
www.ktoutdoor.com

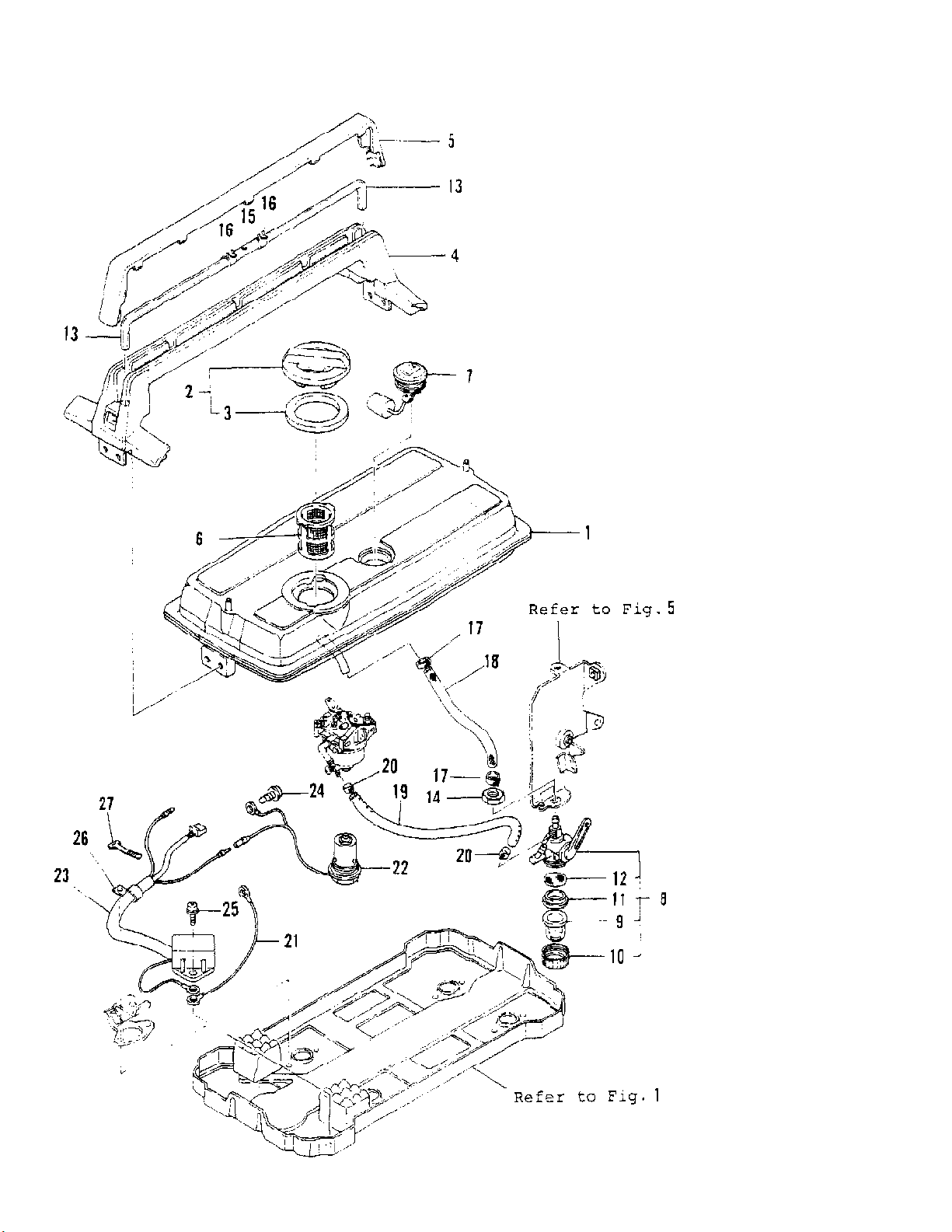

Fuel Tank, Oil Sender Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 13 of 19
www.ktoutdoor.com
Fuel Tank, Oil Sender Assembly
Ref # Part Number DescriptionQty
1 221693 Tank Asy - Fuel1
2 221694 Cap Asy.1
3 221241 Gasket1
4 221988 Grip Asy. - Fuel Tank1
5 221695 Cap - Grip1
6 221696 Filter - Fuel1
7 221697 Gauge - Fuel1
8 221698 Cock - Fuel1
9 221516 Bowl - Strainer1
10 221513 Retainer1
11 221514 Gasket1
12 221277 Strainer - Fuel1
13 221534 Hose2
14 221953 Lock Nut - Plated M121
15 221983 Joint1
16 221220 Clamp2
17 221219 Clamp2
18 221436 Pipe B - Fuel1
19 221651 Pipe A3 - Fuel1
20 221220 Clamp2
21 221464 Wire A1
22 221467 Sensor - Oil Level1
23 221989 Unit - Oil Sensor1
24 221929 Screw M6 x 121
25 221929 Screw M6 x 121
26 221237 Clamp1
27 221984 Band1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 14 of 19
www.ktoutdoor.com

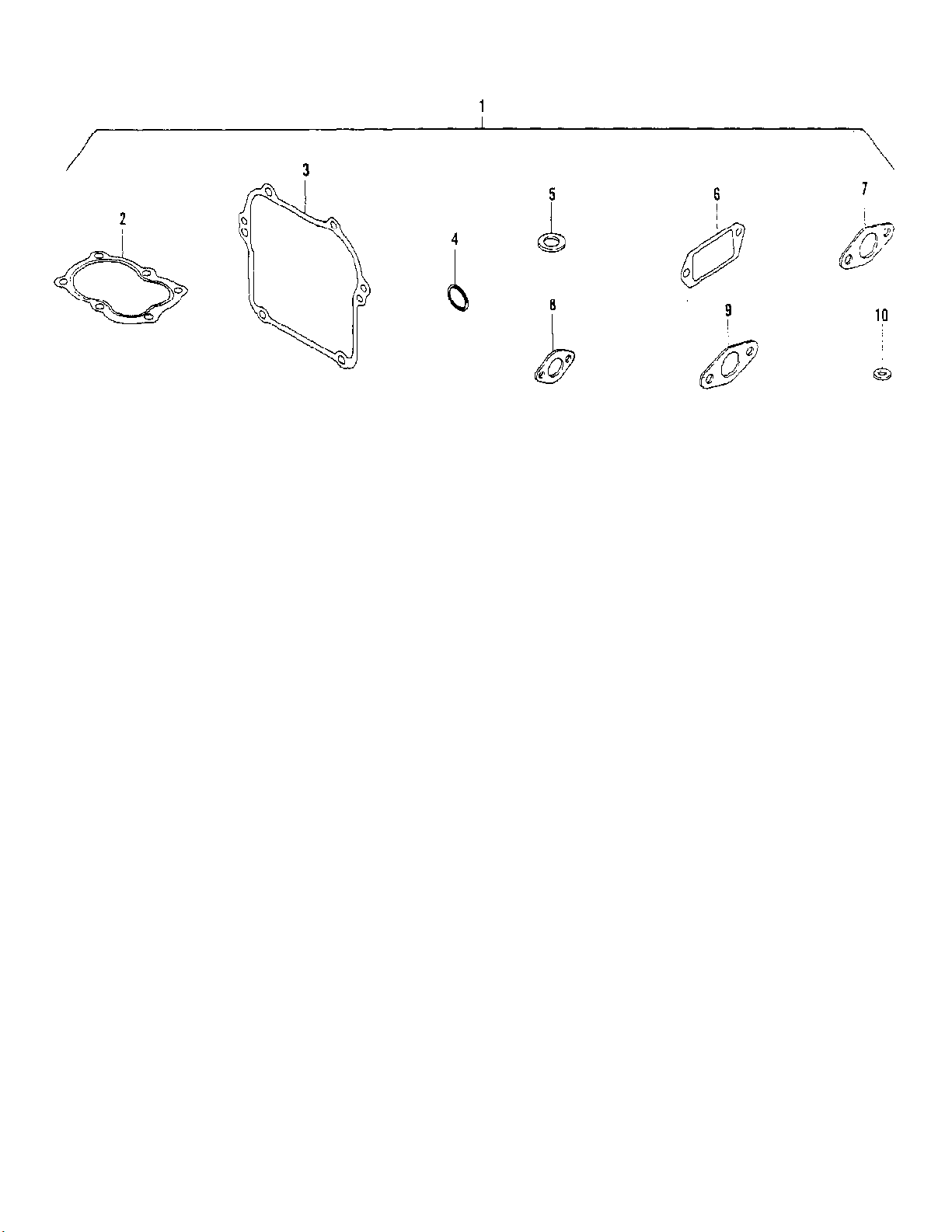

Gaskets
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 15 of 19
www.ktoutdoor.com
Gaskets
Ref # Part Number DescriptionQty
1 221222 Gasket Set1
2 221392 Gasket - Head1
3 221393 Gasket - Crank Case1
4 221924 O-Ring - 15P1
5 221982 Packing 121
6 221369 O-Ring - 15 P1
7 221224 Gasket - Carburetor2
8 221403 Gasket - Muffler1
9 221430 Gasket - Carburetor3
10 221920 Nylon Packing - 61
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 16 of 19
www.ktoutdoor.com

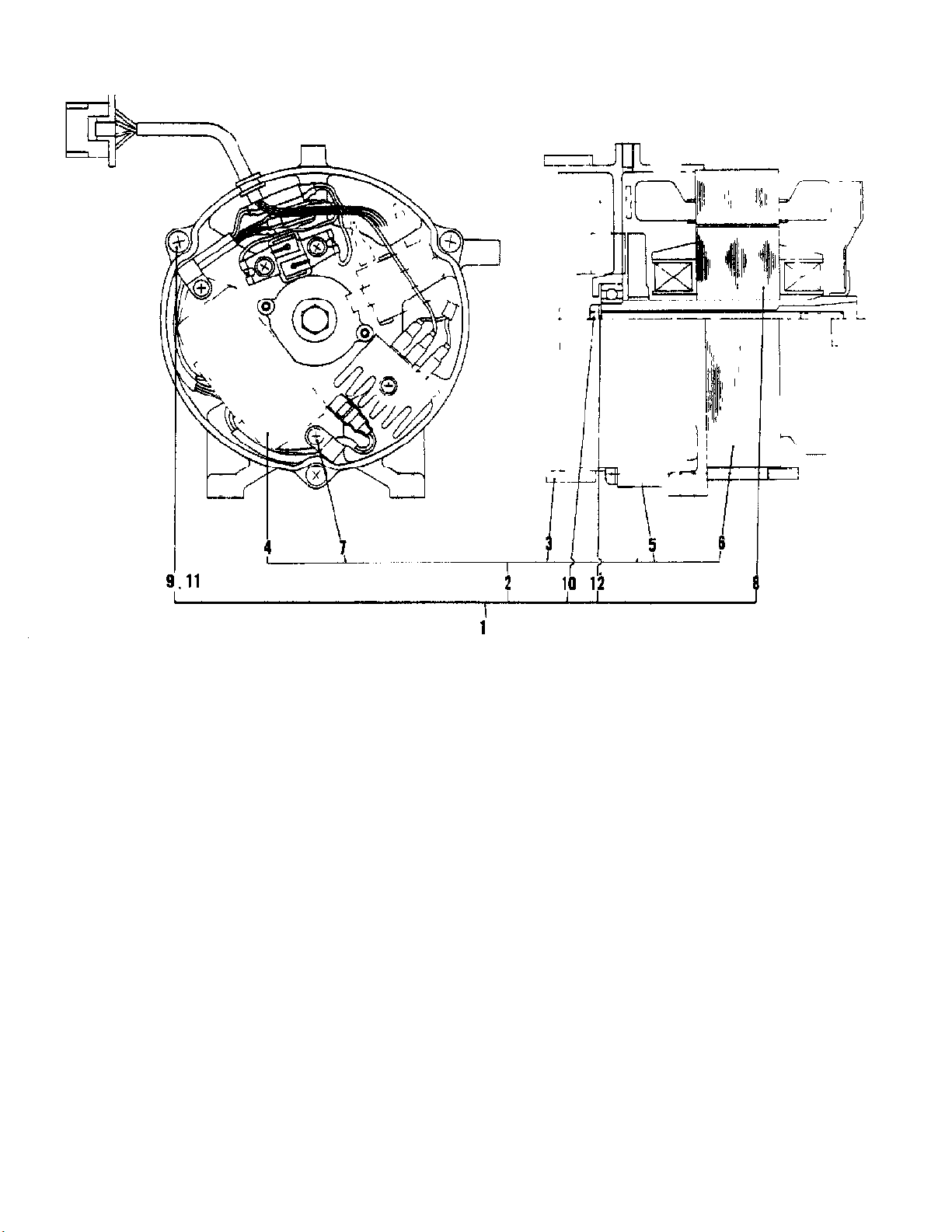

Generator Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 17 of 19
www.ktoutdoor.com
Generator Assembly
Ref # Part Number DescriptionQty
1 221699 Generator1
2 221700 Stator Asy.1
3 221701 Urethane Foam1
4 221702 Condenser1
5 221703 Cover - Rear1
6 221704 Stator1
7 221747 Screw M5 x 102
8 221705 Rotor Asy.1
9 221706 Bolt - Through3
10 221707 Bolt - Hard1
11 221904 Washer - Spring 63
12 221905 Washer - Spring 81
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 18 of 19
www.ktoutdoor.com

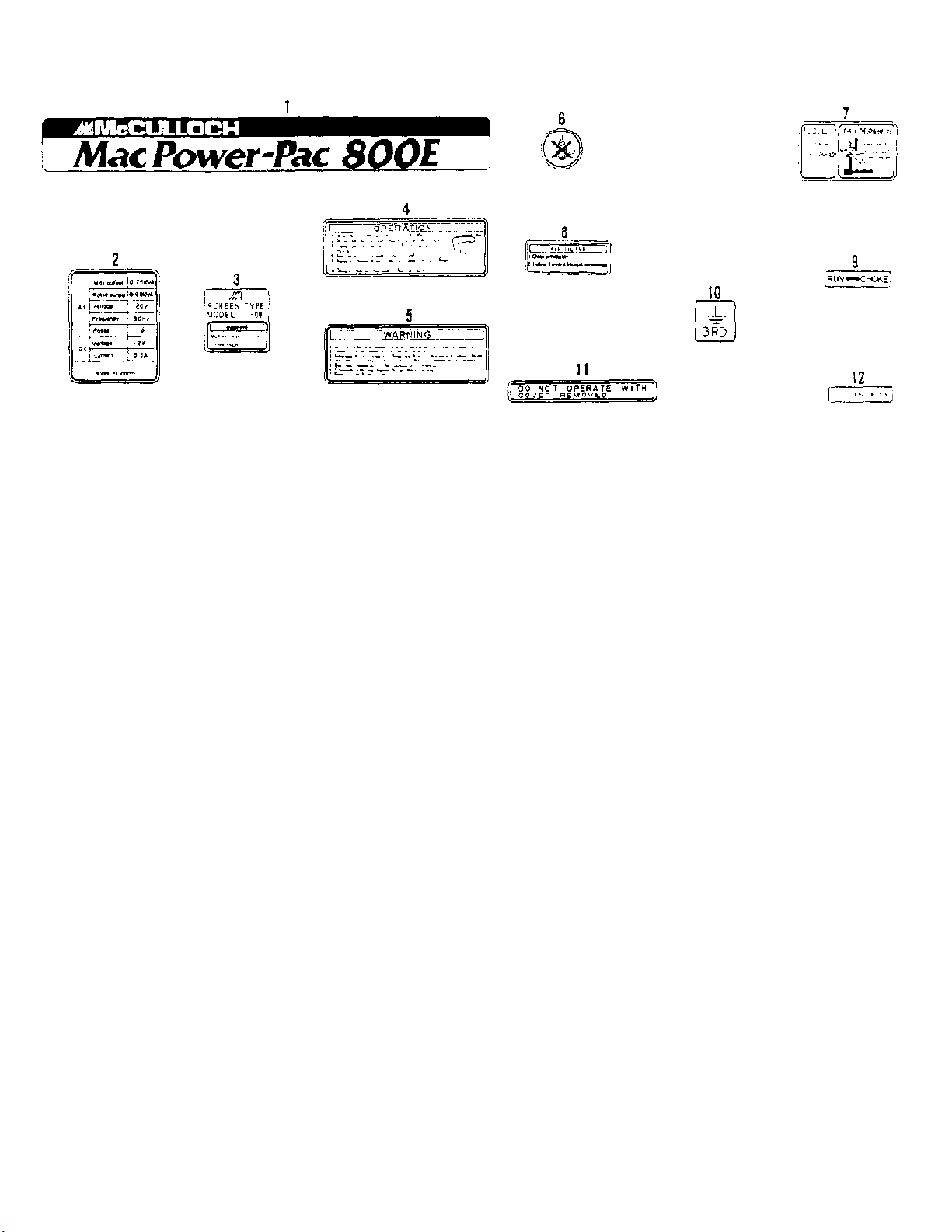

Labels
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-400042B MAC POWER-PAC 800 E 04/84 to 07/86 IPL 218541 Page 19 of 19
www.ktoutdoor.com
Labels
Ref # Part Number DescriptionQty
1 221995 Label - Mac1
2 221996 Label - Generator1
3 221997 Label - Muffler Caution1
4 221998 Operation Mark1
5 221999 Warning Mark1
6 222000 Non Fire Mark1
7 222001 Oil Label1
8 222002 Label - Air Cleaner1
9 222003 label - Choke1
10 222004 Label - Ground1
11 221005 Case Label - Caution2
12 222006 Label - Ampere1
K&T Saw Shop 606-678-9623 or 606-561-4983
