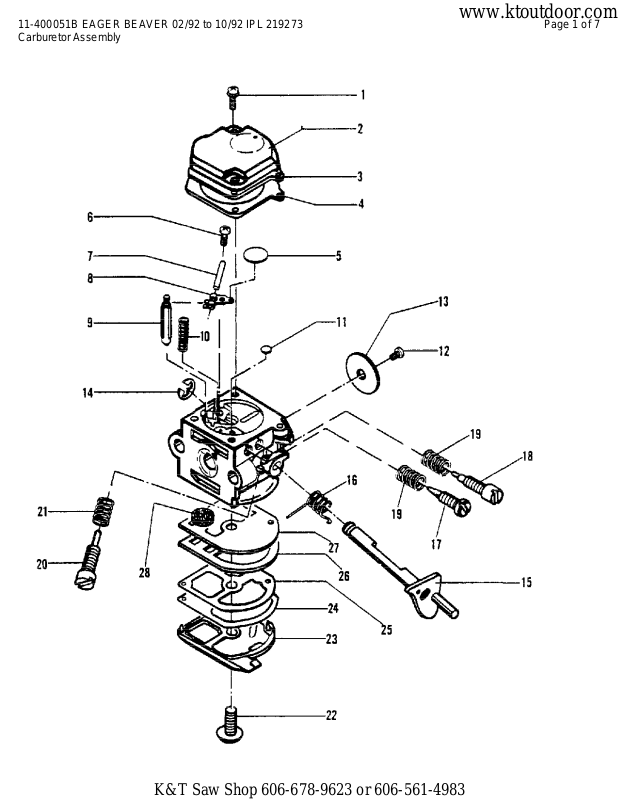

11-400051B EAGER BEAVER 02/92 to 10/92 IPL 219273 Page 1 of 7
www.ktoutdoor.com

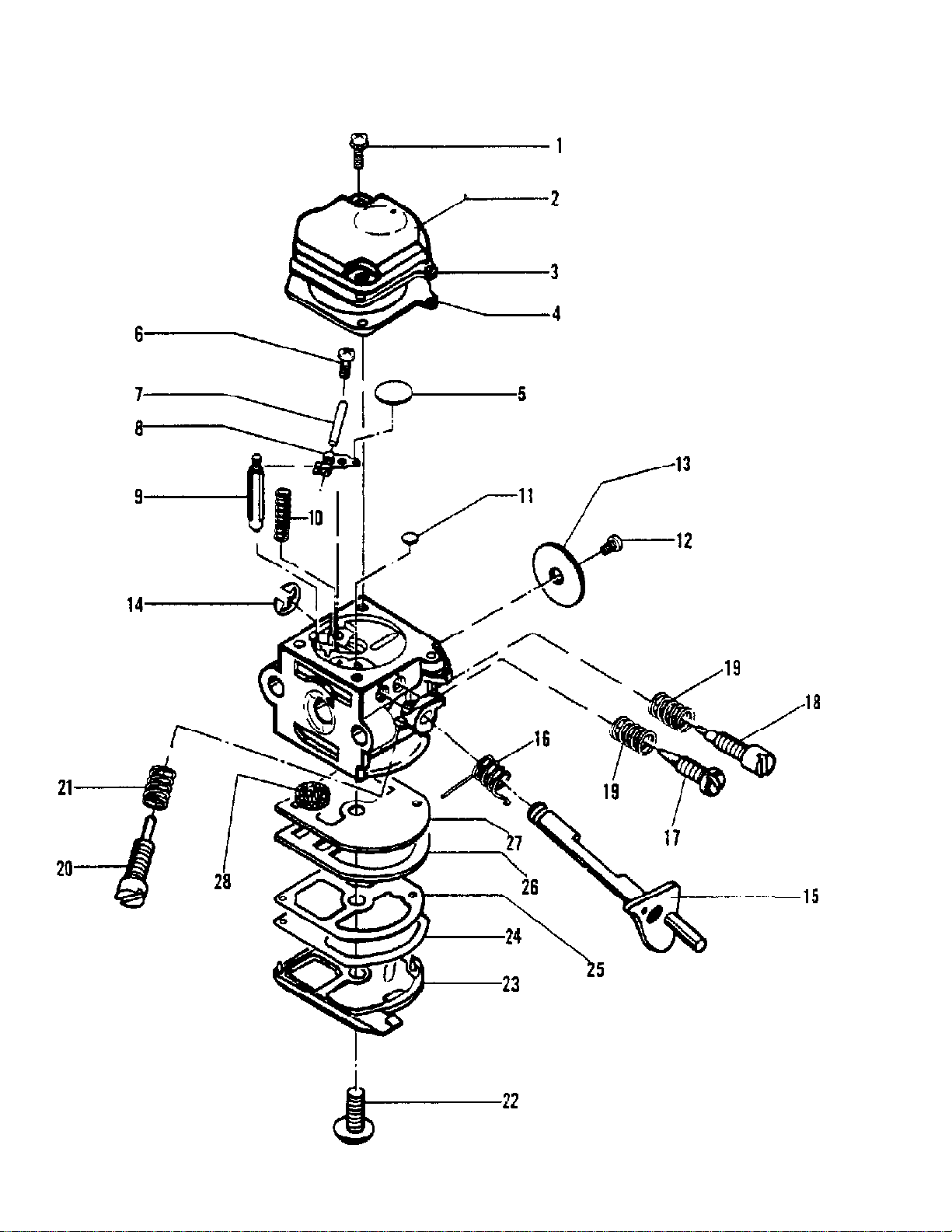

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400051B EAGER BEAVER 02/92 to 10/92 IPL 219273 Page 2 of 7
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
219205 Zama M-131
1 Screw Not available separately.2
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Main Not available separately.1
4 Gasket - Main Not available separately.1
5 Disc Not available separately.1
6 Screw - Pin Not available separately.1
7 Pin - Arm Not available separately.1
8 Arm - Needle Valve Not available separately.1
9 Valve - Needle Not available separately.1
10 Spring - Arm Not available separately.1
11 Plug - Welch Not available separately.1
12 Screw - Throttle Valve Not available separately.1
13 Valve - Throttle Not available separately.1
14 E-Ring Not available separately.1
15 Shaft Asy. - Throttle Not available separately.1
16 Spring - Throttle Return Not available separately.1
17 Needle Not available separately.1
18 Needle - Low Speed Adj. Not available separately.1
19 Spring - Needle Not available separately.2
20 Screw - Throttle Adj. Not available separately.1
21 Spring - Throttle Adj. Screw Not available separately.1
22 Screw - Cover Not available separately.1
23 Cover - Fuel Pump Not available separately.1
24 Diaphragm - Surge Not available separately.1
25 Gasket - Fuel Pump Not available separately.1
26 Retainer - Fuel Pump Not available separately.1
27 Diaphragm - Fuel Pump Not available separately.1
28 Strainer - Fuel Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400051B EAGER BEAVER 02/92 to 10/92 IPL 219273 Page 3 of 7
www.ktoutdoor.com

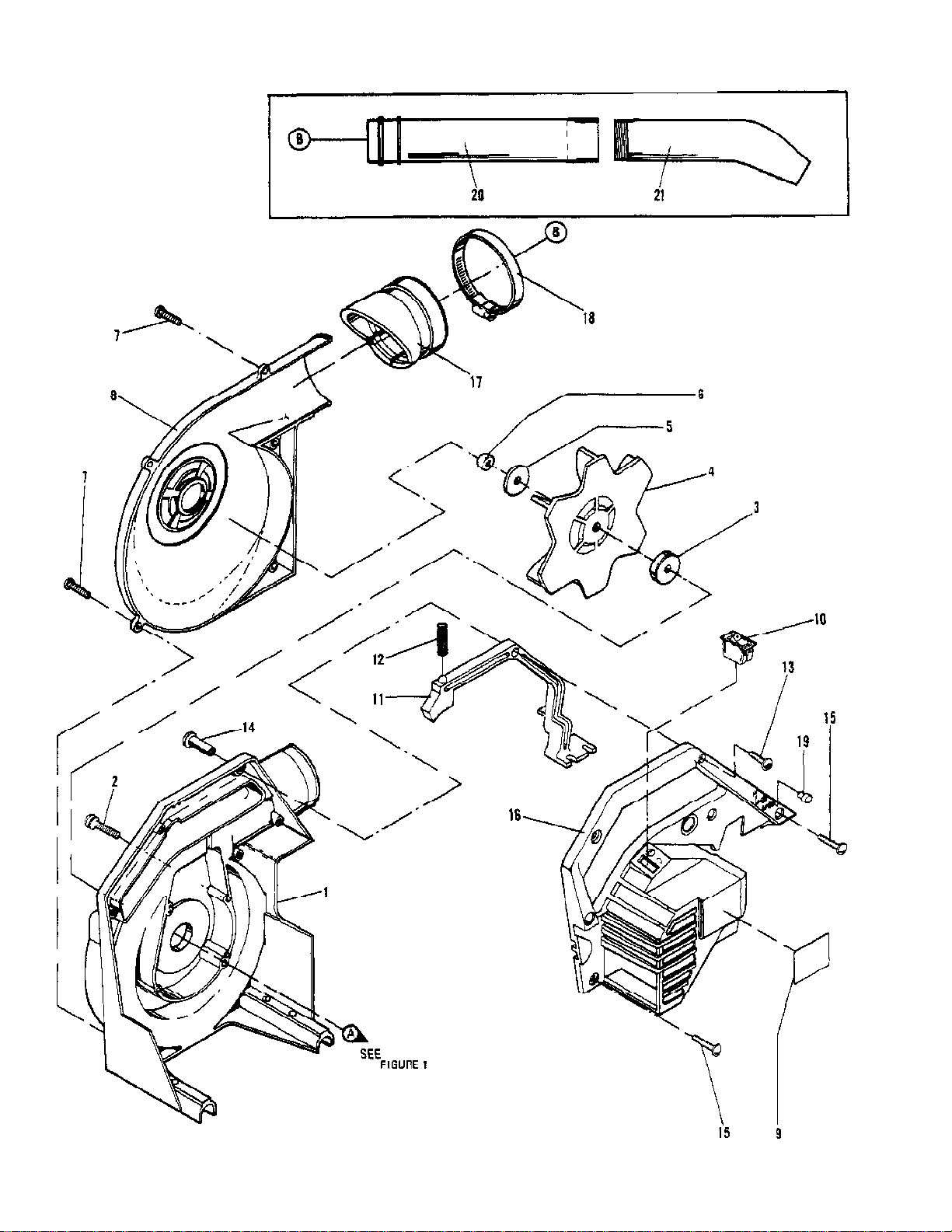

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400051B EAGER BEAVER 02/92 to 10/92 IPL 219273 Page 4 of 7
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 218547 Housing Inner1
2 216022 Screw-M-4 x 23.4 Torx (40-50 in. lb. Torque)4
3 218655 Disc-Drive1
4 219207 Impeller1
5 218656 Washer-Impeller1
6 213169 Nut-Hx Flange M-8 (90-100 in. lb. Torque)1
7 218644 Screw-10-14 x .75 Torx (35-45 in. lb. Torque)5
8 219206 Housing-Outer Impeller1
9 218797 Decal-Warning1
10 218648 Switch1
11 219189 Trigger1
12 218646 Spring-Trigger1
13 217935 Screw-10-24 x .50 Torx (45-55 in. lb. Torque)1
14 218676 Eyelet-Threaded1
15 218644 Screw-10-14 x .75 Torx (35-45 in. lb. Torque)5
16 218548 Shroud-Engine1
17 219174 Adapter-Tube1
18 219172 Clamp-Adapter1
19 219250 Plug-Hole1
20 219173 Blower Tube-Straight1
21 219179 Blower Nozzle-Curved1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400051B EAGER BEAVER 02/92 to 10/92 IPL 219273 Page 5 of 7
www.ktoutdoor.com

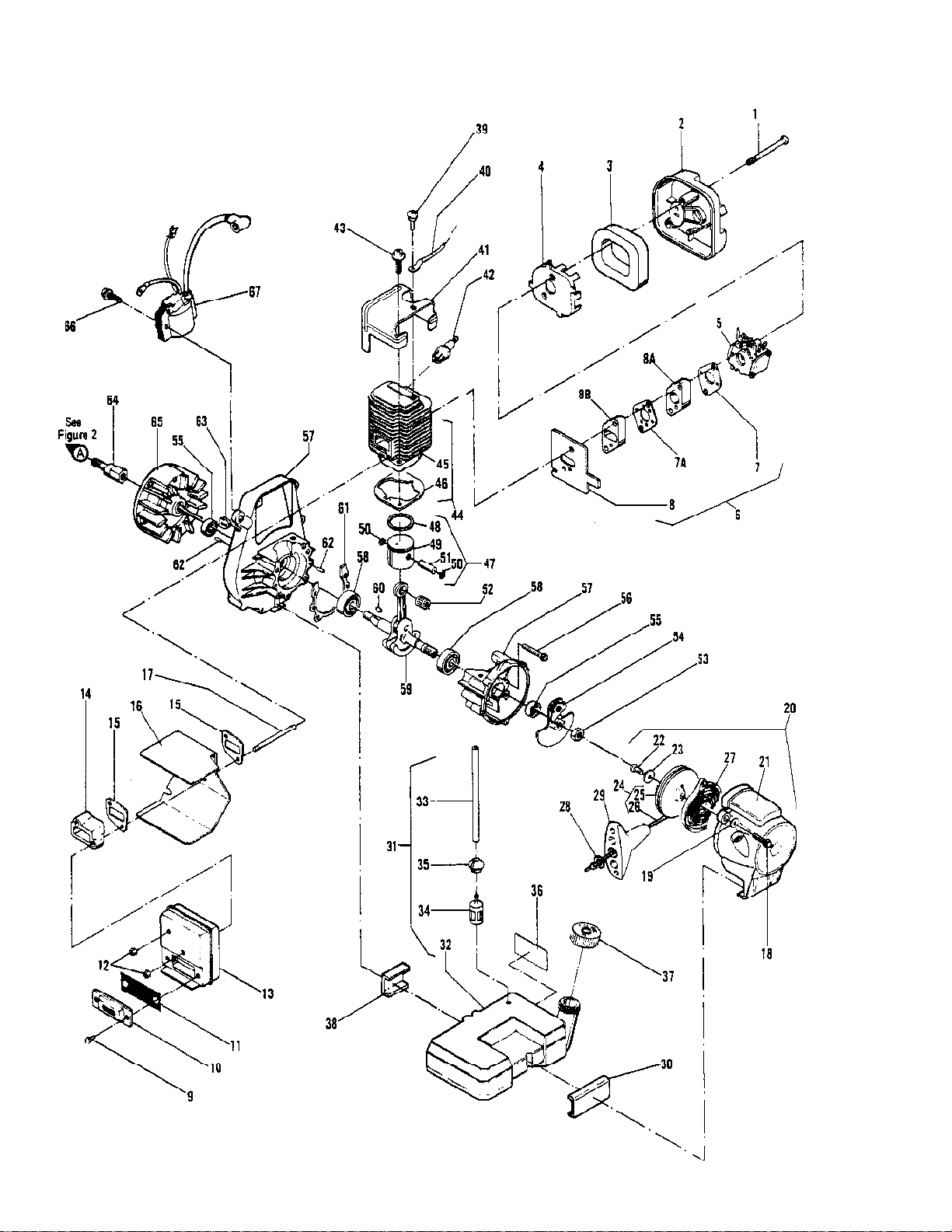

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400051B EAGER BEAVER 02/92 to 10/92 IPL 219273 Page 6 of 7
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 219246 Screw M-5 x 0.8 x 84.52
2 219098 Cover Assembly-Choke1
3 219145 Filter-Air1
4 219144 Box-Air1
5 Carburetor Assembly See Carburetor Assembly
6 219080 Gasket - Kit1
7 218919 Gasket - Carburetor1
7A 218933 Gasket - Spacer1
8 218918 Gasket/Shield Insulator1
8A 218931 Spacer - Carburetor1
8B 215771 Insulator - Carburetor1
9 216025 Screw M-4 x 8 Torx-Outlet (13-17 in. lb. Torque)2
10 219204 Outlet-Muffler1
11 215516 Screen-Spark Arrestor1
12 217275 Nut-Flange M-5 (32-51 in. lb. Torque)2
13 218651 Muffler Assembly1
14 218632 Spacer-Muffler1
15 218920 Gasket-Muffler2
16 218652 Shield-Muffler1
17 218631 Stud-M-5 x 79-Muffler (40-51 in. lb. Torque)2
18 213177 Screw M-4 x 18.9 Torx (12-16 in. lb. Torque)3
19 217672 Washer-M-4 Flat-Starter3
20 217388 Starter Assembly1
21 217389 Housing-Starter Assembly1
22 215874 Screw-M-4 x 9.5 Torx (17-22 in. lb. Torque)1
23 216590 Washer M-4 Flat1
24 216092 Drum/Rope Assembly1
25 215770 Drum-Starter1
26 216093 Rope-Starter1
27 217482 Spring-Starter1
28 218941 Washer-Nylon1
29 216792 Handle-Starter1
30 217382 Cushion-Fuel Tank/Starter1
31 218650 Fuel Tank/Hose Assembly1
32 218576 Tank-Fuel1
33 218915 Hose-Fuel1
34 216985 Pickup-Fuel1
35 215495 Grommet-Hose1
36 217383 Decal 40:11
37 216346 Cap-Fuel1
38 217390 Cushion-Fuel Tank/C'case1
39 213178 Screw-M-5 x 8.5 Torx (15-25 in. lb. Torque)1
40 218649 Terminal Assembly-Ground1
41 218586 Cover-Cylinder1
42 62345 Spark Plug-AC-CS45T (109-135 in. lb. Hand Torque)1
43 217320 Screw-M-6 x 18 Torx (72-83 in lb. Hand Torque)2
44 219081 Cylinder/Gasket Kit1
45 217296 Cylinder1
46 215542 Gasket-Cylinder/C'case1
47 219082 Piston Kit1
48 217475 Ring-Piston1
49 218273 Piston1
50 111026 Snap Ring-Wrist Pin2
51 218275 Pin-Wrist1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
Illustration and parts list
Page 7
11-400051B EAGER BEAVER 02/92 to 10/92 IPL 219273 Page 7 of 7
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
52 110984 Bearing-Needle1
53 216583 Nut-Hex M-8 Ratchet Assy (156-171 in. lb. Torque)1
54 215525 Ratchet Assembly (Hand Tighten Only)1
55 83859 Oil Seal-C'Shaft/C'case2
56 213179 Screw-M-5 x 28.5 (35-42 in. lb. Hand Torque)4
57 218185 Crankcase Assembly1
58 213282 Bearing-C'Shaft/C'case2
59 218106 Crankshaft/Con Rod Assy1
60 102164 Key-Flywheel1
61 215545 Gasket-Crankcase Halves1
62 213191 Pin4
63 215541 Grommet1
64 218654 Extension-Shaft (150-168 in. lb. Torque)1
65 217378 Flywheel1
66 213177 Screw-M-4 x 18.9 Ignition (13-16 in. lb. Torque)2
67 217439 Ignition1
