Page 1

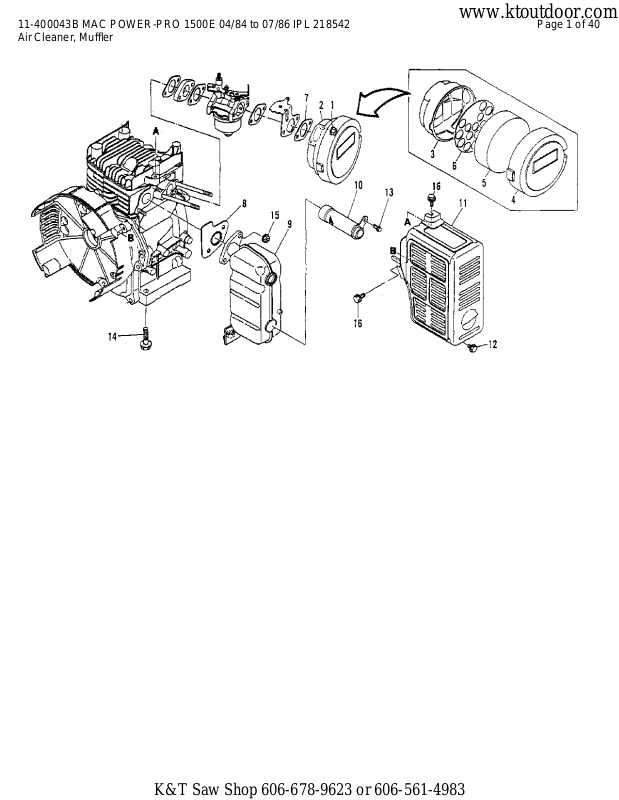

11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 1 of 40
www.ktoutdoor.com

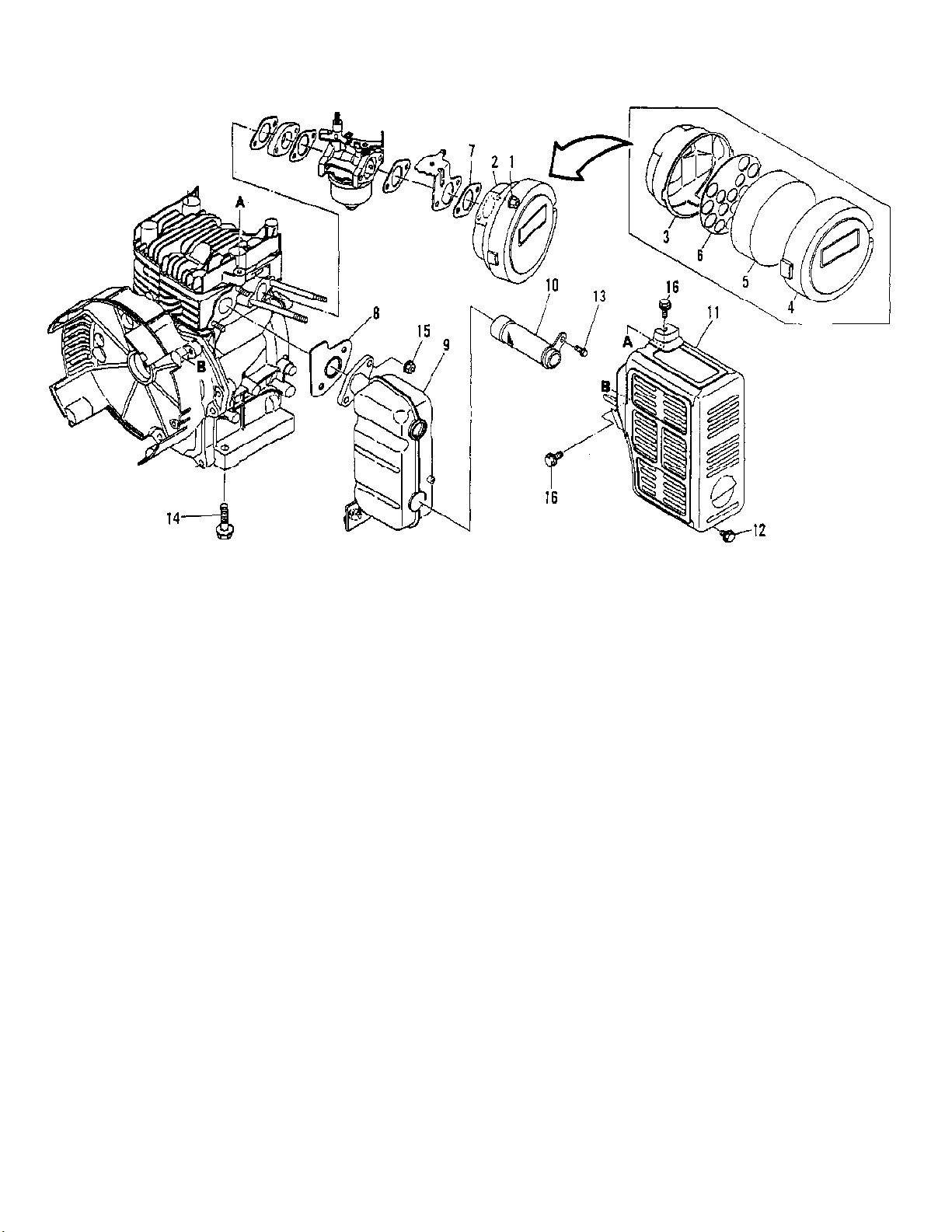

Air Cleaner, Muffler
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 2 of 40
www.ktoutdoor.com
Air Cleaner, Muffler
Ref # Part Number DescriptionQty
1 221940 Nut M62
2 222022 Cleaner Assy. - Air1
3 221314 Body - Air Cleaner1
4 222023 Cap - Air Cleaner1
5 221316 Element - Air Cleaner1
6 221317 Holder - Element1
7 223325 Gasket1
8 221318 Gasket - Muffler1
9 222024 Muffler1
10 222008 Spark Arrestor1
11 221375 Cover - Muffler1
12 221930 Bolt M6 X 81
13 222025 Bolt M6 X 101
14 221937 Bolt M8 X 301
15 221940 Nut M62
16 221944 Bolt M6 X 142
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 3 of 40
www.ktoutdoor.com

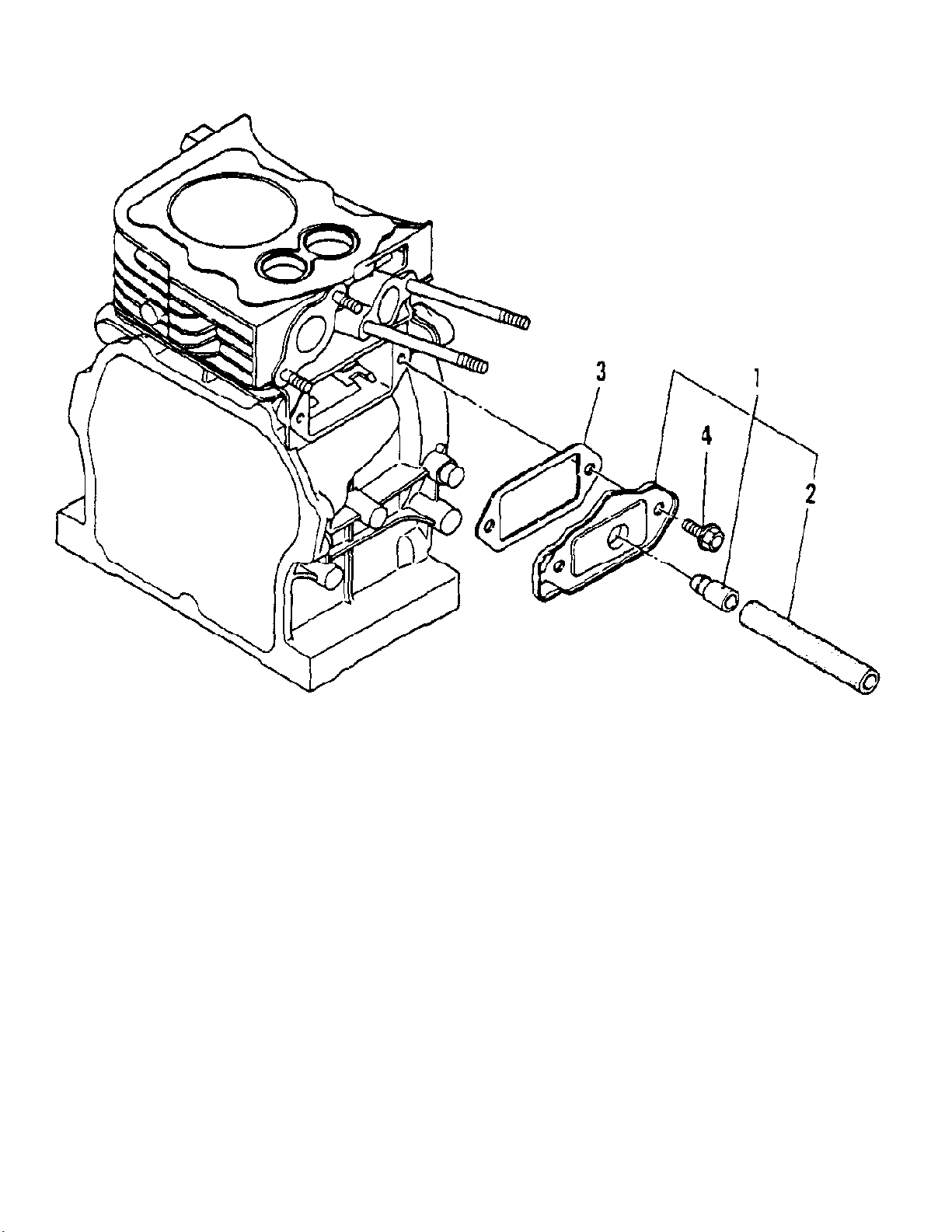

Breather
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 4 of 40
www.ktoutdoor.com
Breather
Ref # Part Number DescriptionQty
1 221478 Breather Assy.1
2 221481 Pipe - Breather1
3 221480 Gasket1
4 221944 Bolt M6 X 142
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 5 of 40
www.ktoutdoor.com

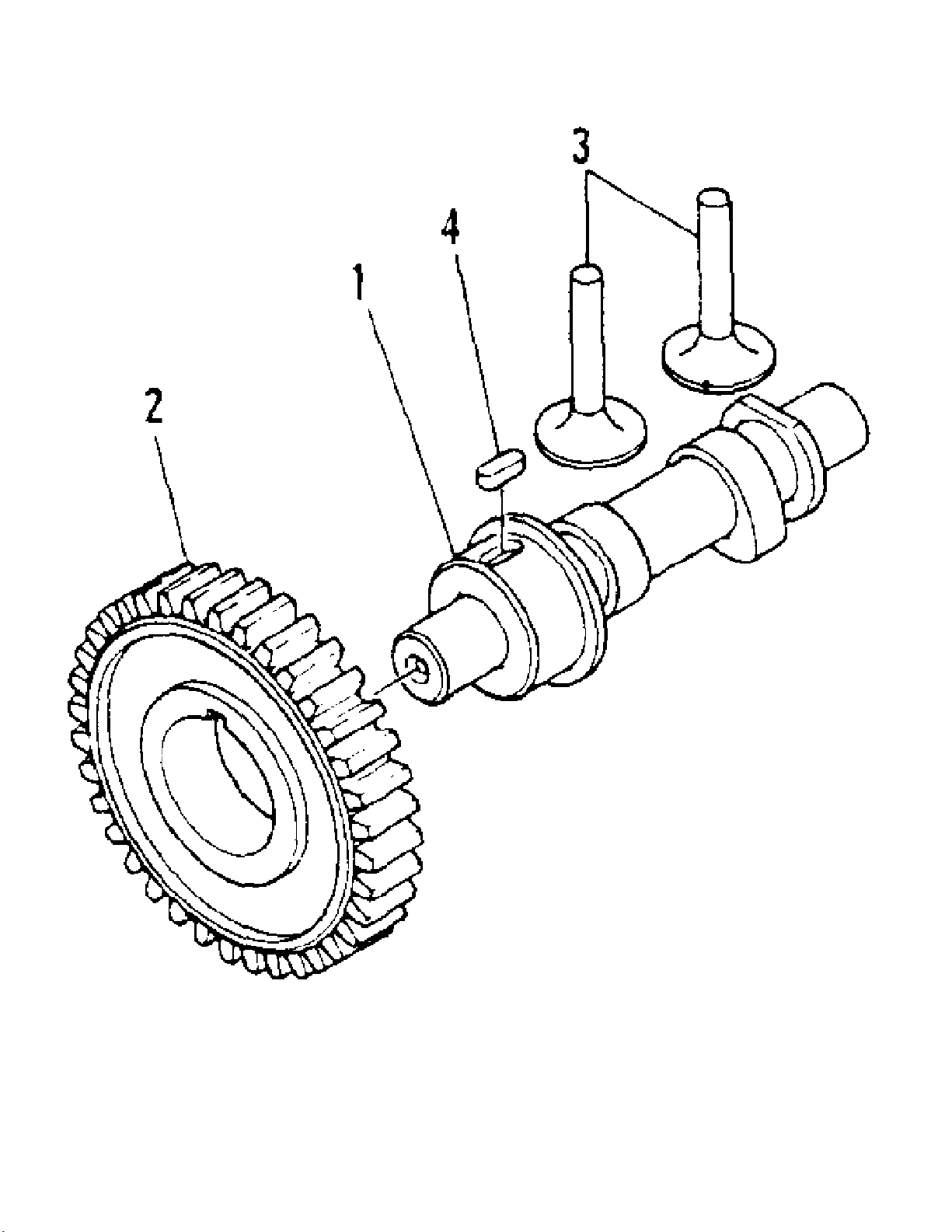

Camshaft
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 6 of 40
www.ktoutdoor.com
Camshaft
Ref # Part Number DescriptionQty
1 222064 Camshaft1
2 221382 Gear - Camshaft1
3 221319 Tappet2
4 221320 Key1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 7 of 40
www.ktoutdoor.com

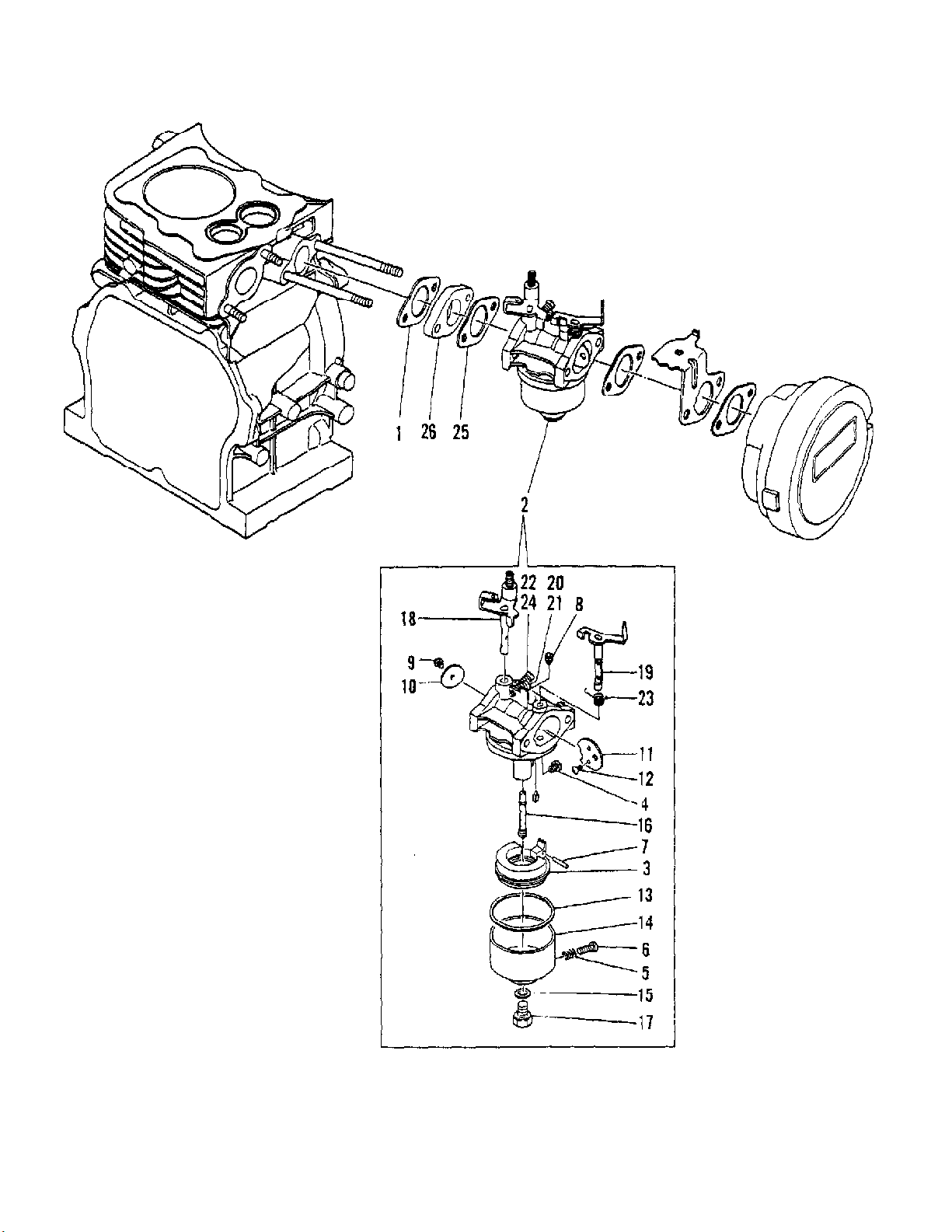

Carburetor
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 8 of 40
www.ktoutdoor.com
Carburetor
Ref # Part Number DescriptionQty
1 221238 Gasket1
2 221472 Carburetor1
3 221330 Float1
4 221517 Jet - Main1
5 221657 Spring1
6 221339 Screw1
7 221331 Pin1
8 221521 Jet - Pilot1
9 221223 Screw1
10 221337 Valve - Throttle1
11 221335 Valve - Choke1
12 221519 Screw2
13 221328 Gasket1
14 221332 Body - Float1
15 221327 Washer1
16 221238 Nozzle1
17 221333 Bolt1
18 221553 Shaft - Throttle1
19 221552 Shaft - Choke1
20 221656 Screw1
21 221657 Spring1
22 221336 Screw - Pilot1
23 221520 Spring1
24 221657 Spring1
25 221325 Gasket - Carburetor1
26 221326 Spacer - Carburetor1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 9 of 40
www.ktoutdoor.com

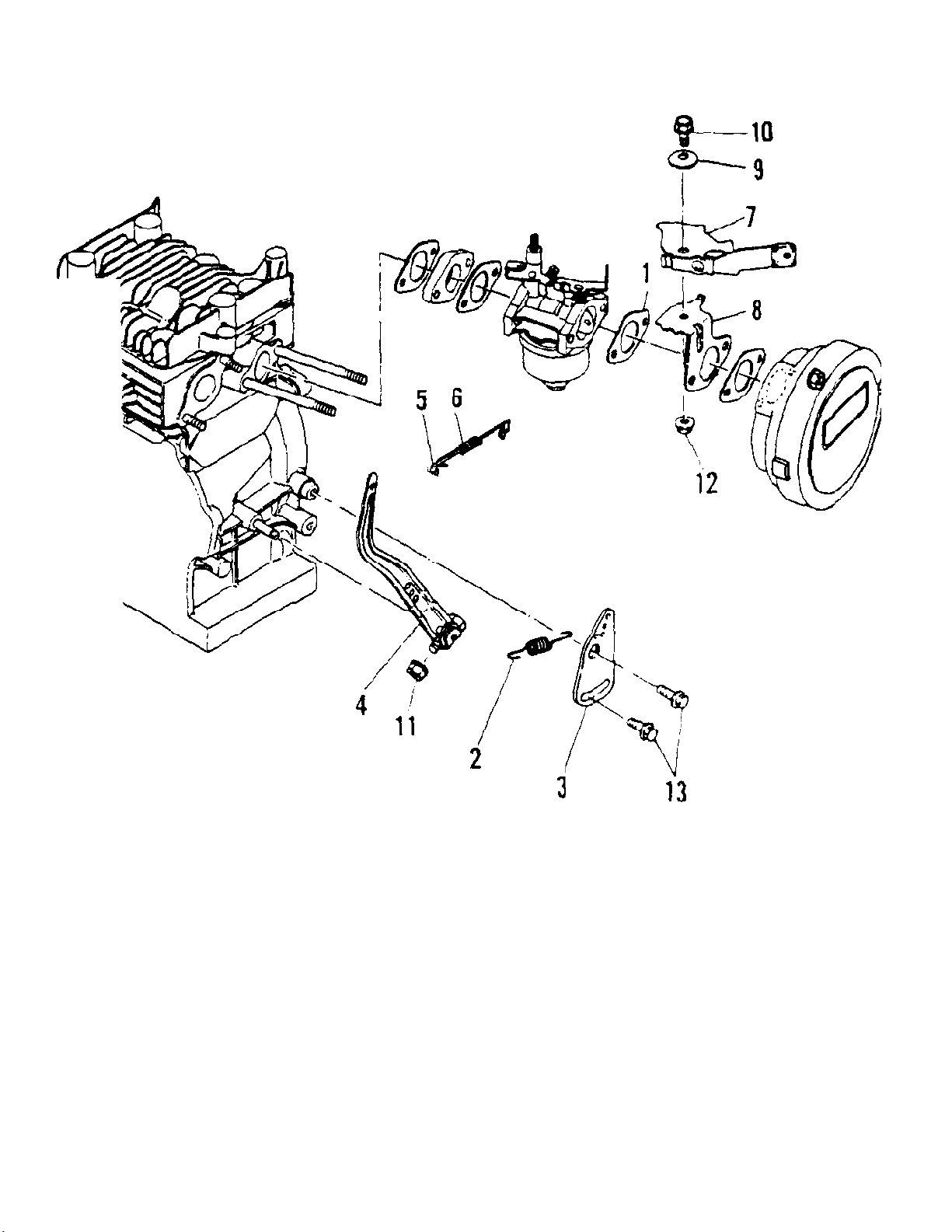

Control Device
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 10 of 40
www.ktoutdoor.com
Control Device
Ref # Part Number DescriptionQty
1 221325 Gasket - Carburetor1
2 221348 Spring - Regulator1
3 221652 Handle - Regulator1
4 222032 Lever - Governor1
5 221350 Link - Throttle1
6 221526 Spring - Tension1
7 221554 Lever Assy.1
8 221555 Bracket1
9 221469 Collar1
10 221931 Bolt M6 X 121
11 221940 Nut M61
12 221940 Nut M61
13 221944 Bolt M6 X 142
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 11 of 40
www.ktoutdoor.com

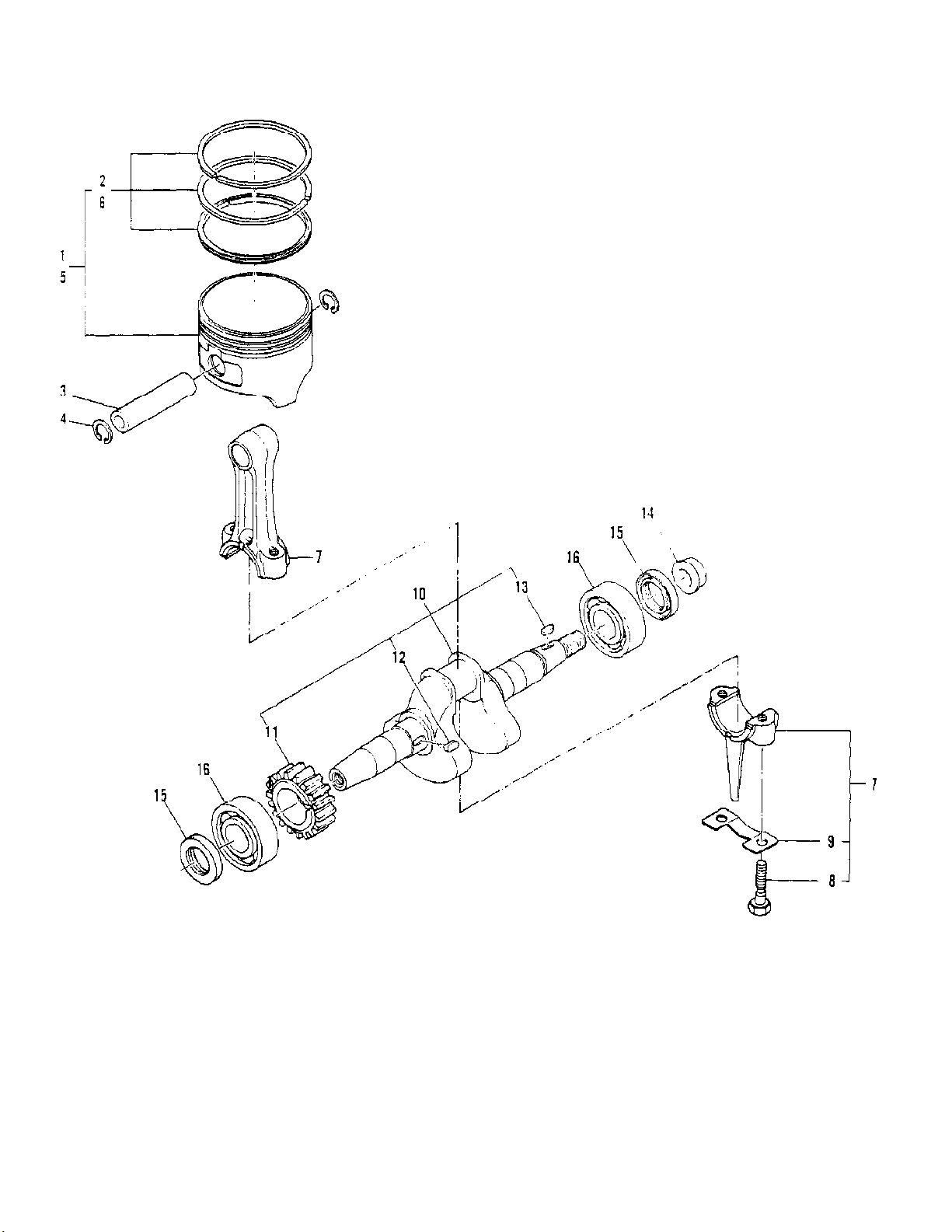

Crankshaft, Piston
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 12 of 40
www.ktoutdoor.com
Crankshaft, Piston
Ref # Part Number DescriptionQty
1 221364 Piston - W/Ring1
2 221961 Ring Set - Piston1
3 221369 Pin - Piston1
4 221909 Circlip2
5 221370 Piston1
6 222027 Ring Assy.1
7 221959 Rod Assy. - Connecting1
8 221322 Bolt - Rod2
9 221323 Washer1
10 221963 Crankshaft Assy.1
11 221383 Gear - Crankshaft1
12 221320 Key1
13 221320 Key1
14 221943 Nut M121
15 221292 Seal - Oil2
16 221921 Bearing2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 13 of 40
www.ktoutdoor.com

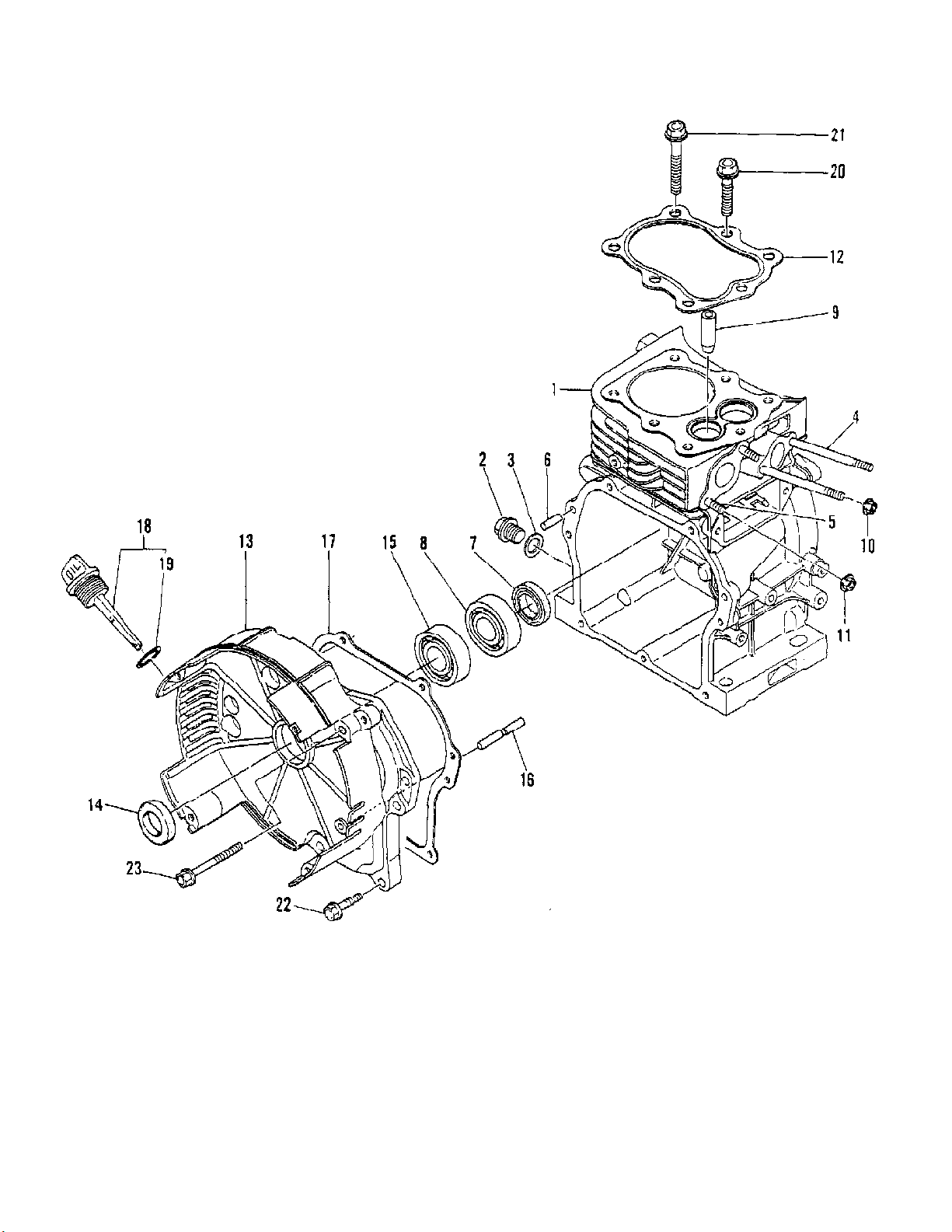

Cylinder Body
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 14 of 40
www.ktoutdoor.com
Cylinder Body
Ref # Part Number DescriptionQty
1 221960 Body Assy. - Cylinder1
2 221291 Plug - Drain1
3 221982 Gasket1
4 221304 Bolt M6 X 702
5 221305 Bolt M6 X 162
6 221913 Pin - Parallel2
7 221292 Oil Seal1
8 221921 Bearing1
9 221311 Valve Guide1
10 221940 Nut M62
11 221940 Nut M62
12 221359 Gasket - Cyl. Head1
13 221962 Slide - Cover Assy.1
14 221292 Seal - Oil1
15 221921 Bearing1
16 221341 Governor - Shaft1
17 221290 Gasket1
18 221476 Cap Comp.1
19 221925 O-Ring1
20 221299 Bolt M8 X 384
21 222001 Bolt M8 X 503
22 221946 Bolt M6 X 256
23 221949 Bolt M6 X 551
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 15 of 40
www.ktoutdoor.com

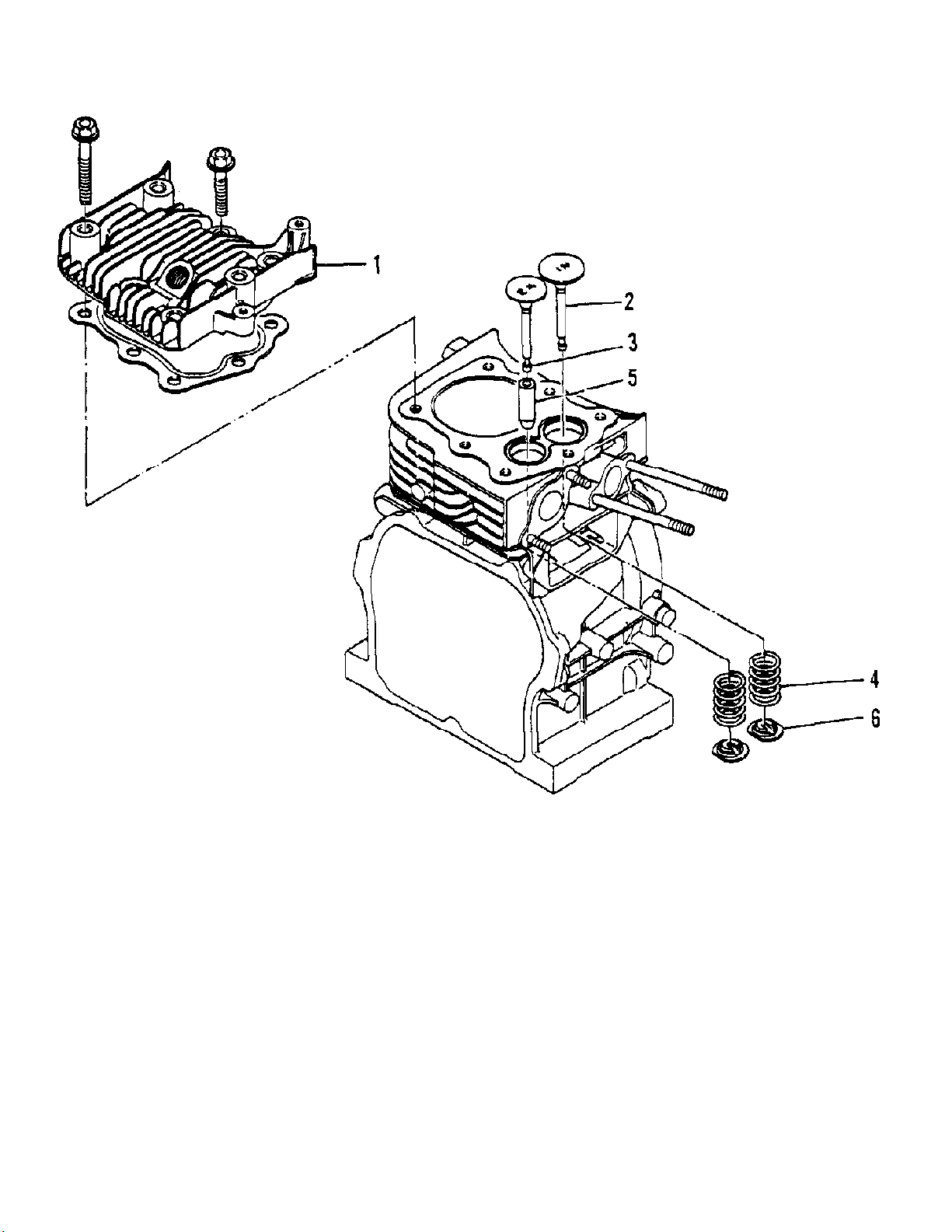

Cylinder Head
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 16 of 40
www.ktoutdoor.com
Cylinder Head
Ref # Part Number DescriptionQty
1 221363 Head - Cylinder1
2 221308 Valve - Suction1
3 221309 Valve - Exhaust1
4 221310 Spring - Valve2
5 221311 Guide - Valve1
6 221312 Retainer2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 17 of 40
www.ktoutdoor.com

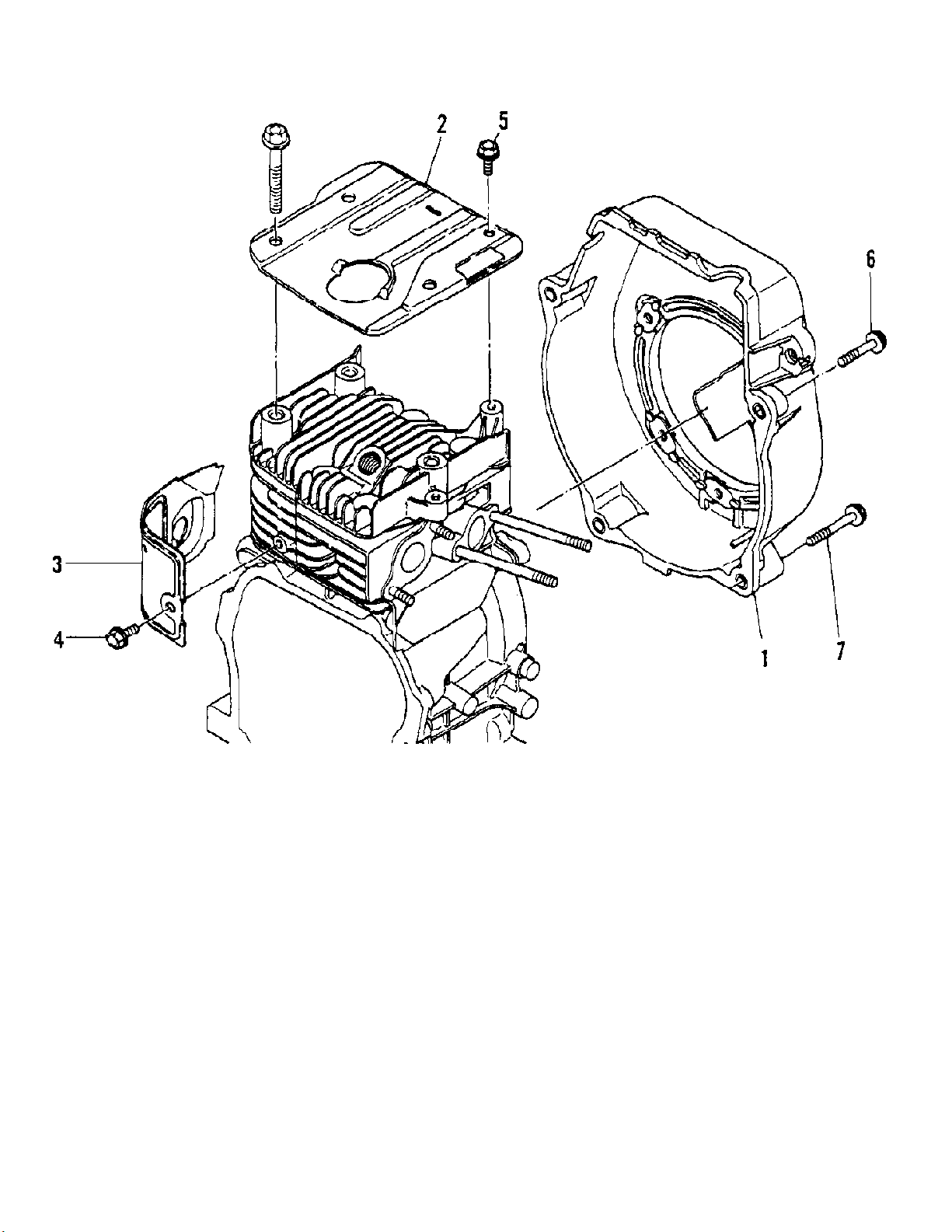

Fan Case
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 18 of 40
www.ktoutdoor.com
Fan Case
Ref # Part Number DescriptionQty
1 222028 Fan Case1
2 221371 Cover - Cylinder head1
3 222029 Cover - Cylinder1
4 221944 Bolt M6 X 141
5 221944 Bolt M6 X 141
6 221946 Bolt M6 X 251
7 221948 Bolt M6 X 403
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 19 of 40
www.ktoutdoor.com

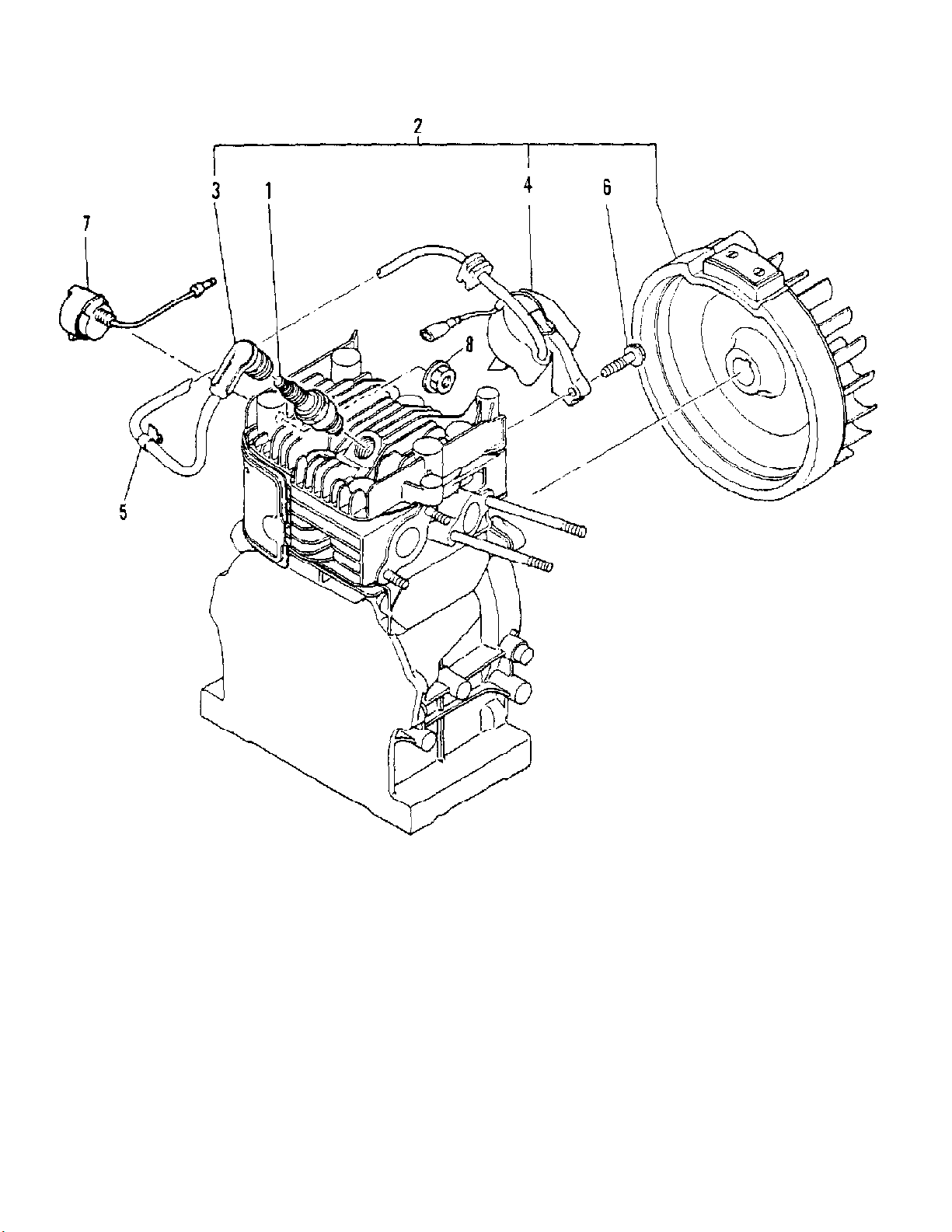

Stop Switch, Flywheel
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 20 of 40
www.ktoutdoor.com
Stop Switch, Flywheel
Ref # Part Number DescriptionQty
1 222016 Spark Plug1
2 222036 Flywheel Magnet Assy.1
3 221240 Cap - Plug1
4 222017 Ignition Coil1
5 221531 Clamp1
6 221946 Bolt M6 X 252
7 222015 Stop Switch1
8 221941 Nut M81
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 21 of 40
www.ktoutdoor.com

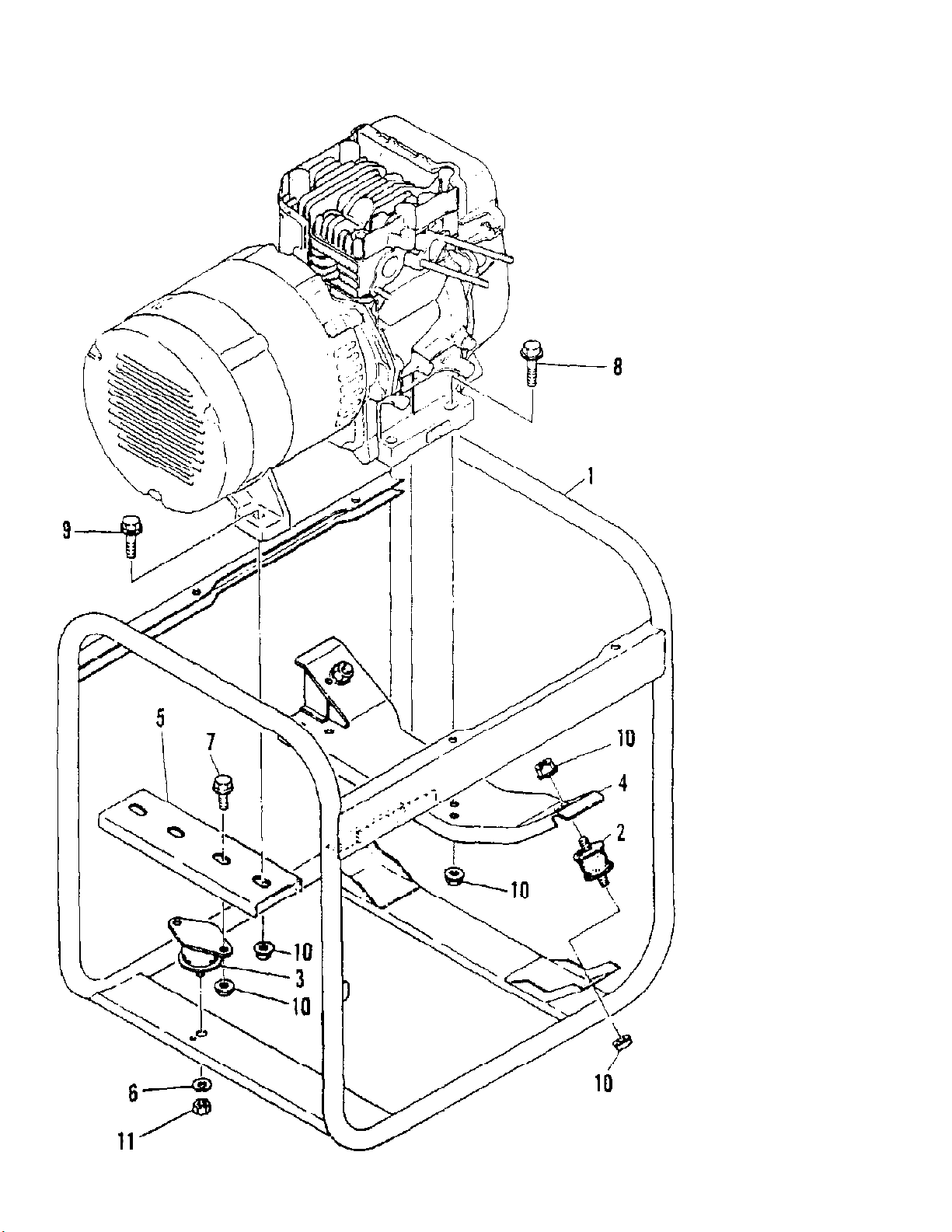

Frame
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 22 of 40
www.ktoutdoor.com
Frame
Ref # Part Number DescriptionQty
1 222043 Frame1
2 221800 Damper - Front2
3 221760 Damper - Rear1
4 221761 Stay - Damper1
5 221802 Stay - Rear Damper1
6 221906 Washer1
7 221936 Bolt M8 X 202
8 221937 Bolt M8 X 302
9 222044 Bolt M8 X 382
10 221941 Nut M810
11 221950 Nut M101
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 23
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 23 of 40
www.ktoutdoor.com

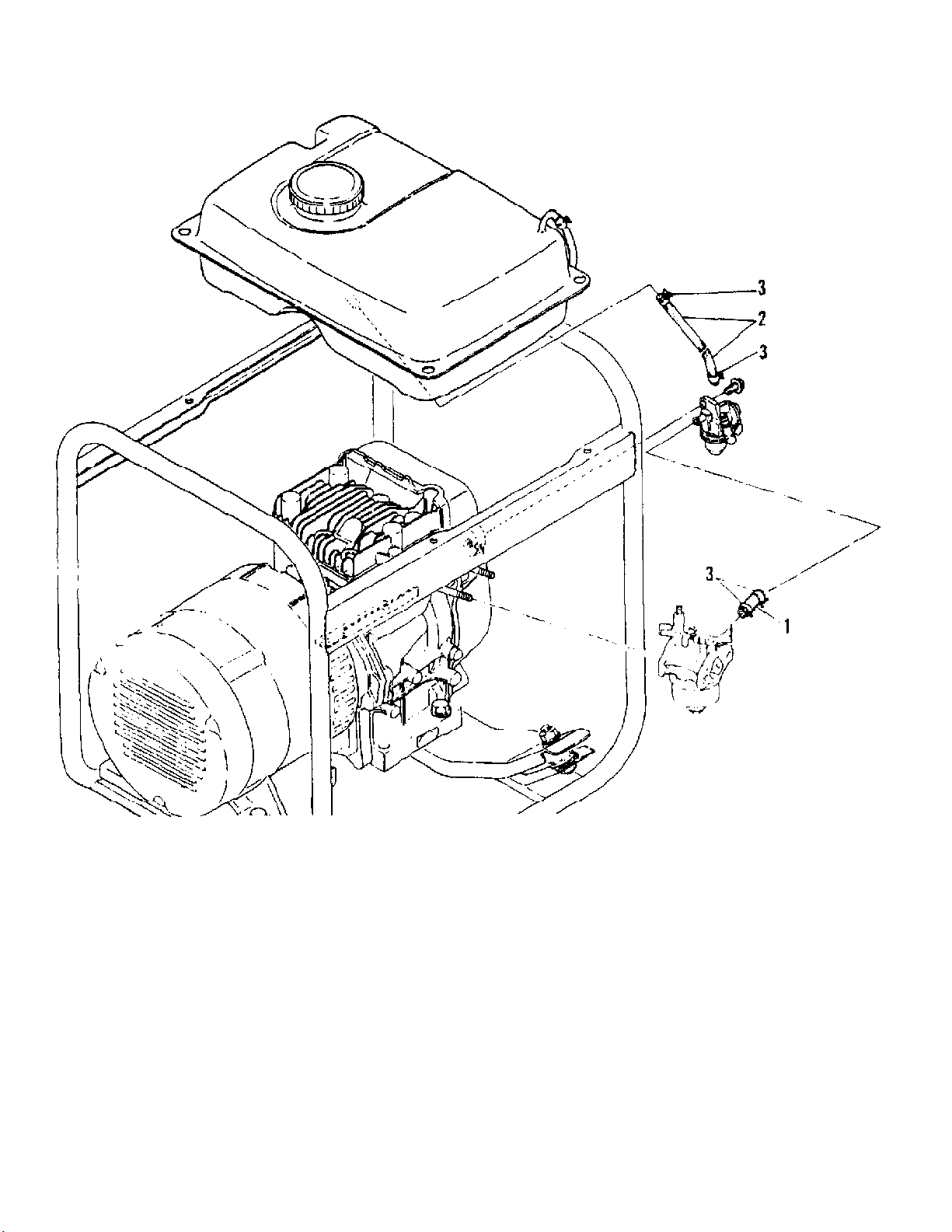

Fuel Pipe
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 24
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 24 of 40
www.ktoutdoor.com
Fuel Pipe
Ref # Part Number DescriptionQty
1 221340 Pipe - Fuel1
2 221742 Pipe - Fuel1
3 221220 Clamp4
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 25
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 25 of 40
www.ktoutdoor.com

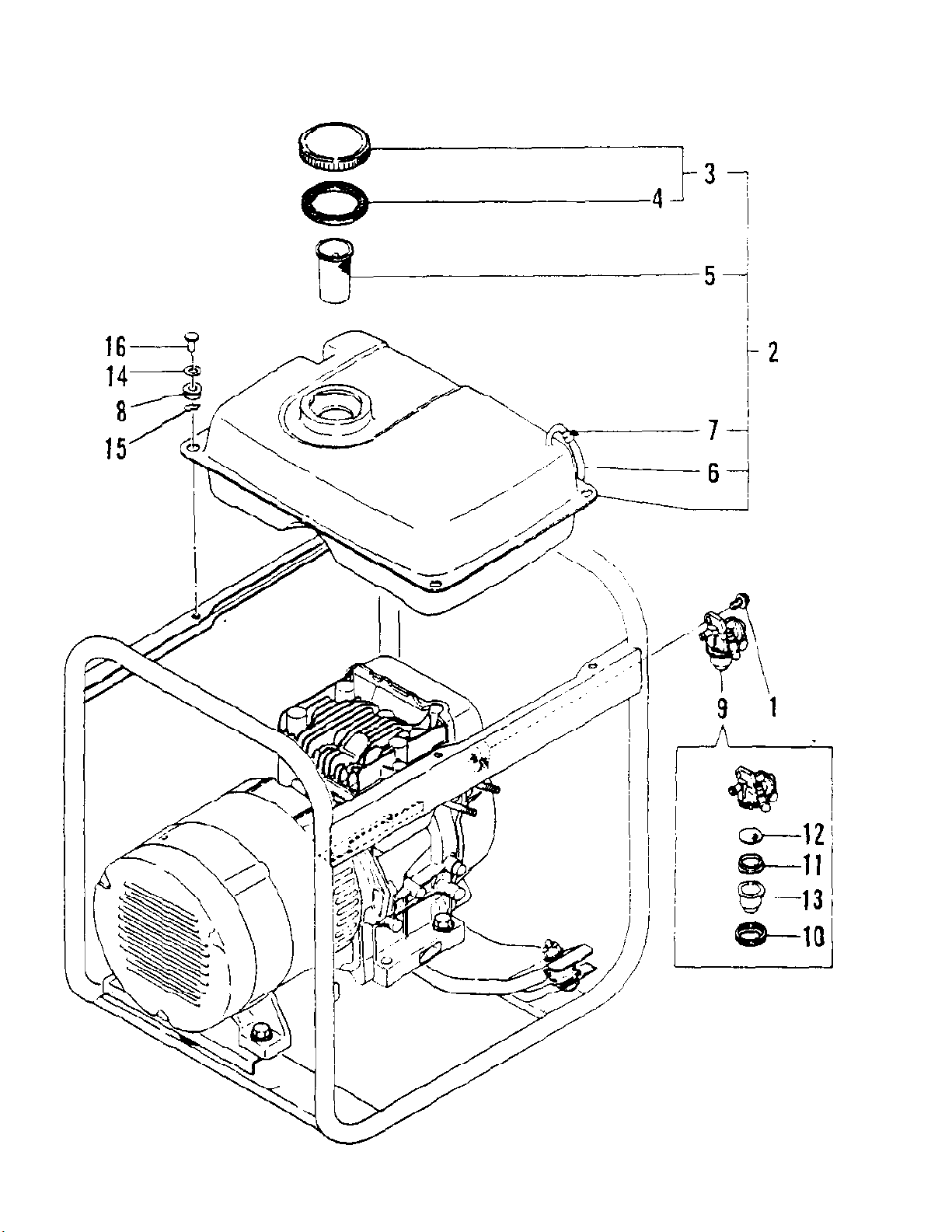

Fuel Tank
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 26
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 26 of 40
www.ktoutdoor.com
Fuel Tank
Ref # Part Number DescriptionQty
1 221930 Bolt M6 X 81
2 222030 Fuel Tank Assy.1
3 221508 Cap Assy. - Fuel tank1
4 221241 Gasket - Cap1
5 221230 Filter - Fuel1
6 222076 Pipe - Fuel Gauge1
7 221221 Clamp2
8 221805 Grommet4
9 221511 Cock Assy. - Fuel1
10 221513 Ring1
11 221514 Gasket1
12 221515 Filter1
13 221516 Cup1
14 221224 Washer4
15 221914 Pin - Snap4
16 221915 Pin4
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 27
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 27 of 40
www.ktoutdoor.com

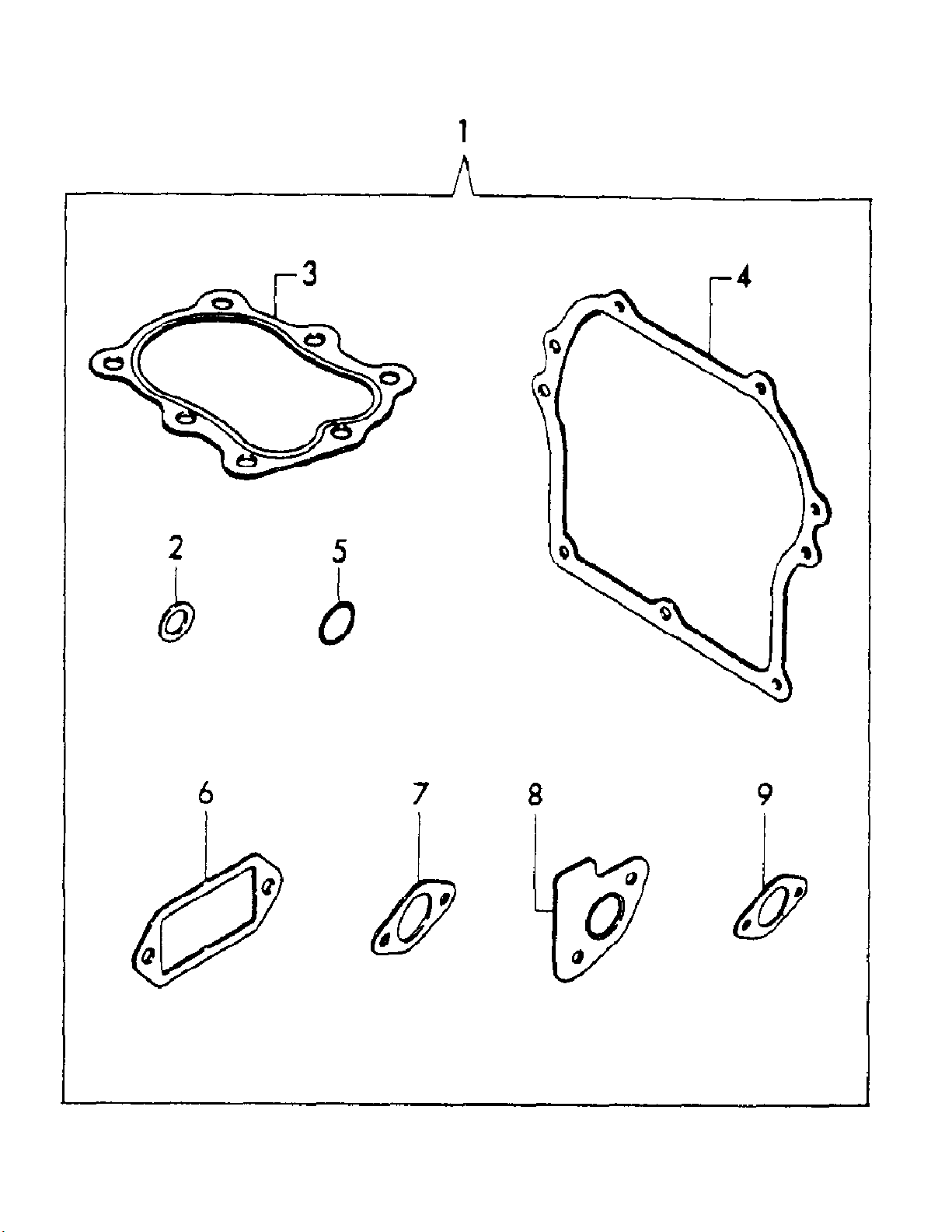

Gasket Set
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 28
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 28 of 40
www.ktoutdoor.com
Gasket Set
Ref # Part Number DescriptionQty
1 222038 Gasket set1
2 221982 Gasket1
3 221359 Gasket - Cyl. Head1
4 221290 Gasket1
5 221925 O-Ring1
6 221480 Gasket1
7 221325 Gasket3
8 221318 Gasket - Muffler1
9 221238 Gasket1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 29
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 29 of 40
www.ktoutdoor.com

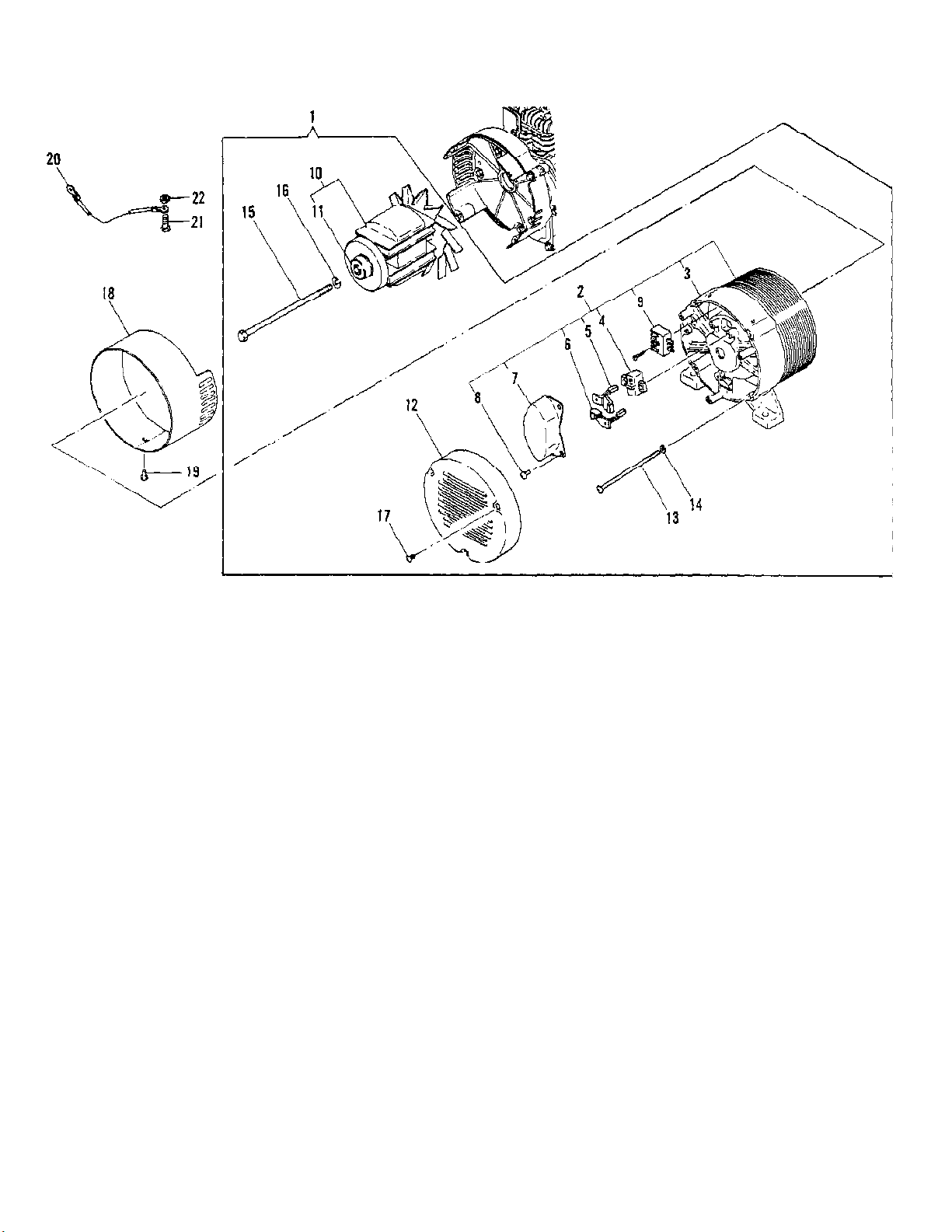

Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 30
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 30 of 40
www.ktoutdoor.com
Generator
Ref # Part Number DescriptionQty
1 222011 Generator1
2 221764 Stator Assy.1
3 221765 Cover - Rear1
4 221746 Holder - Brush1
5 221744 Brush (+)1
6 221745 Brush (-)1
7 221809 A.V.R.1
8 221867 Screw M5 X 142
9 221817 Rectifier1
10 221868 Rotor Assy.1
11 221748 Bearing1
12 221749 Cover1
13 221750 Bolt4
14 221904 Spring Washer4
15 221751 Bolt1
16 221905 Spring Washer1
17 221722 Screw M4 X 83
18 222033 Band1
19 221930 Bolt M6 X 81
20 222034 Wire - Ground1
21 221932 Bolt M6 X 161
22 221952 Nut M61
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 31
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 31 of 40
www.ktoutdoor.com

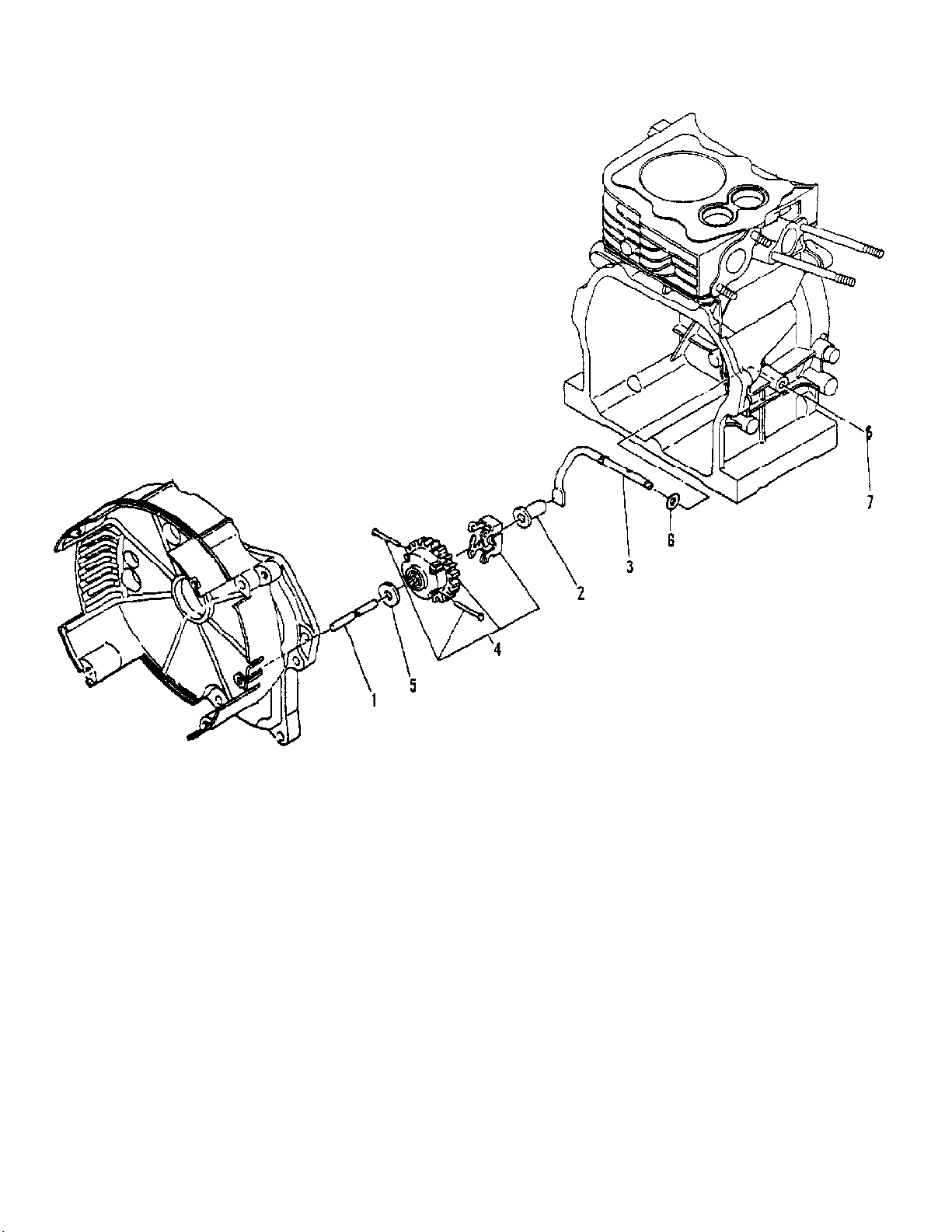

Governor
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 32
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 32 of 40
www.ktoutdoor.com
Governor
Ref # Part Number DescriptionQty
1 221341 Shaft - Governor1
2 221345 Spindle1
3 221346 Yoke1
4 221386 Gear Assy, - Governor1
5 221224 Washer1
6 221902 Washer1
7 221914 Snap Pin1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 33
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 33 of 40
www.ktoutdoor.com

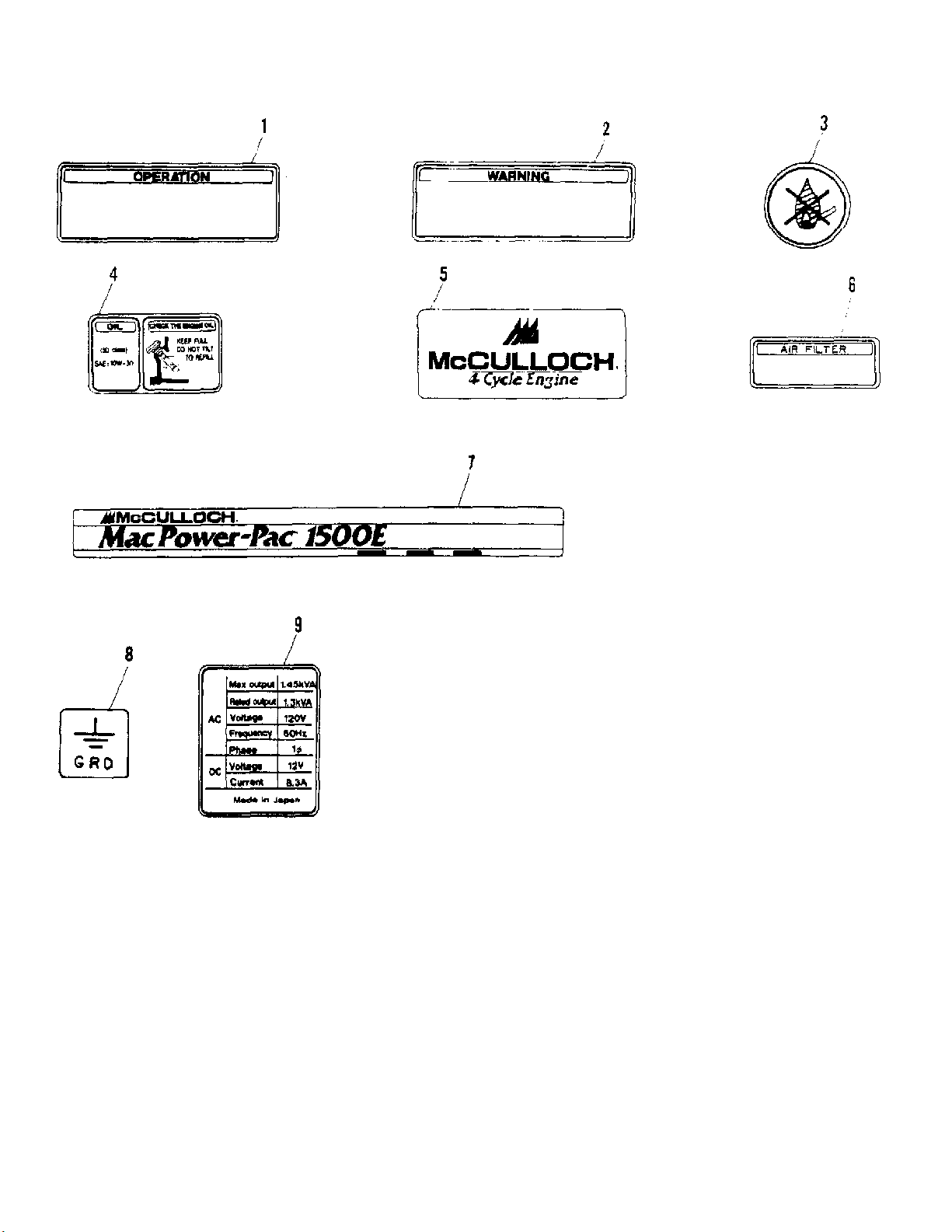

Labels
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 34
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 34 of 40
www.ktoutdoor.com
Labels
Ref # Part Number DescriptionQty
1 221756 Operation Mark1
2 221999 Warning Mark1
3 222000 Non Fire Mark1
4 222001 Oil Label1
5 222068 Label - Mac1
6 222002 Label - Air Cleaner1
7 222039 Generator Label1
8 222004 Label - Ground1
9 222040 Label - Generator1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 35
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 35 of 40
www.ktoutdoor.com

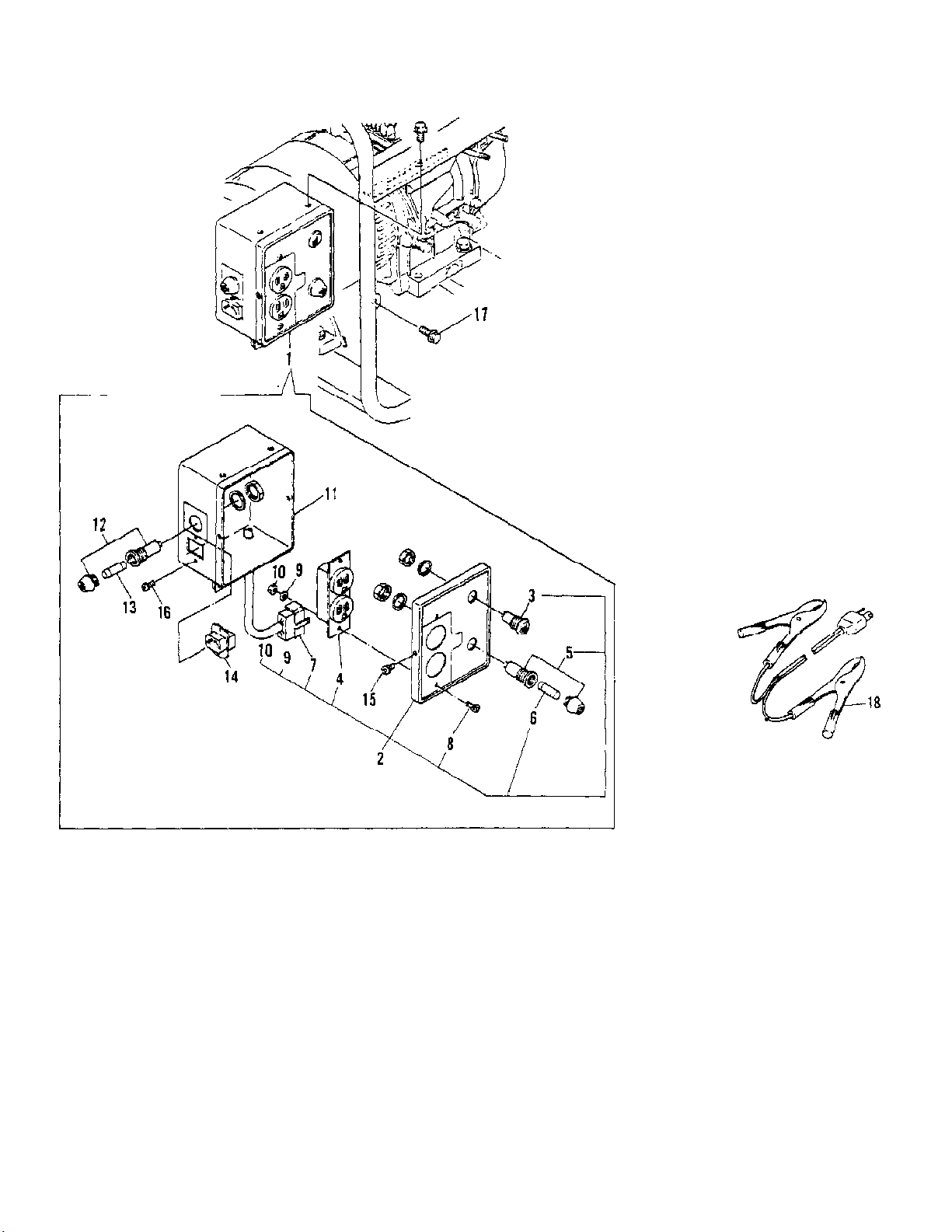

Panel
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 36
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 36 of 40
www.ktoutdoor.com
Panel
Ref # Part Number DescriptionQty
1 222057 Panel Box Assy.1
2 221770 Panel Assy.1
3 221881 Lamp1
4 221896 Socket1
5 221752 Holder - Fuse1
6 221780 Fuse1
7 221774 Wire Harness1
8 221927 Screw M4 X 82
9 221901 Washer2
10 221900 Nut M42
11 221773 Sox Assy.1
12 221752 Holder1
13 221824 Fuse1
14 221825 Socket1
15 221927 Screw M4 X 82
16 221926 Screw M3 X 102
17 221930 Bolt M6 X 83
18 221719 Cable1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 37
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 37 of 40
www.ktoutdoor.com

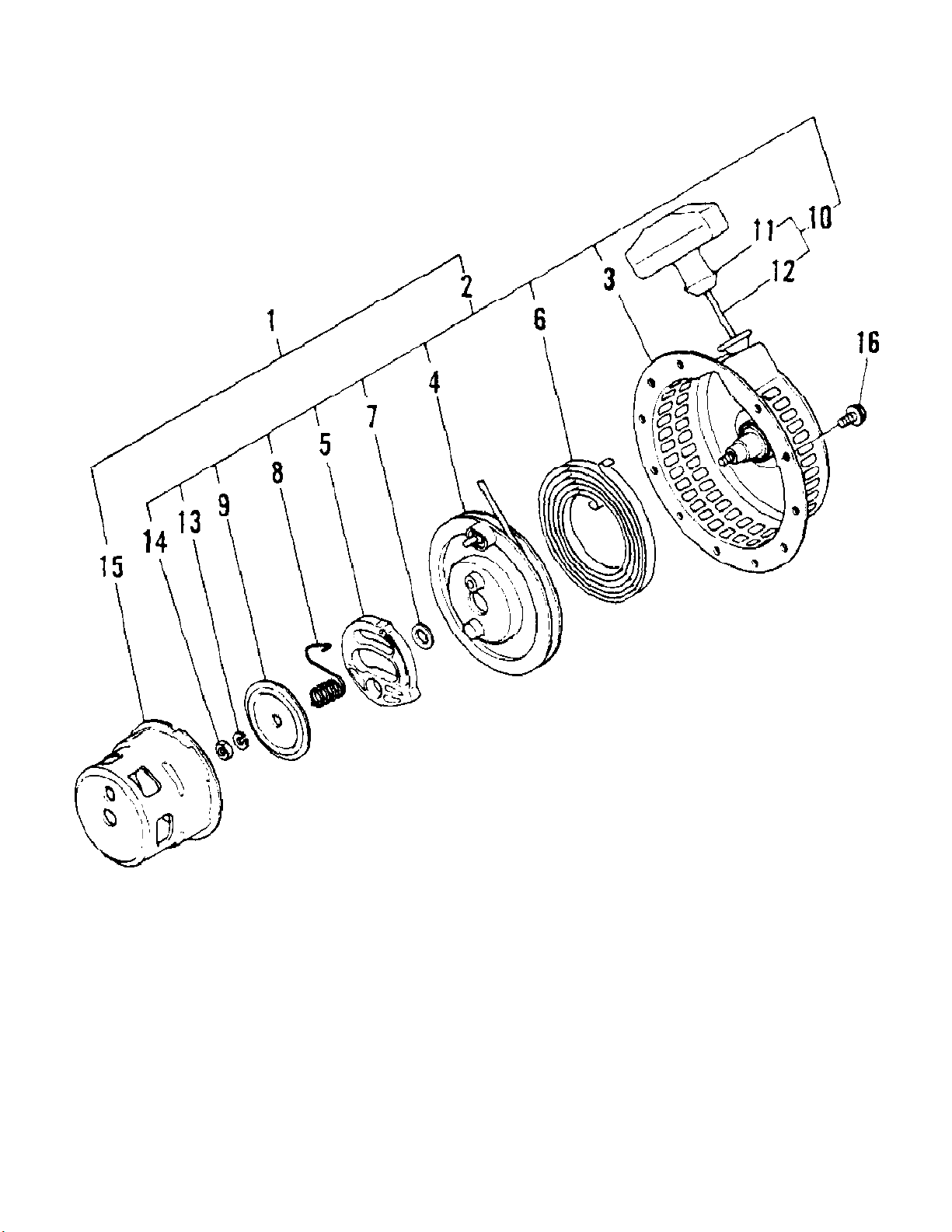

Starting Device
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 38
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 38 of 40
www.ktoutdoor.com
Starting Device
Ref # Part Number DescriptionQty
1 221378 Starter Assy. - Recoil1
2 221379 Recoil Assy.1
3 221380 Case - Starter1
4 221351 Reel1
5 221352 Ratchet1
6 221528 Spiral Spring1
7 221353 Washer1
8 221381 Spring - Friction1
9 221354 Friction Plate1
10 221234 Rope Assy.1
11 221235 Knob - Starter1
12 221236 Rope - Starter1
13 221904 Washer1
14 221952 Nut M61
15 221355 Pulley - Starter1
16 221931 Bolt M6 X 123
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 39
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 39 of 40
www.ktoutdoor.com

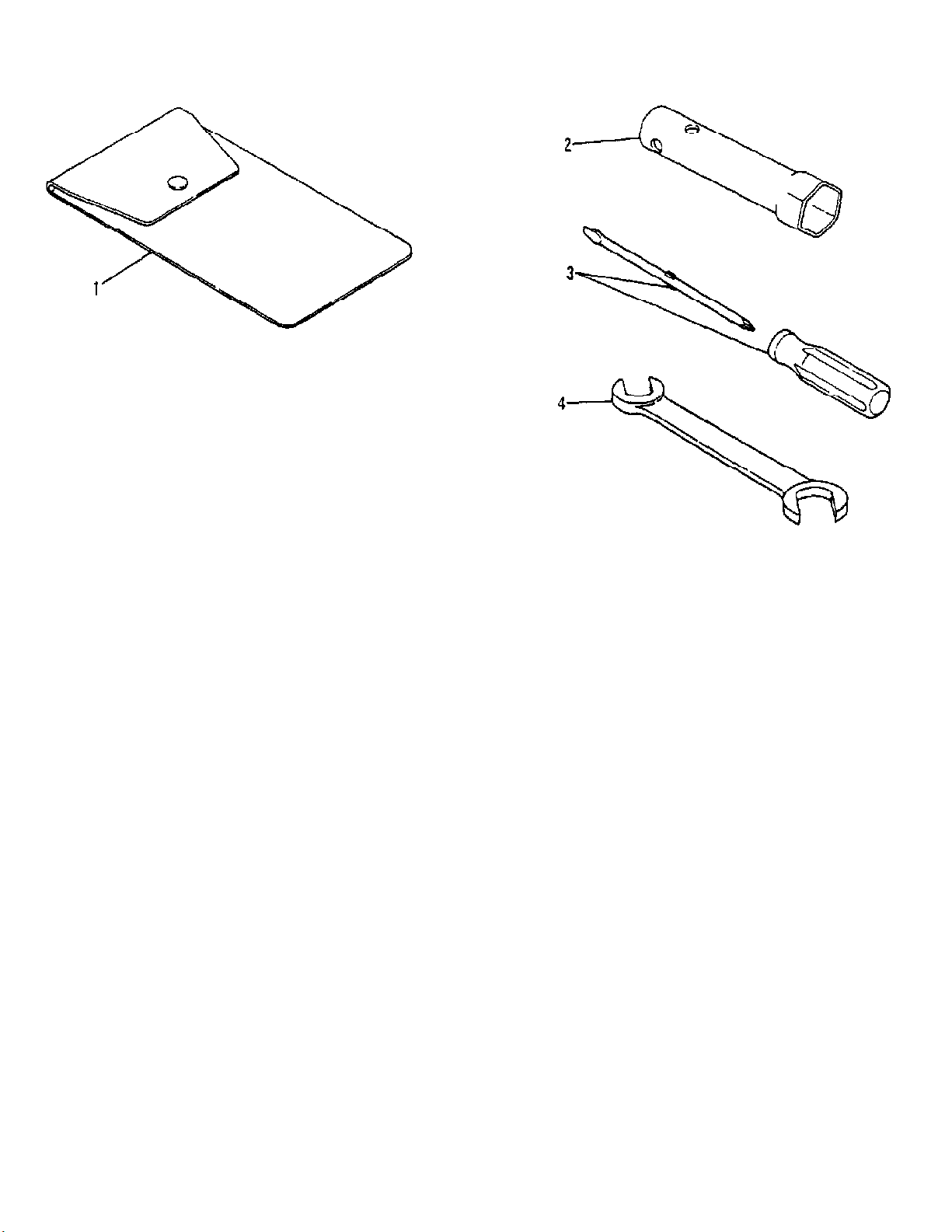

Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 40
11-400043B MAC POWER-PRO 1500E 04/84 to 07/86 IPL 218542 Page 40 of 40
www.ktoutdoor.com
Tools
Ref # Part Number DescriptionQty
1 221222 Tool Bag1
2 221225 Box Spanner1
3 221239 Screwdriver1
4 221954 Spanner1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
