11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 1 of 40
www.ktoutdoor.com

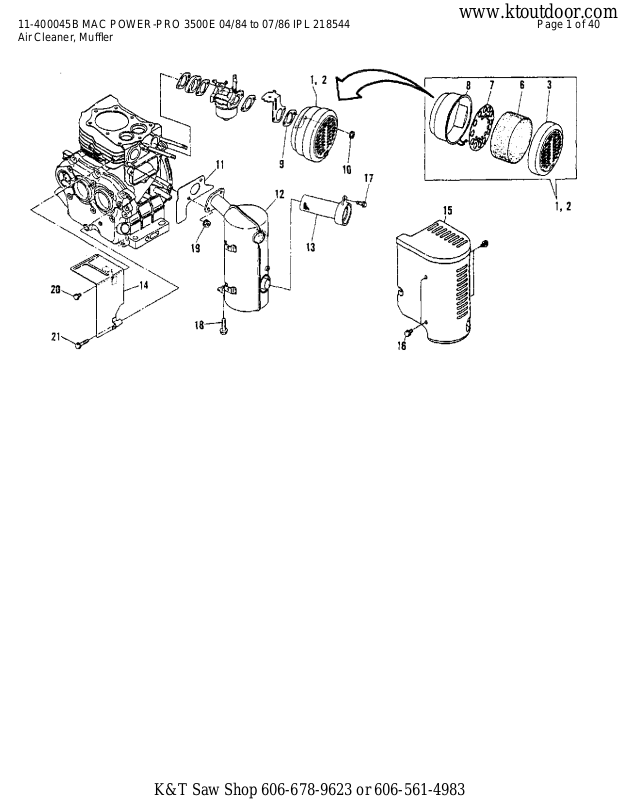

Air Cleaner, Muffler
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 2 of 40
www.ktoutdoor.com

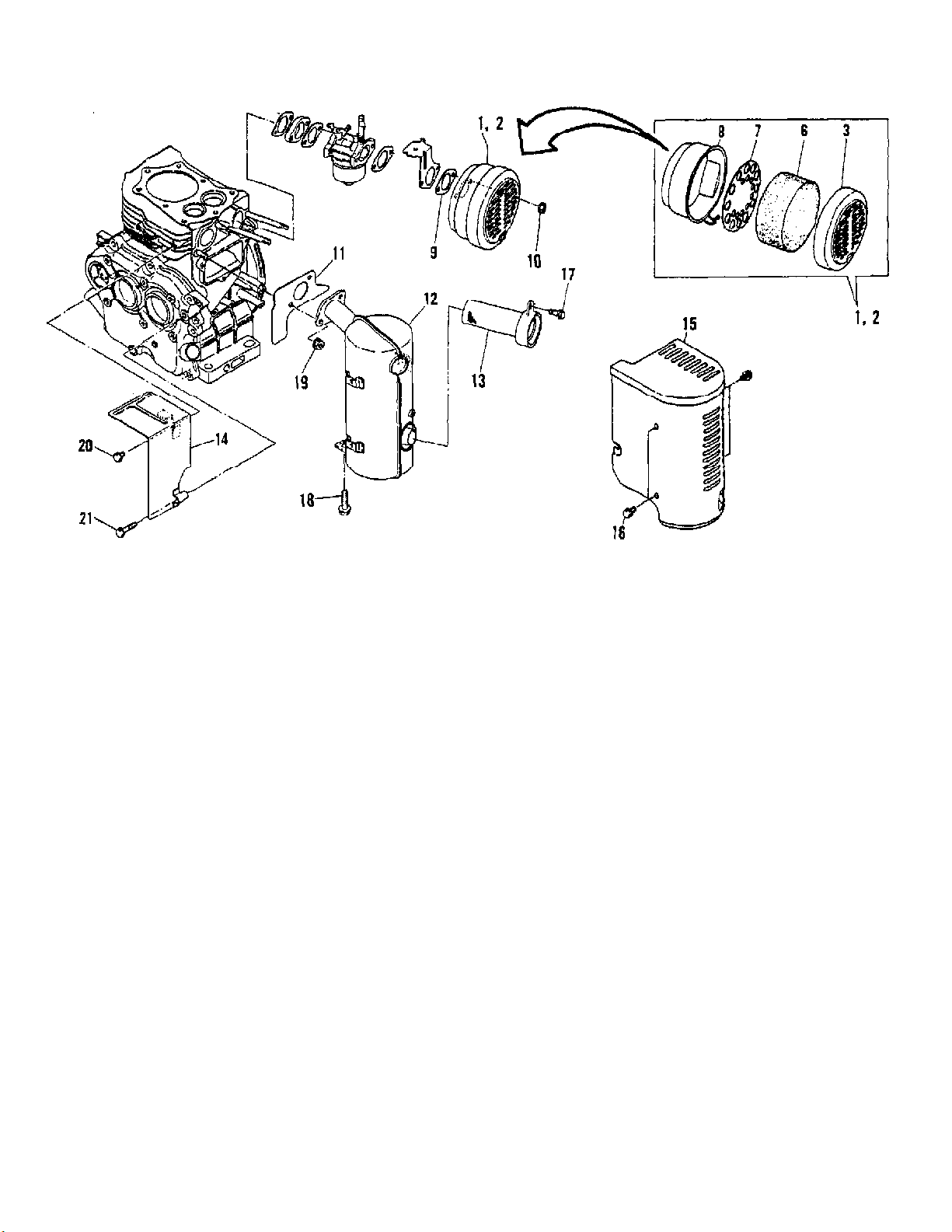

Air Cleaner, Muffler
Ref # Part Number DescriptionQty
1 222078 Cleaner - Air1
2 Cleaner - Air Not available separately.1
3 222062 Body - Air Cleaner1
4 Body - Air Cleaner Not available separately.1
5 Label - Air Cleaner Not available separately.1
6 221574 Element - Air Cleaner1
7 221575 Holder - Element1
8 221576 Cap1
9 221595 Gasket1
10 221940 Nut M62
11 221577 Gasket - Silencer1
12 222063 Muffler1
13 222019 Spark Arrester1
14 221632 Plate1
15 221633 Cover - Muffler1
16 221930 Bolt M6 X 84
17 222025 Bolt M6 X 101
18 221937 Bolt M8 X 301
19 221941 Nut M82
20 221944 Bolt M6 X 141
21 221947 Bolt M6 X 301
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 3 of 40
www.ktoutdoor.com
Breather
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 4 of 40
www.ktoutdoor.com

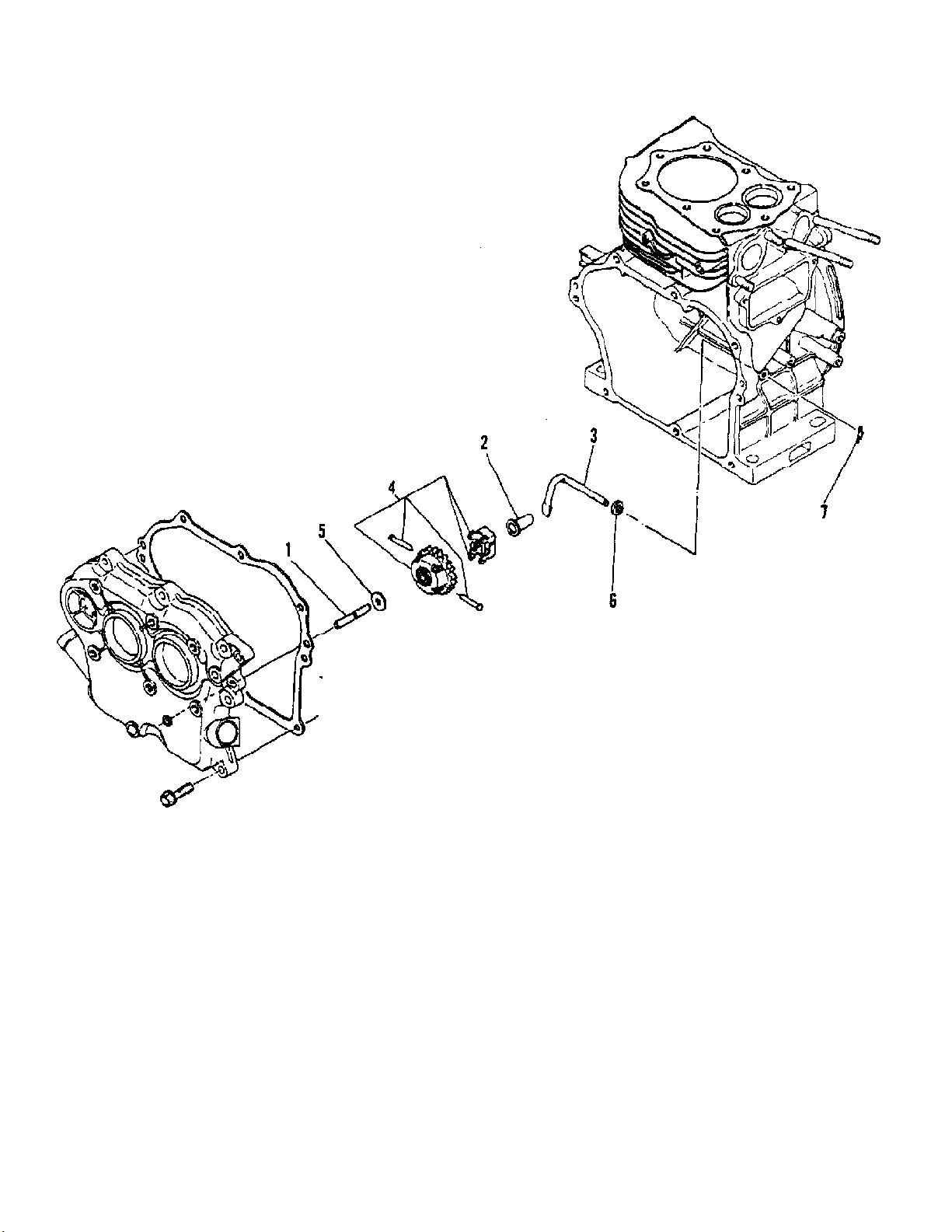

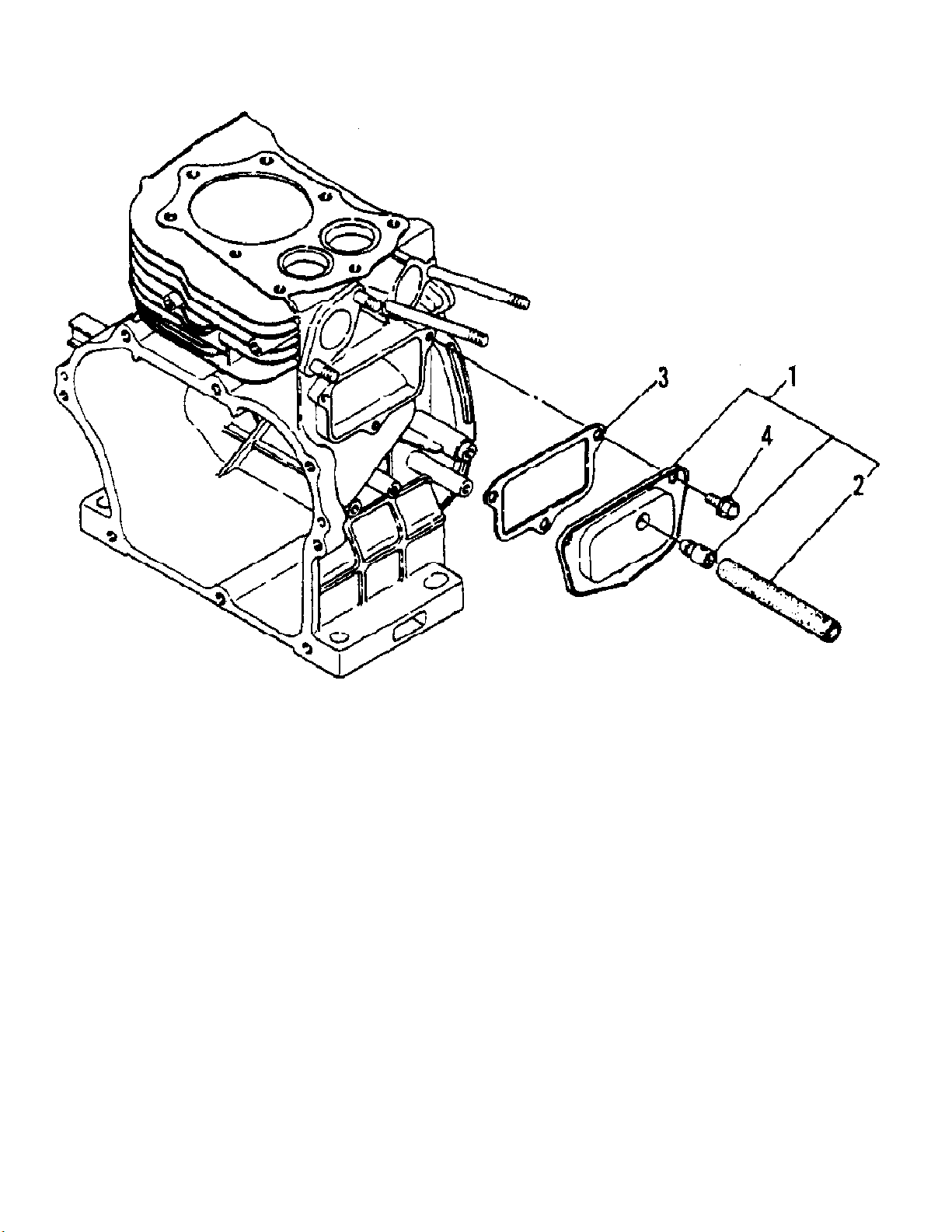

Breather
Ref # Part Number DescriptionQty
1 221561 Breather Assy.1
2 221564 Pipe - Breather1
3 221563 Gasket1
4 221944 Bolt M6 X 143
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 5 of 40
www.ktoutdoor.com
Camshaft
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 6 of 40
www.ktoutdoor.com
Camshaft

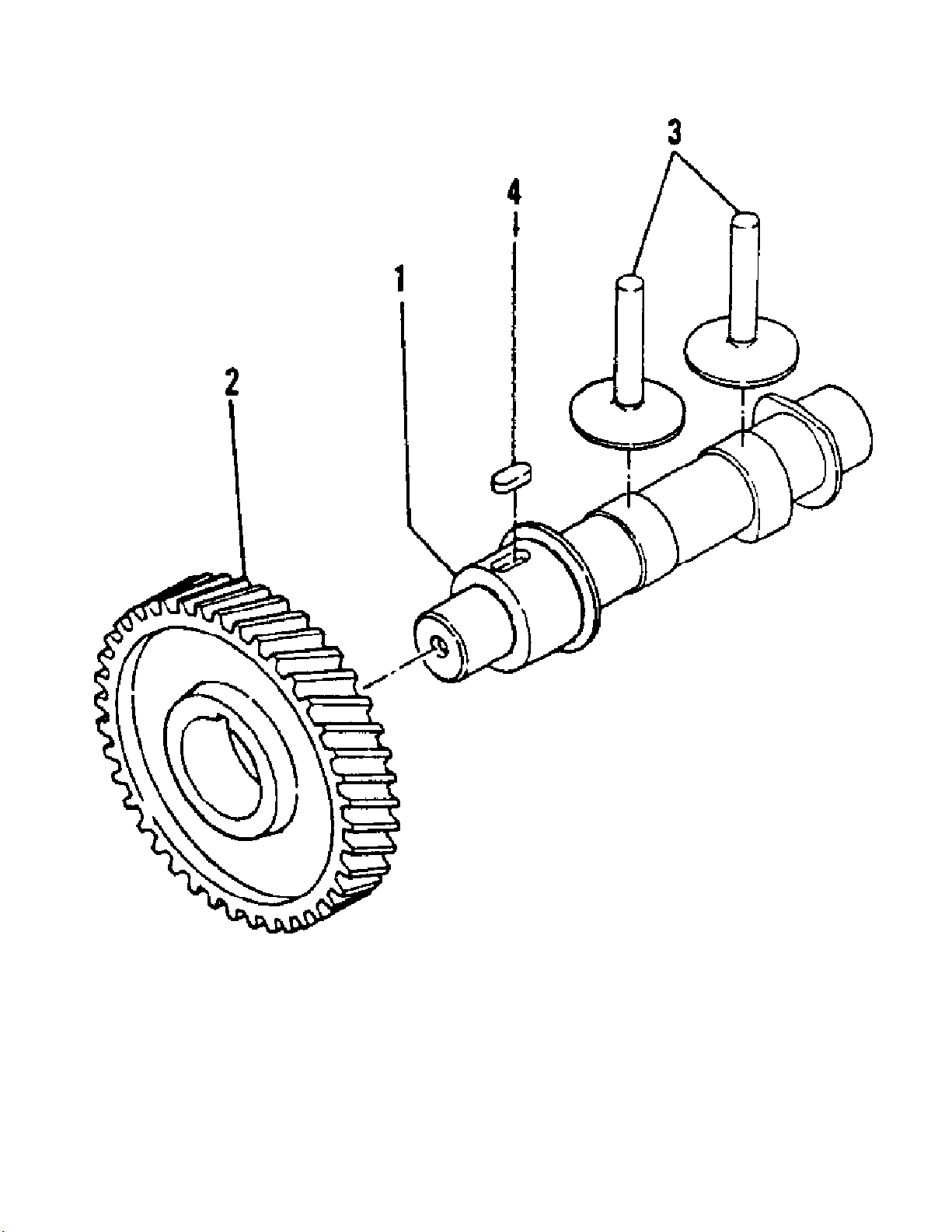

Ref # Part Number DescriptionQty
1 222064 Camshaft1
2 221578 Gear - Camshaft1
3 221579 Tappet2
4 221917 Key 5 X 5 X 121
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 7 of 40
www.ktoutdoor.com

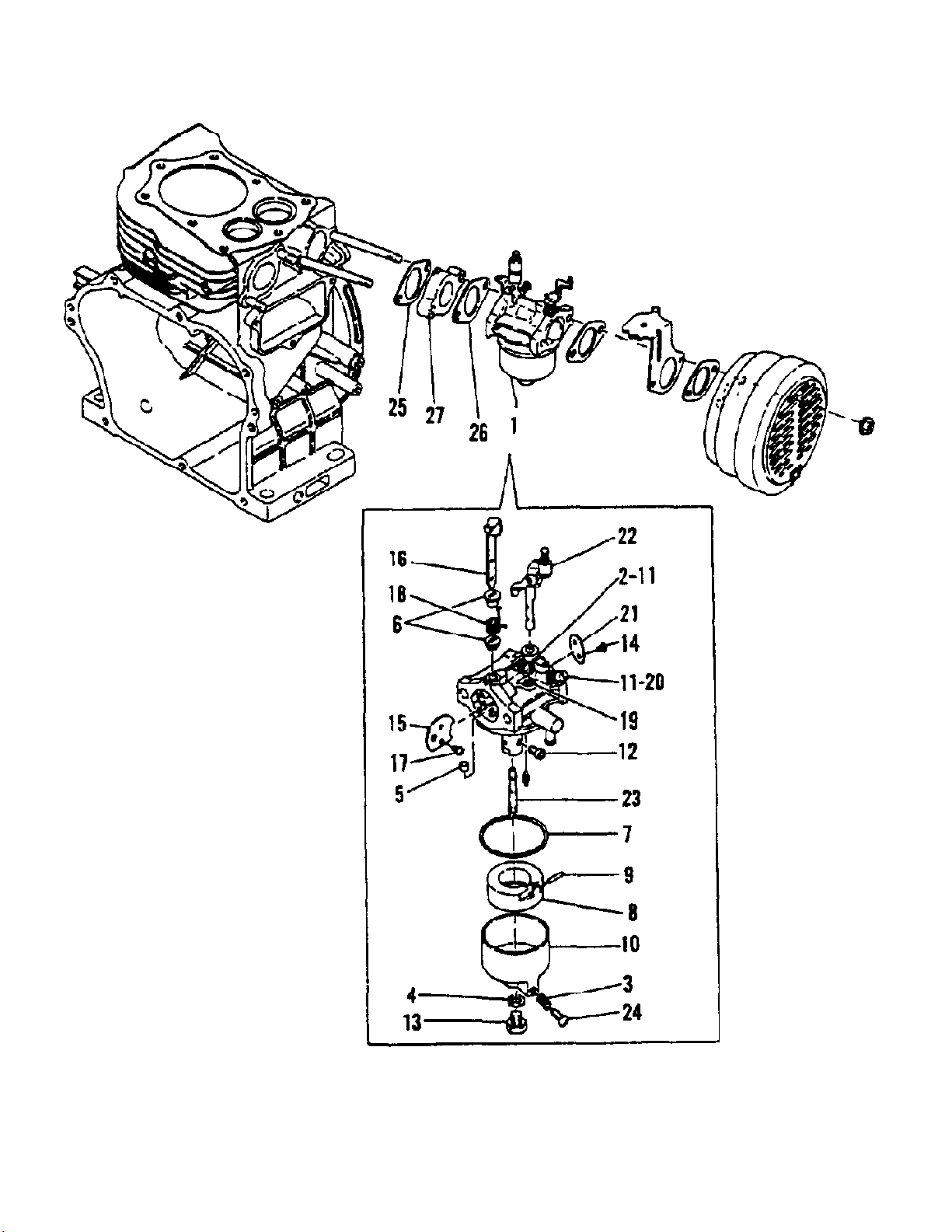

Carburetor
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 8 of 40
www.ktoutdoor.com
Carburetor
Ref # Part Number DescriptionQty
1 221638 Carburetor1
2 221656 Screw1
3 221657 Spring1
4 221597 Washer1
5 221598 Ring1
6 221599 Ring2
7 221228 Packing1
8 221600 Float1
9 221331 Pin1
10 221601 Body1
11 221653 Spring2
12 221602 Jet - Main1
13 221333 Bolt1
14 221223 Screw2
15 221640 Valve1
16 221641 Lever1
17 221590 Screw2
18 221642 Spring1
19 221604 Jet - Pilot1
20 221336 Screw1
21 221603 Valve - Throttle1
22 221643 Shaft Assy. - Throttle1
23 221605 Nozzle - Main1
24 221339 Screw1
25 221594 Gasket1
26 221595 Gasket1
27 221596 Spacer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 9 of 40
www.ktoutdoor.com
Control Device
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 10 of 40
www.ktoutdoor.com

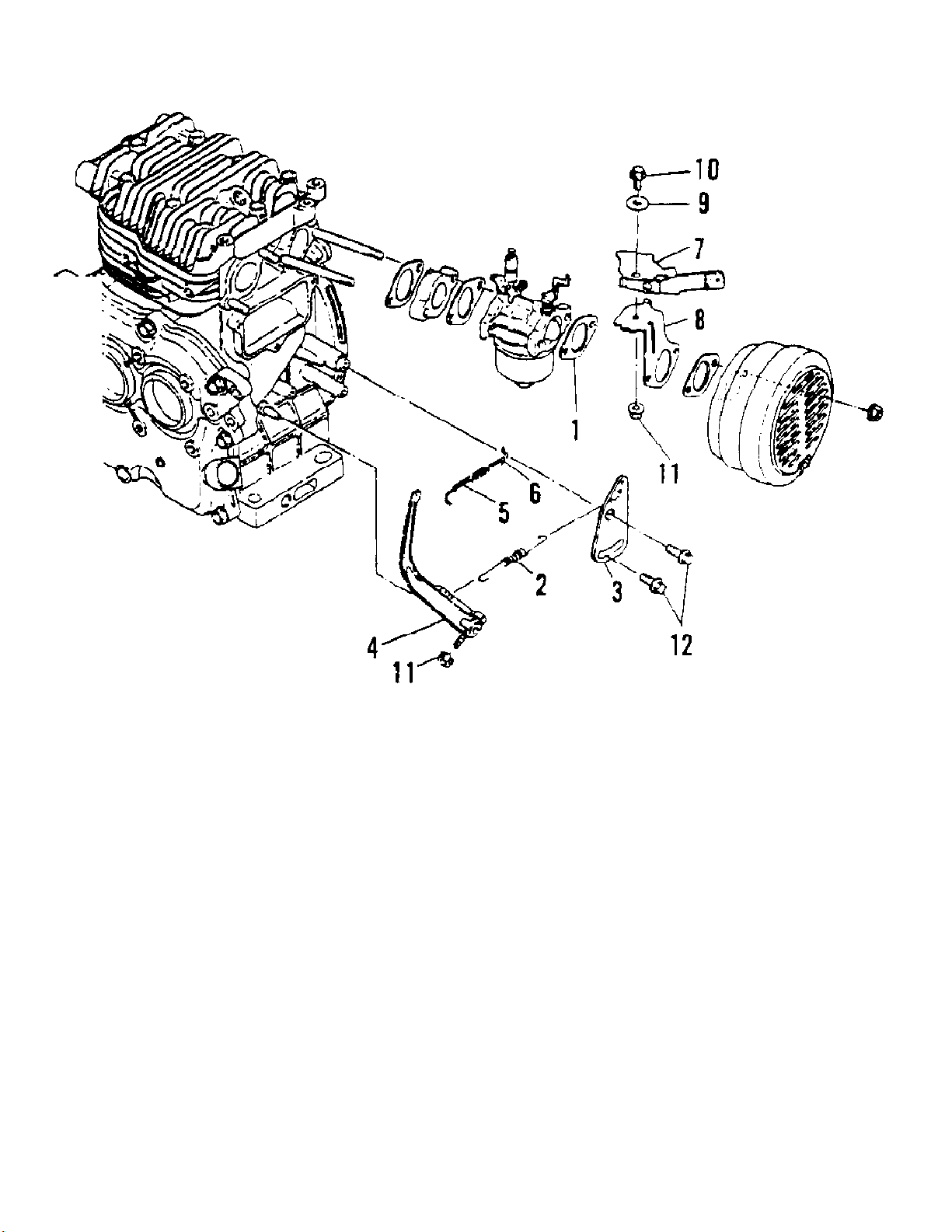

Control Device
Ref # Part Number DescriptionQty
1 221595 Gasket1
2 221644 Spring - Regulator1
3 221652 Handle - Regulator1
4 221341 Lever - Governor1
5 211608 Link - Throttle1
6 221609 Spring - Tension1
7 221554 Lever - Governor1
8 221645 Bracket - Lever1
9 221469 Collar1
10 221931 Bolt M6 X 122
11 221940 Nut M62
12 221944 Bolt M6 X 142
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 11 of 40
www.ktoutdoor.com
Crankshaft, Piston
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 12 of 40
www.ktoutdoor.com

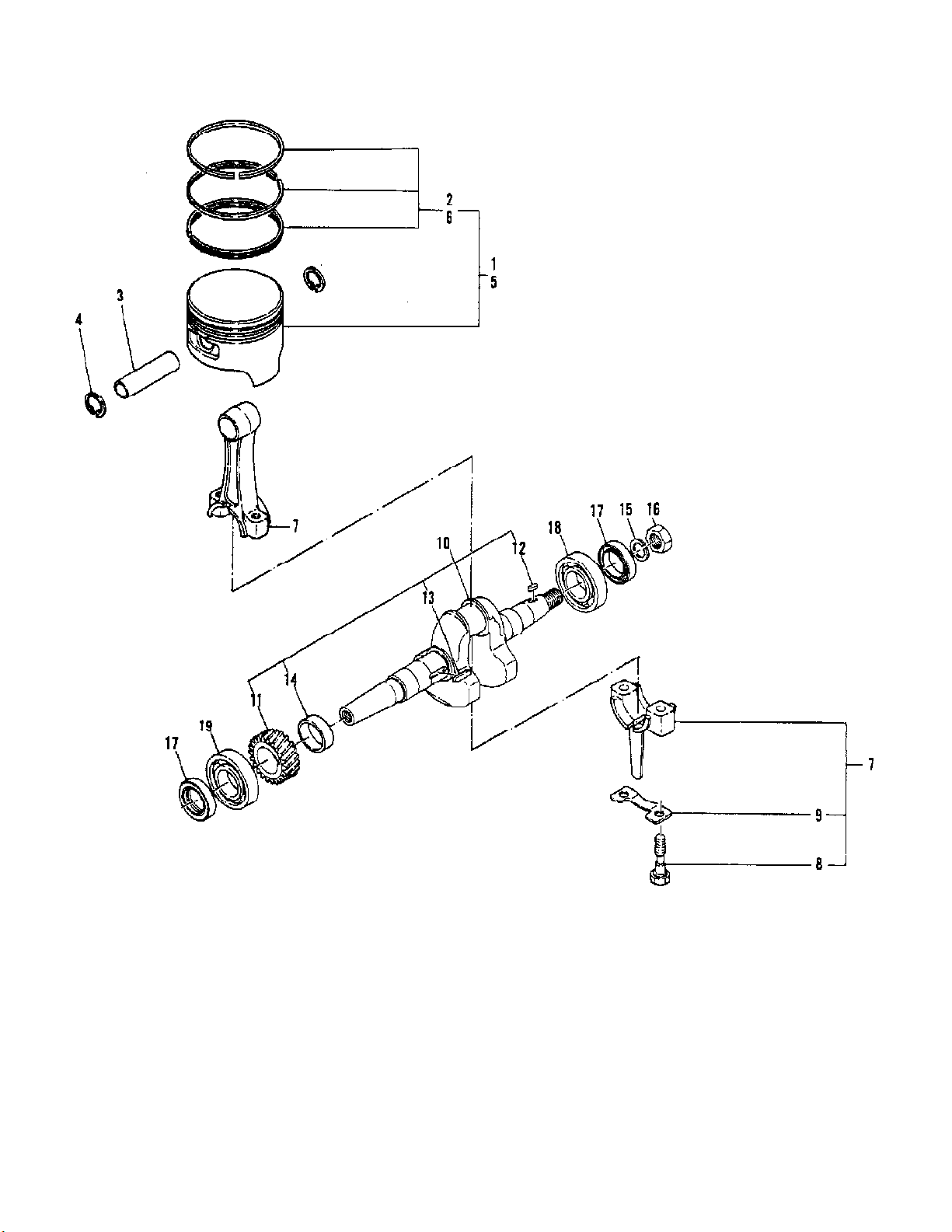

Crankshaft, Piston
Ref # Part Number DescriptionQty
1 221582 Piston - W/Rings1
2 221974 Ring Set - Piston1
3 221587 Pin - Piston1
4 221910 Circlip2
5 221588 Piston - W/Rings1
6 221975 Ring Set1
7 221976 Rid Assy. - Connecting1
8 221590 Bolt - Rod2
9 221591 Washer1
10 221978 Crankshaft Assy.1
11 221580 Gear - Crankshaft1
12 221320 Key 4 X 101
13 221581 Key 4 X 241
14 221647 Spacer1
15 222065 Spring Washer1
16 221951 Nut M161
17 221226 Oil Seal2
18 221922 Ball Bearing1
19 221923 Ball Bearing1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 13 of 40
www.ktoutdoor.com

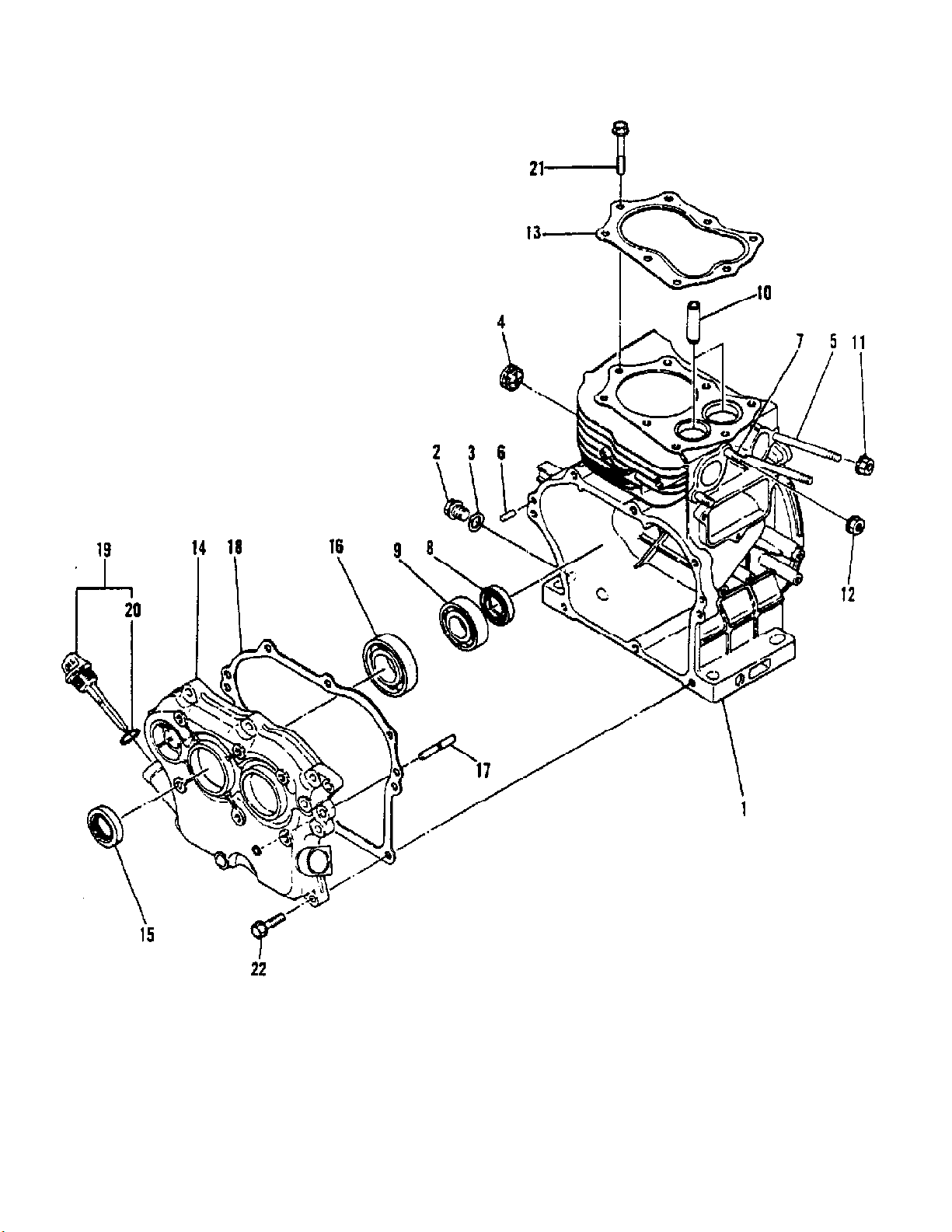

Cylinder Body
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 14 of 40
www.ktoutdoor.com
Cylinder Body
Ref # Part Number DescriptionQty
1 221973 Block Assy. - Cylinder1
2 221291 Plug - Drain1
3 221982 Gasket1
4 221618 Plug1
5 221306 Bolt M6 X 822
6 221913 Parallel Pin 6 X 162
7 221939 Stud 8 X 182
8 221226 Oil Seal1
9 221922 Bearing1
10 221570 Guide - Valve2
11 221940 Nut M62
12 221941 Nut M82
13 221557 Gasket - Cylinder Head1
14 221977 Cover Assy. - Side1
15 221226 Seal - Oil1
16 221923 Bearing1
17 221341 Shaft - Governor1
18 221558 Gasket1
19 221559 Cap Assy.1
20 221925 O-Ring1
21 221300 Bolt M8 X 508
22 221937 Bolt M8 X 308
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 15 of 40
www.ktoutdoor.com
Cylinder Head
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 16 of 40
www.ktoutdoor.com
Cylinder Head

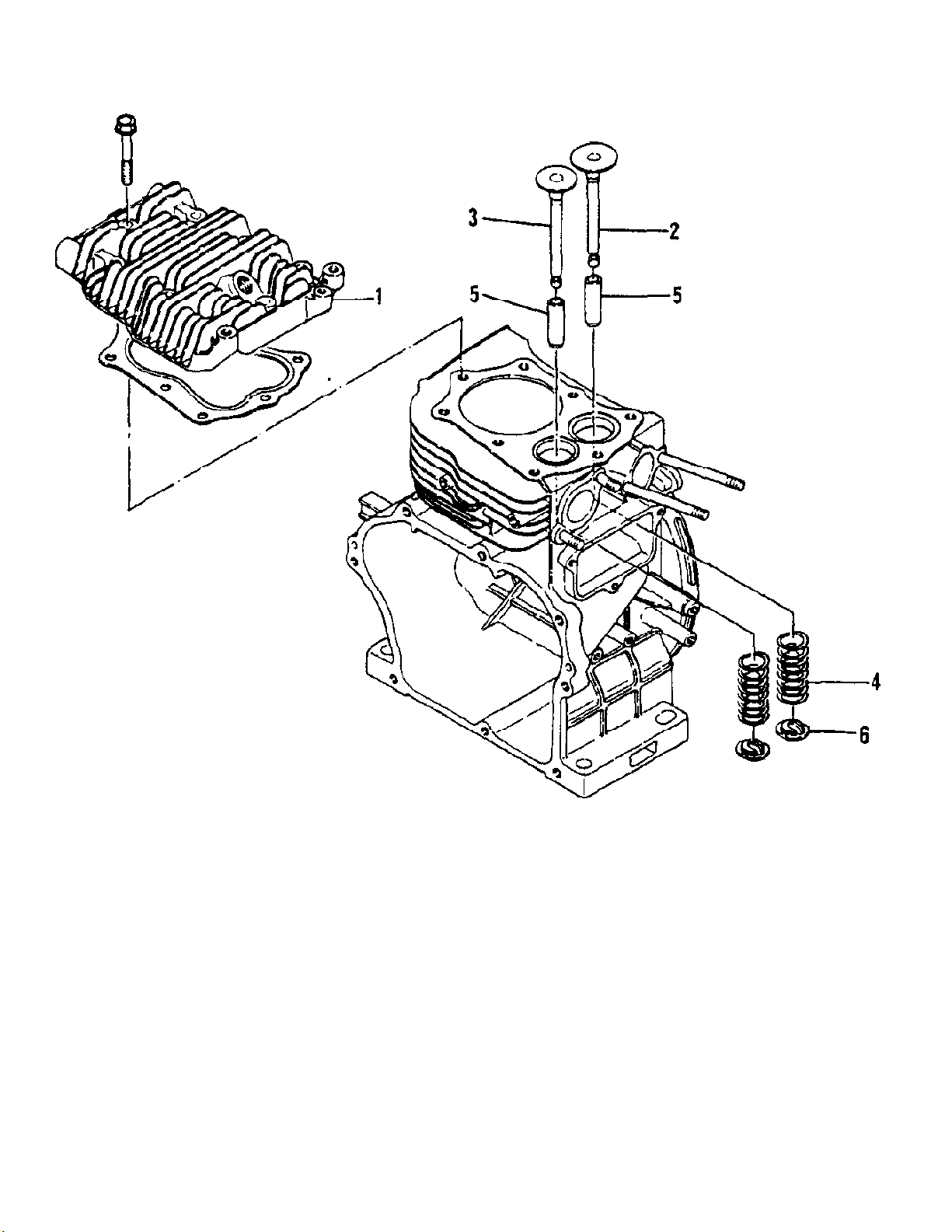

Ref # Part Number DescriptionQty
1 221566 Head - Cylinder1
2 221567 Valve - Suction1
3 221568 Valve - Exhaust1
4 221569 Spring - Valve2
5 221570 Guide - Valve2
6 221571 Retainer2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 17 of 40
www.ktoutdoor.com

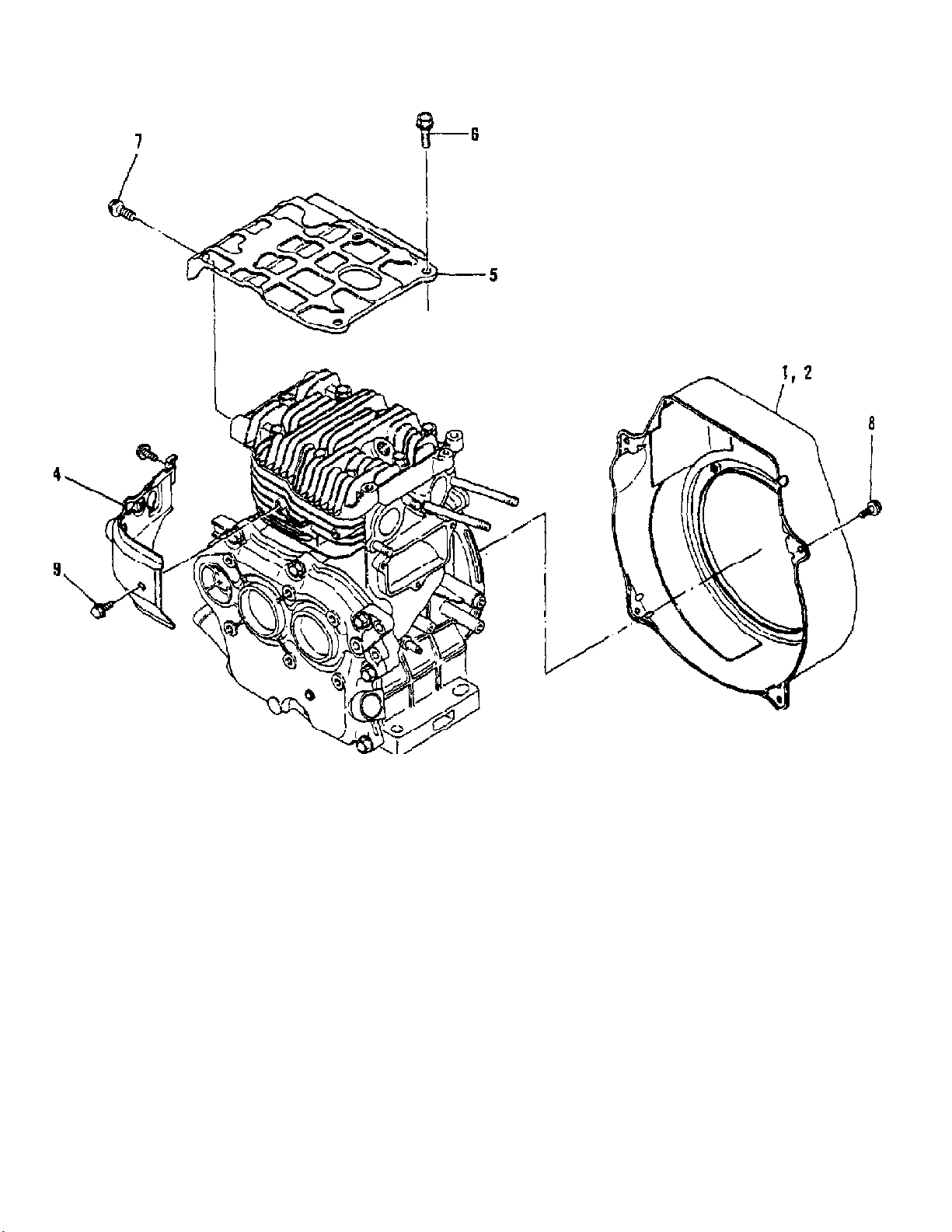

Fan Case
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 18 of 40
www.ktoutdoor.com
Fan Case
Ref # Part Number DescriptionQty
1 222066 Case - Fan1
2 Case - Fan Not available separately.1
3 Label - Mac Not available separately.1
4 222069 Cover1
5 221593 Cover1
6 221935 Bolt M8 X 142
7 221936 Bolt M8 X 202
8 221944 Bolt M6 X 144
9 221944 Bolt M6 X 142
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 19 of 40
www.ktoutdoor.com
Stop Switch, Flywheel
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 20 of 40
www.ktoutdoor.com
Stop Switch, Flywheel

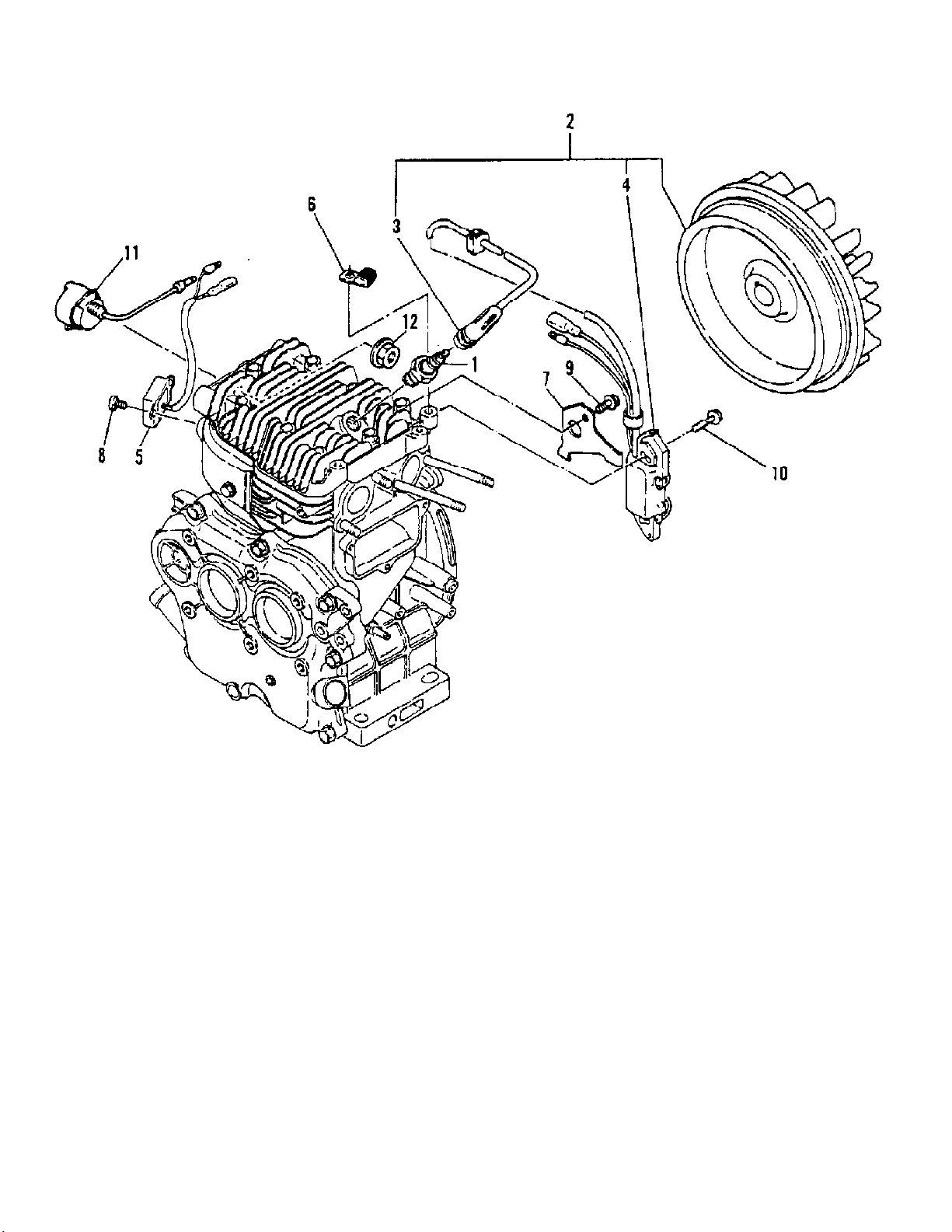

Ref # Part Number DescriptionQty
1 222016 Plug - Spark1
2 221627 Flywheel W/Magnet1
3 221240 Cap - Plug1
4 221629 Coil - Ignition1
5 221617 Control Unit1
6 221646 Clamp1
7 221650 Clamp1
8 221928 Screw M5 X 102
9 221944 Bolt M6 X 141
10 221946 Bolt M6 X 252
11 222015 Switch - Stop1
12 221941 Nut M81
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 21 of 40
www.ktoutdoor.com
Frame
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 22 of 40
www.ktoutdoor.com
Frame

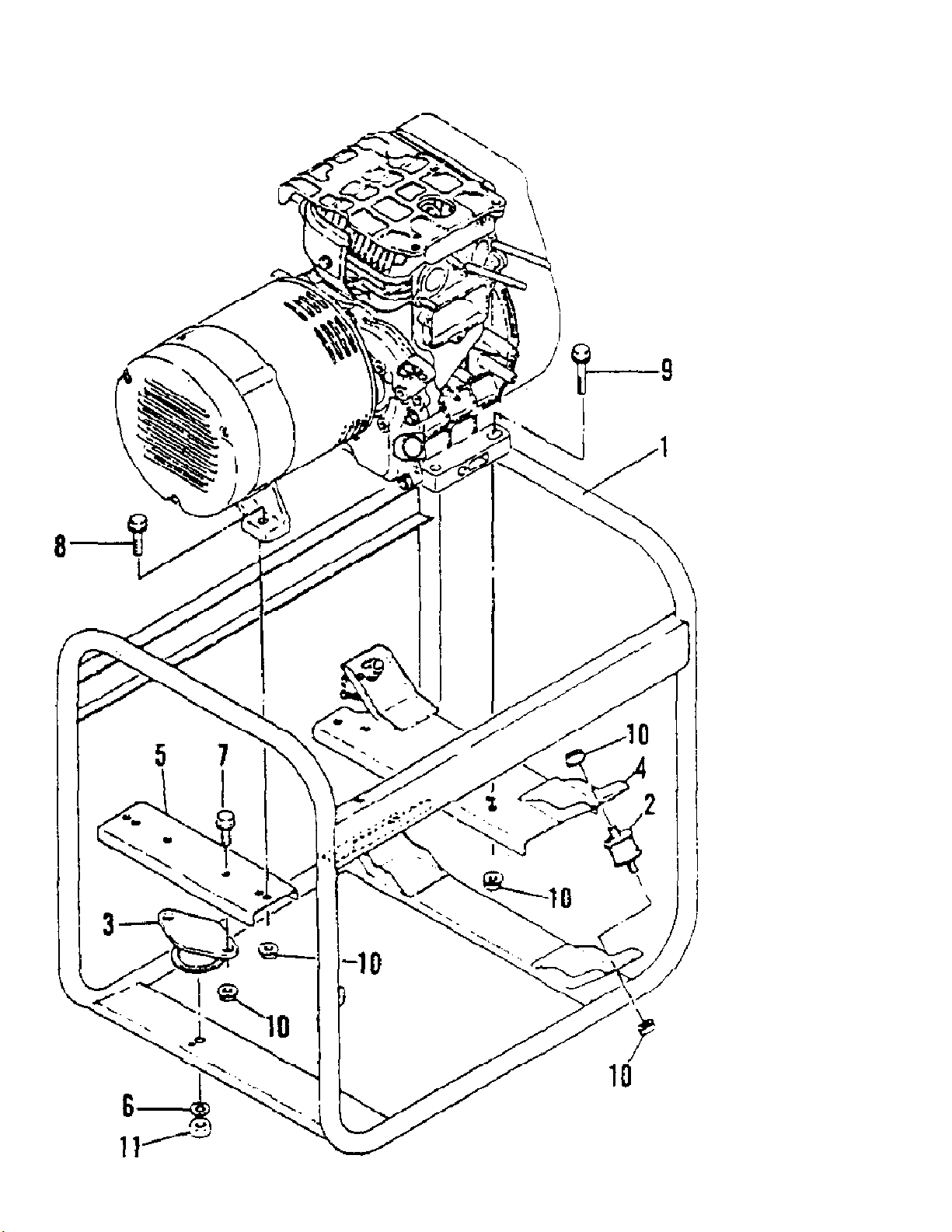

Ref # Part Number DescriptionQty
1 222077 Frame1
2 221893 Damper - Front2
3 221801 Damper - Rear1
4 221894 Stay - Damper1
5 221802 Stay - Damper1
6 221906 Spring Washer1
7 221936 Bolt M8 X 202
8 221937 Bolt M8 X 302
9 222044 Bolt M8 X 382
10 221941 Nut M810
11 221950 Nut M101
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 23
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 23 of 40
www.ktoutdoor.com
Fuel Pipe
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 24
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 24 of 40
www.ktoutdoor.com

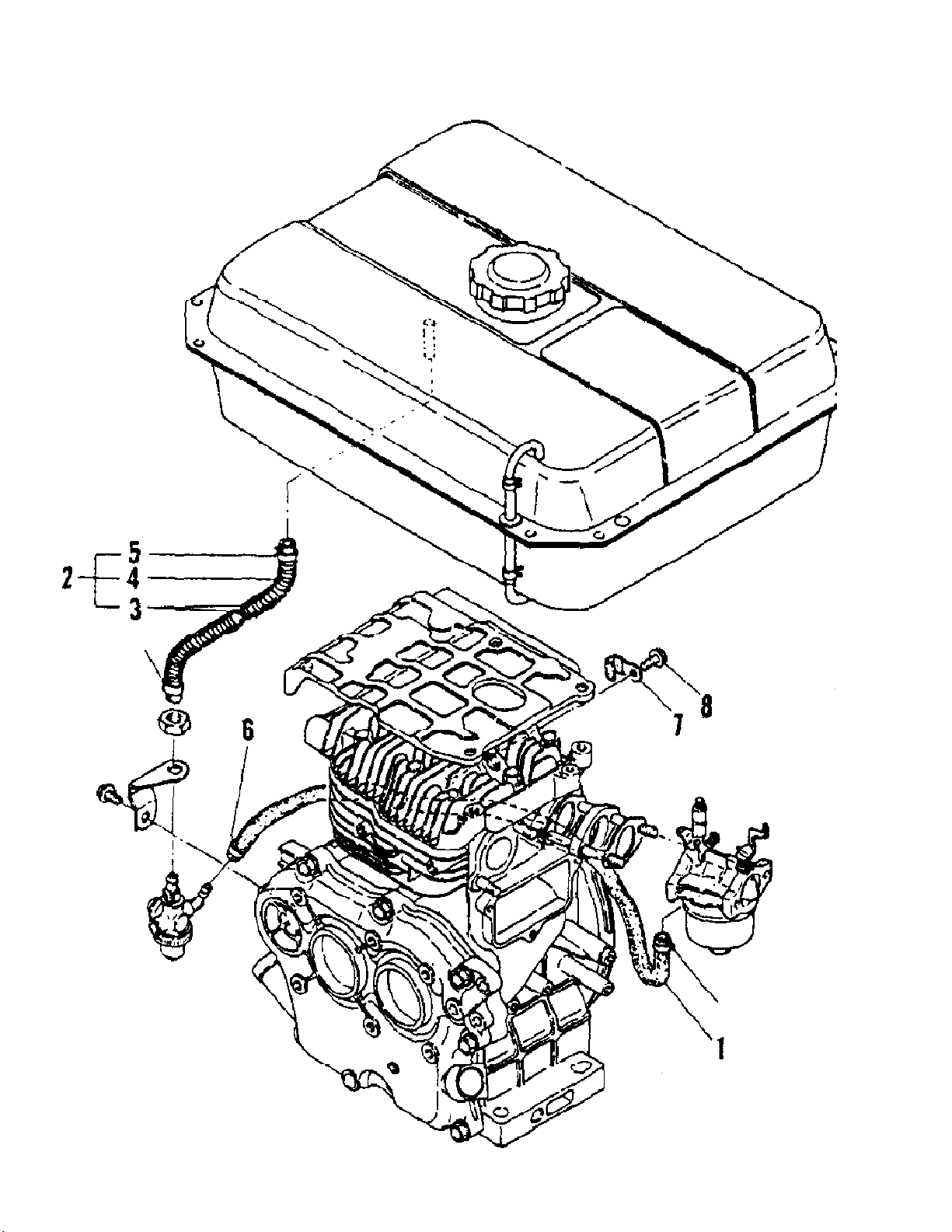

Fuel Pipe
Ref # Part Number DescriptionQty
1 221535 Pipe - Fuel Oil1
2 221232 Pipe - Fuel1
3 221231 Pipe - Fuel1
4 221229 Spring - Protective1
5 221220 Clamp1
6 221220 Clamp3
7 221237 Clamp1
8 221944 Bolt M6 X 141
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 25
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 25 of 40
www.ktoutdoor.com

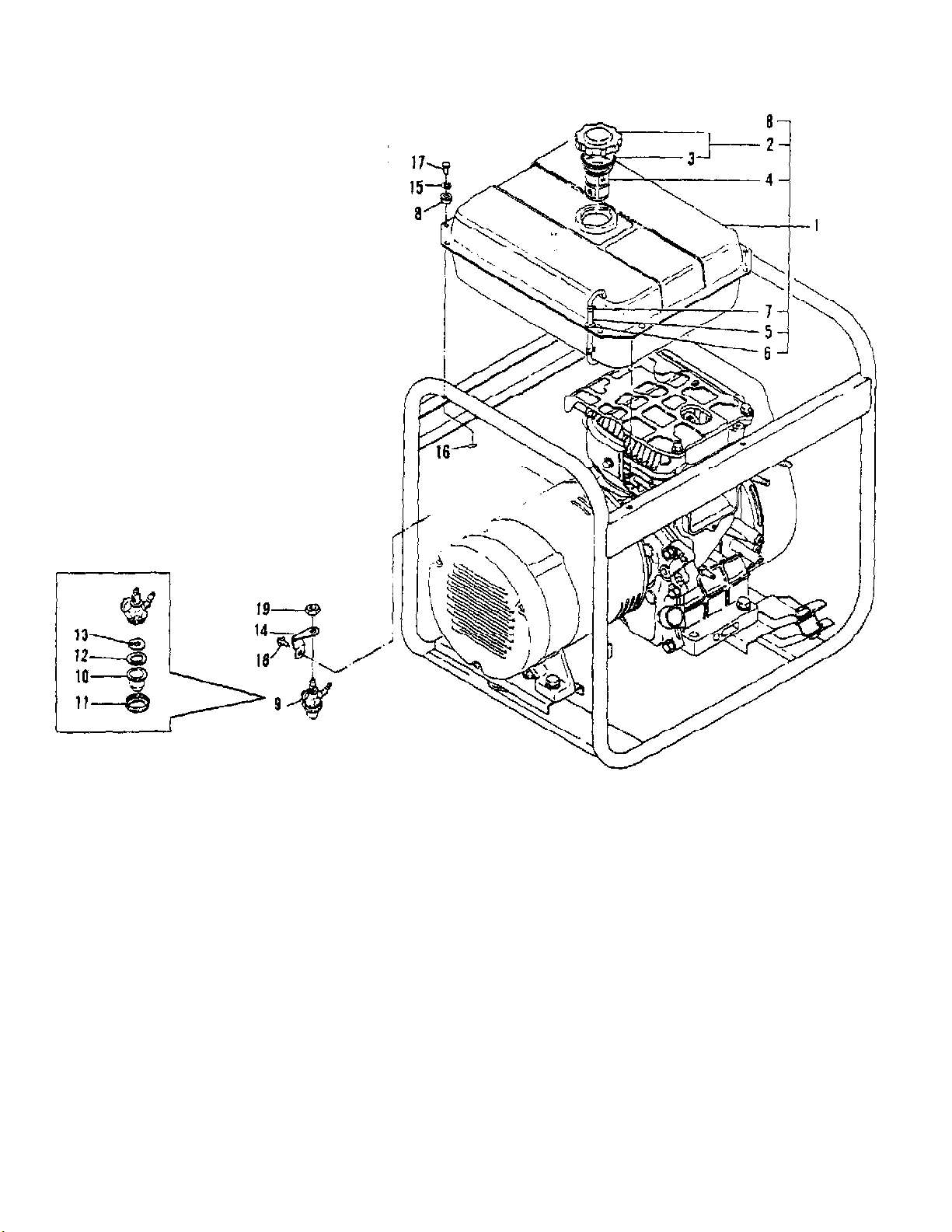

Fuel Tank
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 26
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 26 of 40
www.ktoutdoor.com
Fuel Tank
Ref # Part Number DescriptionQty
1 222070 Tank Assy. - Fuel1
2 221508 Cap Assy. - Tank1
3 221241 Gasket1
4 221509 Strainer1
5 221510 Pipe - Gauge1
6 221804 Grommet1
7 221221 Clamp1
8 221805 Grommet4
9 221635 Cock Assy. - Fuel1
10 221516 Bowl - Strainer1
11 221513 Retainer1
12 221514 Gasket1
13 221515 Strainer - Fuel1
14 221637 Stay - Cock1
15 221224 Washer4
16 221914 Snap Pin4
17 221915 Pin - Flat Head 6 X 144
18 221935 Bolt M8 X 141
19 222071 Lock Nut M121
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 27
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 27 of 40
www.ktoutdoor.com
Gasket Set
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 28
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 28 of 40
www.ktoutdoor.com
Gasket Set

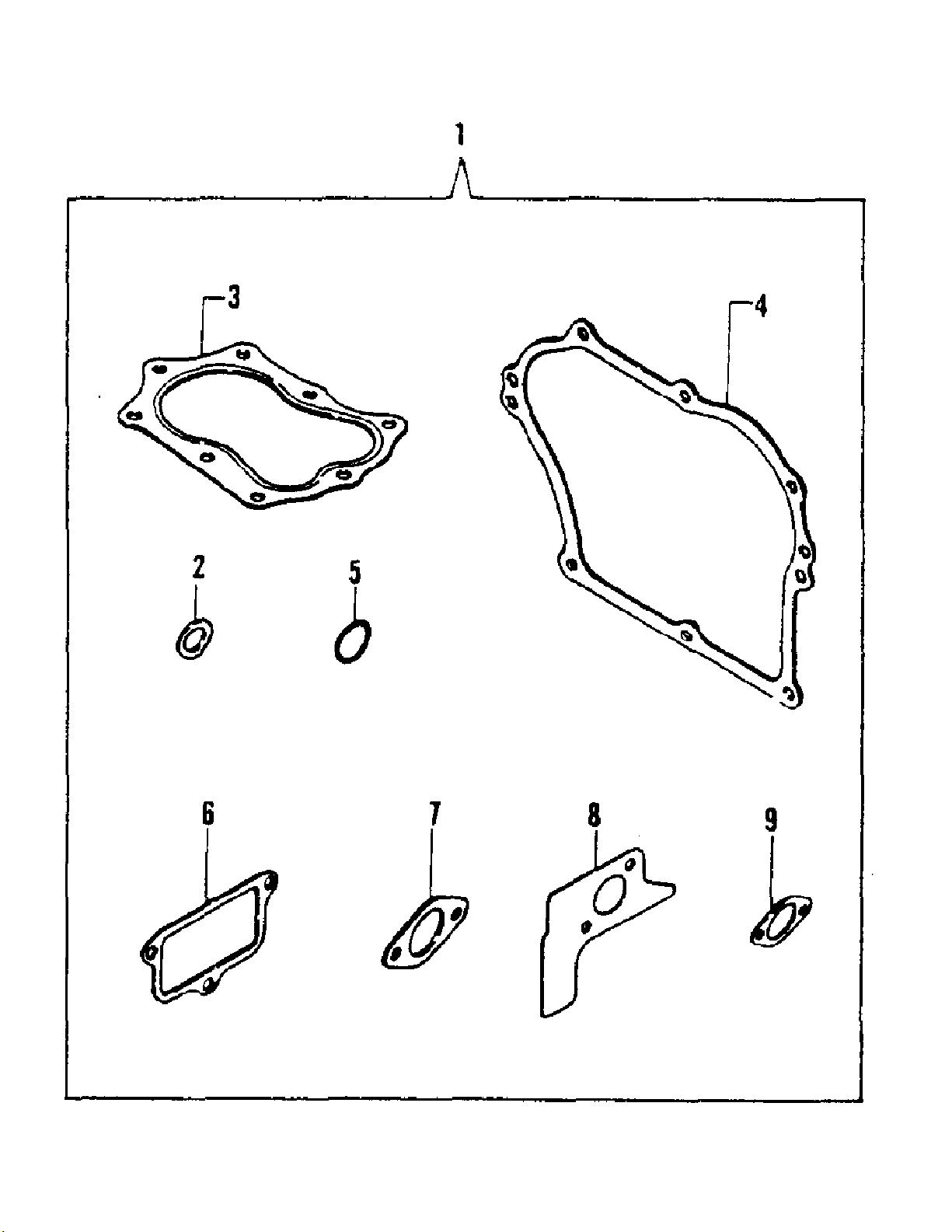

Ref # Part Number DescriptionQty
1 222075 Gasket1
2 221982 Gasket1
3 221557 Gasket - Cyl. Head1
4 221558 Gasket1
5 221925 O-Ring1
6 221563 Gasket1
7 221595 Gasket3
8 221577 Gasket - Silencer1
9 121594 Gasket1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 29
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 29 of 40
www.ktoutdoor.com
Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 30
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 30 of 40
www.ktoutdoor.com
Generator

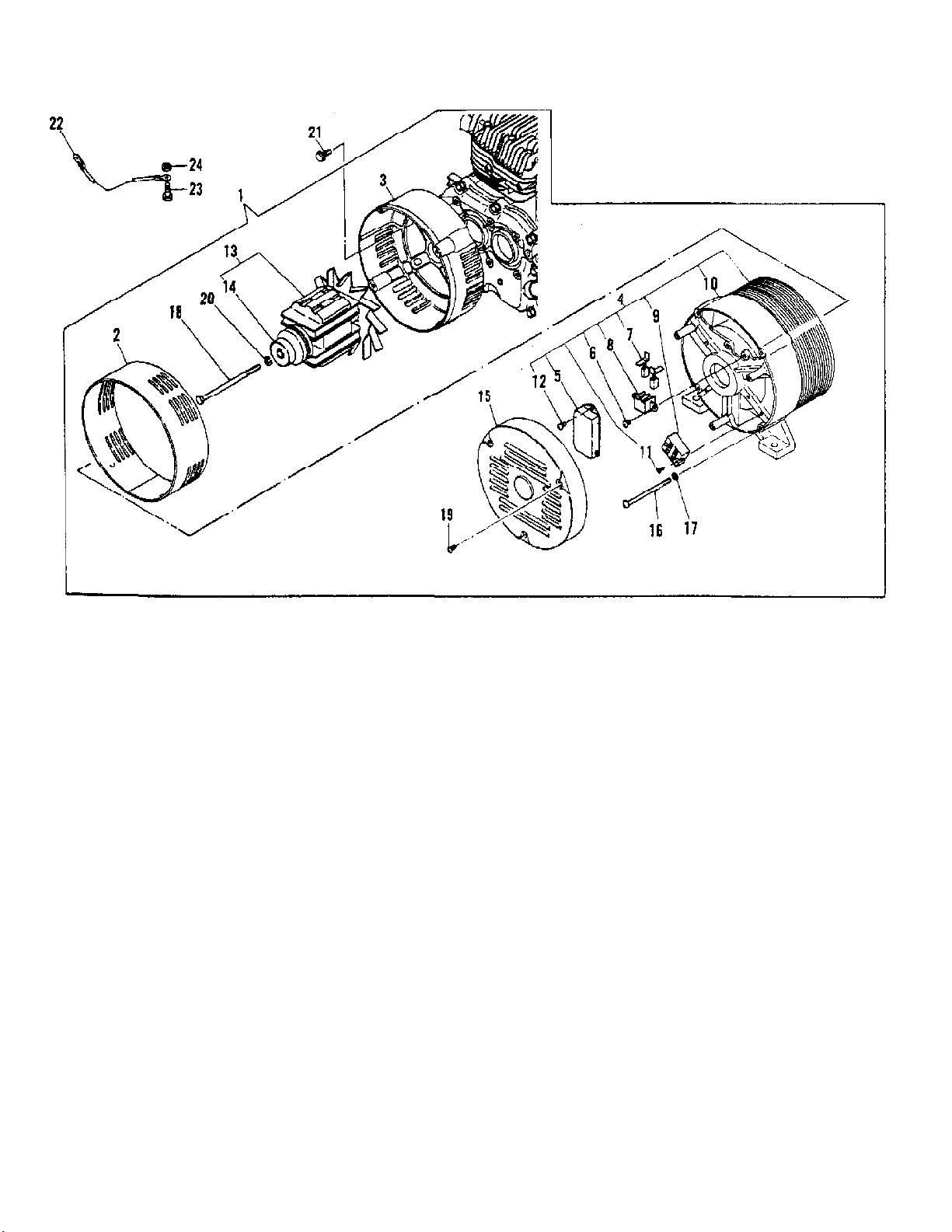

Ref # Part Number DescriptionQty
1 222013 Generator1
2 221859 Band1
3 221860 Cover - Front1
4 221862 Stator Assy.1
5 221809 A.V.R.1
6 221867 Screw M5 X 142
7 221861 Brush2
8 221863 Holder - Brush2
9 221864 Terminal1
10 221865 Cover - Rear1
11 221867 Screw M5 X 142
12 221747 Screw M5 X 102
13 221868 Rotor Assy.1
14 221869 Bearing1
15 221870 Cover - End1
16 221871 Bolt4
17 221904 Washer4
18 221872 Bolt1
19 222073 Screw M4 X 103
20 221906 Washer1
21 221936 Bolt M8 X 204
22 222034 Wire - Ground1
23 221932 Bolt M6 X 161
24 221952 Nut M61
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 31
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 31 of 40
www.ktoutdoor.com
Governor
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 32
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 32 of 40
www.ktoutdoor.com
Governor
Ref # Part Number DescriptionQty
1 221341 Shaft - Governor1
2 221345 Spindle1
3 221606 Yoke1
4 221347 Gear Assy. - Governor1
5 221224 Washer1
6 221902 Washer1
7 221914 Snap Pin1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 33
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 33 of 40
www.ktoutdoor.com
Labels
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 34
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 34 of 40
www.ktoutdoor.com
Labels

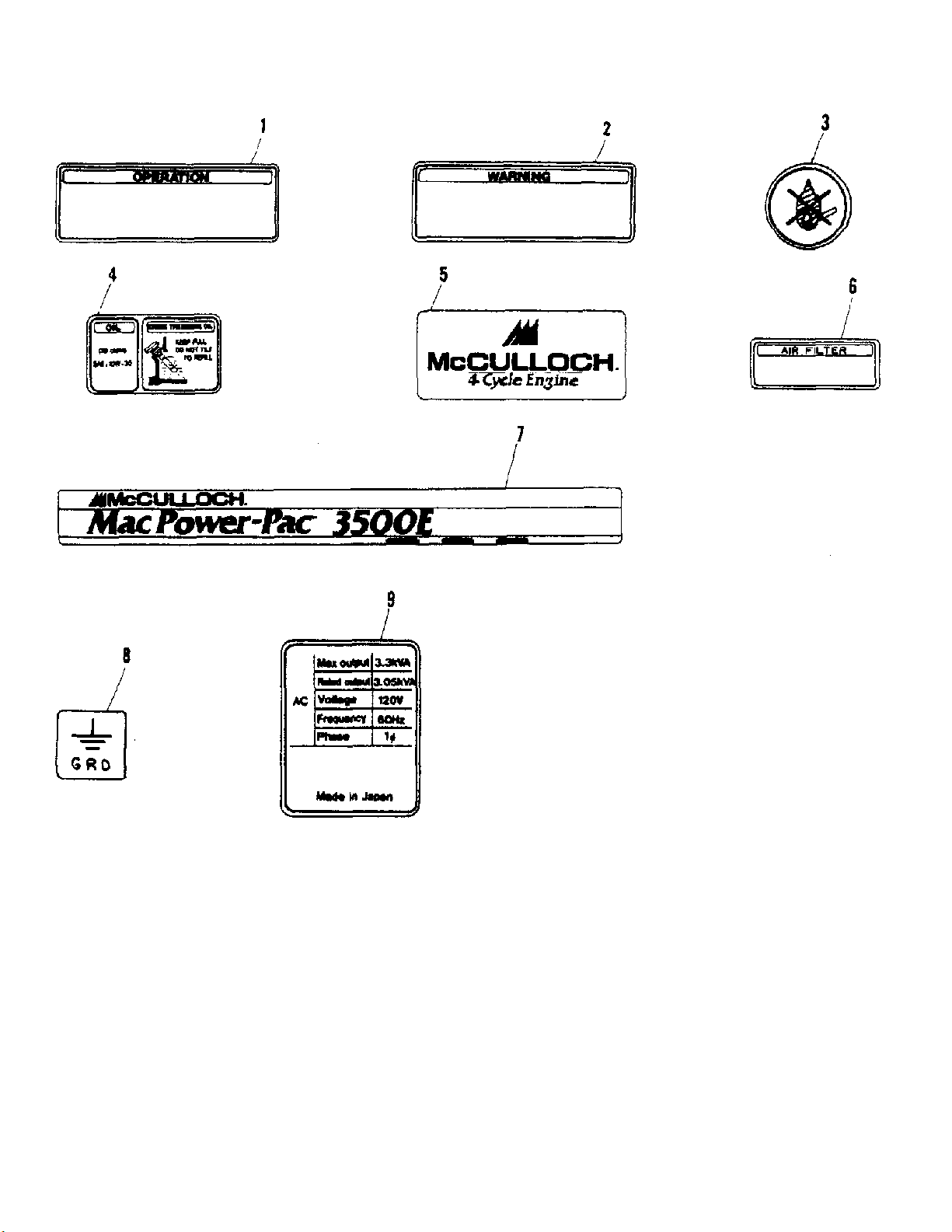

Ref # Part Number DescriptionQty
1 222059 Operation Mark1
2 221999 Warning Mark1
3 222000 Non Fire Mark1
4 222001 Oil Label1
5 222068 Label - Mac1
6 222002 Label - Air Cleaner1
7 222060 Generator Label1
8 222004 Label - Ground1
9 222061 Label - Generator1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 35
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 35 of 40
www.ktoutdoor.com
Panel
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 36
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 36 of 40
www.ktoutdoor.com

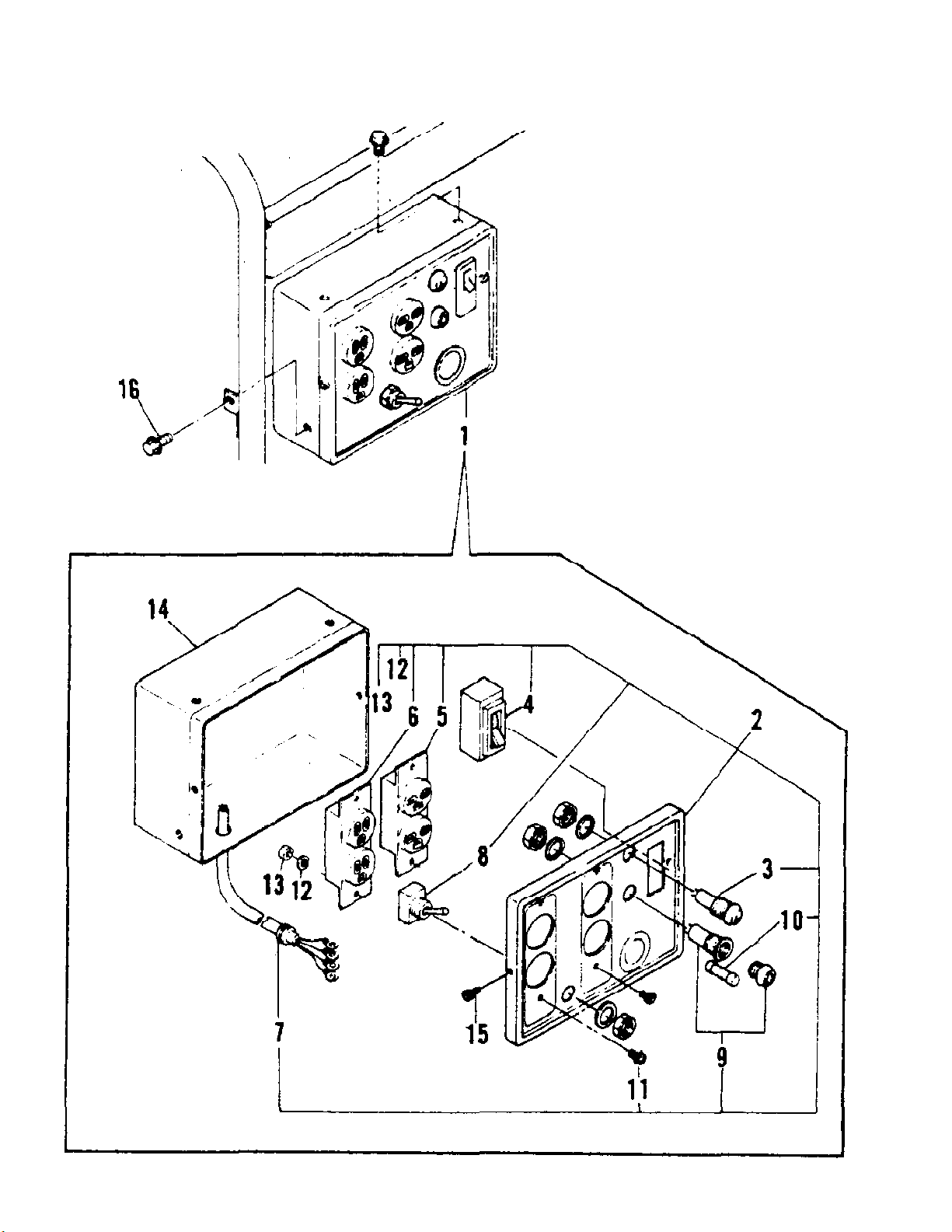

Panel
Ref # Part Number DescriptionQty
1 222057 Panel Box Assy.1
2 221874 Panel Assy.1
3 221881 Lamp1
4 221890 Breaker1
5 221897 Plug Socket1
6 221896 Plug Socket1
7 221886 Wire Harness1
8 221725 Switch1
9 221895 Holder - Fuse1
10 221889 Fuse1
11 221927 Screw M4 X 85
12 221901 Washer4
13 221900 Nut M44
14 221882 Box Assy.1
15 221927 Screw M4 X 82
16 221930 Bolt M6 X 83
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 37
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 37 of 40
www.ktoutdoor.com
Starting Device
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 38
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 38 of 40
www.ktoutdoor.com

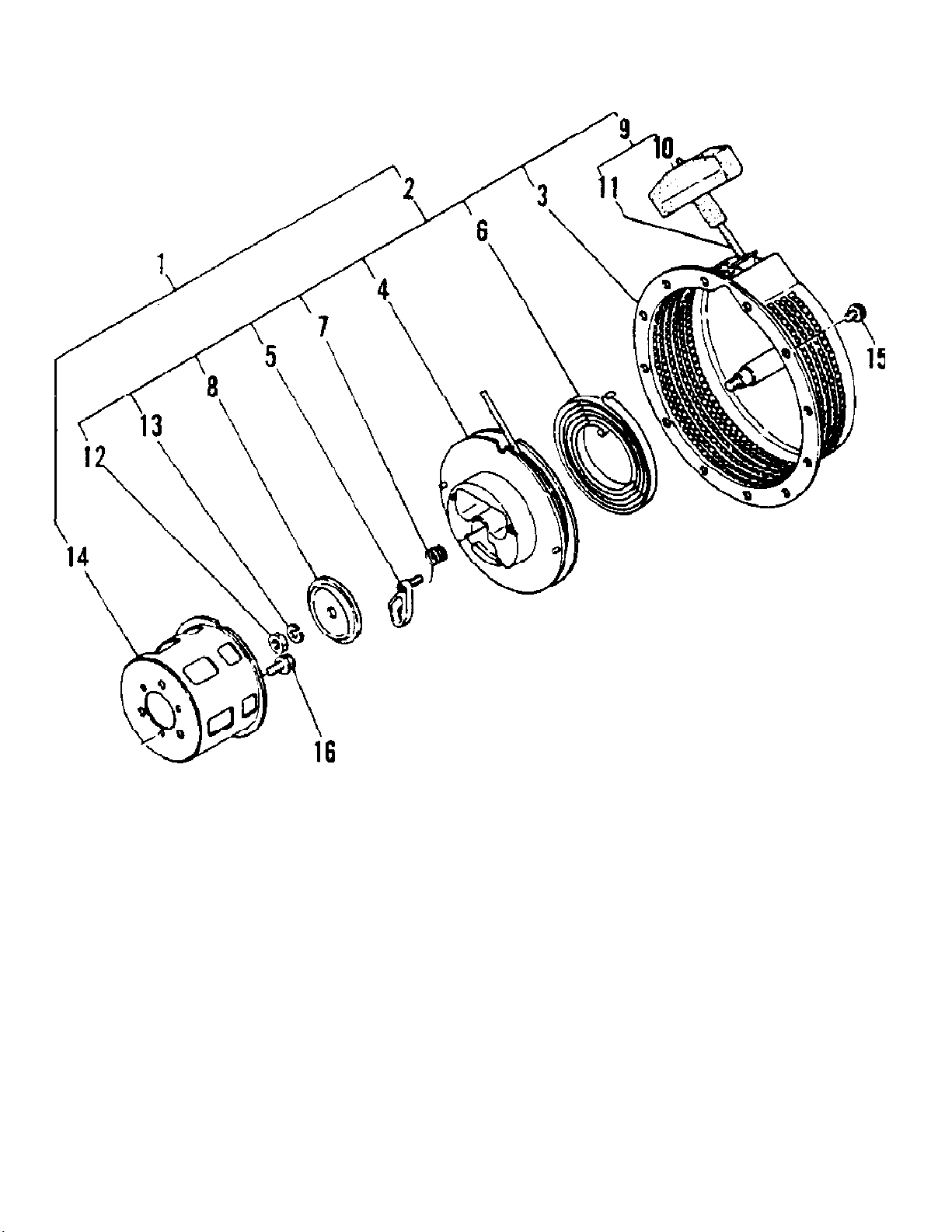

Starting Device
Ref # Part Number DescriptionQty
1 221622 Starter - Recoil Assy.1
2 221623 Recoil Assy.1
3 221624 Case - Stator1
4 221610 Reel1
5 221625 Ratchet1
6 221611 Spring - Spiral1
7 221626 Spring - Friction1
8 221612 Plate1
9 221614 Wire - Assy.1
10 221615 Knob1
11 221616 Starter Wire1
12 221654 Nut1
13 221655 Washer1
14 221613 Pulley - Starter1
15 221930 Bolt M6 X 84
16 221931 Bolt M6 X 123
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 39
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 39 of 40
www.ktoutdoor.com
Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 40
11-400045B MAC POWER-PRO 3500E 04/84 to 07/86 IPL 218544 Page 40 of 40
www.ktoutdoor.com

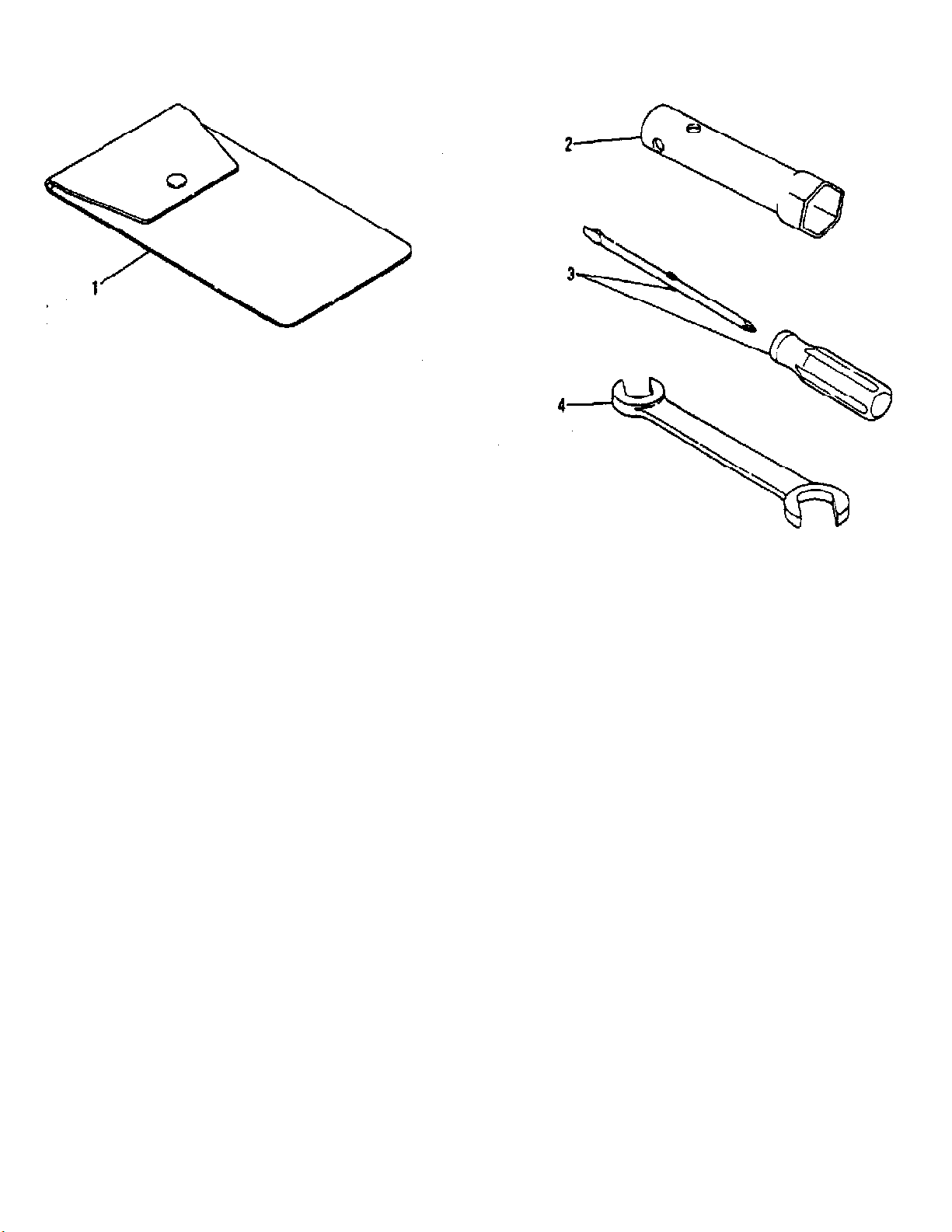

Tools
Ref # Part Number DescriptionQty
1 221222 Bag - Tool1
2 221225 Box Wrench1
3 221239 Driver1
4 221954 Wrench 10 X 121
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
