Page 1
11-400101-03 ELECTRAMAC 12 ES 05/89 to 08/92 IPL 223320 Page 1 of 8
www.ktoutdoor.com
Bar And Chain Information
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400101-03 ELECTRAMAC 12 ES 05/89 to 08/92 IPL 223320 Page 2 of 8
www.ktoutdoor.com
Bar And Chain Information
Ref # Part Number DescriptionQty
214233 Bar - 10" Spkt. Tip
214234 Bar - 12" Spkt. Tip
214235 Bar - 14" Spkt. Tip
214236 Bar - 16" Spkt. Tip
218261-12 Chain - MP370GLX 39CL
218095-12 Chain - MP370GLX 45CL
218096-12 Chain - MP370GLX 50CL
218097-12 Chain - MP370GLX 55CL
219131 File Plate
214217 Round File
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400101-03 ELECTRAMAC 12 ES 05/89 to 08/92 IPL 223320 Page 3 of 8
www.ktoutdoor.com

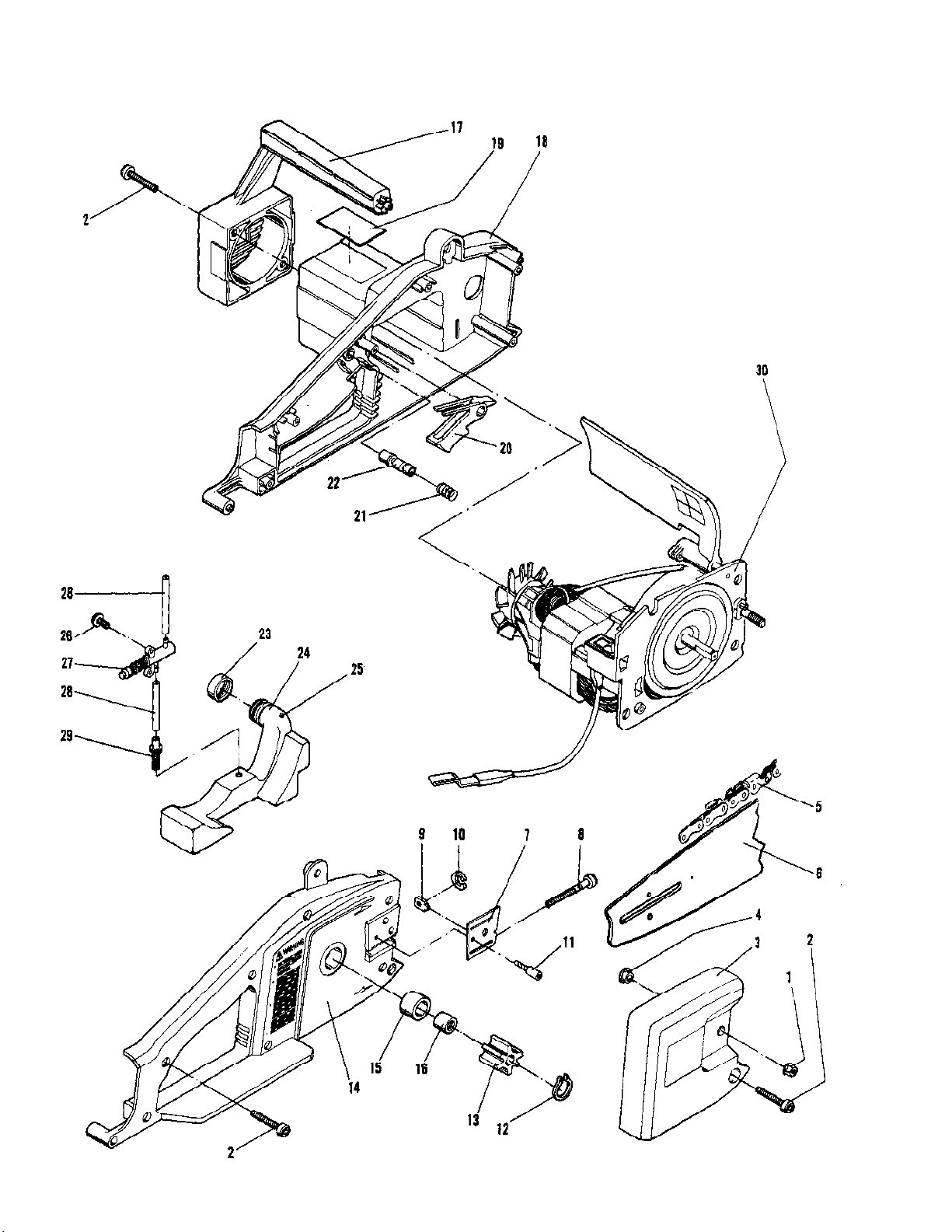

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400101-03 ELECTRAMAC 12 ES 05/89 to 08/92 IPL 223320 Page 4 of 8
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 110676 Nut - Bar1
2 222300 Screw - Housing12
3 222254 Cover - Sprocket Asy.1
4 Bushing Not available separately.1
5 Chain1
6 Bar1
7 222702 Plate - Bar1
8 223088 Screw - Adjustment1
9 68656 Nut - Bar Adjustment1
10 110907 Ring - Retaining1
11 222701 Screw - Bar Plate1
12 222280 Ring - Snap1
13 222271 Sprocket1
14 222706 Housing - Right Assembly1
15 Sleeve - Bearing Not available separately.1
16 Bearing Not available separately.1
17 222257 Handle - Left1
18 222252 Housing - Left1
19 222728 Label - Nameplate1
20 222259 Switch - Trigger1
21 222750 Spring - Lock1
22 222745 Lock - Switch1
23 222298 Cap - Oil1
24 222290 Tank - Oil1
25 222733 Valve - Vent1
26 218643 Screw - TR 8-16 x .5 TORX2
27 222746 Pump - Oil1
28 223322 Hose - Oil Pump2
29 223486 Filter - Oil1
30 Motor Assembly See "Motor Assembly" illustration
1
and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400101-03 ELECTRAMAC 12 ES 05/89 to 08/92 IPL 223320 Page 5 of 8
www.ktoutdoor.com

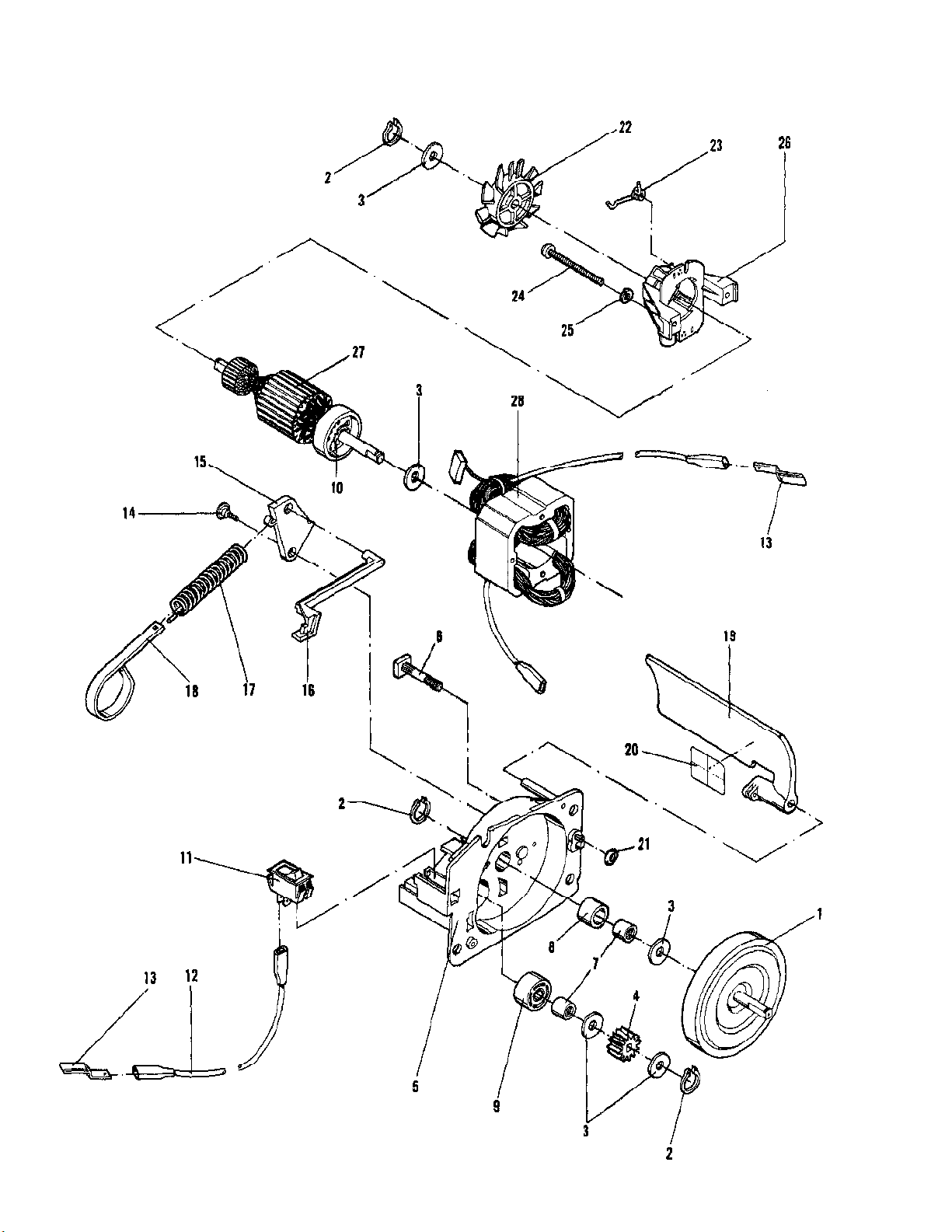

Motor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400101-03 ELECTRAMAC 12 ES 05/89 to 08/92 IPL 223320 Page 6 of 8
www.ktoutdoor.com
Motor Assembly
Ref # Part Number DescriptionQty
1 222268 Gear - Ring1
2 222280 Ring - Snap3
3 222279 Washer (10mm)5
4 222270 Drive Gear1
5 222721 Chassis Assembly1
6 83856 Bolt - Bar1
7 Bearing Not available separately.2
8 Sleeve - Bearing Not available separately.1
9 Mount - Bearing Not available separately.1
10 222278 Ring - Clip1
11 222291 Switch1
12 222292 Wire Terminal Assembly1
13 222283 Contact2
14 222287 Screw - Shoulder1
15 222286 Latch - Brake1
16 222261 Linkage - Chain Brake1
17 222285 Spring1
18 222284 Band - Brake1
19 223522 Lever Assembly - Brake1
20 Label - Safety Not available separately.1
21 105614 "O" Ring1
22 222275 Fan1
23 222277 Spring - Brush2
24 222299 Screw - Motor2
25 222739 Washer - Lock2
26 222262 Bracket Bearing Assembly1
27 222736 Armature Assembly (1-HP)1
222723 Armature Assembly (2-HP)1
28 222719 Terminal Field Asy (1-HP)1
222720 Terminal Field Asy (2-HP)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400101-03 ELECTRAMAC 12 ES 05/89 to 08/92 IPL 223320 Page 7 of 8
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400101-03 ELECTRAMAC 12 ES 05/89 to 08/92 IPL 223320 Page 8 of 8
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
85687 Wrench - Screwdriver
K&T Saw Shop 606-678-9623 or 606-561-4983
