Page 1

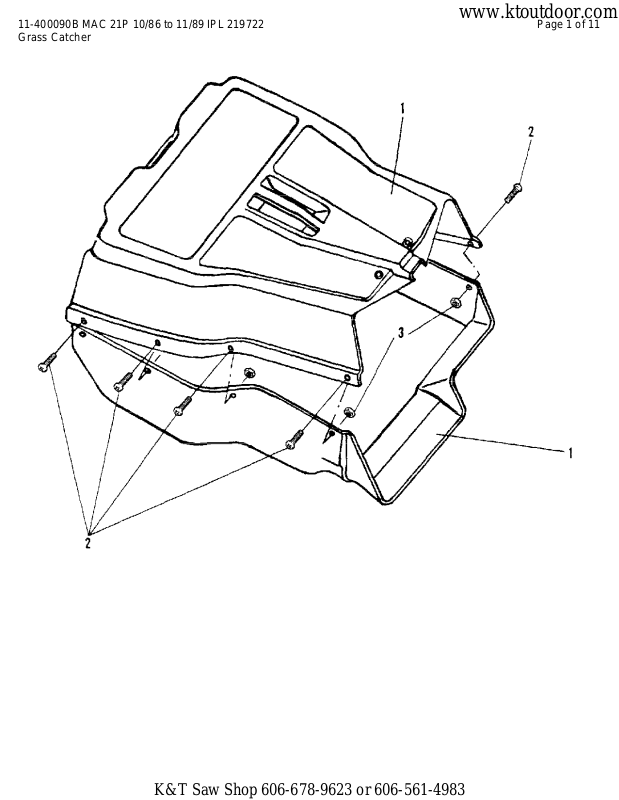

11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 1 of 11
www.ktoutdoor.com

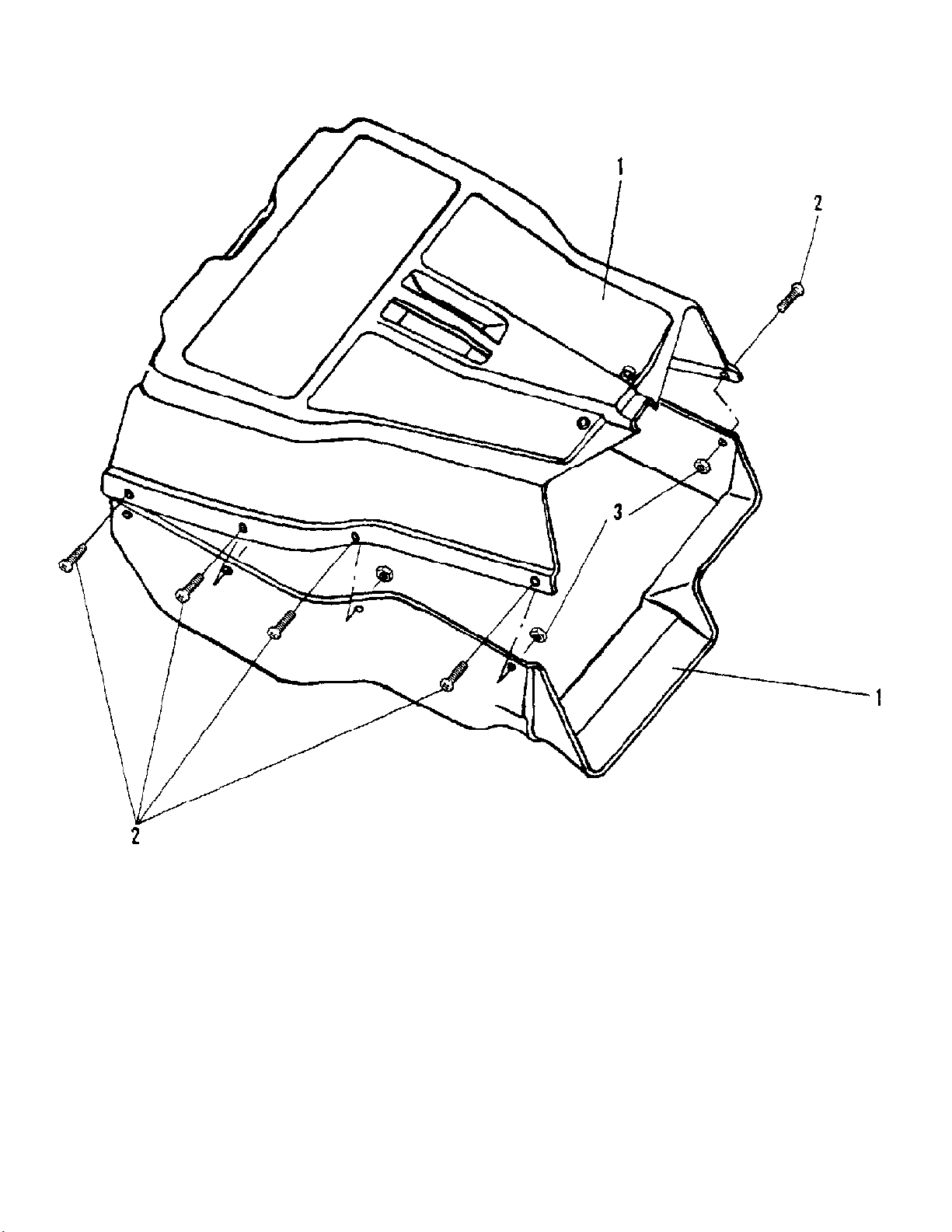

Grass Catcher
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 2 of 11
www.ktoutdoor.com
Grass Catcher
Ref # Part Number DescriptionQty
1 219653 Catcher Kit1
2 219701 Screw - 10-24 x 3/410
3 219679 Nut - 10-2410
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 3 of 11
www.ktoutdoor.com

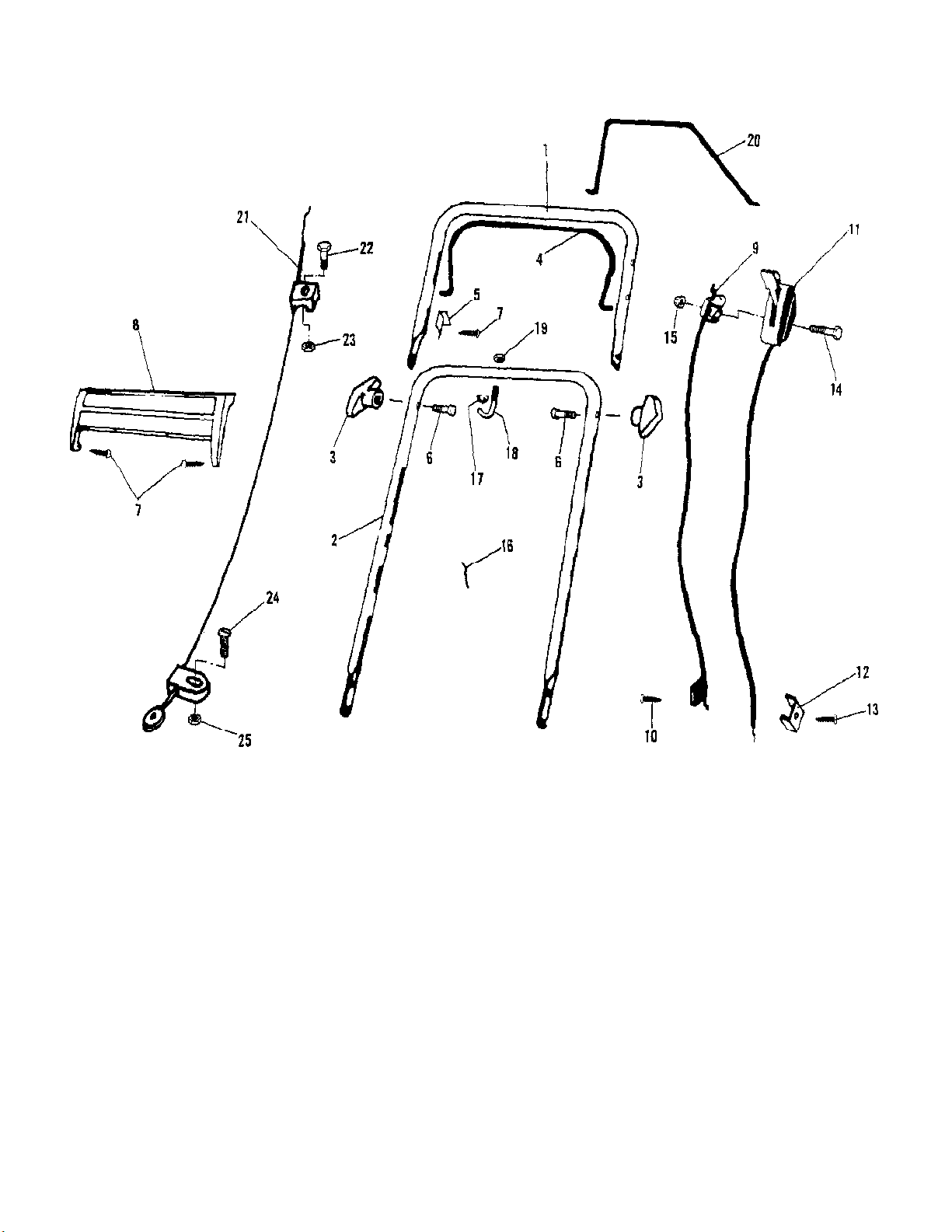

Handlebar Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 4 of 11
www.ktoutdoor.com
Handlebar Assembly
Ref # Part Number DescriptionQty
1 219601 Handlebar-Upper (Push Mower)1
219602 Handlebar-Upper (Self Propelled Mower)1
2 219603 Handlebar-Lower1
3 219604 Handlebar Knob2
4 219605 Engine Control Lever1
5 219606 Bail Up-Stop Bracket-L.H.1
219607 Bail Up-Stop Bracket-R.H.1
6 219608 Saddle Bolt 5/16 - 18 x 2"2
7 219671 Screw - 10-32 x 1/2"2
8 219609 Handle Panel1
9 219610 Cable-Zone Restart1
10 219671 Screw - 10-32 x 1/2"1
11 219611 Throttle Control1
12 219612 Clamp - Throttle1
13 219672 Screw - 10 x 5/81
14 219673 Capscrew - Hex Hd 1/4-20 x 2"1
15 219674 Nut - 1/4-201
16 219613 Cable Tie2
17 219614 Rope Guide2
18 219615 J-Bolt1
19 219675 Nut - 1/4-201
20 219616 Drive Control Lever1
21 219617 Drive Cable Assembly1
22 219676 Capscrew-Hx Hd 5/16-18 x 1 1/2"1
23 219677 Nut - 5/16-181
24 219678 Screw - 10-24 x 3/4" Rd Hd1
25 219679 Nut - 10-241
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 5 of 11
www.ktoutdoor.com

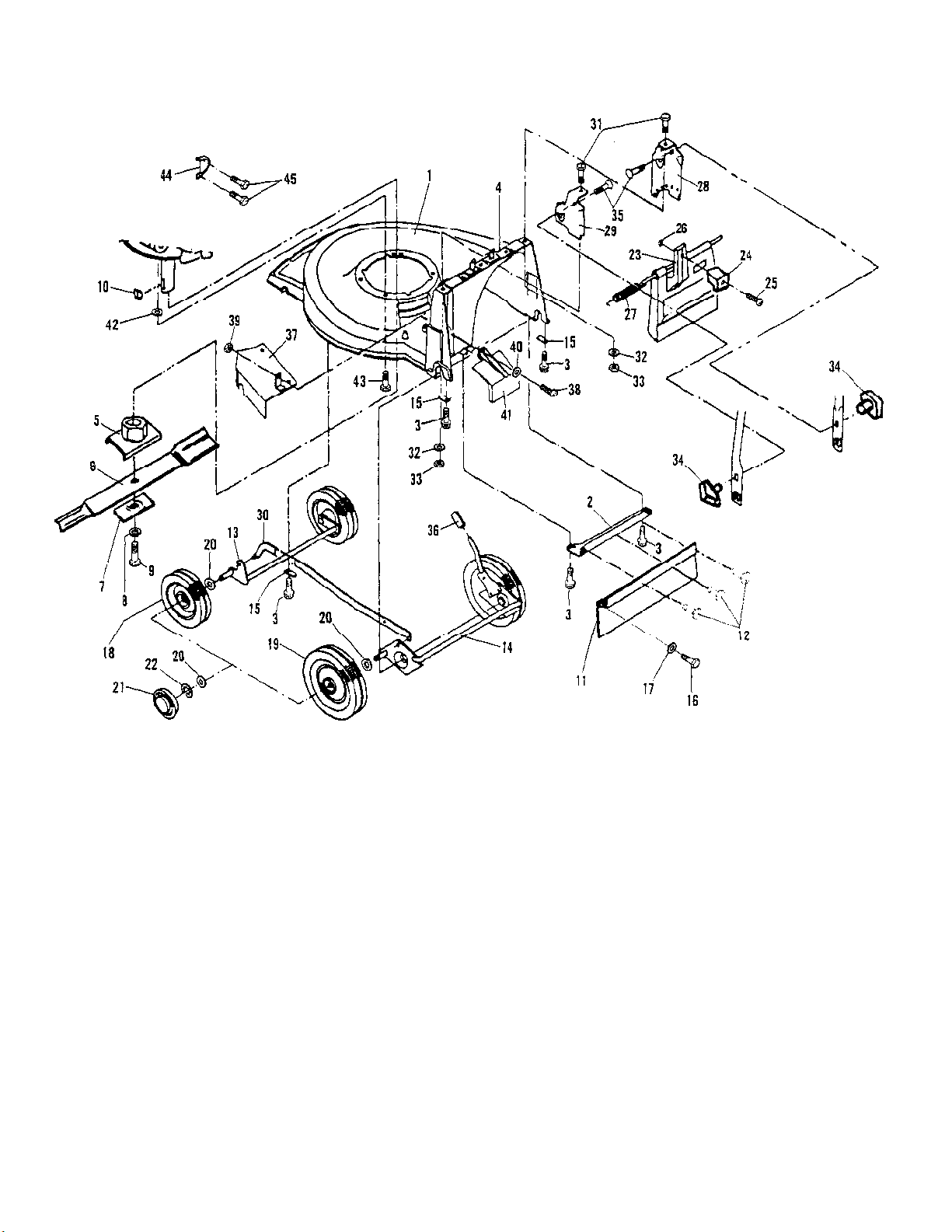

Mower Assembly (Push)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 6 of 11
www.ktoutdoor.com
Mower Assembly (Push)
Ref # Part Number DescriptionQty
1 219618 Deck Assembly - 21"1
2 219619 Support - Deck Safety1
3 219680 Screw - 1/4-20 x 1/2"5
4 219620 Latch Bracket Assembly1
5 219621 Blade Hub Assembly1
6 219622 Cutter Blade - 21"1
7 219623 Blade Retainer Plate1
8 219624 Washer - Spring Lock 3/8"1
9 219681 Blade Mounting Bolt (Hex Head 3/8-24 x 1 1/4)
10 219682 Woodruff Key - #61
11 219625 Drag Guard1
12 219683 Pop Rivet - 3/16"3
13 219626 Front Axle Assembly1
14 219627 Rear Axle Assembly1
15 219628 Axle Retainer4
16 219684 Screw - 1/4-20 x 5/8"1
17 219685 Washer - Flat 1/4"1
18 219629 Wheel - Front 7"2
19 219630 Wheel - Rear 8"2
20 219686 Washer - Flat 1/2"8
21 219631 Hubcap4
22 219687 Retaining Ring4
23 219632 Rear Door1
24 219633 Extension - Rear Door1
25 219688 Screw - 10-24 x 3/4"1
26 219689 Nut - 10-24 Square1
27 219634 Torsion Spring1
28 219635 Handle Bracket - R.H.1
29 219636 Handle Bracket - L.H.1
30 219637 Link Bar1
31 219690 Screw - 5/16-18 x 1"2
32 219691 Washer - Flat 3/8"2
33 219692 Nut - 5/16-182
34 219604 Handlebar Knob2
35 219693 Carr. Bolt - 5/16-18 x 1-1/8"2
36 219638 Height Adjustor Cap1
37 219639 Belt Guard Assembly1
38 219678 Screw - 10-24 x 3/41
39 219679 Nut - 10-241
40 219694 Washer - Flat1
41 219640 Cover1
42 219695 Washer - Flat3
43 219696 Engine Mtg. Bolt3
44 219652 Deflector - Muffler1
45 219700 Screw-8/32 x 5/82
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 7 of 11
www.ktoutdoor.com

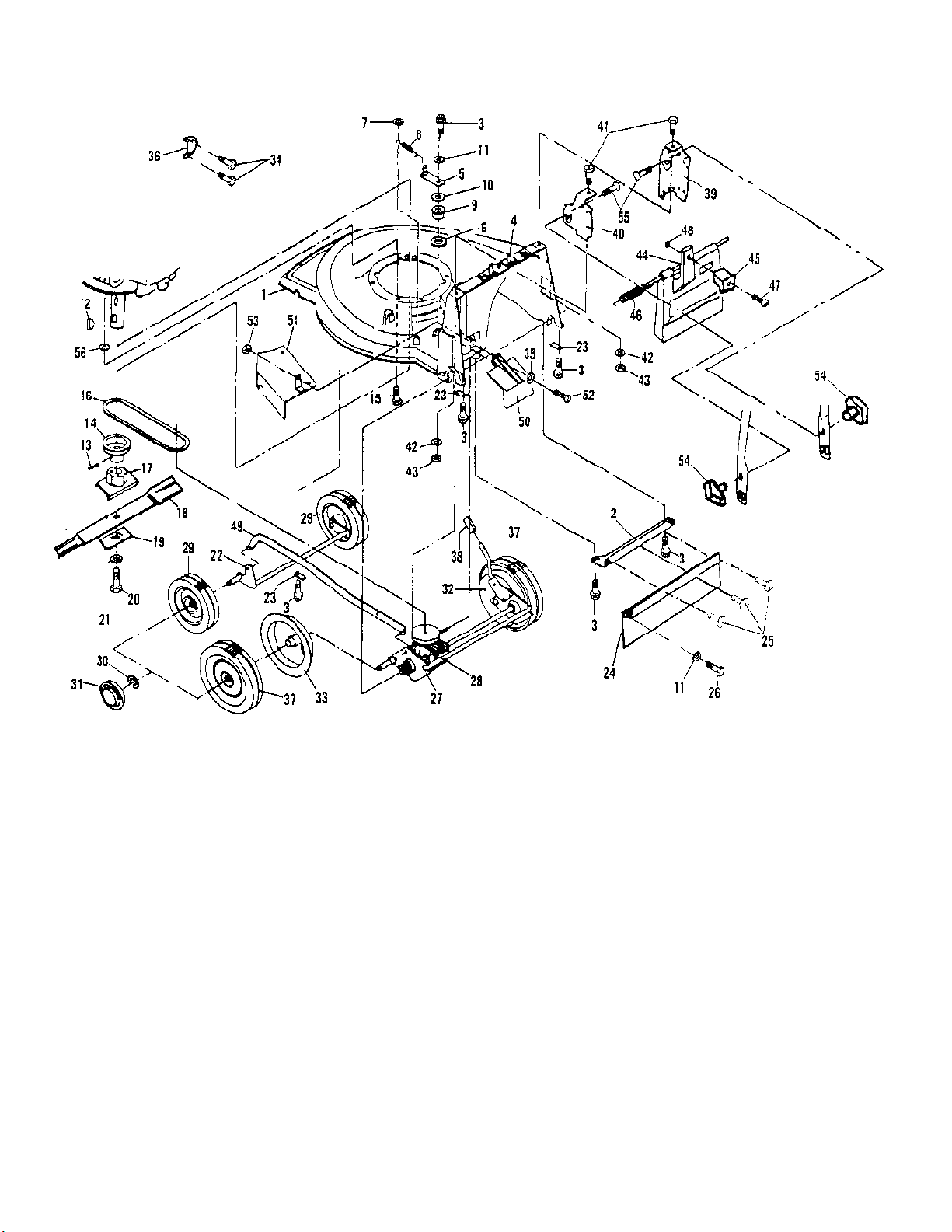

Mower Assembly (Self Propelled)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 8 of 11
www.ktoutdoor.com
Mower Assembly (Self Propelled)
Ref # Part Number DescriptionQty
1 219721 Deck Assembly - 21"1
2 219619 Support - Deck Safety1
3 219680 Screw - 1/4-20 x 1/2"6
4 219620 Latch Bracket Assembly1
5 219641 Idler Assembly1
6 219697 Washer - Nylon1
7 219698 Retainer1
8 219642 Idler Spring1
9 219643 Bushing - Nylon1
10 219686 Washer - Flat 1/2"1
11 219685 Washer - Flat 1/4"3
12 219682 Woodruff Key - #62
13 219699 Set Screw1
14 219644 Motor Pulley1
15 219696 Engine Mtg. Bolt3
16 219645 Drive Belt1
17 219621 Blade Hub Assembly1
18 219622 Cutter Blade - 21"1
19 219623 Blade Retainer Plate1
20 219681 Bolt - Blade Mounting1
21 219624 Washer - Spring Lock 3/8"1
22 219626 Front Axle Assembly1
23 219628 Axle Retainer4
24 219646 Drag Guard1
25 219683 Pop Rivet - 3/16"3
26 219684 Screw - 1/4-20 x 5/8"1
27 219647 Rear Axle & Transmission Asy1
28 See "Transmission Assembly" Illustration and parts list
29 219629 Wheel - Front 7"2
30 219687 Retaining Ring4
31 219631 Hubcap4
32 219648 Rear Wheel Cover - R.H.1
33 219649 Rear Wheel Cover - L.H.1
34 219700 Screw - 8-32 x 5/8"2
35 219694 Washer - Flat 3/161
36 219652 Deflector - Muffler1
37 219650 Wheel - Rear 8"2
38 219638 Height Adjustor Cap1
39 219635 Handle Bracket - R.H.1
40 219636 Handle Bracket - L.H.1
41 219690 Screw - 5/16-18 x 1"2
42 219691 Washer - Flat2
43 219692 Nut - 5/16-18 Hex Lock2
44 219632 Rear Door1
45 219633 Extension - Rear Door1
46 219634 Torsion Spring1
47 219688 Screw - 10-24 x 3/4"1
48 219689 Nut - 10-241
49 219637 Link Bar1
50 219651 Transmission Cover1
51 219639 Belt Guard Assembly1
52 219678 Screw - 10-24 x 3/4" Rd Hd1
53 219679 Nut - 10-241
54 219604 Handlebar Knob2
55 219693 Bolt - 5/16-18 x 1-1/8"2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 9 of 11
www.ktoutdoor.com
Mower Assembly (Self Propelled)
Ref # Part Number DescriptionQty
56 219695 Washer - Flat3
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 10 of 11
www.ktoutdoor.com

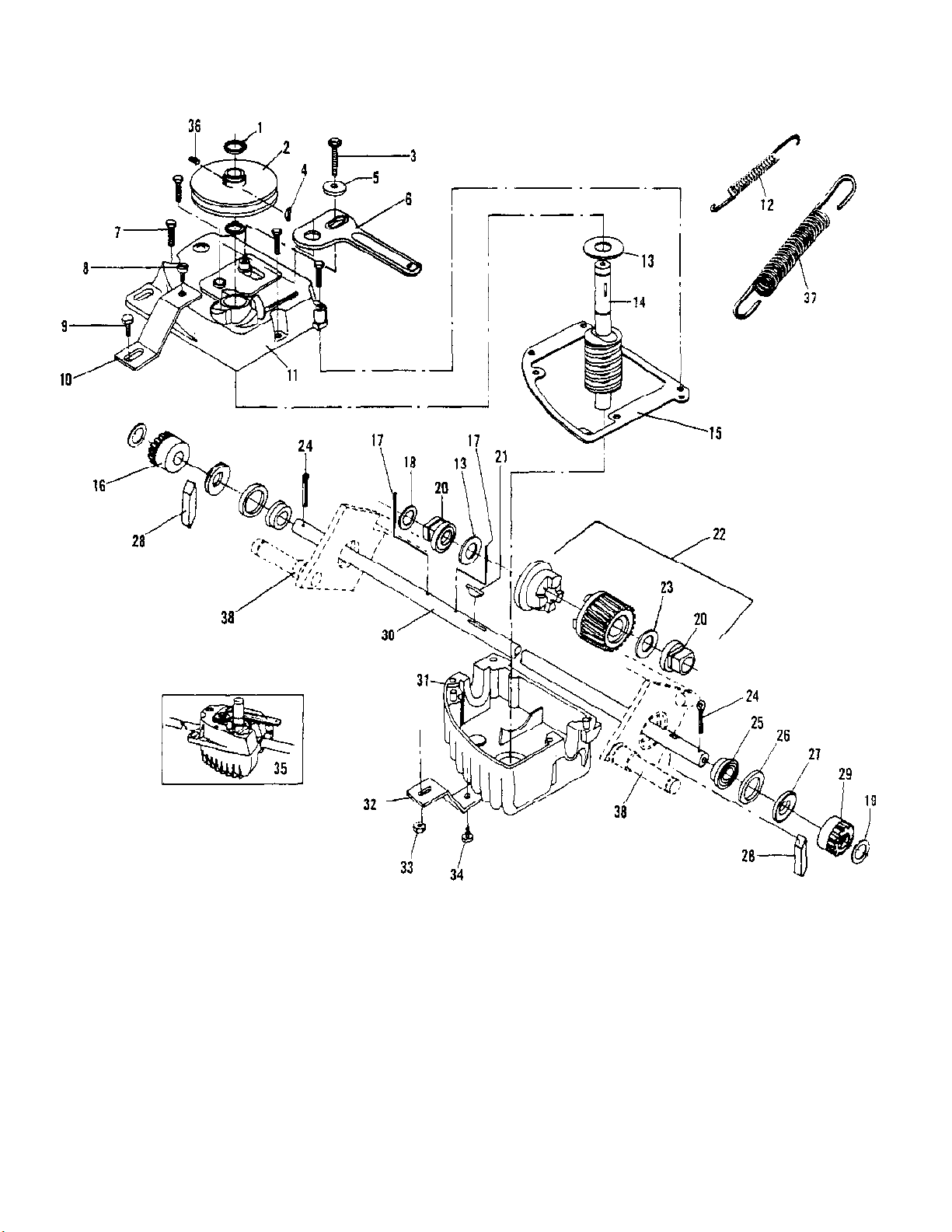

Transmission Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400090B MAC 21P 10/86 to 11/89 IPL 219722 Page 11 of 11
www.ktoutdoor.com
Transmission Assembly
Ref # Part Number DescriptionQty
1 219702 Retaining Ring2
2 219654 Pulley & Set Screw Assembly1
3 219703 Screw1
4 219704 Woodruff Key - #21
5 219705 Washer1
6 219655 Lever - Clutch1
7 219706 Screw4
8 219707 Screw - 10-24 x 1/2" Pan Hd1
9 219708 Capscrew - Hx Hd 1/4-20 x 3/4"1
10 219656 Upper Bracket1
11 219657 Upper Housing Assembly1
12 219709 Spring - Neutral Return1
13 219710 Washer2
14 219658 Shaft - Worm Gear R.H.1
15 219659 Gasket1
16 219660 Gear - R.H.1
17 219661 Spring Pin2
18 219711 Washer1
19 219712 Washer - Flat2
20 219783 Bearing2
21 219714 Key1
22 219662 Gear 3 Clutch Kit1
23 219715 Washer1
24 219716 Pin - Cotter 3/32 x 3/4"2
25 219717 Bearing - Axle2
26 219718 Washer - Felt2
27 219719 Washer2
28 219663 Drive Key2
29 219664 Gear - L.H.1
30 219665 Output Shaft1
31 219666 Lower Housing Assembly1
32 219667 Lower Bracket1
33 219675 Nut - 1/4-201
34 219668 Screw - 1/4-20 x 1/2"1
35 219669 Complete Transmission1
36 219720 Set Screw - 1/4-201
37 219670 Spring - Drive1
38 219274 Rear Axle Assembly1
K&T Saw Shop 606-678-9623 or 606-561-4983
