11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 1 of 11
www.ktoutdoor.com

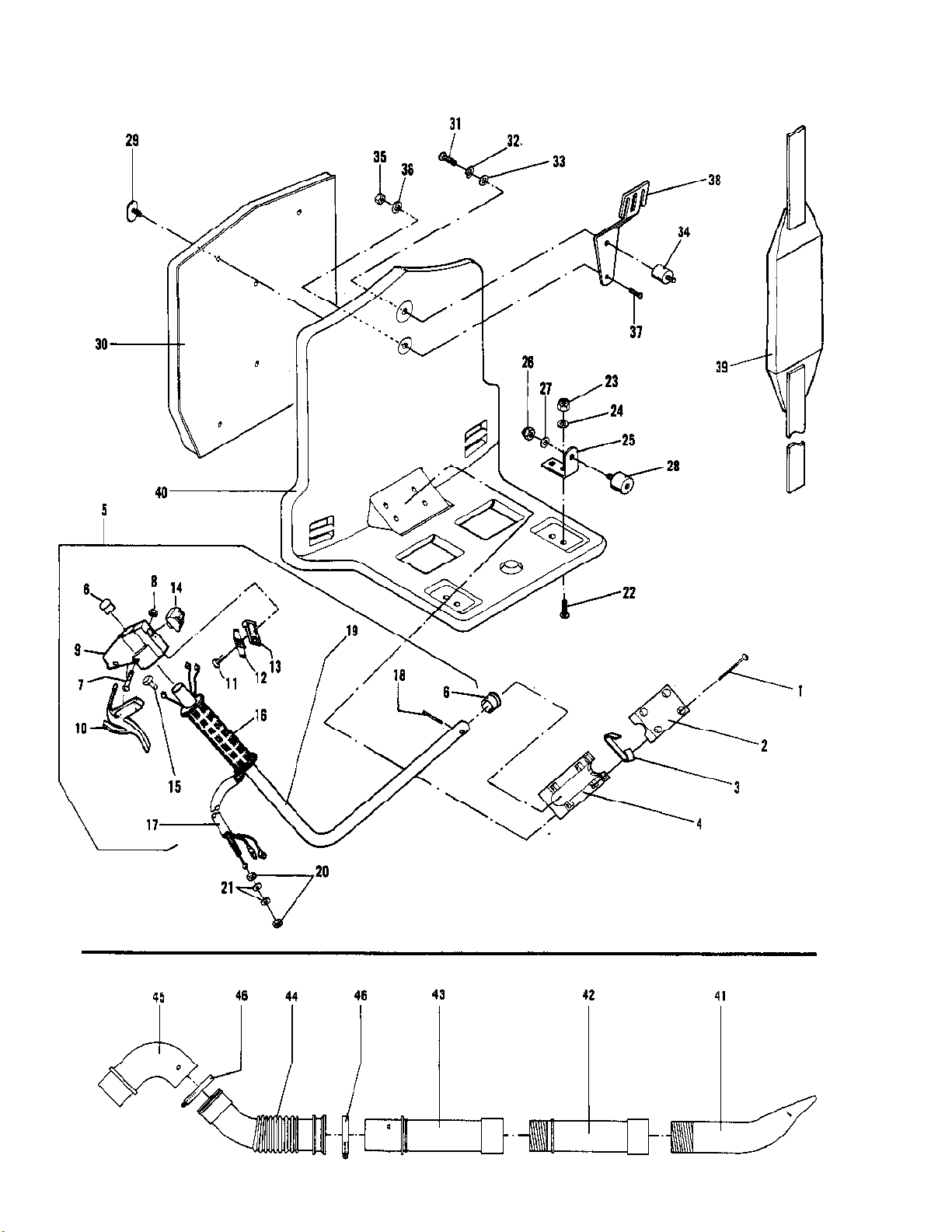

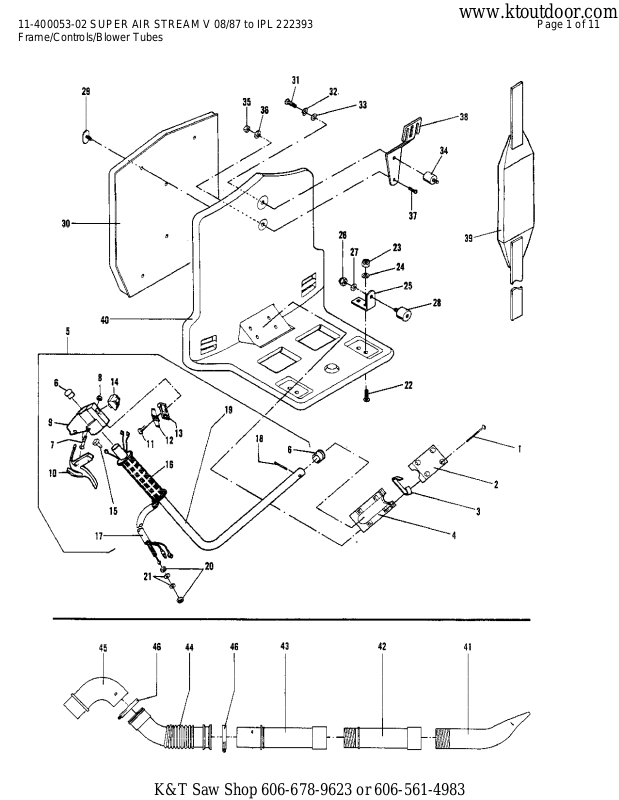

Frame/Controls/Blower Tubes
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 2 of 11
www.ktoutdoor.com
Frame/Controls/Blower Tubes
Ref # Part Number DescriptionQty
1 219883 Screw - Plastite (15 - 20 in. lb. torque)4
2 236760 Clamp - Control Arm1
3 219891 Spring - Arm1
4 219842 Mount - Control Arm1
5 219898 Arm/Throttle - Control1
6 218328 Plug - Tubing2
7 216027 Screw - M5 x 28.5 (7 - 11 in. lb. torque)1
8 217159 Nut - Hex M51
9 215317 Housing - Trigger1
10 215318 Trigger - Throttle1
11 110706 Screw - 8-18 x 1/2 (11 - 16 in. lb. torque)1
12 215320 Contact - Switch1
13 215319 Base - Switch1
14 68846 Button - Stop Switch1
15 215323 Guide - Wiring1
16 215322 Grip - Control Arm1
17 216372 Harness - Wiring/Cable1
18 219889 Pin - Roll1
19 219840 Tubing - Control Arm1
20 217403 Nut - M6 (18 - 27 in. lb. torque)2
21 216596 Arm - Throttle2
22 219881 Screw - 10-24 x 1.694
23 216649 Nut - Lock (25 - 35 in. lb. torque)4
24 110882 Washer - Flat4
25 219838 Bracket - Antivibration Mount2
26 100152 Nut - 1/4 x 20 (20 - 30 in. lb. torque)2
27 100311 Washer - Flat2
28 219878 Mount - Antivibration2
29 219888 Rivet - Pad6
30 219879 Pad - Back Pack1
31 219882 Screw - 1 1/4 x 20 Torx (20 - 30 in. lb. torque)1
32 105043 Washer - Lock1
33 100311 Washer - Flat1
34 219878 Mount - Antivibration1
35 216649 Nut - Lock (25 - 35 in. lb. torque)1
36 110882 Washer - Flat1
37 219881 Screw - 10-24 x .625 (25 - 35 in. lb. torque)1
38 219843 Hanger - Strap1
39 222207 Strap - Shoulder (Mc Culloch)2
222208 Strap - Shoulder (Eager Beaver)2
40 219597 Frame - Back Pack1
41 218841 Nozzle - Fishtail1
42 219841 Tube - Straight (Male Thread)2
43 219173-01 Tube - Straight (Female Thread)1
44 219833 Tube - Convoluted1
45 219832 Tube - Elbow 901
46 219172 Clamp - Tube2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 3 of 11
www.ktoutdoor.com
Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 4 of 11
www.ktoutdoor.com

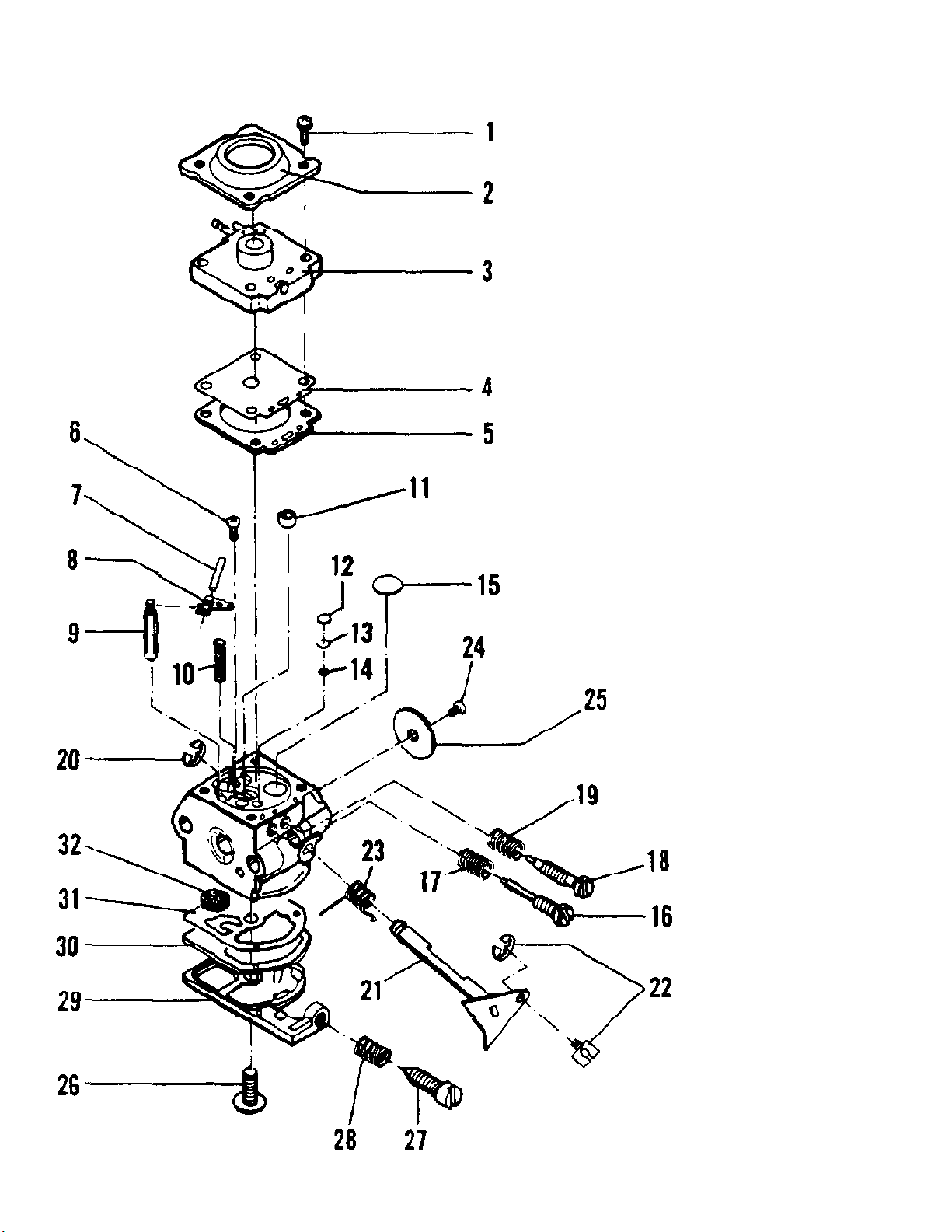

Carburetor Assembly
Ref # Part Number DescriptionQty
219894 Carburetor - Walbro M-78
1 Screw - Metering Cover Not available separately.4
2 Cover - Metering Diaphragm Not available separately.1
3 Body - Air Purge Not available separately.1
4 Diaphragm Asy - Metering Not available separately.1
5 Gasket - Metering Diaphragm Not available
6 Screw - Metering Lever Pin Not available separately.1
7 Pin - Metering Lever Not available separately.1
8 Lever - Metering Not available separately.1
9 Valve - Inlet Needle Not available separately.1
10 Spring - Metering Lever Not available separately.1
11 Seat Asy - Check Valve Not available separately.1
12 Plug - Welch Not available separately.1
13 Ring - Screen Retainer Not available separately.1
14 Screen - Check Valve Not available separately.1
15 Plug - Welch Not available separately.1
16 Needle - High Speed Not available separately.1
17 Spring - High Speed Needle Not available separately.1
18 Needle - Low Speed Not available separately.1
19 Spring - Low Speed Needle Not available separately.1
20 Ring - Shaft Retainer Not available separately.1
21 Shaft Asy - Throttle Not available separately.1
22 Swivel Asy Not available separately.1
23 Spring - Throttle Return Not available separately.1
24 Screw - Shutter Not available separately.1
25 Shutter - Throttle Not available separately.1
26 Screw - Pump Cover Not available separately.1
27 Screw - Idle Adjustment Not available separately.1
28 Spring - Idle Adj Not available separately.1
29 Cover - Fuel Pump Not available separately.1
30 Gasket - Fuel Pump Not available separately.1
31 Diaphragm - Fuel Pump Not available separately.1
32 Screen - Fuel Inlet Not available separately.1
222329 Major Repair Kit
222330 Gasket/Diaphragm Kit
1
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 5 of 11
www.ktoutdoor.com
General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 6 of 11
www.ktoutdoor.com

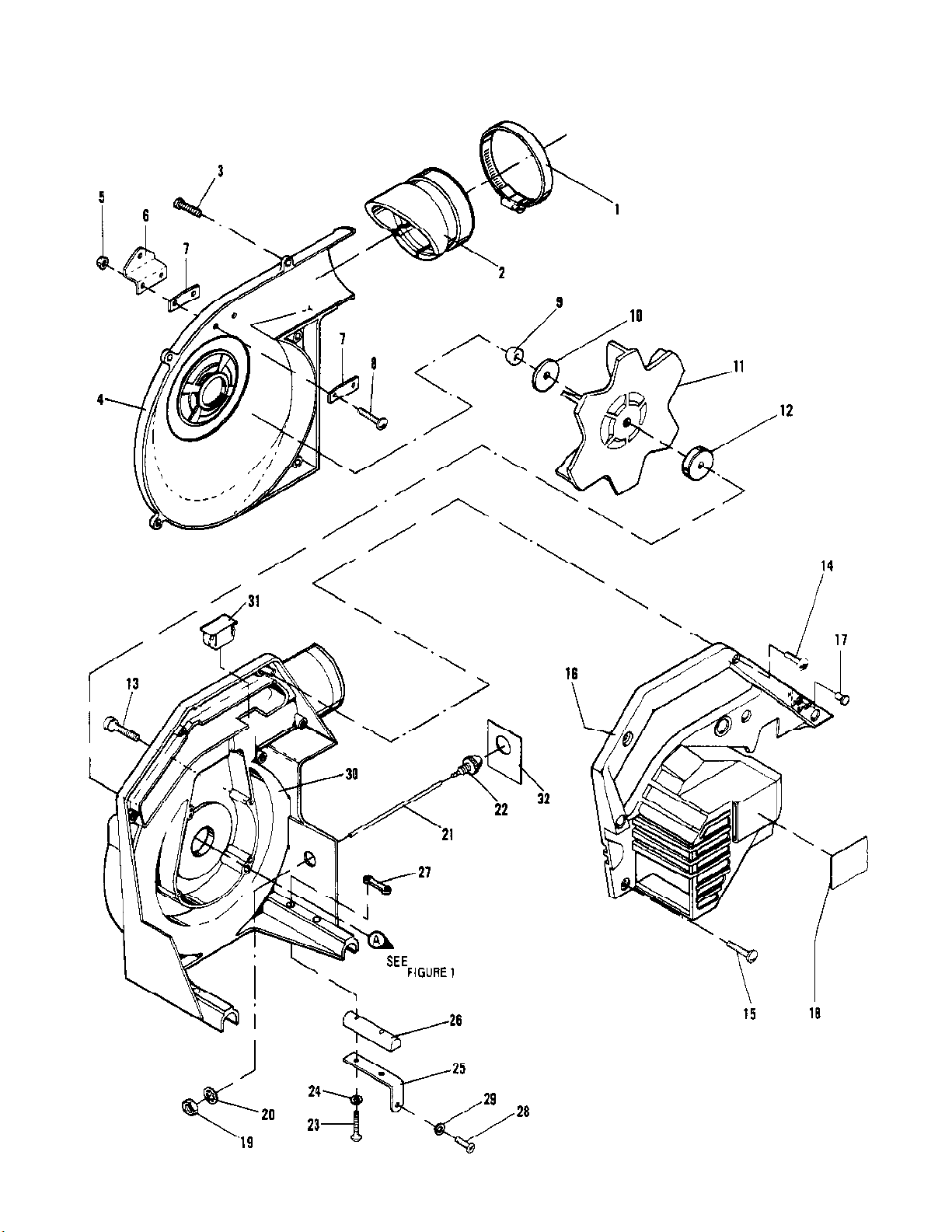

General Assembly
Ref # Part Number DescriptionQty
1 219172 Clamp - Adaptor1
2 219174 Adaptor Tube1
3 218644 Screw - 10-14 x .75 Torx (35 - 45 in. lb. torque)5
4 219892 Housing - Outer1
5 216649 Nut - Lock 10-24 (25 - 35 in. lb. torque)2
6 219834 Bracket - Upper1
7 219835 Plate - Bracket2
8 219881 Screw - Torx 10-24 x .62 (25 - 35 in. lb. torque)2
9 216645 Nut - Flange M8 (90 - 100 in.lb. torque)1
10 218656 Washer - Impeller1
11 219207 Impeller1
12 218655 Disc - Drive1
13 216022 Screw - M4 x 21.4 Torx (40 - 50 in. lb. torque)4
14 219954 Screw - 8-18 x .75 (35 - 45 in. lb. torque)1
15 218644 Screw - 10-14 x .75 Torx (35 - 45 in. 1b. torque)5
16 219946 Shroud - Engine1
17 Plug - Hole Not available separately.1
18 219977 Decal - Warning1
19 219970 Nut - Primer (13 - 18 in. lb. torque)1
20 219969 Washer - Primer1
21 219902 Hose - Primer1
22 219968 Body Asy - Primer1
23 217937 Screw - 10-24 x 1 (25 - 35 in. lb. torque)4
24 103174 Washer - Lock4
25 219837 Bracket - Lower2
26 219836 Spacer2
27 218117 Plate - Nut2
28 219880 Screw (20 - 30 in. lb. torque)2
29 105043 Washer - Lock1
30 219896 Housing - Inner1
31 219903 Cover - Switch Hole1
32 219980 Decal - Primer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 7 of 11
www.ktoutdoor.com
McCulloch 2-Cycle Custom Lubricants
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 8 of 11
www.ktoutdoor.com
McCulloch 2-Cycle Custom Lubricants
Ref # Part Number DescriptionQty
93770 Case 6 Oz. Cans
85707 Case 16 Oz. Cans
85709 Case 1 Qt. Bottles
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 9 of 11
www.ktoutdoor.com

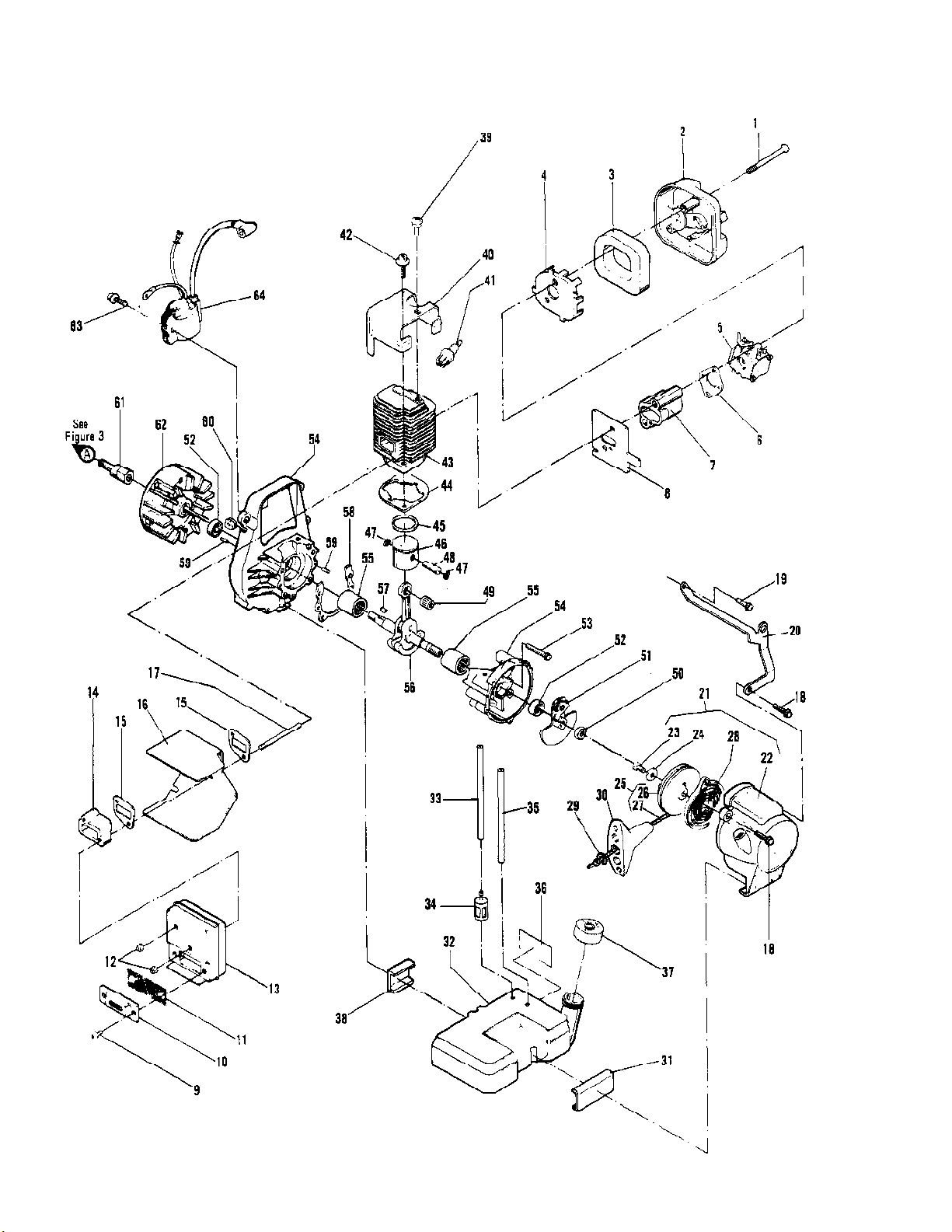

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 10 of 11
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 219246 Screw - M5 x 84.5 (18 - 26 in. lb. torque)2
2 219098 Cover Asy - Choke1
3 219145 Filter - Air1
4 219144 Box - Air1
5 Carburetor Assembly See "Carburetor Assembly"
6 218919 Gasket - Carburetor1
7 219171 Insulator - Carburetor1
8 218918 Gasket/Shield - Insulator1
9 216025 Screw - M4 x 8 Torx (13 - 17 in. lb. torque)2
10 218553 Outlet - Muffler1
11 215516 Screen - Spark Arrestor1
12 217275 Nut - Flange M-5 (32 - 51 in. lb. torque)2
13 218651 Muffler Asy1
14 218632 Spacer - Muffler1
15 218920 Gasket - Muffler2
16 218652 Shield - Muffler1
17 218631 Stud - M5 x 79 (40 - 51 in. lb. torque)2
18 216022 Screw - M4 x 23.4 (13 - 16 in. 1b. torque)3
19 213177 Screw - M4 x 18.5 Torx (12 - 16 in. lb. torque)1
20 219884 Bracket - Cable1
21 219590 Starter Asy1
22 219588 Housing - Starter1
23 215874 Screw - M4 x 9.5 Torx (17 - 22 in. lb. torque)1
24 216590 Washer - M4 Flat1
25 216092 Drum/Rope Asy1
26 215770 Drum - Starter1
27 216093 Rope - Starter1
28 217482 Spring - Starter1
29 218941 Washer - Nylon1
30 216792 Handle - Starter1
31 217382 Cushion - Fuel Tank1
32 219901 Fuel Tank/Hose Asy1
33 219899 Hose - Fuel1
34 216985 Pickup - Fuel1
35 219897 Hose - Fuel Return1
36 217383 Decal - 40:11
37 216346 Cap - Fuel1
38 217390 Cushion - Fuel Tank1
39 213178 Screw - M5 x 8.5 Torx (15 - 25 in. lb. torque)1
40 218586 Cover - Cylinder1
41 62345 Spark Plug (109 - 135 in. lb. torque)1
42 217320 Screw - M6 x 18 Torx (72 - 83 in. lb. torque)2
43 219084 Cylinder/Gasket Kit1
44 215542 Gasket1
45 217475 Ring - Piston1
46 218264 Piston1
47 111026 Ring - Snap2
48 218275 Pin - Wrist1
49 110984 Bearing - Needle1
50 216583 Nut - M8 (156 - 171 in. lb. torque)1
51 215525 Ratchet Asy (Hand Tighten Only)1
52 83859 Seal - Oil2
53 213179 Screw - M5 x 28.5 (32 - 42 in. lb. torque)4
54 218185 Crankcase Asy1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
illustration and parts list.
Page 11
11-400053-02 SUPER AIR STREAM V 08/87 to IPL 222393 Page 11 of 11
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 213282 Bearing - Crankshaft2
56 218106 Crankshaft/Con Rod Asy1
57 102164 Key - Flywheel1
58 215545 Gasket - Crankcase1
59 213191 Pin4
60 215541 Grommet1
61 218654 Extension - Shaft (150 - 168 in. lb. torque)1
62 219951 Flywheel1
63 216022 Screw - M4 x 23.40 (13 - 16 in. lb. torque)2
64 217439 Ignition1
K&T Saw Shop 606-678-9623 or 606-561-4983
