11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 1 of 13
www.ktoutdoor.com

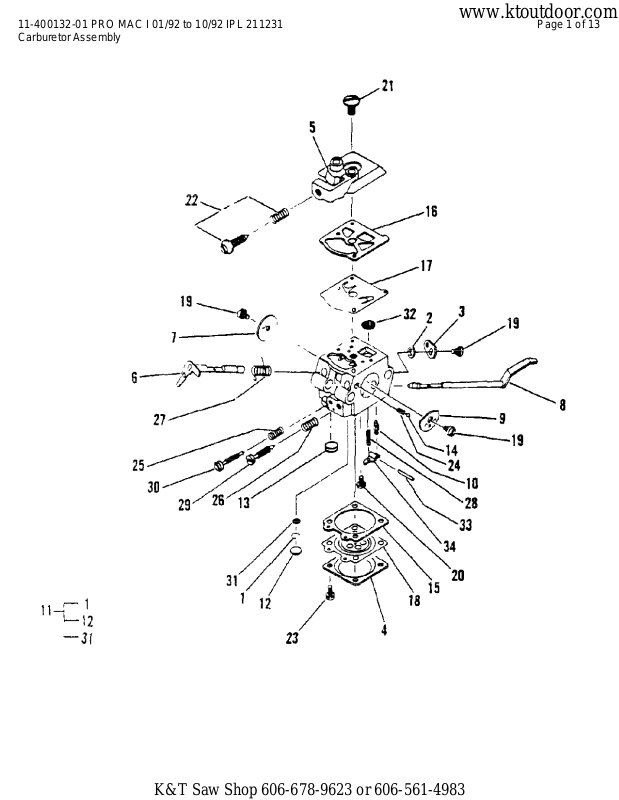

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 2 of 13
www.ktoutdoor.com
Carburetor Assembly

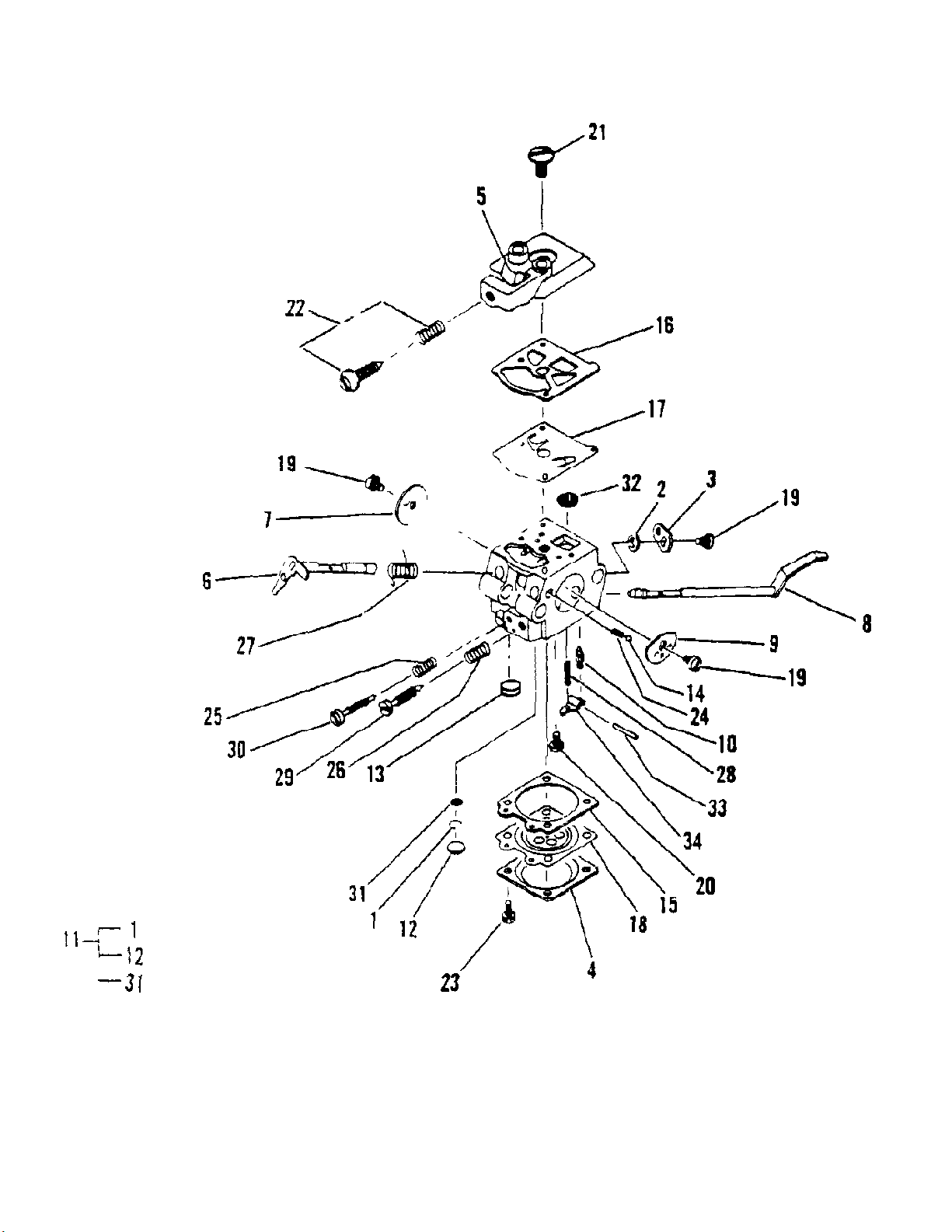

Ref # Part Number DescriptionQty
224033-02 Carburetor w/Choke Walbro WT-231A Distributor
stocked. Medium to slow moving part.
1 Ring, Screen Retainer1
2 Ring, Shaft Retainer1
3 Lever, Throttle1
4 Cover, Metering Lever1
5 Cover, Fuel Pump1
6 Shaft Assembly, Throttle1
7 Valve, Throttle1
8 Shaft Assembly, Choke1
9 Valve, Choke1
10 Valve, Inlet Needle1
11 Seat Assembly, Check Valve1
12 Plug, Cup 5mm1
13 Plug, Welch 5/161
14 Ball, Choke Friction1
15 Gasket, Metering Diaphragm1
16 Gasket, Fuel Pump1
17 Diaphragm, Fuel Pump1
18 Diaphragm Assembly, Metering1
19 Screw, Valve3
20 Screw, Metering Lever Pin1
21 Screw, Pump Cover1
22 Screw, Idle Adjust Kit1
23 Screw, Metering Cover4
24 Spring, Choke Friction1
25 Spring, Idle Needle1
26 Spring, High Speed Needle1
27 Spring, Throttle Return1
28 Spring, Metering Lever1
29 Needle, High Speed1
30 Needle, Idle1
31 Screen, Check Valve1
32 Screen, Fuel Inlet1
33 Pin, Metering Lever1
34 Lever, Metering1
300457 Kit, Carburetor Repair Distributor stocked. Medium to
slow moving part.
224460 Kit, Gasket/Diaphragm Distributor stocked. Medium to
slow moving part.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 3 of 13
www.ktoutdoor.com
Shaft/Handle and Cutter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 4 of 13
www.ktoutdoor.com
Shaft/Handle and Cutter Assemblies

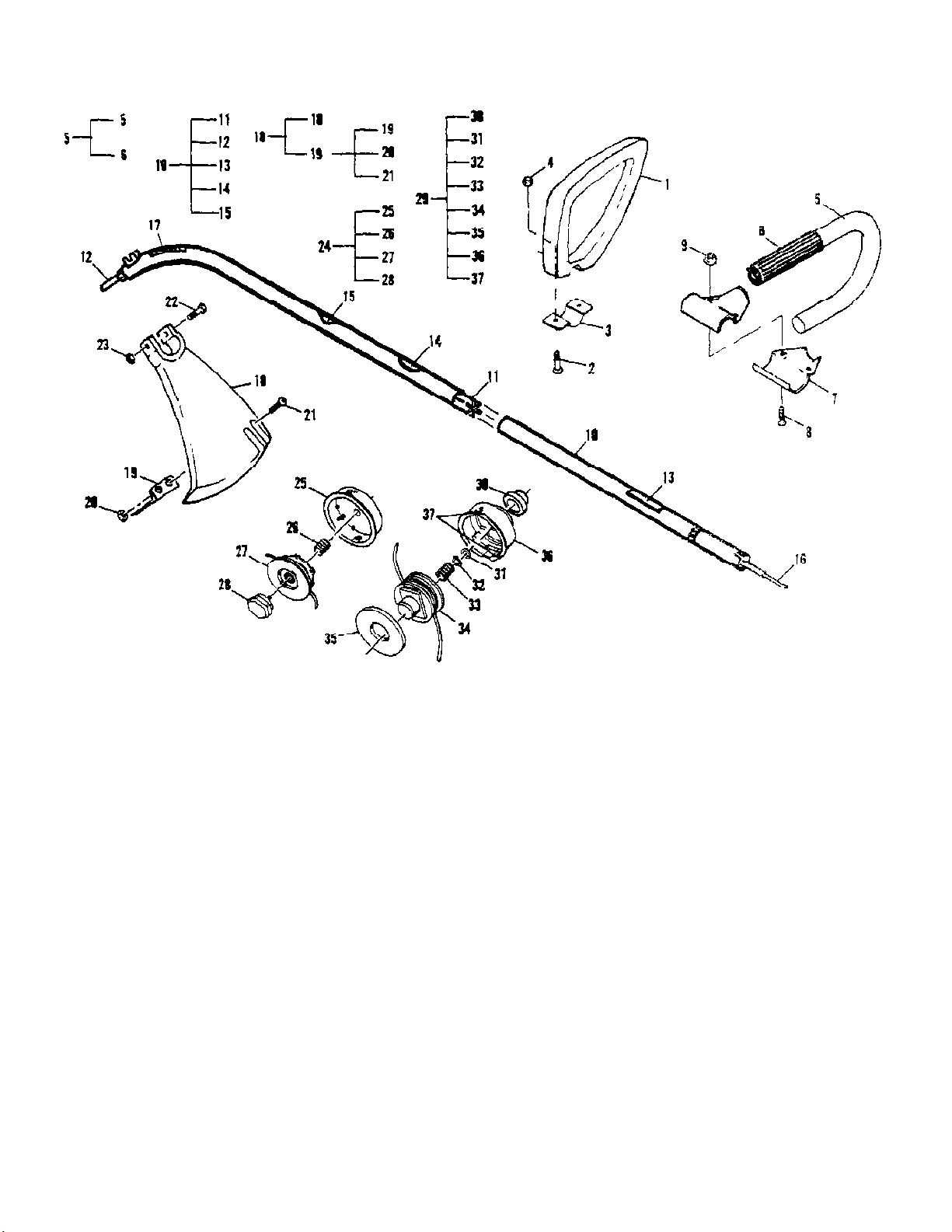

Ref # Part Number DescriptionQty
1 217444 Handle, Delta1
2 120041 Screw, M5 x .8 x 22 Hex2
3 217442 Clamp, Handle1
4 217159 Nut, Hex M52
5 300540 Handle, "J" Grip Assembly1
6 322139 Grip1
7 215337 Clamp, Handle2
8 217935 Screw, 10-24 Torx2
9 218315 Nut2
10 300424 Housing Assembly, Outer (48")1
11 217366 Sleeve1
12 Spindle1
13 218295 Decal, Warning1
14 223407 Decal, Eye/Ear Cover1
15 211214 Decal, Warning (15m)1
16 215324 Shaft, Flex1
17 322099 Label, Debris Shield Warning1
300429 Housing Assembly, Outer (44")1
218282 Sleeve1
Spindle1
218295 Decal, Warning1
223407 Decal, Eye/Ear Cover1
211214 Decal, Warning (15m)1
218285 Shaft, Flex1
322099 Label, Debris Shield Warning1
18 224062 Shield Assembly, Grass (17")1
19 300626 Kit, Knife1
20 216682 Nut, Lock 10-24 Hex2
21 217935 Screw, 10-24 x .50 Torx2
22 216595 Screw, M6 x 50 Hex1
23 215871 Nut, Hex M6 x 1.01
24 300651 Kit, String Head Small (McM)1
25 322025 Housing/Eyelet Asy w/Collar1
26 225206 Spring, Left1
27 300138 Spool Assembly w/.095 Line1
28 300002 Knob Assembly, Right1
29 300110 Kit, String Head1
30 224998 Collar1
31 224986 Washer, Plain .390 ID x 5/81
32 222403 Ring, Retaining1
33 223740 Spring, String Head1
34 224268 Spool w/.095 Line1
35 224305 Cover, String Head1
36 224303 Housing/Eyelet Assembly1
37 223739 Eyelet2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 5 of 13
www.ktoutdoor.com
Powerhead/Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 6 of 13
www.ktoutdoor.com
Powerhead/Engine Assembly

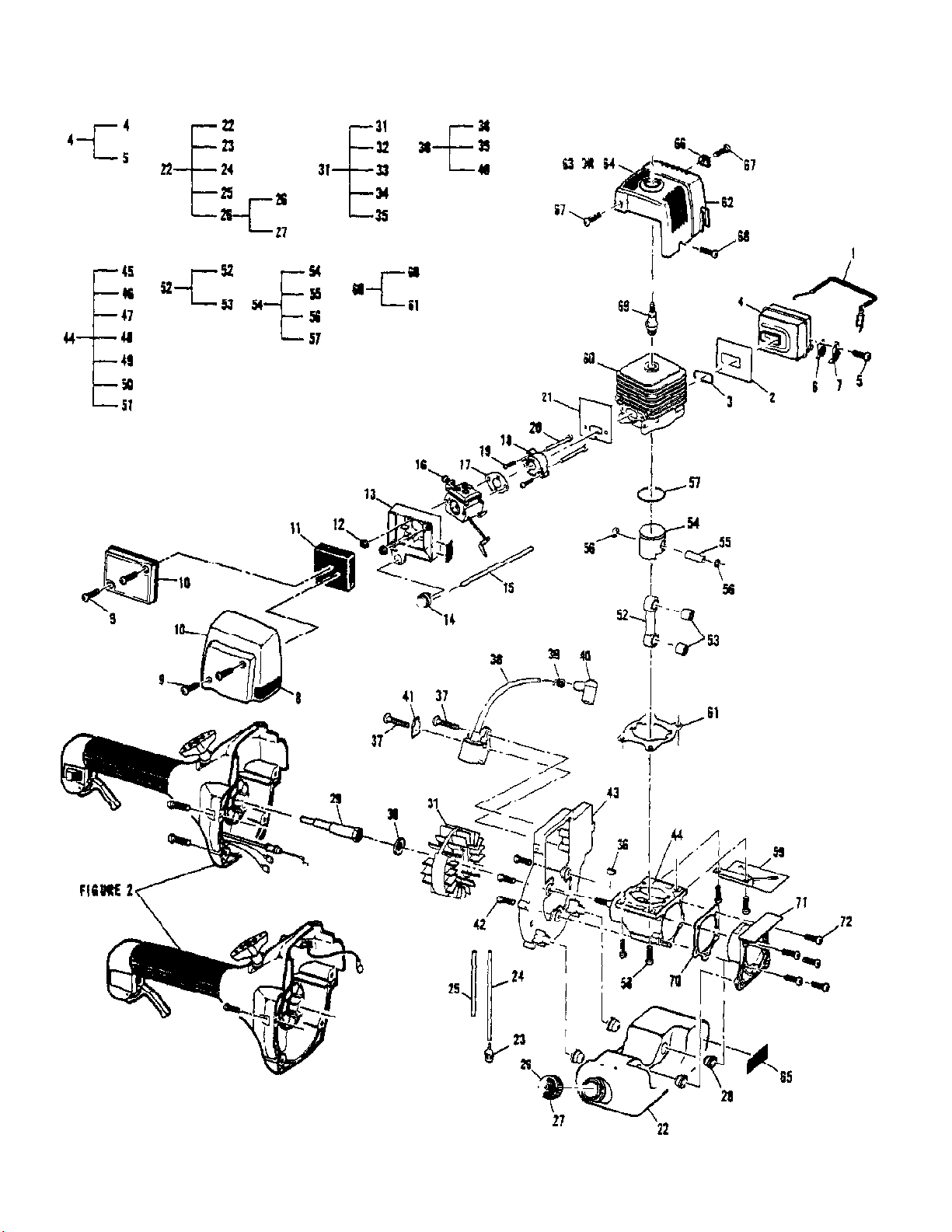

Ref # Part Number DescriptionQty
1 224044 Spring, Muffler1
2 224228 Gasket, Muffler1
3 224922 Gasket, Exhaust Port1
4 224034 Muffler Assembly1
5 111072 Screw, 8-18 x .31 PN HD Torx1
6 224040 Screen, Spark Arrestor1
7 322032 Cover, Spark Arrestor1
8 322096 Label, Choke1
322101 Label, Choke1
9 111055 Screw, 10-14 x .6252
10 224237 Cover, Air Cleaner - Small (Blk)1
224236 Cover, Air Cleaner - Large (Blk)1
300302 Cover, Air Cleaner - Large (Grey)1
11 224239 Filter, Air1
12 111058 Nut, 10-24 Flange/Hex2
13 224238 Box, Air (Blk)1
300301 Box, Air (Grey)1
14 224242-02 Primer, Remote1
15 225163 Hose, Fuel1
16 CARBURETOR W/CHOKE See "Carburetor
Assembly" illustration and parts list.
17 218933 Gasket, Carburetor1
18 224041 Manifold, Carburetor1
19 111053 Screw, 10-24 x .882
20 111057 Screw, 10-24 SPL2
21 322031 Gasket, Manifold1
22 300669 Kit, Fuel Tank/Cap (Natural)1
300670 Kit, Fuel Tank/Cap (Blk)1
23 216985 Pickup, Fuel1
24 225162 Hose, Fuel1
25 225163 Hose, Fuel Return1
26 300700 Kit, Cap - Fuel1
27 211242 Decal, (OPEN SLOWLY)1
28 322105 Isolator, Fuel Tank4
29 224248 Adapter, Short1
30 105989 Washer, .32 ID1
31 224021 Flywheel / Pawl Assembly1
32 Pin, Starter Pawl2
33 Pawl2
34 Spring, Starter Pawl2
35 Washer, Starter Pawl2
36 102164 Key, Flywheel1
37 111053 Screw, 10-24 x .882
38 219848 Ignition Assembly1
39 102556 Connector, Spark1
40 95266 Boot, Spark Plug1
41 300321 Terminal Tab1
42 111054 Screw, 10-24 x .6253
43 224042 Shroud, Engine Machined1
44 224020 Crankcase/Shaft Assembly1
45 Crankshaft Assembly1
46 Crankcase, Machined1
47 Bearing 62021
48 Bearing 6202RS1
49 Seal1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 7 of 13
www.ktoutdoor.com
Powerhead/Engine Assembly
Ref # Part Number DescriptionQty
50 Spacer1
51 O Ring1
52 224009 Connecting Rod Assembly1
53 91117 Bearing2
54 300662 Kit, Piston, 28cc Chrome1
55 300482 Piston Pin, C'shaft (10mm dia)1
56 215876 Ring, Retaining2
57 224224 Ring, Piston 35mm1
300663 Kit. Piston, 32cc Aluminum1
300482 Piston Pin, C'shaft (10mm dia)1
215876 Ring, Retaining1
224217 Ring, Piston 38mm1
58 111065 Screw, 10-24 x .6884
59 322030 Shield, Muffler1
60 300451 Kit, Cylinder 28cc Aluminum1
61 224022 Gasket, Cylinder1
300453 Kit, Cylinder 32cc Chrome1
224022 Gasket, Cylinder1
62 224235 Cover, Cyl/Muffler (Blk)1
300304 Cover, Cyl/Muffler (Grey)1
63 322098 Label, Start Inst (MOM. OFF)1
64 322097 Label, Start Inst (ON-OFF)1
65 322100 Label, Storage1
66 322210 Washer, Plastic1
67 111067 Screw, 10-24 x 63 Torx2
68 111068 Screw, 10-14 x 1.38 Taptite1
69 62345 Spark Plug/DJ8J1
70 224023 Gasket, Crankcase1
71 224024 Plug, Crankcase1
72 111065 Screw, 10-24 x .6885
73 STARTER HOUSING ASSEMBLIES See "Starter
Housing Assembly" illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 8 of 13
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 9 of 13
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235 LOCTITE KIT
322236 RETAINING COMPOUND 620 (10 ml)
322237 THREAD LOCKER 242 (10 ml)
322238 GASKET ELIMINATOR 518 (50 ml)
322239 BLACK MAX ADHESIVE 380 (01 oz)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 10 of 13
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 11 of 13
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
215432 PRESSURE TEST TOOL
217720 KIT, TORX WRENCHES
222785 T-25 TORX DRIVE
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 12 of 13
www.ktoutdoor.com
Starter Housing Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400132-01 PRO MAC I 01/92 to 10/92 IPL 211231 Page 13 of 13
www.ktoutdoor.com
Starter Housing Assemblies
Ref # Part Number DescriptionQty

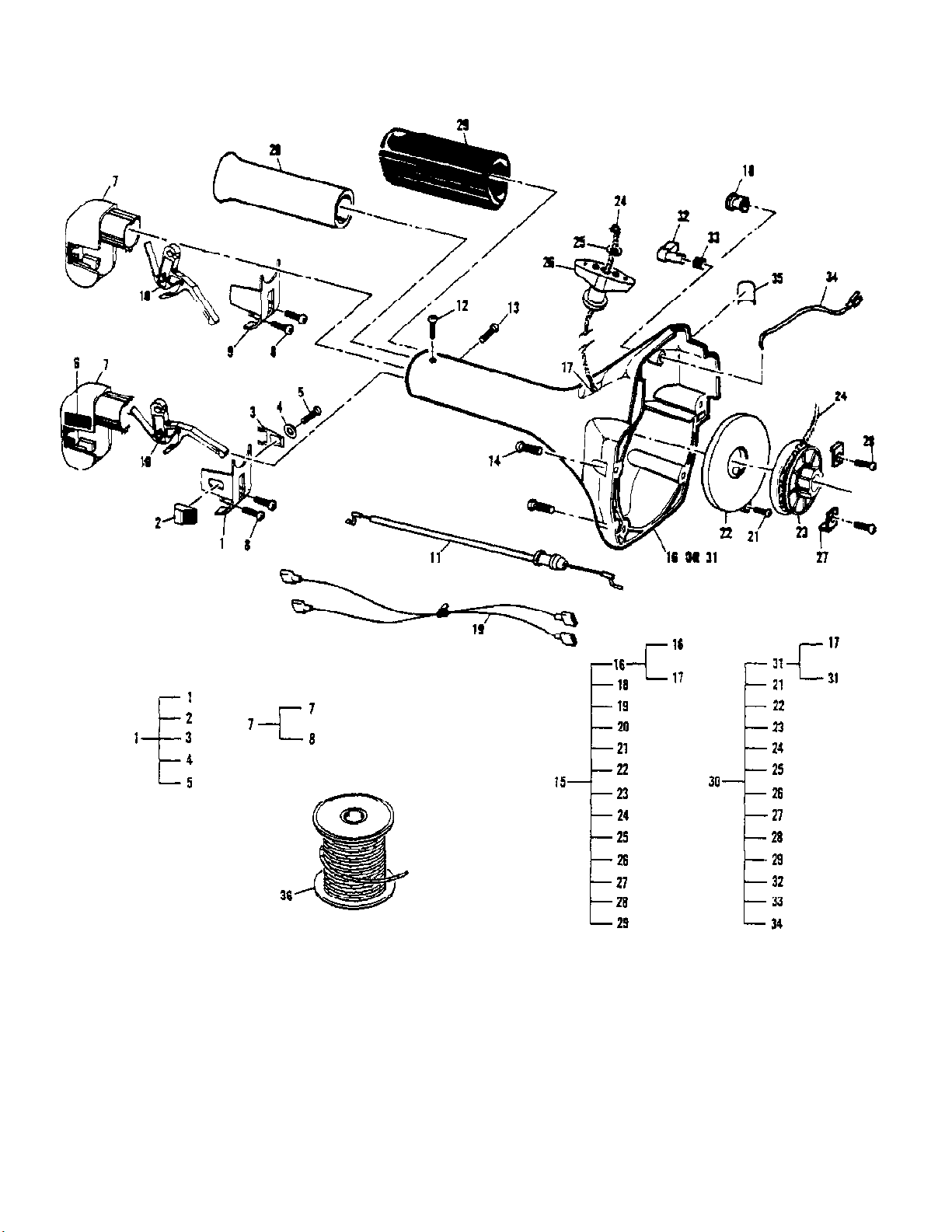

1 300064 Cover Assembly, Switch1
2 224245 Button, Stop Switch1
3 224246 Contact, Switch1
4 105497 Washer, Flat .180 max ID1
5 111069 Screw, 8-16 x .3751
6 322081 Label, Switch (ON/OFF)1
7 224234 Trigger Housing Assembly1
8 Screw, Switch Not available separately2
9 224914 Cover, Switch Housing1
10 300361 Trigger, Throttle1
11 300149 Throttle Cable, Non Clutch1
12 111070 Screw, 12-11 x .5 Torx (top)1
13 111059 Screw, 10-14 x .5 Torx1
14 111054 Screw, 10-24 x .6254
15 300118 Starter Housing Asy w/Plug1
16 300621 Starter Housing, Notched1
17 Guide, Rope Not available separately1
18 300119 Plug (Switch Cover)1
19 300370 Wire Assembly, Switch1
20 322234 Sleeve, Protecting1
21 322027 Screw, Spring Retainer1
22 300475 Package, Spring Assembly1
23 219496 Pulley, Starter1
24 222869 Rope, Starter (46")1
25 218941 Washer, Nylon1
26 216792 Handle, Starter1
27 322211 Retainer, Pulley2
28 223357 Screw, 8-162
29 322140 Grip1
30 224917 Starter Housing Asy (Yel)1
31 300621 Housing/Guide, Rope (Yel)1
300033 Starter Housing Asy (Grey)1
300620 Housing/Guide, Rope (Grey)1
Guide, Rope Not available separately1
322027 Screw, Spring Retainer1
300475 Package, Spring Assembly1
219496 Pulley, Starter1
222869 Rope, Starter (46")1
218941 Washer, Nylon1
216792 Handle, Starter1
322211 Retainer, Pulley2
223357 Screw, 8-162
322140 Grip1
32 222914 Button, Stop1
33 222913 Spring, Button Stop1
34 222926 Wire Assembly, Switch1
35 211243 Label, Push and Hold1
36 300415 Rope, Bulk1
K&T Saw Shop 606-678-9623 or 606-561-4983
