11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 1 of 12
www.ktoutdoor.com

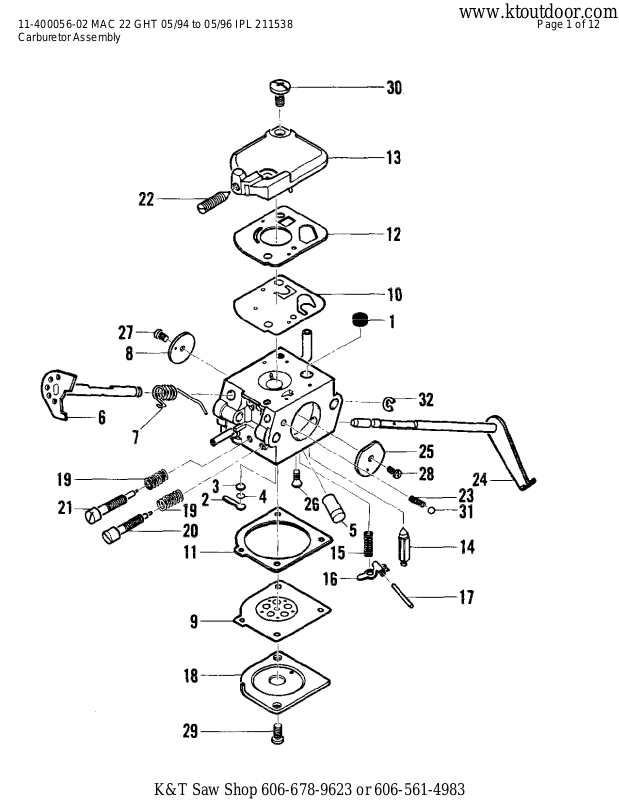

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 2 of 12
www.ktoutdoor.com

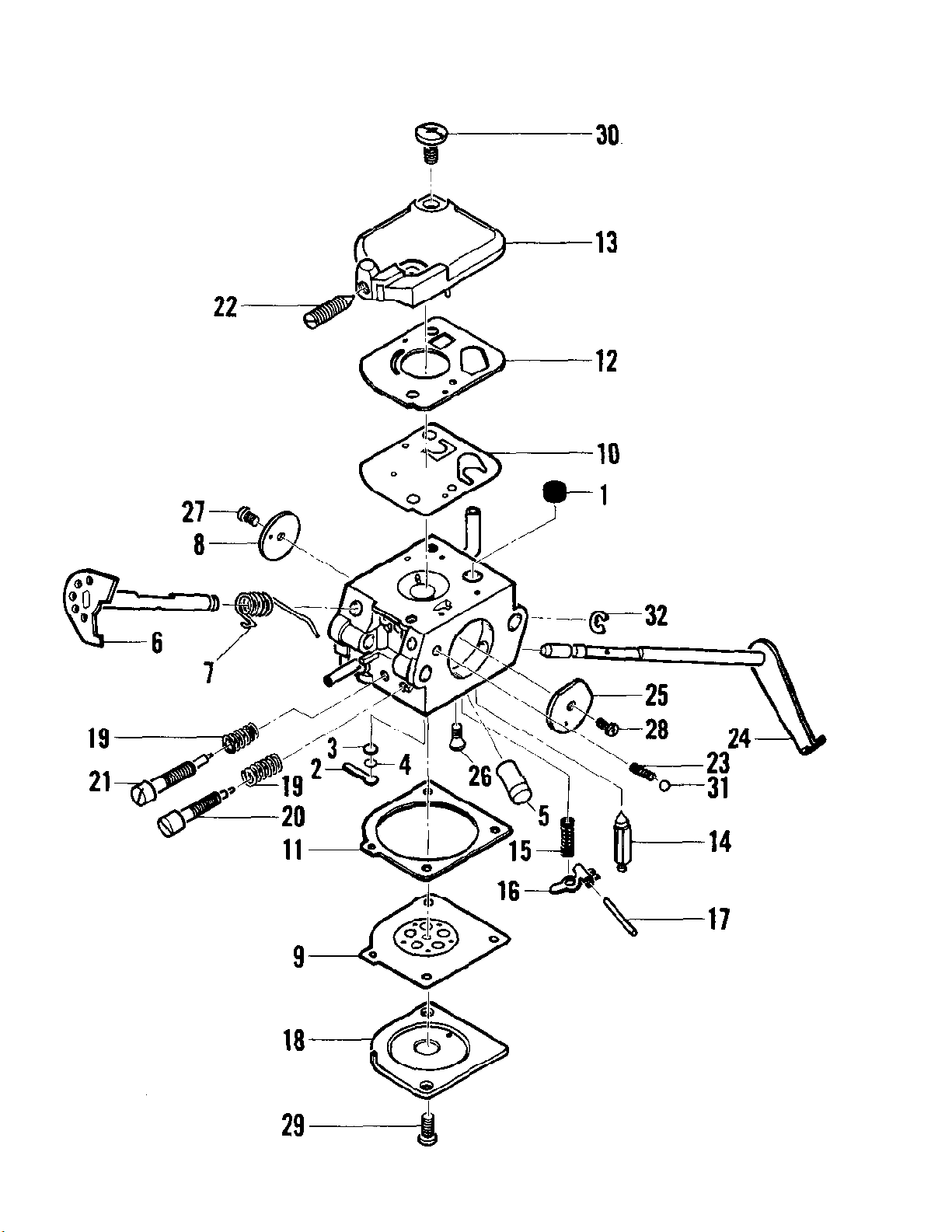

Carburetor Assembly
Ref # Part Number DescriptionQty
322739-01 Carburetor, Zama M-321
1 Strainer1
2 Plug, Welch1
3 Valve, Check1
4 Retainer, Check Valve1
5 Nozzle Assembly, Throttle1
6 Shaft Assembly Throttle1
7 Spring, Throttle Return1
8 Valve, Throttle1
9 Diaphragm Assembly, Metering1
10 Diaphragm, Pump1
11 Gasket, Metering Chamber1
12 Gasket, Pump1
13 Cover, Pump1
14 Valve, Inlet Needle1
15 Spring, Metering Lever1
16 Lever, Metering1
17 Pin1
18 Cover, Metering Chamber1
19 Spring, Adjust Screw2
20 Screw, Main Mixture1
21 Screw, Idle Mixture1
22 Screw, Throttle Adjust1
23 Spring, Friction1
24 Shaft Assembly, Choke1
25 Valve, Choke1
26 Screw, Pin1
27 Screw, Throttle Valve1
28 Screw, Choke Valve1
29 Screw, Metering Chamber Cover2
30 Screw, Pump Cover2
31 Ball, Steel1
32 E - Ring1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 3 of 12
www.ktoutdoor.com

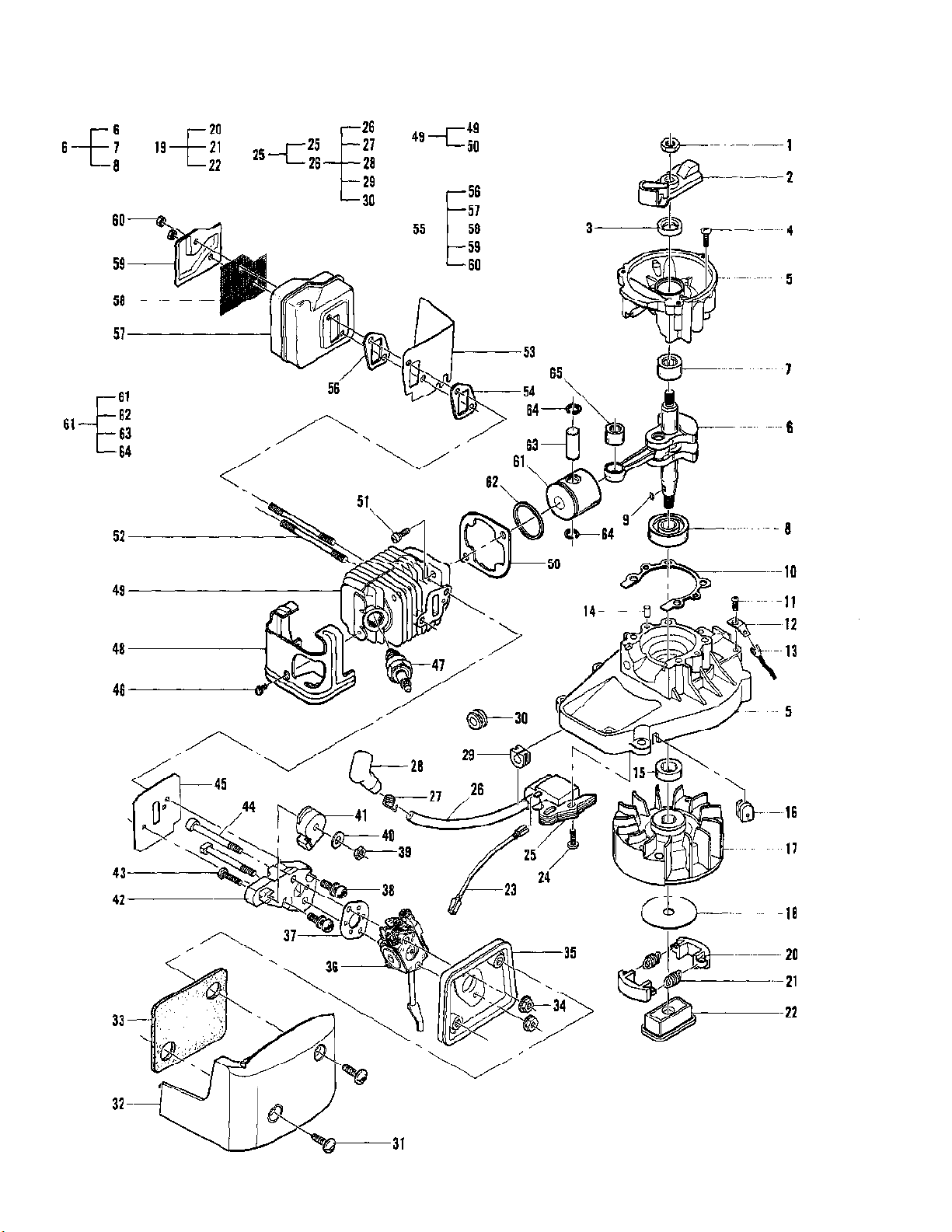

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 4 of 12
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 216583 Nut, Hex M81
1 216583 Starter Pawl Torque 95 - 105 (in. lbs.)
2 225037 Starter Pawl Assembly1
3 83859 Seal, Crankshaft1
4 216027 Screw, M5 X 28.5 Torx4
4 216027 Crankcase
5 301102 Crankcase Assembly1
6 301274 Crankshaft/Ball Bearing Assembly1
7 213282 Bearing, Crankshaft1
8 216143 Bearing, Ball1
9 102164 Key, WDF #2061
10 215545 Gasket, Crankcase1
11 215874 Screw, M4 X 9.5 Torx1
12 300321 Terminal, Tab1
13 301108 Wire, Ground1
14 213191 Pin2
15 216500 Seal1
16 215541 Grommet1
17 222308 Flywheel1
18 215539 Plate, Side1
19 217554 Clutch Assembly1
20 Shoe, Clutch Not available separately.2
21 223770 Spring, Clutch2
22 215536 Rotor, Clutch1
23 301198 Wire Assembly, Switch1
24 216022 Screw, M4 X 23.4 Torx2
24 216022 Ignition Module Torque 30 - 35 (in. lbs.) Loctite Type
242
25 219848-01 Ignition Assembly1
26 223884 Kit, Spark Plug Wire1
27 102556 Connector, Spark1
28 95266 Boot, Spark Plug1
29 215533-01 Grommet, H/T Lead1
30 110995 Grommet, Spark Plug Wire1
31 218644 Screw, 10-14 X .752
32 225043 Cover, Air Filter1
33 225042 Air Filter1
34 111058 Nut, 10-24 Hex, Flange2
34 111058 Carburetor Torque 25 - 30 (in. lbs.)
35 225041 Airbox1
36 Carburetor Assembly See "Carburetor Assembly"
illustration and parts list.
37 225027 Gasket, Carburetor1
38 111120 Screw, M5 x 0.8 x 20 Pan Hd. Torx2
38 111120 Insulator Torque 45 - 50 (in. lbs.) Loctite Type 242
39 216682 Nut, 10-24 Hex Lock1
40 216531 Washer, Plain1
41 225025 Guide, Throttle Cable1
42 225024 Insulator, Cable1
43 111127 Screw, 10-24 X .75 Hex1
44 111057 Screw, 10-24 Spl2
45 225022 Gasket, Insulator/Shield1
46 213178 Screw, M5 X 8.5 SEMS Torx1
47 62345 Spark Plug, DJSJ1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 5 of 12
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
47 62345 Spark Plug Torque 110 - 120 (in. lbs.)
48 215540-01 Cover, Cylinder1
49 224448 Kit, Cylinder-Plated1
50 223925 Gasket, Cylinder1
51 217320 Screw, M6 X 18 Torx SE2
51 217320 Cylinder Torque 70 - 80 (in. lbs.)
52 222480 Stud, Muffler2
52 222480 Muffler Stud Torque 45 - 50 (in. lbs.) Loctite Type 620
53 322743 Shield, Muffler Heat1
54 215515 Gasket, Muffler1
55 300630 Kit, Muffler1
56 215515 Gasket, Muffler1
57 322011 Muffler Assembly, Universal1
58 322018 Screen, Spark Arrest1
59 322231 Deflector, Muffler1
60 235642 Nut, M52
60 235642 Muffler Nuts Torque 40 - 50 (in. lbs.)
61 301443 Kit, Piston-Alum.1
62 223455 Ring, Piston1
63 218275 Pin, Wrist1
64 111026 Ring, Snap2
65 110984 Bearing, Needle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 6 of 12
www.ktoutdoor.com

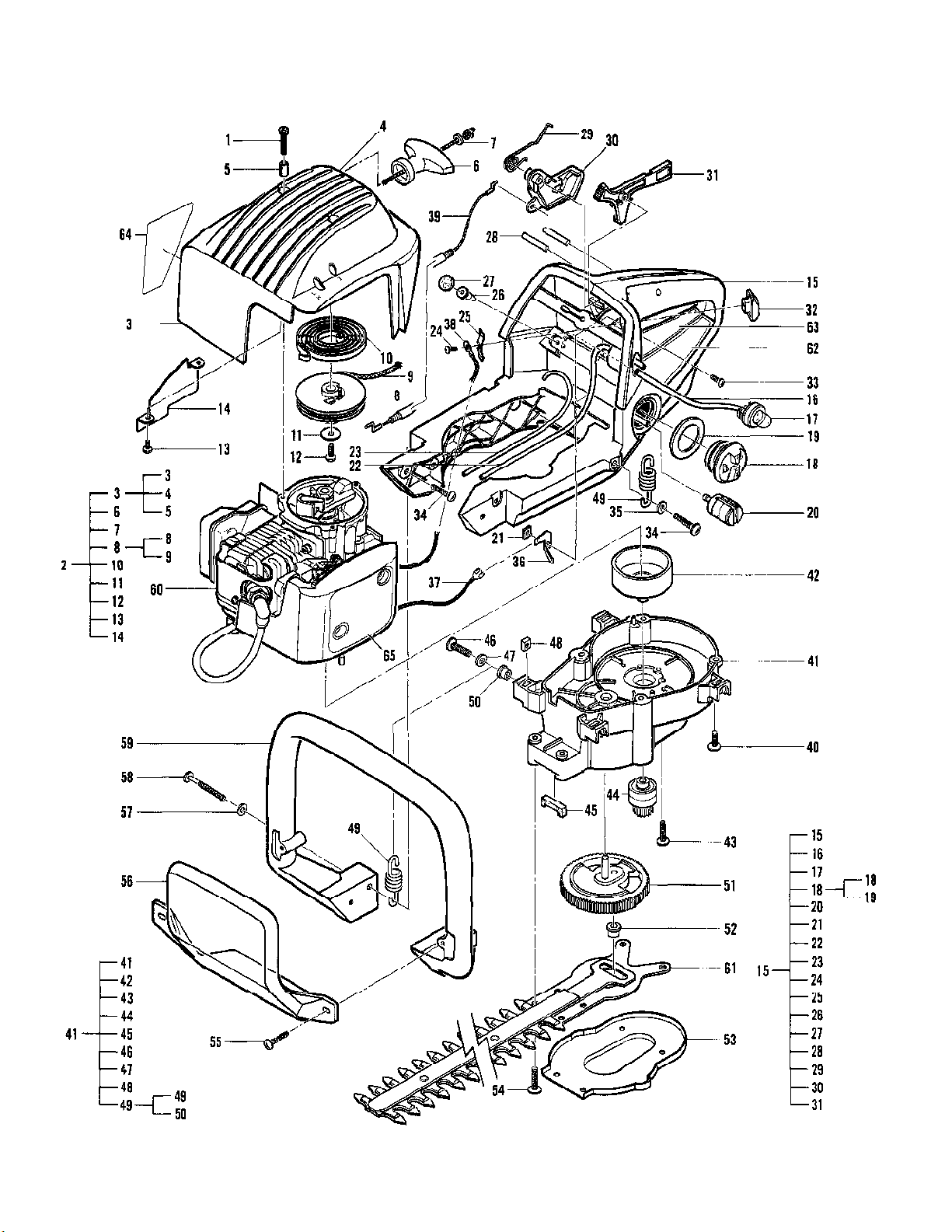

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 7 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 216022 Screw, M4 X 23.4 Torx3
2 301111 Starter/Top Cover Assembly1
3 301541 Starter/Rope Guide Assembly1
4 Guide, Rope Not available separately.1
5 219585 Spacer, Starter Housing3
6 216792 Handle, Starter1
7 218941 Washer, Nylon1
8 301252 Drum/Rope Assembly1
9 216093 Rope, Starter1
10 300474 Spring, Starter Rewind1
11 216590 Washer, Flat M41
12 300294 Screw, 8-16 X .75 Torx1
13 111069 Screw, 8-16 X .375 Plast2
14 322840 Baffle1
15 301543 Kit, Mainframe (Black)1
301544 Kit, Mainframe (Grey)1
16 301281 Hose, Primer Return1
17 224242-01 Primer, Remote1
18 301112 Cap, Fuel Assembly1
19 322742 Gasket, Fuel Cap1
20 215714 Pick-up, Fuel1
21 111126 Nut, Locking 6-321
22 225012 Hose, Primer1
23 225011 Hose, Fuel Pick-up1
24 111118 Screw, 6-32 UNC1
25 322741 Contact, Stop1
26 322199 Valve, Duckbill (Fuel Tank)1
27 225021 Filter, Vent1
28 218491 Pin, Trigger2
29 93771-01 Spring, Trigger1
30 225033 Trigger, Throttle1
31 225034 Latch, Safety1
32 224245 Button, Stop Switch1
33 111069 Screw, 8-16 X .375 Plastite1
34 111117 Screw, 10-14 X 1 Plastite4
35 93469 Washer, .469 OD /.222 ID2
36 62451 Contact, Ignition Switch1
37 301198 Wire Assembly, Switch1
38 301108 Wire Assembly, Ground1
39 225026 Throttle Cable Assembly1
40 111119 Screw, M4 X 0.7 X 14, Truss Torx4
40 111119 Fan Housing Torque 35 - 40 (in. lbs.), Loctite type
242
41 301101 Gear/Fan Housing Assembly1
42 225006 Drum Assembly, Clutch1
43 218644 Screw, 10-14 X .75 Torx2
44 Gear Assembly, Driving Not available separately.1
45 225005 Seal, Felt1
46 217936 Screw, 10-24 X .75 Torx4
47 93469 Washer, .469 OD /.222 ID4
48 218005 Nut, Square 10-244
49 301542 Pkg., Suspension Spring (4)1
50 322740 Spacer, Spring4
51 301106 Gear Assembly, Driven1
52 225013 Bushing, Guide1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 8 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
53 225014 Cover, Gear Drive1
54 111117 Screw, 10-14 X 1 Plastite6
54 111117 Gear Drive Cover and Blade Torque 70 - 80 (in, lbs.)
55 111117 Screw, 10-14 X 1 Plastite2
56 225032 Guard1
57 93469 Washer, .469 OD /.222 ID2
58 219883 Screw, Plastite Truss Hd2
59 225031 Handle, Front1
60 Engine Assembly See "Engine Assembly" illustration
and parts list.
61 225039 Blade Assembly, 17"1
322839 Blade Assembly, 19"1
322778 Blade Assembly, 22"1
62 46751-26 Label, Starting Instructions (Eng.)1
63 46753-79 Label, Starting Instructions (Span.)1
46751-24 Label, Starting Instructions (French)1
64 46751-27 Label, Logo/Warning1
46750-60 Label, Warning1
65 46751-28 Decal, Air Cleaner1
46751-29 Decal, Air Cleaner1
46751-30 Decal, Air Cleaner1
46750-61 Label, Model1
46750-63 Label, Model1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 9 of 12
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 10 of 12
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235 LOCTITE KIT
322236 RETAINING COMPOUND 620 (10 ml)
322237 THREAD LOCKER 242 (10 ml)
322238 GASKET ELIMINATOR 518 (50 ml)
322239 BLACK MAX ADHESIVE 380 (28 ml)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 11 of 12
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400056-02 MAC 22 GHT 05/94 to 05/96 IPL 211538 Page 12 of 12
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
215432 Pressure Test Tool
217720 Torx Wrenches Kit
222785 T-25 Torx Drive 3.5"
K&T Saw Shop 606-678-9623 or 606-561-4983
