11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 1 of 12
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 2 of 12
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
216898 40' Replacement Line (.095)
216899-01 Replacement Line 1 lb. Bulk (.095)
216900-01 Replacement Line 5 lb. Bulk (.095)
93770 McCulloch 2-Cycle Custom Lubricant 40:1
219063 8 Tooth Weed/Grass Blade 10" Diameter
223286 One Shot Oil (Case)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 3 of 12
www.ktoutdoor.com

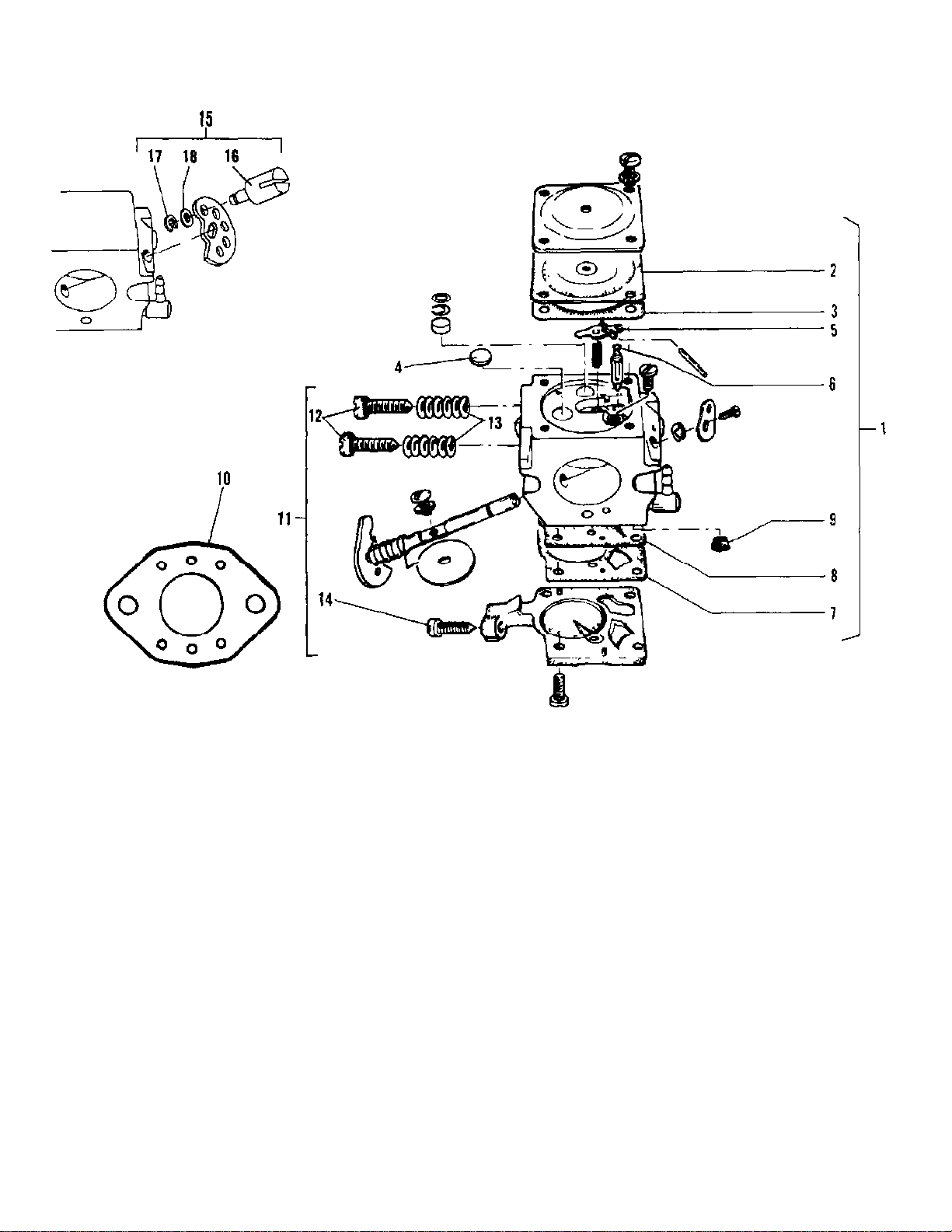

Carburedtor Assembly (HU 67A Tillotson)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 4 of 12
www.ktoutdoor.com
Carburedtor Assembly (HU 67A Tillotson)
Ref # Part Number DescriptionQty
236598 Carburetor - HU 67A Tillotson1
1 235370 Kit - Carburetor Repair1
2 222328 Kit - Diaphragm1
3 Gasket - Diaphragm Not available separately1
4 Plug - Body Channel Not available separately1
5 Lever - Inlet Control Not available separately1
6 Needle - Inlet Not available separately1
7 Gasket - Fuel Pump Not available separately1
8 Diaphragm - Fuel Pump Not available separately1
9 Screen - Fuel Inlet Not available separately1
10 Gasket - Flange Not available separately1
11 219599 Kit - Needle Adjustment1
12 Needles Not available separately2
13 Springs Not available separately2
14 Screw Not available separately1
15 228714 Arm - Throttle1
16 228705 Swivel - Throttle1
17 228707 Clip - "C"1
18 Washer Not available separately1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 5 of 12
www.ktoutdoor.com
Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 6 of 12
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
236598 Carburetor - HU 67B Tillotson1
1 229388 Kit - Carburetor Repair1
2 222328 Kit - Diaphragm1
3 Gasket - Diaphragm Not available separately1
4 Plug - Body Channel Not available separately1
5 Lever - Inlet Control Not available separately1
6 Needle - Inlet Not available separately1
7 Gasket - Fuel Pump Not available separately1
8 Diaphragm - Fuel Pump Not available separately1
9 Screen - Fuel Inlet Not available separately1
10 Gasket - Flange Not available separately1
11 219599 Kit - Needle Adjustment1
12 Needles Not available separately2
13 Springs Not available separately2
14 Screw Not available separately1
15 228714 Arm - Throttle1
16 228705 Swivel - Throttle1
17 228707 Clip - "C"1
18 Washer Not available separately1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 7 of 12
www.ktoutdoor.com

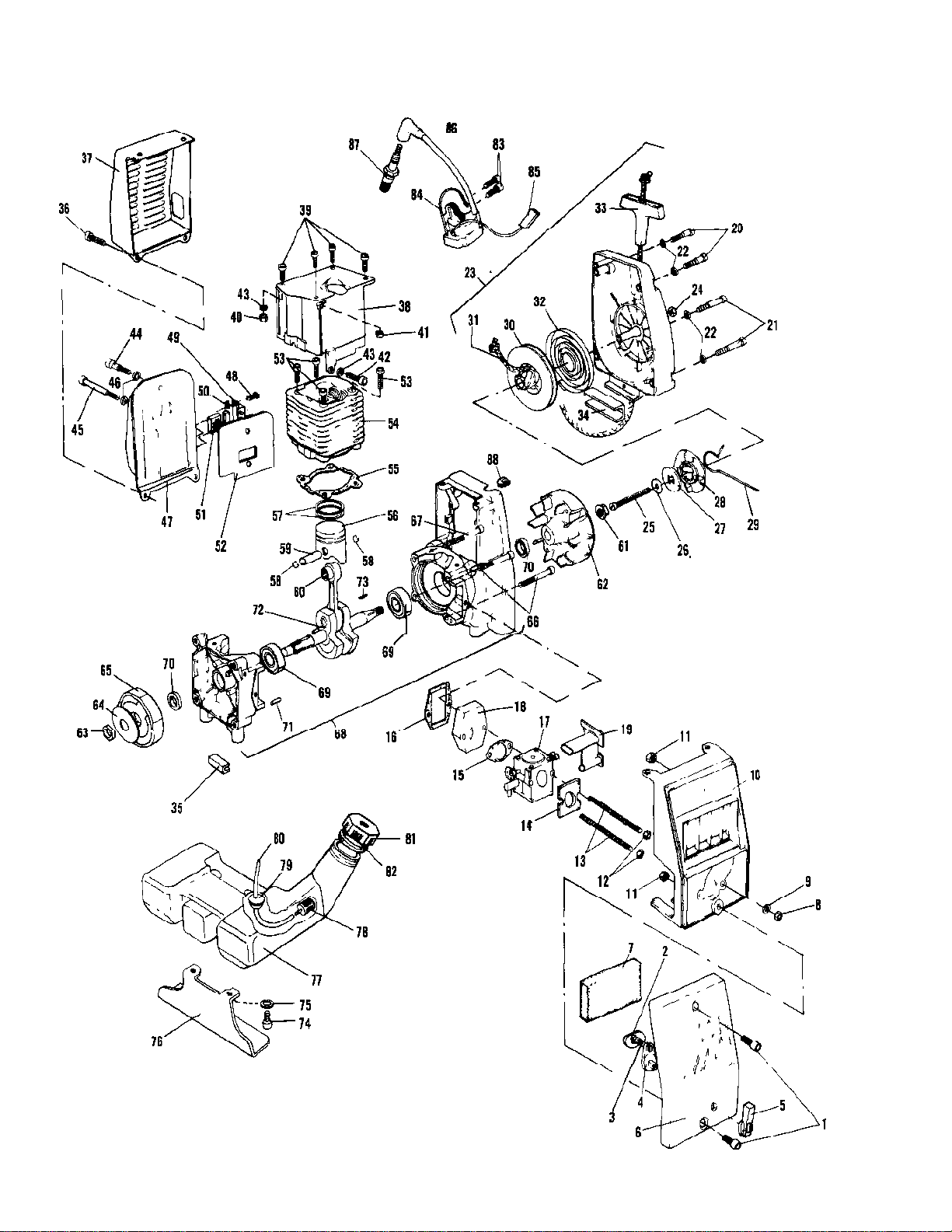

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 8 of 12
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 235911 Screw - Air Filter Cover2
2 235821 Plate - Choke1
3 235822 Spring - Choke1
4 235820 Choke - Lever1
5 235819 Knob - Choke1
6 235814 Cover - Air Filter1
7 219067 Filter - Air Filter1
8 235642 Nut - M52
9 235248 Washer2
10 235813 Box - Air1
11 215871 Nut - M6 x 12
12 235216 Nut - M52
13 236507 Screw2
14 94142 Gasket - Carburetor1
15 235016 Gasket - Carburetor1
16 235015 Gasket - Reed Valve1
17 Carburetor See "Carburetor Assembly" illustration &
parts list.
18 235120 Valve Reed1
19 235928 Screw - Drive Guide1
20 235804 Screw - M5 x 302
21 235629 Screw2
22 235248 Washer4
23 229387 Starter Assembly1
24 235431 Nut1
25 235430 Screw1
26 235048 Washer - Starter1
27 236339 Washer1
28 235926 Bushing1
29 235945 Spring1
30 236373 Drum/Rope Assembly1
31 236374 Rope - Starter1
32 235888 Spring - Rewind1
33 235944 Handle - Starter1
34 229281 Cushion - Starter/Fuel Tank1
35 229280 Cushion - C'case/Fuel Tank1
36 236381 Screw - Muffler Shield2
37 236969 Shield - Muffler1
38 235756 Cover - Cylinder1
39 235802 Screw - M5 x 144
40 235642 Nut - M51
41 236732 Nut1
42 236381 Screw1
43 235248 Washer2
44 236381 Screw1
45 235807 Screw - M5 x 451
46 236529 Washer2
47 236978 Muffler Assembly1
48 236981 Screw - Baffle/Plate2
49 236966 Baffle - Muffler1
50 236967 Plate - Screen1
51 236968 Screen - Spark Arrestor1
52 236346 Gasket - Muffler/Cylinder1
53 235214 Screw - M6 x 204
54 235477 Kit Cylinder1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 9 of 12
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
235479 Kit - Cylinder1
55 235135 Gasket - Cylinder1
56 235376 Kit - Piston1
235478 Kit - Piston2
57 235006 Ring - Piston2
235178 Ring - Piston2
58 235008 Spring - Retaining2
59 Pin - Piston Not available separately1
60 235742 Bearing - Piston/Pin1
61 236617 Nut - Flywheel1
62 235680 Flywheel1
63 236618 Nut - Clutch Assembly1
64 236739 Washer - Clutch1
65 236991 Clutch Assembly1
66 235804 Screw - M5 x 302
67 235919 Bolt2
68 229300 Crankcase Assembly1
69 235900 Bearing - Crankshaft2
70 235229 Seal - C'Case/Crankshaft2
71 236365 Pin - Crankcase1
72 236680 Crankshaft1
73 102164 Key - Flywheel1
74 236389 Screw4
75 236934 Washer2
76 229301 Protector - Fuel Tank1
77 229278 Tank Assembly - Fuel1
78 93720 Pickup - Fuel1
79 236321 Grommet - Hose/Tank1
80 236376 Hose - Fuel1
81 229372 Cap - Fuel1
82 236564 Gasket - Fuel Cap1
83 235806 Screw - M5 x 202
84 236924 Ignition Assembly1
85 236347 Wire - Ignition1
86 235922 Boot - Spark Plug1
87 93018 Spark Plug RDJ8J1
88 236322 Grommet1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 10 of 12
www.ktoutdoor.com

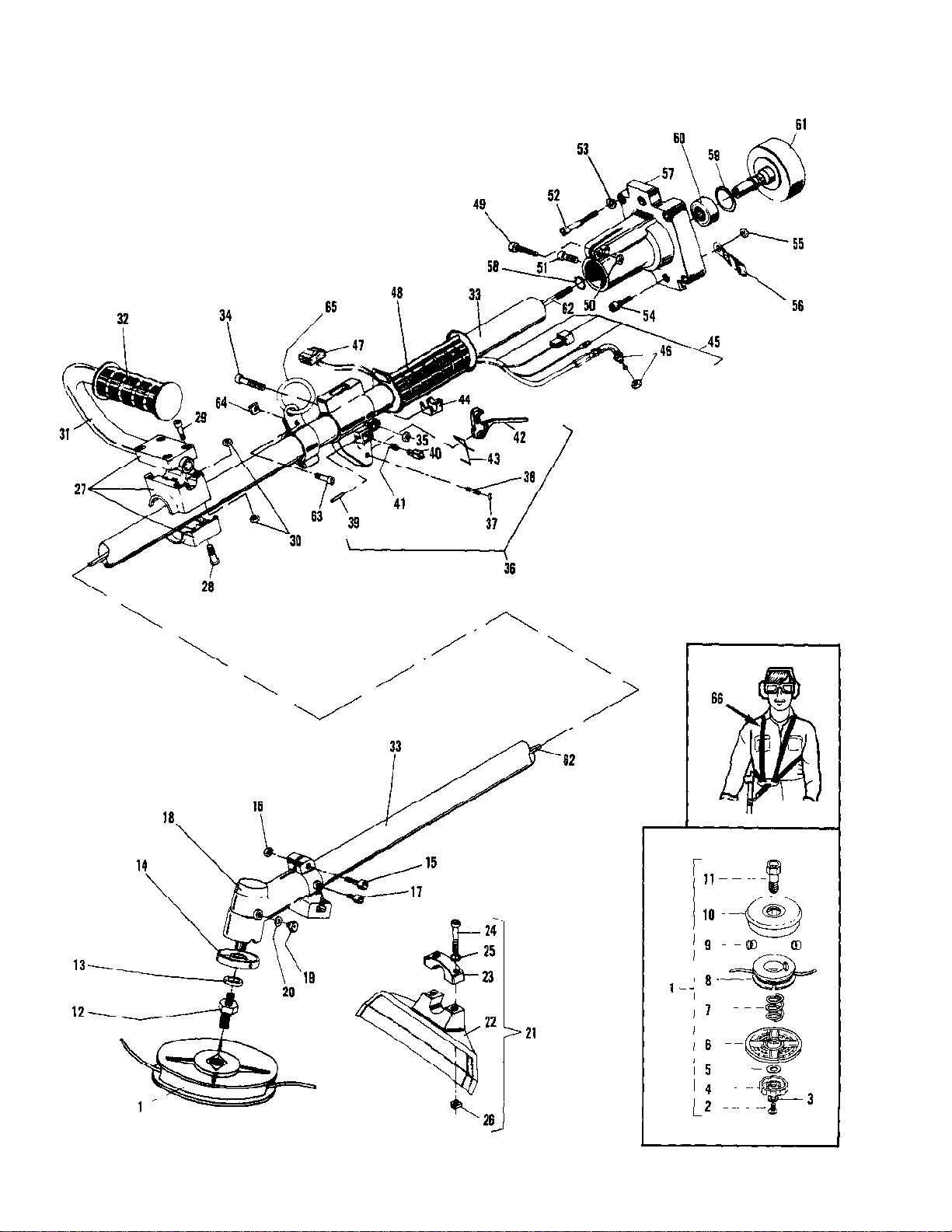

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 11 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 228148-02 Head Assembly1
2 229287 Screw1
3 236934 Washer1
4 229859 Knob1
5 229692 Washer1
6 229727 Cover1
7 229695 Spring1
8 229860 Spool1
9 229693 Eyelet2
10 229726 Housing1
11 229697 Bolt1
12 236605 Bolt - String Head1
13 236769 Spacer - Bolt/Collar1
14 235752 Flange - Collar1
15 235921 Screw - Gear Box1
16 228926 Nut - Gear Box1
17 236389 Screw - Gear Box1
18 236382 Gear Box Assembly1
19 228862 Grease Nipple1
20 235906 Washer1
21 219062 Guard Asy - Heavy Duty Grass1
22 236663 Shield - Grass1
23 236612 Clamp - Guard1
24 235214 Screw - M6 x 202
25 236936 Washer - Guard2
26 236642 Nut - Guard2
27 236726 Handle Clamp Assembly1
28 235921 Screw - Clamp Bottom2
29 236558 Screw - Clamp Top4
30 235912 Nut - Clamp6
31 236613 Handle - J1
32 235895 Grip - Handle1
33 236506 Shaft - Outer1
34 235921 Screw - Trigger Housing1
35 228926 Nut - Trigger Housing1
36 229421 Throttle Housing Assy1
37 235811 Clip - C2
38 235934 Pin - Trigger1
39 235923 Pin - Throttle Advance1
40 235892 Button - Throttle Advance1
41 235933 Spring - Button1
42 236616 Trigger1
43 235932 Spring - Trigger1
44 235893 Guide - Wire1
45 236724 Kit - Outer Housing1
46 229207 Nut - Guide M6 x .752
47 236394 Switch1
48 236620 Grip1
49 235921 Screw1
50 228926 Nut1
51 236389 Screw - Clutch Housing1
52 236556 Screw - Clutch4
53 236528 Washer4
54 235214 Screw - M6 x 201
55 228926 Nut1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400049-02 PRO SCAPER III 11/84 to 12/88 IPL 219365-01 Page 12 of 12
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
56 236355 Guide - Wire1
57 236377 Clutch/Drum Assembly1
58 236378 Seeger Ring1
59 235899 Seeger Ring1
60 235918 Bearing - Drum1
61 235755 Drum - Clutch1
62 235935 Shaft - Drive1
63 235911 Screw - Harness Ring1
64 236642 Nut - Harness Ring1
65 236602 Ring - Harness1
66 219066 Harness - Heavy Duty1
