Page 1
11-400035B PRO-SCAPER 02/84 to 10/84 IPL 217747-R1 Page 1 of 9
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400035B PRO-SCAPER 02/84 to 10/84 IPL 217747-R1 Page 2 of 9
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
216513 Pkg - Weed/Grass Blade
217749 Kit - Blade/Shield
216514 Pkg - Brush Blade
217719 Kit - Brushcutter
216767 Spindle Lock
216898 40' Line
216899 Pkg - 1-lb. .095" line
216900 Pkg - 5-lbs. .095" line
95896 Pkg - Spark Arrester Screen
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400035B PRO-SCAPER 02/84 to 10/84 IPL 217747-R1 Page 3 of 9
www.ktoutdoor.com

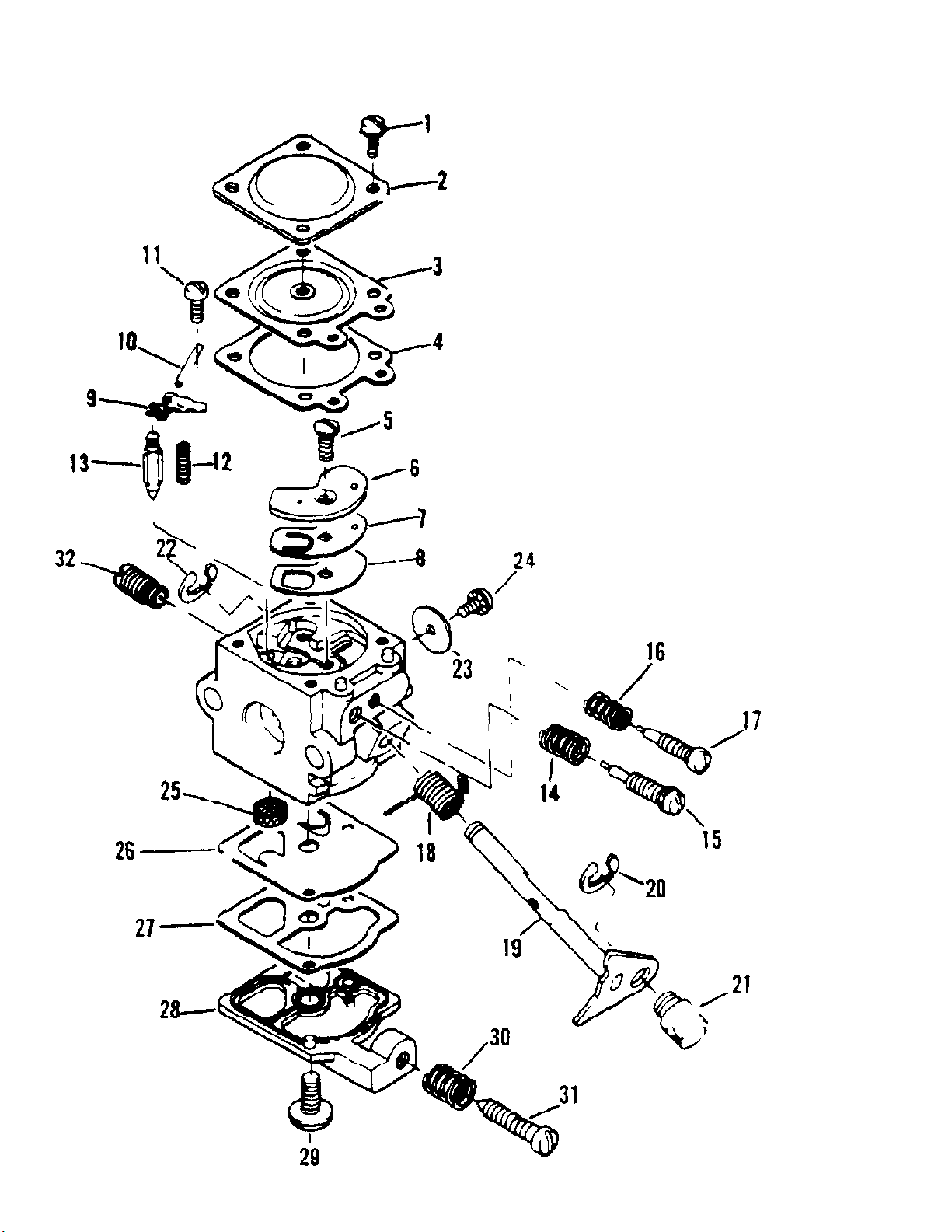

Carbuetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400035B PRO-SCAPER 02/84 to 10/84 IPL 217747-R1 Page 4 of 9
www.ktoutdoor.com
Carbuetor Assembly
Ref # Part Number DescriptionQty
217274 Carburetor Assembly (Governed)1
1 Screw - Cover Not available separately.4
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Metering Not available separately.1
4 Gasket - Diaphragm Not available separately.1
5 Screw - Circuit Plate Not available separately.1
6 Plate Circuit Not available separately.1
7 Diaphragm - Circuit Plate Not available separately.1
8 Gasket - Circuit Plate Not available separately.1
9 Lever - Metering Not available separately.1
10 Lever Not available separately.1
11 Screw - Lever Pin Not available separately.1
12 Spring - Lever Not available separately.1
13 Valve - Inlet Needle Not available separately.1
14 Spring - High Speed Needle Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Needle - Low Speed Not available separately.1
18 Spring - Throttle Return Not available separately.1
19 Shaft - Throttle Not available separately.1
20 Clip Not available separately.1
21 Swivel Not available separately.1
22 Clip - Throttle Not available separately.1
23 Valve - Throttle Not available separately.1
24 Screw - Throttle Valve Not available separately.1
25 Screen - Inlet Not available separately.1
26 Diaphragm - Fuel Pump Not available separately.1
27 Gasket - Fuel Pump Not available separately.1
28 Cover - Fuel Pump Not available separately.1
29 Screw - Pump Cover Not available separately.1
30 Spring - Idle Screw Not available separately.1
31 Screw - Idle Adjusting Not available separately.1
32 Governor - Fixed Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400035B PRO-SCAPER 02/84 to 10/84 IPL 217747-R1 Page 5 of 9
www.ktoutdoor.com

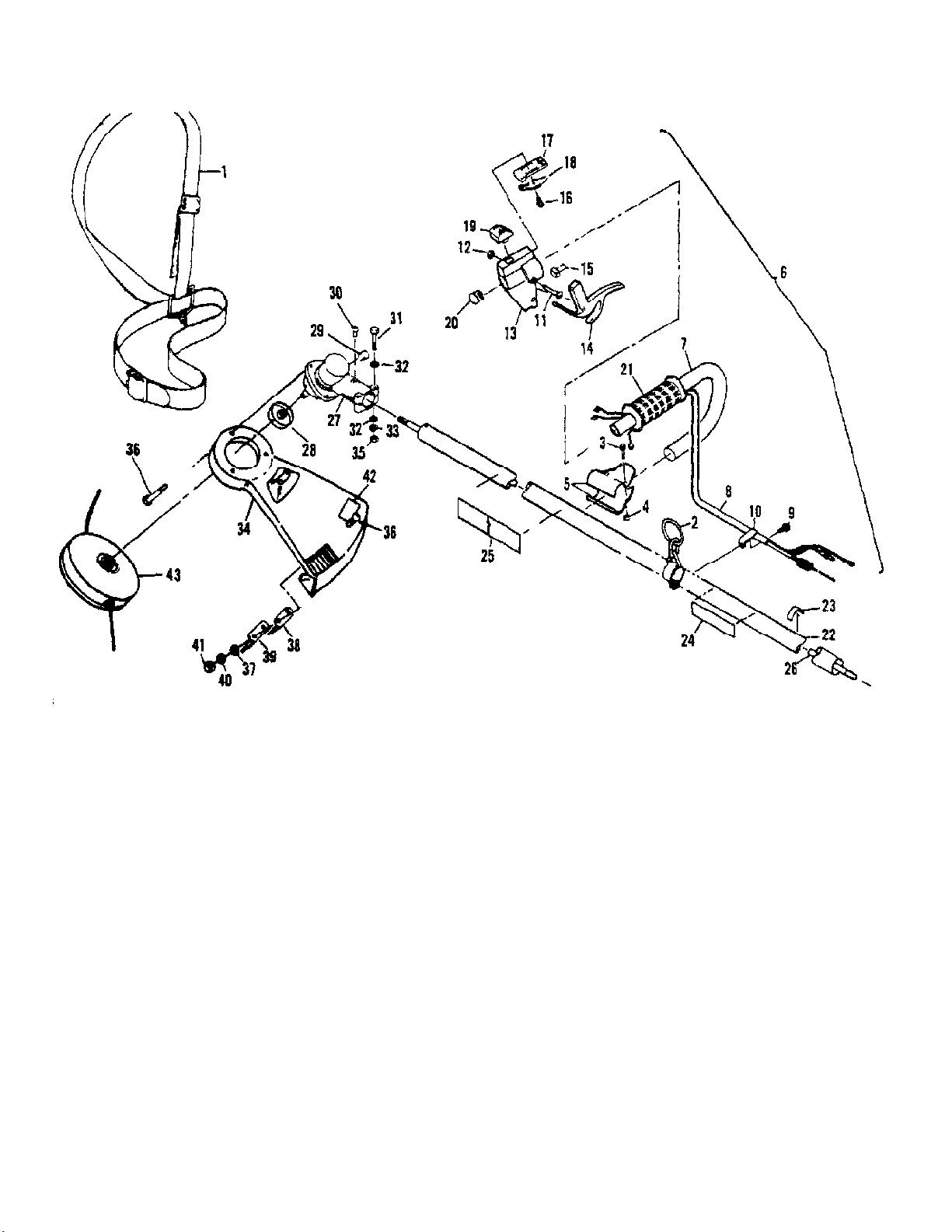

Drive Shaft, String Head, Shield Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400035B PRO-SCAPER 02/84 to 10/84 IPL 217747-R1 Page 6 of 9
www.ktoutdoor.com
Drive Shaft, String Head, Shield Assembly
Ref # Part Number DescriptionQty
1 216790 Harness Assembly1
2 216748 Ring Asy - Harness1
3 120041 Screw - M5 x 222
4 217159 Nut - Hx M52
5 217292 Clamp - Handle2
6 217706 "J" Handle Assembly1
7 217707 "J" Handle1
8 217702 Harness Asy - Wiring1
9 216789 Bolt - M5 x 131
10 216788 Clip - Wiring Harness1
11 216027 Screw - Pn M5 x 28.51
12 217159 Nut - Hx M51
13 215317 Housing - Trigger1
14 215318 Trigger - Throttle1
15 215323 Guide1
16 110706 Screw - Pn 8-18 x 1/21
17 215319 Base - Stop Switch1
18 215320 Contact - Switch1
19 68846 Button - Stop Switch1
20 95153 Plug - Tubing1
21 215322 Grip - Right Hand1
22 216922 Kit - Outer Housing1
23 216603 Decal - Position1
24 216605 Decal - Caution1
25 217705 Decal - Name1
26 216747 Shaft - Drive1
27 216777 Housing Asy - Gear1
28 216752 Collar - Gear1
29 216832 Bolt - Hx M8 x 81
30 216795 Screw - Phl M5 x 121
31 216828 Bolt - Hx M5 x 402
32 216826 Washer - Flat M54
33 216824 Washer - Lock M52
34 216827 Shield Assembly - Grass1
35 216823 Nut - Hx M52
36 213147 Screw - Pn M5 x 165
37 216591 Washer - Flat M52
38 215316 Cutter1
39 215315 Bracket1
40 216593 Washer - Lock M52
41 217159 Nut - Hx M52
42 216601 Decal- Warning1
43 216822 String Head Assembly (D/L)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400035B PRO-SCAPER 02/84 to 10/84 IPL 217747-R1 Page 7 of 9
www.ktoutdoor.com

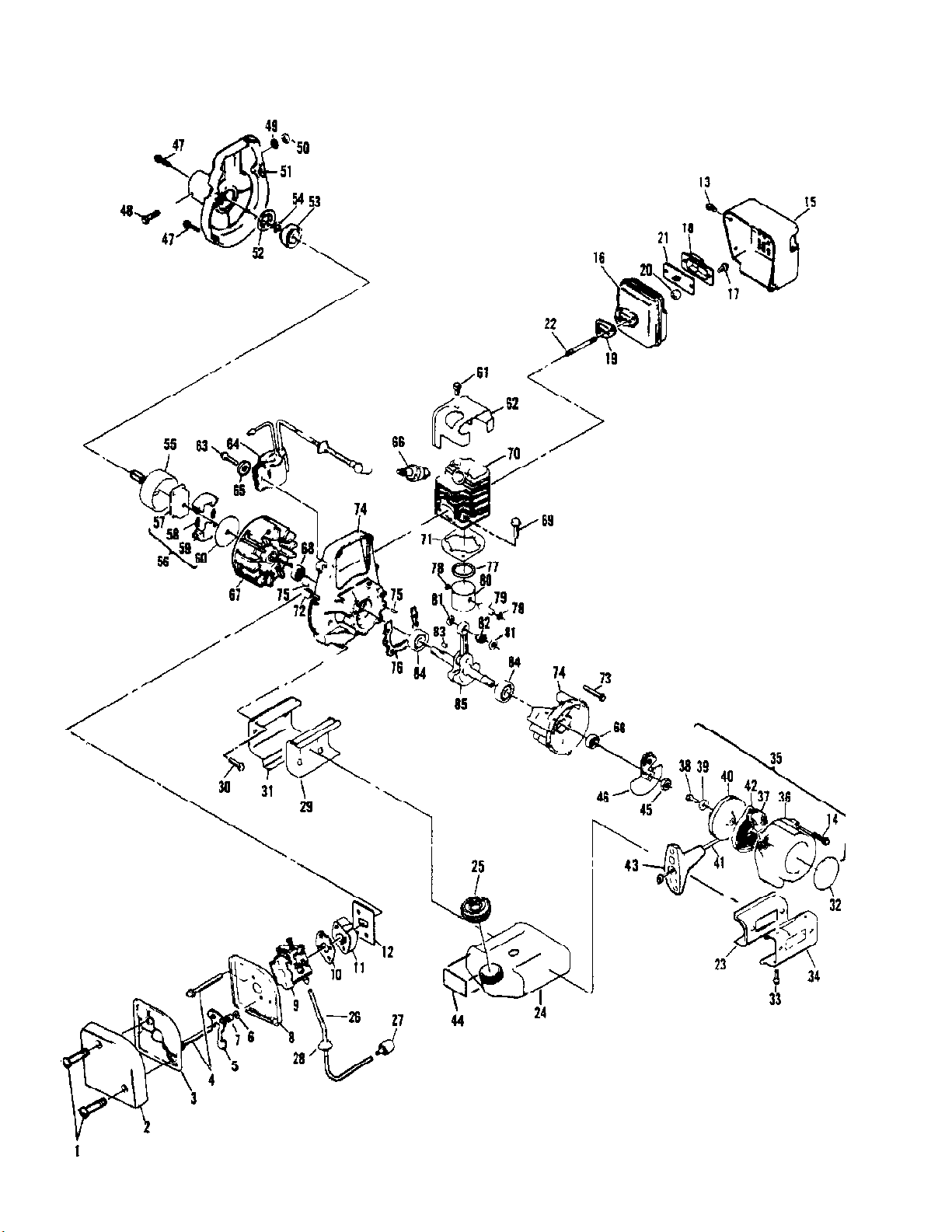

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400035B PRO-SCAPER 02/84 to 10/84 IPL 217747-R1 Page 8 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 217669 Screw - M4 x 252
2 215988 Cover - Air Cleaner1
3 217376 Filter - Air1
4 216903 Screw - M5 x 552
5 215991 Shutter - Choke1
6 216591 Washer - Flat M51
7 215993 Spacer1
8 216108 Kit - Airbox/Grommet1
9 Carburetor Asy See "Carburetor Assembly"
10 215491 Gasket - Carburetor1
11 215771 Insulator - Carburetor1
12 216575 Gasket - Insulator1
13 216025 Screw - M4 x 82
14 213177 Screw - M4 x 18.503
15 215753 Shield - Muffler1
16 216920 Kit - Muffler1
17 216025 Screw - M4 x 82
18 217318 Cover/Cap Asy - Screen1
19 215515 Gasket - Muffler1
20 217275 Nut - Flange2
21 95896 Spark Arrester Screen1
22 215517 Stud - Bolt2
23 215504 Cushion - Fuel Tank1
24 217021 Kit - Fuel Tank Assembly1
25 216346 Cap - Fuel Tank1
26 217264 Hose - Fuel1
27 216985 Pickup - Fuel1
28 215495 Grommet1
29 215500 Cushion - Bracket1
30 216025 Screw - M4 x 82
31 217455 Bracket Asy - Tank/Shield1
32 216604 Decal - Logo1
33 213177 Screw - M4 x 16.52
34 215501 Bracket - Sack1
35 216919 Kit - Starter1
36 216325 Housing - Starter1
37 217030 Guide - Rope1
38 215874 Screw M4 x 9.51
39 216590 Washer - Flat M41
40 216092 Drum/Rope Assembly1
41 216093 Rope - Starter1
42 215522 Spring - Starter1
43 216792 Handle - Starter1
44 217383 Decal - 40:11
45 216583 Nut - M81
46 215525 Ratchet Assembly1
47 213177 Screw - M4 x 18.504
48 217158 Screw - Hx M5 x 251
49 216591 Washer - Flat M51
50 217159 Nut - Hx M5 x 0.81
51 217548 Housing - Fan1
52 215534 Plate - Thrust1
53 213187 Bearing - Ball1
54 213186 Ring - Retaining1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
illustration and parts list.
Page 9
11-400035B PRO-SCAPER 02/84 to 10/84 IPL 217747-R1 Page 9 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
55 216837 Drum - Clutch1
56 216060 Kit - Clutch1
57 215536 Rotor - Clutch1
58 215537 Spring - Clutch2
59 215538 Shoe - Clutch2
60 215539 Plate - Side1
61 213178 Screw - M5 x 8.51
62 215540 Cover - Cylinder1
63 213177 Screw - M4 x 18.502
64 217439 Coil - Ignition1
65 110613 Washer - #8 Hard2
66 214223 Spark Plug1
67 217378 Flywheel1
68 216500 Seal - Oil2
69 217320 Screw - Skt Cap2
70 215690 Cylinder1
71 215542 Gasket - Cylinder1
72 215541 Grommet1
73 213179 Screw - M5 x 28.504
74 217373 Crankcase Assembly1
75 213191 Pin4
76 215545 Gasket - Crankcase1
77 217475 Ring - Piston1
78 216343 Ring - Snap2
79 215551 Pin - Wrist1
80 215544 Piston1
81 213196 Washer2
82 213195 Bearing - Needle1
83 102164 Key - Woodruff1
84 216143 Bearing - Ball2
85 216444 Crankshaft Assembly1
K&T Saw Shop 606-678-9623 or 606-561-4983
