INSPIRON™

SETUP GUIDE

INSPIRON™

SETUP GUIDE

Regulatory model: W01C series Regulatory type: W01C001; W01C002

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

If you purchased a Dell™ n Series computer, any references in this document to the Microsoft® Windows® operating systems are not applicable.

__________________

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, YOURS IS HERE, Inspiron, Solution Station, and DellConnect are trademarks of Dell Inc.; Intel and Centrino are registered trademarks and Core is a trademark of Intel Corporation in the U.S. and other countries; AMD, AMD Athlon, and ATI Mobility Radeon are either trademarks or registered trademarks of Advanced Micro Devices, Inc.; Microsoft, Windows, and the Windows start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries; Blu-ray Disc is a trademark of the Blu-ray Disc Association; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

July 2010 P/N JMV0N Rev. A00

Contents

Setting Up Your Inspiron One 5

Before Setting Up Your Computer	5
Connect the Keyboard and Mouse	6
Connect the AC Adapter	7
Connect the Network Cable (Optional)	8
Adjust the Computer Stand	10
Set Up the TV Tuner (Optional)	11
Press the Power Button	16
Set Up the Operating System	17
Create System Recovery Media
(Recommended)	18
Connect to the Internet (Optional)	19
Set Up Wireless Display (Optional)	21

Using Your Inspiron One 24

Right View Features 24 Left View Features 26

Using the Optical Drive 28 Back View Features 30 Display Features 34 Using the Touch Screen (Optional) 36 Software Features 40 Dell DataSafe Online Backup 41 Dell Dock 42

Solving Problems 43

Touch Screen Problems 43 Beep Codes 45 Network Problems 46 Power Problems 47 Memory Problems 49 Lockups and Software Problems 49

Contents

Using Support Tools 52

Dell Support Center 52 My Dell Downloads 53 System Messages 53 Hardware Troubleshooter 55 Dell Diagnostics 56

Restoring Your Operating System 60

System Restore 61 Dell DataSafe Local Backup 62 System Recovery Media 65 Dell Factory Image Restore 66

Getting Help 68

Technical Support and Customer

Service 69 DellConnect 69 Online Services 70 Automated Order-Status Service 71 Product Information 71

Returning Items for Repair Under

Warranty or for Credit 72 Before You Call 73 Contacting Dell 75

Finding More Information and

Resources 76 Specifications 78 Appendix 84

Macrovision Product Notice 84

Information for NOM, or Official

Mexican Standard (Only for Mexico) 85

Index 86

Setting Up Your Inspiron One

This section provides information about setting up your Dell™ Inspiron One computer.

WARNING: Before you begin any of the

procedures in this section, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

NOTE: Your computer’s Service Tag and Express Service Code are located on a label at the back of your computer. Use the Service Tag or Express Service Code to identify your computer when you access the Dell Support website or contact technical support.

Before Setting Up Your Computer

When positioning your computer, ensure that you allow easy access to a power source, adequate ventilation, and a level surface to place your computer.

Restricting airflow around your computer may cause it to overheat. To prevent overheating ensure that you leave at least 10.2 cm (4 inches) at the back of the computer and a minimum of 5.1 cm (2 inches) on all other sides. You should never place your computer in an enclosed space, such as a cabinet or drawer when it is powered on.

INSPIRON

Setting Up Your Inspiron One

Connect the Keyboard and Mouse

Connect the USB keyboard and mouse to the USB connectors on the computer.

NOTE: If you purchased a wireless keyboard and mouse along with your computer, connect the USB receiver to the USB connector. For more information, see the documentation that shipped with the wireless keyboard and mouse.

Setting Up Your Inspiron One

Connect the AC Adapter

Connect the AC adapter to the computer and then plug it into an electrical outlet or surge protector.

WARNING: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an incompatible cable or improperly connecting the cable to a power strip or electrical outlet may cause fire or permanent damage to your computer.

Setting Up Your Inspiron One

Connect the Network Cable (Optional)

Setting Up Your Inspiron One

A network connection is not required to complete this computer setup, but if you have an existing network or Internet connection that uses a cable connection (such as a home cable modem or Ethernet jack), you can connect it now.

NOTE: Use only an Ethernet cable (RJ45 connector) to connect to the network connector. Do not plug a telephone cable (RJ11 connector) into the network connector.

To connect your computer to a network or broadband device, connect one end of a network cable to either a network port or a broadband device. Connect the other end of the network cable to the network connector (RJ45 connector) on the back panel of your computer. A click indicates that the network cable has been securely attached.

Setting Up Your Inspiron One

Adjust the Computer Stand

WARNING: Do not use the stand to carry

the computer or tilt the computer upside down.

Pull the stand to adjust the display to a comfortable viewing angle. A distinct click is heard when the stand is opened or closed.

Setting Up Your Inspiron One

Set Up the TV Tuner (Optional)

You can watch TV on your computer by connecting either a TV/digital antenna cable or a set-top box to your computer.

Set Up Using a Set-Top Box

1.Peel the protective cover from the IR transmitter and adhere the IR transmitter to the IR sensor on the set-top box.

2.Connect the IR transmitter cable to the IR blaster connector on your computer.

1 IR sensor

2 IR transmitter

Setting Up Your Inspiron One

3.Connect the RF cable to the RF-out connector on your set-top box and to the antenna-in connector on your computer.

NOTE: The RF cable does not ship with your computer and must be purchased separately.

Setting Up Your Inspiron One

4.Turn on your computer.

5.Click Start → All Programs→ Windows Media Center→ Tasks→ settings→ TV.

6.Follow the instructions on the screen.

Setting Up Your Inspiron One

Set Up Using a TV/Digital Antenna Cable

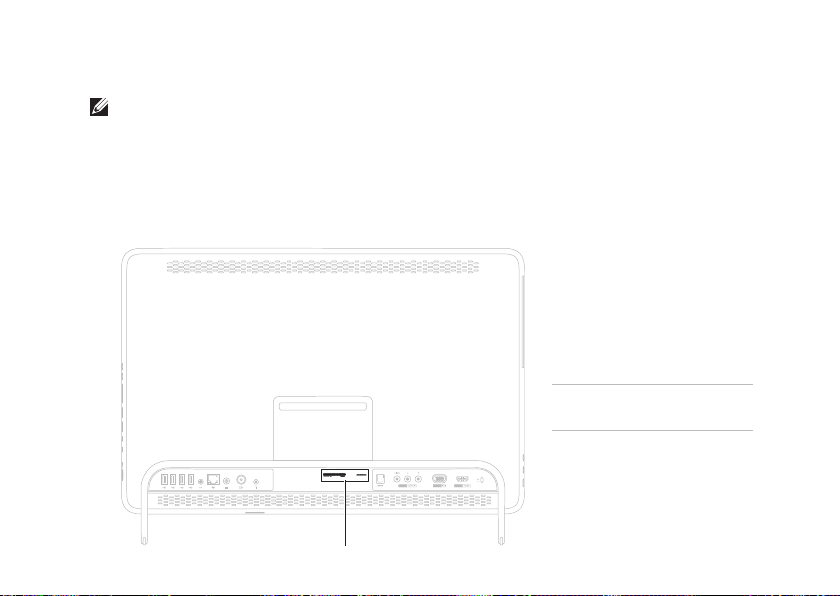

1. If not already inserted, insert the B-CAS card into the B-CAS card slot on your computer (Japan only).

1 B-CAS card

Setting Up Your Inspiron One

2.Connect the TV/digital antenna cable to the antenna-in connector on your computer.

3.Turn on your computer.

4.Click Start → All Programs→ Windows Media Center→ Tasks→ settings→ TV.

5.Follow the instructions on the screen.

Setting Up Your Inspiron One

Press the Power Button

Setting Up Your Inspiron One

Set Up the Operating System

Your Dell computer is preconfigured with the operating system you selected at the time of purchase.

Microsoft Windows

To set up Microsoft® Windows® for the first time, follow the instructions on the screen. These steps are mandatory and may take some time to complete. The Windows setup screens will take you through several procedures including accepting license agreements, setting preferences, and setting up an Internet connection.

CAUTION: Do not interrupt the operating system’s setup process. Doing so may render your computer unusable and you will need to reinstall the operating system.

NOTE: For optimal performance of your computer, it is recommended that you download and install the latest BIOS and drivers for your computer available at support.dell.com.

NOTE: For more information on the operating system and features, go to support.dell.com/MyNewDell.

Ubuntu

To set up Ubuntu for the first time, follow the instructions on the screen. See the Ubuntu documentation for more operating system specific information.

Setting Up Your Inspiron One

Create System Recovery Media (Recommended)

NOTE: It is recommended that you create a system recovery media as soon as you set up Microsoft Windows.

The system recovery media can be used to restore your computer to the operating state it was in when you purchased the computer, while preserving data files (without the need of the Operating System disc). You can use the system recovery media if changes to the hardware, software, drivers, or other system settings have left the computer in an undesirable operating state.

You will require the following to create the system recovery media:

•Dell DataSafe Local Backup

•USB key with a minimum capacity of 8 GB or DVD-R/DVD+R/Blu-ray Disc™

NOTE: Dell DataSafe Local Backup does not support rewritable discs.

Setting Up Your Inspiron One

To create a system recovery media:

1.Ensure that the AC adapter is connected (see “Connect the AC Adapter” on page 7).

2.Insert the disc or USB key in the computer.

3.Click Start → All Programs→ Dell DataSafe Local Backup.

4.Click Create Recovery Media.

5.Follow the instructions on the screen.

NOTE: For information on restoring your operating system using the system recovery media, see “System Recovery Media” on page 65.

Setting Up Your Inspiron One

Connect to the Internet

(Optional)

To connect to the Internet, you need an external modem or network connection and an Internet Service Provider (ISP).

If an external USB modem or WLAN adapter is not a part of your original order, you can purchase one at www.dell.com.

Setting Up a Wired Connection

•If you are using a dial-up connection, connect the telephone line to the optional external USB modem and to the telephone wall connector before you set up your Internet connection.

•If you are using a DSL or cable/satellite modem connection, contact your ISP or cellular telephone service for setup instructions.

To complete setting up your wired Internet connection, follow the instructions in “Setting Up Your Internet Connection” on page 21.

Setting Up a Wireless Connection

NOTE: To set up your wireless router, see the documentation that shipped with your router.

Before you can use your wireless Internet connection, you need to connect to your wireless router.

To setup your connection to a wireless router:

1.Save and close any open files, and exit any open programs.

2.Click Start→ Control Panel.

3.In the search box, type network, and then click Network and Sharing Center→ Connect to a network.

4.Follow the instructions on the screen to complete the setup.

Setting Up Your Internet Connection

ISPs and ISP offerings vary by country. Contact your ISP for offerings available in your country.

If you cannot connect to the Internet but have successfully connected in the past, the ISP might have a service outage. Contact your ISP to check the service status, or try connecting again later.

Have your ISP information ready. If you do not have an ISP, the Connect to the Internet wizard can help you get one.

Setting Up Your Inspiron One

To set up your Internet connection:

1.Save and close any open files, and exit any open programs.

2.Click Start → Control Panel.

3.In the search box, type network, and then click Network and Sharing Center→ Set up a new connection or network→ Connect to the Internet.

The Connect to the Internet window appears.

NOTE: If you do not know which type of connection to select, click Help me choose or contact your ISP.

4.Follow the instructions on the screen and use the setup information provided by your ISP to complete the setup.

Setting Up Your Inspiron One

Set Up Wireless Display

(Optional)

NOTE: Wireless display may not be supported on all computers.

Wireless display can only be set up on computers with:

Processor	Intel® Core™ i3 and above

Video	Intel HD Graphics
controller

WLAN card	Intel Centrino® 6200 or
	Intel Centrino Advanced-N +
	WiMAX 6250

Operating	Windows 7 Home Premium,
system	Professional, or Ultimate

Driver	Download and install the latest
	driver for “Intel Wireless
	Display Connection Manager”
	available at support.dell.com.

To set up wireless display on your computer:

1.Ensure that your computer is turned on.

2.Ensure that wireless is enabled.

3.Connect the wireless display adapter to the TV.

NOTE: The wireless display adapter does not ship with your computer and must be purchased separately.

4.Turn on the TV.

5.Select the appropriate video source for your TV, such as HDMI1, HDMI2, or S-Video.

6.Double-click the Intel® Wireless Display icon on the desktop.

The Intel® Wireless Display window appears.

Setting Up Your Inspiron One

7.Select Scan for available displays.

8.Select your wireless display adapter from the Detected wireless displays list.

9.Enter the security code that appears on your TV.

To enable wireless display:

1.Double-click the Intel® Wireless Display icon on the desktop.

The Intel Wireless Display window appears.

2.Select Connect to Existing Adapter.

NOTE: For more information about wireless display, see the wireless display adapter documentation.

INSPIRON

Using Your Inspiron One

This section provides information about the features available on your Dell™ Inspiron One computer.

Right View Features

1 Volume increase button — Press to increase the volume level.

2 Volume decrease button — Press to decrease the volume level.

3 7-in-1 Media Card Reader —

Provides a fast and convenient way to view and share digital photos, music, videos, and documents stored on memory cards.

4 USB 2.0 connectors (2) — Connect to USB devices, such as a mouse, keyboard, printer, external drive, or MP3 player.

Using Your Inspiron One

5 Audio-out/Headphone connector — Connects to a pair of headphones.

NOTE: To connect to a powered speaker or sound system, use the line-out connector on the back of your computer.

6 Audio-in/Microphone connector — Connects to a microphone or inputs signal for use with audio programs.

7 Hard drive activity light — Turns on when the computer reads or writes data. A blinking white light indicates hard drive activity.

CAUTION: To avoid loss of data, never turn off the computer, move the computer, or adjust the stand while the hard drive activity light is blinking.

8 Power button and light — Turns the computer on or off when pressed. The light on the button indicates the following power states:

•Solid white — The computer is on.

•Solid amber — The computer is in sleep/standby mode or there might be an issue with the system board or the power supply. Contact Dell (see “Contacting Dell” on page 75) for assistance.

•Blinking amber — The computer has detected an error during the Power-on self-test (POST). Contact Dell (see “Contacting Dell” on page 75) for assistance.

•Off — The computer is in hibernate mode, turned off, or is not receiving power.

Using Your Inspiron One

Left View Features
