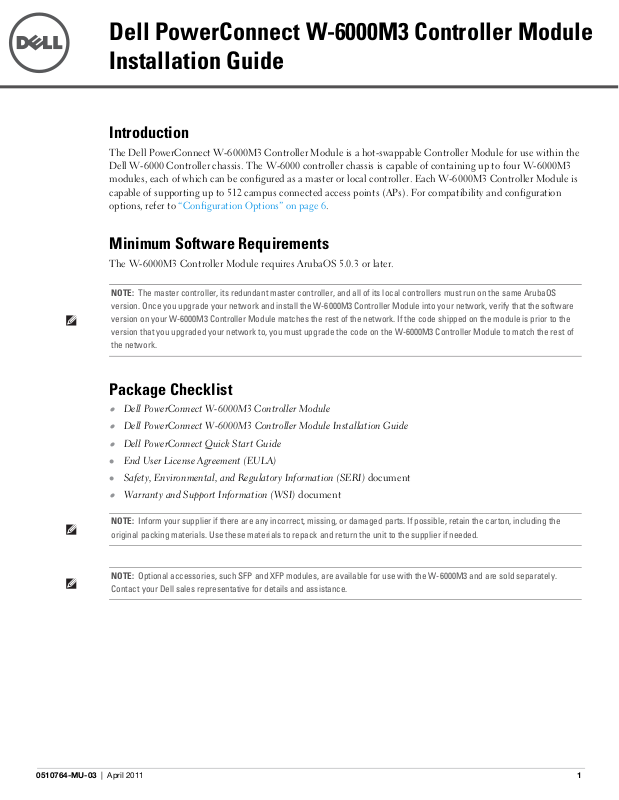

Dell PowerConnect W-6000M3 Controller Module

Installation Guide

Introduction

The Dell PowerConnect W-6000M3 Controller Module is a hot-swappable Controller Module for use within the Dell W-6000 Controller chassis. The W-6000 controller chassis is capable of containing up to four W-6000M3 modules, each of which can be configured as a master or local controller. Each W-6000M3 Controller Module is capable of supporting up to 512 campus connected access points (APs). For compatibility and configuration options, refer to “Configuration Options” on page 6.

Minimum Software Requirements

The W-6000M3 Controller Module requires ArubaOS 5.0.3 or later.

NOTE: The master controller, its redundant master controller, and all of its local controllers must run on the same ArubaOS version. Once you upgrade your network and install the W-6000M3 Controller Module into your network, verify that the software version on your W-6000M3 Controller Module matches the rest of the network. If the code shipped on the module is prior to the version that you upgraded your network to, you must upgrade the code on the W-6000M3 Controller Module to match the rest of the network.

Package Checklist

zDell PowerConnect W-6000M3 Controller Module

zDell PowerConnect W-6000M3 Controller Module Installation Guide

zDell PowerConnect Quick Start Guide

zEnd User License Agreement (EULA)

zSafety, Environmental, and Regulatory Information (SERI) document

zWarranty and Support Information (WSI) document

NOTE: Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use these materials to repack and return the unit to the supplier if needed.

NOTE: Optional accessories, such SFP and XFP modules, are available for use with the W-6000M3 and are sold separately. Contact your Dell sales representative for details and assistance.

0510764-MU-03 | April 2011

1

Hardware Overview

Figure 1 W-6000M3 Controller Module

Serial Console

Port

Gigabit Ethernet

Management Port

10GBase-X (XFP) Ports

(Ports 10 & 11) 1000Base-X (SFP) Ports (Ports

0-9)

Ports

1000Base-X (SFP) Ports

Ports 0 through 9 on the W-6000M3 are 1000Base-X (SFP) ports for fiber or copper connectivity and are intended for use with Dell approved SFPs.

NOTE: Dell tests and supports Dell optics within their controller systems. Third party optics are not tested or supported; therefore, Dell does not guarantee proper functionality of third party optics. For further details regarding Dell approved SFPs, refer to the Dell PowerConnect W-Series SFP Optical Modules Installation Guide.

2

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

10GBase-X (XFP) Ports

Ports 10 and 11 on the W-6000M3 are 10GBase-X fiber optic ports for use with Dell XFPs. XFPs are 10 Gbit hotswappable, optical transceivers, which convert serial electrical signals to external serial optical or electrical signals.

NOTE: Dell tests and supports Dell optics within their controller systems. Third party optics are not tested or supported; therefore, Dell does not guarantee proper functionality of third party optics. For further details regarding Dell approved XFPs, such as technical specifications and installation instructions, refer to the Dell PowerConnect W-Series XFP Optical Modules Installation Guide.

Gigabit Ethernet Management Port

This port is a 10/100/1000Base-T Gigabit Ethernet (RJ-45) port. Gigabit Ethernet uses all eight wires and each pair is used in a bi-directional fashion, meaning the same pairs are used for both data transmission and reception. This port also supports Auto MDIX, allowing the use of crossover of straight through cables. Figure 2 illustrates the CAT-5 pin-out found on an RJ-45 connector. The CAT-5 pin-out pairs the following pins on a 10/100/ 1000Base-T Gigabit Ethernet port: 1/2, 3/6, 4/5, and 7/8.

NOTE: Ethernet traffic on this port is out-of-band; this port is segmented from regular switching and routing functions and cannot be used as a network data port.

Figure 2 Gigabit Ethernet Port Pin-Out

1000Base-T Gigabit Ethernet Port





RJ-45 Female

Signal Name

Function





Pin-Out

1

BI_DA+

Bi-directional pair +A





















2

BI_DA-

Bi-directional pair -A





















3

BI_DB+

Bi-directional pair +B





















4

BI_DC+

Bi-directional pair +C





















5

BI_DC-

Bi-directional pair -C





























































6

BI_DB-

Bi-directional pair -B





















7

BI_DD+

Bi-directional pair +D





















8

BI_DD-

Bi-directional pair -D

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

3

Serial Console Port

A serial console port is provided for connection to a terminal, allowing for direct local management. The port’s RJ-45 female connector accepts an RS-232 serial cable with a male connector.

Figure 3 Serial Console Port Pin-Out

Serial

RJ-45 Female



Console Port

Pin-Out





1





2





3

TxD



4

GND



5

GND



6

RxD



7





8





Direction





Input





Output



Communication settings for the serial console port are indicated in Table 1.

Table 1 Serial Connection Requirements

Baud Rate

Data Bits

Parity

Stop Bits

Flow Control











9600

8

None

1

None











CAUTION: Do not connect an Access Point (AP) to the serial console port. The serial console port is only compatible with RS232 devices. Non-RS-232 devices, such as APs, are not supported and will cause the controller to fail.

Serial Console Port Adaptor

A modular adaptor can be used to convert the RJ-45 (female) connector to a DB9 (male) connector. Refer to Figure 4 for complete details

Figure 4 RJ-45 (female) to DB9 (male) Modular Adaptor Conversion

RJ-45 Female



Internal









DB-9 Male





Pin-Out











Connections



Pin-Out

1



















RJ-45

DB-9













2





















5







Ground





3













TxD

3





TxD









2

9











































4



















4

















4















































8







RxD





































5













GND

5





GND







5

3

































7

2







TxD





6













RxD

6





RxD









3

6

































7





































1























































8

















































Direction



























Direction













Input































Input

































































































































































Output



































Output































































































































































4

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

LED Status Indicators

Table 2 describes the W-6000M3 LEDs (show in Figure 5) and their function.

Figure 5 W-6000M3 Front Panel and LEDs

Table 2 W-6000M3 LED Behavior

LED

Function

Indicator

Status









PWR

Input Power Status

On (Green)

Power on













Off

No power









STAT

Module Status Indicator

On (Green)

Device is operational













On (Amber)

Device is booting













On (Red)

Device failed













Off

Device is loading software







or no power









ACT

Module Mode Indicator

On (Green)

Device in active mode













On (Yellow)

Device in standby mode













Off

Device has not determined







operating state or no







power









LNK/ACT

Link Status Indicator

On (Solid Green)

Link has been established













On (Flashing Green)

Port is transmitting or







receiving data













Off

No link on port









Dell PowerConnect W-6000M3 Controller Module | Installation Guide

5

Configuration Options

Configuration Requirements

The following requirements must be adhered to when running W-6000M3 Controller Modules within the Dell PowerConnect W-6000:

zThe first W-6000M3 Controller Module must be installed in either Slot 0 or Slot 1 of the W-6000 chassis. W- 6000M3 modules in Slot 2 or Slot 3 will not boot if an W-6000M3 is not present in Slot 0 or Slot 1. Refer to Figure 6 for Slot ID and locations within the Dell W-6000 chassis.

Slot 0 or Slot 1 must be populated before Slot 2 or Slot 3 since backplane communication occurs between the following:

z Slot 0 communicates with Slot 2 and/or Slot 3 z Slot 1 communicates with Slot 2 and/or Slot 3

zThe W-6000M3 module is designed for installation within the W-6000 chassis utilizing 400 W power supplies

only. Refer to “Power Management” on page 10 for complete details.

zMinimum software requirements must be met prior to installing the W-6000M3. Refer to “Minimum Software Requirements” on page 1 for complete details.

Figure 6 W-6000 Slot Configuration

SLOT 2

SLOT 3

SLOT 0

SLOT 1

zConfiguration options are also dependent on power requirements for each module. Refer to “Power Management” on page 10 for complete details.

6

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

Installation

CAUTION: Many repairs may only be done by a certified service technician.You should only perform troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

Pre-Installation Requirements

The following tools and equipment are required for installation of an W-6000M3 module:

zPre-installed Dell PowerConnect W-6000 Controller Chassis(sold separately)

zESD-preventive wrist strap (not provided)

z#2 Phillips screwdriver (not provided)

zDell PowerConnect W-6000M3 Controller Module(s)

Physical Installation

To install an W-6000M3 module into an W-6000 chassis:

1. Use standard ESD precautions when installing an W-6000M3.

NOTE: Since the Dell W-6000M3 Controller Module is hot-swappable, the power to the chassis can be ON or OFF.

2.Remove the blank front panel or existing module from the appropriate slot in the W-6000 chassis (if applicable).

NOTE: Dell recommends the use of a blank front panel over any unused slots in an W-6000. The blank front panel is required for

proper cooling and air flow within the W-6000.

3.Remove the W-6000M3 module from the shipping carton and ESD bag.

4.Slide the W-6000M3 into the W-6000 using the guide rails. The W-6000M3 must be seated within the guide rails for proper installation (see Figure 7).

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

7

Figure 7 Installing an W-6000M3

W-6000 chassis

Guide Rails

Dell W-6000M3

Controller Module

8

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

5.Secure the W-6000M3 to the W-6000 by tightening down the two captive screws using a #2 Phillips screwdriver (see Figure 8). Turn the captive screws clockwise until the screws are hand tight. Do not overtighten the screws.

Figure 8 Securing an W-6000M3

arun_0109

Captive Screw

Initial Setup and Network Connectivity

Once the physical installation is complete, run the initial setup on the W-6000M3 to configure the IP address of the module (referred to as the controller in ArubaOS documentation) and other basic system information. For complete details and instructions, refer to the Dell PowerConnect ArubaOS Quick Start Guide for the software version installed on your controller.

Removal

1. Use standard ESD precautions when removing an W-6000M3.

NOTE: Since the Dell W-6000M3 Controller Module is hot-swappable, the power to the chassis can be ON or OFF.

2.Turn the captive screws counter-clockwise to loosen the screws and release the W-6000M3.

3.Slide and remove the W-6000M3 from the W-6000.

4.Install a blank front panel over any unused slots.

NOTE: Dell requires the use of a blank front panel over any unused slots in a Dell W-6000 chassis. The blank front panel is required

for proper cooling and air flow within the W-6000.

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

9

Power Management

The W-6000 controller supports up to three 400 W power supplies. If using one to two primary power supplies for 400 to 800 W of primary power, the use of a 400 W redundant power supply is possible.

For maximum capacity planning, add the maximum power draw required for all of the modules in your chassis configuration to determine the required number of power supplies.

W-6000M3 Module and PSU Configuration Table

The following table displays the W-6000M3 module configurations, and the resultant power supply configurations and power usage.

Table 3 Power Supply and Module Configurations

Module

Number of Units













W-6000M3 Controller Module

1

2

3

4

(130 W max power draw each)



















Total Power (W)

130

260

390

520











Required number of PSUs

1

1

1

2











Redundant number of PSUs

1 or 2

1 or 2

1 or 2

1











10

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

Dell W-6000M3 Installation Manual

Safety and Regulatory Compliance

NOTE: For additionas safety, compliance, and regulatory information, see the Dell PowerConnect W-6000 Installation Guide. To download the latest technical product documentation, including User Guides, Reference Guides, and Installation Guides, navigate to support.dell.com/manuals

Dell provides a multi-language document containing country specific restrictions and additional safety and regulatory information for all Dell hardware products. The Aruba Safety and Regulatory Addendum can be viewed or downloaded from the following location: dell.com.

CLASS 1

LASER PRODUCT

CAUTION: Use of controls or adjustments of performance or procedures other than those specified in this manual may result in

hazardous radiation exposure.

This product complies with 21 CFR Chapter 1, Subchapter J, Part 1040.10, and IEC 60825-1: 1993, A1: 1997, A2: 2001, IEC 60825-2: 2000.

For continued compliance with the above laser safety standards, only approved Class 1 modules from our approved vendors should be installed in Aruba products.

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

11

Proper Disposal of Dell Equipment

For the most current information on Global Environmental Compliance and Dell products please see our website at dell.com.

Waste of Electrical and Electronic Equipment

Dell products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of life of these products in these countries shall comply with the applicable national laws of countries implementing Directive 2002/96EC on Waste of Electrical and Electronic Equipment (WEEE).

European Union RoHS

Dell products also comply with the EU Restriction of Hazardous Substances Directive 2002/95/EC (RoHS). EU RoHS restricts the use of specific hazardous materials in the

manufacture of electrical and electronic equipment. Specifically, restricted materials under the RoHS Directive are Lead (including Solder used in printed circuit assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine. Some Dell products are subject to the exemptions listed in RoHS Directive Annex 7 (Lead in solder used in printed circuit assemblies). Products and packaging will be marked with the “RoHS” label shown at the left indicating conformance to this Directive.

Contacting Dell

Table 4 Website Contacts

Website Support

Main Website

dell.com





Support Website

support.dell.com





Dell Documentation

support.dell.com/manuals





Copyright

© 2011 Aruba Networks, Inc. AirWave®, Aruba Networks®, Aruba Mobility Management System®, and other registered marks are trademarks of Aruba Networks, Inc. Dell™, the DELL™ logo, and PowerConnect™ are trademarks of Dell Inc.

All rights reserved. Specifications in this manual are subject to change without notice.

Originated in the USA. Any other trademarks appearing in this manual are the property of their respective companies.

Open Source Code

Certain Aruba products include Open Source software code developed by third parties, including software code subject to the GNU General Public License (GPL), GNU Lesser General Public License (LGPL), or other Open Source Licenses. The Open Source code used can be found at this site:

http://www.arubanetworks.com/open_source

Legal Notice

The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate

other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation for

this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against it

with respect to infringement of copyright on behalf of those vendors.

12

Dell PowerConnect W-6000M3 Controller Module | Installation Guide

Dell PowerConnect W-6000M3 Controller-Modul

Installationsanleitung

Einführung

Der Dell PowerConnect W-6000M3 Controller-Modul ist ein Hot-Swapping-fähiges Controller-Modul zur Verwendung im Dell W-6000 Controller-Gehäuse. Das W-6000 Controller-Gehäuse kann bis zu vier W-6000M3- Module aufnehmen, von denen jedes als Masteroder lokaler Controller konfiguriert werden kann. Jedes W-6000M3 Controller-Modul kann bis zu 512 auf dem Gelände angeschlossene Access Points (APs) unterstützen. Informationen zur Kompatibilität und zu Konfigurationsoptionen finden Sie unter „Konfigurationsoptionen“ auf Seite 5.

Mindestvoraussetzungen für die Software

Für das W-6000M3 Controller-Modul ist ArubaOS 5.0.3 oder eine neuere Version erforderlich.

HINWEIS: Der Master-Controller, sein redundanter Master-Controller und alle lokalen Controller müssen dieselbe Version von ArubaOS verwenden. Wenn Sie Ihr Netzwerk aktualisieren und das W-6000M3 Controller-Modul im Netzwerk installieren, vergewissern Sie sich, dass die Softwareversion des W-6000M3 Controller-Moduls zum restlichen Netzwerk passt. Wenn der mit dem Modul gelieferte Code älter ist als die Version, auf die Sie Ihr Netzwerk aktualisiert haben, müssen Sie den Code auf dem W-6000M3 Controller-Modul aktualisieren, damit er mit dem des Netzwerks übereinstimmt.

Checkliste

zDell PowerConnect W-6000M3 Controller-Modul

zDell PowerConnect W-6000M3 Controller-Modul Installationsanleitung

zDell PowerConnect Quick Start Guide

zEndbenutzerlizenzvereinbarung (EULA)

zSafety, Environmental, and Regulatory Information (SERI)-Dokument

zWarranty and Support Information (WSI)-Dokument

HINWEIS: Wenden Sie sich an Ihren Händler, wenn Teile fehlen oder beschädigt sind oder wenn Sie falsche Teile erhalten haben. Bewahren Sie den Karton einschließlich der Original-Verpackungsmaterialien nach Möglichkeit auf. Verwenden Sie diese Materialien, um das Produkt bei Bedarf zu verpacken und an den Händler zurückzugeben.

HINWEIS: Optionales Zubehör zur Verwendung mit dem W-6000M3, zum Beispiel SFPund XFP-Module, kann separat erworben werden. Wenden Sie sich an Ihren Dell-Kundenbetreuer, um weitere Informationen und Beratung zu erhalten.

0510764-MU-03 | April 2011

1

Hardwareübersicht

Abbildung 1 W-6000M3 Controller-Modul

Serielle Konsolenschnittstelle

Gigabit-Ethernet-

Management-Port

10GBase-X (XFP) Ports

(Ports 10 & 11) 1000Base-X (SFP) Ports

(Ports 0-9)

Ports

1000Base-X (SFP)-Ports

Die Anschlüsse 0 bis 9 am W-6000M3 sind 1000Base-X (SFP)-Ports für Glasfaseroder Kupferkabel und sind zur Verwendung mit von Dell zugelassenen SFPs gedacht.

HINWEIS: Dell testet und unterstützt Glasfaserleitungen von Dell innerhalb der Controllersysteme. Faseroptische Leitungen anderer Hersteller werden nicht getestet oder unterstützt; Dell kann deshalb die einwandfreie Funktionalität von Glasfaserleitungen anderer Hersteller nicht garantieren. Weitere Informationen zu von Dell zugelassenen SFPs finden Sie im Dell PowerConnect W-Series SFP Optical Modules Installation Guide.

10GBase-X (XFP)-Ports

Die Anschlüsse 10 und 11 am W-6000M3 sind 10GBase-X-Glasfaser-Ports zur Verwendung mit Dell-XFPs. XFPs sind bei laufendem Betrieb austauschbare optische 10-Gbit/s-Transceiver, die serielle elektrische Signale in externe optische oder elektrische Signale umwandeln.

HINWEIS: Dell testet und unterstützt Glasfaserleitungen von Dell innerhalb der Controllersysteme. Faseroptische Leitungen anderer Hersteller werden nicht getestet oder unterstützt; Dell kann deshalb die einwandfreie Funktionalität von Glasfaserleitungen anderer Hersteller nicht garantieren. Weitere Informationen zu von Dell zugelassenen XFPs, zum Beispiel technische Daten und Installationsanleitungen, finden Sie im Dell PowerConnect W-Series XFP Optical Modules Installation Guide.

2

Dell PowerConnect W-6000M3 Controller-Modul | Installationsanleitung

Gigabit-Ethernet-Management-Port

Dieser Anschluss ist ein 10/100/1000Base-T-Gigabit-Ethernet-Port (RJ-45). Gigabit-Ethernet nutzt alle acht Leitungen und jedes Paar wird bidirektional verwendet, sodass dieselben Paare sowohl für die Datenübertragung als auch für den Empfang verwendet werden. Dieser Port unterstützt auch Auto MDIX, sodass Crossover-Kabel oder nicht gekreuzte Kabel verwendet werden können. Abbildung 2 zeigt die CAT-5-Pin-Belegung für einen RJ-45-Anschluss. Die CAT-5-Pin-Belegung fasst jeweils die folgenden Pins bei einem 10/100/1000Base-T-Gigabit- Ethernet-Port zu Paaren zusammen: 1/2, 3/6, 4/5 und 7/8.

HINWEIS: Der Ethernet-Datenverkehr an dieser Schnittstelle ist Out-of-Band; diese Schnittstelle ist von regulären Umschaltund

Routingfunktionen abgeschnitten und kann nicht zur Netzwerk-Datenübertragung verwendet werden.

Abbildung 2 Pin-Belegung des Gigabit-Ethernet-Anschlusses

1000Base-T Gigabit- Ethernet-Port

RJ-45-Buchse

Signalname

Funktion

Pin-Belegung 1

BI_DA+

Bidirektionales Paar +A

2

BI_DA-

Bidirektionales Paar -A



















3

BI_DB+

Bidirektionales Paar +B



















4

BI_DC+

Bidirektionales Paar +C



















5

BI_DC-

Bidirektionales Paar -C























































6

BI_DB-

Bidirektionales Paar -B















7

BI_DD+

Bidirektionales Paar +D

8

BI_DD-

Bidirektionales Paar -D

Serielle Konsolenschnittstelle

Eine serielle Konsolenschnittstelle steht für den Anschluss an ein Terminal zur Verfügung, um die direkte lokale Verwaltung zu ermöglichen. An die RJ-45-Buchse kann ein serielles RS-232-Kabel mit Stecker angeschlossen werden.

Abbildung 3 Serielle Konsolenschnittstelle - Pin-Belegung

Serielle

RJ-45-Buchse



Konsolenschnittstelle

Pin-Belegung





1





2





3

Tx



4

G



5

G



6

R



7





8





Richtung





Eingang





Ausgang



Kommunikationseinstellungen für die serielle Konsolenschnittstelle sind in Tabelle 1 aufgeführt.

Tabelle 1 Anforderungen für den seriellen Anschluss

Baudrate

Datenbits

Parität

Stoppbits

Flusssteuerung











9600

8

Keine

1

Keine











VORSICHT: Schließen Sie keinen Access Point (AP) an die serielle Konsolenschnittstelle an. Die serielle Konsolenschnittstelle ist nur mit RS-232-Geräten kompatibel. Geräte, die keine RS-232-Geräte sind, wie zum Beispiel APs, werden nicht unterstützt und führen zum Ausfall des Controllers.

Dell PowerConnect W-6000M3 Controller-Modul | Installationsanleitung

3

Adapter für die serielle Konsolenschnittstelle

Mit einem modularen Adapter kann die RJ-45-Buchse in einen DB9-Stecker umgewandelt werden. Details können Sie Abbildung 4 entnehmen.

Abbildung 4 Umwandlung der RJ-45-Buchse zum DB-9-Stecker mit modularem Adapter

RJ-45-Buchse



Interne







DB-9-Stecker



Pin-Belegung

Verbindungen



Pin-Belegung

1

















RJ-45

DB-9















2



















5









Masse





3











TxD

3





TxD







2

9











































4

















4















4













































8









RxD









































5











GND

5





GND







5

3

































7

2









TxD





6











RxD

6





RxD







3

6































7

































1























































8















































Richtung





























Richtung













Eingang





























Eingang





































































































































































Ausgang































Ausgang



























































































































































LED-Statusanzeigen

In Tabelle 2 sind die W-6000M3-LEDs (in Abbildung 5 abgebildet) und ihre Funktion aufgeführt.

Abbildung 5 Vorderseite und LEDs des W-6000M3

Tabelle 2 LED-Verhalten beim W-6000M3

LED

Funktion

Anzeige

Status









PWR

Status des Eingangsstroms

Ein (grün)

Stromversorgung ein













Aus

Kein Strom









STAT

Statusanzeige des Moduls

Ein (grün)

Gerät ist betriebsbereit













Ein (gelb)

Gerät wird gestartet













Ein (rot)

Gerätefehler













Aus

Gerät lädt Software oder keine Stromversorgung









ACT

Anzeige des Modulmodus

Ein (grün)

Gerät im aktiven Modus













Ein (gelb)

Gerät im Standbymodus













Aus

Gerät hat keinen bestimmten Betriebsstatus oder







keine Stromversorgung









LNK/ACT

Anzeige des

Ein (durchgehend grün)

Verbindung wurde hergestellt



Verbindungsstatus







Ein (grün blinkend)

Port sendet oder empfängt Daten

















Aus

Keine Verbindung an der Schnittstelle









4

Dell PowerConnect W-6000M3 Controller-Modul | Installationsanleitung

Konfigurationsoptionen

Konfigurationsanforderungen

Für den Betrieb von W-6000M3 Controller-Modulen im Dell PowerConnect W-6000 müssen die folgenden Bedingungen erfüllt sein:

zDas erste W-6000M3 Controller-Modul muss entweder in Steckplatz 0 oder Steckplatz 1 des W-6000- Gehäuses eingesetzt werden. W-6000M3-Module in Steckplatz 2 oder Steckplatz 3 werden nicht gestartet, wenn in Steckplatz 0 oder Steckplatz 1 kein W-6000M3 eingesetzt ist. Die Nummerierung und Position der Steckplätze im Dell W-6000-Gehäuse können Sie Abbildung 6 entnehmen.

Steckplatz 0 oder Steckplatz 1 muss vor Steckplatz 2 oder Steckplatz 3 besetzt werden, da die Kommunikation wie folgt abläuft:

z Steckplatz 0 kommuniziert mit Steckplatz 2 und/oder Steckplatz 3 z Steckplatz 1 kommuniziert mit Steckplatz 2 und/oder Steckplatz 3

zDas W-6000M3-Modul ist nur für den Einbau in das W-6000-Gehäuse mit 400-W-Netzteilen konzipiert.

Details können Sie „Stromversorgung“ auf Seite 8 entnehmen.

zVor der Installation des W-6000M3 müssen die Mindestvoraussetzungen für die Software erfüllt sein. Details können Sie „Mindestvoraussetzungen für die Software“ auf Seite 1 entnehmen.

Abbildung 6 Steckplatzkonfiguration beim W-6000

STECKPLATZ 2

STECKPLATZ 3

STECKPLATZ 0

STECKPLATZ 1

zDie Konfigurationsoptionen sind auch vom Energiebedarf der einzelnen Module abhängig. Details können Sie „Stromversorgung“ auf Seite 8 entnehmen.

Installation

VORSICHT: Viele Reparaturvorgänge können nur von zertifiziertem Fachpersonal ausgeführt werden. Sie sollten nur Schritte zur Fehlerbehebung und einfache Reparaturen ausführen, die in der Produktdokumentation beschrieben sind, oder die Ihnen online oder telefonisch vom Supportteam mitgeteilt werden. Schäden aufgrund von Reparaturarbeiten, die nicht von Dell autorisiert wurden, werden nicht von der Garantie abgedeckt. Lesen und befolgen Sie die Sicherheitsanleitungen, die Sie mit dem Produkt enthalten haben.

Anforderungen vor der Installation

Folgendes ist für die Installation eines W-6000M3-Moduls erforderlich:

zVorinstalliertes Dell PowerConnect W-6000 Controller-Gehäuse (separat erhältlich)

zAntistatikband für das Handgelenk (nicht im Lieferumfang enthalten)

zKreuzschlitzschraubendreher #2 (nicht im Lieferumfang enthalten)

zDell PowerConnect W-6000M3 Controller-Modul(e)

Dell PowerConnect W-6000M3 Controller-Modul | Installationsanleitung

5

Physische Installation

So bauen Sie ein W-6000M3-Modul in ein W-6000-Gehäuse ein:

1.Befolgen Sie bei der Installation eines W-6000M3 die üblichen Vorsichtsmaßnahmen, um elektrostatische Entladungen zu vermeiden.

HINWEIS: Da das Dell W-6000M3 Controller-Modul Hot-Swapping-fähig ist, also bei laufendem Betrieb ausgetauscht werden

kann, kann die Stromversorgung des Gehäuses EIN oder AUS sein.

2.Nehmen Sie ggf. die leere Abdeckung bzw. ein vorhandenes Modul aus dem entsprechenden Steckplatz im W-6000-Gehäuse.

HINWEIS: Dell empfiehlt, nicht besetzte Steckplätze bei einem W-6000 mit einer leeren Abdeckung zu schützen. Die leere Abdeckung ist für die richtige Kühlung und Luftzirkulation im W-6000 erforderlich.

3.Nehmen Sie das W-6000M3-Modul aus dem Versandkarton und aus der Antistatikhülle.

4.Setzen Sie das W-6000M3-Modul an den Führungsschienen in den W-6000 ein. Das W-6000M3 muss zur richtigen Installation in den Führungsschienen sitzen (siehe Abbildung 7).

Abbildung 7 Einsetzen eines W-6000M3

W-6000-Gehäuse

Führungsschienen

Dell W-6000M3

Controller-Modul

6

Dell PowerConnect W-6000M3 Controller-Modul | Installationsanleitung

5.Sichern Sie das W-6000M3 am W-6000, indem Sie die beiden unverlierbaren Schrauben mit einem Kreuzschlitzschraubendreher #2 festziehen (siehe Abbildung 8). Ziehen Sie die Schrauben im Uhrzeigersinn fest, aber überdrehen Sie sie nicht.

Abbildung 8 Sichern eines W-6000M3

arun_0109

Unverlierbare Schraube

Erstmalige Einrichtung und Netzwerkkonnektivität

Nach dem Abschluss der physischen Installation führen Sie die erstmalige Einrichtung auf dem W-6000M3 aus, um die IP-Adresse des Moduls (in der ArubaOS-Dokumentation als Controller bezeichnet) und andere grundlegende Systeminformationen zu konfigurieren. Ausführliche Anweisungen finden Sie im Dell PowerConnectArubaOS Quick Start Guide (Kurzanleitung) für die auf Ihrem Controller installierte Softwareversion.

Ausbau

1.Befolgen Sie beim Ausbau eines W-6000M3 die üblichen Vorsichtsmaßnahmen, um elektrostatische Entladungen zu vermeiden.

HINWEIS: Da das Dell W-6000M3 Controller-Modul Hot-Swapping-fähig ist, also bei laufendem Betrieb ausgetauscht werden kann, kann die Stromversorgung des Gehäuses EIN oder AUS sein.

2.Drehen Sie die unverlierbaren Schrauben gegen den Uhrzeigersinn und lösen Sie das W-6000M3.

3.Nehmen Sie das W-6000M3 aus dem W-6000.

4.Setzen Sie leere Abdeckungen in die unbesetzten Steckplätze ein.

HINWEIS: Dell sieht vor, dass nicht besetzte Steckplätze bei einem Dell W-6000-Gehäuse mit einer leeren Abdeckung geschützt werden. Die leere Abdeckung ist für die richtige Kühlung und Luftzirkulation im W-6000 erforderlich.

Dell PowerConnect W-6000M3 Controller-Modul | Installationsanleitung

7

Stromversorgung

Der W-6000 Controller unterstützt bis zu drei 400-W-Netzteile. Wenn Sie ein bis zwei primäre Netzteile für 400 bis 800 W Hauptstrom verwenden, ist es möglich, ein redundantes 400-W-Netzteil zu verwenden.

Für eine Planung der maximalen Kapazität addieren Sie den maximalen Leistungsbedarf aller Module in Ihrer Gehäusekonfiguration, um so die Anzahl der erforderlichen Netzteile zu bestimmen.

W-6000M3-Modul- und Netzteilkonfigurationstabelle

In der folgenden Tabelle sind die Konfigurationen des W-6000M3-Moduls und die sich daraus ergebenden Netzteilkonfigurationen und Energiedaten aufgeführt.

Tabelle 3 Netzteilund Modulkonfigurationen

Modul

Anzahl der Einheiten











W-6000M3 Controller-Modul

1

2

3

4

(je 130 W max. Leistungsbedarf)



















Gesamtleistungsaufnahme (W)

130

260

390

520











Erforderliche Anzahl Netzteile

1

1

1

2











Redundante Anzahl Netzteile

1 oder 2

1 oder 2

1 oder 2

1











8

Dell PowerConnect W-6000M3 Controller-Modul | Installationsanleitung

Sicherheitsund Zulassungsbestimmungen

HINWEIS: Weitere Informationen zu Sicherheit, Konformität und Zulassungsbestimmungen finden Sie im Dell PowerConnect W- 6000 Installationshandbuch. Die neueste technische Produktdokumentation, darunter Benutzerhandbücher, Referenzhandbücher und Installationsanleitungen, finden Sie unter support.dell.com/manuals

Dell stellt ein mehrsprachiges Dokument bereit, das landesspezifische Einschränkungen sowie zusätzliche Sicherheitsund Zulassungsbestimmungen für Hardwareprodukte von Dell enthält. Sie können das Aruba Safety and Regulatory Addendum auf der folgenden Webseite anzeigen oder herunterladen: dell.com.

CLASS 1

LASER PRODUCT

VORSICHT: Die Verwendung von Bedienelementen, die Änderung von Einstellungen und die Durchführung von Schritten, die

in diesem Handbuch nicht angegeben sind, kann zur Freisetzung gefährlicher Strahlung führen.

Dieses Produkt entspricht 21 CFR Kapitel 1, Unterkapitel J, Teil 1040.10, und IEC 60825-1: 1993, A1: 1997, A2: 2001, IEC 60825-2: 2000.

Zur fortgesetzten Konformität mit den oben genannten Laser-Sicherheitsstandards sollten in Aruba-Produkten nur zugelassene Module der Klasse 1 von unseren anerkannten Anbietern installiert werden.

Dell PowerConnect W-6000M3 Controller-Modul | Installationsanleitung

9

Ordnungsgemäße Entsorgung von Dell-Geräten

Aktuelle Informationen zur Konformität mit globalen Umweltschutzbestimmungen von Dell-Produkten finden Sie auf unserer Website unter dell.com.

Verwertung von Elektround Elektronikaltgeräten

Dell-Produkte müssen am Ende ihrer Standzeit in den Mitgliedsstaaten der EU, Norwegen und der Schweiz separat gesammelt und verwertet werden und sind daher durch das links abgebildete Symbol (durchgestrichene Mülltonne) gekennzeichnet. Bei der Verwertung dieser Produkte am Ende der Standzeit müssen in diesen Ländern die geltenden nationalen Gesetze unter Einbeziehung der Richtlinie 2002/96EC für die Verwertung von Elektround Elektronikaltgeräten (WEEE) eingehalten werden.

RoHS-Richtlinie der Europäischen Union

Dell-Produkte erfüllen die RoHS-Richtlinie 2002/95/EC (Restriction of Hazardous Substances, Beschränkung gefährlicher Substanzen). Die RoHS-Richtlinie der EU

schränkt die Verwendung gefährlicher Substanzen bei der Herstellung von elektrischen und elektronischen Produkten ein. Insbesondere Blei (einschließlich Lötzinn in elektronischen Leiterplatten), Cadmium, Quecksilber, sechswertiges Chrom und Brom gehören laut RoHS-Richtlinie zu den einzuschränkenden Werkstoffen. Für einige Dell-Produkte gelten die Ausnahmen, die in Anhang 7 der RoHSRichtlinie aufgeführt sind (Lötzinn in elektronischen Leiterplatten). Produkte und Verpackung sind mit dem RoHS-Kennzeichen (links abgebildet) gekennzeichnet, um die Konformität mit dieser Richtlinie anzuzeigen.

Kontaktaufnahme mit Dell

Tabelle 4 Website-Kontakt

Website-Support

Hauptwebsite

dell.com





Support-Website

support.dell.com





Dell-Dokumentation

support.dell.com/manuals





Copyright

© 2011 Aruba Networks, Inc. AirWave®, Aruba Networks®, Aruba Mobility Management System® und andere eingetragene Marken sind Marken von Aruba Networks, Inc. Dell™, das DELL™-Logo und PowerConnect™ sind Marken von Dell Inc.

Alle Rechte vorbehalten. Spezifikationen in diesem Handbuch können ohne Ankündigung geändert werden.

Hergestellt in den USA. Alle anderen Marken, die in diesem Handbuch erwähnt werden, sind das Eigentum der jeweiligen Unternehmen.

Open Source Code

Bestimmte Aruba-Produkte enthalten Open Source-Softwarecode, der von Drittanbietern entwickelt wurde, darunter Softwarecode gemäß GNU General Public License (GPL), GNU Lesser General Public License (LGPL) oder anderen Open Source-Lizenzen. Den Open Source Code finden Sie auf dieser Website:

http://www.arubanetworks.com/open_source

Rechtliche Hinweise

Die Verwendung von Switching-Plattformen und Software von Aruba Networks, Inc. durch Einzelpersonen oder

Unternehmen zur Terminierung von VPN-Client-Geräten anderer Hersteller stellt die vollständige Anerkennung der

Haftbarkeit dieser Einzelpersonen oder dieses Unternehmens für diese Aktion dar und enthebt Aruba Networks, Inc.

zur Gänze aller rechtlichen Maßnahmen, die bezüglich der Verletzung des Urheberrechts im Namen dieser Hersteller

ergriffen werden.

10

Dell PowerConnect W-6000M3 Controller-Modul | Installationsanleitung

Module contrôleur Dell PowerConnect W-6000M3 Guide d’installation

Introduction

Le Module contrôleur Dell PowerConnect W-6000M3 est un module Contrôleur remplaçable à chaud à utiliser dans un châssis Dell W-6000 Contrôleur. Le châssis contrôleur W-6000 permet d’installer quatre modules W-6000M3, pouvant être configurés en mode maître ou local contrôleur. Chaque module de contrôleur W-6000M3 peut prendre en charge 512 points d’accès connectés en campus. Pour plus de détails sur les options de compatibilité et configuration, consultez la section « Options de configuration » à la page 5.

Configuration requise

Le module contrôleur W-6000M3 nécessite ArubaOS 5.0.3 ou plus récent.

REMARQUE : Le contrôleur maître, son contrôleur maître redondant et tous les contrôleurs locaux doivent employer la même version d’ArubaOS. Lorsque vous mettez à niveau votre réseau et installez un module Contrôleur W-6000M3 sur votre réseau, assurez-vous que la version logicielle du module contrôleur W-6000M3 correspond à celle du reste du réseau. Si le code fourni avec le module est plus ancien que la version mise en œuvre sur votre réseau, vous devez mettre à jour le code sur le module W-6000M3 contrôleur de façon à disposer de la même version que le réseau.

Contrôle du contenu de l’emballage

zModule Contrôleur Dell PowerConnect W-6000M3

zGuide d’installation du Module contrôleur Dell PowerConnect W-6000M3

zGuide de prise en main de Dell PowerConnect

zContrat de licence utilisateur final (CLUF)

zDocument « Safety, Environmental, and Regulatory Information (SERI) »

zDocument « Informations concernant la garantie et le support(WSI) »

REMARQUE : Informez votre fournisseur si l’un des éléments est incorrect, manquant ou endommagé. Si possible, conservez le carton, ce qui inclut l’emballage d’origine. Vous disposerez ainsi de tout le nécessaire en cas de renvoi de matériel au fournisseur.

REMARQUE : Des accessoires en option, tels que des modules SFP et XFP, sont disponibles pour l’utilisation avec le W-6000M3 et sont vendus séparément. Contactez votre représentant Dell pour plus de détails et obtenir de l’assistance.

0510764-MU-03 | Avril 2011

1

Vue d’ensemble du matériel

Illustration 1 Module Contrôleur W-6000M3

Port console

série

Port Gigabit Ethernet

de gestion

Ports 10GBase-X (XFP)

(ports 10 et 11) Ports 1000Base-X (SFP)

(ports 0 à 9)

Ports

Ports 1000 Base-X (SFP)

Les ports 0 à 9 du W-6000M3 sont des ports 1000Base-X (SFP) assurant la connectivité fibre ou cuivre et sont conçus pour être utilisés avec les SPF Dell agréés.

REMARQUE : Dell teste et prend en charge les pièces optiques Dell au sein de ses systèmes de contrôle. Les pièces optiques de fabricants tiers ne sont ni testées ni prises en charge ; par conséquent, Dell ne garantit pas la fonctionnalité des pièces optiques de tiers. Pour plus de détails concernant les SFP Dell agréés, consultez le Dell PowerConnect W-Series SFP Optical Modules Installation Guide (Guide d’installation des modules optiques SFP série W Dell PowerConnect).

Ports 10GBase-X (XFP)

Les ports 10 et 11 du W-6000M3 sont des ports fibre optique 10GBase-X conçus pour les connexions Dell XFP. Les ports XFP sont des émetteurs/récepteurs optiques de 10 Gbits, remplaçables à chaud, qui convertissent les signaux électriques série en signaux série externes, optiques ou électriques.

REMARQUE : Dell teste et prend en charge les pièces optiques Dell au sein de ses systèmes de contrôle. Les pièces optiques de fabricants tiers ne sont ni testées ni prises en charge ; par conséquent, Dell ne garantit pas la fonctionnalité des pièces optiques de tiers. Pour plus de détails concernant les XFP Dell agréés, et notamment les spécifications techniques et les instructions d’installation, consultez le Dell PowerConnect W-Series XFP Optical Modules Installation Guide (Guide d’installation des modules optiques SFP série W Dell PowerConnect).

2

Module contrôleur Dell PowerConnect W-6000M3 | Guide d’installation

Port Gigabit Ethernet de gestion

Il s’agit d’un port Gigabit Ethernet 10/100/1000Base-T (RJ-45). Gigabit Ethernet emploie les huit brins et chaque paire est utilisée de façon bidirectionnelle, ce qui signifie que les mêmes paires sont utilisées pour la transmission et la réception des données. Ce port prend également en charge la fonctionnalité Auto MDIX, qui permet d’utiliser aussi bien des câbles croisés que des câbles droits. L’Illustration 2 présente le brochage CAT-5 d’un connecteur RJ-45. Le connecteur RJ-45 CAT-5 utilise les paires suivantes sur un port Ethernet Gigabit 10/100/ 1000Base-T : 1/2, 3/6, 4/5 et 7/8.

REMARQUE : Le trafic Ethernet de ce port est hors bande. Ce port a été isolé des fonctionnalités traditionnelles de commutation et

de routage, et ne peut pas être utilisé en tant que port de données réseau.

Illustration 2 Brochage du port Ethernet Gigabit

1000Base-T Gigabit Port Ethernet





RJ-45 femelle

Nom du signal

Fonction





Broches

1

BI_DA+

Paire bidirectionnelle +A





















2

BI_DA-

Paire bidirectionnelle -A





















3

BI_DB+

Paire bidirectionnelle +B





















4

BI_DC+

Paire bidirectionnelle +C





















5

BI_DC-

Paire bidirectionnelle -C





























































6

BI_DB-

Paire bidirectionnelle -B





















7

BI_DD+

Paire bidirectionnelle +D





















8

BI_DD-

Paire bidirectionnelle -D

Port console série

Un port console série est prévu pour la connexion à un terminal, ce qui autorise une gestion locale directe. Le connecteur femelle RJ-45 du port permet de connecter un câble série RS-232 avec un connecteur mâle.

Illustration 3 Brochage du port console série

Série

RJ-45 femelle



Port console

Broches





1





2





3

TxD



4

GND



5

GND



6

RxD



7





8





Direction





Entrée





Sortie



Les paramètres de communication du port série figurent dans la section Tableau 1.

Tableau 1 Critères de configuration requise

Débit en bauds

Bits de données

Parité

Bits d’arrêt

Contrôle du flux











9600

8

Aucun

1

Aucun











ATTENTION : Ne connectez pas de point d’accès au port de la console série. Le port de la console série est compatible uniquement avec les périphériques RS-232. Les périphériques non RS-232, tels que les points d’accès, ne sont pas pris en charge et provoquent la panne du contrôleur.

Module contrôleur Dell PowerConnect W-6000M3 | Guide d’installation

3

Adaptateur de port de console série

Un adaptateur modulaire permet de convertir le connecteur RJ-45 (femelle) en connecteur DB9 (mâle). Consultez l’Illustration 4 pour plus de détails.

Illustration 4 Conversion d’adaptateur modulaire RJ-45 (femelle) vers DB9 (mâle)

RJ-45 femelle



Interne







DB-9 mâle





Broches











Connexions



Broches

1



















RJ-45

DB-9













2





















5







Terre





3













TxD

3





TxD







2

9









































4



















4















4













































8







RxD



































5













GND

5





GND







5

3

































7

2







TxD





6













RxD

6





RxD







3

6































7



































1





















































8















































Direction

























Direction











Entrée





























Entrée

























































































































































Sortie

































Sortie



























































































































































Voyants d’état

Le Tableau 2 décrit les voyants du W-6000M3 (voir l’Illustration 5) et leur fonctionnalité.

Illustration 5 Panneau avant et voyants du W-6000M3

Tableau 2 Comportement des voyants du W-6000M3

Voyant

Fonction

Indicateur

Statut









PWR

État de l’entrée

Allumé (vert)

Sous tension



d’alimentation







Éteint

Pas d’alimentation













STAT

Voyant d’état du module

Allumé (vert)

Le périphérique est opérationnel













Allumé (orange)

Le périphérique est en cours de démarrage













Allumé (rouge)

Échec du périphérique













Éteint

Le périphérique charge le logiciel ou n’est pas







alimenté









ACT

Indicateur de mode du

Allumé (vert)

Le périphérique est actif.



module







Allumé (jaune)

Le périphérique est en veille.

















Éteint

Le périphérique n’a pas déterminé l’état







opérationnel ou n’est pas sous tension.









LNK/ACT

Voyant d’état de la

Sous tension (vert fixe)

Une liaison a été établie



liaison







Sous tension (vert clignotant)

Le port transmet ou reçoit des données.

















Éteint

Pas de liaison sur le port









4

Module contrôleur Dell PowerConnect W-6000M3 | Guide d’installation

Options de configuration

Critères de configuration

Il est essentiel d’appliquer les instructions suivantes lors de l’exploitation des modules Contrôleur W-6000M3 avec le Dell PowerConnect W-6000 :

zLe premier module Contrôleur W-6000M3 doit être installé dans l’emplacement 0 ou 1 du châssis du W-6000. Les modules W-6000M3 des emplacements 2 ou 3 ne démarreront pas si aucun W-6000M3 n’est présent dans l’emplacement 0 ou 1. Consultez l’Illustration 6 pour identifier les ID d’emplacements et leur position sur le châssis du Dell W-6000.

L’emplacement 0 ou 1 doit être rempli avant l’emplacement 2 ou 3 dans la mesure où la communication du panneau arrière suit l’ordre ci-dessous :

z l’emplacement 0 communique avec l’emplacement 2 et/ou 3 ; z l’emplacement 1 communique avec l’emplacement 2 et/ou 3.

zLe module W-6000M3 a été conçu pour l’installation sur le châssis du W-6000 et pour fonctionner avec une

alimentation de 400 W uniquement. Consultez « Gestion de l’alimentation » à la page 8 pour plus de détails.

zLa configuration logicielle requise minimale doit être établie avant d’installer le W-6000M3. Consultez « Configuration requise » à la page 1 pour plus de détails.

Illustration 6 Configuration des emplacements du W-6000

EMPLACEMENT 2

EMPLACEMENT 3

EMPLACEMENT 0

EMPLACEMENT 1

zLes options de configuration dépendent également de la consommation de chaque module. Consultez « Gestion de l’alimentation » à la page 8 pour plus de détails.

Installation

ATTENTION : La plupart des réparations nécessitent l’intervention d’un technicien. Vous ne devez effectuer que les dépannages et les réparations autorisées dans la documentation de votre produit, ou spécifiées par le service d’assistance en ligne ou téléphonique et l’équipe d’assistance. Tout dommage lié à des réparations non autorisées par Dell n’est pas couvert par votre garantie. Consultez et appliquez les procédures de sécurité accompagnant le produit.

Préparation de l’installation

Les outils et l’équipement suivant sont requis pour l’installation d’un module W-6000M3 :

zChâssis de contrôleur Dell PowerConnect W-6000 pré-installé (vendu séparément)

zBracelet de prévention des décharges d’électricité statique (non fourni)

zTournevis cruciforme (non fourni)

zModule(s) de contrôleur Dell PowerConnect W-6000M3

Module contrôleur Dell PowerConnect W-6000M3 | Guide d’installation

5

Installation physique

Procédure d’installation d’un module W-6000M3 sur un châssis W-6000 :

1.Appliquez les procédures standard de protection contre les décharges d’électricité statique lors de l’installation d’un W-6000M3.

REMARQUE : Le module contrôleur Dell W-6000M3 ne peut pas être remplacé à chaud et l’alimentation du châssis peut être en

position Marche ou Arrêt.

2. Déposez le cache avant ou le module existant de l’emplacement cible du châssis du W-6000 (le cas échéant).

REMARQUE : Dell recommande d’utiliser de placer une plaque d’obturation sur tous les emplacements non utilisés du W-6000.

Le panneau avant est requis pour le refroidissement et la circulation d’air dans le W-6000.

3.Enlevez le module W-6000M3 du carton d’expédition et l’emballage anti-statique.

4.Faites glisser le W-6000M3 dans le W-6000 au moyen des rails de guidage. Le W-6000M3 doit être installé entre les rails de guidage (voir Illustration 7).

Illustration 7 Installation d’un W-6000M3

Châssis du W-6000

Rails de guidage

Module contrôleur

Dell W-6000M3

6

Module contrôleur Dell PowerConnect W-6000M3 | Guide d’installation

5.Fixez le W-6000M3 sur le W-6000 en serrant les deux vis captives au moyen d’un tournevis cruciforme (voir Illustration 8). Faites tourner les vis captives dans le sens anti-horaire jusqu’à ce qu’elles soient serrées et ne peuvent pas être desserrées à la main. Ne forcez pas les vis.

Illustration 8 Fixation d’un W-6000M3

arun_0109

Vis captive

Configuration initiale et connectivité réseau

Une fois l’installation physique terminée, procédez à la configuration initiale du W-6000M3 de façon à définir l’adresse IP du module (désigné comme le contrôleur dans la documentation du ArubaOS) et autres informations système de base. Pour des informations complètes et des instructions, consultez le guide de prise en main Dell PowerConnectArubaOS correspondant à la version logicielle de votre contrôleur.

Retrait

1.Appliquez les procédures standard de protection contre les décharges d’électricité statique lors du retrait d’un W-6000M3.

REMARQUE : Le module contrôleur Dell W-6000M3 ne peut pas être remplacé à chaud et l’alimentation du châssis peut être en

position Marche ou Arrêt.

2.Faites tourner les vis captives dans le sens anti-horaire pour les desserrer et libérer le W-6000M3.

3.Faites glisser et enlevez le W-6000M3 du W-6000.

4.Montez une plaque d’obturation sur les emplacements non utilisés.

REMARQUE : Dell recommande d’utiliser de placer une plaque d’obturation sur tous les emplacements non utilisés du châssis Dell W-6000. Le panneau avant est requis pour le refroidissement et la circulation d’air dans le W-6000.

Module contrôleur Dell PowerConnect W-6000M3 | Guide d’installation

7

Gestion de l’alimentation

Le contrôleur W-6000 permet de brancher jusqu’à trois alimentations de 400 W. Si vous utilisez une ou deux alimentations primaires pour assurer une puissance cumulée de 400 à 800 W, il est possible de compléter l’installation par un module redondant de 400 W.

Afin d’optimiser la capacité, additionnez la puissance requise pour l’ensemble des modules de votre châssis afin de déterminer le nombre de modules d’alimentation nécessaires.

Table de configuration du module W-6000M3 et de l’alimentation

La table suivante affiche les configurations du module W-6000M3, ainsi que les configurations d’alimentation résultantes et la puissance disponible.

Tableau 3 Configurations de l’alimentation et des modules

Module

Nombre d’unités













Module Contrôleur W-6000M3

1

2

3

4

(130 W max. de puissance par module)



















Puissance totale (W)

130

260

390

520











Nombre requis d’alimentations

1

1

1

2











Nombre redondant d’alimentations

1 ou 2

1 ou 2

1 ou 2

1











8

Module contrôleur Dell PowerConnect W-6000M3 | Guide d’installation

Loading...
+ 94 hidden pages
