Bosch PKG6, PKF67, PKF6, PKD6, PKD7 User Manual

Hob

PKB6..F17., PKD6..F17., PKF6..F17., PKF6..F17G, PKF65.F17., PKF67.F17., PKN6..F17., PKG6..F17., PKG6..FB1., PKD7..FB1.

[en] Instruction manual

3.% )		3.' )

3.) )		3.) ) *

3.) ) 3.) )		3.1 )

3.* ) 3.* )%		3.' )%

2

Ø = cm

Table of contents
Safety precautions .....................................................................	3
Causes of damage .............................................................................	4
Environmental protection ..........................................................	5
Environmentally-friendly disposal.....................................................	5
Energy-saving tips...............................................................................	5
Getting to know your appliance ................................................	5
The control panel ................................................................................	5

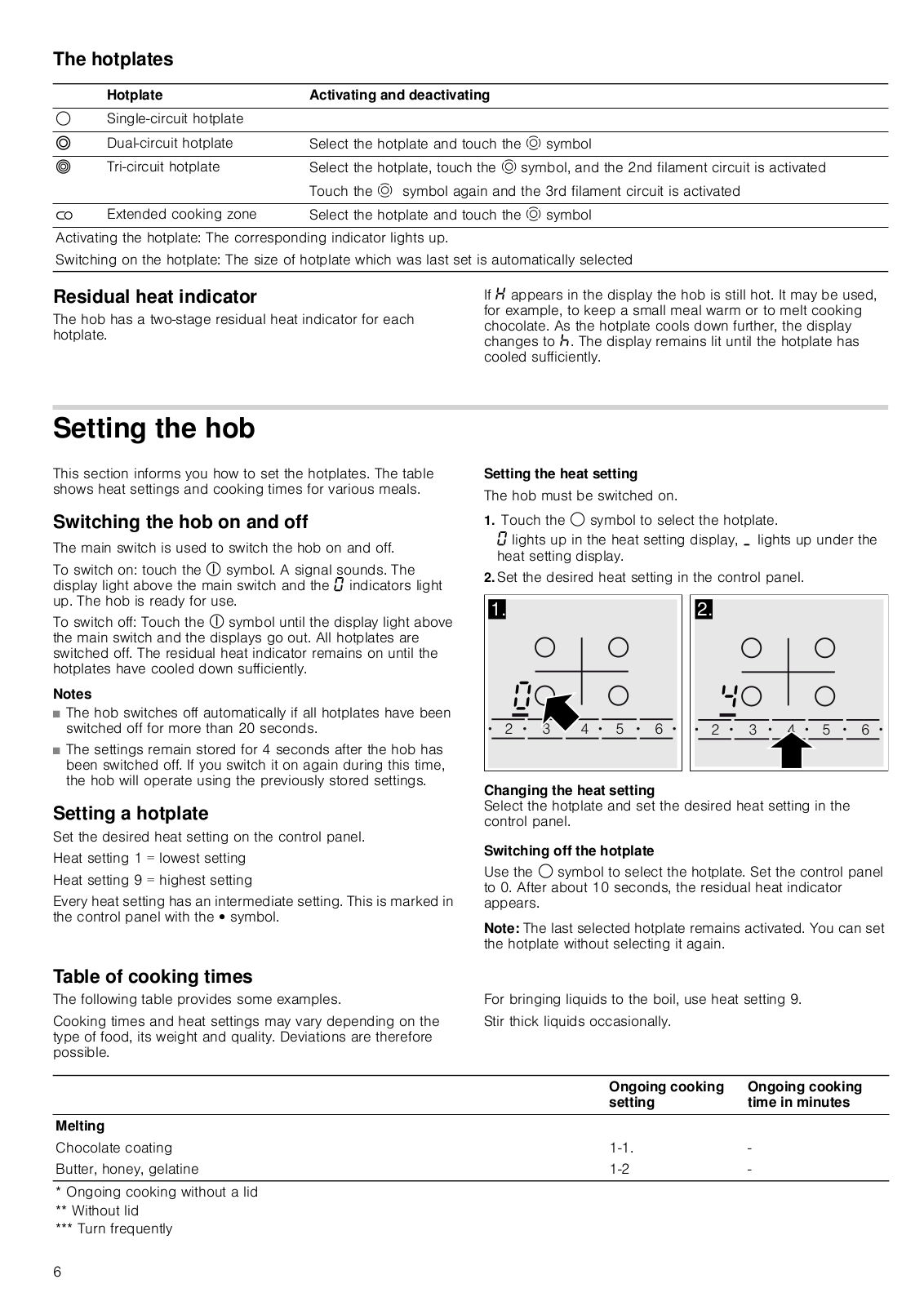

The hotplates .......................................................................................	6
Residual heat indicator ......................................................................	6
Setting the hob ...........................................................................	6
Switching the hob on and off ...........................................................	6
Setting a hotplate................................................................................	6

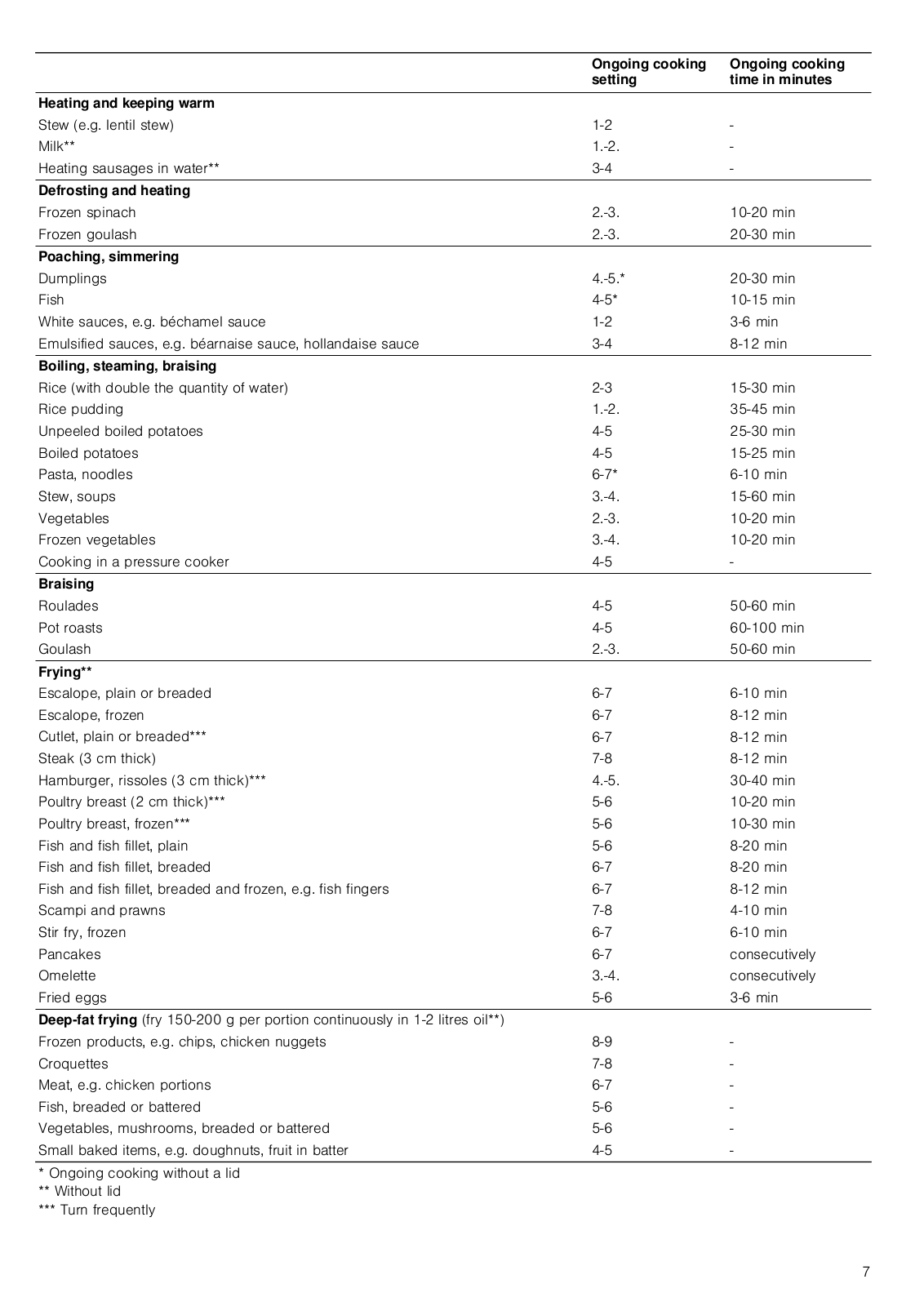

Table of cooking times ......................................................................	6

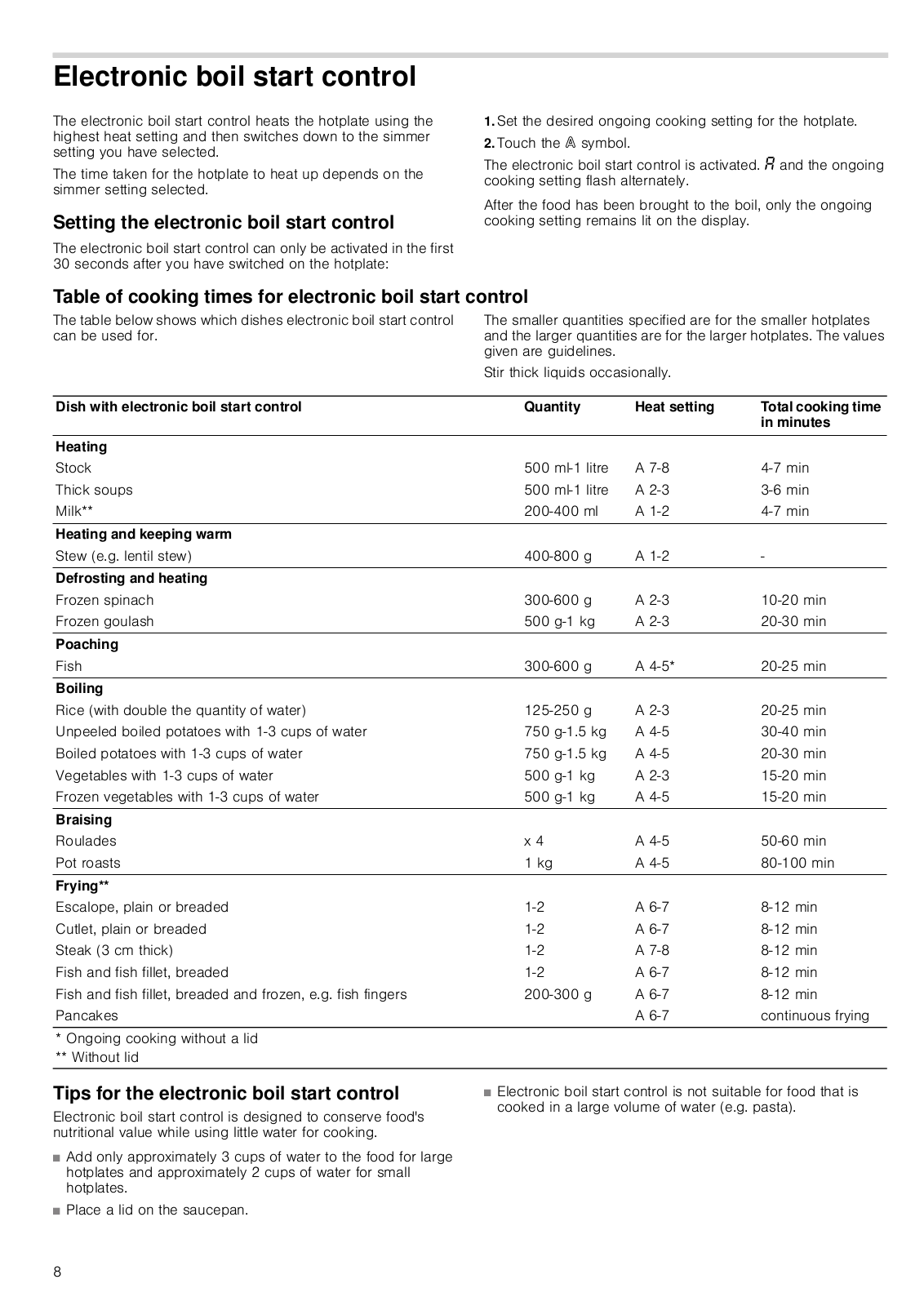

Electronic boil start control.......................................................	8
Setting the electronic boil start control...........................................	8
Table of cooking times for electronic boil start control...............	8
Tips for the electronic boil start control..........................................	8

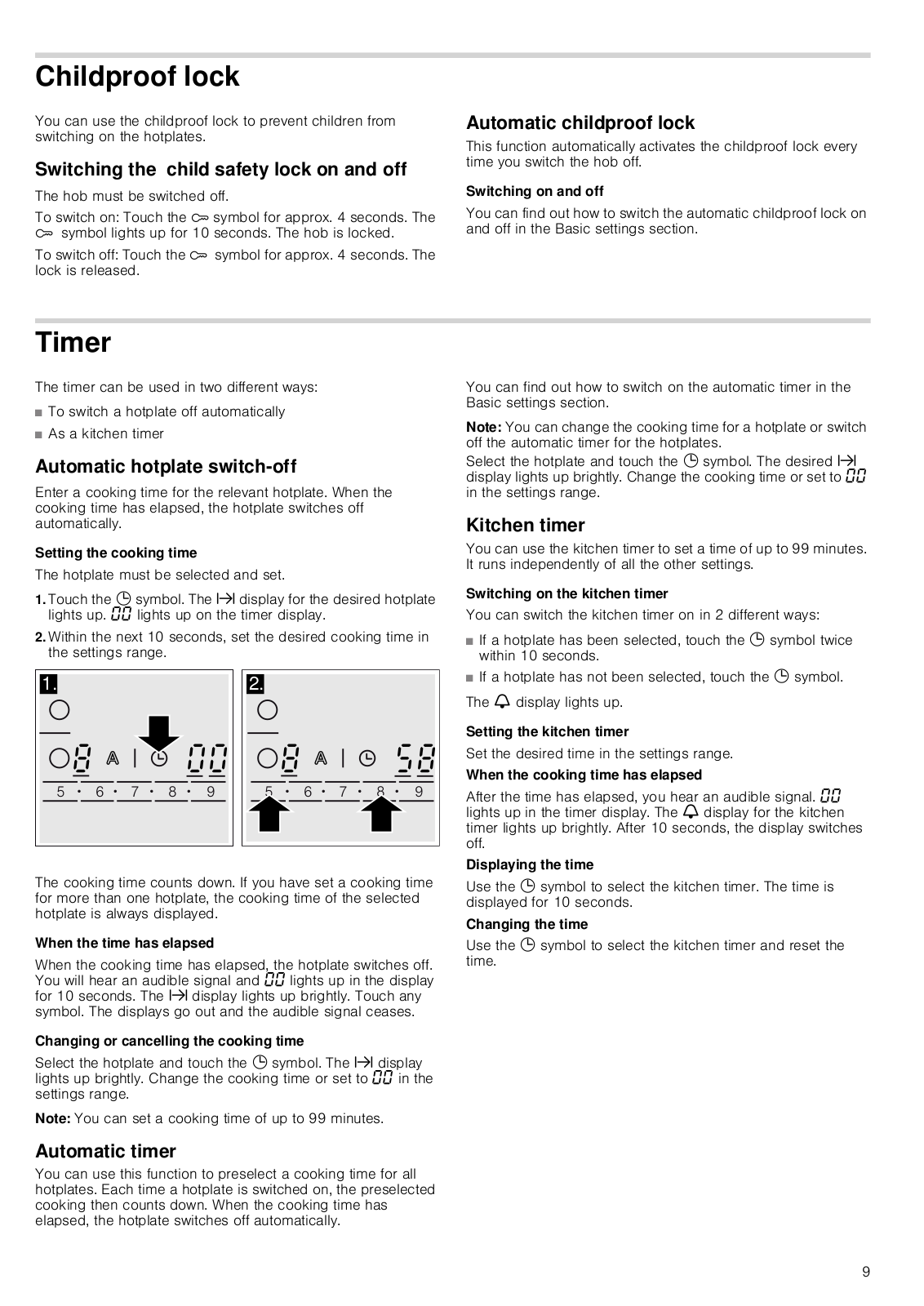

Childproof lock ...........................................................................	9
Switching the child safety lock on and off....................................	9
Automatic childproof lock .................................................................	9
Timer............................................................................................	9

Automatic hotplate switch-off............................................................	9
Automatic timer ...................................................................................	9
Kitchen timer........................................................................................	9

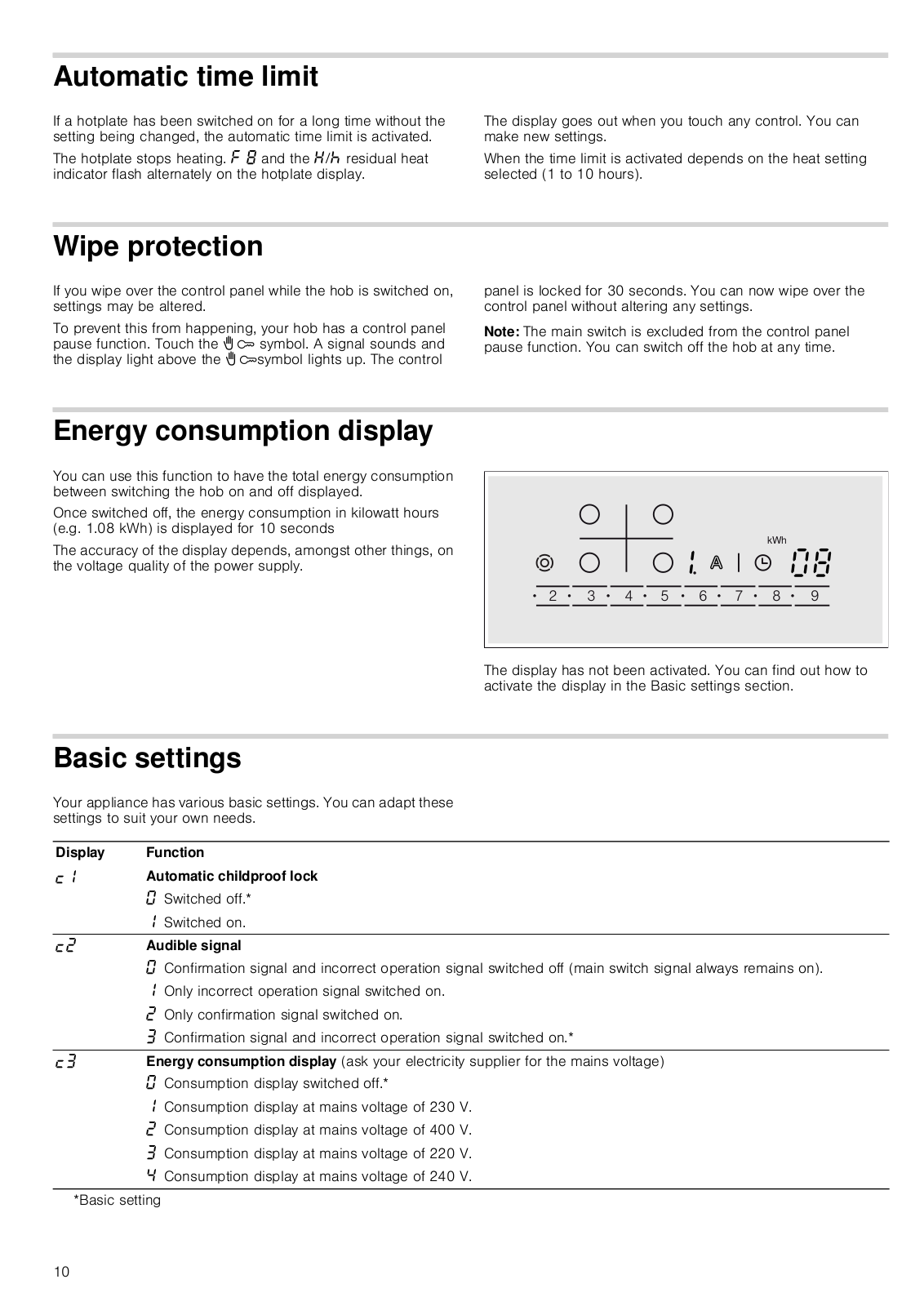

Automatic time limit .................................................................	10
Wipe protection ........................................................................	10
Energy consumption display ..................................................	10
Basic settings ...........................................................................	10

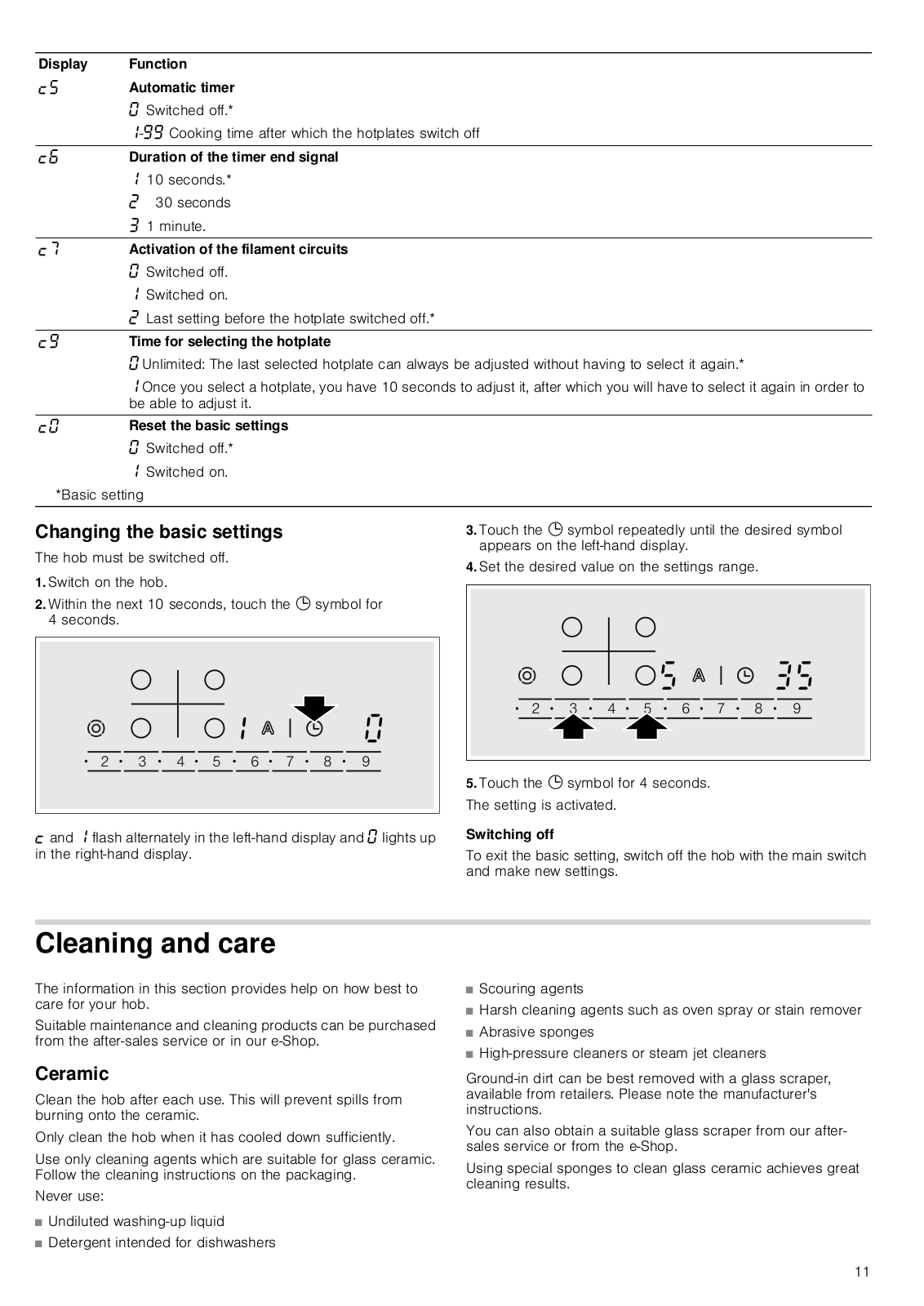

Changing the basic settings ..........................................................	11
Cleaning and care ....................................................................	11
Ceramic .............................................................................................	11

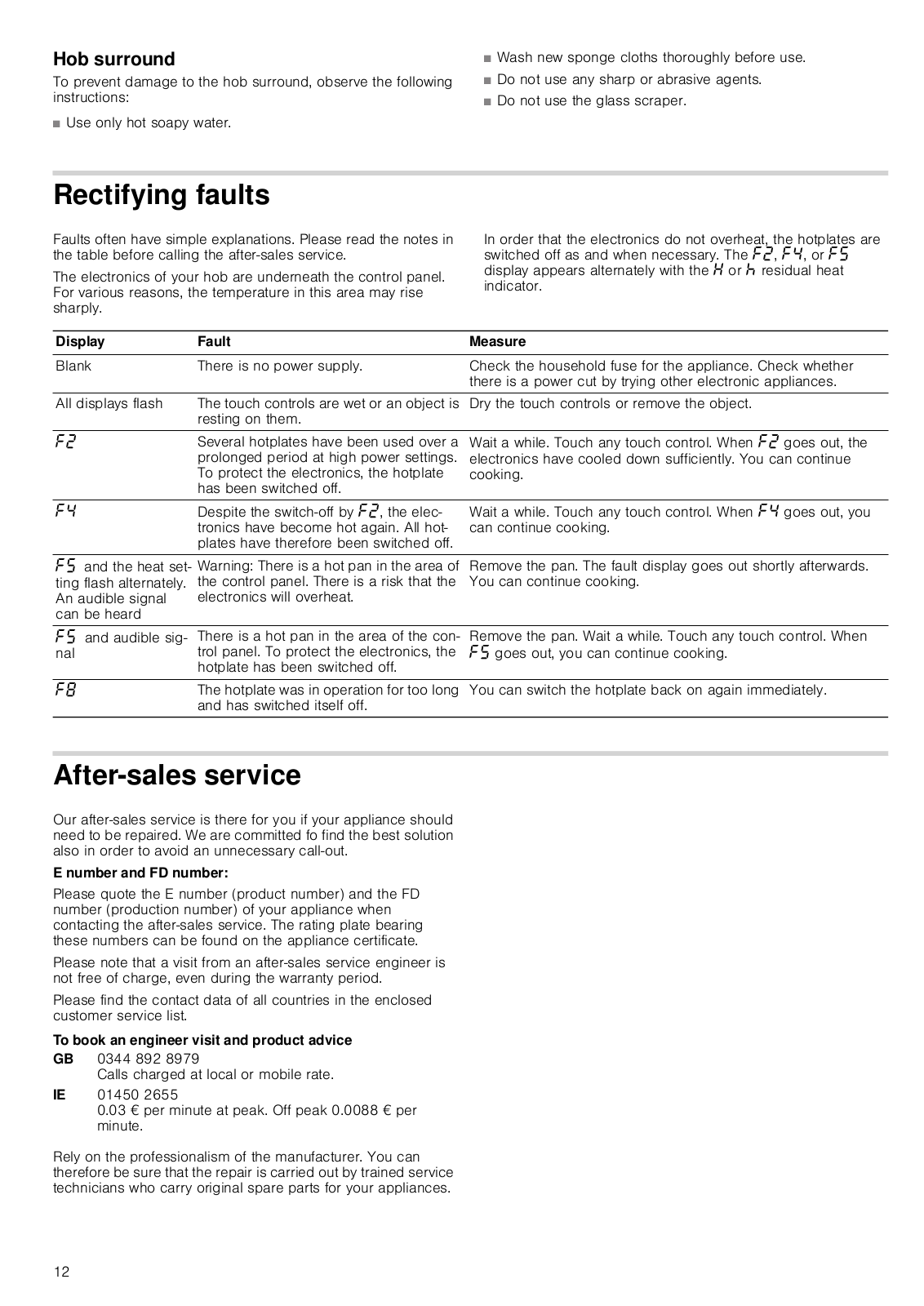

Hob surround....................................................................................	12
Rectifying faults .......................................................................	12
After-sales service ...................................................................	12

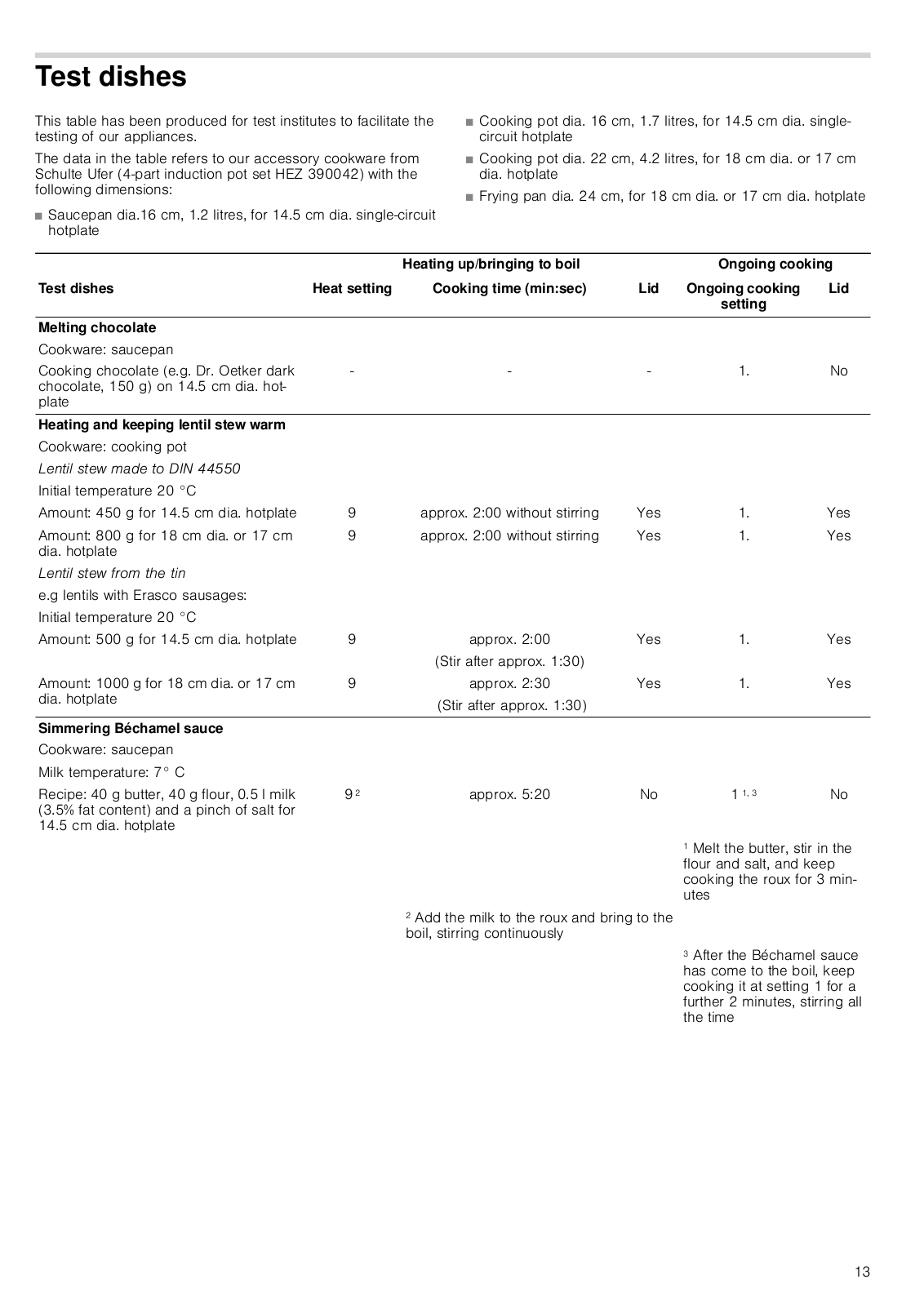

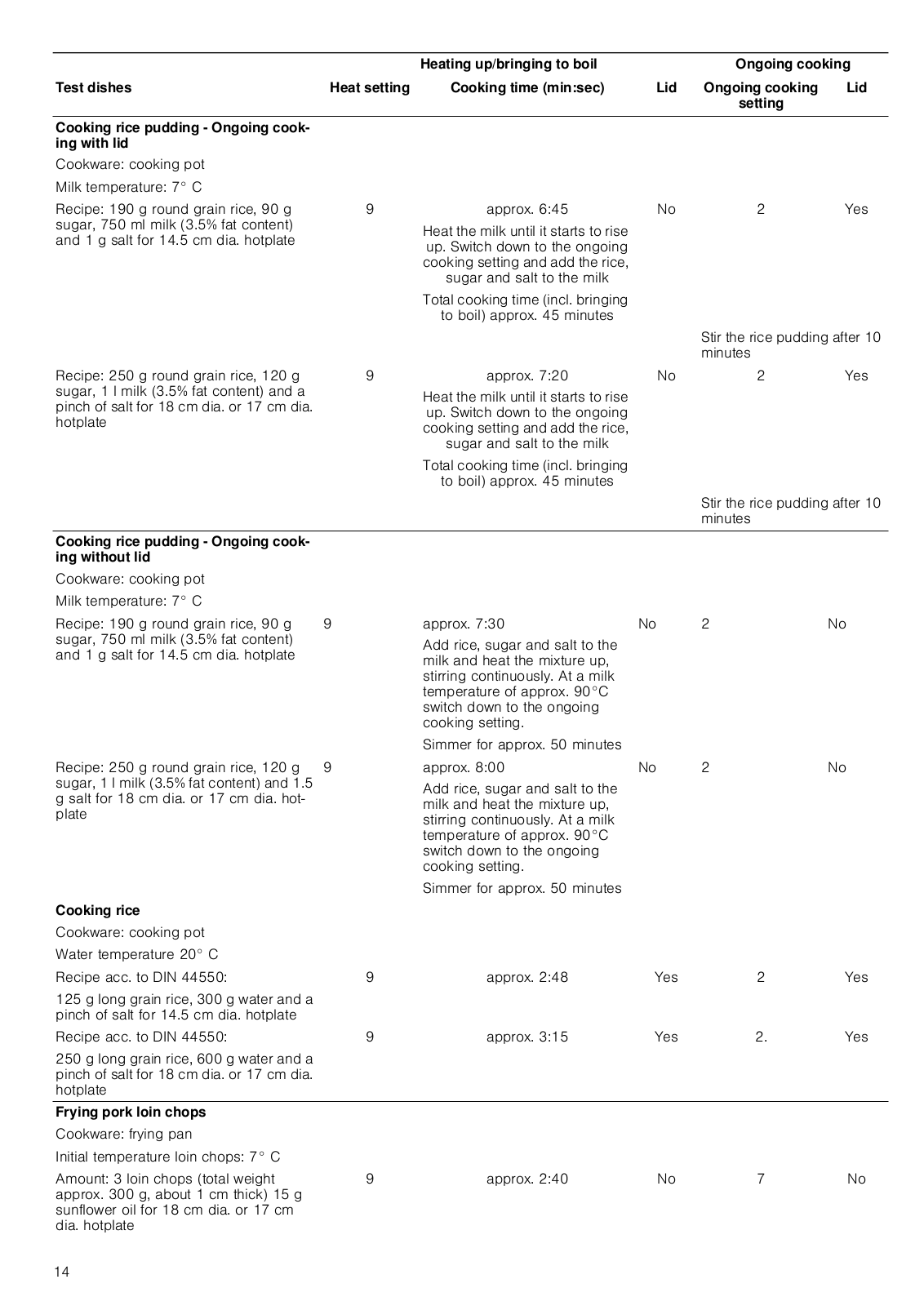

Test dishes................................................................................	13

Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com

:Safety precautions

Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Do not use covers. These can cause accidents, due to overheating, catching fire or materials shattering, for example.

Do not use inappropriate child safety shields or hob guards. These can cause accidents.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Risk of fire!

■Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.

3

■The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.

■The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.

■The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Risk of burns!

■The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance.

■The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Causes of damage

Caution!

■Rough pot and pan bases scratch the ceramic.

■Avoid boiling pots dry. This may cause damage.

■Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage.

Overview

The following table provides an overview of the most frequent kinds of damage:

Risk of electric shock!

■Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.

■Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

■A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

■Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Risk of injury!

Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry.

■Damage can occur if hard or pointed objects fall on the hob.

■Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob.

Damage	Cause	Action
Stains	Food spills	Remove spills immediately with a glass scraper.
	Unsuitable cleaning agents	Only use cleaning agents which are suitable for ceramic
Scratches	Salt, sugar and sand	Do not use the hob as a work surface or storage space.
	Rough pot and pan bases scratch the	Check your cookware.
	ceramic.
Discolouration	Unsuitable cleaning agents	Only use cleaning agents which are suitable for ceramic
	Pan abrasion (e.g. aluminium)	Lift the pots and pans when moving them.
Blisters	Sugar, food with a high sugar content	Remove spills immediately with a glass scraper.

4

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Energy-saving tips

■Always place suitable lids on saucepans. When cooking without a lid, considerably more energy is required. A glass lid means that you can see inside without having to lift the lid.

■Use pots and pans with even bases. Uneven bases increase energy consumption.

■The diameter of pot and pan bases should be the same size as the hotplate. In particular, small saucepans on the hotplate cause energy losses. Please note: cookware manufacturers often indicate the upper diameter of the saucepan. This is usually bigger than the diameter of the base of the pan.

■Use a small saucepan for small quantities. A larger, less full saucepan requires a lot of energy.

■Cook with only a little water. This will save energy. Vitamins and minerals in vegetables are preserved.

■Always cover as large an area of the hotplate as possible with your saucepan.

■Switch to a lower heat setting in good time.

■Select a suitable ongoing cooking setting. You will waste energy by using an ongoing cooking setting which is too high.

■Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off 5-10 minutes before the end of the cooking time.

Getting to know your appliance

The instruction manual is the same for various different hobs. An overview of the models with their dimensions is given on page 2.

The control panel

Displays

‚-Š	Heat settings
•/œ	Residual heat
‘	Electronic boil start control
‰‰	Timer
Controls
#	Main switch
w	Electronic boil start control
$	Hotplate selection
-D	Control panel pause / Childproof lock
1û2û3û4û	Settings range
ö	Automatic zone control
0	Timer

Notes

■When you touch a symbol, the respective function is activated.

■Always keep the controls dry. Moisture reduces their effectiveness.

■Do not pull pans close to the displays and sensors. The electronics could overheat.
