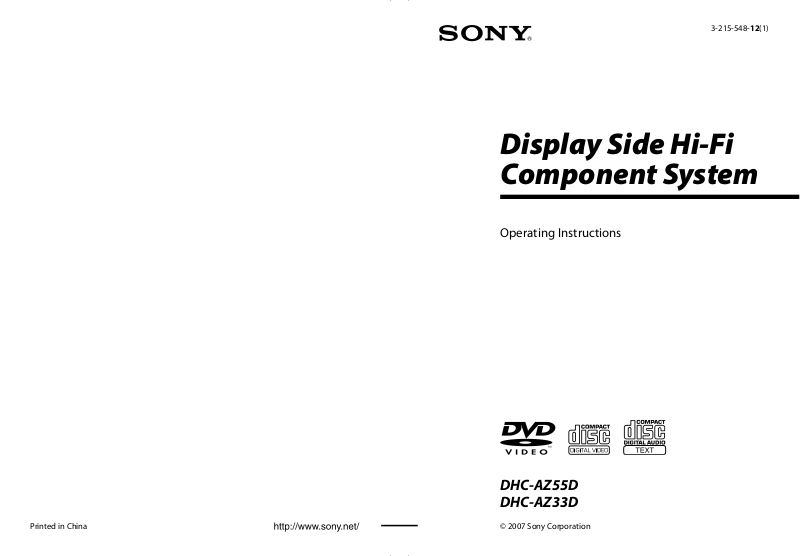

3-215-548-12(1)
Display Side Hi-Fi
Component System
Operating Instructions
DHC-AZ55D
DHC-AZ33D
Printed in China |
|
© 2007 Sony Corporation |
|
WARNING
# & % #$ * # # %#$ % (! $ %$!! # %&$% # #$%
$3 46):)28 ?6) (3 238 '3:)6 8,) :)28-0%8-32 3* 8,) %44%6%897 ;-8, 2);74%4)67 8%&0) '038,7 '968%-27 )8'2( (328 40%') 0-+,8)( '%2(0)7 32 8,) %44%6%897 $3 46):)28 ?6) 36 7,3'/ ,%>%6( (3 238 40%') 3&.)'87 ?00)( ;-8, 0-59-(7 79', %7 :%7)7 32 8,) %44%6%897278%00 8,-7 7=78)1 73 8,%8 8,) 43;)6 '36( '%2 &) 92409++)( *631 8,) ;%00 73'/)8 -11)(-%8)0= -2 8,) ):)28 3* 8639&0)3 238 -278%00 8,) %440-%2') -2 % '32?2)( 74%') 79', %7 % &33/'%7) 36 &9-08 -2 '%&-2)8
%88)6-)7 36 &%88)6-)7 -278%00)( %44%6%897 7,%00 238 &) )<437)( 83 )<')77-:) ,)%8 79', %7 7927,-2) ?6) 36 8,) 0-/)
@-7 %440-%2') -7 '0%77-?)( %7 % ### " 463(9'8 @-7 1%6/-2+ -7 03'%8)( 32 8,) 6)%6 )<8)6-36
328 8,63; %;%= 8,) &%88)6= ;-8, +)2)6%0 ,397) ;%78) (-7437) 3* -8 '366)'80= %7 ',)1-'%0 ;%78)
Notice for the customer in the countries applying EU Directives
@) 1%29*%'896)6 3* 8,-7 463(9'8 -7 #32=36436%8-32 32%2 -2%83 /9 $3/=3 %4%2 @) 98,36->)( ")46)7)28%8-:) *36 %2( 463(9'8 7%*)8= -7 #32= )987',0%2(1& )()0?2+)6 #86%77) #8988+%68 )61%2=36 %2= 7)6:-') 36 +9%6%28)) 1%88)67 40)%7) 6)*)6 83 8,) %((6)77)7 +-:)2 -2 7)4%6%8) 7)6:-') 36 +9%6%28)) (3'91)287
$! $ %#
%# "& ! % !! % !
% # ! & %#$ ' %$! # % % $)$%$
@-7 7=1&30 32 8,) 463(9'8 36 32 -87 4%'/%+-2+ -2(-'%8)7 8,%8 8,-7 463(9'8 7,%00 238 &) 86)%8)( %7 ,397),30( ;%78)278)%( -8 7,%00 &) ,%2()( 3:)6 83 8,) %440-'%&0) '300)'8-32 43-28 *36 8,) 6)'='0-2+ 3* )0)'86-'%0 %2( )0)'8632-' )59-41)28 = )2796-2+ 8,-7 463(9'8 -7 (-7437)( 3* '366)'80= =39 ;-00 ,)04 46):)28 438)28-%0 2)+%8-:) '327)59)2')7 *36 8,) )2:-6321)28 %2( ,91%2 ,)%08, ;,-', '390( 38,)6;-7) &) '%97)( &= -2%446346-%8) ;%78) ,%2(0-2+ 3* 8,-7 463(9'8 @) 6)'='0-2+ 3* 1%8)6-%07 ;-00 ,)04 83 '327)6:) 2%896%0 6)7396')7 36 136) ()8%-0)( -2*361%8-32 %&398 6)'='0-2+ 3* 8,-7 463(9'8 40)%7) '328%'8 =396 03'%0 -:-' !A') =396 ,397),30( ;%78) (-7437%0 7)6:-') 36 8,) 7,34 ;,)6) =39 496',%7)( 8,) 463(9'8440-'%&0) %'')7736-)7 ")138) '311%2()6
Information Additional
GB |
143GB |
Note on power cord plug shapes (Saudi Arabian model only)
For AC 220 V wall sockets
1Make the appropriate voltage setting on the system (only for models with a voltage selector).
2Make sure that the 13 A 3-pin plug (Type BF) is securely attached to the power cord. (The 13 A 3-pin plug is attached when shipped from the factory.)
For AC 127 V wall sockets
1Make the appropriate voltage setting on the system (only for models with a voltage selector).
2Remove the 13 A 3-pin plug using a screwdriver.
3Attach the supplied parallel blade plug (Type A).
GB
About this manual
The instructions in this manual are for models DHC-AZ55D and DHCAZ33D. Each model consists of the following components.
DHC-AZ55D
Unit:
HCD-AZ55D (Tuner/DVD player/ Stereo cassette deck/Amplifier)
Speaker system:
SS-AZ55D (Front speakers) SS-RSX77D (Surround speakers) SS-CT77D (Center speaker)
DHC-AZ33D
Unit:
HCD-AZ33D (Tuner/DVD player/ Stereo cassette deck/Amplifier)
Speaker system:
SS-AZ55D (Front speakers)
In this manual, the DHC-AZ55D is used for illustration purposes unless stated otherwise.
Icons, such as
, listed at the top of each explanation indicate what kind of media can be used with the function being explained.
The Control Menu items may be different depending on the disc.
The Control Menu items may vary depending on the area.
The Setup Menu items may be different depending on the area.
The order of the displayed items may be different from the actual display.
GB
Table of Contents |
|
About this manual................................ |
4 |
Playable discs......................................... |
7 |
Guide to parts and controls............ |
12 |
Tuner
Listening to the radio........................ |
70 |
Getting Started |
|
Hooking up the system.................... |
20 |
Hooking up the TV............................. |
23 |
Positioning the speakers.................. |
26 |
Setting the clock................................. |
29 |
Performing “QUICK” setup............... |
30 |
Using the “THEATRE SYNC” |
|
function.................................................. |
32 |
Disc |
|
Playing a disc........................................ |
34 |
Normal Play |
|
Using play mode................................. |
41 |
Searching/selecting a disc.............. |
45 |
Playing MP3/JPEG discs.................... |
49 |
Enjoying DivX® video files............... |
55 |
Adjusting the delay between the |
|
picture and sound.............................. |
57 |
“A/V SYNC” |
|
Restricting playback of the disc.... |
58 |
CUSTOM PARENTAL CONTROL/ |
|
PARENTAL CONTROL |
|
Using the DVD setup menu............ |
63 |
Tape |
|
Playing a tape...................................... |
73 |
Recording onto a tape ..................... |
74 |
USB Device |
|
Listening to music of an USB |
|
device...................................................... |
77 |
Sound Adjustment |
|
Adjusting the sound.......................... |
87 |
Singing along: Karaoke..................... |
91 |
Other Operations |
|
Using the timer.................................... |
97 |
Changing the display........................ |
99 |
Viewing information about the |
|
disc .......................................................... |
99 |
Hooking up optional |
|
components...................................... |
103 |
Continued GB
Additional Information |
|
Troubleshooting.............................. |
108 |
Precautions........................................ |
122 |
Specifications.................................... |
124 |
Guide to the Control Menu |
|
display.................................................. |
128 |
Language code list.......................... |
133 |
Playable USB devices...................... |
135 |
Glossary............................................... |
136 |
Index.................................................... |
141 |
GB
Playable discs
Type |
Characteristics |
Icon used in |
Logo |
|||||
this manual |
||||||||
|
|
|
|
|
||||
DVD VIDEO |
DVD VIDEO |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
DVD-R*/-RW*/+R/+RW |
|
|
|
|
|
|
|
|
in DVD VIDEO format |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
||
|
* also in video mode |
|
|
|
|
|
|
|
VR mode |
DVD-R/-RW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
in VR (Video Recording) mode |
|
|
|
|
|
|
|
VIDEO CD |
VIDEO CD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
Super VCD |
|
|
|
|
|
|
|
|
CD-R*/-RW* |
|
|
|
|
|
|
|
|
* in VIDEO CD or Super VCD format |
|
|
|
|
|
|
|
CD |
AUDIO CD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
CD-R*/-RW* |
|
|
|
|
|
|
|
|
* in AUDIO CD format |
|
|
|
|
|
|
|
DATA CD |
CD-ROM/-R/-RW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
in DATA CD format, containing |
|
|
|
|
|
|
|
|
MP3 audio tracks1), JPEG image |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
||
|
files2) or DivX video files3), and |
|
|
|
|
|
|
|
|
conforming to ISO 96604) Level |
|
|
|
|
|
|
|
|
1 or Level 2, or Joliet (expansion |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
||
|
format). |
|
|
|
|
|
|
|
Continued GB
Type |
Characteristics |
Icon used in |
Logo |
|||
this manual |
||||||
|
|
|
||||
DATA DVD |
DVD-ROM/-R/-RW/+R/+RW |
|
|
|
|
|
|
|
|
|
|||
|
in DATA DVD format containing |
|
|
|
|
|
|
MP3 audio tracks1), JPEG image |
|
|
|
|
|
|
files2) or DivX video files3), and |
|
|
|
|
|
|
conforming to UDF (Universal Disk |
|
|
|
|
|
|
Format). |
|
|
|
|
|
This system can also play back discs with the following disc logos:
1)MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data. MP3 audio tracks must be in MPEG 1 Audio Layer 3 format.
2)JPEG image files must conform to the DCF image file format (DCF “Design rule for Camera File System”: Image standards for digital cameras regulated by “Japan Electronics and Information Technology Industries Association” (JEITA)).
3)DivX video files must be recorded in DivX format with the extension “.AVI” or “.DIVX”.
4)A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for Standardization).
“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD VIDEO,” and the “CD” logos are trademarks.
GB
Discs that cannot be played
CD-ROMs recorded in PHOTO CD format
DATA CDs recorded in MP3 PRO format
Data part of CD-Extras1)
Data part of Mixed CDs2)
Super Audio CDs
DVD Audio discs
DVD-RAMs
CPRM compatible DVD-R/RW recorded in Copy-once programs3)
Discs of non-standard shape (for example, heart, square, star)
Discs that have adhesive tape, paper, or sticker attached to them
Rental or used discs with attached seals where the glue extends beyond the seal
Discs that have labels printed using ink that feels tacky when touched
An 8 cm disc with an adaptor
1)CD-Extra: This format records audio (AUDIO CD data) on the tracks in session 1 and data on the tracks in session 2.
2)Mixed CD: This format records data on the first track and audio (AUDIO CD data) on the second and subsequent tracks of a session.
3)CPRM: “Content Protection for Recordable Media” is a coding technology that protects copyright for Copy-Once programs.
Region code of DVD VIDEOs you can play back on this system
Your system has a region code printed on the back of the unit and will only
play back DVD |
with |
||
identical region code. |
|
||
DVD VIDEOs |
|
|
will also be |
|
|||
|
|
||
played back on this system. |
|
||
If you try to play back any other region code DVD VIDEO, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be labeled even though playing the DVD VIDEO is prohibited by
area restrictions.
Note on DualDiscs
A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.
Continued GB
Notes on CD-R/-RW and |
Music discs encoded with |
DVD R/-RW/+R/+RW |
copyright protection technologies |
In some cases, CD-Rs/-RWs and DVD-Rs/-RWs/+Rs/+RWs cannot be played back on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not be played back if it has not been correctly finalized. For more information, see the operating instructions for the recording device.
Note that some playback functions may not work with some DVD+Rs/ +RWs, even if they have been correctly finalized. In this case, view the disc by normal playback.
A disc created in Packet Write format cannot be played back.
Note on playback operations of DVD VIDEOs and VIDEO CDs
Some playback operations of DVD VIDEOs and VIDEO CDs may be intentionally set by software producers. Since this system play back DVD VIDEOs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVD
VIDEOs or VIDEO CDs.
This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.
Notes on Multi Session disc
If the first session is recorded in AUDIO CD or VIDEO CD format, only the first session will be played back.
The system will recognize a Multi Session disc as an AUDIO CD if there is a session recorded in AUDIO CD format on the disc. However, the system will only play back the disc if the first session is recorded in AUDIO CD format.
This system can play back Multi Session discs when an MP3 audio track, a JPEG image file or a DivX video file is contained in the first session. Any subsequent MP3 audio tracks, JPEG image files or DivX video files recorded in later sessions can also be played back.
With DATA CD or DATA DVD, the system will only play back DivX video files even if it contains MP3 audio tracks or JPEG image files.
10GB
Copyrights
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
This system incorporates Dolby1) Digital, Dolby Pro Logic (II) adaptive matrix surround decoder, and DTS2) Digital Surround System.
1)Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double- D symbol are trademarks of Dolby Laboratories.
2)“DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.
“DTS” is a registered trademark of DTS, Inc. and “DTS 2.0 + Digital Out” is a trademark of DTS, Inc.
DivX® is a video file compression technology, developed by DivX, Inc. DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.
MICROVAULT is a trademark of Sony Corporation.
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
11GB
Guide to parts and controls
This manual mainly explains operations using the remote, but the same operations can also be performed using the buttons on the unit having the same or similar names.
Unit
12GB
Remote control
*The DISC SKIP button is not available for this model.
(on/standby) (21, 77, 106, 119)
Press to turn on the system.
Remote: TV 1) (on/standby) (26)
Press to turn on the TV.
STANDBY indicator (108)
Lights up when the system is turned off.
Display
(eject) (36)
Press to eject the disc.
Disc slot
DVD (23, 25, 30, 34, 74, 91)
Touch to select the “DVD” function.
TUNER/BAND (70, 71)
Touch to select the “TUNER” function. Touch to switch among FM and AM band.
TAPE (73, 74)
Touch to select the “TAPE” function.
USB (77)
Touch to select the “USB” function.
DMPORT (107)
Touch to select the “DMPORT” function.
VIDEO/SAT (106)
Touch to select the “VIDEO” or “SAT” function.
controls and parts to Guide
Continued 13GB
Unit: (play) (34, 73, 79, 98)
Remote: 2) (play) (34, 73, 79, 98)
Touch or press to start playback.
(pause) (24, 35, 73)
(stop) (35, 71, 73, 77, 98, 119)
Touch or press to stop or pause playback.
+/ (32, 35)
Touch or press to select an album.
PRESET +/ (71)
Touch or press to select the preset station.
/ (go backward/ forward) (35, 71)
Touch or press to select a track, chapter or video file.
Remote: TV CH +/ 1) (26)
Press to change the TV channels.
VOLUME +/ 2) (34, 97)
Touch or press to adjust the volume.
Remote: TV VOL +/ 1)2) (26)
Press to adjust the TV volume.
PUSH OPEN/CLOSE (73)
Press to insert or eject a tape.
Tape deck
(USB) port (77)
Connect an optional USB device (Digital music player or USB storage media).
MIC 1/MIC 2 jacks (92)
Connect to a microphone.
MIC LEVEL (91)
Turn to adjust the microphone volume.
ECHO LEVEL (92)
Turn to adjust the echo level.
PHONES jack
Connect the headphones.
Remote sensor
DIRECTION (73, 74, 98)
Press to select the side of the tape to be played back.
CD SYNC (75)
START (75)
Press to record on a tape.
14GB
Unit: DSGX (87)
Press to reinforce the bass.
SOUND FIELD (88)
Press to select the sound field for the surround sound.
Unit: PRESET EQ (87)
Press to select the sound effect.
Unit: EQ EDIT (87)
Press to select the frequency band.
PROGRESSIVE (25, 104)
Press to change the output video format (Interlace or Progressive format).
DISPLAY (24, 29, 99, 119)
Press to display the disc information or clock in the front panel display.
FUNCTION +/ (25, 30, 34, 70, 73, 77, 91, 106)
Press to select the function.
PICTURE NAVI (48, 80)
Press to select the viewer format for searching the chapters, titles and tracks.
Press to display the thumbnail pictures.
REPEAT/FM MODE (45, 72, 86)
Press to listen to a disc, a single track or file repeatedly.
Press to select FM reception mode (monaural or stereo).
AUDIO (37, 102)
Press to display the current audio signal on the TV screen.
SUBTITLE (37)
Press to switch the language of the subtitle (DVD VIDEO only).
D. TUNING (71)
Press to switch to the direct tuning mode.
ANGLE (37)
Press to change the angle (DVD VIDEO with multi-angles only).
controls and parts to Guide
Continued 15GB
DVD/TUNER MENU (45, 50, 53, 70, 82)
Press to display the menu items on the TV screen.
Press to preset the radio station.
DISPLAY (31, 41, 46, 53, 57, 58, 63, 82, 94, 103, 128)
Press to display the Control Menu on the TV screen.
TUNING +/ (70, 71)
Press to tune in the desired station.
SLOW
(36)
Press to watch the slow motion play.
/ (rewind/fast forward) (35, 73)
Press to find a point in a track, chapter or video file.
TV1) (26)
Press to operate the TV functions.
STEP (36)
Press to play one frame at a time when
playback is paused.
ADVANCE
(36)
Press to advance the current scene during playback.
REPLAY
(36)
Press to replay the previous scene during playback.
RETURN (39, 49, 51, 57, 80)
Press to return to the previous menu on the TV screen.
/ / / (29, 30, 41, 70, 79, 94, 97)
Press to select the menu items.
ENTER (29, 30, 35, 46, 50, 56, 57, 58, 63, 70, 79, 94, 97)
Press to enter the settings.
DVD TOP MENU (45)
Press to display the DVD title on the TV screen.
16GB
CLEAR (30, 32, 42, 47, 69, 81)
Press to delete a pre-programmed track or file.
-/--1)
Press to enter a single digit or double digit number.
Numeric buttons2) (26, 35, 46, 59, 64, 71)
Press to select a track, chapter or video file.
Press to enter a password.
10/01)
Press to enter a double digit number.
KEY CONTROL (96)
Press to change the key to suit your vocal range.
SCORE (95)
Press to select the difficulty level for scoring mode.
KARAOKE MODE (92)
Press to select the Karaoke mode.
KARAOKE PON (95)
Press to activate the “KARAOKE PON” function.
TIME/TEXT (99, 101)
Press to change the information appearing in the front panel display or on-screen display.
SLEEP (32, 97)
Press to set the Sleep Timer.
TV INPUT1) (26)
Press to switch the input sources.
TIMER MENU (29, 97)
Press to set the clock and the timers.
THEATRE SYNC (32)
Press to activate the “THEATRE SYNC” function.
1)This button is used to operate a Sony TV. For details, see “Operating a Sony TV” (page 26).
2)The numeric button 5 , TV VOL + , VOLUME + and buttons on the remote have a tactile dot. Use the tactile dot as a reference when operating the system.
controls and parts to Guide
Continued 17GB
Display
18GB
Indicates the type of disc being played back. (34)
Indicates the selected play mode. (41)Indicates the file format.
Lights up when the title or chapter number is displayed.
Lights up in “TUNER” function. (70)Displays the text information.
Lights up when the output video signal is NTSC. (24)
Lights up when the Karaoke Mode is turned on. (91)
Indicates the playback status of the tape.
Indicates the playback direction of the tape.
Lights up during recording. (74)
Lights up when DSGX is turned on. (87)
Indicates the current surround format.
Lights up when the timer is set. (97)
Lights up when the USB device is recognized. (77)
Lights up when “P AUTO” or “P VIDEO” is selected. (25)
Indicates the track information.Indicates the selected function.
Indicates the playback status of the disc or USB device.
Lights up when playing VIDEO CD with PBC. (39)
controls and parts to Guide
19GB
Getting Started
Hooking up the system
FM lead antenna (Extend it horizontally.)AM loop antenna
Front speaker (Right)Front speaker (Left)
Center speaker (DHC-AZ55D only)
Surround speaker (Right) (DHC-AZ55D only)Surround speaker (Left) (DHC-AZ55D only)Wall socket
20GB
FM/AM antennas
Find a location and an orientation that provide good reception, and then set up the antenna.
Keep the antennas away from the speaker cords and the power cord to avoid picking up noise.
Speakers
The speaker cord plugs are color-coded with their respective speaker terminals. The type of speakers supplied varies according to the model you purchased (see “About this manual” (page 4)).
Main unit
Center speaker*/Surround speakers*
Insert only the stripped portion
Black ( ) |
Red ( ) |
Black ( ) |
Red ( ) |
* DHC-AZ55D only
Notes
Be sure to connect the speakers securely and correctly. When connecting speaker cords, insert the connector straight into the terminals.
For DHC-AZ55D, be sure to match the
speaker cord to the appropriate terminal on the components: to and to . If the cords are reversed, the sound will be distorted and will lack bass.
Voltage selector
For models with a voltage selector, set VOLTAGE SELECTOR to the local power line voltage.
Power
Connect the power cord to a wall socket. The demonstration appears in the display. When you press , the system turns on and the demonstration automatically ends.
If the supplied adaptor on the plug does not fit your wall socket, detach it from the plug (only for models equipped with an adaptor).
Started Getting
Continued 21GB
Inserting two R6 (size AA) batteries into the remote
Slide and remove the battery compartment lid, and insert the two supplied R6 (size AA) batteries, side first, matching the polarities shown below.
Note
If you do not use the remote for a long period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
Tip
With normal use, the batteries should last for about six months. When the remote no longer operates the system, replace both batteries with new ones.
Attaching the speaker pads
Attach the supplied speaker pads at each corner on the bottom of the speakers to prevent them from slipping.
Front speakers (Left (4)/Right (4))
Center speaker (4)*/Surround speakers (Left (4)/Right (4))*
* DHC-AZ55D only
22GB
When carrying this system
Perform the following procedure to protect the DVD mechanism.
Use buttons on the unit for the operation.
1Press / to turn on the system, then touch DVD .
2Make sure that no disc is loaded in the system and check that “No Disc” appears.
3Keep touching and then press / until
“STANDBY” appears in the display. Then, “MECHA LOCK” appears in the display.
4Unplug the power cord.
Hooking up the TV
Connect the video input jack of your TV to the VIDEO OUT jack with the supplied video cord.
Started Getting
Continued 23GB
When connecting a video deck
Connect the video deck to the TV using a video cord (not supplied). However, do not connect this unit to the TV through the video deck. Otherwise, you may experience video leakage when watching video images from this system. Connect this unit directly to the TV as shown below.
TV
Video deck |
|
Unit |
|
Do not connect directly
Tip
For higher quality video images:
Use the optional component video cords to connect the COMPONENT VIDEO input jacks on your TV to the COMPONENT VIDEO OUT jacks of this unit. If your TV is compatible with progressive format
file signals, use this connection and press PROGRESSIVE on the unit repeatedly until “P AUTO” or “P VIDEO” appears in the display (page 25).
You can use an optional S Video cord to connect the S VIDEO input jack on your TV to the S VIDEO OUT jack of this unit.
Changing the color system
(Except for European and Russian models)
Set the color system to PAL or NTSC depending on the color system of your TV.
The default setting for color system is different depending on the area. Each time you perform the procedure below, the color system changes as follows:
NTSC PAL
1Press / to turn off the system.
2Press DISPLAY repeatedly until “SONY DEMO” appears in the display.
3Press / on the unit while touching on the unit.
The system turns on automatically and the color system is changed.
“COLOR NTSC” or “COLOR PAL” appears in the display.
24GB
Changing the format of the video signal output from COMPONENT VIDEO OUT jacks
Progressive is a method for displaying TV images that reduces flickering and sharpens the image. To use this method, you need to connect to a TV that can accept progressive signals.
You can output video signals from COMPONENT VIDEO OUT jacks in Interlace or Progressive format.
1 Press FUNCTION +/ repeatedly to select “DVD” (or touch DVD on the unit).
2 Press PROGRESSIVE on the unit repeatedly.
Select “P AUTO” or “P VIDEO” if your TV accepts progressive signals and the TV is connected to the COMPONENT VIDEO OUT jacks. Otherwise, select “INTERLACE.”
P AUTO (PROGRESSIVE AUTO):
The system automatically detects the software type and selects the appropriate conversion method.
P VIDEO (PROGRESSIVE VIDEO):
The system fixes the conversion method to Progressive Video for video-based software.
Select this if the image is not clear when you select “P AUTO.”
About DVD VIDEO software types and the conversion method
The DVD VIDEO software can be divided into 2 types:
Film-based software
Film-based software is derived from film and displays the images at 24 frames per second.
Video-based software
Video-based software is derived from TV, such as dramas and sitcoms and displays images at 30 frames or 60 fields per second.
Some DVD VIDEO contains both types of software. In order for these images to appear in your TV naturally when the video output is in progressive format, the progressive signals need to be converted to match your DVD VIDEO software.
Note
There would be no image on your TV or the image is not clear if your setting does not match your TV or connection.
Started Getting
Continued 25GB
When using a TV
Turn on the TV and select the video input so that you can view the pictures from this system.
Operating a Sony TV
You can use the following buttons to operate a Sony TV. These buttons have been marked in orange.
To |
Press |
|
|
Turn the TV on |
TV / while |
or off |
holding down TV |
Switch the TV’s |
TV INPUT while |
input source |
holding down TV |
between the TV |
|
and other input |
|
sources |
|
Select the TV |
TV CH +/ or |
channels |
numeric buttons * |
|
while holding down |
|
TV |
Adjust the |
TV VOL +/ |
volume of the TV |
while holding down |
speaker(s) |
TV |
*For double digit number, hold down TV and press -/-- , then press the number. (For example, hold down TV , press -/--, then 2 and 5 for entering 25.)
Positioning the speakers
1 Place the front speakers at an angle of 45 degrees from your listening position.
Front speaker (left)Front speaker (right)
Surround speaker (left) (DHC-AZ55D only)Surround speaker (right) (DHC-AZ55D only)Center speaker (DHC-AZ55D only)
Unit
2 Place the center speaker at about the same height as the front speakers.
Align the center speaker with the front speakers or place it slightly behind the front speakers.
26GB
3 Place the surround speakers.
Position the surround speakers within the respective gray ranges. Positioning both surround speakers the same distance from the listening position is effective.
Notes
Do not place the surround speakers on top of a TV.* This may cause distortion of the colors in the TV screen.
Be sure to connect the both left and right surround speakers.* Otherwise, the sound will not be heard.
The subwoofer is an option (sold separately). Refer to the subwoofer operating instructions for the detailed setting method.
*DHC-AZ55D only
To install the surround speakers on the wall (DHC-AZ55D only)
1Prepare screws (not supplied) that are suitable for the hole on the back of each speaker. See the illustrations below.
4 mm
5.3 mm
more than 25 mm |
9 mm |
|
Hole on the back of the speaker
2Fasten the screws to the wall.
The screws should protrude 5.5 to 7 mm.
5.5 to 7 mm
Started Getting
Continued 27GB
3 Hang the speakers on the screws.
Hole on the back of the speaker
5.3 mm
9 mm
Speaker settings
To enjoy DVD VIDEOs and other discs with multichannel sound and Dolby surround effects, the speakers need to be adjusted. Set the distance from the
listening position to the speakers, and the balance and level. Then use the test tone to adjust the volume of each speaker to the same level.
For details, see “Setting the speakers” (page 68).
Notes
Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam and fasten them to the wall. Install the surround speakers on a vertical and flat wall where reinforcement is applied.
Contact a screw shop or installer regarding the wall material or screws to be used.
Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.
28GB
Setting the clock
Use buttons on the remote to set the clock.
1 Press / to turn on the system.
2 Press TIMER MENU .
The hour indication flashes in the display.
If “PLAY SET?” flashes in the display, press or repeatedly to select
“CLOCK SET?,” then press ENTER
.
3 Press or repeatedly to set the hour.
4 Press ENTER .
The minute indication flashes in the display.
5 Press or repeatedly to set the minutes.
6 Press ENTER .
The clock starts functioning.
Note
The clock settings are canceled when you disconnect the power cord or if a power failure occurs.
To display the clock when the system is off
Press DISPLAY .
The clock is displayed for about 8 seconds.
Started Getting
29GB
Performing “QUICK” setup
Before using the system, you can make the minimum basic adjustments in “QUICK” setup. If you do not want to perform “QUICK” setup, press CLEARin step 3. The guide message will disappear from the TV screen.
1 Turn on your TV and select the video input.
2 Press / to turn on the system.
Notes
Make sure there is no disc in the unit. Otherwise, the guide message does not
appear. To perform “QUICK” setup, presson the unit to remove the disc.
Make sure that the headphone or microphone is not connected. Otherwise, you cannot perform “SPEAKER SETUP.”
3 Press FUNCTION +/ repeatedly to select “DVD” (or touch DVD on the unit).
The guide message appears at the bottom of the TV screen.
4 Press ENTER without inserting a disc.
“LANGUAGE SETUP” appears on the TV screen.
5 Press or repeatedly to select a language, then press ENTER .
The setting is selected and “SCREEN SETUP” appears on the TV screen.
Tips
The selected language is for “OSD,” “MENU” and “SUBTITLE .”
The selectable language is different depending on the area.
30GB
Loading...
