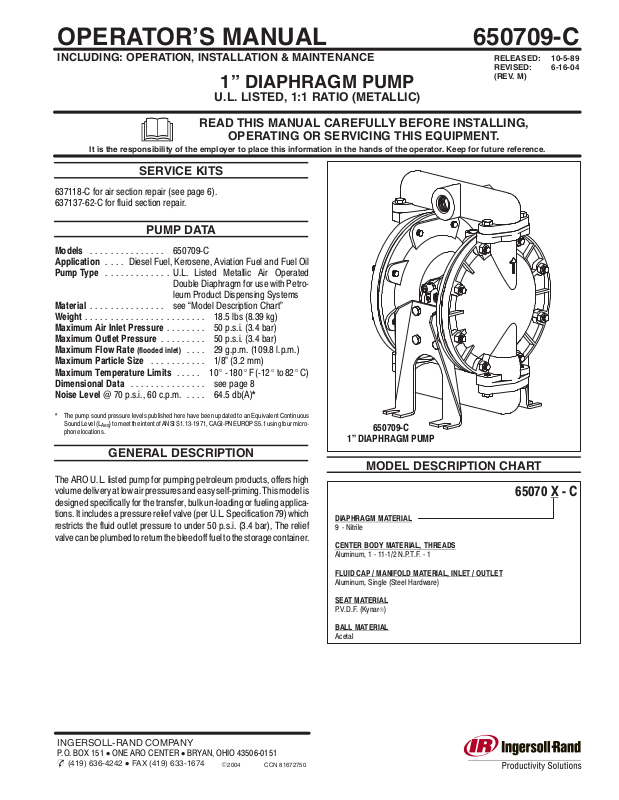

OPERATOR’S MANUAL |
650709-C |
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
1” DIAPHRAGM PUMP
U.L. LISTED, 1:1 RATIO (METALLIC)
RELEASED: 10-5-89 REVISED: 6-16-04 (REV. M)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
637118 C for air section repair (see page 6). 637137 62 C for fluid section repair.
PUMP DATA |
|||
Models . . . . . . . . . . . . . . . |
650709 C |
|
|
Application . . . . Diesel Fuel, Kerosene, Aviation Fuel and Fuel Oil |
|||
Pump Type . . . . . . . . . . . . . |
U.L. Listed Metallic Air Operated |
||
|
Double Diaphragm for use with Petro |
||
|
leum Product Dispensing Systems |
||
Material . . . . . . . . . . . . . . . |
see •Model Description Chart" |
||
Weight . . . . . . . . . . . . . . . . . |
. . . . . . . |
18.5 lbs (8.39 kg) |
|
Maximum Air Inlet Pressure . . |
. . . . . . |
50 p.s.i. (3.4 bar) |
|
Maximum Outlet Pressure . . . |
. . . . . . |
50 p.s.i. (3.4 bar) |
|
Maximum Flow Rate (flooded inlet) . . . . |
29 g.p.m. (109.8 l.p.m.) |
||
Maximum Particle Size . . . . . |
. . . . . . |
1/8" (3.2 mm) |
|
Maximum Temperature Limits |
. . . . . 10_ 180_F ( 12_to 82_C) |
||
Dimensional Data . . . . . . . . . |
. . . . . . |
see page 8 |
|
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . |
64.5 db(A)* |
*The pump sound pressure levels published here have been updated to an Equivalent Continuous
SoundLevel (LAeq) to meet the intent of ANSI S1.13 1971, CAGI PNEUROP S5.1 using four micro phone locations.
GENERAL DESCRIPTION
650709-C
1" DIAPHRAGM PUMP
The ARO U.L. listed pump for pumping petroleum products, offers high volume delivery at low air pressures and easy self priming. This model is designed specifically for the transfer, bulk un loading or fueling applica tions. It includes a pressure relief valve (per U.L. Specification 79) which restricts the fluid outlet pressure to under 50 p.s.i. (3.4 bar), The relief valve can be plumbed to return the bleed off fuel to the storage container.
65070 X - C
DIAPHRAGM MATERIAL
9 Nitrile
CENTER BODY MATERIAL, THREADS
Aluminum, 1 11 1/2 N.P.T.F. 1
FLUID CAP / MANIFOLD MATERIAL, INLET / OUTLET
Aluminum, Single (Steel Hardware)
SEAT MATERIAL
P.V.D.F. (KynarR)
BALL MATERIAL
Acetal
INGERSOLL-RAND COMPANY
P.O. BOX 151 D ONE ARO CENTER D BRYAN, OHIO 43506 0151
& (419) 636-4242 D FAX (419) 633-1674 |
E2004 |
CCN 81672750 |
READ, UNDERSTAND, AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE.
WARNING HAZARDOUSMATERIALS. Can cause serious in-
|
EXCESSIVE AIR PRESSURE |
HAZARDOUS MATERIALS |
|
|
|
|
||
|
|
jury or property damage. Do not attempt to return a pump to the |
||||||
|
STATIC SPARK |
HAZARDOUS PRESSURE |
|
|||||
|
|
|
|
|
|
factory or service center that contains hazardous material. |
||
|
|
|
|
|
|
Safe handling practices must comply with local and national |
||
|
|
|
|
|
||||
|
WARNING |
EXCESSIVE AIR PRESSURE. Can cause person- |
|
laws and safety code requirements. |
||||
|
al injury, pump damage or property damage. |
S Obtain Material Safety Data Sheets on all materials from the |
||||||
|
|
supplier for proper handling instructions. |
||||||
S |
Do not exceed the maximum inlet air pressure as stated on the |
|
||||||
|
pump model plate. |
|
|
|
WARNING |
EXPLOSION HAZARD. Models containing alumi- |
||
S Be sure material hoses and other components are able to with- |
|
num wetted parts cannot be used with III.-Trichloroethane, Me- |
||||||
|
stand fluid pressures developed by this pump. Check all hoses |
|
thylene Chloride or other Halogenated Hydrocarbon solvents |
|||||
|
for damage or wear. Be certain dispensing device is clean and |
|
which may react and explode. |
|||||
|
in proper working condition. |
|
|
S Check pump motor section, fluid caps, manifolds and all |
||||
|
WARNING |
STATIC SPARK. Can cause explosion resulting in |
|
wetted parts to assure compatibility before using with solvents |
||||
|
severe injury or death. Ground pump and pumping system. |
|
of this type. |
|
|
|||
S Sparks can ignite flammable material and vapors. |
|
CAUTION |
|
Verify the chemical compatibility of the pump |
||||
S |
The pumping system and object being sprayed must be |
|
wetted parts and the substance being pumped, flushed or re- |
|||||
|
grounded when it is pumping, flushing, recirculating or spray- |
|
circulated. Chemical compatibility may change with tempera- |
|||||
|
ing flammable materials such as paints, solvents, lacquers, |
|
ture and concentration of the chemical(s) within the |
|||||
|
etc. or used in a location where surrounding atmosphere is |
|
substances being pumped, flushed or circulated. For specific |
|||||
|
conducive to spontaneous combustion. Ground the dispens- |
|
fluid compatibility, consult the chemical manufacturer. |
|||||
|
ing valve or device, containers, hoses and any object to which |
|
CAUTION |
|
Maximum temperatures are based on mechani- |
|||
|
material is being pumped. |
|
|
|
cal stress only. Certain chemicals will significantly reduce |
|||
S Use the pump grounding screw terminal provided. Use Aro |
|
|||||||
|
maximum safe operating temperature. Consult the chemical |
|||||||
|
Part No. 66885-1 Ground Kit or connect a suitable ground wire |
|
||||||
|
|
manufacturer for chemical compatibility and temperature lim- |
||||||
|
(12 ga. min.) to a good earth ground source. |
|
||||||
|
|
its. Refer to PUMP DATA on page 1 of this manual. |
||||||
S Secure pump, connections and all contact points to avoid |
|
|||||||
|
CAUTION |
|
Be certain all operators of this equipment have |
|||||
|
vibration and generation of contact or static spark. |
|
|
|||||
|
|
been trained for safe working practices, understand it's limita- |
||||||
S Consult local building codes and electrical codes for specific |
|
|||||||
|
tions, and wear safety goggles / equipment when required. |
|||||||
|
grounding requirements. |
|
|
|
||||
|
|
|
|
CAUTION |
Do not use the pump for the structural support of |
|||
S |
After grounding, periodically verify continuity of electrical path |
|
||||||
|
|
the piping system. Be certain the system components are |
||||||
|
to ground. Test with an ohmmeter from each component (e.g., |
|
||||||
|
hoses, pump, clamps, container, spray gun, etc.) to ground to |
|
properly supported to prevent stress on the pump parts. |
|||||
|
insure continuity. Ohmmeter should show 0.1 ohms or less. |
S Suction and discharge connections should be flexible connec- |
||||||
S Submerse the outlet hose end, dispensing valve or device in |
|
tions (such as hose), not rigid piped, and should be compatible |
||||||
|
the material being dispensed if possible. (Avoid free streaming |
|
with the substance being pumped. |
|||||
|
of material being dispensed.) |
|
|
|
CAUTION |
|
Prevent unnecessary damage to the pump. Do |
|
S Use hoses incorporating a static wire. |
|
|
|
not allow pump to operate when out of material for long periods |
||||
S |
Use proper ventilation. |
|
|
|
of time. |
|
|
|
S Keep inflammables away from heat, open flames and sparks. |
S Disconnect air line from pump when system sits idle for long |
|||||||
S Keep containers closed when not in use. |
|
periods of time. |
||||||
|
WARNING |
Pump exhaust may contain contaminants. Can |
|
CAUTION |
|
Use only genuine ARO replacement parts to as- |
||
|
cause severe injury. Pipe exhaust away from work area and per- |
|
|
|
|
|||
|
|
sure compatible pressure rating and longest service life. |
||||||
|
sonnel. |
|
|
|
NOTICE |
|
Replacement warning labels are available upon |
|
S In the event of a diaphragm rupture material can be forced out |
|
request: •Static Spark PN \ 93616-1 & Diaphragm Rupture PN \ |
||||||
|
of the air exhaust muffler. |
|
|
|
||||
|
|
|
93122." |
|
|
|||
S Pipe the exhaust to a safe remote location when pumping haz- |
|
|
||||||
|
|
|
|
|||||
|
ardous or inflammable materials. |
|
|
|
|
= Hazards or unsafe practices which could |
||
|
|
|
|
WARNING |
||||
S Use a grounded 3/8" minimum i.d. hose between the pump and |
|
|
|
result in severe personal injury, death or |
||||
|
the muffler. |
|
|
|
|
|
substantial property damage. |
|
|
WARNING |
HAZARDOUS PRESSURE. Can result in serious |
|
|
|
|
||
|
|
CAUTION |
= Hazards or unsafe practices which could |
|||||
|
injury or property damage. Do not service or clean pump, |
|
||||||
|
|
|
|
result in minor personal injury, product |
||||
|
hoses or dispensing valve while the system is pressurized. |
|
|
|
||||
|
|
|
|
or property damage. |
||||
S Disconnect air supply line and relieve pressure from the sys- |
|
|
|
|||||
|
|
|
|
|||||
|
tem by opening dispensing valve or device and / or carefully |
|
NOTICE |
|
= Important installation, operation or |
|||
|
and slowly loosening and removing outlet hose or piping from |
|
|
|
maintenance information. |
|||
|
pump. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Page 2 of 8 |
650709-C |
AIR AND LUBE REQUIREMENTS
WARNING EXCESSIVE AIR PRESSURE. Can cause pump and property damage. The air supply must be limited to 50 p.s.i.g. (3.4 bar) maximum inlet air pressure.
SThe air supply line or hose to the pump should be adequately sized to carry a sufficient volume of air to the pump. The material inlet sup ply tubing should not be too small or restrictive which will inhibit ma terial flow. The outlet material volume is governed not only by the air supply but also by the material volume available at the inlet.
SAir supply provided should be filtered to provide clean dry air. A filter capable of filtering out particles larger than 50 microns should be used on the air supply. There is no lubrication required other than the •O" ring lubricant which is applied during assembly or repair.
SIf lubricated air is present, make sure that it is compatible with the Nitrile •O" rings in the air motor section of the pump.
INSTALLATION
IMPORTANT
SRequirements for the installation are included in the Flammable and Combustible Liquids Code, NFPA No. 30, Automotive and Marine Service Station Code, NFPA No. 30A and the National Electric Code, ANSI / NFPA No. 70.
SA fluid return hose which is compatible with the fluid being pumped must be installed to the relief valve on the outlet manifold to return fluid back to the supply tank or pump inlet.
SThe pump must be grounded to prevent static discharge. Grounding may be accomplished through the legs or to the ground lug provided on the pump.
SNotice that the material inlet / outlet manifolds may be removed and rotated 180_ to facilitate various mounting applications.
SIf the body of the pump must be rotated, remove the end covers and manifolds and index it so the bolts line up properly. NOTE: The arrow on the end caps must always point upward for optimum perfor mance.
SWhen the diaphragm pump is used in a force feed situation, it is rec ommended that a check valve be installed at the air inlet to keep ma terial out of air line in the event of diaphragm failure.
SSecure diaphragm pump legs to a suitable surface to insure against damage by excessive vibration.
OPERATING INSTRUCTIONS
SThe pump should never be operated at pressures exceeding 50 p.s.i.g. (345 kPa) inlet air pressure. This pump is equipped with a pressure relief valve on the material outlet manifold which will open at 40 +/ 4 p.s.i. (2.76 bar) to relieve pressure increases in the outlet hoses / plumbing caused by thermal expansion or other external forces.
SDisconnect the air supply from the pump if it is to be inactive for a few hours.
MAINTENANCE

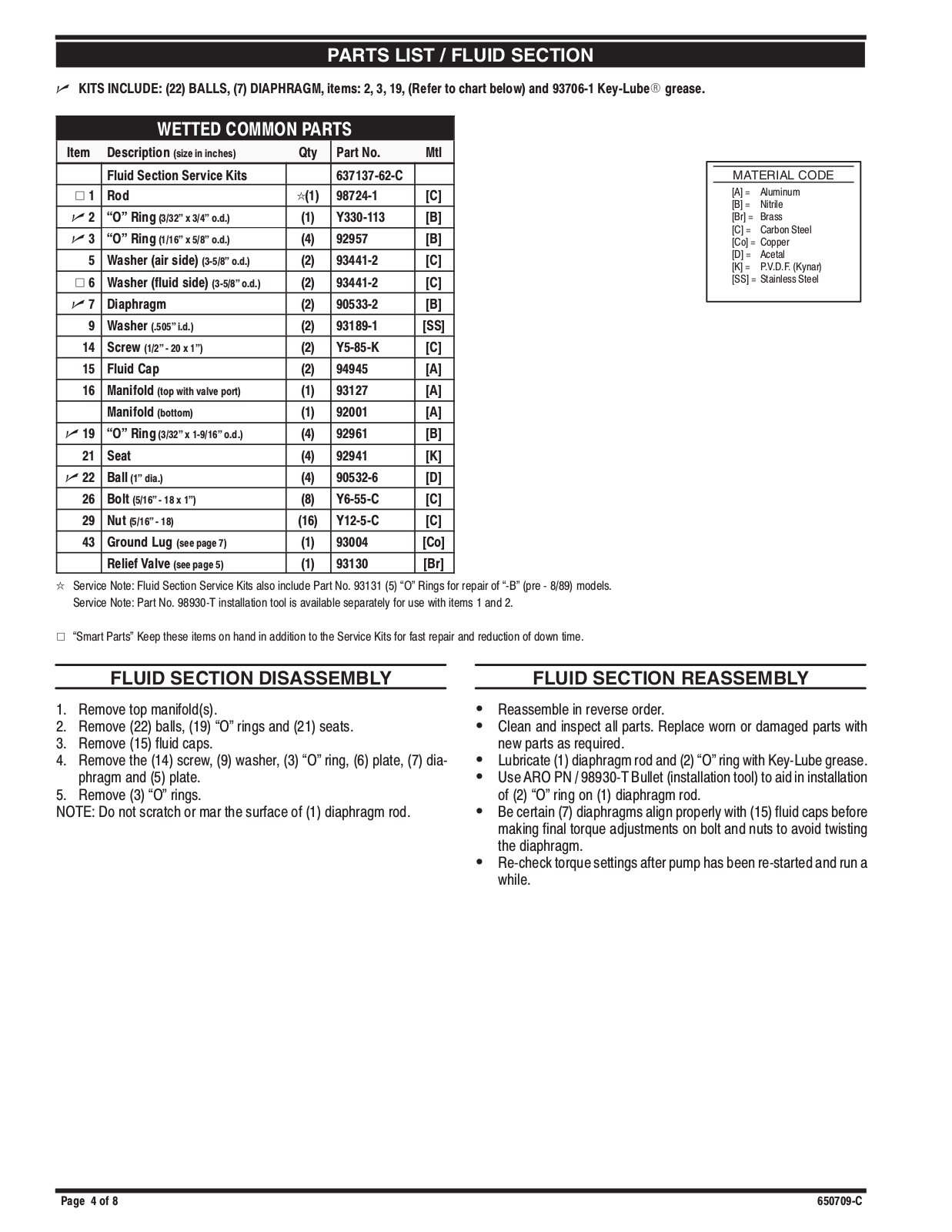

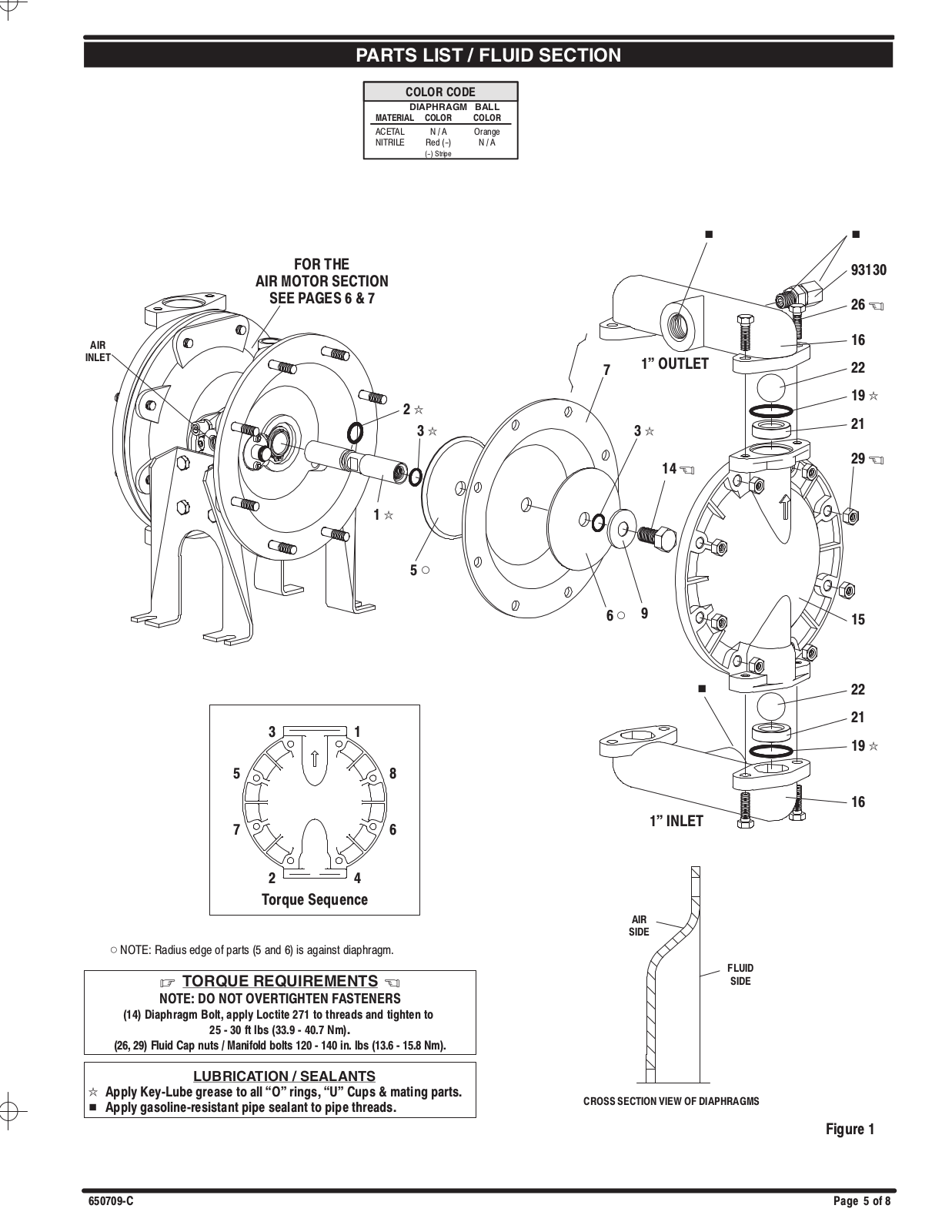

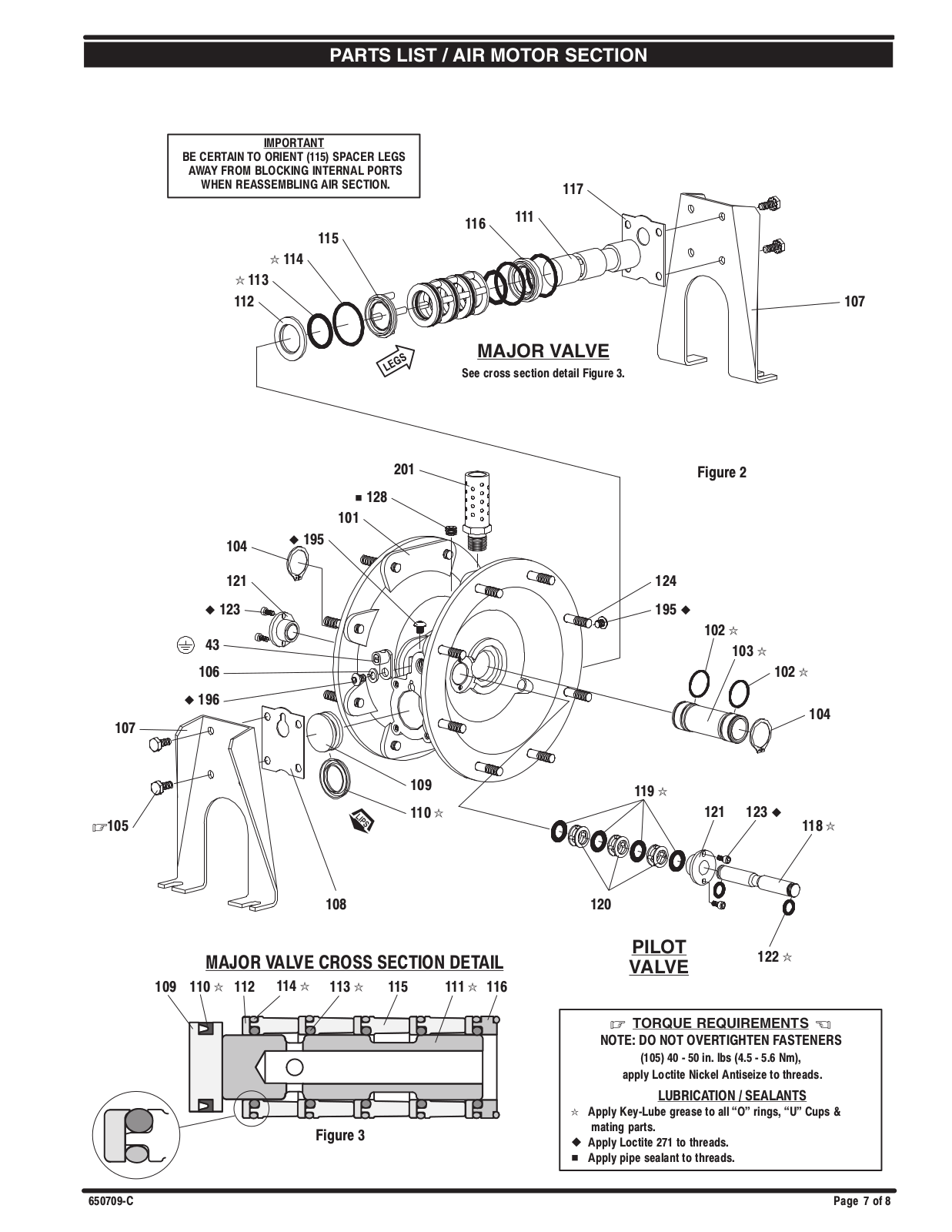

Refer to the part views and descriptions as provided on page 4 through 7 for parts identification and Service Kit information.
SCertain ARO •Smart Parts" are indicated which should be available for fast repair and reduction of down time.
SService kits are divided to service two separate diaphragm pump functions: 1. AIR SECTION, 2. FLUID SECTION. The FLUID SEC TION is divided further to match typical part MATERIAL OPTIONS.
SProvide a clean work surface to protect sensitive internal moving parts from contamination from dirt and foreign matter during service disassembly and reassembly.
SKeep good records of service activity and include pump in preven tive maintenance program.
SBefore disassembling, empty captured material in the outlet man ifold by turning the pump upside down to drain material from the pump.
S KynarR is a trademark of Penwalt Corp, S Key LubeR is a trademark of Key Industries
650709-C |
Page 3 of 8 |
