Operating Manual
TH7000 Series
Touchscreen Programmable Thermostat
69-2667ES-01
BE CAREFUL! Never use sharp instruments, such as a pencil or pen, to press touchscreen keys. To prevent damage to the thermostat, always press keys with your fingertip.
This manual covers the following models
TH7220U: For up to 2 Heat/2 Cool systems
(Pull thermostat from wallplate and turn over to find model number)
M29343
This thermostat contains a Lithium battery which may contain Perchlorate material. Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate
Need Help?
For assistance with this product please visit http://yourhome.honeywell.com or call Honeywell Customer Care toll-free at 1-800-468-1502
Read and save these instructions.
|
® U.S. Registered Trademark. |
69-2667ES—01 |
US Patents pending. |
Copyright © 2012 Honeywell International Inc. All rights reserved. |
TH7000 Series
Table of contents |
|
About your new thermostat |
|
Thermostat features................................ |
2 |
Programming at a glance........................ |
3 |
Quick reference to controls..................... |
4 |
Quick reference to status display............ |
5 |
Programming & Operation |
|
Clock setting........................................... |
6 |
Fan setting.............................................. |
7 |
System setting........................................ |
8 |
Using program schedules....................... |
9 |
Program schedule overrides................. |
12 |
Special features.................................... |
14 |
Furnace filter reminder.......................... |
15 |
Special features.................................... |
16 |
Screen lock........................................... |
17 |
Appendices |
|
Battery replacement.............................. |
18 |
Advanced functions............................... |
19 |
In case of difficulty................................ |
25 |
Optional remote sensors....................... |
27 |
Limited warranty.................................... |
28 |
This thermostat is ready to go! |
|
Your new thermostat is pre- |
|
programmed and ready to go. |
|
See page 3 to check settings. |
|
CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do not operate cooling system when outdoor temperature is below 50 ˚F (10 ˚C).
1 |
69-2667ES—01 |
Operating Manual
About your new thermostat
Congratulations! You’ve just purchased the world’s most advanced, easy-to-use thermostat. It has been designed to give you many years of reliable service and touchscreen climate control.
Features
•7-day program schedules maximize comfort and economy.
•Armchair programming: Just pull thermostat from the wall to set schedules.
•Energy-saving settings for maximum cost savings.
•One-touch temp control overrides program schedule at any time.
•Precise comfort control keeps temperature within 1°F of the level you set.
•Change/check reminders let you know when to service or replace filters, batteries and other critical components.
•Large touchscreen display with backlight is easy to read—even in the dark.
•Select models accommodate optional outdoor or indoor remote sensors.
69-2667ES—01 |
2 |
TH7000 Series
ThisAboutthermostatyour new isthermosready toatgo!
Your new thermostat is pre-programmed and ready to go. Just set the time and day. Then check the settings below and change if needed:
1. |
Set clock........................................................................................................... |
See page 6 |
2. |
Select fan setting: Preset to Auto.................................................................... |
See page 7 |
3. |
Select system setting: Preset to Heat.............................................................. |
See page 8 |
4.Program schedules: Preset to energy-saving levels while you’re at work or asleep (assumes you wake at 6 am, leave at 8 am, return at 6 pm
and go to bed at 10 pm)........................................................................... |
See pages 9-11 |
ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and manually adjust the temperature (see pages 11-13).
3 |
69-2667ES—01 |
Operating Manual
Quick reference to controls
If the screen backlight is off, the first button press will only activate the backlight, and the button must be pressed again.
Arrow keys
Press to adjust temperature (see pages 11–14), or to make selections from screen menus.
System & Fan
Press to select fan operation (see page 7) or system type (see page 8)
Mon |
|
|
75 |
|
Set To |
6:01 AM 75 |
||
System |
Fan Auto |
Cool On |
Cool |
|
|
System & Fan |
Schedule |
Clock & More |
M31502
Schedule
Press to set program schedule (see page 11).
Clock & More
Press to set clock (see page 6) or furnace filter reminder.
69-2667ES—01 |
4 |
TH7000 Series
Quick reference to status display
Current day of week
Adaptive Intelligent Recovery in effect (see page 16)
System setting (see page 8)
Current inside temperature |
Current time |
||
Mon |
|
|
Temperature setting |
75 |
|
Set To |
|
6:01 AM 75 |
|
||
Recovery |
|
Cool On |
|
System |
Fan Auto |
|
|
|
|
||
Cool |
|
|
|
System & Fan |
Schedule |
Clock & More |
|
M31503
Fan setting (see page 7)
Other display messages:
•Cool On: Cooling system is activated
•Heat On: Heating system is activated
•Aux Heat On: Auxiliary heating system is activated
5 |
69-2667ES—01 |
Operating Manual

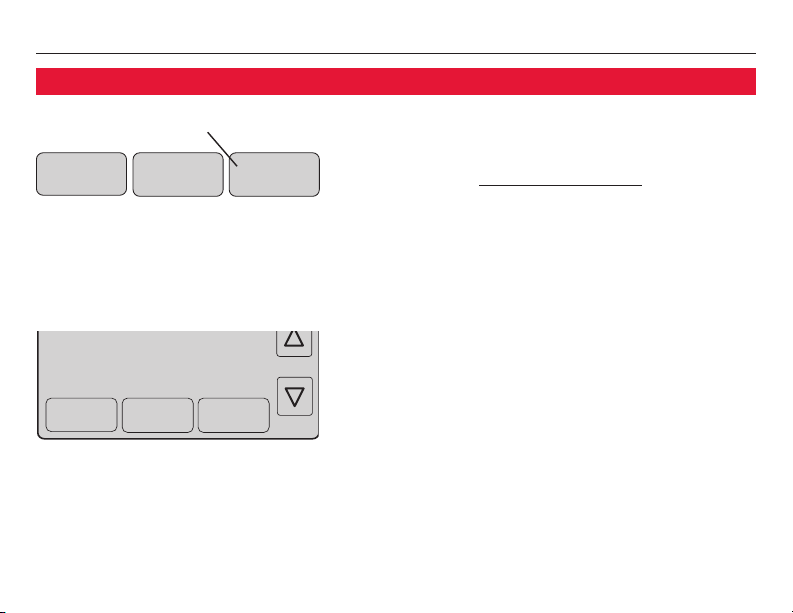

Clock setting
Press CLOCK & MORE
System & Fan |
Schedule |
Clock & More |
M31504
Adjust time, then press DONE
6:01 AM
Go Back Next |
Done |
MCR31505
To set the current time, press CLOCK & MORE, then press σ or τ to adjust the time. Press and hold σ or τ to advance the time more quickly.
Press DONE to save & exit (or press GO BACK to exit without changing the time).
Note: The real-time clock should never require adjustment since it automatically updates for daylight saving time, and stores all date/time information.
Note: To change the current week day display, see pages 19-20.
69-2667ES—01 |
6 |
TH7000 Series

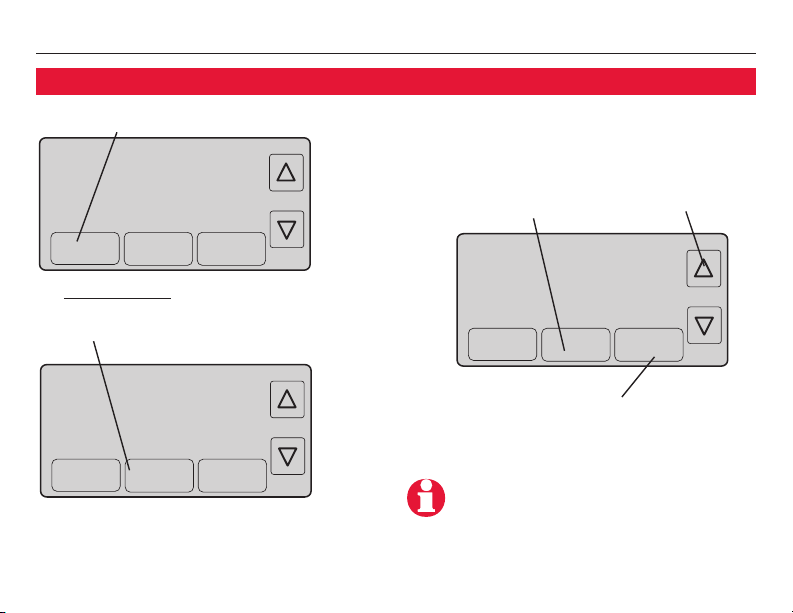

Fan setting
Press SYSTEM & FAN
System & Fan |
Schedule |
Clock & More |
M31504
Press SYSTEM & FAN to select fan operation:
•On: Fan is always on.
•Auto: Fan runs only when the heating or cooling system is on.
Press FAN to select mode, then press DONE
System |
Fan Auto |
|
Heat |
|
|
System |
Fan |
Done |
M27529
7 |
69-2667ES—01 |
Operating Manual

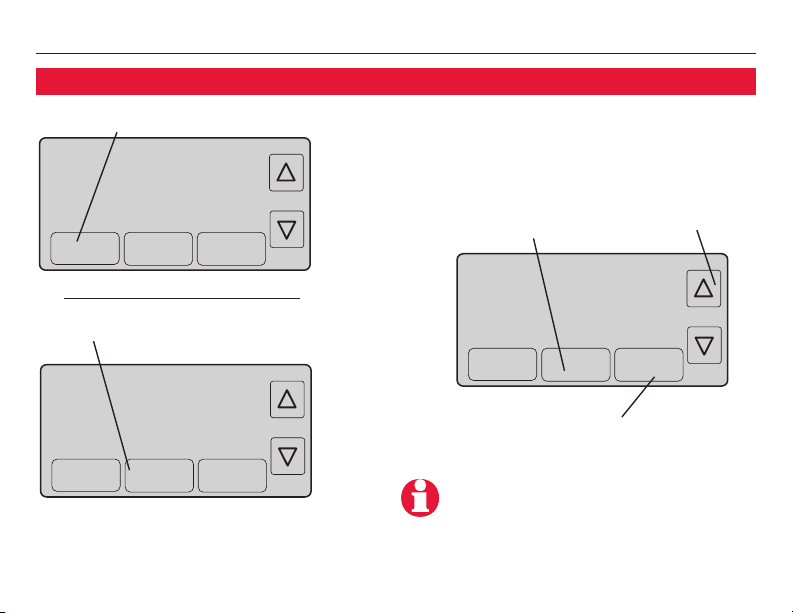

System setting
Press SYSTEM & FAN
System & Fan |
Schedule |
Clock & More |
M31504
Press SYSTEM to select mode, then press DONE
System |
Fan Auto |
|
Heat |
|
|
System |
Fan |
Done |
M27529
Follow steps at left to select system:
•Heat: Thermostat controls only the heating system.
•Cool: Thermostat controls only the cooling system.
•Auto: Thermostat automatically selects heating or cooling depending on the indoor temperature.
•Off: All systems are off.
•Em Heat (only for heat pumps with auxiliary heat): Thermostat controls Emergency and Auxiliary Heat.
Compressor is locked out.
Note: The Auto and Em Heat system settings may not appear, depending on how your thermostat was installed.
69-2667ES—01 |
8 |
TH7000 Series
Save money by setting program schedules
It’s easy to program your system for maximum energy savings.You can program four time periods each day, with different settings for weekdays and weekends.
WAKE
6:00 am
70°
LEAVE
8:00 am
62°
RETURN
6:00 pm
70°
SLEEP
10:00 pm
62°
Set to the time you awaken and the temperature you want during the morning, until you leave for the day.
Set to the time you leave home and the temperature you want while you are away (usually an energy-saving level).
Set to the time you return home and the temperature you want during the evening, until bedtime.
Set to the time you go to bed and the temperature you want overnight (usually an energy-saving level).
9 |
69-2667ES—01 |
Operating Manual
Energy-saving settings for maximum cost savings
This thermostat is pre-set with energy-saving program settings. (See next page to adjust times and temperatures of each time period.)
|
|
|
Heat (Mon-Fri) |
Cool (Mon-Fri) |
Heat (Sat-Sun) |
Cool (Sat-Sun) |
Wake |
|
|
|
|
|
|
|
|
70 ° |
78 ° |
70 ° |
78° |
|
(6:00 am) |
|
|
||||
Leave |
|
|
62° |
85° |
62 ° |
85° |
(8:00 am) |
|
|
||||
Return |
|
|
70 ° |
78° |
70 ° |
78° |
(6:00 pm) |
|
|
||||
Sleep |
|
|
62 ° |
82 ° |
62 ° |
82 ° |
|
|
|||||
(10:00 pm) |
|
|
69-2667ES—01 |
10 |
TH7000 Series
To adjust program schedules
Press SCHEDULE
System & Fan |
Schedule |
Clock & More |
M31504
Press EDIT
Go Back |
Edit |
View |
M27530
1.Press SCHEDULE, then EDIT to see weekdays.
2.Press SELECT DAY. You can select multiple days to program with the same settings.
3.Press NEXT STEP twice, then press σ or τ to set Wake time for selected day(s).
4.Press NEXT STEP, then σ or τ to set Heat temperature for this time period.
5.Press NEXT STEP, then σ or τ to set Cool temperature for this time period.
MON
TUE |
Period |
Set To |
|
Wake |
Heat |
||
THU |
6:00 |
||
WED |
|
AM 62 |
|
FRI |
|
|
|
Go Back |
Next Step |
Done |
|
Select |
|
M27531 |
|
Select time |
Select temp |
||
day(s) |
|||
|
|
6.Repeat steps 3-5 to program other time periods (LEAVE, RETURN, SLEEP), then press
DONE.
7.Repeat steps 1-6 to program Saturday/
Sunday. (Press σ or τ until the desired day is flashing, then press SELECT DAY.)
8.Press DONE to save & exit.
11 |
69-2667ES—01 |
Operating Manual
Program schedule override (temporary)
Adjust temperature
Mon
62 |
|
|
Temporary |
|
|
|
Set To |
||
6:08 |
AM |
68 |
||
|
Heat On |
|||
System |
Fan Auto |
|
|
|
Heat |
|
|
||
|
|
|
||
System & Fan |
Use |
Clock & More |
||
Schedule |
||||
|
|
|
||
MCR31506
Press USE SCHEDULE to resume program schedule
Press σ or τ to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period.
The new temperature will be maintained until the next time period.
When the timer expires, the program schedule will resume and set the temperature to the level you’ve programmed for the current time period.
To cancel the temporary setting at any time, press USE SCHEDULE.
69-2667ES—01 |
12 |
TH7000 Series
Program schedule override (permanent)
Adjust temperature
Mon
62 |
|
|
Temporary |
|
|
|
Set To |
||
6:08 AM |
68 |
|||
System |
Fan Auto |
|
|
|
Heat |
Permanent Hold |
|||
|
||||
|
Hold |
|
Cancel |
|
Press σ or τ to adjust temperature, then press HOLD. This will turn off the program schedule.
Whatever temperature you set will be maintained 24 hours a day, until you manually change it,
or press USE SCHEDULE to cancel “Hold” and resume the program schedule.
MCR31507
Press HOLD to turn off program schedule and maintain set temperature
13 |
69-2667ES—01 |
Operating Manual
Auto Changeover
When the system is set to Auto, the thermostat automatically selects heating or cooling depending on the indoor temperature and the temperature settings. The thermostat maintains a 3 degree difference between the heat and cool settings. See example below.
Tue |
|
Temporary |
|
69 |
º |
||
Set To |
|||
1:09 PM |
74 |
||
Heat |
|||
System Auto |
Fan Auto |
Cool |
|
Heat |
|
|
|
System |
|
|
Hold Cancel
The triangle indicates the cool temperature is increasing to maintain 3 degrees between heat
and cool settings.
M27534
CAUTION: To avoid possible compressor damage, do not use Auto
Changeover if the outside temperature drops below 50 °F (10 °C).
69-2667ES—01 |
14 |
TH7000 Series
Furnace filter reminder
Press RESET after changing filter
Change Filter |
|
|
70 |
|
Set To |
6:01 |
AM 70 |
|
Heat On |
||
System |
Fan Auto |
|
Heat |
|
|
|
|
|
Reset |
Schedule |
Clock & More |
M31507
Press MORE to reset reminder interval
60
Days
Reset |
Next |
Done |
M27536
If activated during installation, the furnace filter reminder alerts you when it is time to replace your filter.
Press RESET after changing the filter, to restart the timer.
To reset the reminder interval before it expires:
1.Press MORE, then NEXT.
2.Press RESET.
3.Press DONE to save and exit.
15 |
69-2667ES—01 |
Operating Manual
Special features
Auto Changeover: When set to Auto, the thermostat automatically selects heating or cooling depending on the indoor temperature. See page 14 for more information.
Adaptive Intelligent Recovery: This feature allows the thermostat to “learn” how long the furnace and air conditioner take to reach programmed temperature settings, so the temperature is reached at the time you set. For example: Set the Wake time to 6 am, and the temperature to 70°. The heat will come on before 6 am, so the temperature is 70° by the time you wake at 6. The message “Recovery” is displayed when the system is activated before a scheduled time period.
Compressor Protection: This feature forces the compressor to wait a few minutes before restarting, to prevent equipment damage. During the wait time, the message “Wait” is displayed on screen.
69-2667ES—01 |
16 |
TH7000 Series
Screen lock
Mon |
|
|
|
|
75 |
|
|
|
Set To |
6 |
: |
01 |
AM 75 |
|
Recovery |
|
Heat On |
||
System |
Locked |
|
|
|
Fan Auto |
|
|||
Cool |
|
|||
|
|
|
|
|
System & Fan |
Schedule |
Clock & More |
||
To prevent tampering, the screen can be partially or fully locked.
When partially locked, the screen displays LOCKED for several seconds if a locked key is pressed. To unlock the screen, press any unlocked key while LOCKED appears on the
MCR31508 screen.
When the screen is fully locked, no keys function. To lock or unlock the screen, see advanced function 0670 on page 24.
See advanced function 0670 (page 24) for screen lock options
17 |
69-2667ES—01 |
Operating Manual
BatteryAbout yourreplacementnew thermostat
Grasp thermostat and pull to remove from wallplate
M28419
Batteries are optional (to provide backup power) if your thermostat was wired to run on AC power when installed.
Install fresh batteries immediately when the LO BATT warning begins flashing. The warning flashes about 30 days before batteries are depleted.
Even if the warning does not appear, you should replace batteries once a year, or before leaving home for more than a month.
Insert 2 fresh AA alkaline batteries
For assistance with this product, please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502.
M28420
69-2667ES—01 |
18 |
Loading...
