Installation
Guide
PRO TH2000DV/TH1000DV Series
Thermostats
This manual covers the following models
•TH1100DV: For Heat only systems
•TH2110DV/TH1110DV: For 1 Heat/1 Cool systems
•TH2210DV/TH1210DV: For 2 Heat/1 Cool heat pump systems only
(Pull thermostat from wallplate and turn over to find model number.)
System Types
TH2110DV/TH1110DV:
•Gas, oil, or electric heat with air conditioning
•Warm air, hot water, high-efficiency furnaces, 1 Heat/1 Cool heat pumps, steam, gravity
•Heat only
•Heat only with fan
•Cool only
•750 mV heating systems
TH2210DV/TH1210DV:
•2 Heat/1 Cool heat pumps
TH1100DV:
•Gas, oil, or electric heat
•Warm air, hot water, steam, gravity
•Heat only
•750 mV heating systems
Must be installed by a trained, experienced technician
Read these instructions carefully. Failure to follow these instructions can damage the product or cause a hazardous condition.
Need Help?
For assistance with this product please visit http://customer.honeywell.com or call Honeywell Customer Care toll-free at 1-800-468-1502
® U.S. Registered Trademark. Patents pending. |
|
Copyright © 2013 Honeywell International Inc. |
69-2800EFS-01 |
All rights reserved. |
Installation Guide

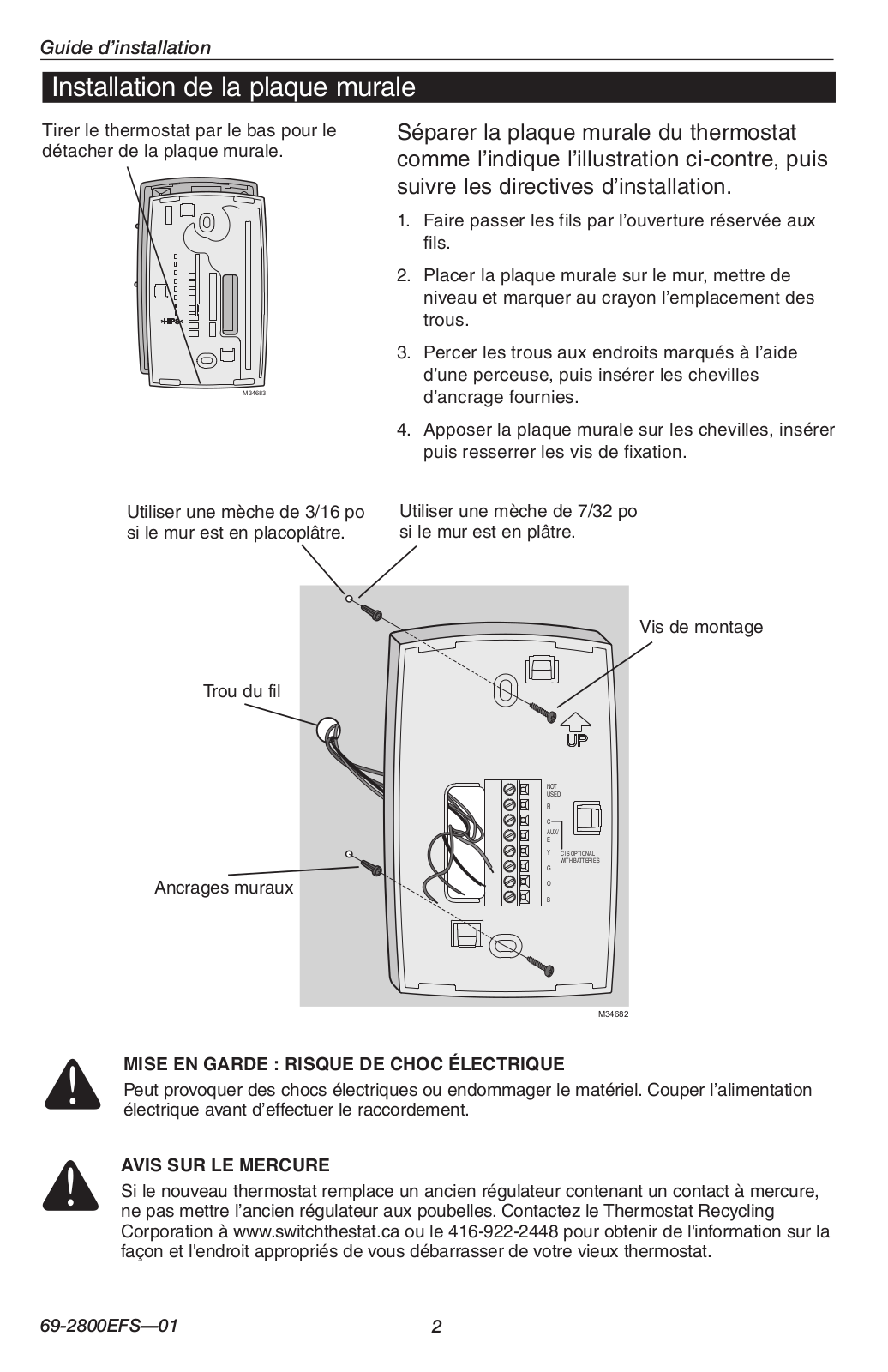

Wallplate installation
Pull at bottom to remove thermostat from wallplate.
M34683
Remove the wallplate from the thermostat as shown at left, then follow directions below for mounting.
1.Pull wires through wire hole.
2.Position wallplate on wall, level and mark hole positions with pencil.
3.Drill holes at marked positions as shown below, then tap in supplied wall anchors.
4.Place wallplate over anchors, insert and tighten mounting screws.
Drill 3/16" holes for drywall. Drill 7/32" holes for plaster.
Mounting screws
Wire hole
Wall anchors
CAUTION: ELECTRICAL HAZARD
NOT
USED
R
C
AUX/
E
YC IS OPTIONAL WITH BATTERIES
G
O
B
M34682
Can cause electrical shock or equipment damage. Disconnect power before beginning installation.
MERCURY NOTICE
If this product is replacing a control that contains mercury in a sealed tube, do not place the old control in the trash. Contact the Thermostat Recycling Corporation at www.thermostat-recycle.org or 800-238-8192 for information on how and where to properly and safely dispose of your old thermostat.
69-2800EFS—01 |
2 |
PRO TH2000DV/TH1000DV Series

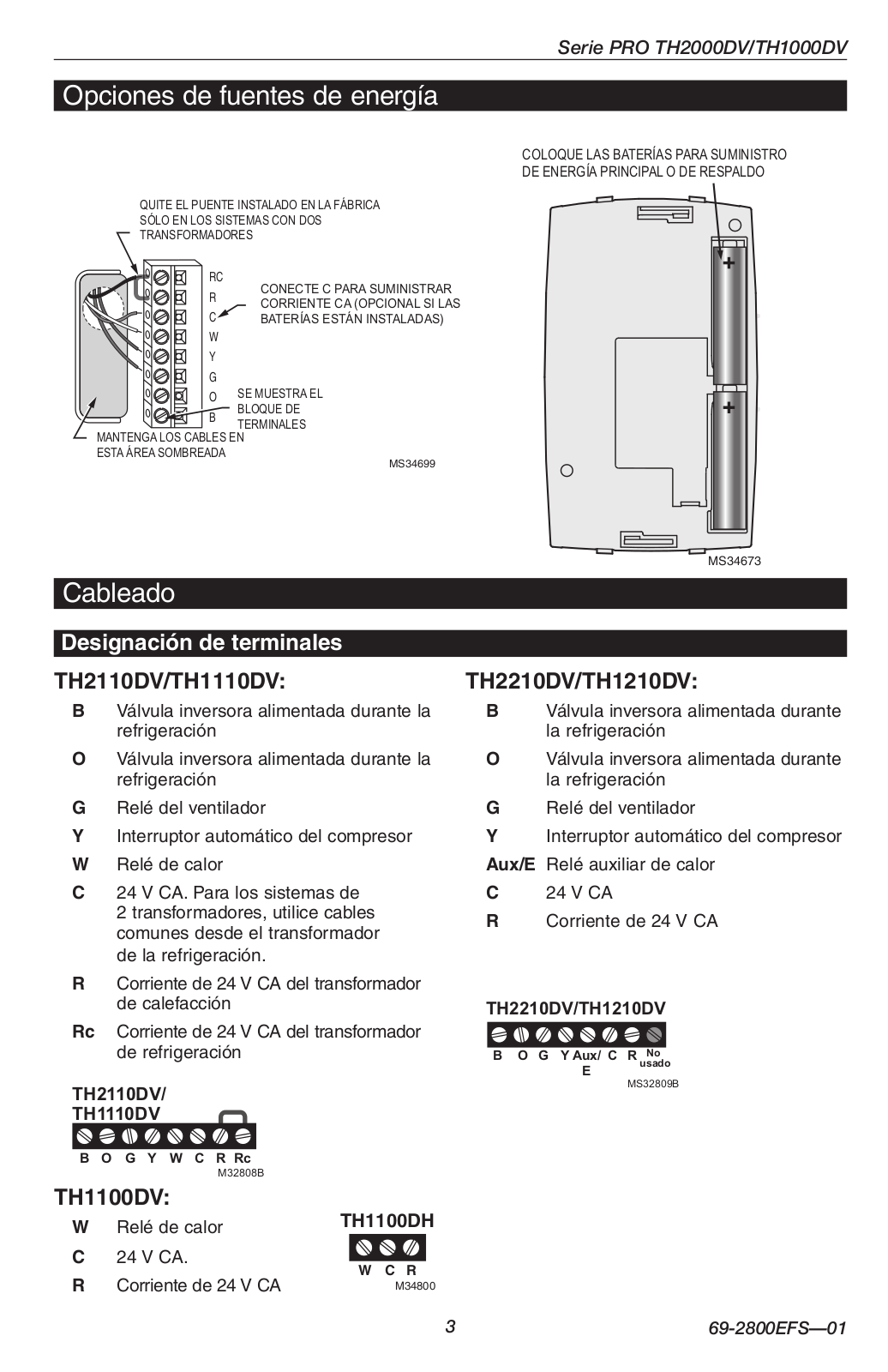

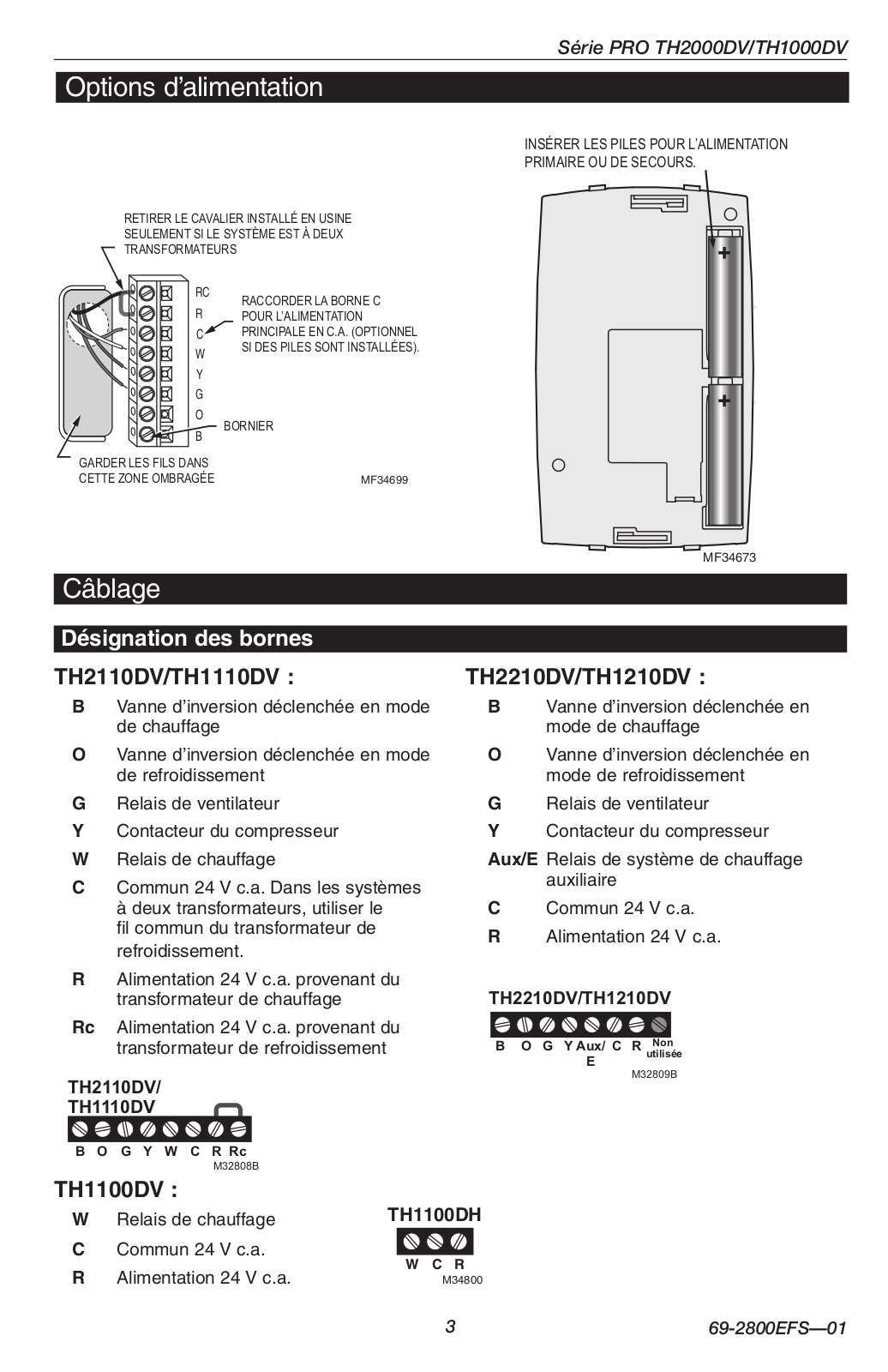

Power options
INSERT BATTERIES FOR
PRIMARY OR BACKUP POWER
REMOVE FACTORY-INSTALLED JUMPER
ONLY FOR TWO-TRANSFORMER SYSTEMS
RC |
|
|
R |
CONNECT C FOR PRIMARY |
|
C |
||
AC POWER (OPTIONAL IF |
||
W |
BATTERIES ARE INSTALLED) |
Y
G |
|
|
O |
TERMINAL |
|
B |
BLOCK SHOWN |
|
KEEP WIRES IN |
||
|
||
THIS SHADED AREA |
M34699 |
|
|
M34673 |
Wiring
Terminal designations
TH2110DV/TH1110DV:
BChangeover valve energized in heating
OChangeover valve energized in cooling
GFan relay
YCompressor contactor
WHeat relay
C24 Vac common. For 2-transformer systems, use common wire from cooling transformer.
R 24 Vac power from heating transformer
Rc 24 Vac power from cooling transformer
TH2110DV/
TH1110DV
B |
O G Y W C R Rc |
|
M32808B |
TH1100DV:
W |
Heat relay |
TH1100DH |
|
|
|
C |
24 Vac common |
|
R |
24 Vac power |
W C R |
|
|
M34800 |
TH2210DV/TH1210DV:
BChangeover valve energized in heating
OChangeover valve energized in cooling
G Fan relay
Y Compressor contactor
Aux/E Auxiliary heat relay
C 24 Vac common
R 24 Vac power
TH2210DV/TH1210DV
B O G Y Aux/ C R |
Not |
E |
Used |
M32809B
3 |
69-2800EFS—01 |
Installation Guide
Wiring
Wiring guide — conventional and heat pump systems
2H/1C Heat |
B O G Y Aux/ C R |
UsedNot |
Pump System |
||
TH2210DV/TH1210DV |
E |
|
M32809B |
||
BChangeover valve energized in heating [5]
OChangeover valve energized in cooling [5]
G Fan relay
Y Compressor contactor
Aux/E Auxiliary heat relay
C 24 Vac common [3]
R Power [1]
1H/1C System |
|
|
|
TH2110DV/ |
|
|
|
TH1110DV |
G |
Y W C R Rc |
|
|
|||
(1 transformer) |
|
M32811 |
|
|
|
||
G |
Fan relay |
|
|
Y |
Compressor contactor |
|
|
W |
Heat relay |
|
|
C |
24 Vac common [3] |
|
|
R |
[R+Rc joined by jumper] |
|
|
Rc |
Power [1] |
|
|
1H/1C System |
|
|
|
TH2110DV/ |
|
|
|
TH1110DV |
G |
Y W C R Rc |
|
(2 transformers) |
|
M32812 |
|
|
|
||
G |
Fan relay |
|
|
Y |
Compressor contactor |
|
|
W |
Heat relay |
|
|
C |
24 Vac common [3, 4] |
|
|
R |
Power (heating transformer) [1, 2] |
||
Rc |
Power (cooling transformer) [1, 2] |
||
Heat Only System |
|
|
|
TH1100DV |
|
|
W C R |
|
|
|
|
W |
Heat relay |
|
M34801 |
|
|
||
C |
24Vac common [3] |
|
|
R |
Power [1] |
|
|
1H/1C Heat |
|
|
Pump System |
B |
O G Y W C R Rc |
TH2110DV/TH1110DV [7] |
M32813 |
|
BChangeover valve energized in heating [5]
OChangeover valve energized in cooling [5]
G Fan relay
Y Compressor contactor [6]
W [W+Y joined by jumper]
C 24 Vac common [3]
R [R+Rc joined by jumper]
Rc Power [1]
Heat Only |
|
|
|
|
|
System |
|
|
W |
C R Rc |
|
TH2110DV/TH1110DV |
|
||||
|
|
M32814 |
|||
W |
Heat relay |
|
|
|
|
C |
24Vac common [3] |
|
|
|
|
R |
[R+Rc joined by jumper] |
|
|||
Rc |
Power [1] |
|
|
|
|
Heat Only |
|
|
|
|
|
System with |
G |
W |
C R Rc |
||
Fan TH2110DV/TH1110DV |
|||||
|
|
M32815 |
|||
G |
Fan relay |
|
|
|
|
W |
Heat relay |
|
|
|
|
C |
24 Vac common [3] |
|
|
|
|
R |
[R+Rc joined by jumper] |
|
|||
Rc |
Power [1] |
|
|
|
|
Cool Only |
|
|
|
|
|
System |
|
G |
Y |
C R Rc |
|
TH2110DV/TH1110DV |
|||||
|
|
|
|
M32816 |
|
G Fan relay
Y Compressor contactor
C 24 Vac common [3]
R [R+Rc joined by jumper]
Rc Power [1]
See [notes] below
NOTES
Wire specifications:
Use 18to 22-gauge thermostat wire. Shielded cable is not required.
[1]Power supply. Provide disconnect means and overload protection as required.
[2]Remove jumper for 2-transformer systems.
[3]Optional 24 Vac common connection.
[4]Common connection must come from cooling transformer.
[5]Use either O or B terminals for changeover valve.
[6]Use a small piece of wire (not supplied) to connect W and Y terminals.
[7]Set fan operation switch to Heat Pump (see page 5).
69-2800EFS—01 |
4 |
PRO TH2000DV/TH1000DV Series

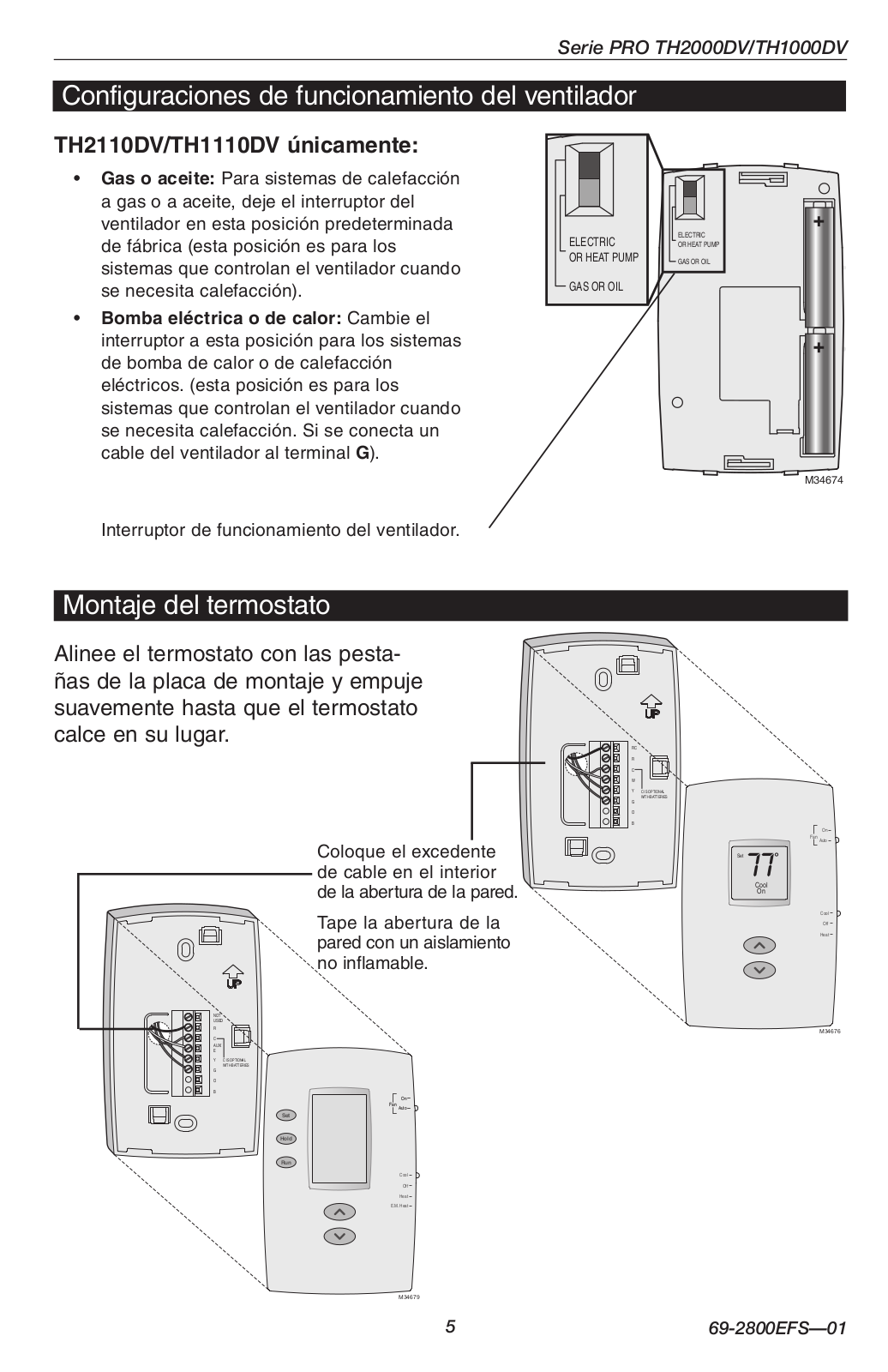

Fan operation settings
TH2110DV/TH1110DV only:
•Gas or Oil: For gas or oil heating systems, leave the fan operation switch in this factory-set position. (This setting is for systems that control the fan in a call for heat.)
•Electric or Heat Pump: Change the switch to this setting for heat pump or electric heat systems.
(This setting is for systems that allow the thermostat to control the fan in a call for heat, if a fan wire is connected to the G terminal.)
ELECTRIC |
ELECTRIC |
OR HEAT PUMP |
|
OR HEAT PUMP |
GAS OR OIL |
GAS OR OIL |
|
M34674
Set fan operation switch.
Thermostat mounting
Align the thermostat with the tabs on the wallplate, then push gently until the thermostat snaps in place.
RC
R
C
W
Y C IS OPTIONAL
WITH BATTERIES
G
O
B
Push excess wire back into the wall opening.
Plug wall opening with non-flammable insulation.
NOT
USED
R
C
AUX/
E
YC IS OPTIONAL WITH BATTERIES
G
O
B
On
Fan Auto
Set
Hold
Run
Cool
Off
Heat
E.M. Heat
On
Fan Auto
Set 77
Cool
On
Cool
Off
Heat
M34676
M34679
5 |
69-2800EFS—01 |
Installation Guide
Installer setup
Follow the procedure below to configure the thermostat to match the installed heating/cooling system, and customize feature operation as desired.
To begin, press and hold the σ and τ buttons until the display changes.
Set
Hold
Run
On |
On |
|
Fan Auto |
Fan Auto |
|
|
Set 77 |
|
|
Cool |
|
|
On |
|
Cool |
Cool |
|
Off |
||
Off |
||
Heat |
||
Heat |
||
E.M. Heat |
||
|
M34680 M34681
5 |
5 |
Setting |
|
|
|
|
|
|
M32819
Function number
Press the σ or τ button to change the setting.
Press the σ and τ buttons simultaneously for one second to advance to the next function.
Press and hold the σ and τ buttons to exit and save settings.
NOTE: If you do not press any button for 60 seconds while you are in the setup menu, the thermostat automatically saves any changes made and exits the menu.
69-2800EFS—01 |
6 |
PRO TH2000DV/TH1000DV Series

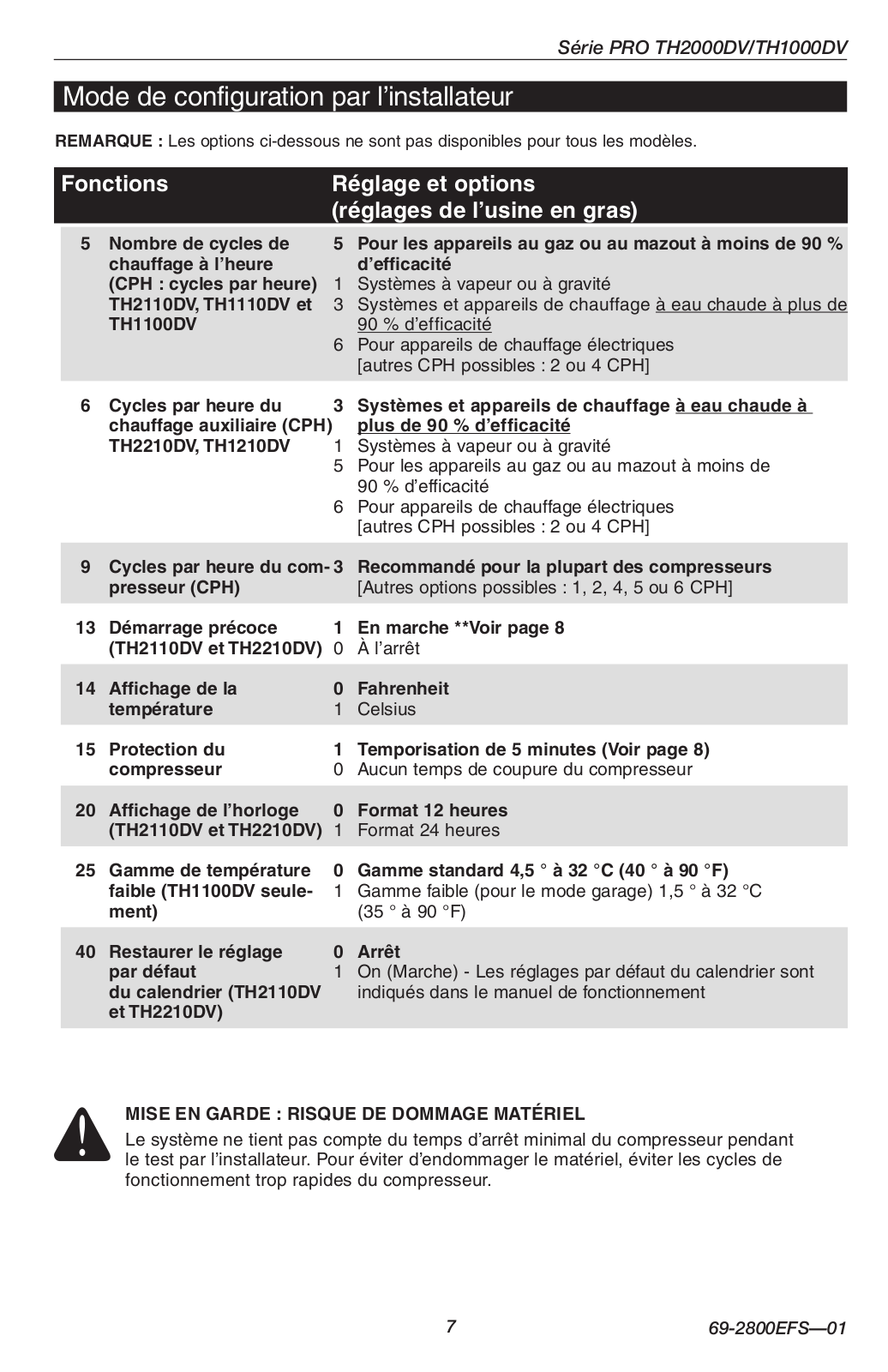

Installer setup
NOTE: The options below may not be available in all models.
Setup function |
Settings & options (factory default in bold) |
||
5 |
Heating cycle rate |
5 |
For gas or oil furnaces of less than 90% efficiency |
|
(CPH: cycles/hour) |
1 |
For steam or gravity systems |
|
TH2110DV, TH1110DV and 3 |
For hot water systems & furnaces of over 90% efficiency |
|
|
TH1100DV |
6 |
For electric furnaces |
|
|
|
[Other cycle rate options: 2 or 4 CPH] |
6 |
Auxiliary heat |
3 |
For hot water systems & furnaces of over 90% |
|
cycle rate (CPH) |
|
efficiency |
|
TH2210DV and TH1210DV 1 |
For steam or gravity systems |
|
|
|
5 |
For gas or oil furnaces of less than 90% efficiency |
|
|
6 |
For electric furnaces |
|
|
|
[Other cycle rate options: 2 or 4 CPH] |
9 |
Compressor |
3 |
Recommended for most compressors |
|
cycle rate (CPH) |
|
[Other cycle rate options: 1, 2, 4, 5, or 6 CPH] |
13 |
Early Start (TH2110DV |
1 |
On **See page 8 |
|
and TH2210DV) |
0 |
Off |
14 |
Temperature |
0 |
Fahrenheit |
|
display |
1 |
Celsius |
15 |
Compressor |
1 |
Five-minute compressor off time (See page 8) |
|
protection |
0 |
No compressor off time |
20 |
Clock display (TH2110DV 0 |
12-hour display |
|
|
and TH2210DV) |
1 |
24-hour display |
25 |
Lower temperature |
0 |
Standard range 40°F to 90°F (4.5°C to 32°C) |
|
range (TH1100DV only) |
1 |
Lower range (for garage mode) 35°F to 90°F |
|
|
|
(1.5°C to 32°C) |
40 |
Restore program |
0 |
Off |
|
schedule to default |
1 |
On - program schedule default settings are listed in the |
|
(TH2110DV and |
|
operating manual |
|
TH2210DV) |
|
|
CAUTION: EQUIPMENT DAMAGE HAZARD
Compressor protection is bypassed during testing. To prevent equipment damage, avoid cycling the compressor quickly.
7 |
69-2800EFS—01 |
Installation Guide
Special functions
Early Start (Setup Function 13): Early start allows the heating or cooling to turn on before the program start time, so the temperature is reached at the time you set.
Compressor Protection (Setup Function 15): Forces the compressor to wait a few minutes before restarting, to prevent damage. During the wait time, the message Cool On or Heat On (heat pumps only) will flash on the display.
Accessories & replacement parts
Please contact your distributor to order replacement parts.
Cover plate assembly*........................................ |
Part Number 50002883-001 |
*Use to cover marks left by old thermostats. |
|
Specifications
Temperature Ranges
•Heat: 40° to 90°F (4.5° to 32°C)
•Cool: 50° to 99°F (10° to 37°C)
Operating Ambient Temperature
•32° to 120°F (0° to 48.9°C)
Shipping Temperature
•-20° to 120°F (-28.9° to 48.9°C)
Operating Relative Humidity
•5% to 90% (non-condensing)
Physical Dimensions
Electrical Ratings |
|
|
System |
Voltage (50/60Hz) |
Running Current |
|
|
|
Heat (1st stage) |
20-30 Vac |
0.02-1.0 A |
(Powerpile) |
750 mV DC |
100 mA DC |
Auxiliary heat |
20-30 Vac |
0.02-1.0 A |
Cooling |
20-30 Vac |
0.02-1.0 A |
•3-7/16”H x 4-10/16”W x 1-3/16”D 87mm H x 119mm W x 30mm D
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422 http://customer.honeywell.com
® U.S. Registered Trademark
© 2013 Honeywell International Inc.
69-2800EFS—01 M.S. 05-13
Printed in U.S.A.
