Register your new Bosch now: http://www.bosch-home.co.uk
Sensixx B45L
en Operating instructions
Index |
Page |
|
|
|
|
|
General safety instructions |
4 |
1 |
Description |
6 |
2 |
"i-Temp" function |
7 |
3 |
"antiShine" function |
7 |
4 |
How to use the steam station |
7 |
5 |
Preparations before ironing |
8 |
6 |
Setting the temperature |
10 |
7 |
Ironing with steam |
10 |
8 |
“PulseSteam” function* |
11 |
9 |
Ironing without steam |
11 |
10 |
Vertical steam |
11 |
11 |
Energy saving “eco” button |
12 |
12 |
“secure” auto shut-off |
12 |
13 |
Fabric protection soleplate cover |
12 |
14 |
Descaling the scale collector and the boiler |
12 |
15 |
Rinsing the iron steam chamber |
14 |
16 |
Cleaning & Maintenance |
15 |
17 |
Storing the appliance |
15 |
18 |

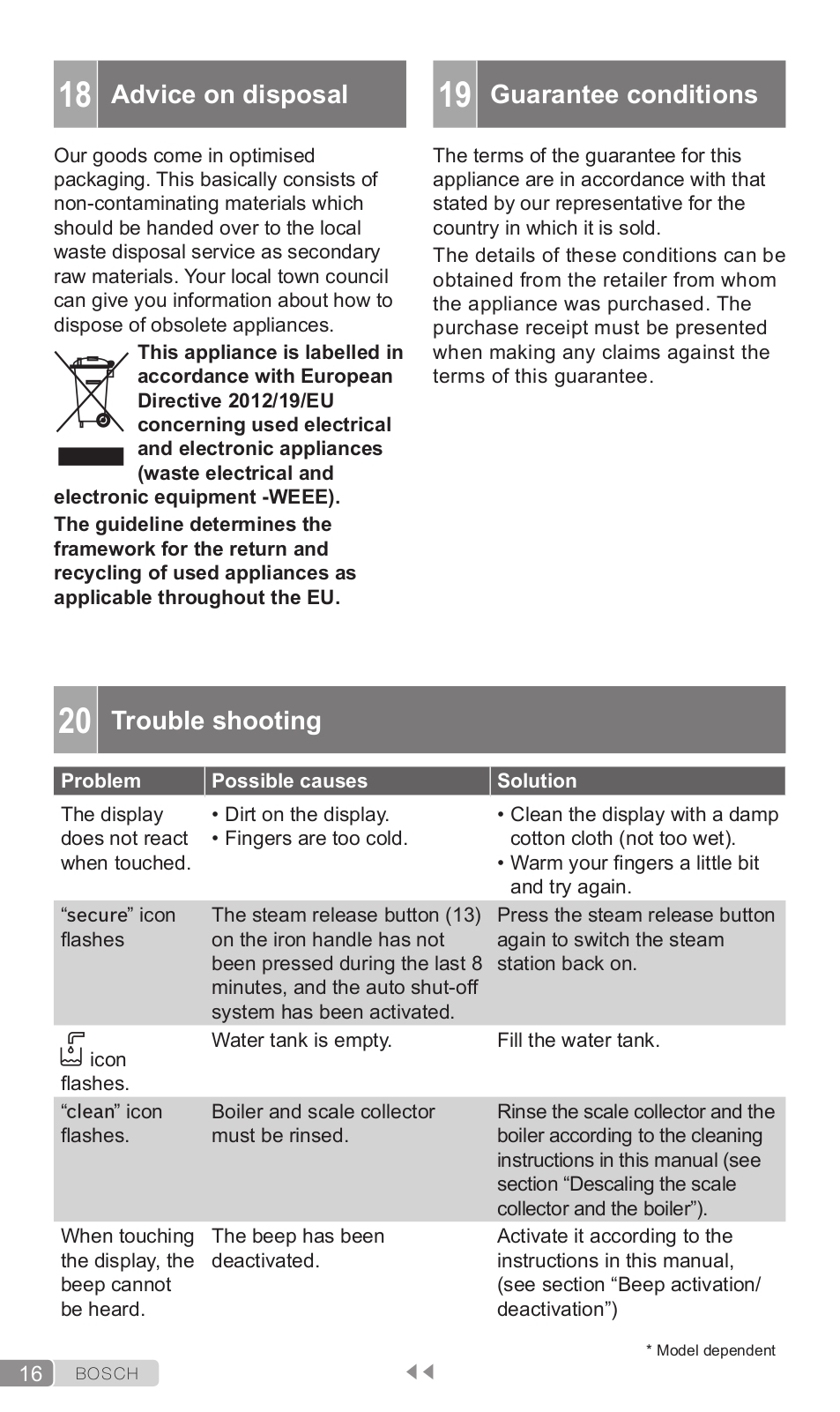

Advice on disposal |
16 |
19 |
Guarantee conditions |
16 |
20 |
Trouble shooting |
16 |
BOSCH 3
EN • Operating instructions
Thank you for buying the Sensixx B45L steam station, the new steamironing system from Bosch.
Please visit www.bosch-home.co.uk for more product information or to register your product, just follow the link to the Online guarantee registration.
Introduction
These instructions for use contain valuable information about the unique features of this system and some hints to make ironing easier for you. We hope that you enjoy ironing with this steam station.
You can download this manual from the local homepages of Bosch.
General safety instructions
During the use, the decalcifying or rinsing aperture of the boiler is under pressure and must not be opened.
The iron must not be left unattended while it is connected to the supply mains.
Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
The appliance must be used and placed on a stable surface.
When placed on its stand, make sure that the surface on which the stand is placed is stable.
The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.
With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4 BOSCH
Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
CAUTION. Hot surface.
Surface is liable to get hot during use.
This appliance is designed only for household use up to 2000m above sea level.
•Carefully read through the operating instructions for the appliance and keep them safe for future reference.
•This appliance complies with international safety standards.
•This appliance has been designed exclusively for domestic use and must not be used for industrial purposes.
•This appliance must only be used for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.
•This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
•This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16Aand has a socket with an earth connection.
•Certain environmental conditions can cause instability in steam production and temperature in a short period of time. If necessary, the user can ask the public power supply company for the system impedance at the interface point.
•If the safety fuse fitted in the appliance blows, the appliance will be rendered inoperative. To restore normal operation the appliance will have to be taken to an authorised Technical Service Centre.
•In order to avoid that, under unfavourable mains conditions, phenomena like transient voltage drops or lighting fluctuations can happen, it is recommended that the iron is connected to a power supply system with a maximum impedance of 0.47 Ω. If necessary, the user can ask the public power supply company for the system impedance at the interface point.
•The appliance must never be placed directly under the tap to fill the water tank.
•Unplug the appliance from the mains supply after each use, or if a fault is suspected.
•The electrical plug must not be removed from the socket by pulling the cable.
•Never immerse the iron in water or any other fluid.
•Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.).
Important :
•This appliance reaches high temperatures and produces steam during use, this could cause scalds or burns in case of improper use.
•The steam hose, base station, metal plate at the bottom of the removable iron pad (2) and in particular the iron can get hot when used. This is normal.
•Never aim the steam at people or animals.
•Do not allow the power cable to come into contact with the soleplate when it is hot.
BOSCH 5
1 Description
1.Removable water tank
2.Removable iron pad
3.Carrying handle
4.Steam hose and mains cable storage compartment
5.Mains cable
6.Steam hose
7.“Energy Saving” button (green)
8.Display
9.Illuminated main power button (red)
10.Iron SecureLock system
11.Housing with internal steam generator
12.Scale collector *
13.Steam release button
14.Steam release button “Ultimate” *
15.Iron pilot light
16.Soleplate
17.Fabric protection soleplate cover*
* Model dependent
* Model dependent
