Bosch BC430, BC330 Owner's Manual

0 (0)

BM 2610033170 08-13_BM 2610033170 08-13.qxp 8/13/13 1:21 PM Page 1

IMPORTANT:	IMPORTANT :	IMPORTANTE:
Read Before Using	Lire avant usage	Leer antes de usar

Operating/Safety Instructions Consignes de fonctionnement/sécurité

Instrucciones de funcionamiento y seguridad

BC330

BC430

	Call Toll Free for	Pour obtenir des informations	Llame gratis para
Consumer Information		et les adresses de nos centres	obtener información
	& Service Locations	de service après-vente,	para el consumidor y
		appelez ce numéro gratuit	ubicaciones de servicio

	1-877-BOSCH99 (1-877-267-2499) www.boschtools.com

For English Version		Version française	Versión en español
	See page 2	Voir page 7	Ver la página 12

BM 2610033170 08-13_BM 2610033170 08-13.qxp 8/13/13 1:21 PM Page 2

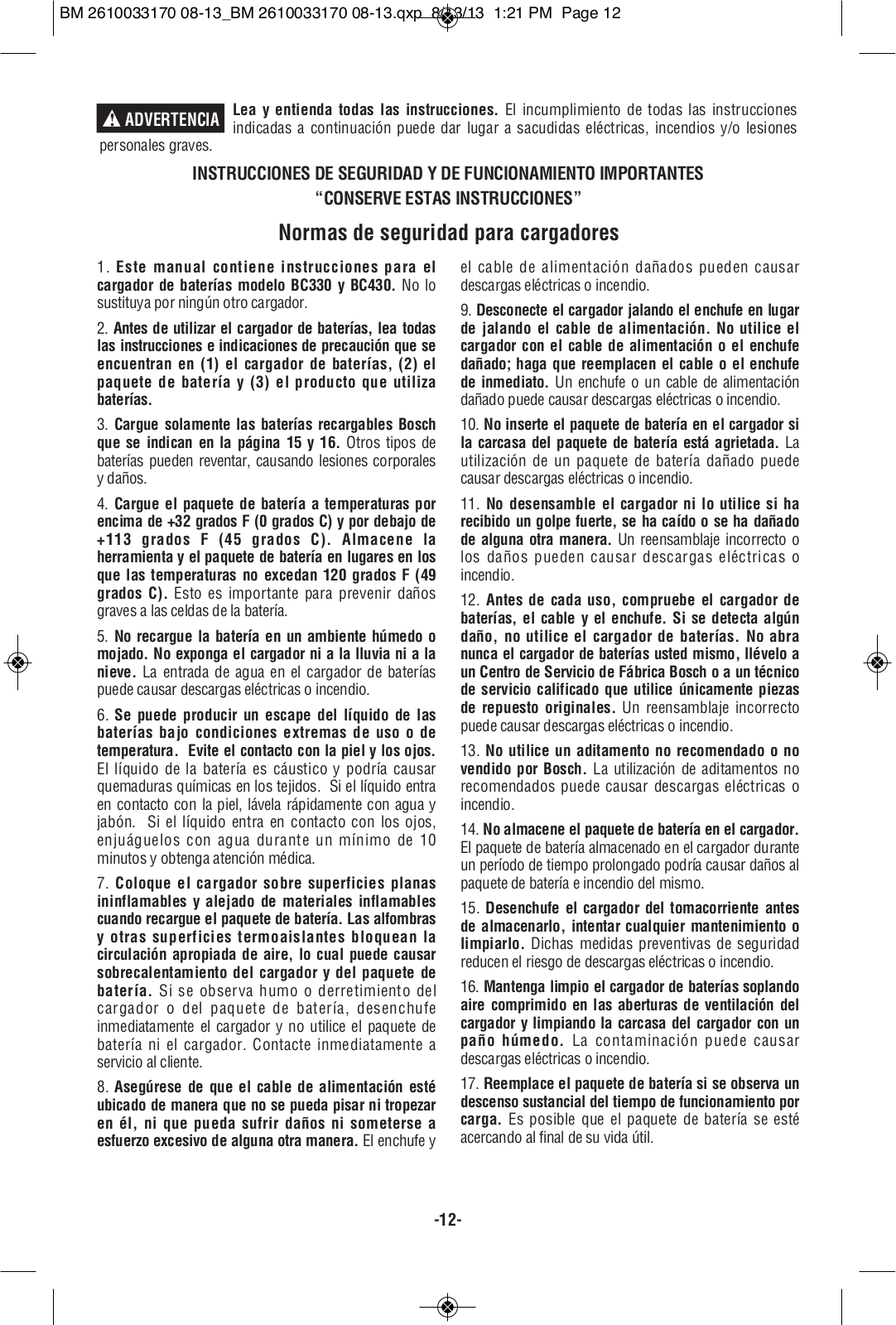

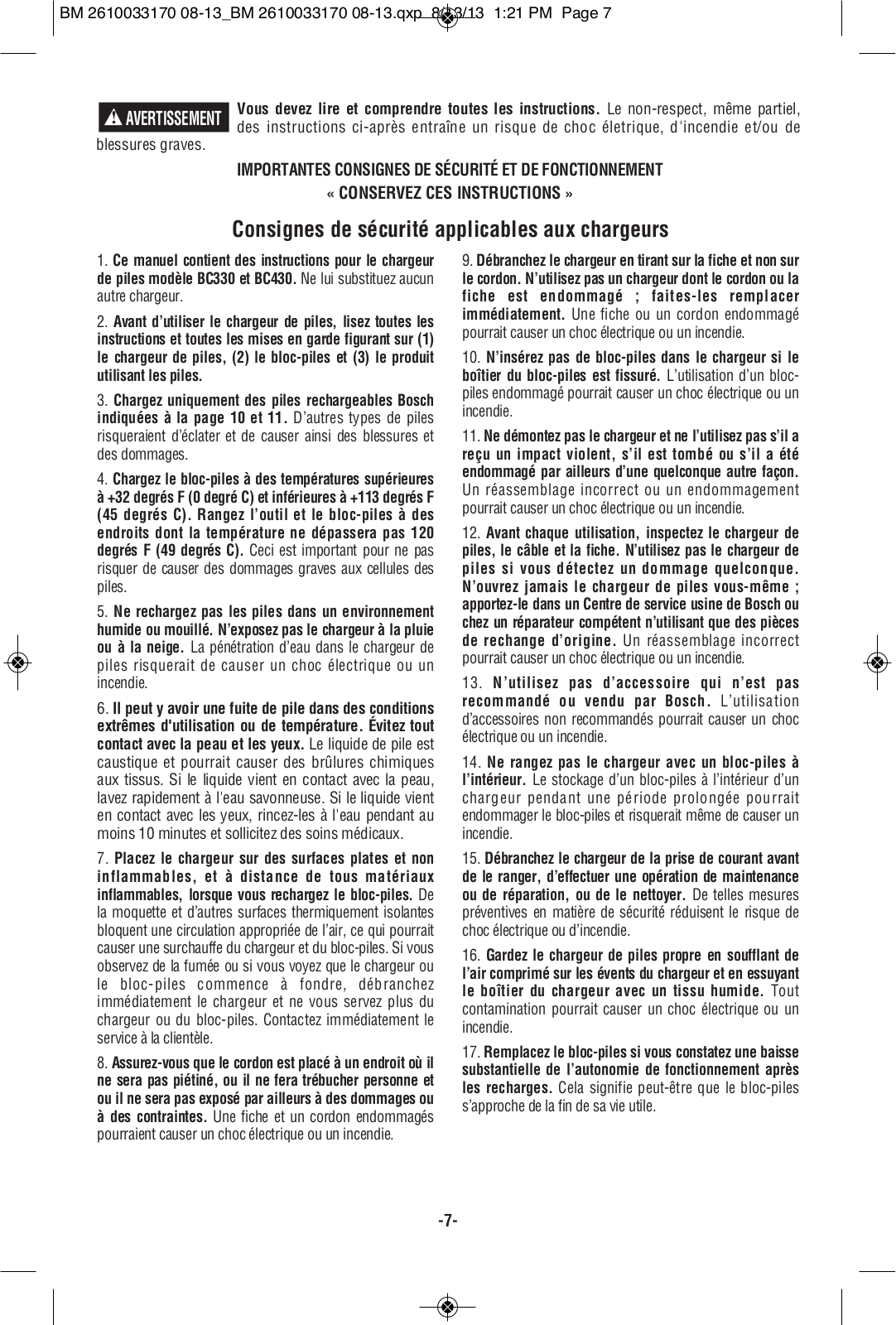

! WARNING	Read and understand all instructions. Failure to follow all instructions
	listed below, may result in electric shock, fire and/or serious personal injury.
	IMPoRTANT SAFeTy AND oPeRATINg INSTRUCTIoNS
	“SAVe THeSe INSTRUCTIoNS”
	Charger Safety Rules

1.This manual contains instructions for battery charger model BC330 & BC430. Do not substitute any other charger.

2.Before using battery charger, read all instructions and cautionary markings on

(1) battery charger, (2) battery pack, and (3) product using battery.

3.Charge only Bosch rechargeable batteries listed on page 5 & 6. Other types of batteries may burst causing personal injury and damage.

4.Charge battery pack in temperatures above +32 degrees F (0 degrees C) and below +113 degrees F (45 degrees C). Store tool and battery pack in locations where temperatures will not exceed 120 degrees F (49 degrees C). This is important to prevent serious damage to the battery cells.

5.Do not recharge battery in damp or wet environment. Do not expose charger to rain or snow. Water entering battery charger may result in electric shock or fire.

6.Battery leakage may occur under extreme usage or temperature conditions. Avoid contact with skin and eyes. The battery liquid is caustic and could cause chemical burns to tissues. If liquid comes in contact with skin, wash quickly with soap and water. If the liquid contacts your eyes, flush them with water for a minimum of 10 minutes and seek medical attention.

7.Place charger on flat nonflammable surfaces and away from flammable materials when recharging battery pack.

Carpeting and other heat insulating surfaces block proper air circulation which may cause overheating of the charger and battery pack. If smoke or melting of the charger or battery pack is observed, unplug the charger immediately and do not use the battery pack or charger. Contact customer service immediately.

8.Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

Damaged plug and cord may result in electric shock or fire.

9.Disconnect the charger by pulling the plug rather than the cord. Do not operate charger with damaged cord or plug; have them replaced immediately. Damaged plug or cord may result in electric shock or fire.

10.Do not insert battery pack in charger if battery pack case is cracked. Using damaged battery pack may result in electric shock or fire.

11.Do not disassemble charger or operate the charger if it has received a sharp blow, been dropped or otherwise damaged in anyway. Incorrect reassembly or damage may result in electric shock or fire.

12.Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself, take it to a Bosch Factory Service Center, or qualified serviceman only using original spare parts. Incorrect reassembly may result in electric shock or fire.

13.Do not use attachments not recommended or sold by Bosch. Using attachments not recommended may result in electric shock or fire.

14.Do not store battery pack in charger.

Battery pack stored in charger over a long period of time could lead to battery pack damage and fire.

15.Unplug charger from outlet before storage, attempting any maintenance or cleaning. Such preventive safety measures reduce the risk of electric shock or fire.

16.Keep the battery charger clean by blowing compressed air on charger vents and wiping the charger housing with a damp cloth. Contamination may result in electric shock or fire.

17.Replace battery pack if a substantial drop in operating time per charge is observed. Battery pack may be nearing the end of its life.

-2-

BM 2610033170 08-13_BM 2610033170 08-13.qxp 8/13/13 1:21 PM Page 3

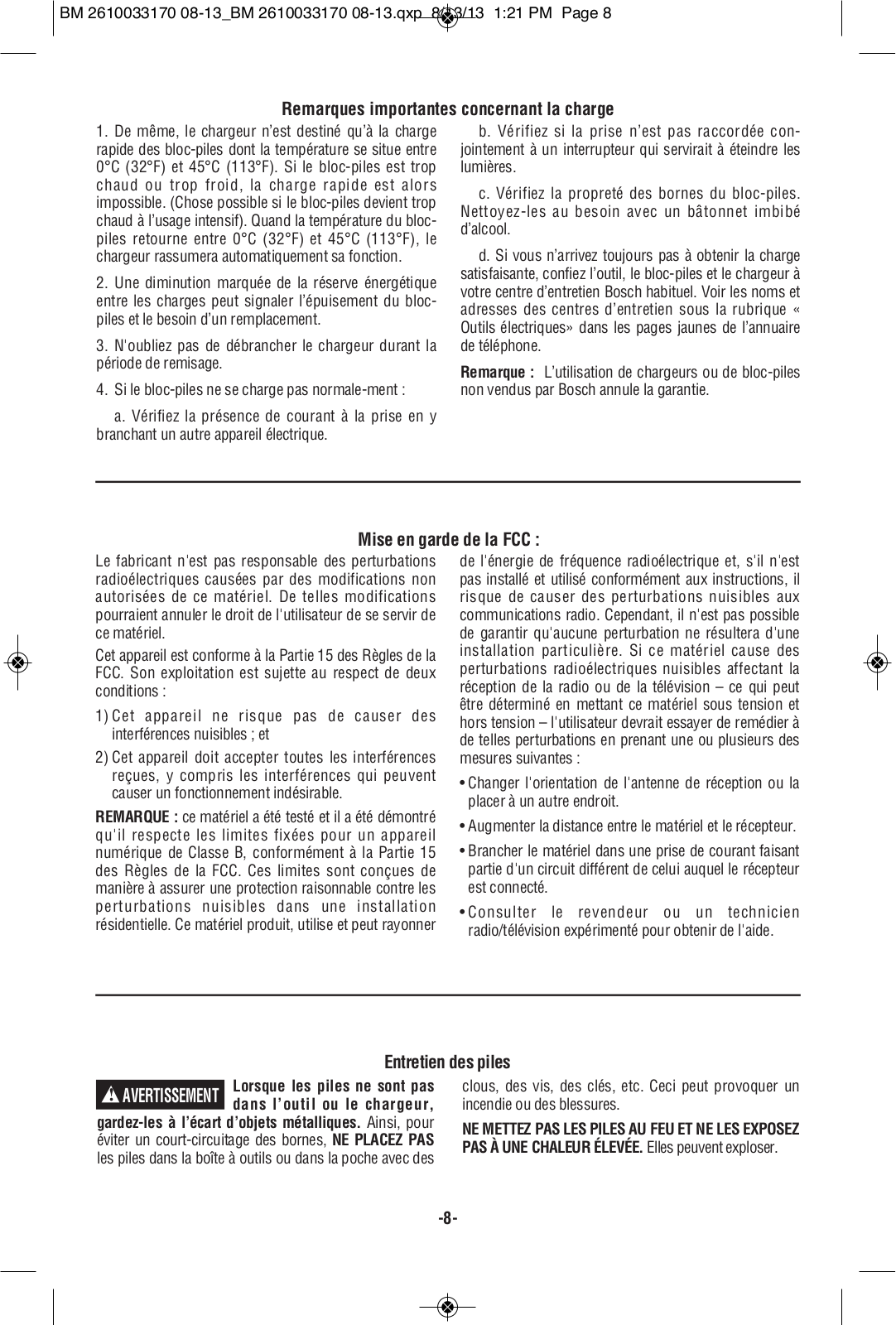

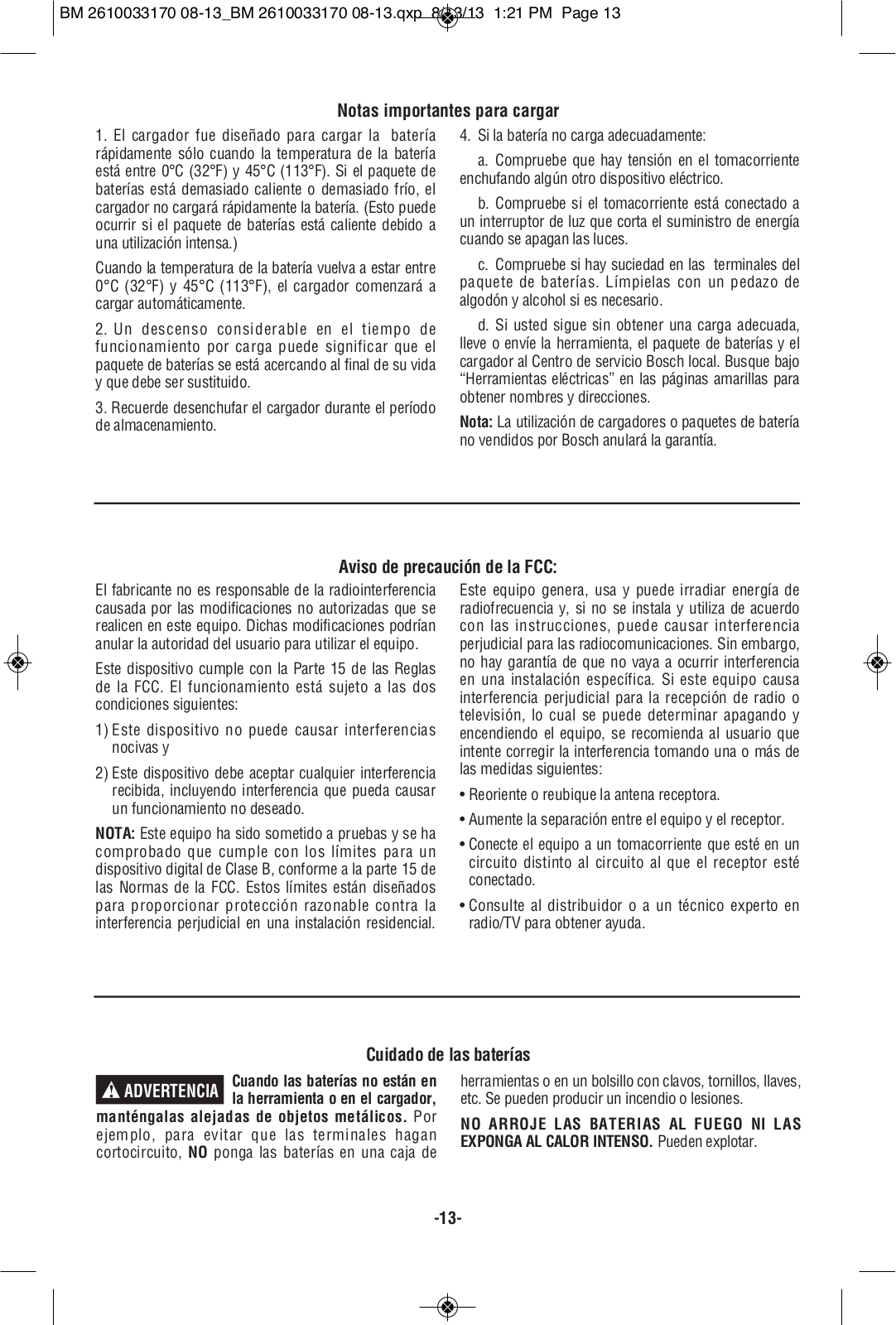

Important Charging Notes

1.The charger was designed to fast charge the battery only when the battery temperature is between 32˚F (0˚C) and 113˚F (45˚C). If the battery pack is too hot or too cold, the charger will not fast charge the battery. (This may happen if the battery pack is hot from heavy use). When the battery temperature returns to between 32˚F (0˚C) and 113˚F (45˚C), the charger will automatically begin charging.

2.A substantial drop in operating time per charge may mean that the battery pack is nearing the end of its life and should be replaced.

3.Remember to unplug charger during storage period.

4.If battery does not charge properly:

a.Check for voltage at outlet by plugging in some other electrical device.

b.Check to see if outlet is connected to a light switch which turns power “off” when lights are turned off.

c.Check battery pack terminals for dirt. Clean with cotton swab and alcohol if necessary.

d.If you still do not get proper charging, take or send tool, battery pack and charger to your local Bosch Service Center. See “Tools, Electric” in the Yellow Pages for names and addresses.

Note: Use of chargers or battery packs not sold by Bosch will void the warranty.

FCC Caution:

The manufacturer is not responsible for radio interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1)This device may not cause harmful interference, and

2)This device must accept any interference received, including interference that may cause undesired operation.

NoTe! This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Battery Care

When batteries are not in ! WARNING tool or charger, keep them

away from metal objects. For example, to protect terminals from shorting Do NoT place batteries in a tool box or pocket with nails,

screws, keys, etc. Fire or injury may result.

Do NoT PUT BATTeRIeS INTo FIRe oR exPoSe To HIgH HeAT. They may explode.

-3-

! WARNING

BM 2610033170 08-13_BM 2610033170 08-13.qxp 8/13/13 1:21 PM Page 4

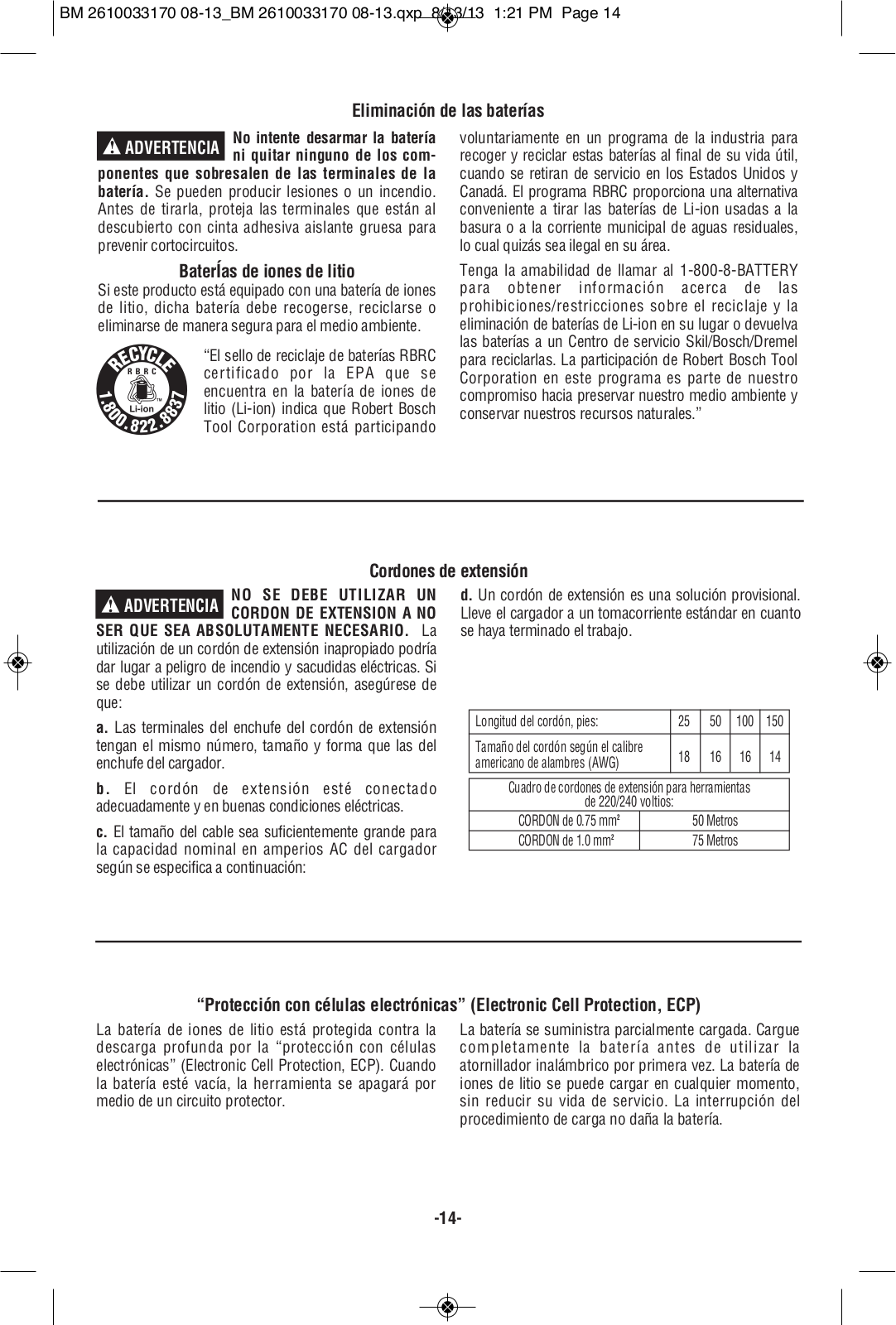

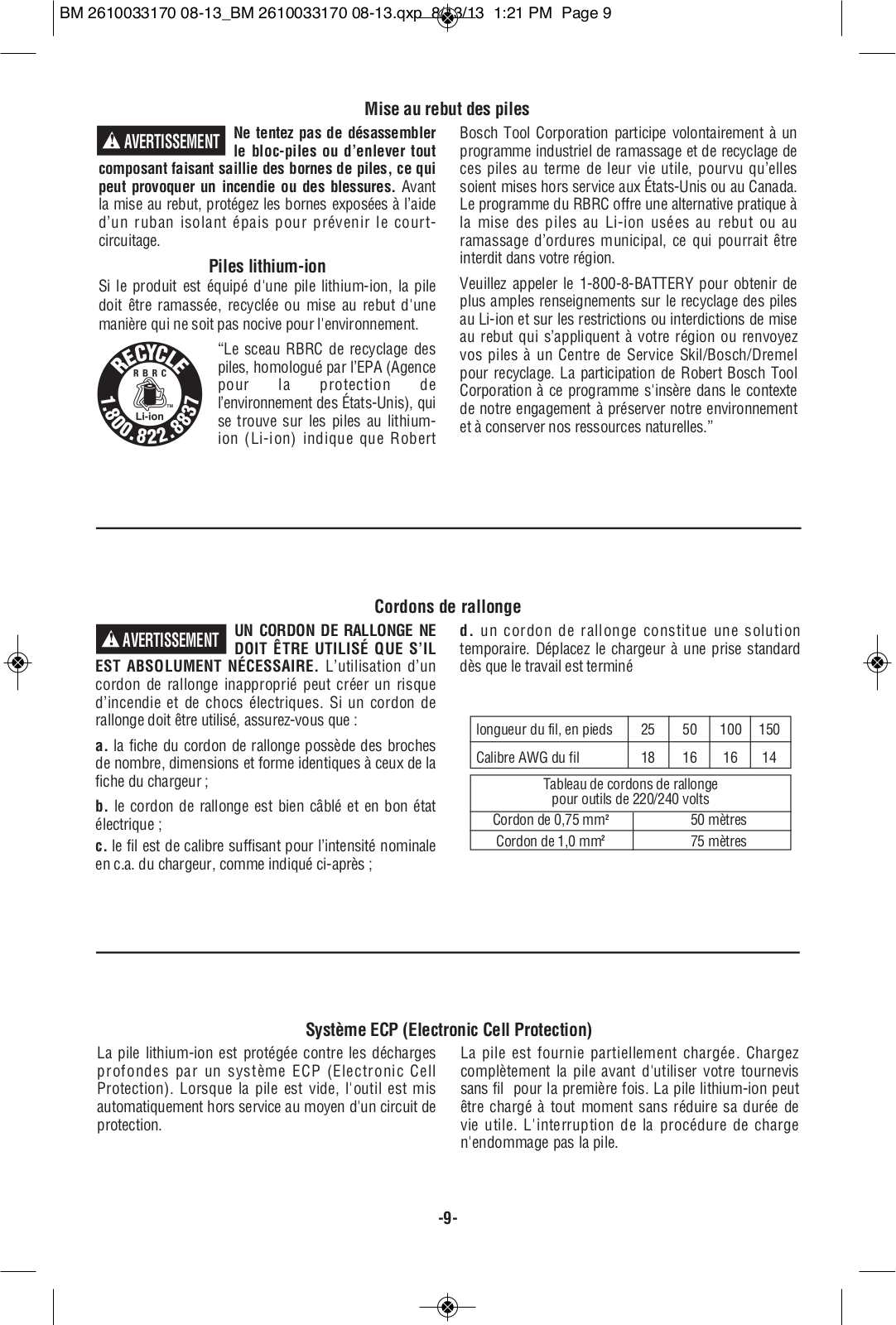

Battery Disposal

Do not attempt to disassemble the battery or remove any com ponent projecting from the

battery terminals. Fire or injury may result. Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting.

Lithium-ion Batteries

If equipped with a lithium-ion battery, the battery must be collected, recycled or disposed of in an environ mentally sound manner.

“The EPA certified RBRC Battery Recycling Seal on the lithium-ion (Li-ion) battery indicates Robert Bosch Tool Corporation is voluntarily participating in an industry

program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC program provides a convenient alterative to placing used Li-ion batteries into the trash or the munici pal waste stream, which may be illegal in your area.

Please call 1-800-8-BATTERY for information on Li-ion battery recycling and disposal bans/restrictions in your area, or return your batteries to a Skil/Bosch/Dremel Service Center for recycling. Robert Bosch Tool Corporation’s involvement in this program is part of our commitment to preserving our environment and conserving our natural resources.”

extension Cords

! WARNING AN exTeNSIoN CoRD SHoULD NoT Be USeD

UNLeSS ABSoLUTeLy NeCeSSARy. Use of improper extension cord could result in risk of fire and electrical shock. If an extension cord is used, make sure:

a.The pins on plug of extension cord are the same number, size, and shape as those of plug on charger.

b.The extension cord is properly wired and in good electrical condition.

c.The wire size is large enough for AC ampere rating of charger as specified below:

d. An extension cord is a temporary solution. Move the charger to a standard receptacle as soon as the job has been completed.

Length of	25	50	100	150
Cord, Feet


AWG Size	18	16	16	14
of Cord


Extension Cord Chart for 220/240 Volt Tools:

0.75mm2 CORD			50 Meters
1.0mm2 CORD			75 Meters

electronic Cell Protection (eCP)

The lithium ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the tool is switched off by means of a protective circuit.

The battery is supplied partially charged. Completely charge the battery before using your cordless screwdriver for the first time. The lithium ion battery can be charged at any time, without reducing its service life. Interrupting the charging procedure does not damage the battery.

-4-

BM 2610033170 08-13_BM 2610033170 08-13.qxp 8/13/13 1:21 PM Page 5

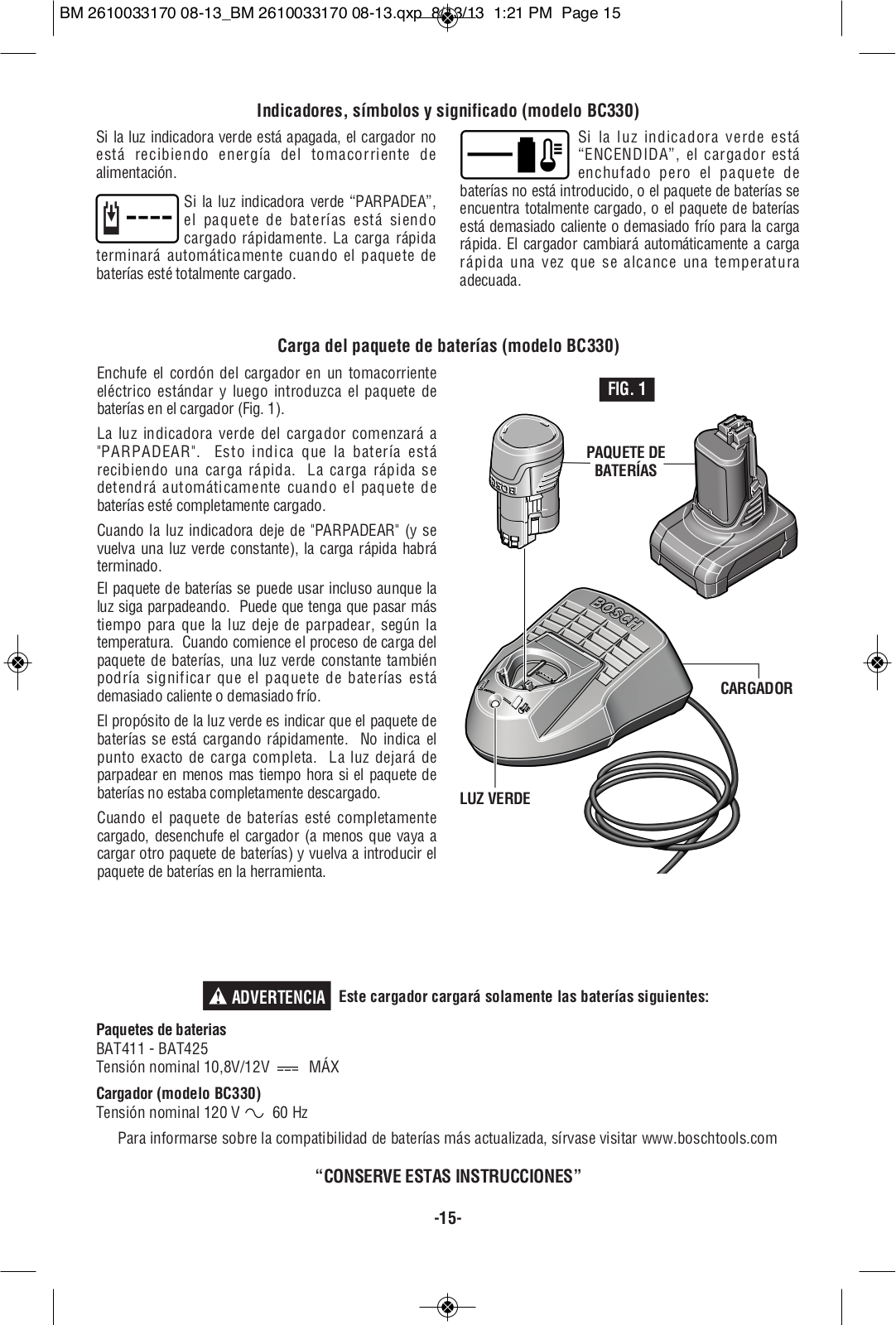

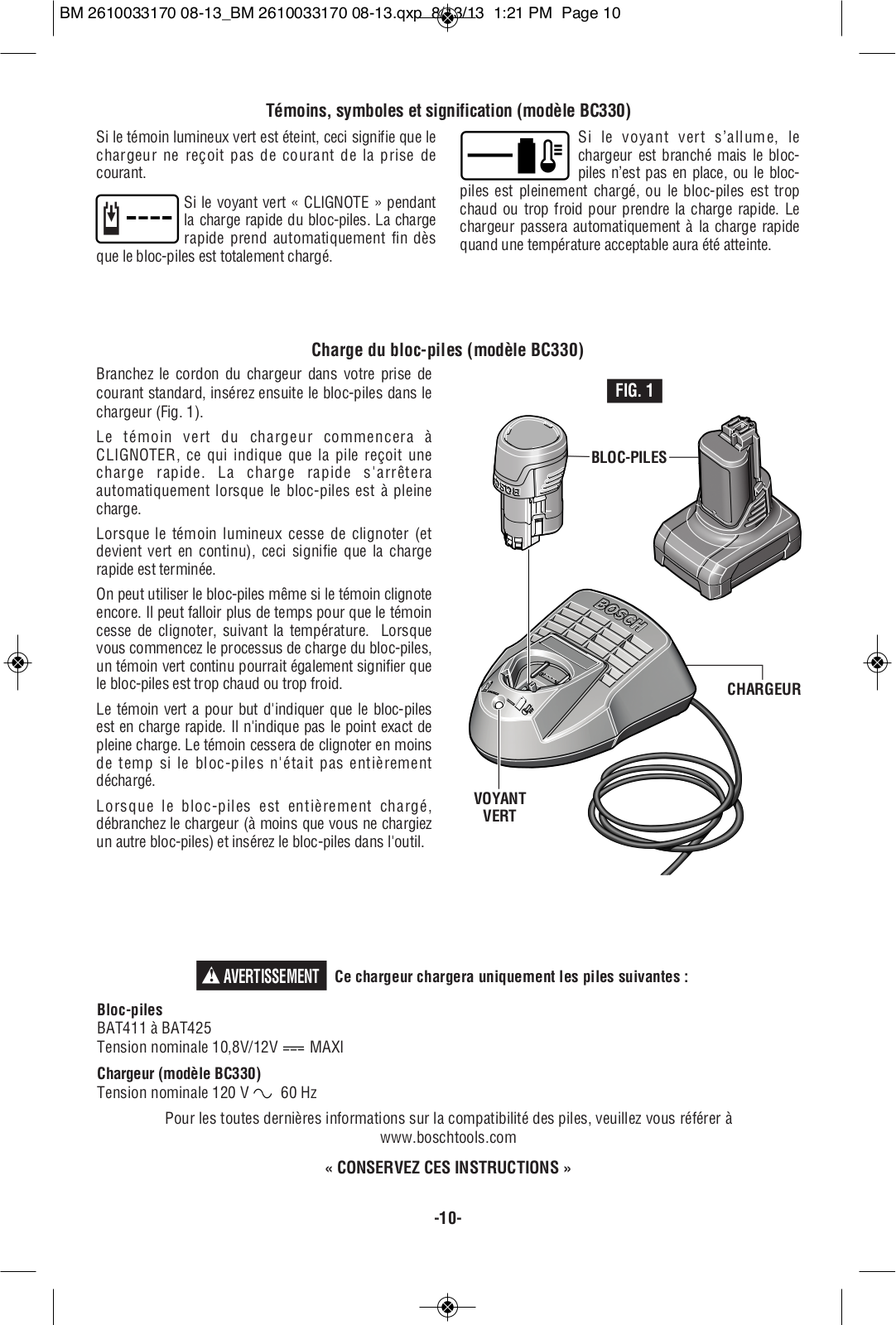

Charger Indicators, symbols and meaning (model BC330)

If the indicator lights are “OFF”, the charger is not receiving power from power supply outlet.

If the green indicator light is “BLINKING”, the battery pack is being fast-charged. Fastcharging will automatically stop when the

battery pack is fully charged.

If the green indicator light is

"ON", the charger is plugged in but the battery pack is not inserted, or the battery pack is fully charged,

or the battery pack is too hot or cold for fastcharging. The charger will automatically switch to fast-charging once a suitable temperature is reached.

Charging Battery Pack (model BC330)

Plug charger cord into your standard power outlet, then insert battery pack into charger (Fig. 1).

The charger’s green indicator light will begin to “BLINK”. This indicates that the battery is receiving a fast charge. Fast-charging will automatically stop when the battery pack is fully charged.

When the indicator light stops “BLINKING” (and becomes a steady green light) fast charging is complete.

The battery pack may be used even though the light may still be blinking. The light may require more time to stop blinking depending on temperature. When you begin the charging process of the battery pack, a steady green light could also mean the battery pack is too hot or too cold.

The purpose of the green light is to indicate that the battery pack is fast-charging. It does not indicate the exact point of full charge. The light will stop blinking in less time if the battery pack was not completely discharged.

When the battery pack is fully charged, unplug the charger (unless you're charging another battery pack) and slip the battery pack back into the tool.

GREEN LIGHT

FIG. 1

BATTERY

PACK

CHARGER

! WARNING This charger will only charge the following batteries:

Battery packs

BAT411 through BAT425

Voltage rating 10.8V/12V MAX

Charger (model BC330)

Voltage rating 120 V 60 Hz

For most up to date battery compatibility, please refer to www.boschtools.com

“SAVe THeSe INSTRUCTIoNS”

-5-

BM 2610033170 08-13_BM 2610033170 08-13.qxp 8/13/13 1:21 PM Page 6

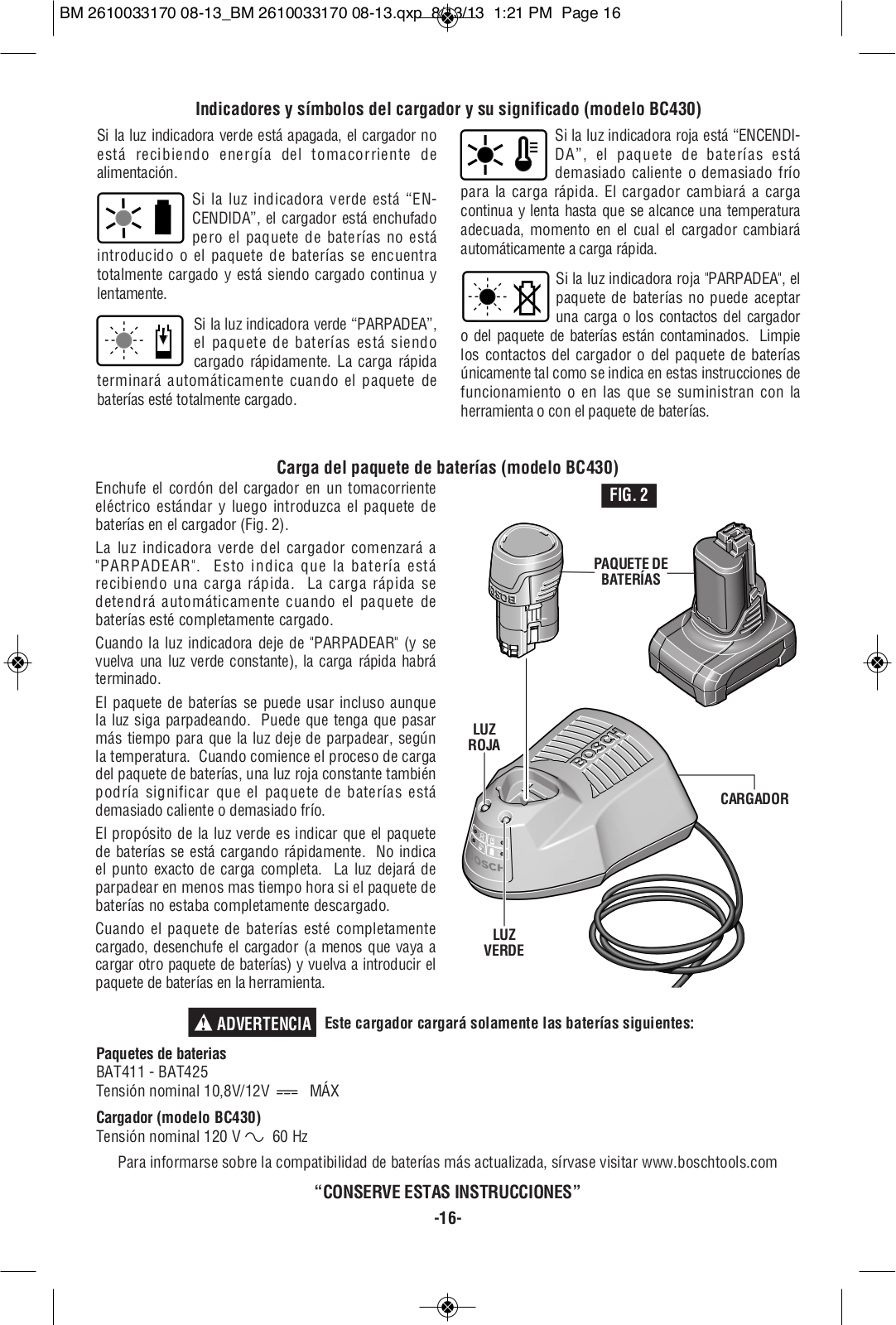

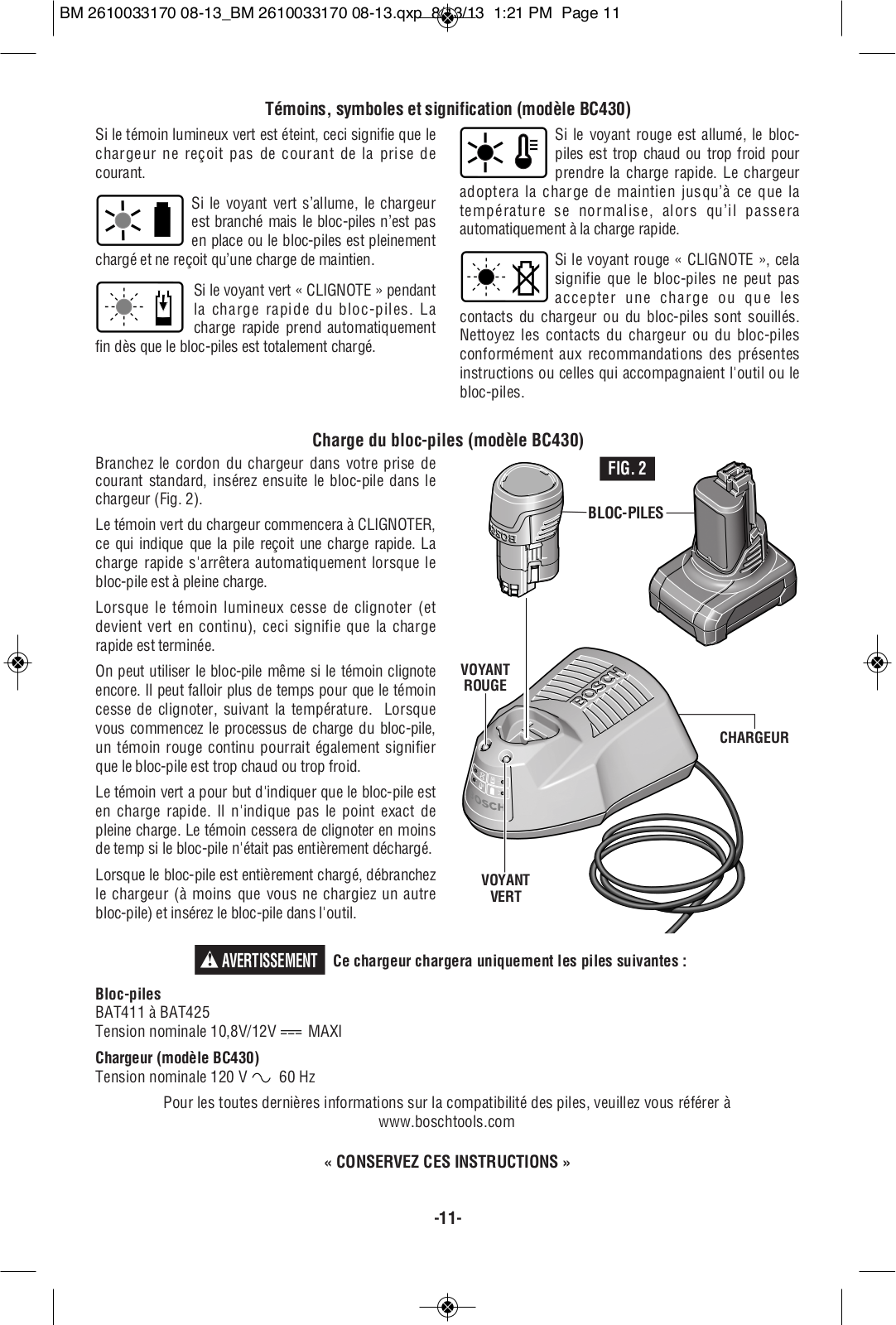

Charger Indicators, symbols and meaning (model BC430)

If the indicator lights are “OFF”, the charger is not receiving power from power supply outlet.

If the green indicator light is

“ON”, the charger is plugged in but the battery pack is not inserted, or the battery pack is fully charged

and is being trickle charged.

If the green indicator light is

“BLINKING”, the battery pack is being fast-charged. Fastcharging will automatically stop when the

battery pack is fully charged.

If the red indicator light is “ON”,

the battery pack is too hot or cold for fast-charging. The charger will switch to trickle charge, until a suitable

temperature is reached, at which time the charger will switch automatically to fast-charging.

If the red indicator light is

“BLINKING”, the battery pack cannot accept a charge or the contacts of the charger or battery pack are

contaminated. Clean the contacts of the charger or battery pack only as directed in these operating instructions or those supplied with your tool or battery pack.

Charging Battery Pack (model BC430)

Plug charger cord into your standard power outlet, then insert battery pack into charger (Fig. 2).

When the indicator light stops “BLINKING” (and becomes a steady green light) fast charging is complete.

The battery pack may be used even though the light may still be blinking. The light may require more time to stop blinking depending on temperature. When you begin the charging process of the battery pack, a steady red light could also mean the battery pack is too hot or too cold.

When the battery pack is fully charged, unplug the charger (unless you're charging another

battery pack) and slip the battery pack back into the tool.

FIG. 2

BATTERY

PACK

RED

LIGHT

CHARGER

GREEN

LIGHT

! WARNING This charger will only charge the following batteries:

Battery packs
