Samsung CLX 9201, CLX 9251, CLX 9301 Service Manual

A3 Color Copier

CLX-9201/9251/9301 series CLX-9201ND/NA,

CLX-9251ND/NA, CLX-9301NA

(Ver 3.2)

SERVICEMANUAL

A3 Color Copier

Contents

1. Precautions

2. Product Specifications and Description

3. Disassembly and Reassembly

4. Troubleshooting

5. System Diagram

6. Reference Information

Refer to the service manual in the GSPN (see the rear cover) for more information.

Contents

Contents

1. Precautions ........................................................................................................................................				1 − 1
1.1.	Safety warning ..........................................................................................................................			1 − 1
1.2.	Caution for safety ......................................................................................................................			1 − 2
	1.2.1.	Toxic material...............................................................................................................		1 − 2
	1.2.2.	Electric shock and fire safety precautions ...........................................................................		1 − 2
	1.2.3.	Handling precautions .....................................................................................................		1 − 4
	1.2.4.	Assembly and Disassembly precautions.............................................................................		1 − 4
	1.2.5.	Disregarding this warning may cause bodily injury ..............................................................		1 − 5
1.3.	ESD precautions........................................................................................................................			1 − 6
2. Product Specifications and Description....................................................................................................				2 − 1
2.1.	Product Overview......................................................................................................................			2 − 1
2.2.	Specifications............................................................................................................................			2 − 2
	2.2.1.	General Specification .....................................................................................................		2 − 2
	2.2.2.	Print Specifications........................................................................................................		2 − 3
	2.2.3.	Controller and Software specification ................................................................................		2 − 6
	2.2.4.	Scan specification........................................................................................................		2 − 10
	2.2.5.	Copy specification .......................................................................................................		2 − 12
	2.2.6.	Fax specification .........................................................................................................		2 − 14
	2.2.7.	Paper Handling specification..........................................................................................		2 − 18
	2.2.8.	Supplies.....................................................................................................................		2 − 21
	2.2.9.	Maintenance Parts .......................................................................................................		2 − 21
	2.2.10.	Option.......................................................................................................................		2 − 22
2.3.	Machine External View.............................................................................................................			2 − 24
2.4.	Feeding System.......................................................................................................................			2 − 28
	2.4.1.	Feeding System Overview.............................................................................................		2 − 28
	2.4.2.	Main Components and functions ....................................................................................		2 − 29
	2.4.3.	Cassette (Tray 1,2,3,4)..................................................................................................		2 − 33
	2.4.4.	Pick-Up Unit ..............................................................................................................		2 − 34
	2.4.5.	Registration Unit.........................................................................................................		2 − 35
	2.4.6.	MPF(Multi-Purpose Feeder) Unit ...................................................................................		2 − 36
2.5.	Image Creation........................................................................................................................			2 − 37
	2.5.1.	Printing process overview .............................................................................................		2 − 37
	2.5.2.	Imaging Unit ..............................................................................................................		2 − 38
		2.5.2.1.	Imaging Unit Overview..................................................................................	2 − 38
		2.5.2.2.	Drum drive ..................................................................................................	2 − 39
		2.5.2.3.	Developer Unit .............................................................................................	2 − 40
	2.5.3.	ITB (Intermediate Transfer Belt) Unit..............................................................................		2 − 42
		2.5.3.1.	ITB Unit overview ........................................................................................	2 − 42

i	Copyright© 1995-2013 SAMSUNG. All rights reserved.

				Contents
		2.5.3.2.	Transfer belt drive .........................................................................................	2 − 43
		2.5.3.3.	Transfer belt cleaning.....................................................................................	2 − 44
2.6.	Fuser unit...............................................................................................................................			2 − 45
	2.6.1.	Fuser unit overview .....................................................................................................		2 − 45
	2.6.2.	Fuser Unit drive ..........................................................................................................		2 − 46
	2.6.3.	Fuser unit temperature control........................................................................................		2 − 47
2.7.	Laser scanning unit (LSU).........................................................................................................			2 − 48
	2.7.1.	LSU overview.............................................................................................................		2 − 48
	2.7.2.	Laser Scanning Optical path ..........................................................................................		2 − 49
	2.7.3.	Laser synchronizing detectors ........................................................................................		2 − 50
	2.7.4.	Automatic line position adjustment .................................................................................		2 − 51
	2.7.5.	Shutter Mechanism......................................................................................................		2 − 54
2.8.	Drive System ..........................................................................................................................			2 − 55

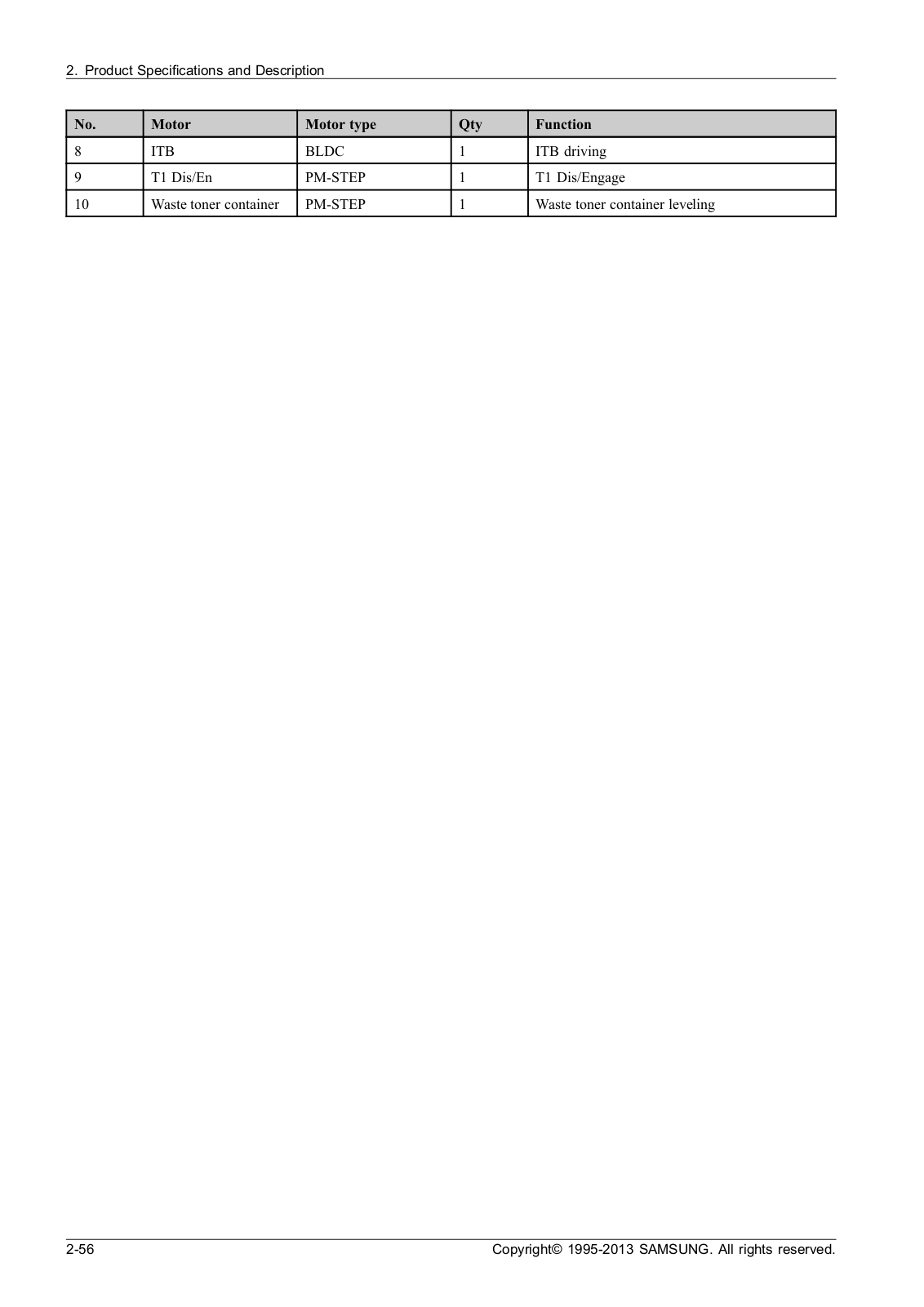

	2.8.1.	Drive Motors..............................................................................................................		2 − 55
	2.8.2.	Main Drive Unit (OPC, DEVE, ITB, T1 DIS/ENG) ...........................................................		2 − 57
	2.8.3.	Pick Up Drive.............................................................................................................		2 − 58
	2.8.4.	Regi/ MP Drive...........................................................................................................		2 − 59
	2.8.5.	Feed Drive .................................................................................................................		2 − 60
	2.8.6.	Fuser/Exit Drive..........................................................................................................		2 − 61
	2.8.7.	Waste Toner Container Drive.........................................................................................		2 − 62
	2.8.8.	Toner Supply Drive......................................................................................................		2 − 62
2.9.	Scanner System.......................................................................................................................			2 − 63
	2.9.1.	Scanner System Overview.............................................................................................		2 − 63
	2.9.2.	Scanning System Components .......................................................................................		2 − 63
2.10.	Duplex Automatic Document Feeder(DADF)................................................................................			2 − 66
	2.10.1.	DADF overview..........................................................................................................		2 − 66
	2.10.2.	Electrical parts location ................................................................................................		2 − 67
	2.10.3.	DADF Drive System....................................................................................................		2 − 68
		2.10.3.1. DADF Original Drive Assembly ......................................................................		2 − 69
		2.10.3.2. DADF Registration (Regi) Drive Assembly........................................................		2 − 70
		2.10.3.3. DADF Feed Drive Assembly...........................................................................		2 − 70
		2.10.3.4. DADF Exit Drive Assembly............................................................................		2 − 71
		2.10.3.5.	Original Return Drive ....................................................................................	2 − 71

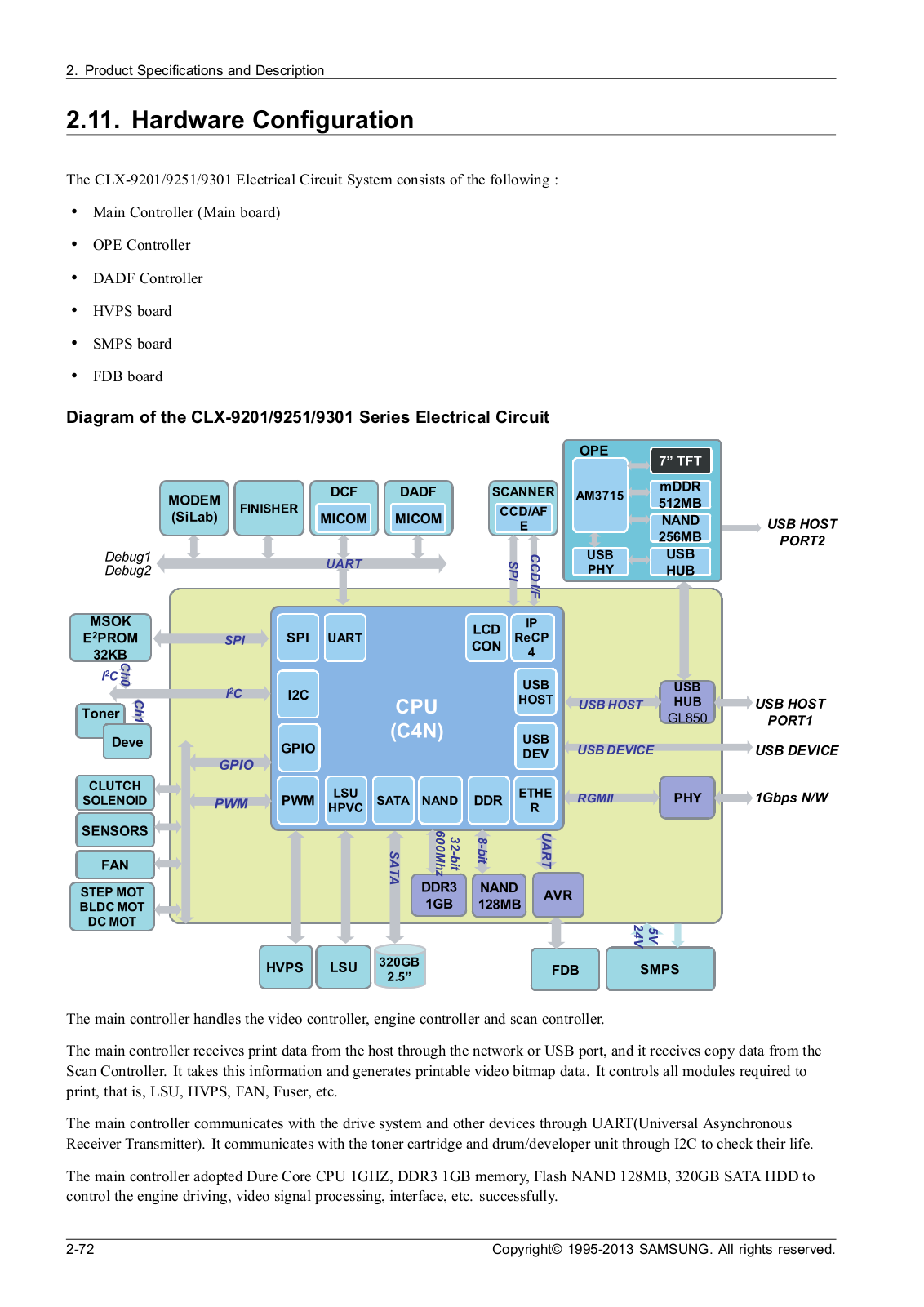

2.11.	Hardware Configuration............................................................................................................			2 − 72
	2.11.1.	Main Controller ..........................................................................................................		2 − 75

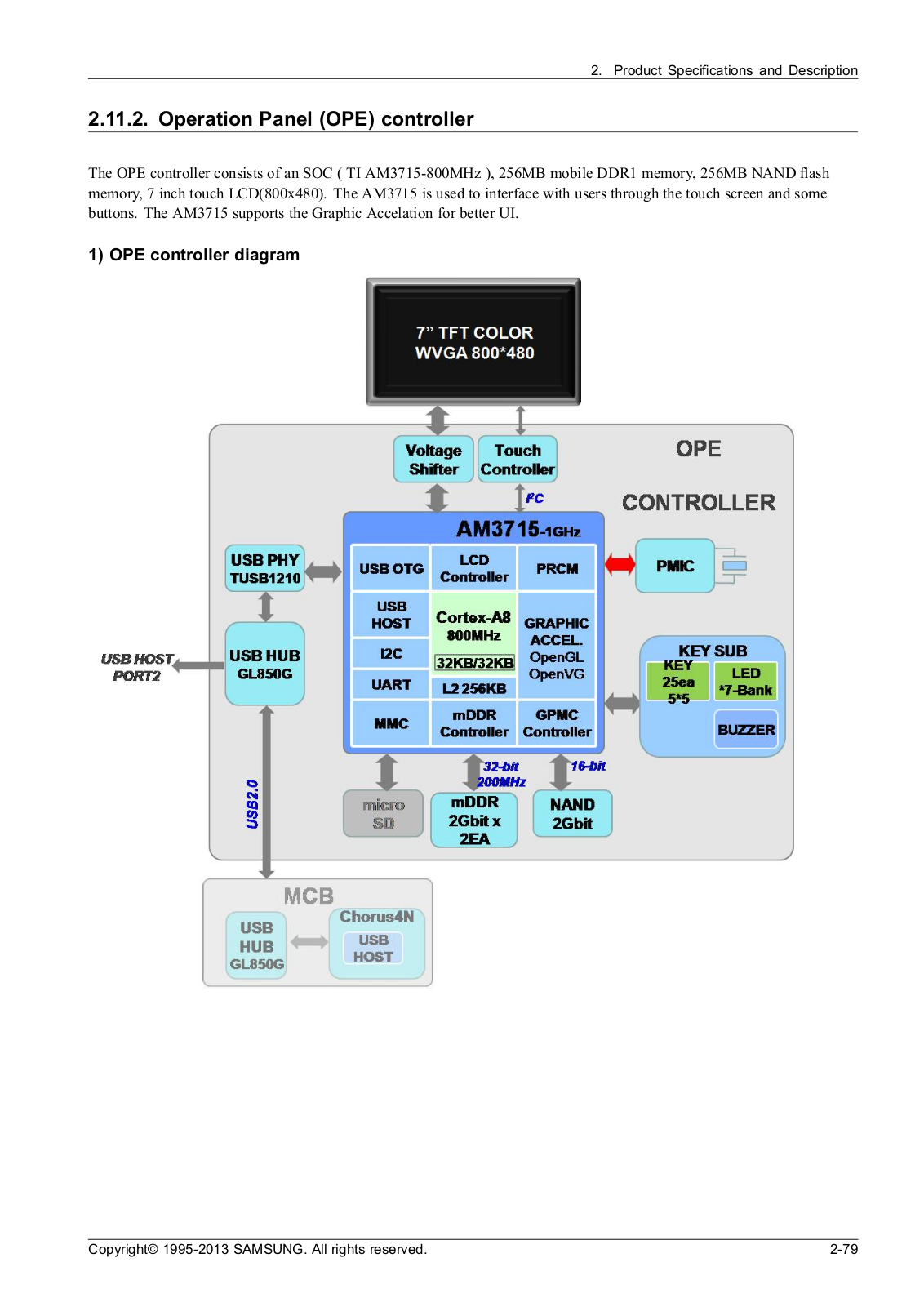

	2.11.2.	Operation Panel (OPE) controller ...................................................................................		2 − 79
	2.11.3.	ADF PBA	..................................................................................................................	2 − 82
	2.11.4.	SMPS (Switching Mode Power Supply) board ..................................................................		2 − 83
	2.11.5.	Fuser Drive Board (FDB)..............................................................................................		2 − 85
	2.11.6.	HVPS board ...............................................................................................................		2 − 86

Copyright© 1995-2013 SAMSUNG. All rights reserved.

ii

Contents

	2.11.7.	Eraser PBA ................................................................................................................	2 − 87
	2.11.8.	Fuser PBA .................................................................................................................	2 − 87
	2.11.9.	Waste Sensor PBA .......................................................................................................	2 − 88
	2.11.10. CRUM PBA...............................................................................................................		2 − 88
	2.11.11. Deve CRUM Joint PBA ...............................................................................................		2 − 88
	2.11.12. Toner CRUM Joint PBA ..............................................................................................		2 − 89
	2.11.13. ITB Encoder PBA .......................................................................................................		2 − 89
	2.11.14. Scan Joint PBA...........................................................................................................		2 − 90
	2.11.15. Charge Coupled Device Module(CCDM) PBA..................................................................		2 − 91
	2.11.16. White-LED(WLED) CTL PBA......................................................................................		2 − 92
	2.11.17. White-LED(WLED) AL FRONT PBA ............................................................................		2 − 92
2.12.	DCF Unit ...............................................................................................................................		2 − 93
2.13.	Finisher		2 − 99
2.14.	Wireless .............................................................................................................LAN Option		2 − 102
3. Disassembly and ................................................................................................................Reassembly			3 − 1
3.1.	Precautions ..................................................................................................when replacing parts		3 − 1
	3.1.1. .................................................................	Precautions when assembling and disassembling	3 − 1
	3.1.2. .......................................................................................	Precautions when handling PBA	3 − 1
	3.1.3. ................................................................................................	Releasing Plastic Latches	3 − 2
3.2.	Maintenance .............................................................................................................................		3 − 3
	3.2.1. ...................................................................................	Machine Cleaning for maintenance	3 − 3
	...............................................................	Cleaning the ACR/CTD sensor window	3 − 3
	................................................................................	Cleaning the LSU window	3 − 4
	................................................................................	Cleaning the transfer roller	3 − 5
	.....................................................................................	Cleaning the scan glass	3 − 5
	3.2.2. ........................................................................................	Replacing the maintenance part	3 − 6
	.....................................................................................................	Drum Unit	3 − 6
	...............................................................................................	Developer Unit	3 − 7
	...................................................................................................	ITB Cleaner	3 − 9
	........................................................................................................	ITB Unit	3 − 9
	....................................................................................................	Fuser unit	3 − 11
	...............................................................................................	Transfer roller	3 − 11
	.....................................................................	Pick-Up_Reverse_Forward roller	3 − 12
	.................................................................	MP Pick up_Reverse_Forward roller	3 − 13
	..............................................................................	DADF Pick-up roller Assy	3 − 14
	........................................................................................	DADF friction pad	3 − 14
3.3.	Replacing .....................................................................................................the main SVC part		3 − 15
	3.3.1. ..................................................................................................................	Left Cover	3 − 15
	3.3.2. .................................................................................................................	Rear Cover	3 − 15
	3.3.3. ...............................................................................................................	HVPS board	3 − 16

iii	Copyright© 1995-2013 SAMSUNG. All rights reserved.

			Contents
3.3.4.	Temperature Sensor .....................................................................................................		3 − 16
3.3.5.	LSU..........................................................................................................................		3 − 17
3.3.6.	OPE Unit...................................................................................................................		3 − 18
3.3.7.	Main board.................................................................................................................		3 − 21
3.3.8.	SMPS Fan..................................................................................................................		3 − 22
3.3.9.	SMPS board ...............................................................................................................		3 − 23
3.3.10.	FDB board .................................................................................................................		3 − 23
3.3.11.	Fuser-Duct Fan ...........................................................................................................		3 − 24
3.3.12.	Main board shield........................................................................................................		3 − 24
3.3.13.	Main Drive unit...........................................................................................................		3 − 25
3.3.14.	Fuser/Exit Drive unit....................................................................................................		3 − 25
3.3.15.	Pick-up Drive unit .......................................................................................................		3 − 26
3.3.16.	Feed Drive unit ...........................................................................................................		3 − 26
3.3.17.	Regi_MP Drive unit.....................................................................................................		3 − 27
3.3.18.	Toner Supply Drive unit................................................................................................		3 − 27
3.3.19.	Waste toner container Drive unit.....................................................................................		3 − 28
3.3.20.	Auto Size sensor .........................................................................................................		3 − 28
3.3.21.	Exit Unit....................................................................................................................		3 − 29
3.3.22.	Side Unit ...................................................................................................................		3 − 30
	3.3.22.1.	Fuser out sensor............................................................................................	3 − 31
	3.3.22.2. Duplex sensor and Curl sensor.........................................................................		3 − 32
	3.3.22.3.	MP unit.......................................................................................................	3 − 33
3.3.23.	Fuser unit...................................................................................................................		3 − 37
3.3.24.	Pick-up Unit and sensor................................................................................................		3 − 40
3.3.25.	Feed sensor ................................................................................................................		3 − 40
3.3.26.	Feed Unit...................................................................................................................		3 − 41
3.3.27.	Registration Unit.........................................................................................................		3 − 42
3.3.28.	DADF Unit ................................................................................................................		3 − 43
	3.3.28.1.	DADF Cover................................................................................................	3 − 44
	3.3.28.2.	DADF Open Cover........................................................................................	3 − 46
	3.3.28.3.	DADF Stacker..............................................................................................	3 − 46
	3.3.28.4.	DADF main board.........................................................................................	3 − 46
	3.3.28.5.	DADF motor_solenoid_clutch .........................................................................	3 − 47
	3.3.28.6.	DADF Regi_Cover_Detect sensor ....................................................................	3 − 49
	3.3.28.7. DADF Exit Idle sensor...................................................................................		3 − 49
	3.3.28.8.	DADF Exit sensor.........................................................................................	3 − 50
	3.3.28.9.	DADF Length_Width sensor ...........................................................................	3 − 50
3.3.29.	Scanner Unit...............................................................................................................		3 − 51
	3.3.29.1.	Scanner joint board........................................................................................	3 − 51
	3.3.29.2.	Scan glass....................................................................................................	3 − 52

Copyright© 1995-2013 SAMSUNG. All rights reserved.

iv

Contents

		3.3.29.3.	APS sensor ..................................................................................................	3 − 53
		3.3.29.4.	FR module...................................................................................................	3 − 54
		3.3.29.5.	Scanner Assy................................................................................................	3 − 55
	3.3.30.	Side Cover Open Switch...............................................................................................		3 − 56
	3.3.31.	Front Cover Open Switch..............................................................................................		3 − 56
	3.3.32.	Replacing the HDD......................................................................................................		3 − 57
	3.3.33.	DCF (Double Cassette Feeder).......................................................................................		3 − 58
		3.3.33.1.	DCF main board ...........................................................................................	3 − 58
		3.3.33.2.	DCF Feed Motor...........................................................................................	3 − 59
		3.3.33.3.	DCF Pick Up Motor.......................................................................................	3 − 59
	3.3.34.	Finisher .....................................................................................................................		3 − 60
		3.3.34.1.	Finisher Main Motor......................................................................................	3 − 60
		3.3.34.2.	Finisher Board..............................................................................................	3 − 63
4. Troubleshooting..................................................................................................................................				4 − 1
4.1.	Control panel ............................................................................................................................			4 − 1
	4.1.1.	Introducing the display screen and useful buttons ................................................................		4 − 2
4.2. Understanding the status LED ......................................................................................................				4 − 4
4.3.	Updating Firmware		....................................................................................................................	4 − 5
	4.3.1.	Updating from the Printer Control Panel ............................................................................		4 − 5
	4.3.2.	Updating from the Network ............................................................................................		4 − 7
4.4. Service Mode (Tech Mode)........................................................................................................				4 − 10
	4.4.1.	Entering/Exiting Service Mode ......................................................................................		4 − 10
	4.4.2.	Service Mode Menu Tree .............................................................................................		4 − 11
	4.4.3.	Information ................................................................................................................		4 − 15
		4.4.3.1.	General .......................................................................................................	4 − 15
		4.4.3.2.	Supply Status ...............................................................................................	4 − 15
		4.4.3.3.	Software Version...........................................................................................	4 − 16
		4.4.3.4.	Service Hours...............................................................................................	4 − 16
		4.4.3.5.	Fault Log.....................................................................................................	4 − 16
		4.4.3.6.	Print Reports ................................................................................................	4 − 17
		4.4.3.7.	Export Reports..............................................................................................	4 − 18
	4.4.4.	Maintenance Counts.....................................................................................................		4 − 19
		4.4.4.1.	Fault Count .................................................................................................	4 − 19
		4.4.4.2.	Jam Count ...................................................................................................	4 − 19
		4.4.4.3.	Part Replacement Count .................................................................................	4 − 20
		4.4.4.4.	Finisher Handling Count.................................................................................	4 − 21
	4.4.5.	Diagnostics ................................................................................................................		4 − 22
		4.4.5.1.	Engine Diagnostics........................................................................................	4 − 22
		4.4.5.2.	Fax Diagnostics ............................................................................................	4 − 28
		4.4.5.3.	Scanner Diagnostics.......................................................................................	4 − 30

v	Copyright© 1995-2013 SAMSUNG. All rights reserved.

			Contents
	4.4.5.4.	Adjustment ..................................................................................................	4 − 32
	4.4.5.5. ACS (Auto Color Sensing) .............................................................................		4 − 38
	4.4.5.6.	Image Management ......................................................................................	4 − 39
4.4.6.	Service Functions ........................................................................................................		4 − 44
	4.4.6.1.	Main Memory Clear ......................................................................................	4 − 44
	4.4.6.2.	Hard Disk Maintenance..................................................................................	4 − 44
	4.4.6.3. Count Setting of Large Page ...........................................................................		4 − 44
	4.4.6.4.	Toner Save ..................................................................................................	4 − 44
	4.4.6.5.	Port ............................................................................................................	4 − 45
	4.4.6.6.	Debug Log...................................................................................................	4 − 45
	4.4.6.7.	Capture Log .................................................................................................	4 − 45
	4.4.6.8.	System Recovery ..........................................................................................	4 − 47
	4.4.6.9.	TR Control Mode .........................................................................................	4 − 50
	4.4.6.10.	User Data Management .................................................................................	4 − 51
4.4.7.	SFE (Special Feature Enablement)..................................................................................		4 − 52
4.5. Error Code and Troubleshooting .................................................................................................			4 − 53
4.5.1.	Ax-xxxx type error code ...............................................................................................		4 − 63
4.5.2.	Cx-xxxx type error code ...............................................................................................		4 − 89
4.5.3.	H1-xxxx type (DCF) error code....................................................................................		4 − 119
4.5.4.	H2-xxxx (Finisher) type error code ...............................................................................		4 − 131
4.5.5.	Mx-xxxx type error code.............................................................................................		4 − 144
4.5.6.	Sx-xxxx type error code..............................................................................................		4 − 164
4.5.7.	U1-xxxx type (Fuser) error code...................................................................................		4 − 184
4.5.8.	U2-xxxx type (LSU) error code....................................................................................		4 − 196
4.5.9.	U3-xxxx type error code .............................................................................................		4 − 199
4.6. Image quality problems and solutions ........................................................................................			4 − 204
4.6.1.	Vertical Black Band ...................................................................................................		4 − 207
4.6.2.	Vertical White Band, Light Band ..................................................................................		4 − 208
4.6.3.	Horizontal periodic Black Band or Dot ..........................................................................		4 − 210
4.6.4.	Horizontal periodic Light/Dark Band or Dot ...................................................................		4 − 211
4.6.5.	Foggy Image ............................................................................................................		4 − 212
4.6.6.	Light Image..............................................................................................................		4 − 213
4.6.7.	Blurred Image...........................................................................................................		4 − 214
4.6.8.	Incorrect color registration .........................................................................................		4 − 215
4.6.9.	Uneven pitch and jitter image ......................................................................................		4 − 216
4.6.10.	Skewed image...........................................................................................................		4 − 217
4.6.11.	Blank copy...............................................................................................................		4 − 218
4.6.12.	Poor fusing performance.............................................................................................		4 − 219
4.6.13.	Stain on the paper back side.........................................................................................		4 − 220
4.7. Adjusting the LSU skew error ..................................................................................................			4 − 221

Copyright© 1995-2013 SAMSUNG. All rights reserved.

vi

Contents

	4.8. Adjusting the DADF skew.......................................................................................................		4 − 223
	4.9.	Troubleshooting Guide ...........................................................................................................	4 − 224
5.	System Diagram..................................................................................................................................		5 − 1
6.	Reference Information..........................................................................................................................		6 − 1
	6.1.	Tools for Troubleshooting............................................................................................................	6 − 1
	6.2.	Glossary...................................................................................................................................	6 − 3
	6.3. Polaris Training Frequently Asked Questions ..................................................................................		6 − 9

vii	Copyright© 1995-2013 SAMSUNG. All rights reserved.

1. Precautions

1. Precautions

In order to prevent accidents and damages to the equipment please read the precautions listed below carefully before servicing the product and follow them closely.

1.1. Safety warning

1)Only to be serviced by a factory trained service technician.

High voltages and lasers inside this product are dangerous. This product should only be serviced by a factory trained service technician.

2)Use only Samsung replacement parts.

There are no user serviceable parts inside the product. Do not make any unauthorized changes or additions to the product as these could cause the product to malfunctions and create an electric shocks or fire hazards.

3)Laser Safety Statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1. Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.

•Wavelength: 800 nm

•Beam divergence

-Paraller: 11 degrees

-Perpendicular: 35 degrees

•Maximum power of energy output: 12 mW

WARNING

Never operate or service the product with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes.

When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury.

4) Lithium battery not replaceable by user

Copyright© 1995-2013 SAMSUNG. All rights reserved.

1-1

1. Precautions

1.2. Caution for safety

1.2.1. Toxic material

This product contains toxic materials that could cause illness if ingested.

1)Please keep imaging unit and toner cartridge away from children. The toner powder contained in the imaging unit and toner cartridge may be harmful, and if swallowed, you should contact a doctor.

1.2.2. Electric shock and fire safety precautions

Failure to follow the following instructions could cause electric shock or potentially cause a fire.

1)Use only the correct voltage, failure to do so could damage the product and potentially cause a fire or electric shock.

2)Use only the power cable supplied with the product. Use of an incorrectly specified cable could cause the cable to overheat and potentially cause a fire.

3)Do not overload the power socket, this could lead to overheating of the cables inside the wall and could lead to a fire.

4)Do not allow water or other liquids to spill into the product, this can cause electric shock. Do not allow paper clips, pins or other foreign objects to fall into the product, these could cause a short circuit leading to an electric shock or fire hazard.

5)Never touch the plugs on either end of the power cable with wet hands, this can cause electric shock. When servicing the product, remove the power plug from the wall socket.

6)Use caution when inserting or removing the power cord. When removing the power cord, grip it firmly and pull. The power cord must be inserted completely, otherwise a poor contact could cause overheating leading to a fire.

7)Take care of the power cable. Do not allow it to become twisted, bent sharply around corners or power cable may be damaged. Do not place objects on top of the power cable. If the power cable is damaged it could overheat and cause a fire. Exposed cables could cause an electric shock. Replace the damaged power cable immediately, do not reuse or repair the damaged cable. Some chemicals can attack the coating on the power cable, weakening the cover or exposing cables causing fire and shock risks.

1-2	Copyright© 1995-2013 SAMSUNG. All rights reserved.

1. Precautions

8)Ensure that the power sockets and plugs are not cracked or broken in any way. Any such defects should be repaired immediately. Take care not to cut or damage the power cable or plugs when moving the machine.

9)Use caution during thunder or lightning storms. Samsung recommends that this machine be disconnected from the power source when such weather conditions are expected. Do not touch the machine or the power cord if it is still connected to the wall socket in these weather conditions.

10)Avoid damp or dusty areas, install the product in a clean well ventilated location. Do not position the machine near a humidifier or in front of an air conditioner. Moisture and dust built up inside the machine can lead to overheating and cause a fire or cause parts to rust.

11)Do not position the product in direct sunlight. This will cause the temperature inside the product to rise possibly leading to the product failing to work properly and in extreme conditions could lead to a fire.

12)Do not insert any metal objects into the machine through the ventilator fan or other part of the casing, it could make contact with a high voltage conductor inside the machine and cause an electric shock.

13)	When replacing the SMPS board, please wait 5 minutes after unplugging the power cord, then replace it. You

can get a shock by the electric discharge.

Copyright© 1995-2013 SAMSUNG. All rights reserved.

1-3

1. Precautions

1.2.3. Handling precautions

The following instructions are for your own personal safety to avoid injury and so as not to damage the product.

1)Ensure the product is installed on a level surface, capable of supporting its weight. Failure to do so could cause the product to tip or fall.

2)The product contains many rollers, gears and fans. Take great care to ensure that you do not catch your fingers, hair or clothing in any of these rotating devices.

3)Do not place any small metal objects, containers of water, chemicals or other liquids close to the product which if spilled could get into the machine and cause damage or a shock or fire hazard.

4)Do not install the machine in areas with high dust or moisture levels, beside on open window or close to a humidifier or heater. Damage could be caused to the product in such areas.

5)Do not place candles, burning cigarettes, etc on the product, These could cause a fire.

6)Ensure that the machine is installed and used in proper area to meet the temperature and humidity specifications.

•If the machine is stored at below zero Celsius for a long time, do not use the machine instantly after movement. It can malfunction. Take care of the machine storage. If the machine is stored at below zero Celsius for a long time, keep the machine at room temperature and install it.

1.2.4. Assembly and Disassembly precautions

1)Replace parts carefully and always use Samsung parts. Take care to note the exact location of parts and also cable routing before dismantling any part of the machine. Ensure all parts and cables are replaced correctly. Please carry out the following procedures before dismantling the product or replacing any parts.

2)Ensure that power is disconnected before servicing or replacing any electrical parts.

3)Disconnect interface cables and power cables.

4)Only use approved spare parts. Ensure that part number, product name, any voltage, current or temperature rating are correct.

5)When removing or re-fitting any parts do not use excessive force, especially when fitting screws into plastic.

6)Take care not to drop any small parts into the machine.

7)Handling of the OPC Drum

•The OPC Drum can be irreparably damaged if it exposed to light. Take care not to expose the OPC Drum either to direct sunlight or to fluorescent or incandescent room lighting. Exposure for as little as 5 minutes can damage the surface of the photoconductive properties and will result in print quality degradation. Take extra care when servicing the product. Remove the OPC Drum and store it in a black bag or other lightproof container. Take care when working with the Covers (especially the top cover) open as light is admitted to the OPC area and can damage the OPC Drum.

•Take care not to scratch the green surface of OPC Drum Unit. If the green surface of the Drum Cartridge is scratched or touched the print quality will be compromised.

1-4	Copyright© 1995-2013 SAMSUNG. All rights reserved.

1. Precautions

1.2.5. Disregarding this warning may cause bodily injury

1)Be careful with the high temperature part.

The fuser unit works at a high temperature. Use caution when working on the printer. Wait for the fuser unit to cool down before disassembly.

2)Do not put fingers or hair into the rotating parts.

When operating a printer, do not put hand or hair into the rotating parts (Paper feeding entrance, motor, fan, etc.). If do, you can get harm.

3)When you move the printer, use safe lifting and handling techniques.

This printer is heavy. Use the lifting handles located on each side of the machine. Back injury could be caused if you do not lift carefully.

4)Ensure the printer is installed safely.

Ensure the printer is installed on a level surface, capable of supporting its weight. Failure to do so could cause the printer to tip or fall possibly causing personal injury or damaging the printer.

5)Do not install the printer on a sloping or unstable surface. After installation, double check that the printer is stable.

Copyright© 1995-2013 SAMSUNG. All rights reserved.

1-5

1. Precautions

1.3. ESD precautions

Certain semiconductor devices can be easily damaged by static electricity. Such components are commonly called “Electrostatically Sensitive (ES) Devices” or ESDs. Examples of typical ESDs are: integrated circuits, some field effect transistors, and semiconductor “chip” components. The techniques outlined below should be followed to help reduce the incidence of component damage caused by static electricity.

CAUTION

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

1)Immediately before handling a semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, employ a commercially available wrist strap device, which should be removed for your personal safety reasons prior to applying power to the unit under test.

2)After removing an electrical assembly equipped with ESDs, place the assembly on a conductive surface, such as aluminum or copper foil, or conductive foam, to prevent electrostatic charge buildup in the vicinity of the assembly.

3)Use only a grounded tip soldering iron to solder or desolder ESDs.

4)Use only an “anti-static” solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs.

5)Do not use Freon-propelled chemicals. When sprayed, these can generate electrical charges sufficient to damage ESDs.

6)Do not remove a replacement ESD from its protective packaging until immediately before installing it. Most replacement ESDs are packaged with all leads shorted together by conductive foam, aluminum foil, or a comparable conductive material.

7)Immediately before removing the protective shorting material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

8)Maintain continuous electrical contact between the ESD and the assembly into which it will be installed, until completely plugged or soldered into the circuit.

9)Minimize bodily motions when handling unpackaged replacement ESDs. Normal motions, such as the brushing together of clothing fabric and lifting one’s foot from a carpeted floor, can generate static electricity sufficient to damage an ESD.

1-6	Copyright© 1995-2013 SAMSUNG. All rights reserved.

2. Product Specifications and Description

2. Product Specifications and Description

2.1. Product Overview

•Printing Speed (Mono/Color)

•CLX-9301 series

-Up to 30 ppm in A4 (30 ppm in Letter)

-Up to 15 ppm in A3 (15 ppm in 11x17)

•CLX-9251 series

-Up to 25ppm in A4 (25 ppm in Letter)

-Up to 13 ppm in A3 (13 ppm in 11x17)

•CLX-9201 series

-Up to 20 ppm in A4 (20 ppm in Letter)

-Up to 10 ppm in A3 (10 ppm in 11x17)

•Processor

•Dual Core 1GHz

•Memory

•1GB DDR3 SDRAM

Copyright© 1995-2013 SAMSUNG. All rights reserved.

2-1

2. Product Specifications and Description

2.2. Specifications

Product Specifications are subject to change without notice.

2.2.1. General Specification

	Item		Specfication
	Configuration		• ND model : Platen cover model.
			• NA model : DADF model.
	Temperature	Operating	10 to 32 °C (50 to 90 °F)
		Storage	-20 to 40 °C (-4 to 104 °F)
	Humidity	Operating	20 to 80% RH
		Storage	10 to 90% RH
		Printing Simplex /	• CLX-9301 series : 50 /52 dB
			• CLX-9251 series : 49 /51 dB
		Duplex
			• CLX-9201 series : 48/ 50 dB
	Acoustic Noise
			• CLX-9301 series : 53 /55 dB
	Level (Sound	Copying Simplex /
			• CLX-9251 series : 53 /55 dB
	Power / Pressure)	Duplex
			• CLX-9201 series : 53/ 55 dB
		Standby (Fuser off)	30 dB
		Sleep	27 dB
			Europe : AC 220-240V(-10%~6%) / 4A
	Power Supply	Input Voltage	USA : AC 110~127V (-10%~6%) / 10A
			Korea : AC 220-240V(-10%~6%) / 4A
		Rated Frequency	50 / 60 Hz
		Ready	100 Watt
	Power	AVG. (Normal	800 Watt
		Operation)
	Consumption
		Max/Peak	< 1500 Watt max
		Sleep/Power Off	3 Watt / 0 Watt
			• 560 x 600 x 787.3 mm (22 x 23.6 x 31 inches) (includes Platen Cover)
	Dimension (W x D		• 560 x 600 x 844.3 mm (22 x 23.6 x 33.2 inches) (includes DADF)
		Set (mm)	• 560 x 600 x 1046.6 mm (22 x 23.6 x 41.2 inches) (includes Platen Cover,
	x H)		Stand)
			• 560 x 600 x 1106.3 mm (22 x 23.6 x 43.6 inches) (includes DADF, DCF)
			• Basic machine (includes developer unit) : 67.6 Kg (149 lb)
			• Platen Cover : 2.4 Kg (5.3 lb)
			• DADF : 4.9 Kg (10.8 lb)
	Weight	Set (Kg)	• DCF : 19.5 Kg (43 lb)
			• Stand : 12 Kg (26.5 lb)
			• Job Separator : 1.5 Kg (3.3 lb)
			• Inner Finisher : 8.5 Kg (18.7 lb)
			• Drum Unit and Toner Cartridges : 6.5 Kg (14.3 lb)

2-2	Copyright© 1995-2013 SAMSUNG. All rights reserved.

			2. Product Specifications and Description
Item		Specfication
Reliability &	Recommended	•	CLX-9301 series : 7,500 sheets/month
Service	Printing Volume	•	CLX-9251 series : 5,000 sheets/month
	(AMPV)	•	CLX-9201 series : 3,500 sheets/month
	Max. Monthly	100,000 sheets/month
	Print Volume

2.2.2. Print Specifications

Item	Specification

•CLX-9301 series

•B&W : Up to 30 ppm in A4 (30 ppm in Letter)

•Color : Up to 30 ppm in A4 (30 ppm in Letter)

•B&W : Up to 15 ppm in A3 (15 ppm in 11X17)

•Color : Up to 15 ppm in A3 (15 ppm in 11X17)

•CLX-9251 series

•B&W : Up to 25 ppm in A4 (25 ppm in Letter)

Engine Speed

Simplex

• Color : Up to 25 ppm in A4 (25 ppm in Letter)

•B&W : Up to 13 ppm in A3 (13 ppm in 11X17)

•Color : Up to 13 ppm in A3 (13 ppm in 11X17)

•CLX-9201 series

•B&W : Up to 20 ppm in A4 (20 ppm in Letter)

•Color : Up to 20 ppm in A4 (20 ppm in Letter)

•B&W : Up to 10 ppm in A3 (10 ppm in 11X17)

•Color : Up to 10 ppm in A3 (10 ppm in 11X17)

Copyright© 1995-2013 SAMSUNG. All rights reserved.

2-3

2. Product Specifications and Description

	Item		Specification
			•	CLX-9301 series
				• [Basic (Without 2nd EXIT)]
				- B&W : Up to 21 ipm in A4 (21 ipm in Letter)
				- Color : Up to 21 ipm in A3 (21 ipm in 11×17)
				- B&W : Up to 11 ipm in A4 (11 ipm in Letter)
				- Color : Up to 11 ipm in A3 (11 ipm in 11×17)
				• [With 2nd EXIT (Option)]
				- B&W : Up to 30 ipm in A4 (30 ipm in Letter)
				- Color : Up to 30 ipm in A3 (30 ipm in 11×17)
				- B&W : Up to 11 ipm in A4 (11 ipm in Letter)
				- Color : Up to 11 ipm in A3 (11 ipm in 11×17)
			•	CLX-9251 series
				• [Basic (Without 2nd EXIT)]
				- B&W : Up to 17 ipm in A4 (17 ipm in Letter)
				- Color : Up to 17 ipm in A3 (17 ipm in 11×17)
				- B&W : Up to 9 ipm in A4 (9 ipm in Letter)
		Duplex		- Color : Up to 9 ipm in A3 (9 ipm in 11×17)
				• [With 2nd EXIT (Option)]
				- B&W : Up to 25 ipm in A4 (25 ipm in Letter)
				- Color : Up to 25 ipm in A3 (25 ipm in 11×17)
				- B&W : Up to 9 ipm in A4 (9 ipm in Letter)
				- Color : Up to 9 ipm in A3 (9 ipm in 11×17)
			•	CLX-9201 series
				• [Basic (Without 2nd EXIT)]
				- B&W : Up to 14 ipm in A4 (14 ipm in Letter)
				- Color : Up to 14 ipm in A3 (14 ipm in 11×17)
				- B&W : Up to 7 ipm in A4 (7 ipm in Letter)
				- Color : Up to 7 ipm in A3 (7 ipm in 11×17)
				• [With 2nd EXIT (Option)]
				- B&W : Up to 20 ipm in A4 (20 ipm in Letter)
				- Color : Up to 20 ipm in A3 (20 ipm in 11×17)
				- B&W : Up to 7 ipm in A4 (7 ipm in Letter)
				- Color : Up to 7 ipm in A3 (7 ipm in 11×17)
			• CLX-9301 series : Less than 9/11 sec (B&W/Color)
		From Ready	•	CLX-9251 series : Less than 9.5/11.5 sec (B&W/Color)
	FPOT (B&W and		• CLX-9201 series : Less than 10/12.5 sec (B&W/Color)
			•	CLX-9301 series : Less than 27/29 sec (B&W/Color)
	Color)
		From Sleep	•	CLX-9251 series : Less than 28/30 sec (B&W/Color)
			• CLX-9201 series : Less than 29/31 sec (B&W/Color)
		From Coldboot	Less than 100/100 sec (B&W/Color)
		Optical	600 x 600 dpi
	Resolution		• Normal : 2400*600 dpi Effective Output (600 x 600 x 2bit)
		Enhanced	•	Best : 9600*600 dpi Effective Output (600 x 600 x 4bit)
			• High Quality : Real 1200*1200 dpi

2-4	Copyright© 1995-2013 SAMSUNG. All rights reserved.

			2. Product Specifications and Description
Item			Specification
Printer Languages			PCL5Ce, PCL6Ce, PostScript Level3C, TIFF, PDF 1.4, JPEG
Fonts			PCL:93 scalable, 1 bitmap, OCR-A, OCR-B, PS:136
Downloadable Fonts			Yes (PCL & PS3 S/W Font)
		Secure Printing	Yes
		Delayed	No
		(Shceduled)
Print Job (with		Printing
		Proof printing	No
HDD )
		Spool	Yes
		Stored Printing	Yes
		Form overlays	No
USB Memory Direct Print			Jpeg, Tiff, PDF, Samsung PRN, TXT

Copyright© 1995-2013 SAMSUNG. All rights reserved.

2-5

2. Product Specifications and Description

2.2.3. Controller and Software specification

	Item		Specification
	Processor	MPU	Chorus4N Dual Core 1GHz
		Image Processor	Embedded in Chorus4N
	DRAM	Std.	1GB DDR3 SDRAM
		Max.	1GB DDR3 SDRAM
	Memory Expansion		N.A.
			320GB HDD Standard

			NOTE
			HDD Partition Map
			- Mandatory, 157GB for users, EXT3 file system
Storage
			HDD_DOC partition is available for the user data storage.
		[Windows]
			• Windows 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ 2008/ Win7/
			2008 R2(64 only)
		[Linux]
			• RedHat Enterprise Linux WS 4, 5 (32/64bit)
			• Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13 (32/64bit)
	Supporting OS		• SuSE Linux 10.1 (32bit)
Printer driver			• OpenSuSE 10.2 10.3, 11.0, 11.1, 11.2 (32/64bit)
			• Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64bit)
			• Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04 8.10, 9.04, 9.10, 10.04 (32/64bit)
			• SuSE Linux Enterprise Desktop 10, 11 (32/64bit)
			• Debian 4.0, 5.0 (32/64bit)
		[Mac]
			• Mac OS X 10.5 ~ 10.7
	Default Driver	PCL6 (For Windows), PS (for Mac, Linux)

2-6	Copyright© 1995-2013 SAMSUNG. All rights reserved.

				2. Product Specifications and Description
	Item		Specification
			•	[Windows]
				• Watermark, Overlay, N-up printing, Poster printing
				• Duplex, Quality, Color mode (Color, Gray scale)
		Driver feature		• Support Color spec., Device color, color management
			•	[Mac/Linux]
				• N-up printing, Duplex, Quality
				• Color mode (Color, Gray scale)
		WHQL
		(Windows	Windows 2000/ XP(include 64bit)/ 2003/ Vista/ 2008/ Win7/ 2008 R2(64 only)
		Hardware Quality
		Labs)
		Language	23 countries( Arabic/ Portuguese Brazilian/ Simplified Chinese / Traditional
			Chinese/ Czech/ Danish/ Dutch/ Greek/ English/ Finnish/ French/ German/ Hebrew/
		Localization	Hungarian/ Italian/ Korea/ Norweigian/ Polish/ Portuguese / Russian/ Spanish /
			Swedish /Turkish)
		Status Monitor	Yes (Windows Only)
		(Lite SM)
		TWAIN	Yes
		WIA	No
			[Windows]
			• Windows 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/
				2008(32/64bit)/ Win7/ 2008 R2(64 only)
			[Linux]
			• RedHat Enterprise Linux WS 4, 5 (32/64bit)
	Scan driver		• Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13 (32/64bit) - SuSE Linux 10.1 (32bit)
		Supporting OS	• OpenSuSE 10.2 10.3, 11.0, 11.1, 11.2 (32/64bit)
			• Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64bit)
			• Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04 8.10, 9.04, 9.10, 10.04 (32/64bit)
			• SuSE Linux Enterprise Desktop 10, 11 (32/64bit)
			• Debian 4.0, 5.0 (32/64bit)
			[Mac]
			• Mac OS X 10.5 ~ 10.6
		Scan Manager	Yes (Win, Mac)
		Scan Assistant	Yes (Win, Mac)
		PC-FAX	No
		Network-FAX	Yes (Win, Mac)
		Samsung Easy	Yes (Win, Mac)
	Application	Printer Manager
		Network	Set IP, SWAS 5.0 & SWS 2.0 SWAS Plug-In : Job Accounting, Storage management,
		Management	Cloning, Remote Install
		HDD File	No
		Management S/W
		AnyWeb Print	Yes
		SmarThru	Smarthru Office, SmarThru Workflow(Optional)

Copyright© 1995-2013 SAMSUNG. All rights reserved.

2-7

2. Product Specifications and Description

■ Interface

	Item		Specification
	Parallel (IEEE 1284)		No
	USB	Type A, Host	High-Speed USB 2.0 Host (2-port)
		Type B, Device	Hi-Speed USB 2.0 Peripheral (1-port)
	Wired LAN		Ethernet 10/100/1000 Base TX
	Wireless LAN		No
	Foreign Device Interface		Optional

■ Network Interface

	Item		Specification
			• Microsoft Windows 2000/ XP(32/64bits)/ 2003(32/64bits)/ Vista(32/64bits)/
			Win7
			[Mac]
			• Mac OS X 10.5 ~ 10.6
			[Linux]
			• RedHat 8 ~ 9
	Network OS		• Fedora Core 1~4
			• Madrake 9.2 ~ 10.1
			• SuSE 8.2 ~ 9.2
			[Novell]
			• Netware 5.x, 6.x(TCP/IP Only)
			[Others]
			• Unix(HP-UX,Solaris,SunOS, SCO)
		TCP/IP	TCP/IPv4, HTTP, SNMPv1/v2c/v3, LDAP, SMTP, SSL/TLS, IPSec, DNS,WINS,
			SLP, Bonjour, SSDP,DDNS, DHCP/BOOTP,IPv6
		IPX/SPX	No
	Network Protocols	Ether Talk	No
		NetBIOS over	Yes
		TCP/IP
		Others	HTTPS, LDAPS, IPSec, 802.1x
		Static IP	Yes
	IP Addressing	Auto IP	Yes
		BOOTP	Yes
		DHCP	Yes

2-8	Copyright© 1995-2013 SAMSUNG. All rights reserved.

2. Product Specifications and Description

■ Memory (HDD) Management

	Item		Specification
		Type	No
		Stored Job Type	No
	Box Management
		Max. Number of	No
		Boxes
		Box Size	No
		Creation	No
		Rename	No
		Move & Copy	No
		Delete	No
	Document
		Search	No
	Management
		Display detail	No
		information
		Select	No
		Auto Delete Time	No
		Setting
		Email	Yes
		Client	Yes
	Memory to	i-Fax	No
		Server	Yes
		Multi Destination	No
		Copies	Yes
		Duplex Printing	Yes
	Memory to Print	Color Mode	Yes
		Autofit	Yes
	Setting
		Paper Supply	Yes
		Binding Space	1-50mm left, right, top, bottom (PC Print only)
		Erase Edge	No
	Image Overwrite	Immediate	Yes
		On-Demand	Yes
		Supported Job	Print / Copy / Scan / Fax
		Type
	Data Encrytion
		Cryptography	AES
		Key length	256bit

Copyright© 1995-2013 SAMSUNG. All rights reserved.

2-9

2. Product Specifications and Description

2.2.4. Scan specification

	Item		Specification
	Scan method		Color CCDM-MMT
	Compatibility		TWAIN(N/W)
	Color Mode		Mono / Gray / Color
		B/W (Lineart,	ScanToEmail/SMB/FTP : 45ipm @ 300dpi (A4 LEF standard)
		Halftone)	PC scan : 15 sec @300dpi (P4-3GHz, 1G, NW 100M, A4 LEF Standard)
	Scan Speed	Gray	ScanToEmail/SMB/FTP : 45ipm @ 300dpi (A4 LEF Standard)
			PC scan : 20 sec @300dpi (P4-3GHz, 1G, NW 100M, A4 LEF Standard)
		Color	ScanToEmail/SMB/FTP : 45ipm @ 300dpi (A4 LEF Standard)
			PC scan : 30 sec @300dpi (P4-3GHz, 1G, NW 100M, A4 LEF Standard)
	Resolution	Optical	600 x 600 ppi
		Enhanced	4,800 x 4,800 ppi
	Halftone		256 levels
		Max. Document	Max.297mm (11.7")
		Width
	Scan Size	Effective Scan	Max 291mm
		Width
		Max. Document	Max.432mm
		Length
		Color	24 bits
	Scan Depth
		Mono	• 1bit for Linearity & Halftone
			• 8Bits for Gray scale
	Multi-page Scan		Platen & DADF
		HDD	Yes (Shared Folder)
		USB	Yes
		Email	Yes
		Client	Yes (N/W)
	Scan-to	SMB	Yes
		FTP	Yes
		HTTP(S)	No
		WebDAV	No
		Multi Destination	No
		Email, Fax, Server	User Based Individual (Fax+Email+Server) : 500
			Group : (Fax+Email) : 499
			Searching
	Address Book		Editing
		Basic Feature
			Deleting
			Grouping
			import, export

2-10	Copyright© 1995-2013 SAMSUNG. All rights reserved.

2. Product Specifications and Description

	Item		Specification
		Mixed Document	Yes
		Scan Preset	No
		Delayed Send	No
	Scan Setting	Job Done notice	No
		Recent	Yes
		OCR	No
		Job Build	Yes
		Book Scan	No

Copyright© 1995-2013 SAMSUNG. All rights reserved.

2-11

2. Product Specifications and Description

2.2.5. Copy specification

	Item		Specification
			•	CLX-9301 series
				• B&W Simplex: up to 30 cpm in A4 & Letter
				• Color Simplex: up to 30 cpm in A4 & Letter
				• B&W Duplex: up to 21 cpm in A4 & Letter
				• Color Duplex: up to 21 cpm in A4 & Letter
			•	CLX-9251 series
		SDMC (Single		•	B&W Simplex: up to 25 cpm in A4 & Letter
		Document		•	Color Simplex: up to 25 cpm in A4 & Letter
		Multiple Copy)		•	B&W Duplex: up to 17 cpm in A4 & Letter
				• Color Duplex: up to 17 cpm in A4 & Letter
			•	CLX-9201 series
	Copy Speed			•	B&W Simplex: up to 20 cpm in A4 & Letter
	(DADF)			•	Color Simplex: up to 20 cpm in A4 & Letter
				• B&W Duplex: up to 14 cpm in A4 & Letter
				• Color Duplex: up to 14 cpm in A4 & Letter
			•	CLX-9301 series
				•	Simplex-to-Duplex(1-2): up to 21 cpm in A4 & Letter
				•	Duplex -to-Duplex(2-2): up to 16 cpm in A4 & Letter
		MDMC (Multiple	•	CLX-9251 series
		Document		•	Simplex-to-Duplex(1-2): up to 17 cpm in A4 & Letter
		Multiple Copy)		•	Duplex -to-Duplex(2-2): up to 16 cpm in A4 & Lette
			•	CLX-9201 series
				•	Simplex-to-Duplex(1-2): up to 14 cpm in A4 & Letter
				•	Duplex -to-Duplex(2-2): up to 14 cpm in A4 & Letter
			• CLX-9301 series : Less than 6/8 seconds (from platen, B&W/Color)
		From Ready	•	CLX-9251 series : Less than 7/8 seconds (from platen, B&W/Color)
	FCOT (B&W and		• CLX-9201 series : Less than 7.5/8.5 seconds (from platen, B&W/Color)
			•	CLX-9301 series : Less than 24/26 seconds (from platen, B&W/Color)
	Color)
		From Sleep	•	CLX-9251 series : Less than 25/27 seconds (from platen, B&W/Color)
			• CLX-9201 series : Less than 26/28 seconds (from platen, B&W/Color)
		From Coldboot	Less than 100/100 seconds (from platen, B&W/Color)
	Zoom Range		25% ~ 400% in 1% increments (Platen/DADF)
	Multi Copy		1~9999
		Text	•	Platen: Scan 600 x 600 dpi, Printing 600 x 600 x 2bit
			• DADF : Scan 600 x 600 dpi, Printing 600 x 600 x 2bit
		Text/Photo	•	Platen: Scan 600 x 600dpi, Printing 600 x 600 x 2bit
			• DADF : Scan 600 x 600dpi, Printing 600 x 600 x 2bit
	Original Type	Magazine	No
		Photo	•	Platen: Scan 600 x 600 dpi, Printing 600 x 600 x 4bit
			• DADF : Scan 600 x 600 dpi, Printing 600 x 600 x 4bit
		Copied Original	•	Platen: Scan 600 x 600 dpi, Printing 600 x 600 x 2bit
			• DADF : Scan 600 x 600 dpi, Printing 600 x 600 x 2bit

2-12	Copyright© 1995-2013 SAMSUNG. All rights reserved.

				2. Product Specifications and Description
	Item		Specification
		Map	•	Platen: Scan 600 x 600 dpi, Printing 600 x 600 x 2bit
			• DADF : Scan 600 x 600 dpi, Printing 600 x 600 x 2bit
		Light Original	•	Platen: Scan 600 x 600dpi, Printing 600 x 600 x 2bit
			• DADF : Scan 600 x 600dpi, Printing 600 x 600 x 2bit
	Original Type	Factory Default	Color Copy Text/Photo (Mixed) Mode
		Auto Color	Yes
		Full Color	Yes
	Color Setting	Twin Color	No
		Single Color	No
		B&W	Yes
	Max. Original Size	Platen	297 x 432 mm (11.7" x 17")
		DADF	297 x 432 mm (11.7" x 17")
		Multi Copy	1~9999
		Automatic Paper	Yes
		Selection
		Manual Paper	Yes
		Selection
		Multi-page Copy	Platen & DADF
			Using Platen
			•	1→1Sided
			• 1→2Sided (Output : Book, Calendar)
	Basic Copy	Duplex Copy	Using DADF
			•	1→1Sided
			• 1→2Sided (Output: Book, Calendar)
			• 2→1Sided (Original: Book, Calendar)
			• 2→2Sided (Original: Book, Calendar, Output: Book, Calendar)
		Darkness Control	11 Levels
		Collation Copy	Yes
			* Zoom Range : 25% to 400% in Platen and DADF
		Reduce & Enlarge	* Preset: [Original(100%)] [Auto Fit] … 25%, 50%, 150%, 200%, 400%
			[Custom:25-400%)]
		Proof Copy	No
		N-Up	2up ~ 32 up
		ID Card Copy	Yes (Platen only)
		Poster Copy	No
		Clone Copy	No
	Other Features	(Image Repeat)
		Booklet	No
		Covers	Yes
		Transparencies	No
		Book Copy	Yes (Platen only)
		Scan to Document	No

Copyright© 1995-2013 SAMSUNG. All rights reserved.

2-13

2. Product Specifications and Description

Item		Specification
	Margin Shift	No
	Book Center Erase	Yes
	Form Copy	No
	Watermark Copy	Yes
	Stamp	Yes
	Job Program	Yes
	Adjust	Auto, Erase(4 levels), Enhance(2 levels)
	Background
	Job Build	Yes
	Rotation Copy	No
	Mirror	No

2.2.6. Fax specification

Item		Specification
Compatibility		ITU-T G3, Super G3
Communication System		PSTN/PABX
Modem Speed		33.6 Kbps
TX Speed		3 sec (Mono/Standard/ECM-MMR, ITU-T G3 No.1 Chart,A4)
Compression		MH/MR/MMR/JBIG/JPEG
Color Fax		Yes
ECM		Yes
	Std	203*98 dpi
	Fine	203*196 dpi
Resolution (Mono)	S.Fine Photo	No
	S.Fine	300*300 dpi
	Ultra Fine	600*600 dpi
	Std	1.5sec/LTR
Scan speed	Fine	4sec/LTR
	S.Fine	Depends on Document
	Handset	No
	On hook Dial	Yes
	Search	Yes (Phone Book)
	Speed Dial	500 locations
Telephone	Group Dial	Max. 100 Groups (Max. locations per 1 Group : 100 locations)
Features	TAD I/F	Yes
	Tone/Pulse	Yes
	Pause	Yes
	Auto Redial	Yes
	Redial	Yes

2-14	Copyright© 1995-2013 SAMSUNG. All rights reserved.

2. Product Specifications and Description

	Item		Specification
		Distinctive Ring	No
		Caller ID	Yes
		External Phone	Yes
		Interface
		Mail Box	No
		Voice Request	No
		TTI	Yes
		RTI	Yes
		Polling	No
		Earth/Recall	No
		Auto Reduction	Yes
		SMS	No
		Multi-send	Same as Group Dial Capacity.
	Functions
		Delayed Send	Yes
		Memory RX	Yes
		Secure Rx	Yes
		Time Secured Fax	Yes
		Relay
		Transmission	No
		(ITU-T Mail Box)
		Priority	No
		Transmission
		Batch	No
		Transmission
		Searching	Yes
		Storing	Yes
	Address Book	Editing	Yes
		Deleting	Yes
	Basic Feature
		Grouping	Yes
		Chaining	No
		import, export	Yes
		Search condition	No
		Favorites Button	No
	Address Book
		Curent Sending
	Advanced	, Receiving Tel	Yes(Curent Sending )
		number
		LDAP	Yes

Copyright© 1995-2013 SAMSUNG. All rights reserved.

2-15

2. Product Specifications and Description

Item			Specification
		Check the Success	Yes
		or Fail & Error
		Re-Faxing from
		memory in case of	Yes
Sending fax		failed Fax
Management		Re-Faxing in case	Yes
		of failed page.
		Delete in memory
		after sending	Yes
		completely
		Separator Sheet	No
		Insert the stamp	Yes(Option -On,Off) Rx Time ,ID, Page
Fax Receiving		NumberofPrinting	No
Feature/ Printing		Copies
the Rx Document
		Revers order	No
		printing
		tray selection	Yes
		Tx/Rx Journal	Yes
Report & List Print		Confirmation	2 type(Image TCR or w/o Image TCR)
out		Auto Dial List	No
		System Data List	No
		Ring Volume	Yes (7 steps and mute)
Sound Control		Key Volume	Yes (7 steps and mute)
		Speaker	Yes (7 steps and mute)
		Alarm Volume	Yes (7 steps and mute)
Junk Fax barrier			No
Security Receive			Yes
Battery Backup			Permanently stored on HDD
Duplex		Send	Yes
		Receive	Yes
Receive Mode			Fax, TEL, Ans/Fax
Battery Backup			HDD Store, 500 jobs
Fax Forward to FAX			No
Fax Forward to e-mail			Yes
Broadcasting			up to 505 locations
Cover page			No

2-16	Copyright© 1995-2013 SAMSUNG. All rights reserved.
