Operating instructions
Multiple socket with overvoltage GB protection device
Eγχειρίδιο οδηγιών χρήσης GR
Πολύπριζο με διάταξη προστασίας υπέρτασης
BAT
Lindenstraße 35
72074 Tübingen
Deutschland
0453234
|
ENGLISH |
TABLE OF CONTENTS |
|
Scope of supply.............................................. |
2 |
Safety instructions ......................................... |
2 |
For your safety.............................................. |
3 |
Intended use................................................. |
4 |
Product overview............................................ |
4 |
Structure ....................................................... |
4 |
Functionality.................................................. |
5 |
Technical data................................................. |
6 |
Operation......................................................... |
7 |
Switching on/off ............................................ |
7 |
Procedure with control light off ..................... |
7 |
Maintenance and cleaning............................. |
8 |
Disposal........................................................... |
8 |
Warranty and service ..................................... |
9 |
Declaration of conformity............................ |
10 |
1
ENGLISH
INTRODUCTION
Please read the operating instructions carefully.
Keep the operating instructions and give them to each user of the multiple socket. For the use of the multiple socket observe the safety instructions contained in the operating instructions.
For questions on spare parts or repairs please contact the manufacturer.
SCOPE OF SUPPLY
•1 x multiple socket
•1 x operating instructions
SAFETY INSTRUCTIONS
Please observe the following safety instructions. Failure to comply with the instructions can result in personal injury and damage.
Damages caused by failure to comply with the operating instructions, especially the safety and handling instructions, void the warranty. The manufacturer cannot be held responsible for any subsequent damage.
2
ENGLISH
FOR YOUR SAFETY
DANGER
Danger to life from electric shock
Do not touch damaged, exposed or energized parts. Danger from electric shock
Make sure you check the multiple socket for damages before use. Do not use the multiple socket if the cable insulations or the casing are damaged.
CAUTION
Devices switching on accidentally
When switching on the multiple socket, the connected devices might accidentally switch on.
Before switching on or off the multiple socket, make sure you disconnect all the connected devices.
•To avoid danger, a damaged connecting line of the multiple socket should be
replaced by the manufacturer, by a Service representative or a skilled technician only.
•Do not manipulate or alter the multiple socket.
•Repairs should be performed by a skilled technician only.
•Keep the multiple socket away from children.
3
ENGLISH
INTENDED USE
The multiple socket should be used in dry rooms, exclusively for private purposes. Do not use near liquids that might leak or spout (e.g. aquarium).
Any other use is not permitted.
PRODUCT OVERVIEW
STRUCTURE

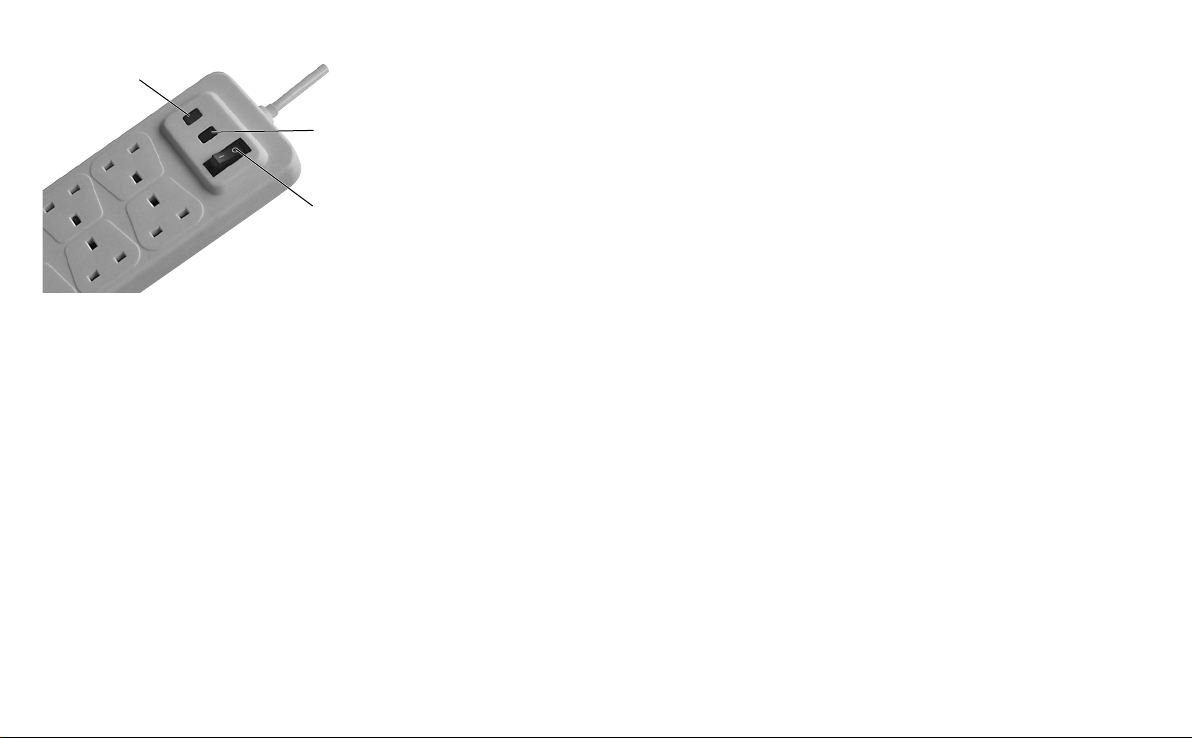

The legend refers to the product picture in the inner side of the package.
1Illuminated on/off switch
2Overvoltage protection control light
3Earth control light
The multiple socket has 8 child-proof sockets.
4
ENGLISH
FUNCTIONALITY
The multiple socket is equipped with an overvoltage protection device. The overvoltage protection device prevents the devices connected to the multiple socket from being damaged by overvoltage in the main supply.
Overvoltages are caused, for instance, by indirect lighting strikes or by the activation of other electrical appliances (monitors, ovens, lamps, etc.).
For a correct operation, the multiple socket should be connected to a socket with a professionally installed protective conductor.
The overvoltage protection is active if the control light 2 is on.
In case of failure of the overvoltage protection device, the control light goes out.
If the earth control light 3 is on, the earth circuit is connected properly to the socket.
If the earth control light is not on, please allow your electrical installation to be inspected by an expert.
5
ENGLISH
TECHNICAL DATA
Name: Multiple socket with overvoltage protection device, type KF-EBD-08K
Supply voltage: 240 V~ / 50 Hz
Highest continuous voltage UC: 250 V / 50 Hz Max. surge current: 4500A
Total output: max. 13 A / 3120 W
Cutout: 13 A (in the plug)
SPD according to EN 6164311:2002:+A11:2007 Type 3 Combined surge UOC (L-N): 3 kV Combined surge UOC (L/N-PE): 3 kV Protection level U P (L-N): 1,8 kV Protection level UP (L/N-PE): 1,8 kV
Connecting line: 05VV-F 3G x 1,25 mm², length: 3 m
6
