Digital Cordless Phone
Model No. KX-TCD715EM
Operating Instructions
1 4 7
2 |
3 |
|
5 |
||
6 |
||
8 |
||
9 |
||
0 |
||
|
GHI4
PQRS7
1
JKL TUV8 0
ABC |
|
|
|
2 |
DEF |
5 |
|
MNO |
|
|
|
|
|
6 |
|
WXYZ |
|
|
|
9 |
3
R
PLEASE READ BEFORE USE AND SAVE.
Caller ID Compatible
Charge the batteries for about 15 hours before initial use.
This equipment is not designed for making emergency telephony calls when the power fails. Alternative arrangements should be made for access to emergency services.
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 2
Thank you for purchasing your new Panasonic digital cordless telephone.
•Order accessory items for all Communications Products with ease and confidence either by telephoning our Customer Care Centre on:
08705 357357 Monday - Friday 9:00am - 5:30pm
•Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk.
•Most major credit and debit cards accepted.
•All enquires transactions and distribution facilities are provided directly by Panasonic UK Ltd.
•It couldn't be simpler!
Dear purchaser,
You have acquired a KX-TCD715EM, which is a product made in regard with the European Standards for Cordless Telephones (DECT). DECT technology is characterised by high-security protection against interceptions as well as high-quality digital transmission.
This telephone was designed for a wide range of applications.
For example, this telephone can be used within a network of base units and handsets, constituting a telephone system which:
•operates up to 6 handsets at one base unit
•allows an intercom between 2 handsets
•allows the operation of a handset at up to 4 base units, expanding the communication radio area.
This telephone may be used for:
•operating several handsets
•operating at several base units
•connecting the base unit to a PBX.
Important Information
Do not connect the AC adaptor to any AC outlet other than the standard AC 220–240 V, 50 Hz.
Outlet voltage DC 9 V, 200 mA
•The apparatus is approved for use with the PQLV1E power supply.
•CAUTION: Do not remove cover. Live parts inside.
This apparatus has been approved for the use of the following facilities:
1)Storage of names and telephone numbers in the phonebook for retrieval
2)Last number redial
3)Simple telephone facility
4)PBX earth register recall (option) PBX timed break register recall
5)MF signalling
2
6)Pause
7)Intercom
8)Call prohibition
9)Call restriction
10)Direct call
11)Intercom between handsets
12)Transferring a call from one handset to another
13)Conference
14)Setting the call waiting tone
15)Accessing the base unit
16)Caller ID service compatible
Any other usage will invalidate the approval of the apparatus if as a result, it then ceases to conform to the standards against which approval was granted.
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 3
Method of connection
This is connected to the exchange line or PABX/PMBX (Private Automatic/Manual Branch Exchange) extension by the new standard British Telecom plug and socket. Arrangements for provision of this type of termination can be made through the nearest British Telecom Sales Office. The apparatus may be connected to the following types of installation. The apparatus has been approved for use under the following conditions:
a)This apparatus may be used on telecommunication systems employing MF signalling. It is suitable for connection to a direct exchange line on the PSTN (Public Switched Telephone Network) or via a compatible PBX (Private Branch Exchange). (Contact the supplier for an up to date list of compatible PBX’s.)
b)This apparatus is not suitable as an extension to a payphone or for use on a party line with shared service.This cordless telephone has been designed to operate on radio frequencies which have been assigned to the exclusive use of cordless telephones. As the use of cordless telephones becomes more widespread users may experience a reduction in the quality of service obtainable from this apparatus.
Although this equipment can use either loop disconnected or DTMF signalling, only the performance of the DTMF signalling is subject to regulatory requirements for correct operation. It is therefore strongly recommended that the equipment is set to use DTMF signalling for access to public or private emergency services. DTMF signalling also provides faster call set up.
999 or 112 can be dialled on the apparatus for the purposes of making outgoing calls to the BT Emergency (999 or 112) Service.
WARNING: |
|
|
The apparatus may be unable to make |
Chapter |
|
emergency 999 or 112 telephone calls, |
||
|
||
under certain conditions, e.g. |
|
|
• Radio interference caused by another |
|
|
cordless telephone operating on the |
|
|
same radio frequency. |
1 |
|
• The portable handset battery needs |
||
|
||
recharging, or has failed. |
|
|
• The portable handset cannot be used |
|
|
while charging. |
|
|
• When KEY LOCK is set to ON. |
|
|
• When the unit is in Direct Call Mode. |
|
|
Any cases of difficulty should be referred |
|
|
in the first instance to the supplier of the |
|
|
apparatus. |
|
|
NOTE: |
|
|
If you experience any problems with the |
|
|
normal use of your apparatus, you should |
|
|
unplug it from the telephone outlet and |
|
|
connect a known working telephone in its |
|
|
place. If the known working telephone still |
|
|
gives problems, then please contact the |
|
|
customer service department of your |
|
|
PSTN operator. If it operates properly, |
|
|
then the problem is likely to be a fault in |
|
|
your apparatus. In this case, contact your |
|
|
supplier for advice. Your PSTN operator |
|
|
may charge you if they attend a service |
|
|
call that is not due to apparatus supplied |
|
|
by them. |
|
3
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 4
Before Initial Use
Caller ID, where available, is a telephone company service. After subscribing to Caller ID, this phone will display the caller’s phone number. A second caller’s phone number displays while the user is on another call, requires a subscription to both Caller ID and Call Waiting.
For your future reference
Serial No. |
Date of purchase |
(found on the bottom of the unit)
Name and address of dealer
Included with this unit
AC Adaptor (p. 11) |
Telephone Line |
Batteries (p. 12) |
Handset Cover (p. 12) |
Part No. PQLV1E |
Cord (p. 11) |
Part No. |
Part No. |
|
Part No. PQJA87S |
BYD N4DH33B00001 |
PQKK10109Z5 |
one |
one |
two |
one |

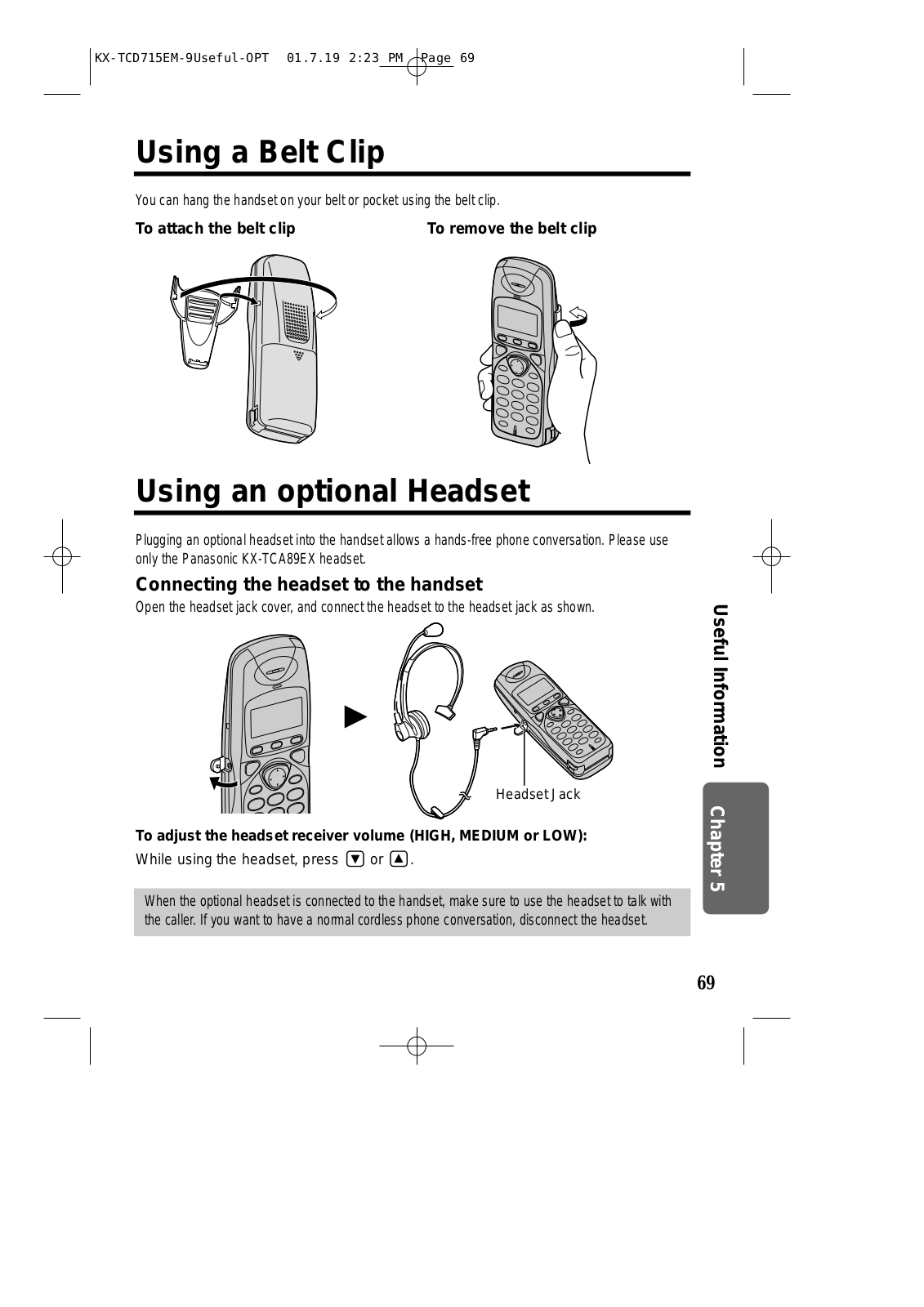

Belt Clip (p. 69) |
|
Wall Mounting (p. 72) |
Operating Instructions |
Part No. PQKE10120Z2 |
|
Part No. PQKL10038Y2 |
Part No. PQQX12950Z |
one |
one |
one |
Optional accessories
Please contact the place of purchase for the following options.
Model No. |
Description |
KX-A115E |
Handset/Charger |
|
|
P6H |
Ni-Cd batteries |
|
|
KX-A109EX |
Option covers |
|
|
4
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 5
For Best Performance
Battery Charge
Rechargeable Nickel-Metal Hydride (Ni-MH) batteries power the handset. Install the batteries (p. 12) and charge them for about 15 hours before initial use (p. 12).
Base Unit Location
Calls are transmitted between the base unit and the handset using wireless radio waves. For maximum distance and noise-free operation, the recommended base unit location is:
Away from electrical appliances such as a TV, radio, personal computer or another telephone.
In a HIGH and CENTRAL location with no obstructions such as walls.
Operating range:
The range of operation depends on the construction of your home, weather and usage conditions. Normally you will get longer range outdoors than indoors.
Obstacles such as walls, metal shelves or cement-iron walls may shorten the operating range.
Noise:
Occasional noise or interference may occur due to other random radio waves.
5
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 6
Contents
Chapter 1 |
|
Preparation |
|
Location of Controls .............................. |
8 |
Display ................................................... |
10 |
Settings ................................................. |
11 |
Connections ........................................ |
11 |
Installing the Batteries in the Handset .. |
12 |
Battery Charge .................................... |
12 |
Turning the Power ON ........................ |
13 |
Summary of Programmable |
|
Functions ............................................... |
14 |
Programmable Settings ...................... |
18 |
Setting the Display Language ............. |
18 |
Selecting the Auto Talk Feature .......... |
18 |
Setting the Date and Time .................. |
19 |
Selecting the Handset Ringer |
|
Volume ................................................ |
20 |
Selecting the Base Unit Ringer |
|
Volume ................................................ |
20 |
Chapter 2 |
|
Basic Operations |
|
Making Calls ......................................... |
21 |
With the Handset................................. |
21 |
With the Base Unit |
|
(Digital Speakerphoe) ........................ |
24 |

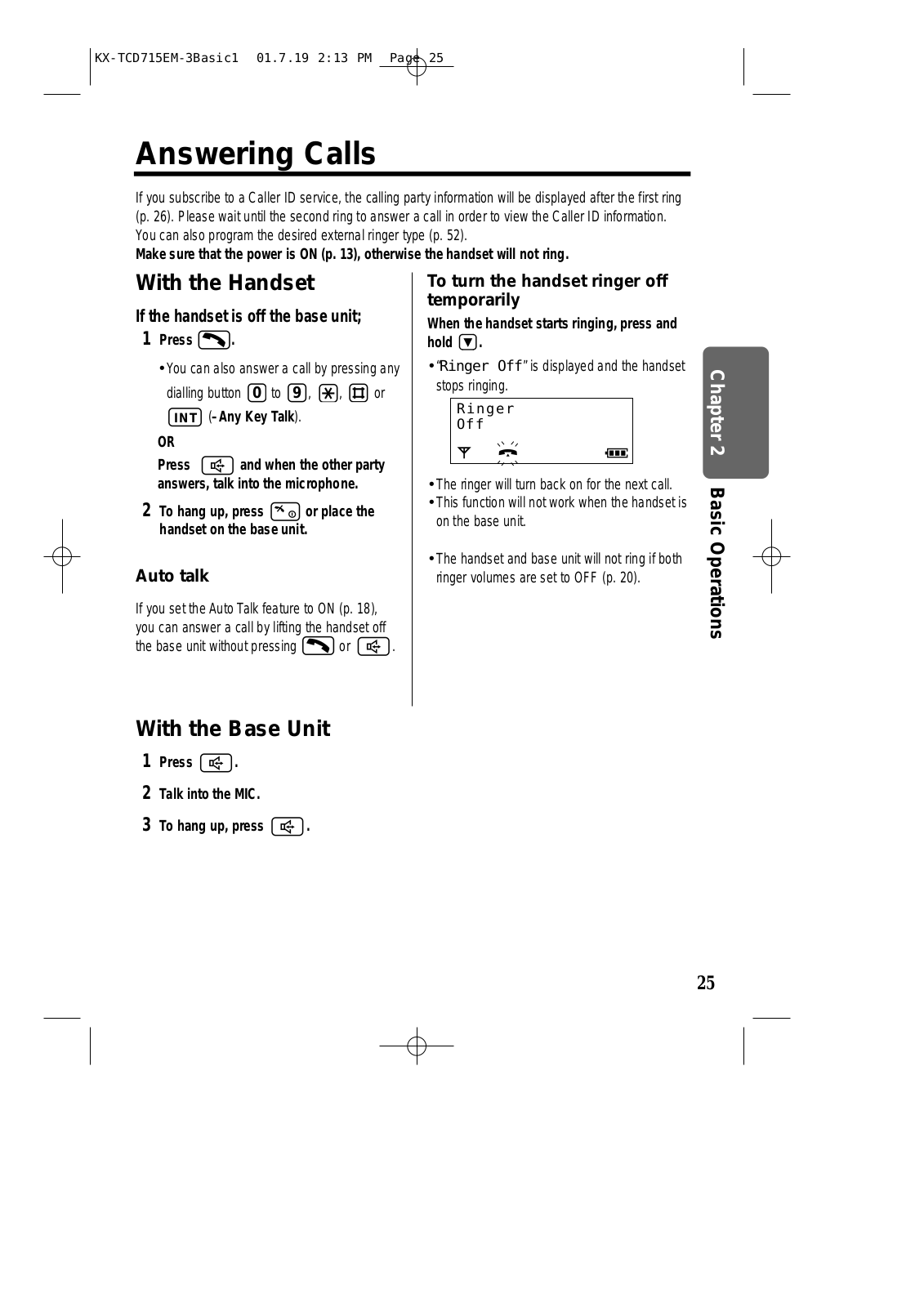

Answering Calls ................................... |
25 |

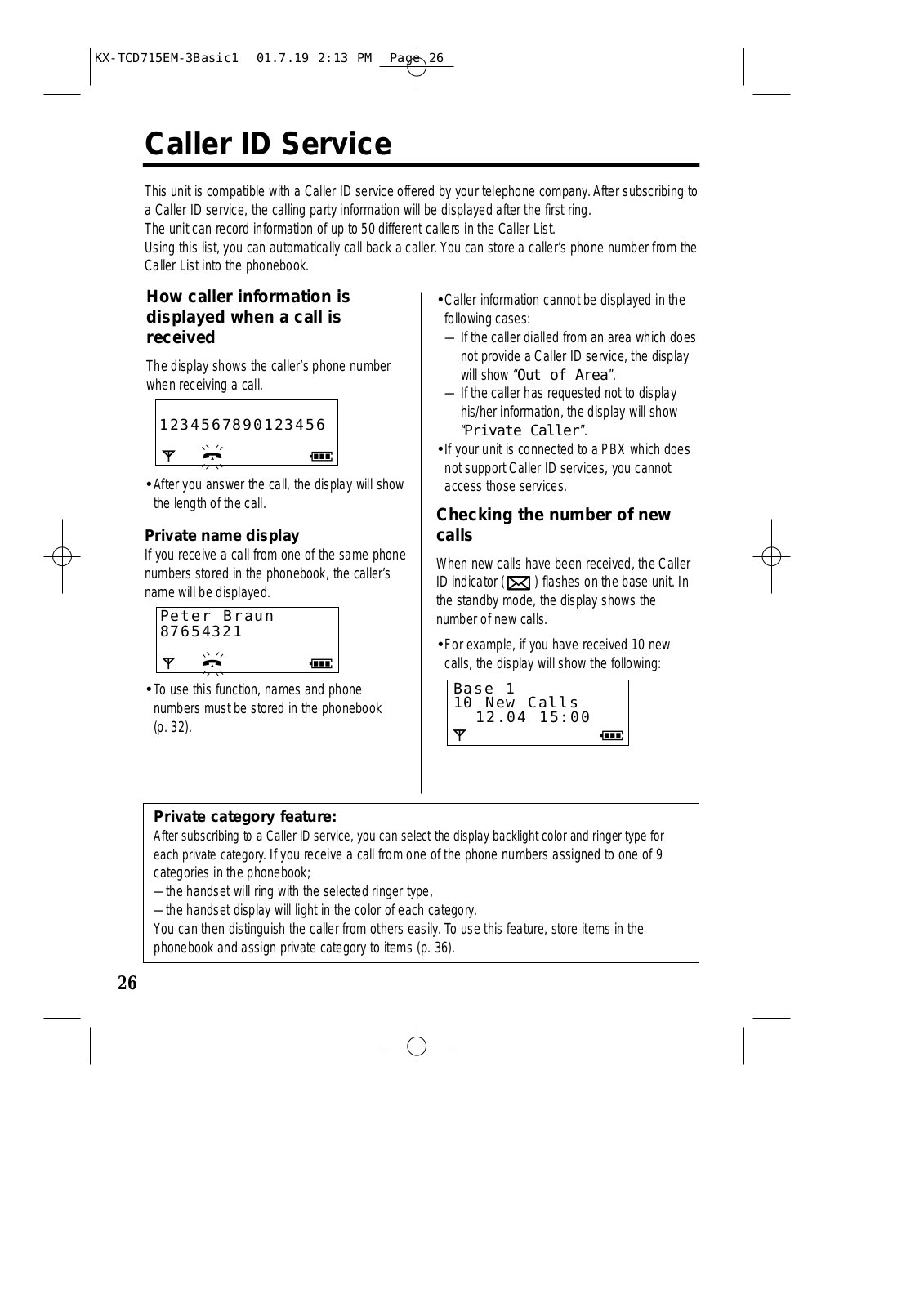

Caller ID Service .................................. |
26 |

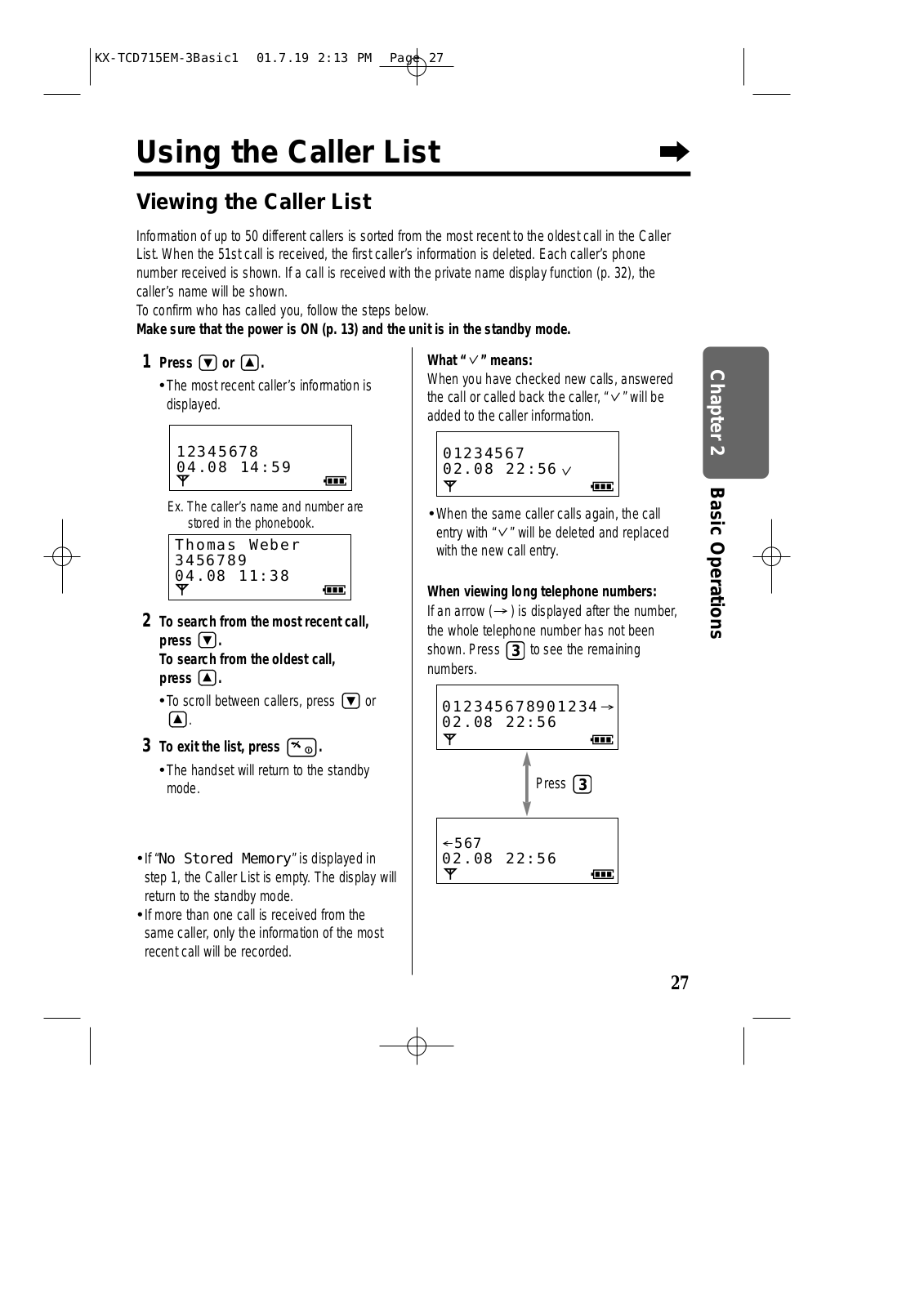

Using the Caller List ............................ |
27 |
Viewing the Caller List......................... |
27 |

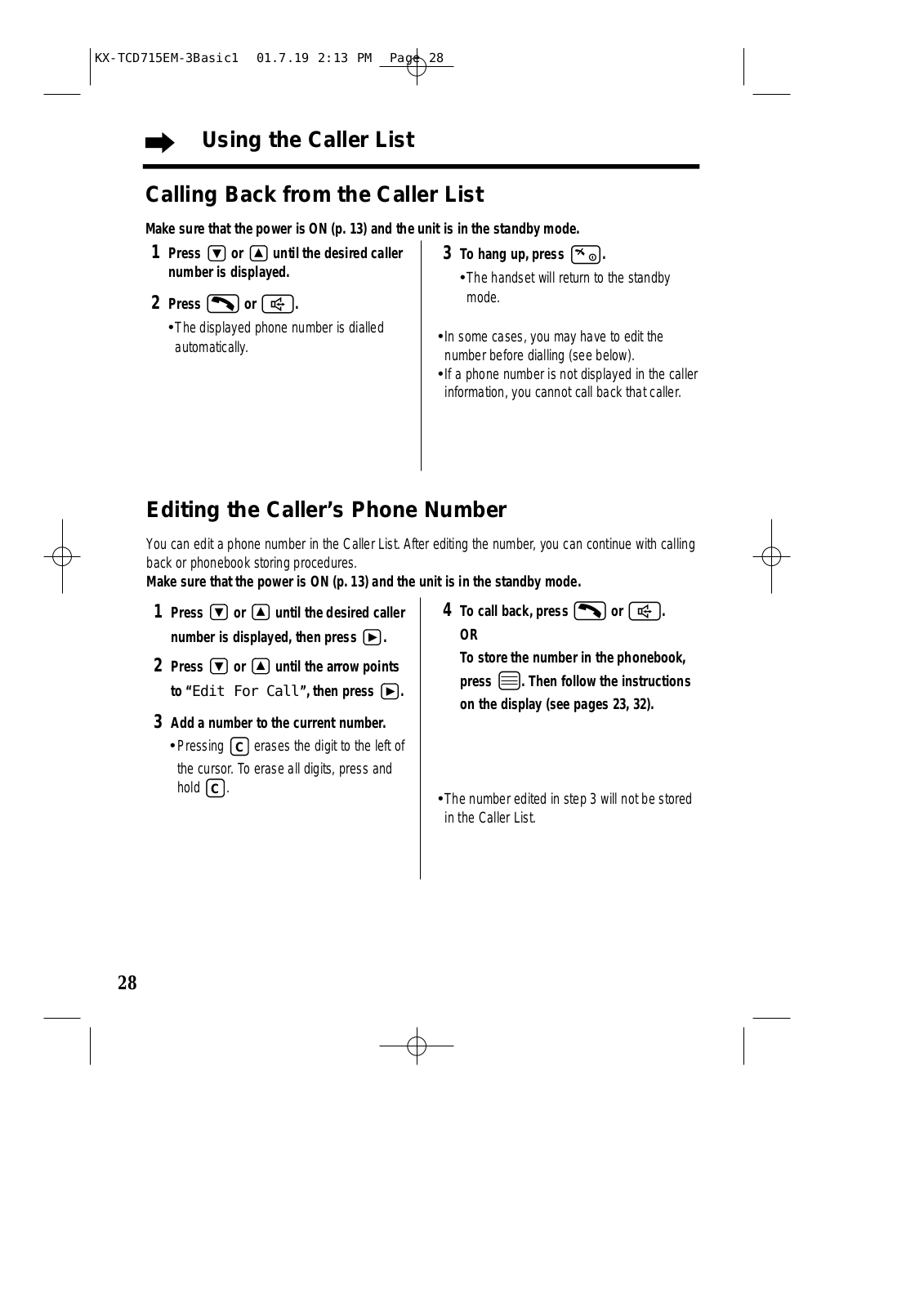

Calling Back from the Caller List......... |
28 |
Editing the Caller’s Phone Number..... |
28 |
Storing the Caller List Information |
|
in the Phonebook ................................ |
29 |

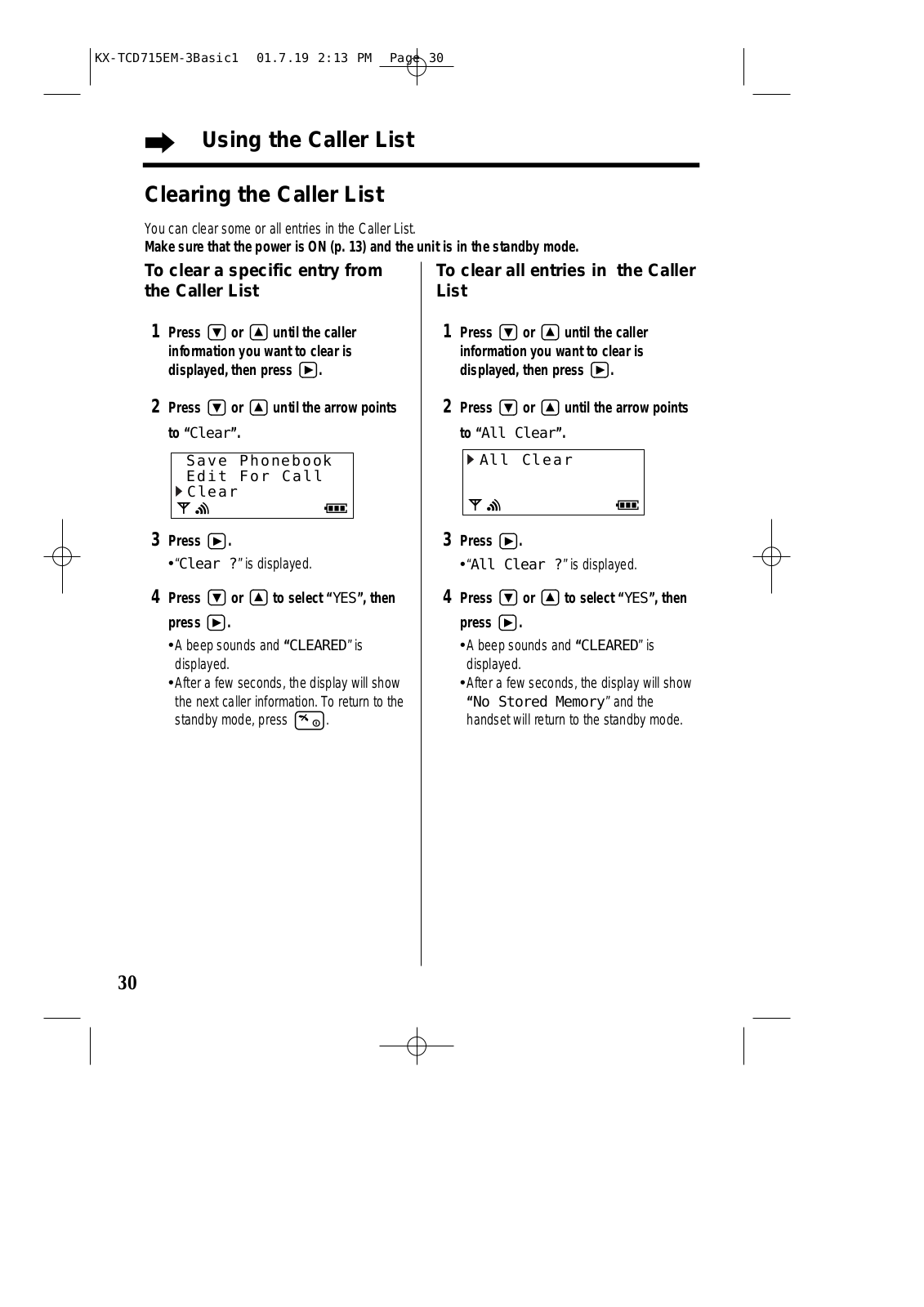

Clearing the Caller List........................ |
30 |

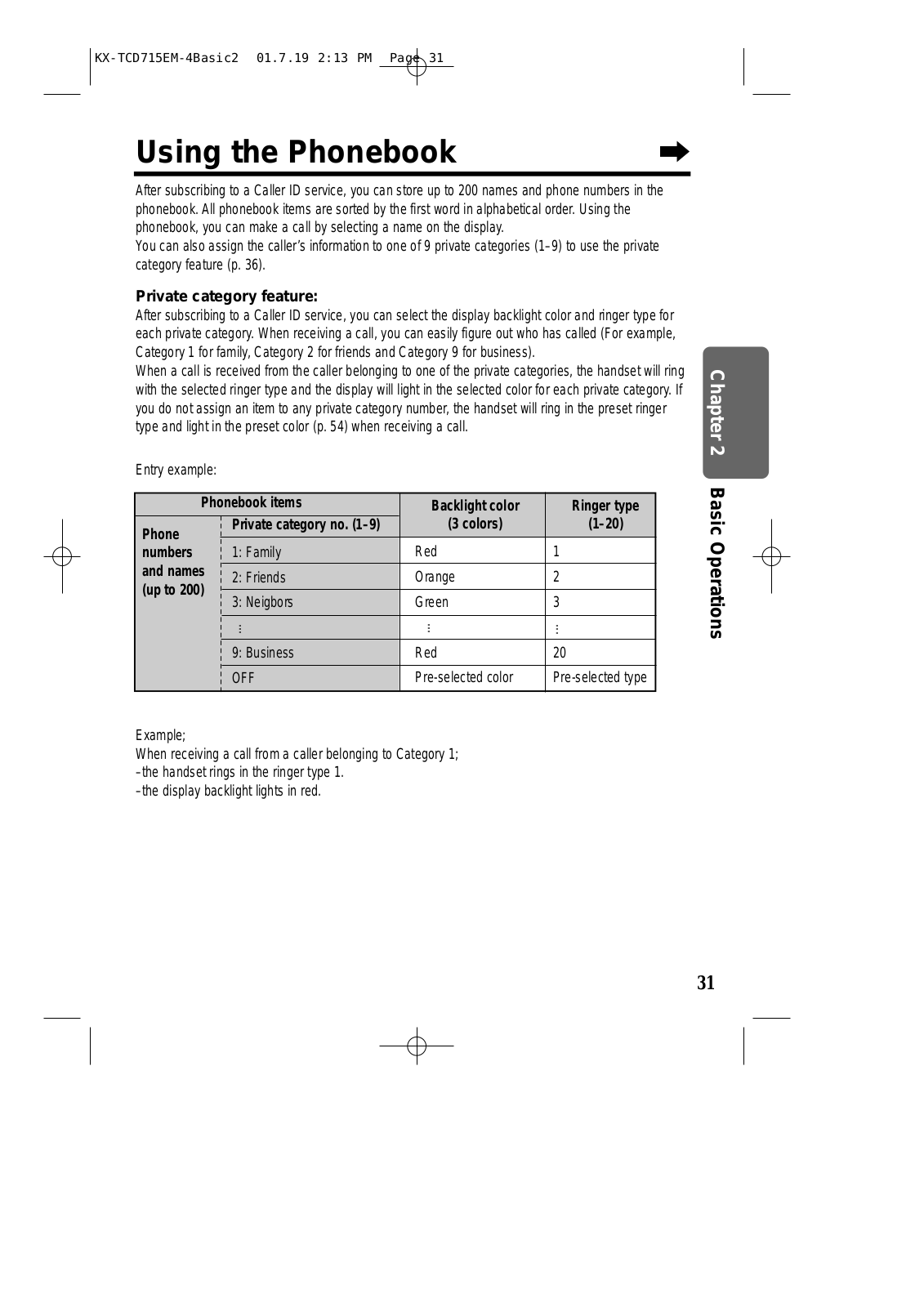

Using the Phonebook .......................... |
31 |

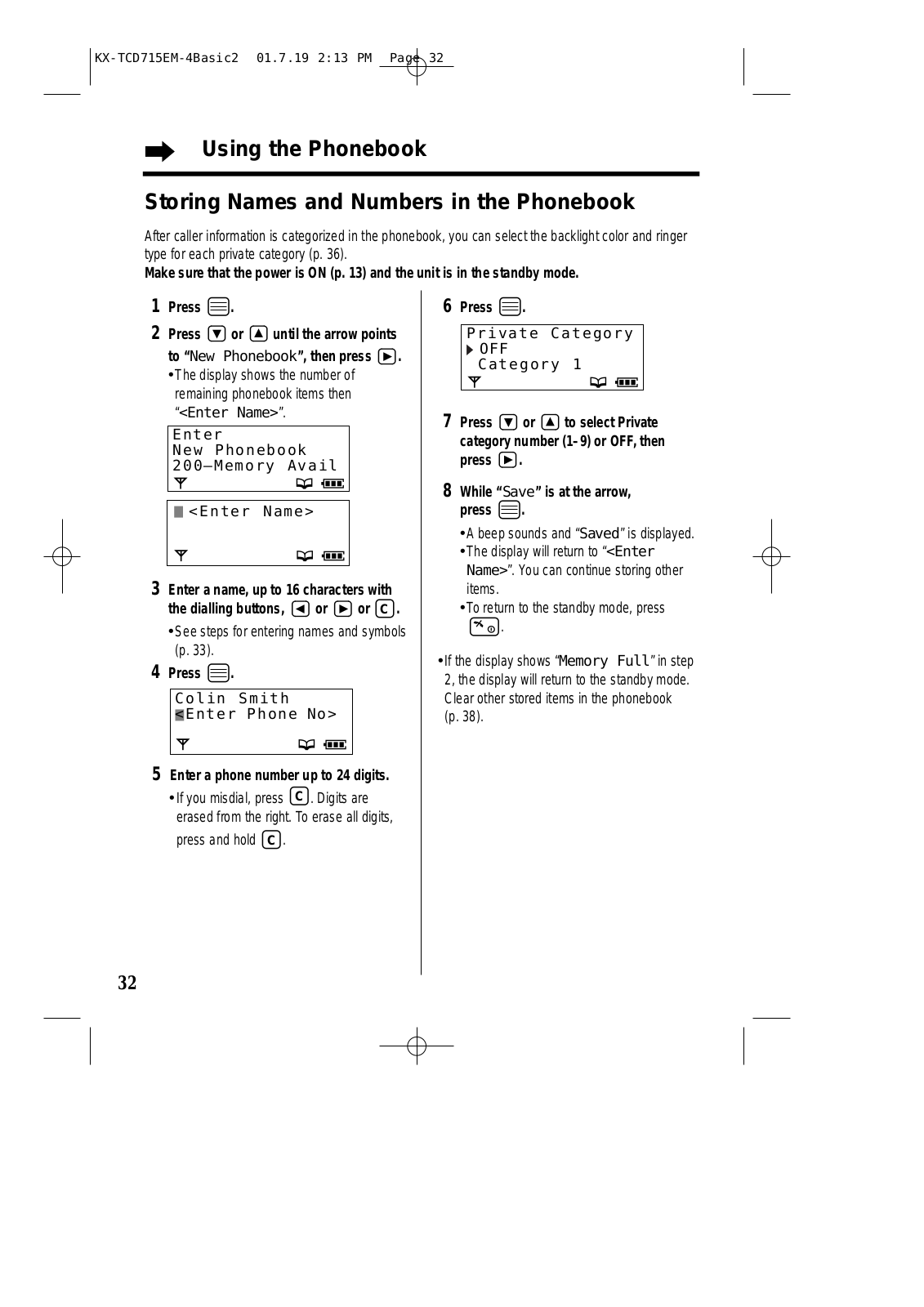

Storing Names and Numbers in the |
|
Phonebook .......................................... |
32 |

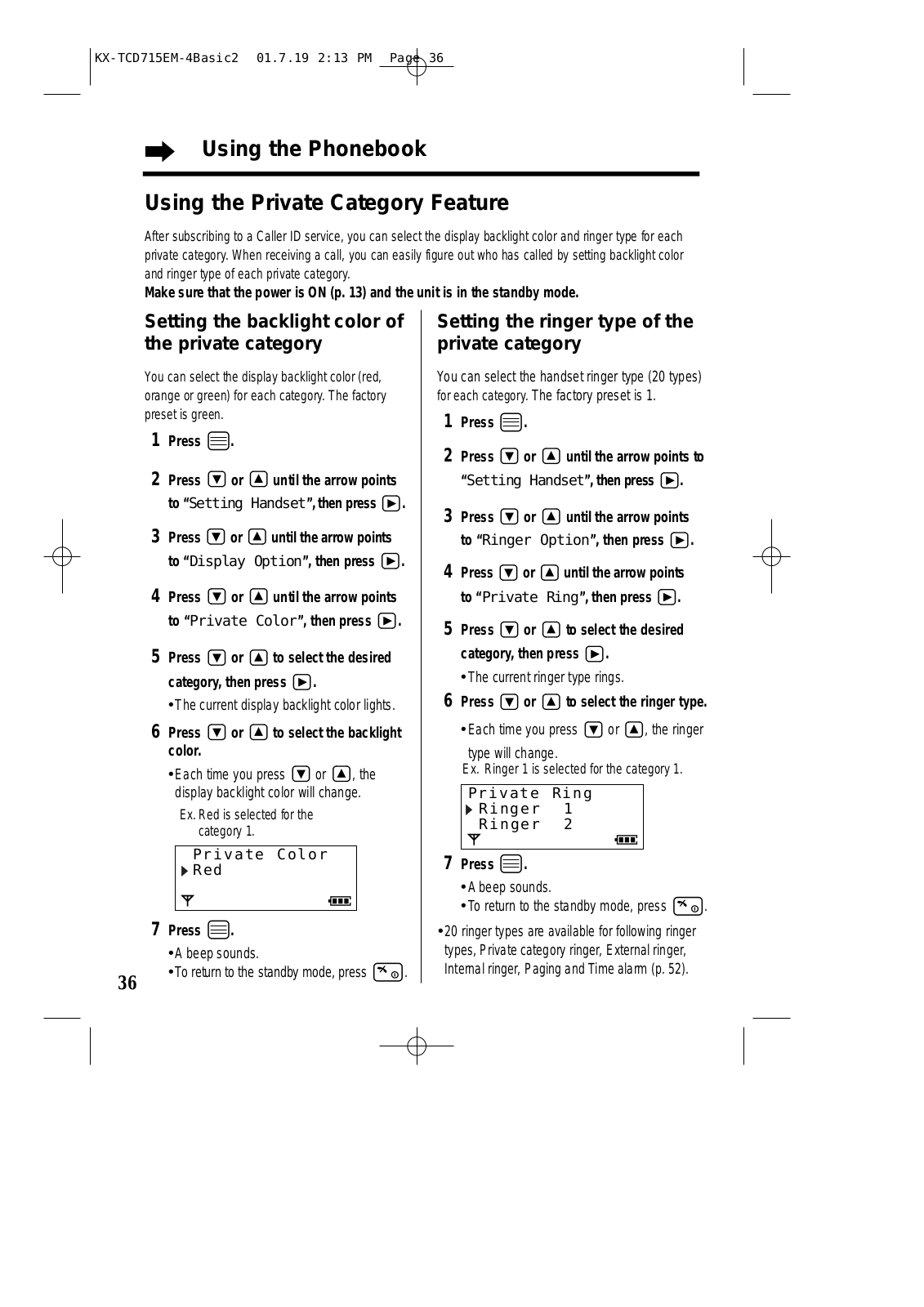

Using the Private Category Feature.... |
36 |

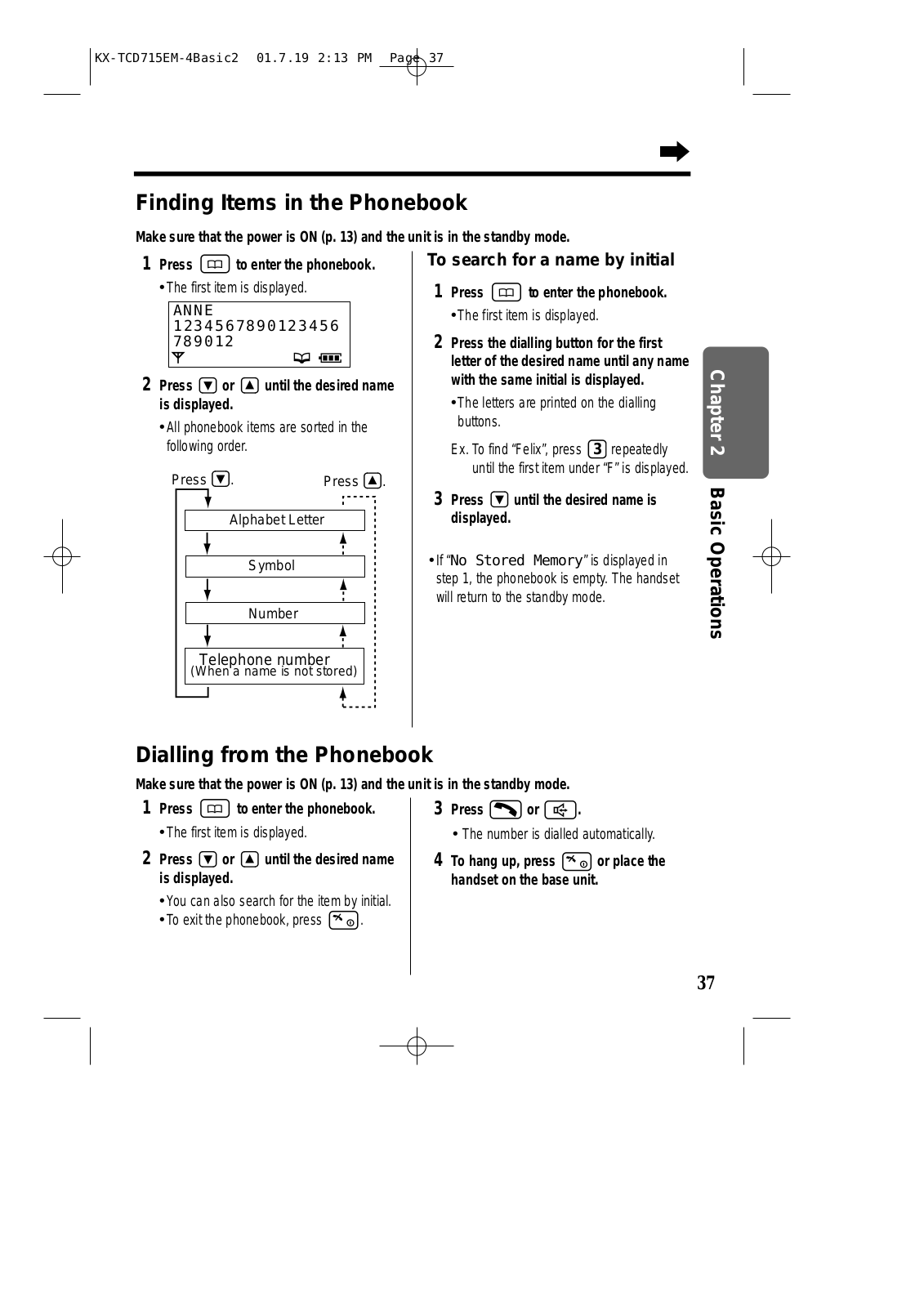

Finding Items in the Phonebook ......... |
37 |
Dialling from the Phonebook ............... |
37 |
Editing an Item in the Phonebook ....... |
38 |
Clearing an Item from the Phonebook .. |
38 |

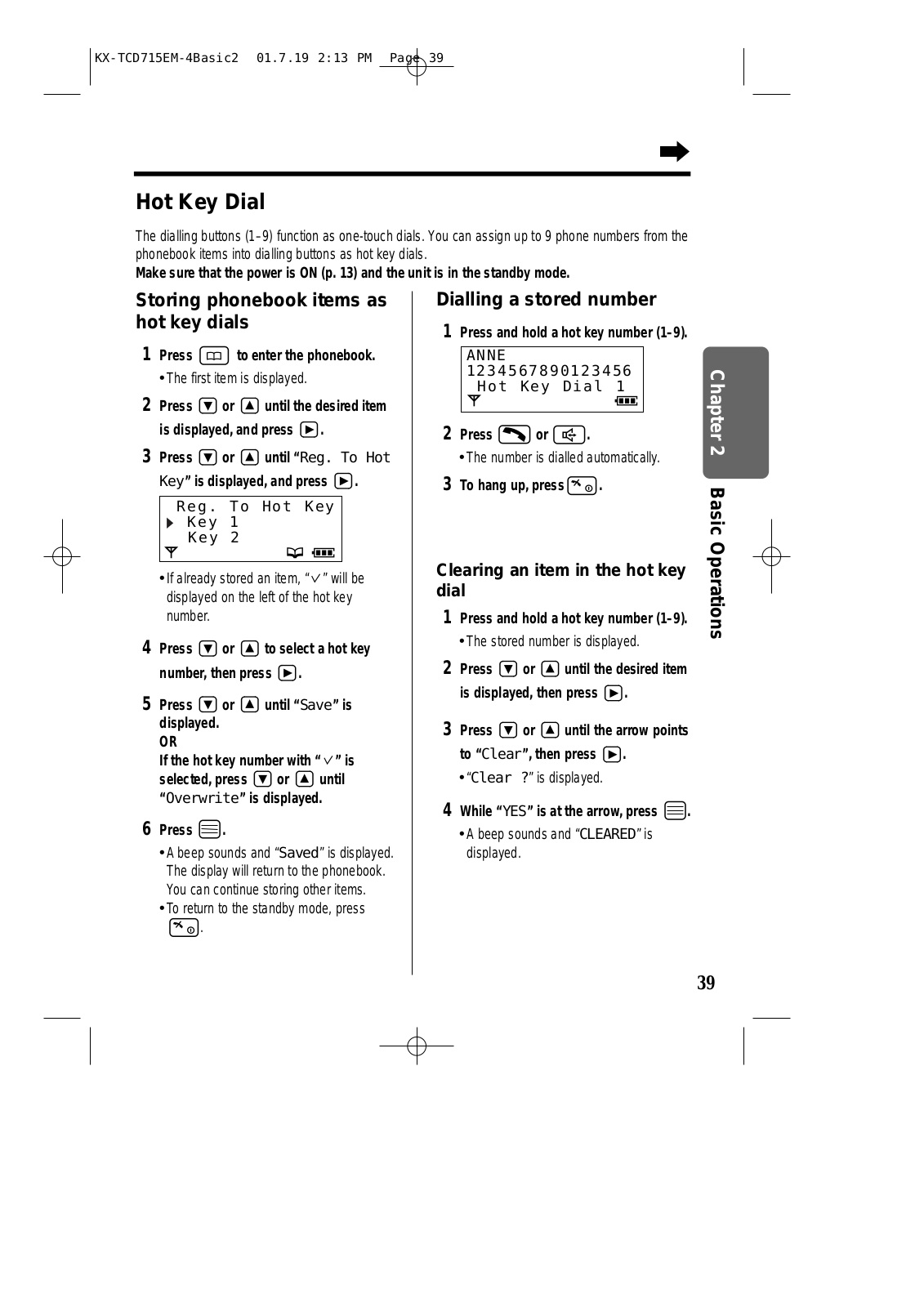

Hot Key Dial ........................................ |
39 |

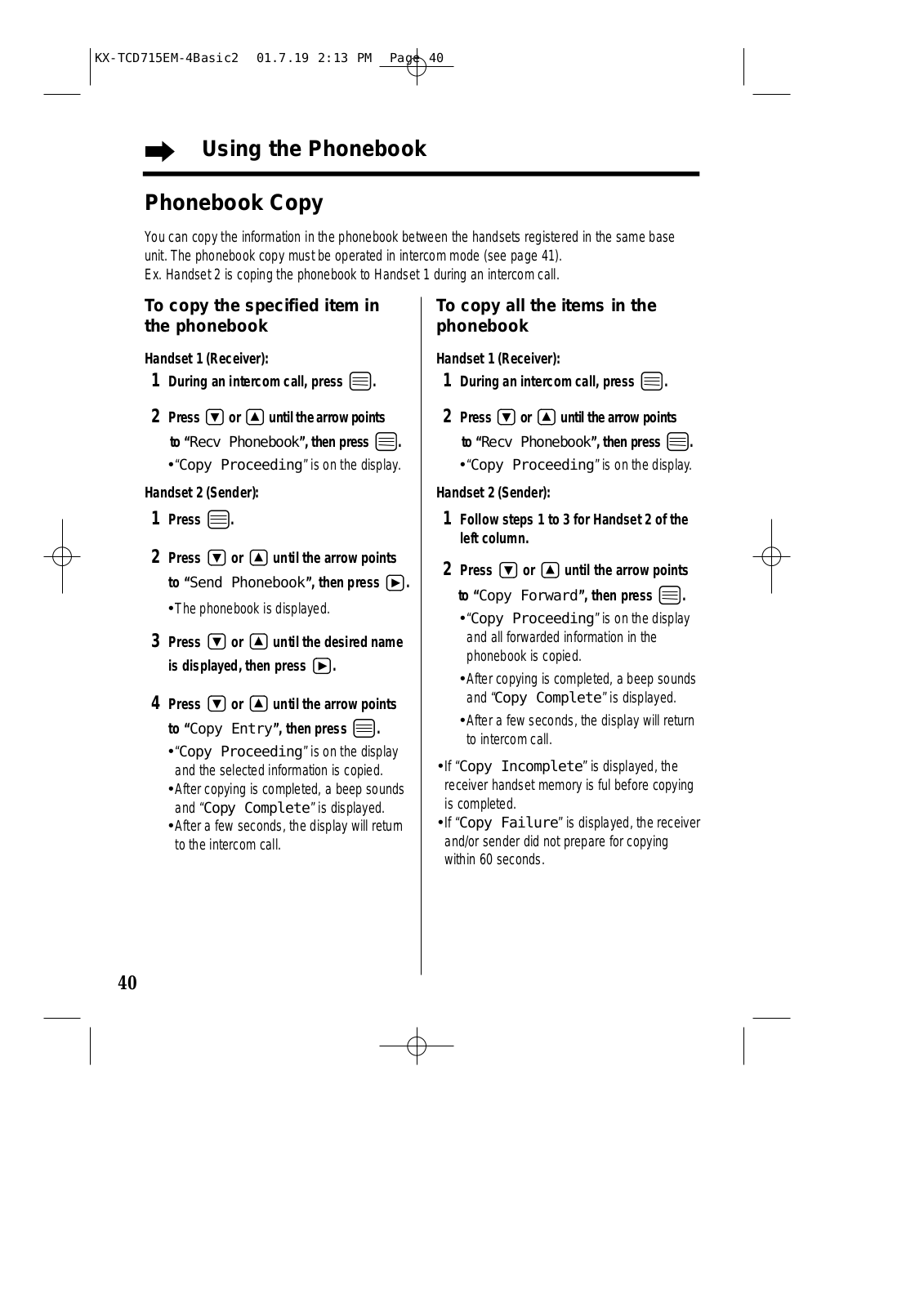

Phonebook Copy................................. |
40 |
Intercom ................................................. |
41 |

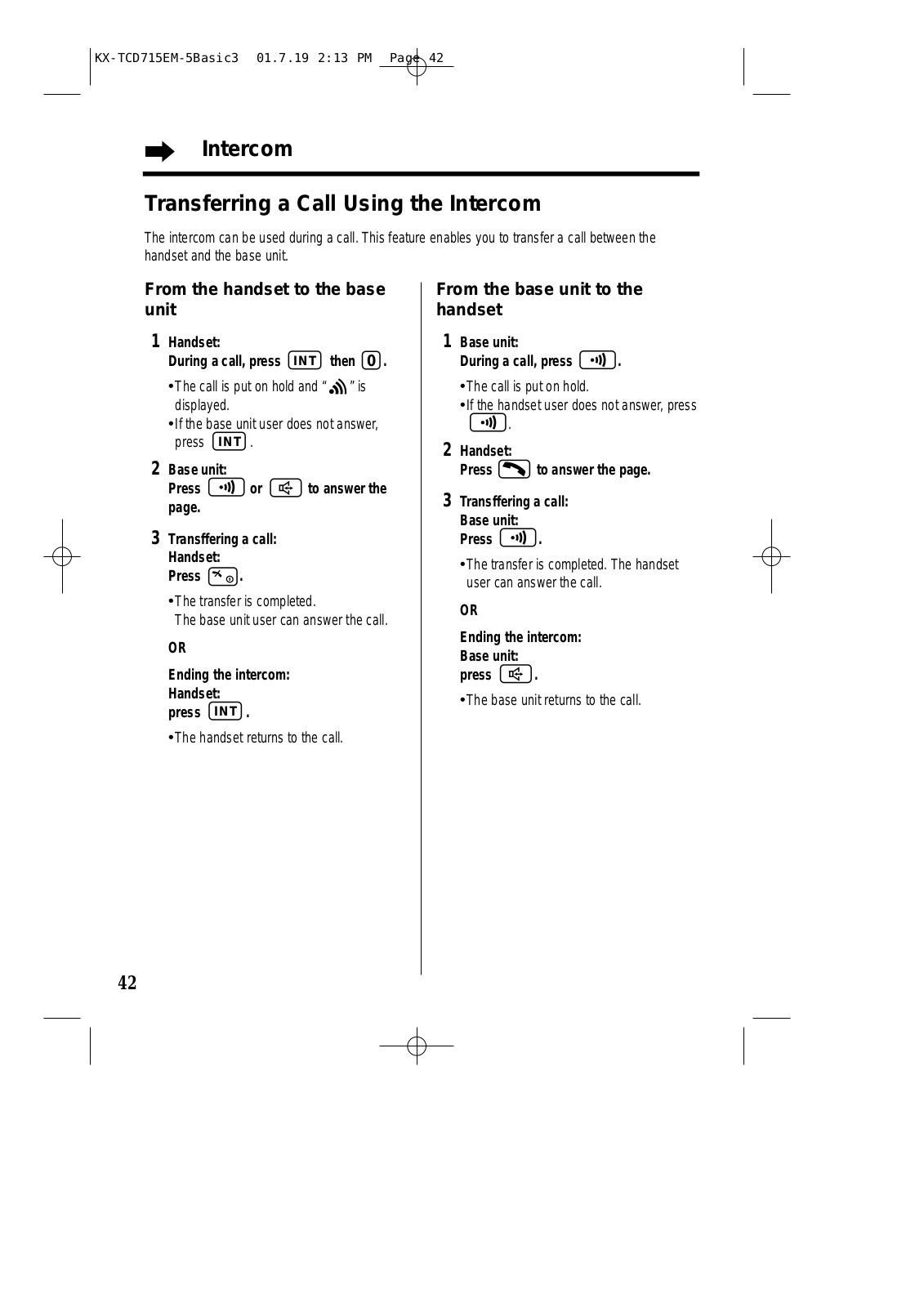

Transferring a Call Using |
|
the Intercom ........................................ |
42 |
Special Features ................................... |
43 |
How to Use the Pause Feature |
|
(For Analog PBX Line/Long Distance |
|
Service Users)..................................... |
43 |

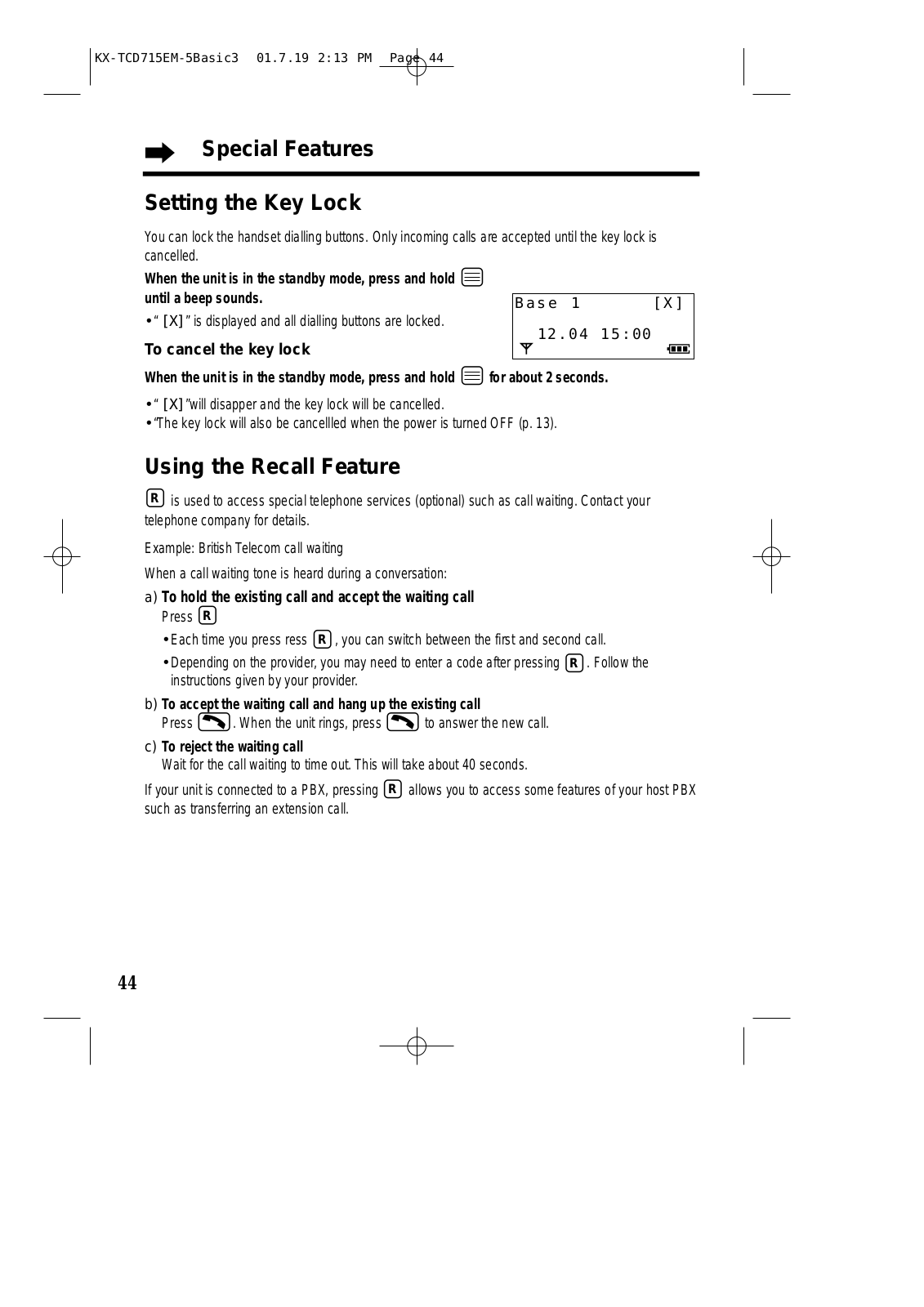

Setting the Key Lock ........................... |
44 |
Useing the Recall Feature................... |
44 |

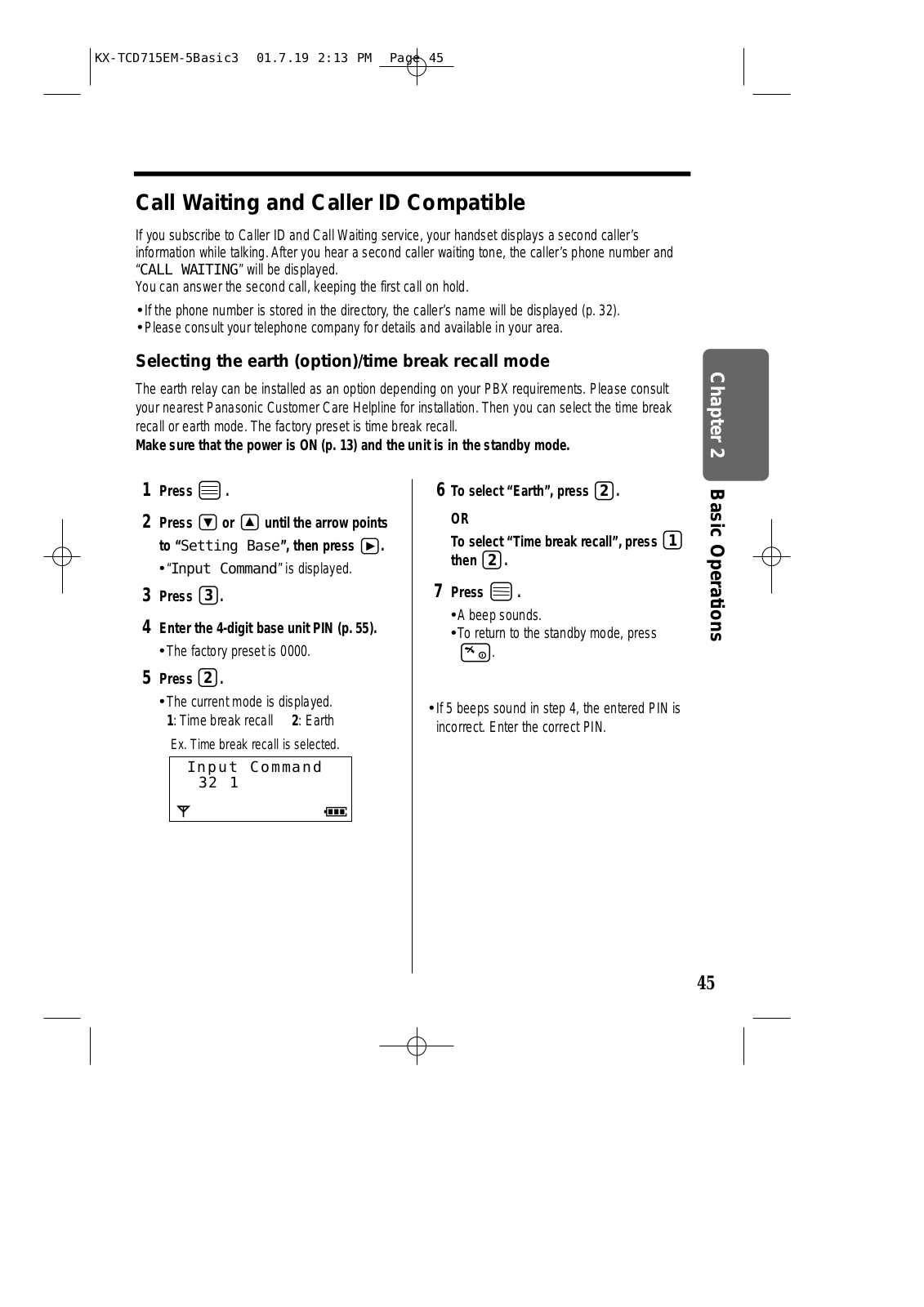

Call Waiting and Caller ID Compatible..45 |
|
Chapter 3 |
|
Advanced Operations |
|

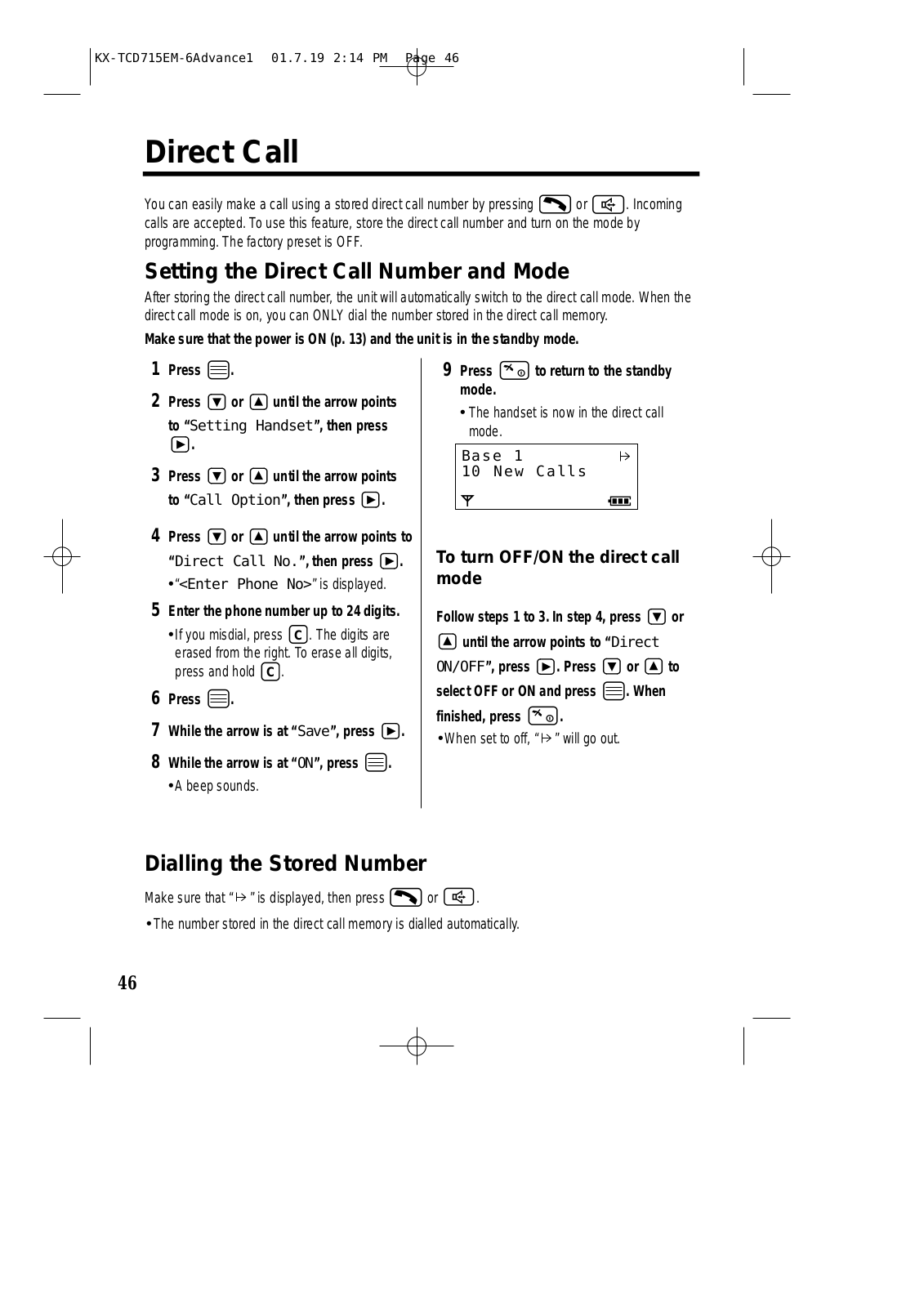

Direct Call .............................................. |
46 |
Setting the Direct Call Number and |
|
Mode ................................................... |
46 |
Dialling the Stored Number ................. |
46 |
Call Prohibition ..................................... |
47 |

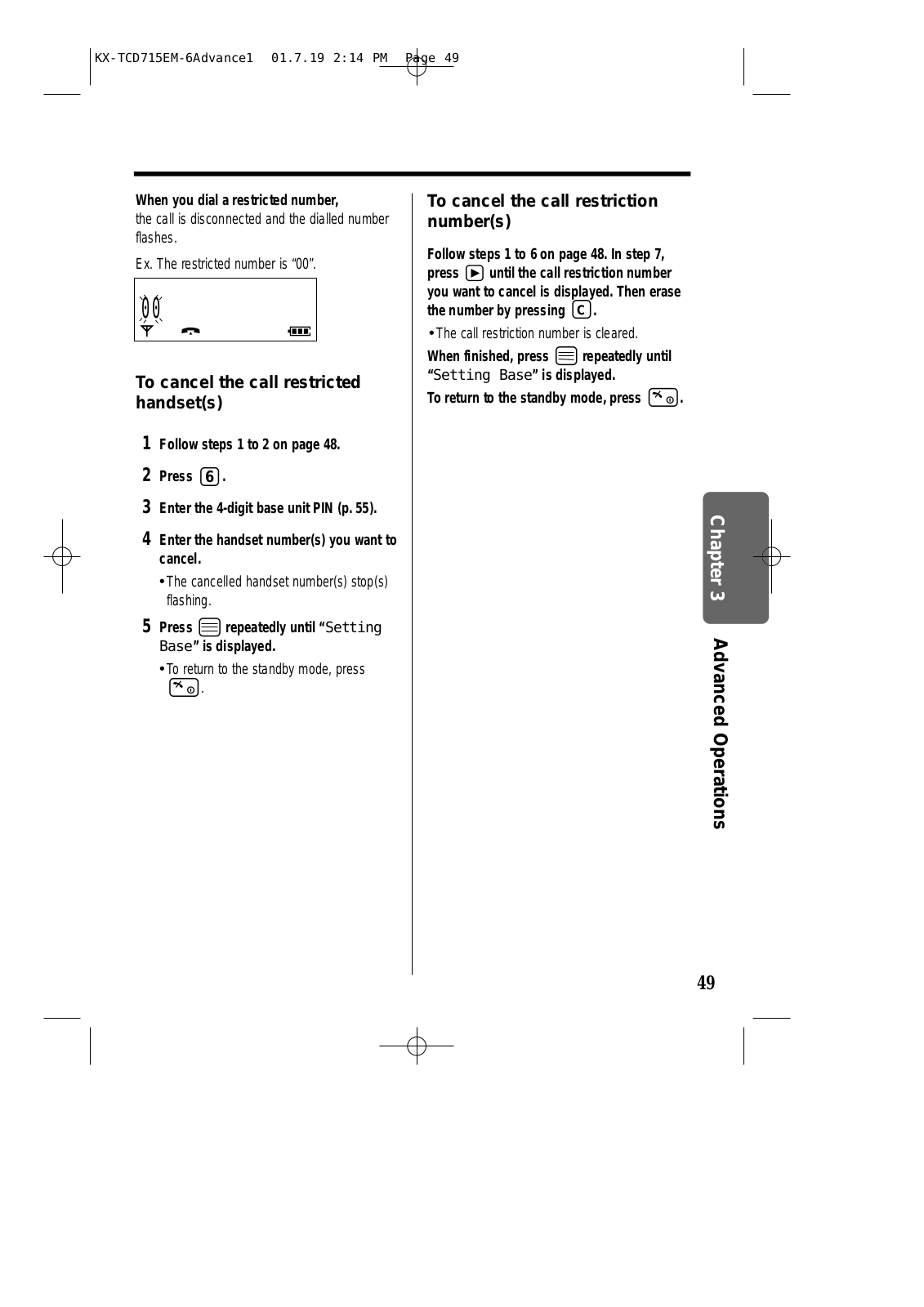

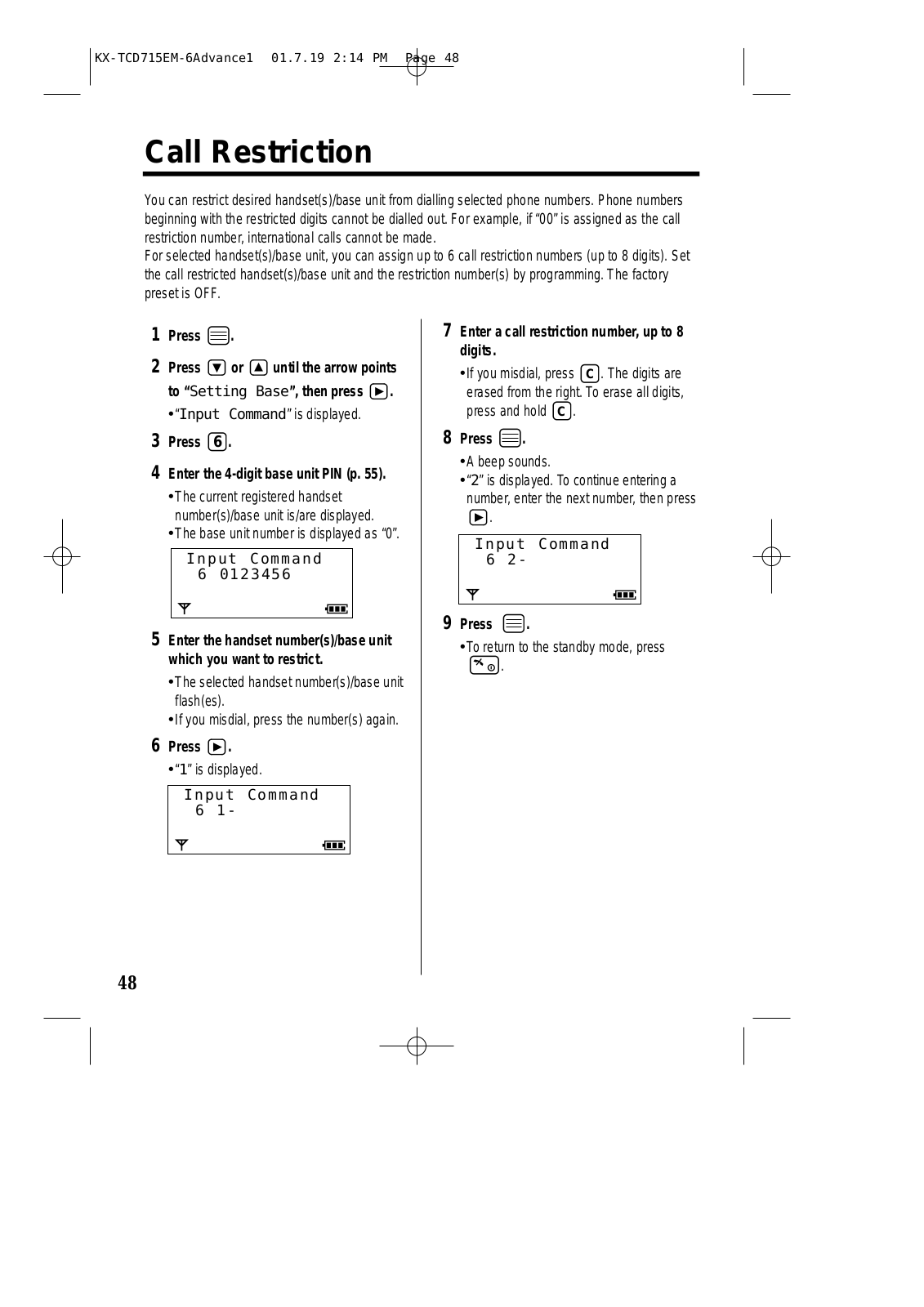

Call Restriction...................................... |
48 |

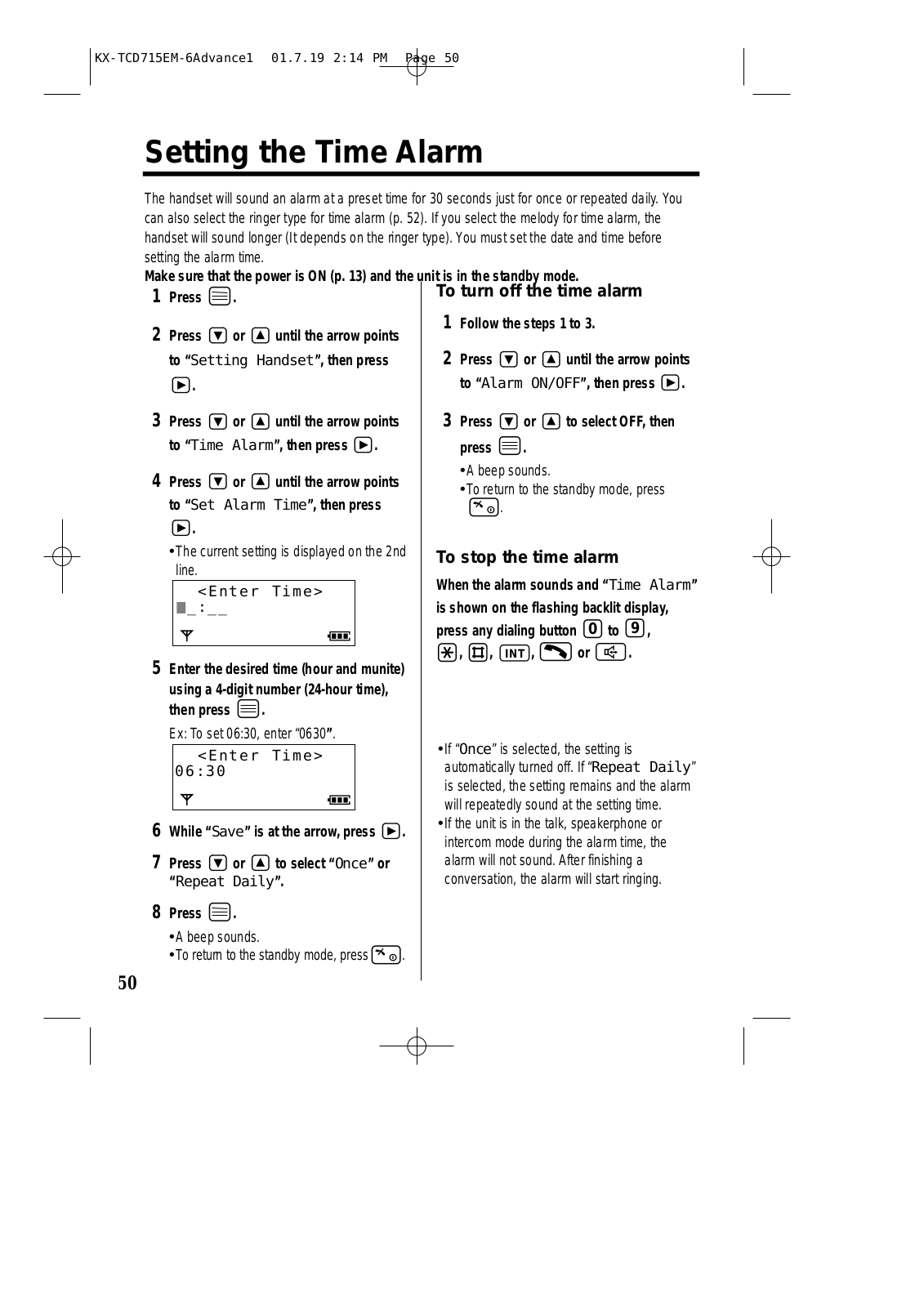

Setting the Time Alarm......................... |
50 |
Other Programmable Settings ............. |
51 |

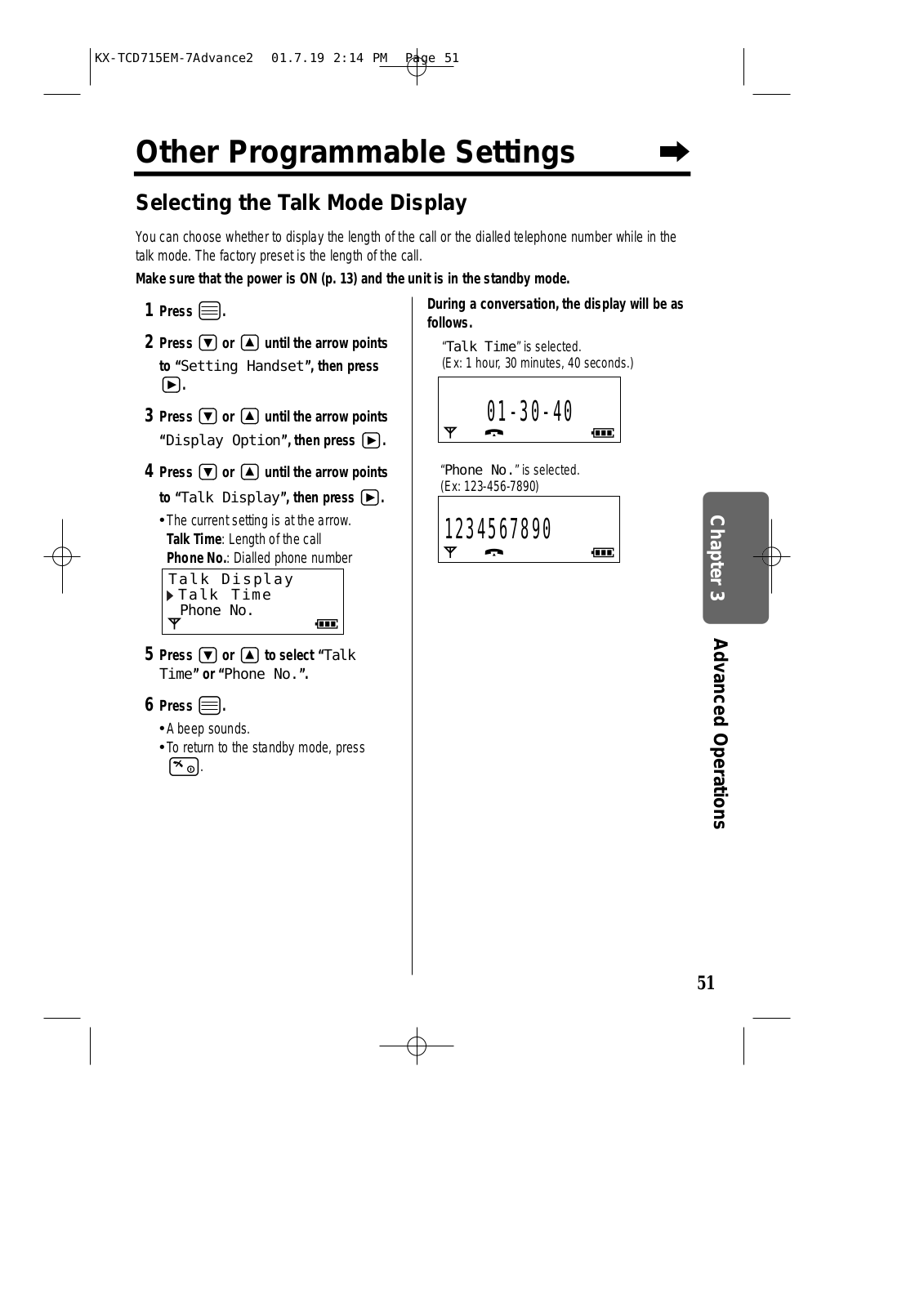

Setting the Talk Mode Display............. |
51 |

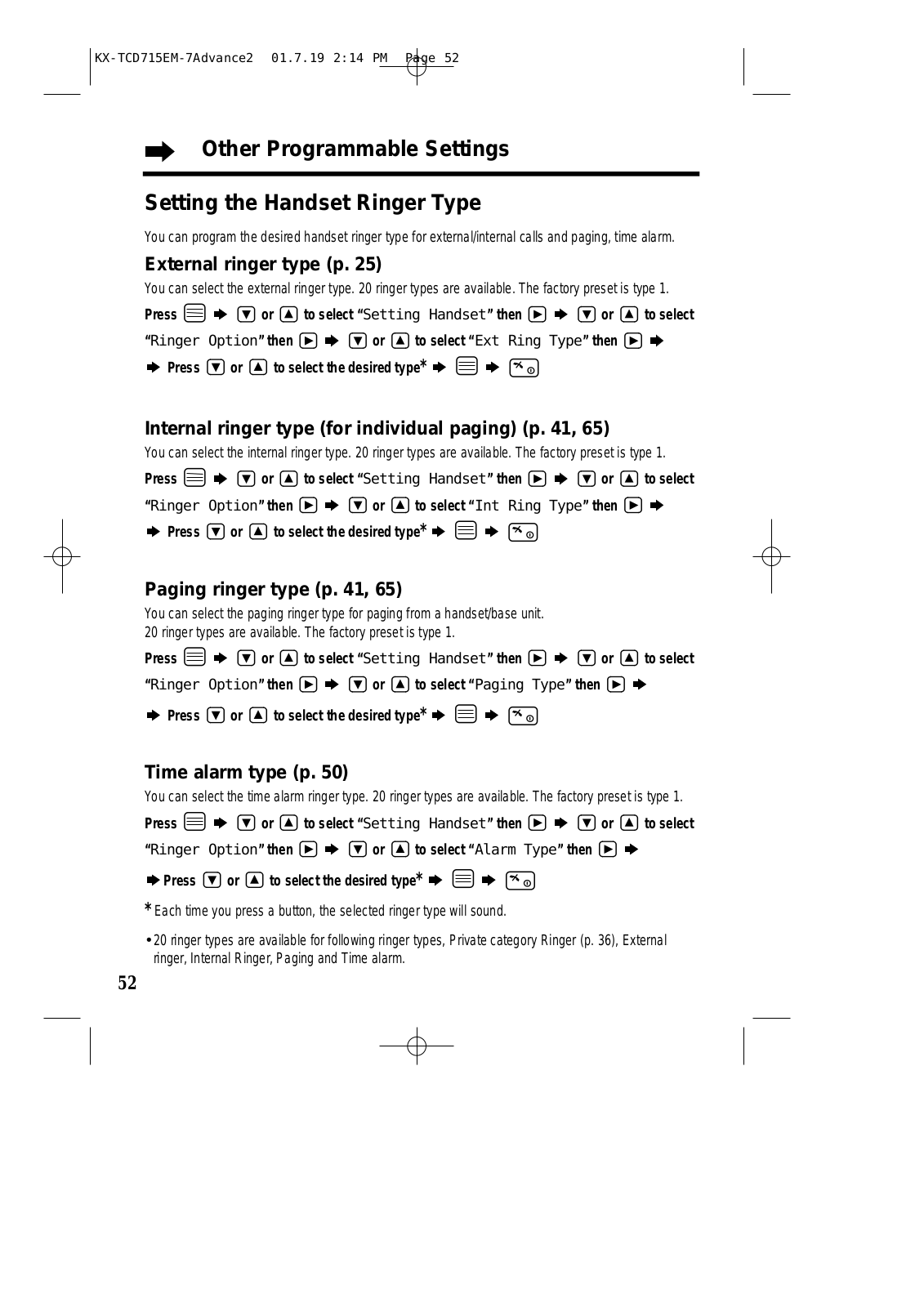

Setting the Handset Ringer Type ........ |
52 |

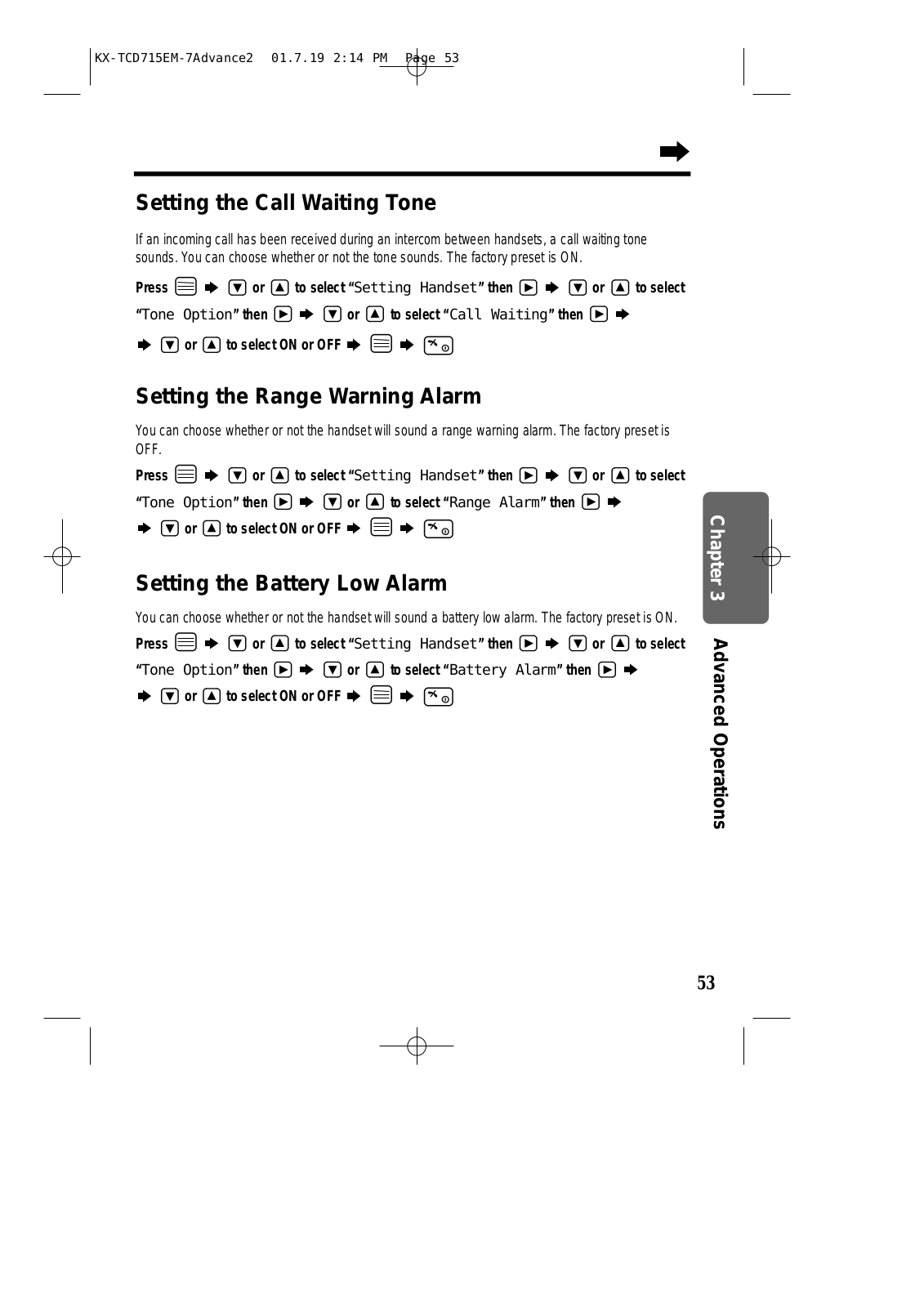

Selecting the Call Waiting Tone .......... |
53 |
Setting the Range Warning Alarm....... |
53 |
Setting the Battery Low Alarm............. |
53 |

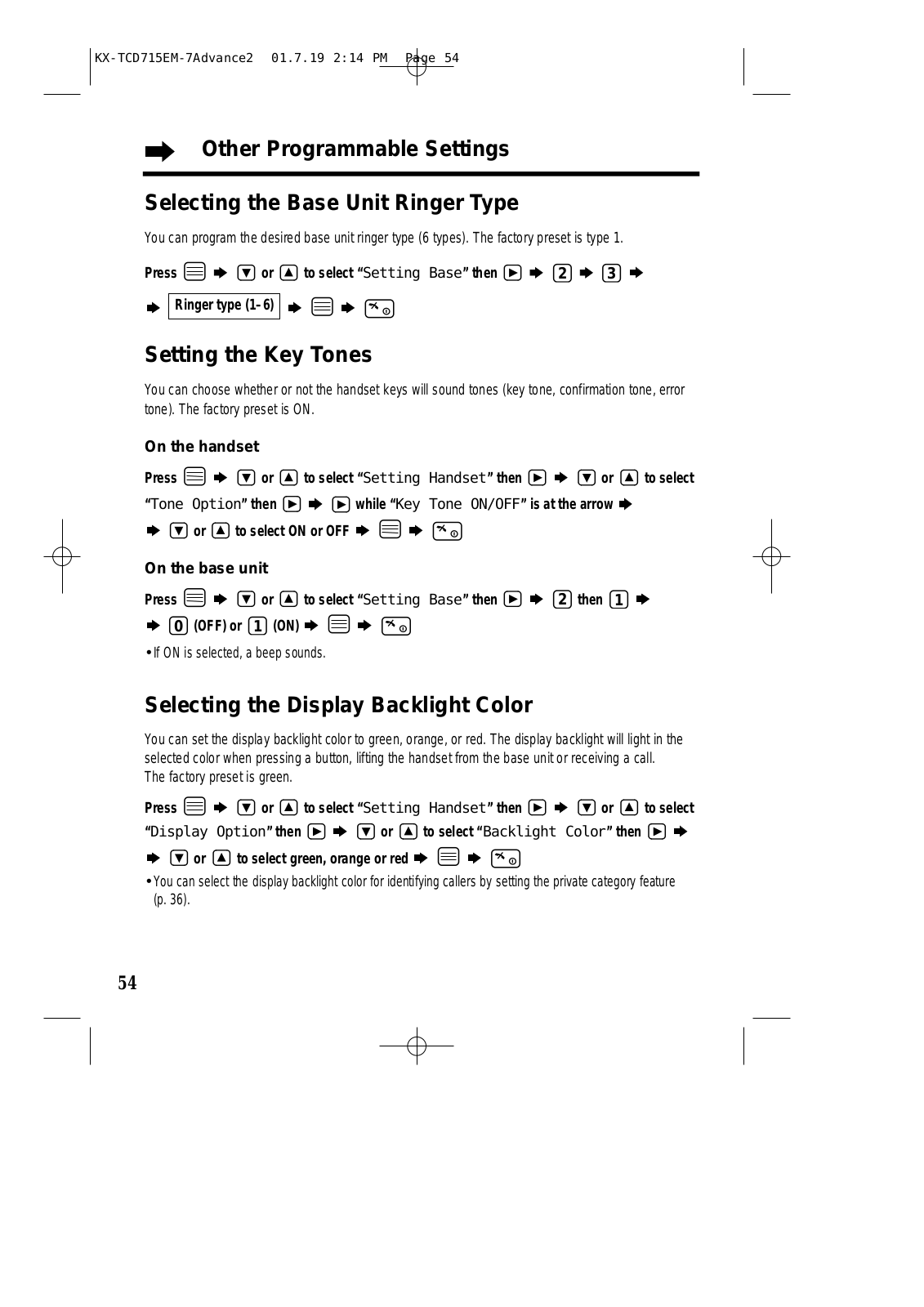

Selecting the Base Unit Ringer |
|
Pattern................................................. |
54 |
Setting the Key Tones ......................... |
54 |
Selecting the Display Backlight Color .. |
54 |
Setting the PIN ...................................... |
55 |
Clearing the Settings in Memory......... |
56 |
6
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 7
Chapter 4 |
|
Multi-Unit User Operations |
|
For Optional Multi-Unit Users.............. |
|

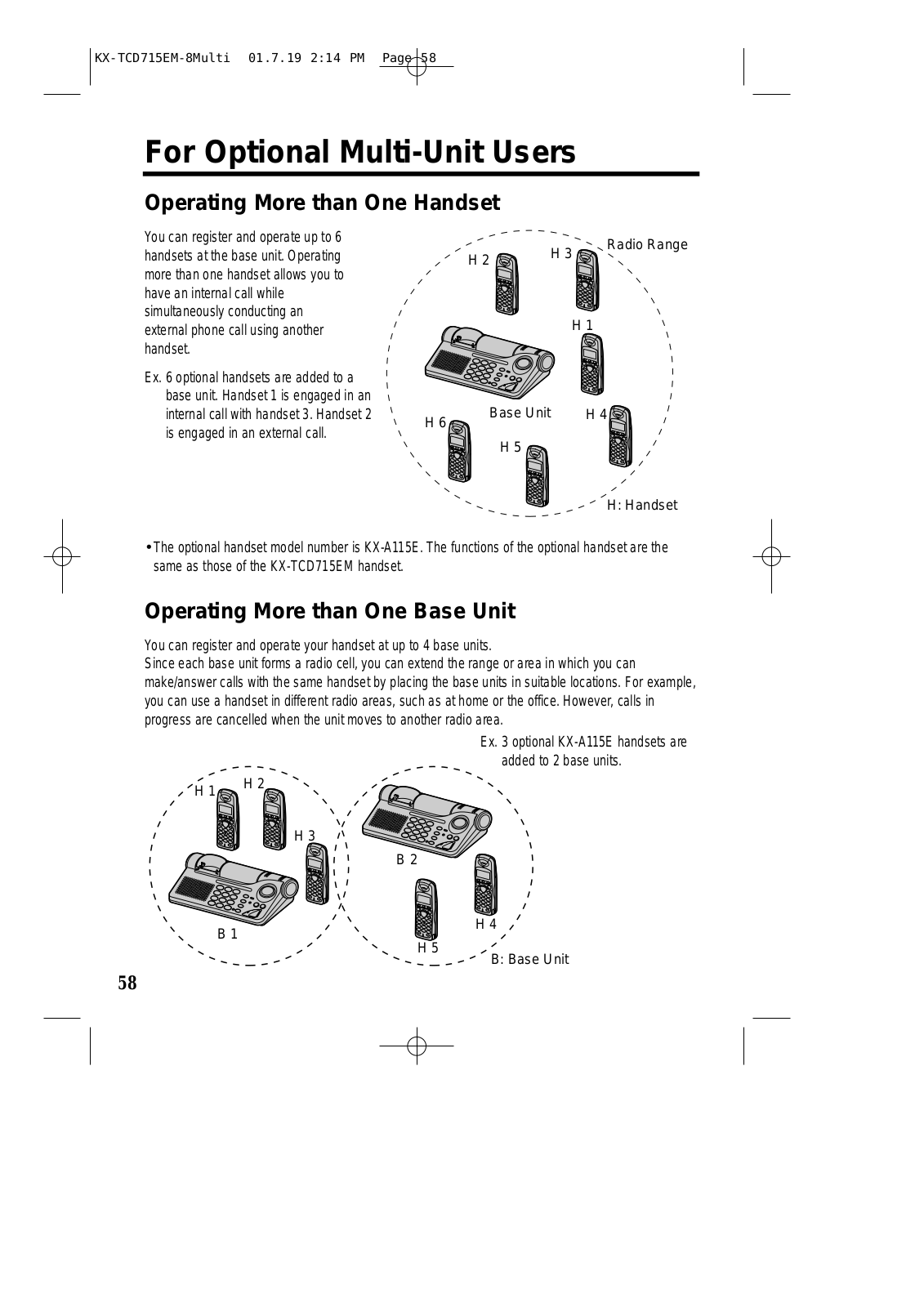

Operating More than One Handset |
|
Operating More than One Base |
|

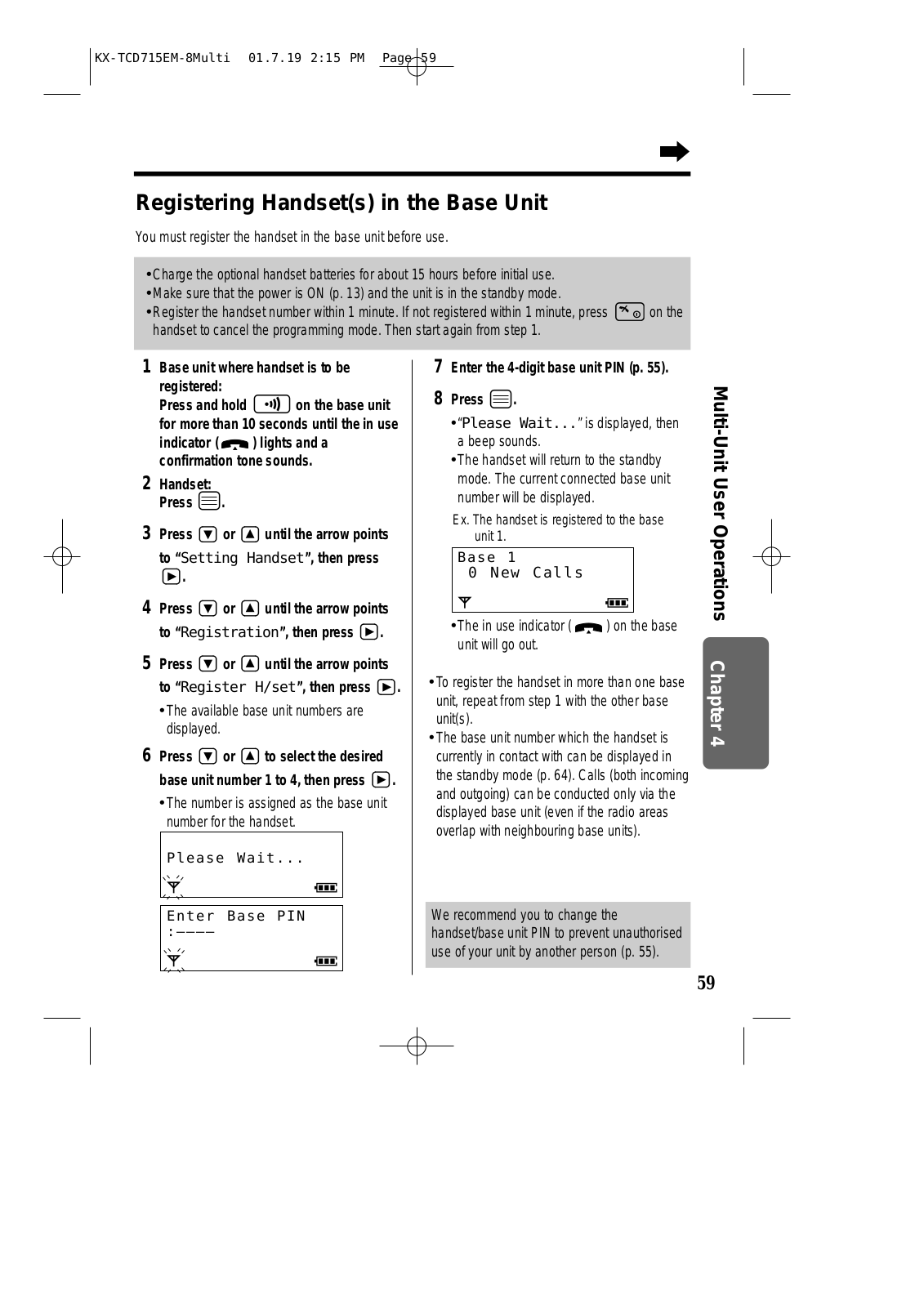

Registering Optional Handset(s) in |
|
Base Unit............................................. |
|

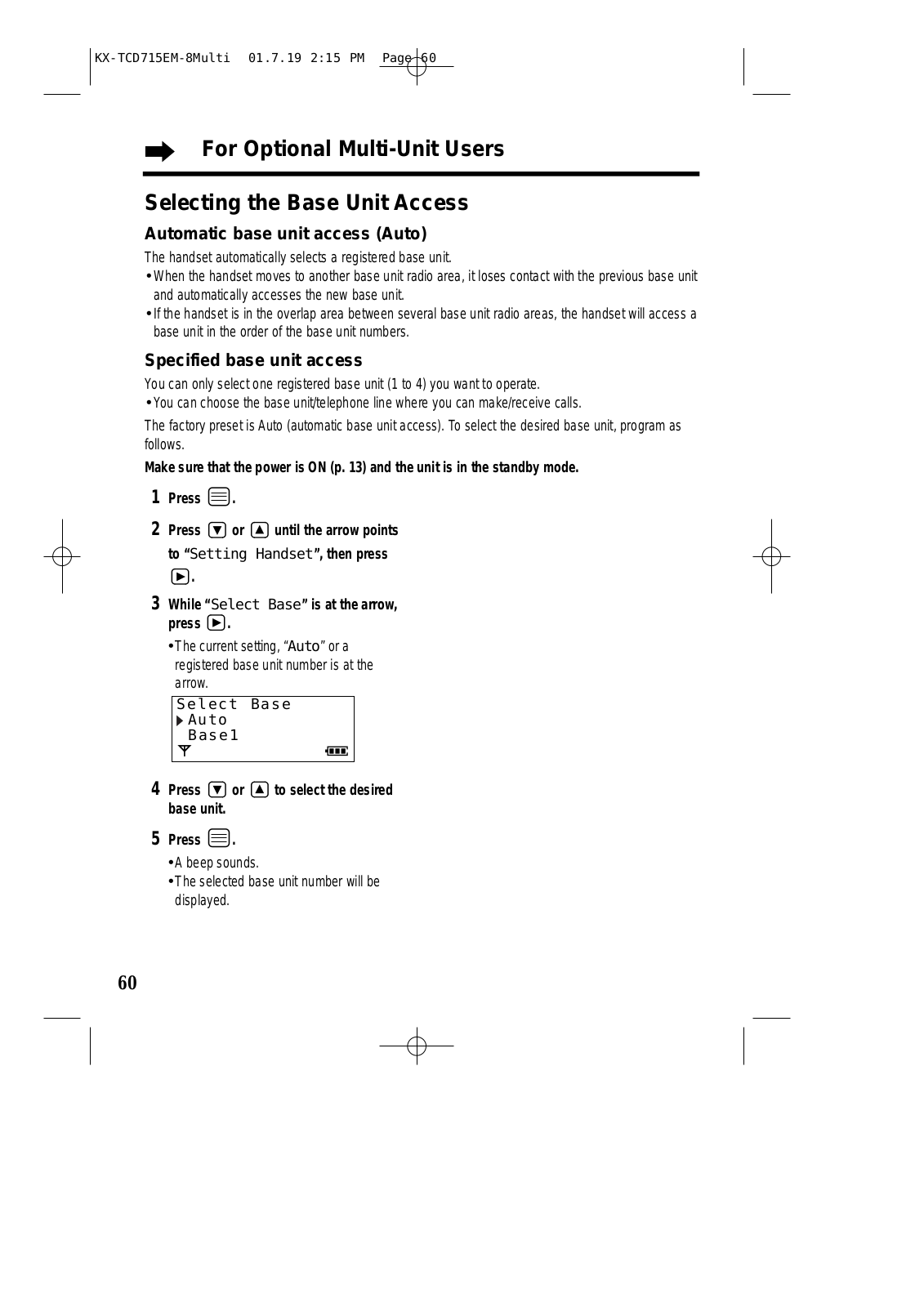

Selecting the Base Unit Access .......... |
60 |

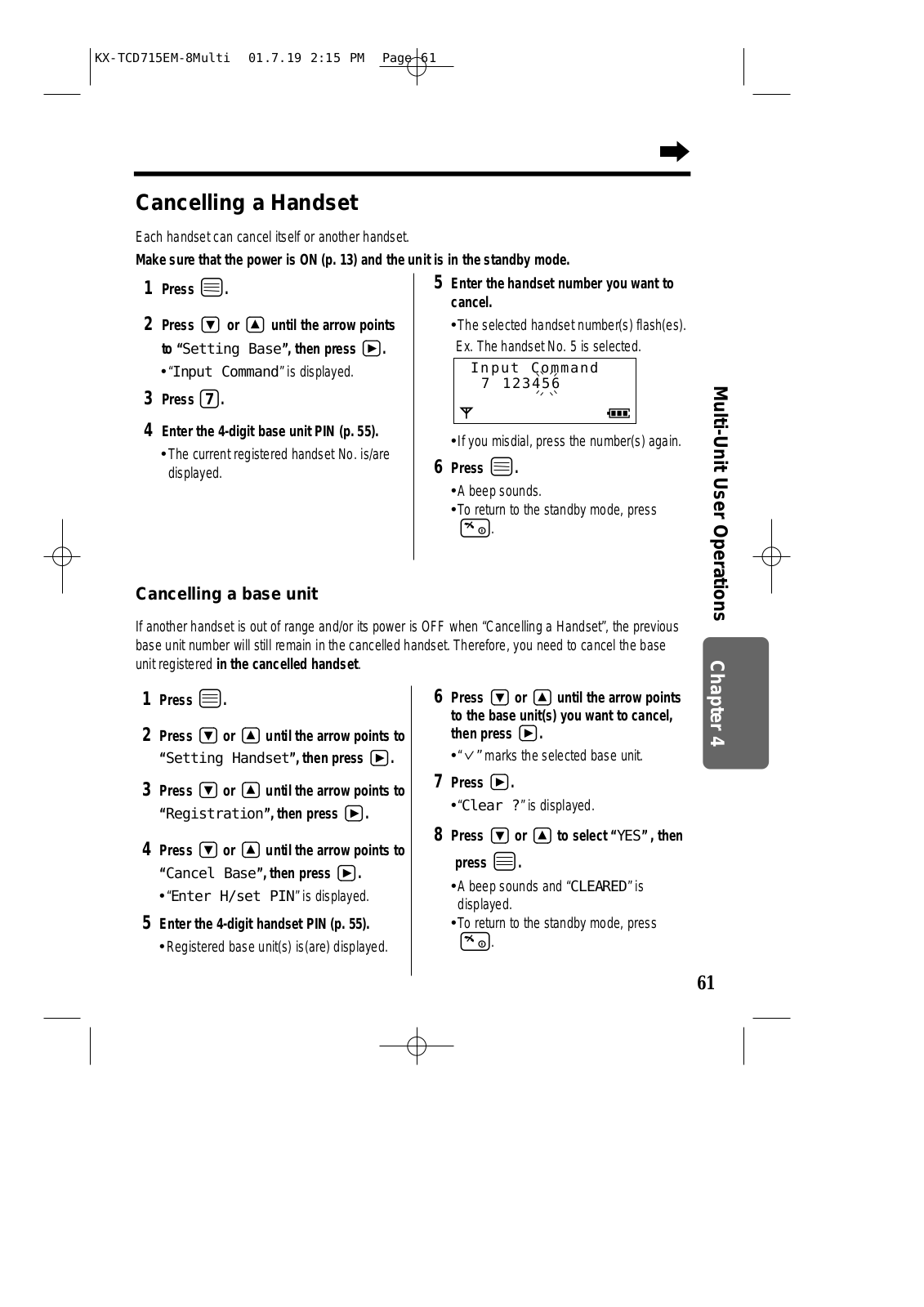

Cancelling a Handset .......................... |
61 |

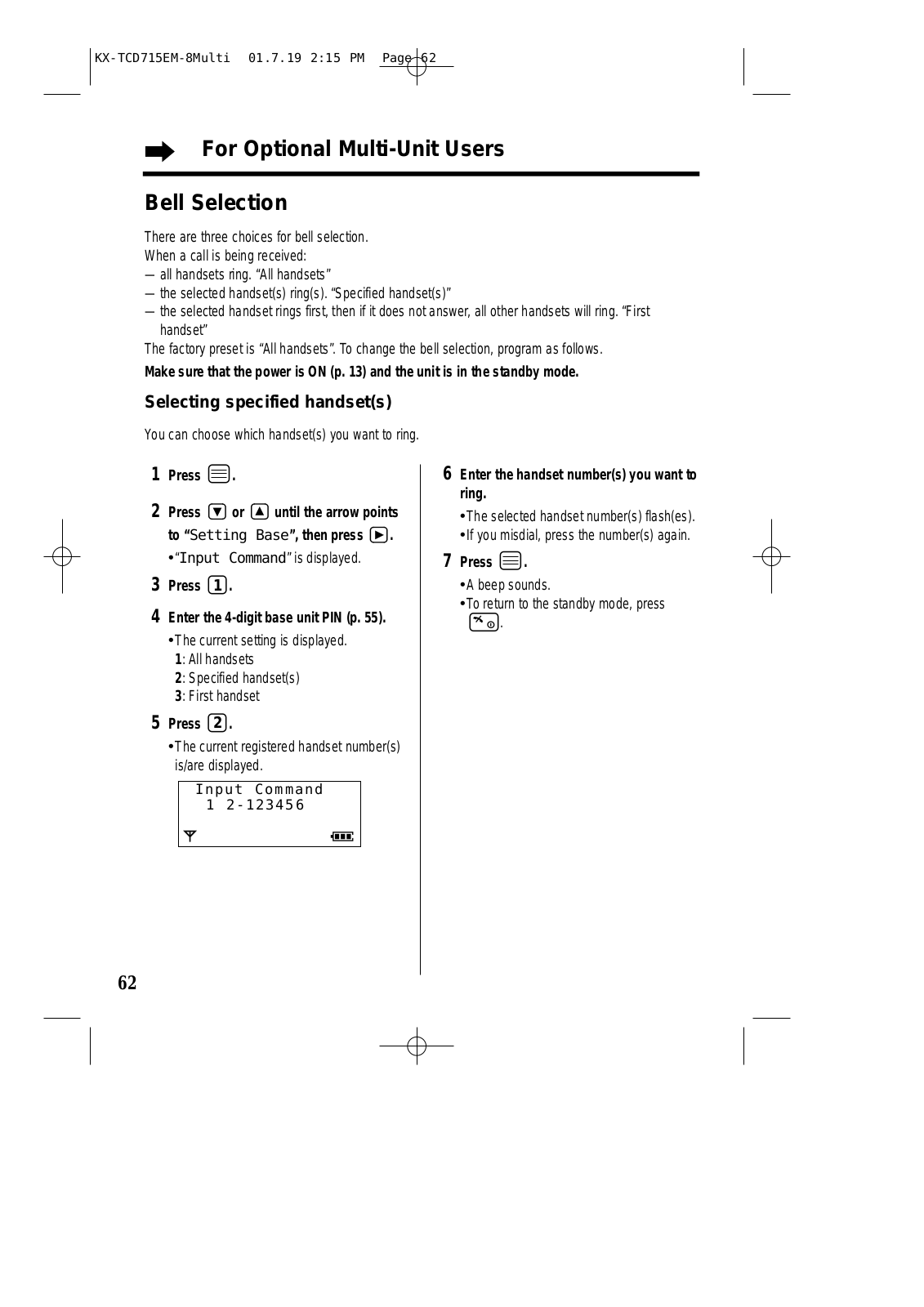

Bell Selection....................................... |
62 |
Selecting the Standby Mode Display .. |
64 |
Paging/Intercom .................................... |
65 |
Intercom between the Handset(s) |
|
and the Base Unit................................ |
65 |

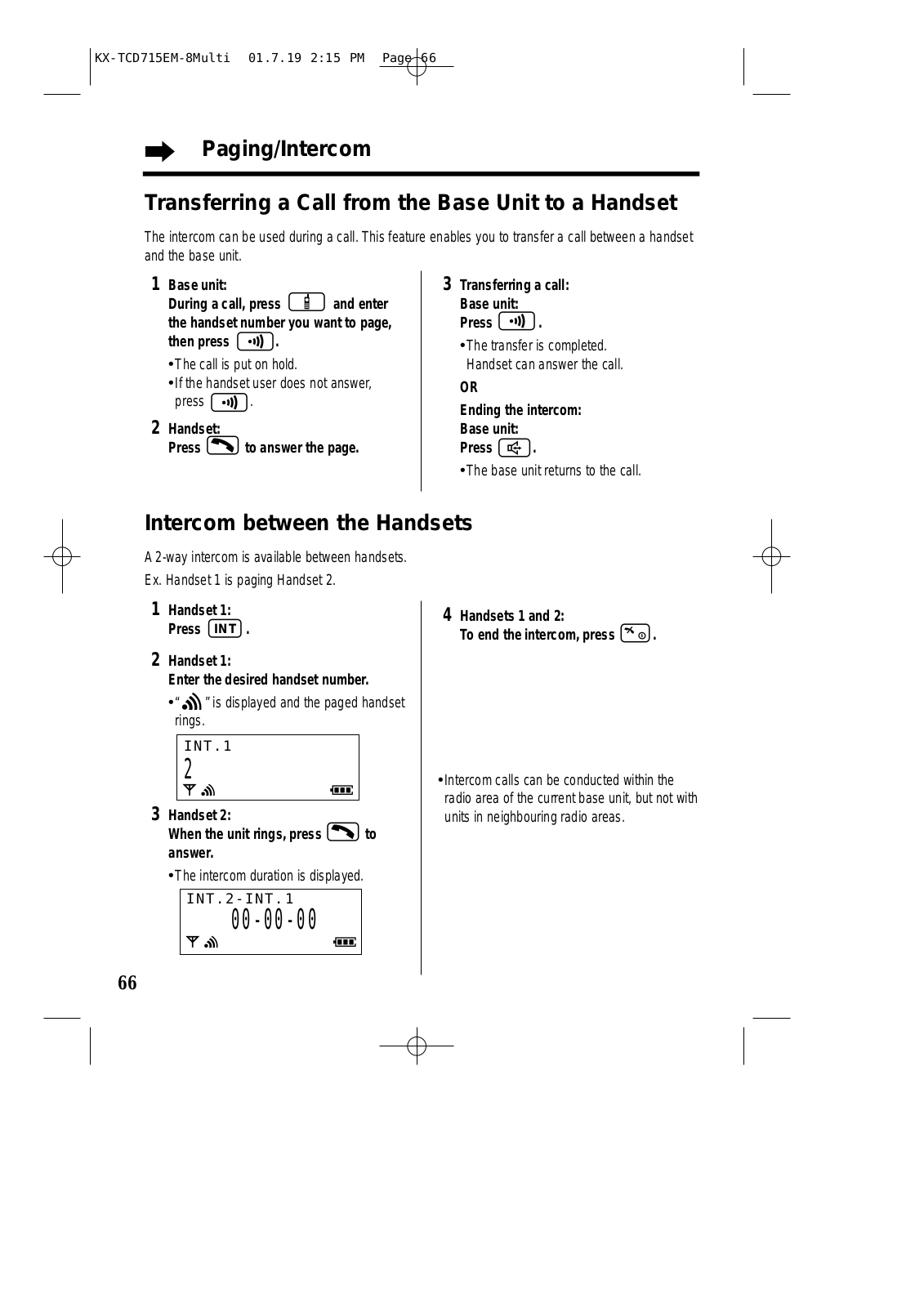

Transferring a Call from the Base Unit |
|
to a Handset........................................ |
66 |
Intercom between Handsets ............... |
66 |

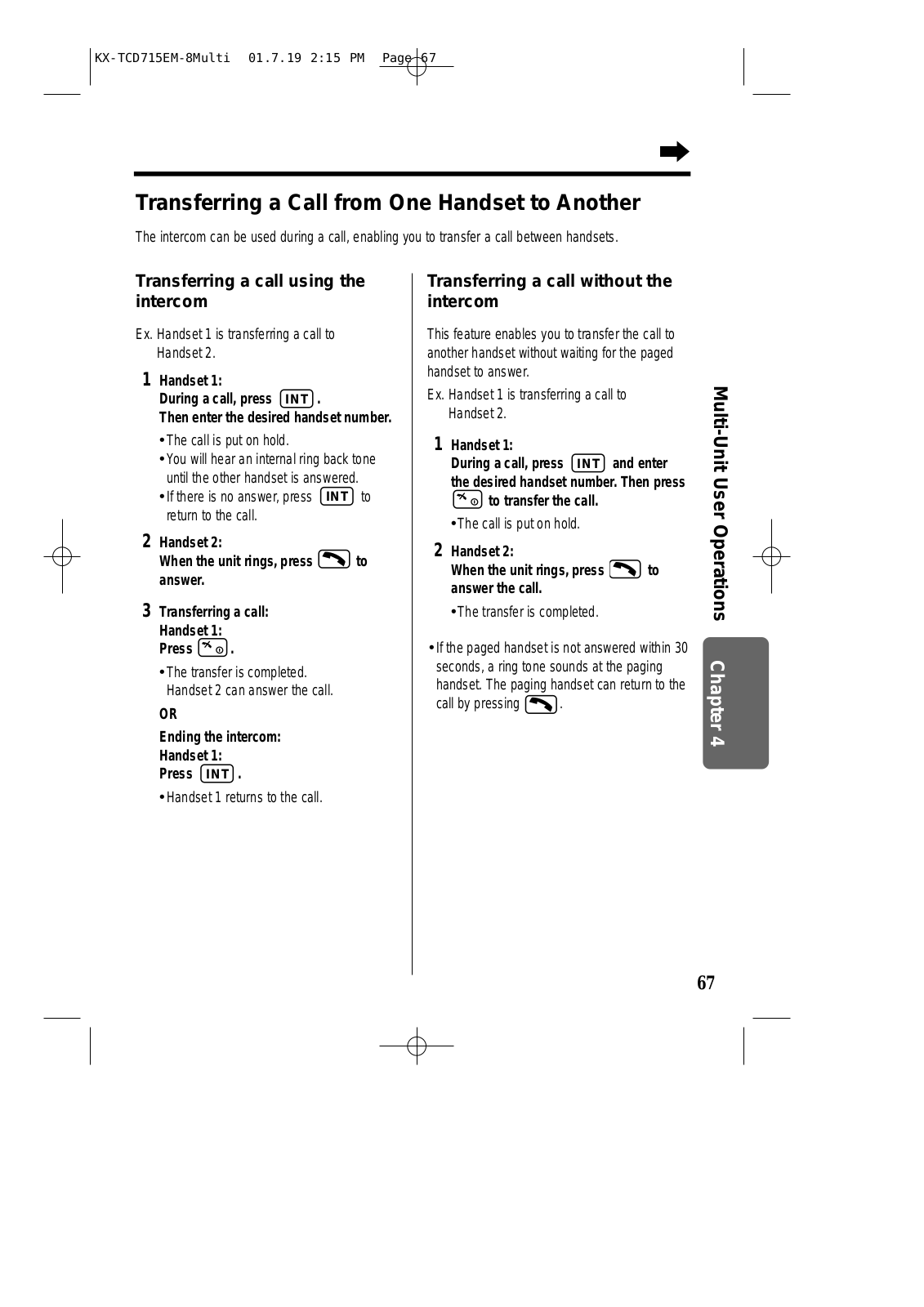

Transferring a Call from One Handset |
|
to Another ............................................ |
67 |

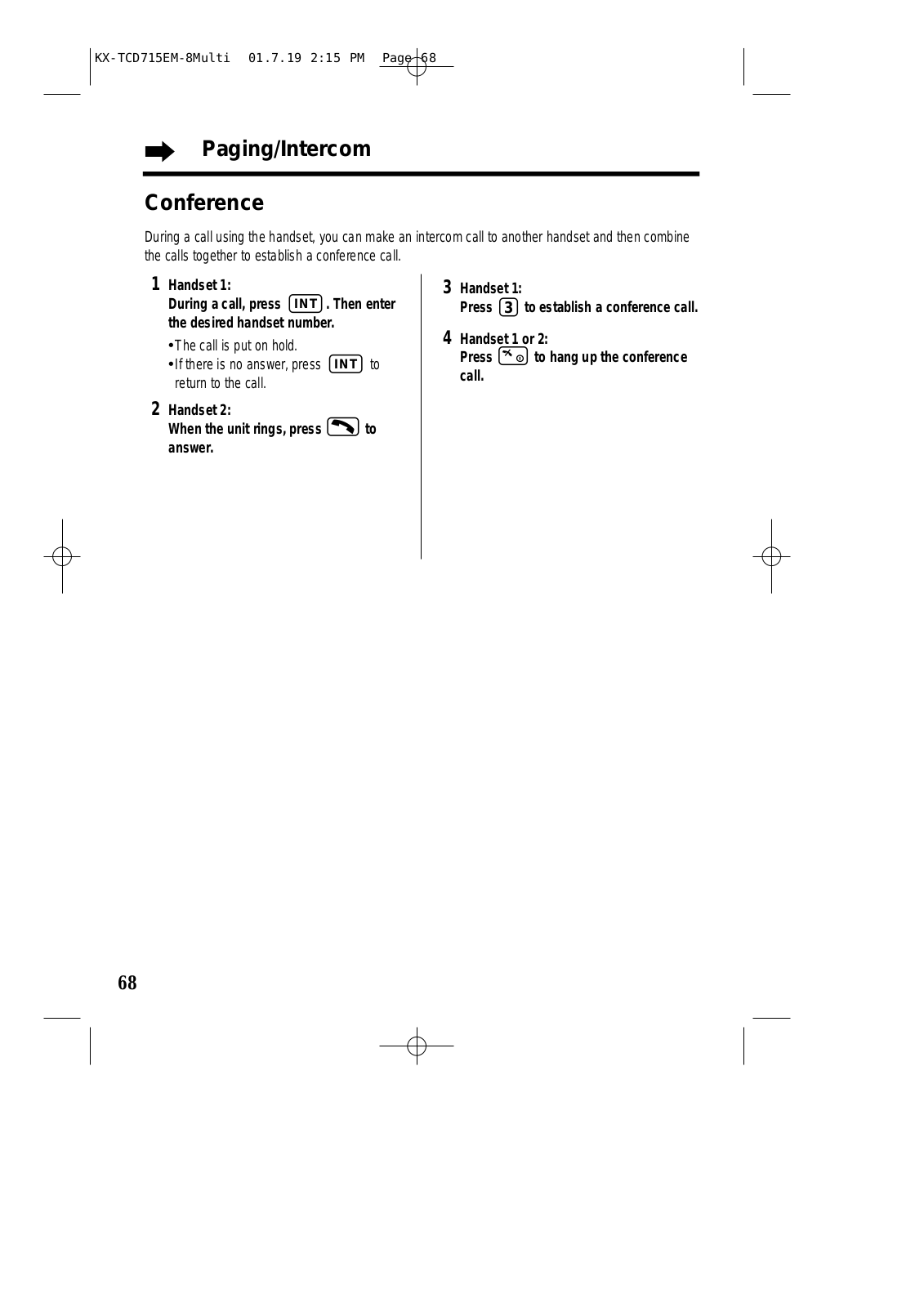

Conference ......................................... |
68 |

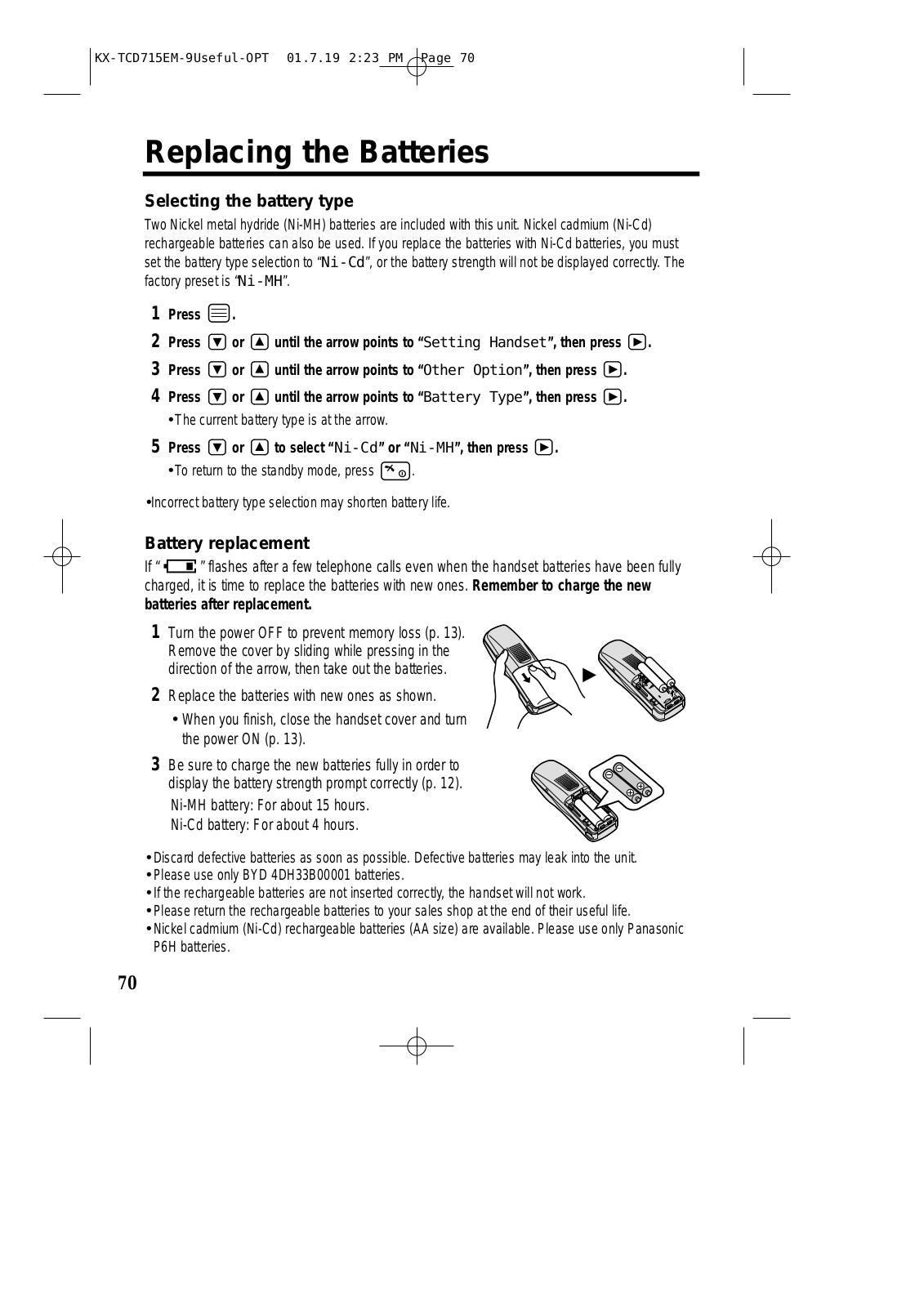

(Ni-Cd) Batteries.................................... |
71 |

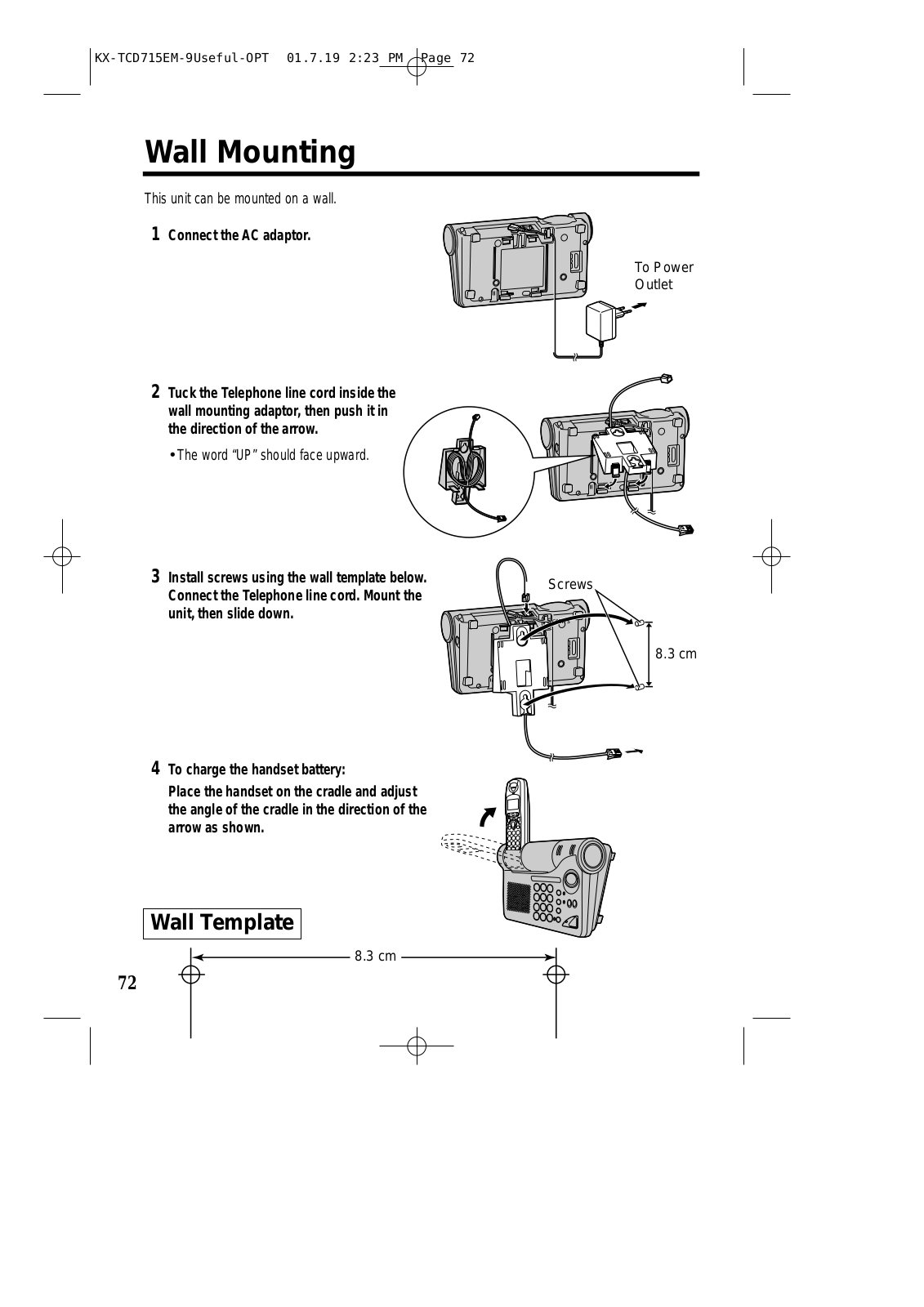

Wall Mounting........................................ |
72 |
Option Covers ....................................... |
73 |

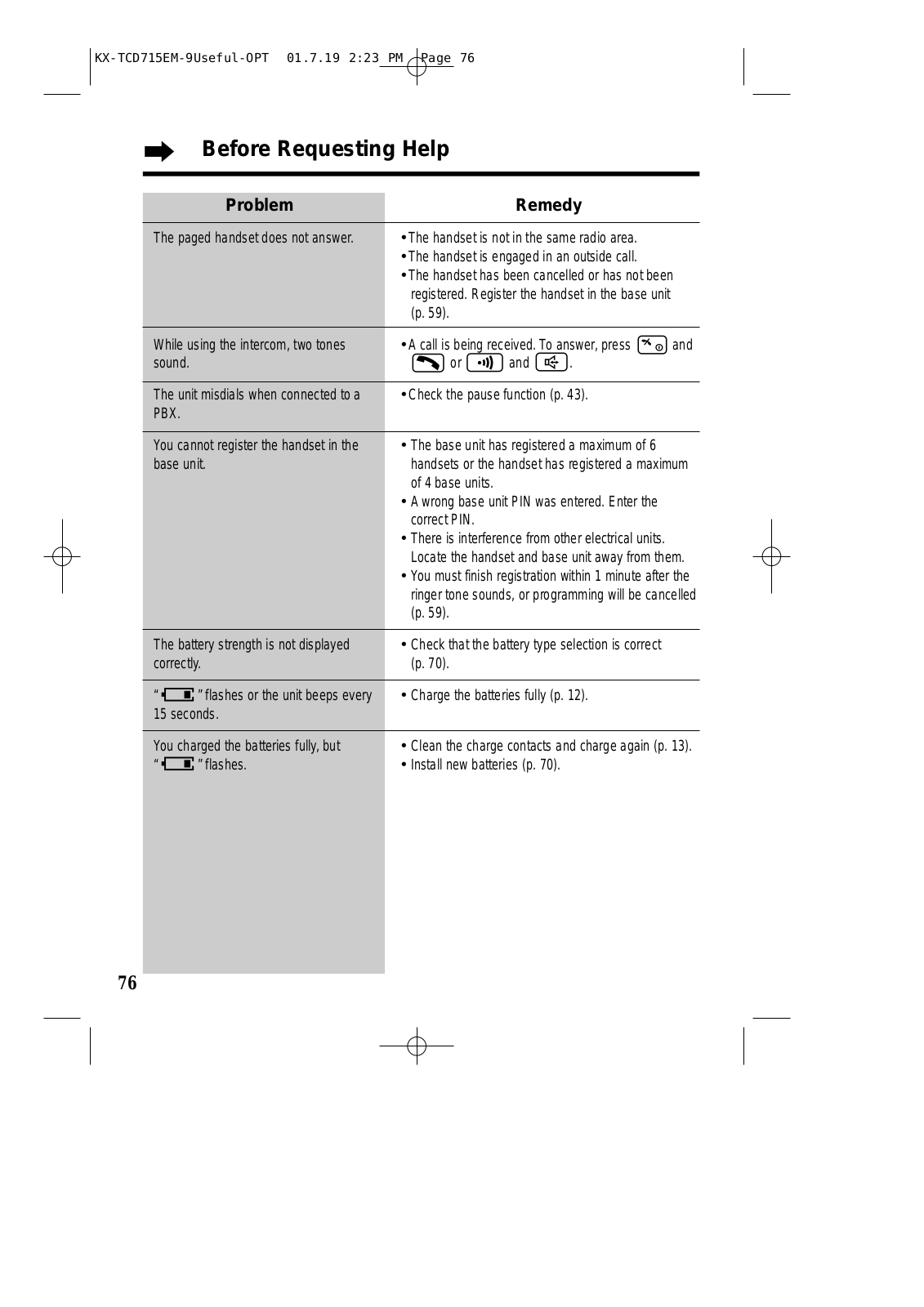

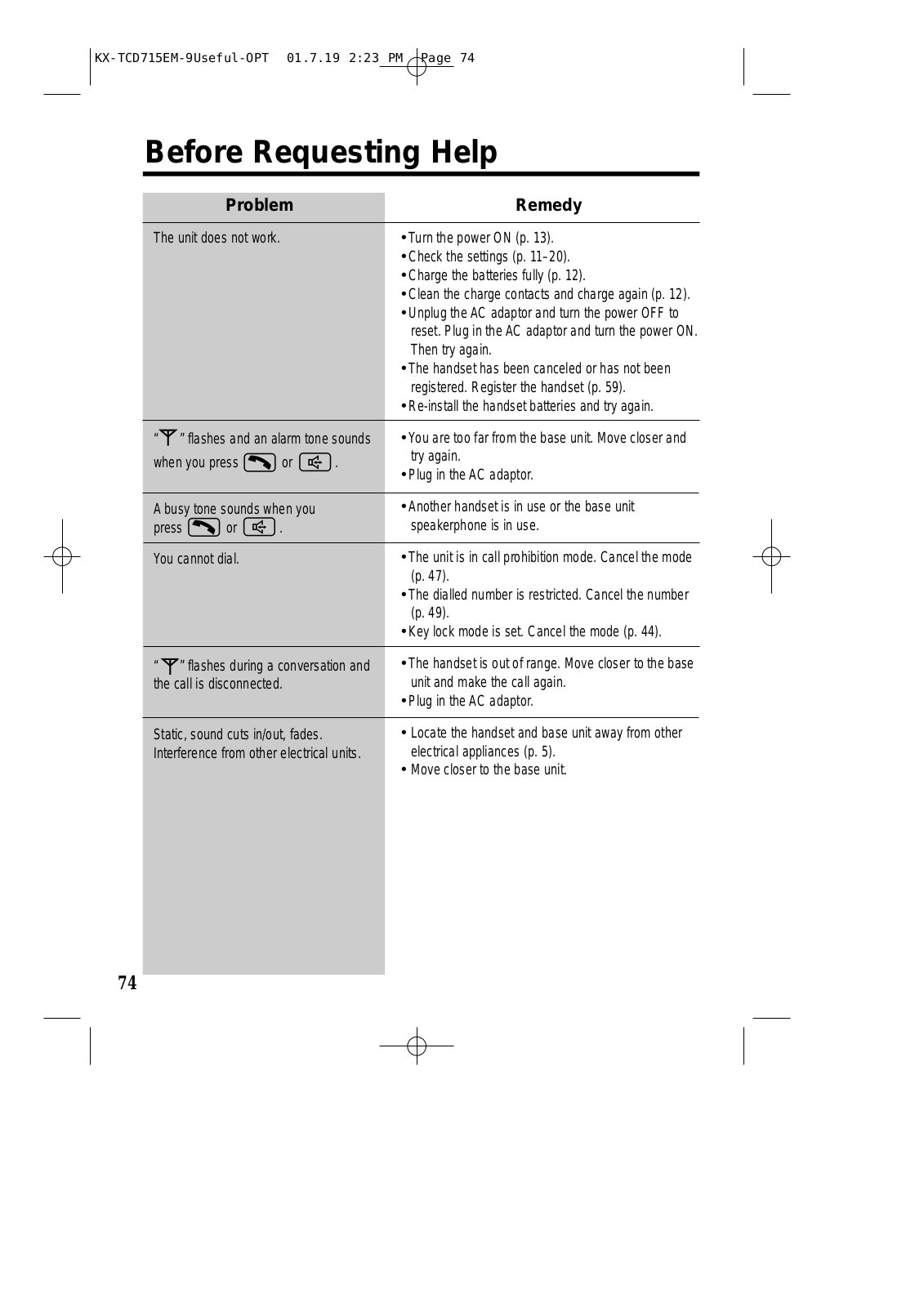

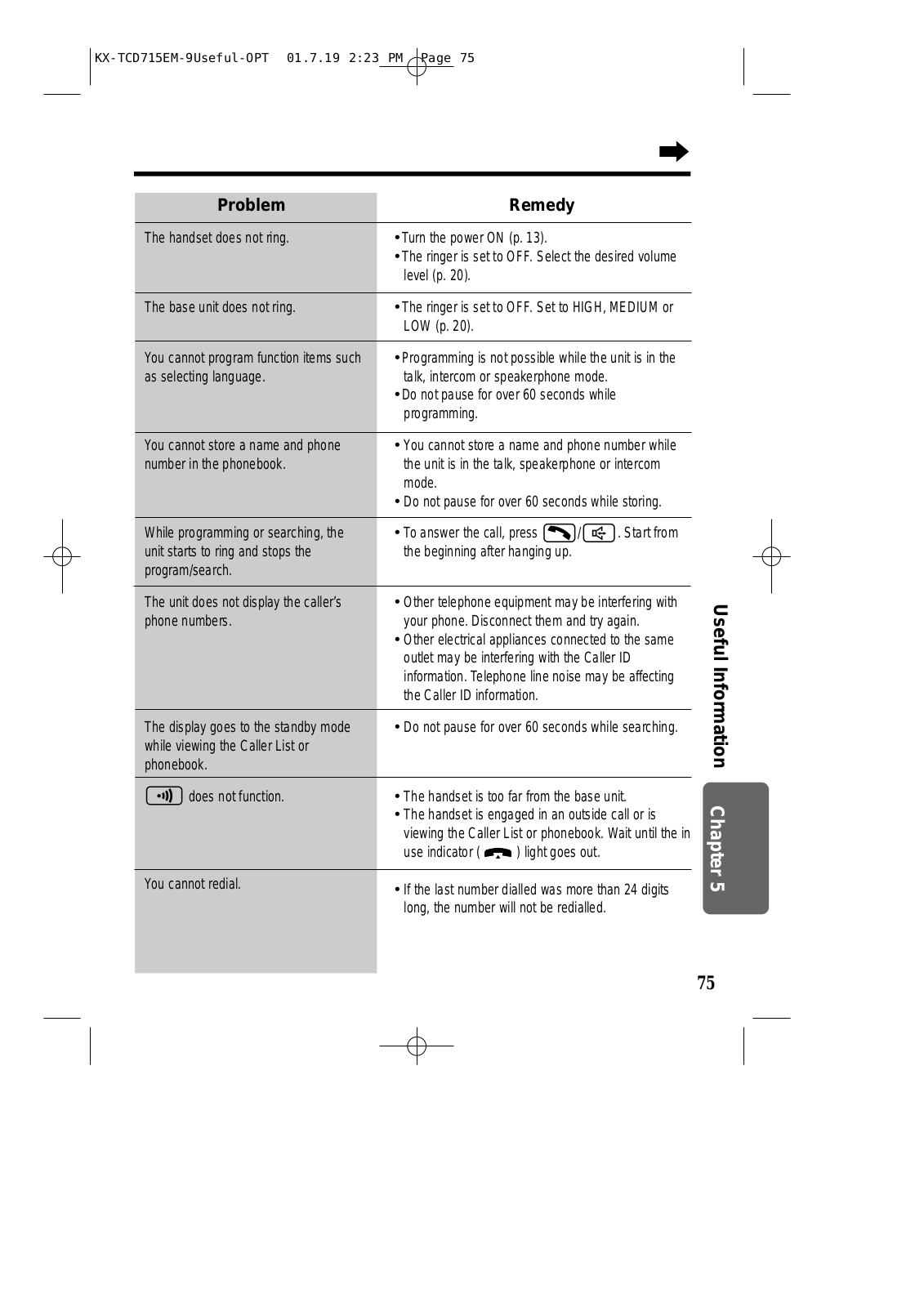

Before Requesting Help ...................... |
74 |

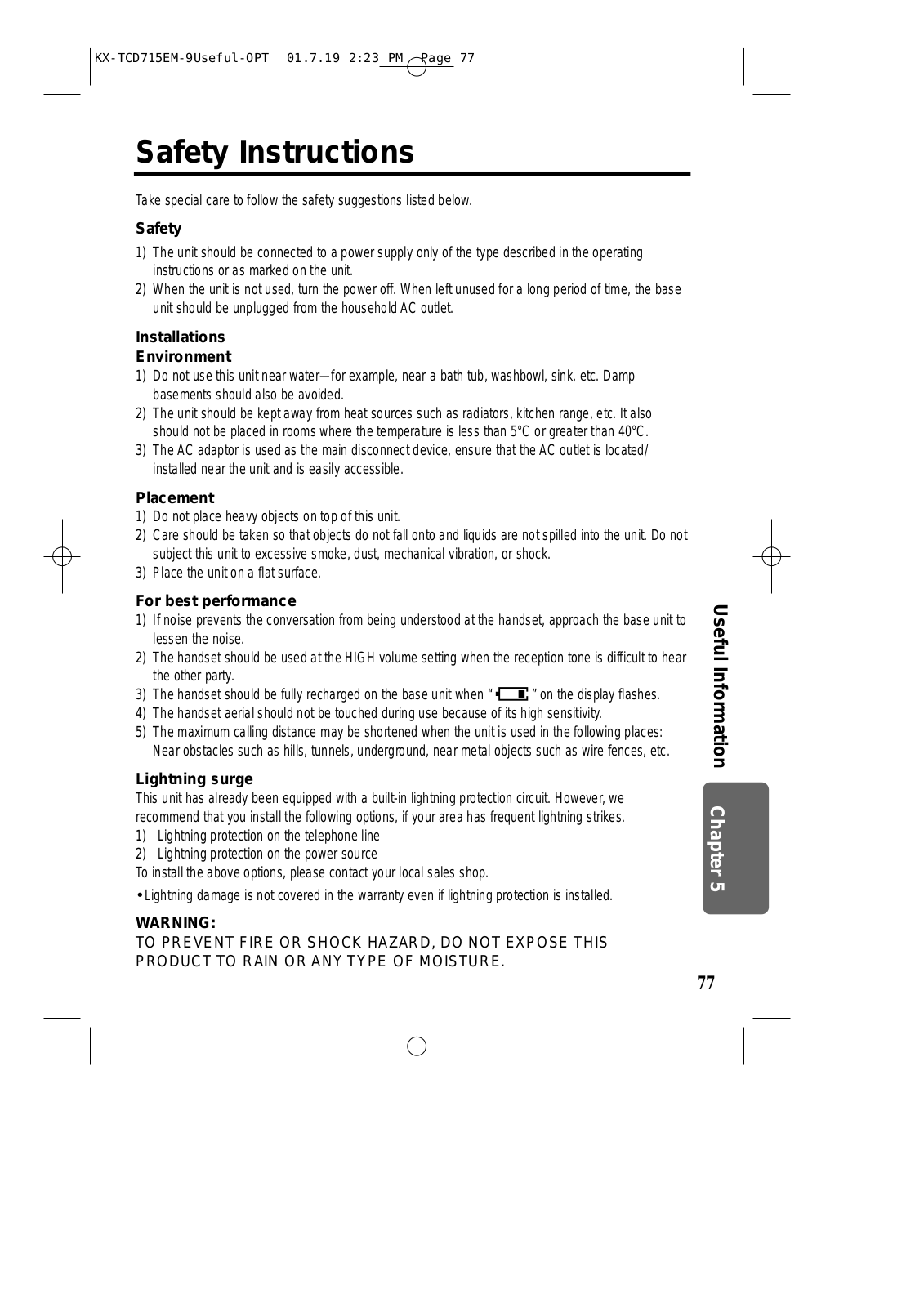

Safety Instructions................................ |
77 |
Adding Another Phone......................... |
78 |
Term Definitions .................................... |
78 |
GUARANTEE CONDITIONS OF |
|
GUARANTEE ......................................... |
79 |
Chapter
Chapter
Chapter
Chapter
5 Chapter
7
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 8
Location of Controls
Base unit
Charge Contacts (p. 13) |
R |
(Recall) Button (p. 44) |
|
|
|
|
|
|
|
In Use Indicator ( |
) (p. 24) |
|
|
Caller ID Indicator ( |
) (p. 26) |
|
|
(Locator) Button (p. 41) |
|
|
|
(Select) Button (p. 65, 66) |
GHI PQRS7
4
1
JKL TUV8 0
ABC |
|
|
|
2 |
DEF |
5 |
|
MNO |
|
|
|
|
|
6 |
|
WXYZ |
|
|
|
9 |
3
R
MIC (Microphone) (p. 24) |
|
|
|
(Mute) Button and Indicator (p. 24) |
Volume Key ( |
, |
) |
|
|||
(Redial/Pause) Button (p. 24, 43) |
(p. 24) |
|
|
(Cancel) Button (p. 24) |
|
|
|
(Digital Speakerphone) Button and Indicator (p. 24) |
|
|
|
8
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 9
Handset
Back side
Speaker (p. 21)
Receiver (p. 22)
Display (p. 10)
(Phonebook)
Button (p. 33, 37)
Headset Jack (p. 69)
(Talk) button (p. 21)
(Speakerphone) Button (p. 21)
Navigator Key
(,,,) (p. 21, 27, 32)
(Capital
Change) Button (p. 34, 44)
Charge Contact (p. 13)
R (Recall) Button (p. 44)
1 4 7
R
2 5 8 0
(Redial/Pause)
Button (p. 22, 43)
(Function/OK) Button
(p. 14, 32)
(OFF/Power) Button
|
(p. 13, 21) |
|
C |
C (Clear) Button (p. 14, 21) |
|
3 |
||
|
||
6 |
|
|
9 |
INT (Intercom) Button |
|
|
(p. 41, 65) |
|
INT |
Charge Contact (p. 13) |
|
|
Microphone (p. 21)
Preparation 1 Chapter
9
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 10
Display
ABCDEFGHIabcdefg
1234567890123456
Icons
The in-range icon indicates that the handset is in range of the base unit. It flashes when the handset is out of range.
The page/intercom icon is displayed when paging or using the intercom. It flashes when another unit pages the handset.
The talk icon is displayed when making or answering calls. It flashes when an external call is being received.
Characters
P “Pause” is selected while dialling.
Direct call mode is ON (p. 46).
Display backlight
F
[X]
The call prohibition icon is displayed when this mode is turned on (p. 47).
The phonebook icon is displayed when storing or viewing the phonebook items (p. 33, 37).
The battery icon indicates the battery strength (p. 12).
R is pressed while dialling.
Key lock is ON (p. 44).
The handset has the backlight display. The display will light when you start using the handset, and when a call is received. The handset display light will stay on for about
10 seconds after pressing a button or lifting the handset off the base unit.
You can change the backlight color for identifying callers by setting the private category feature (p. 36).
Lighted handset keypad
The handset dialling buttons will light when pressing a button, lifting the handset off the base unit or receiving a call. The lights will go out about 10 seconds after pressing a button, lifting the handset or answering a call.
10
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 11
Settings
Connections
Fasten the AC adaptor cord to |
1 Chapter |
|
|
prevent it from being |
|
disconnected. |
Preparation |
|
|
Socket |
|
TNV* |
|
220— 240 V, 50 Hz) |
|
•USE ONLY WITH Panasonic AC ADAPTOR PQLV1E.
•The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
•If your unit is connected to a PBX which does not support Caller ID services, you cannot access those services.
•To connect a standard telephone on the same line, see page 77.
* The abbreviation TNV means “Telephone Network Voltage”.
CONNECTION OF POWER SUPPLY
This apparatus is intended for use when powered by the PQLV1E.
Using other power supplies will invalidate any approval given to this apparatus.
11
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 12
Settings
Installing the Batteries in the Handset
Install the batteries as shown. Then install the handset cover.
• If the rechargeable batteries are not inserted correctly, the handset |
work. |
Battery Charge
At the time of shipment, the batteries are not charged. To charge, place the handset on the base unit. Please charge the batteries for about 15 hours before initial use. During charging the battery, battery icon is as shown below.
Full |
<During charge> |
(Flashing) |
|
Battery strength
You can check the present battery strength on the display.
Battery strength |
Fully charged |
High |
Medium |
Low |
Need to be charged. |
Display prompt |
(Flashing) |
|
|
|
(Flashing) |
Recharge |
|
|
|
|
||
|
Base 1 |
|
|
|||
When “ |
|
|
” flashes or the unit beeps every 15 seconds, |
|
|
|
|
|
10 New |
Calls |
|
||
|
|
|||||
|
|
|||||
recharge the batteries. |
12.04 |
15:00 |
|
|||
|
|
|
||||
|
|
|
|
|
|
|
12
KX-TCD715EM-1Preparation1** 01.7.19 2:12 PM Page 13
Battery information
After your batteries are fully charged:
Operation |
Ni-MH battery operating time (included) |
Ni-Cd battery operating time (optional)* |
|
|
|
While in use (Talk) |
Up to about 20 hours |
Up to about 12 hours (based on 800mA per hour) |
|
|
|
While not in use (Standby) |
Up to about 200 hours |
Up to about 100 hours |
|
|
|
•Battery operating time may be shortened depending on usage conditions, such as:
—when viewing the Caller ID Caller List, or phonebook
—when talking in speakerphone mode and
—ambient temperature.
•Clean the handset and the base unit charge contacts with a soft, dry cloth once a month. Clean more often if the unit is subject to grease, dust or high humidity. Otherwise the batteries may not charge properly.
•If the batteries are fully charged, you do not have to place the handset on the base unit until “ ” flashes. This will maximise the battery life.
•The batteries cannot be overcharged.
*Nickel cadmium (Ni-Cd) rechargeable batteries (AA size) are available.
When you replace the batteries, you must program the battery type selection (see page 70).
•Read “Important Notice Concerning the Correct Use and Charging of Ni-MH (Ni-Cd) Batteries” on page 71.
Preparation 1 Chapter
Turning the Power ON
Press and hold .
•After all the possible configurations briefly appear, the display will change to the following. Then the handset is in the standby mode.
# |
Base 1 |
|
$ |
10 New |
Calls |
% |
12.05 |
13:58 |
#The current connected base unit number: You can choose whether to display the base unit number, handset number or no display in the standby mode by programming (p. 64).
$ The number of new Caller ID calls received (p. 26).
%The current date and time:
After you set the date and time, the current date/time will be displayed (p. 19).
To turn the power OFF, press and hold until a beep sounds.
•The display will go blank.
•The handset will not ring.
13
KX-TCD715EM-2Preparation2 01.7.19 2:13 PM Page 14
Summary of Programmable Functions
You can program the following function items using the handset near the base unit. The display shows the instructions. After selecting “Setting Base” , enter the desired function command (p. 15). See the corresponding pages for function details.
Make sure that the power is ON (p. 13) and the unit is in the standby mode.
<Standby mode>
B a s e 1 |
|
|
|
|
|
|
|
|
|
|
|
|
||||
1 2 N e w |
C a l l s |
|
|
|
||||||||||||
1 2 . 0 5 1 3 : 5 8 |
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press |
|
|
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|||||||
<Function menu>* |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
New |
Phonebook |
To store names and numbers in the phonebook (p. 32) |
|||||||||||
|
|
|
Setting |
Handset |
To set the handset programming (p. 16) |
|||||||||||
|
|
|
HSetting |
Base |
|
|||||||||||
|
|
|
|
|||||||||||||
|
|
Press . |
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
||||||||||||
|
|
Input |
Command |
|
|
|||||||||||
|
|
|
|
Enter a desired function command as shown on the next page.
While programming:
*To select a desired function item, press or until the arrow points to the item. Then press to go to the next step.
•You can press to go to the next menu of the function menu instead of pressing .
•To return to the previous step during programming, press or C .
•You can exit the programming mode any time by pressing and also can return to “Input Command” by pressing C .
•When programming is completed, a beep sounds.
14
KX-TCD715EM-2Preparation2 01.7.19 2:13 PM Page 15
Command menu
|
|
Command |
Function item |
||
1 |
1 |
|
To select the bell selection (p. 62) |
||
|
|
|
|
|
|
2 |
1 |
|
To set the base unit key tone On/Off (p. 54) |
||
|
|
2 |
|
To select the base unit ringer volume (p. 20) |
|
|
|
3 |
|
To set the base unit ringer type (p. 54) |
|
3 |
2 |
|
To select the time break recall mode/earth (p. 45) |
||
|
|
3 |
|
To set the pause time (p. 43) |
|
5 |
|
|
|
To change the base unit PIN (p. 55) |
|
6 |
|
|
|
To set the call restriction (p. 48) |
|
|
|
|
|
|
|
7 |
|
|
|
To cancel the handset (p. 61) |
|
0 |
|
|
|
To reset the base unit (p. 57) |
|
|
|
|
|
|
To set time (p. 19) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
To set date (p. 19) |
|
|
|
|
|
|
|
|
|
|
|
|
1 Chapter
15
KX-TCD715EM-2Preparation2 01.7.19 2:13 PM Page 16
Summary of Programmable Functions
Handset settings
You can program the following function items (the handset should be within the range of the base unit). The display shows the instructions. After selecting “Setting Handset”, the main menu is displayed. Most items in the main menu have a sub-menu. The sub-menu is shown after selecting the item in the main menu. See the corresponding pages for function details. Main menu items are written in bold and sub-menu items are under each main menu item on the next page.
Make sure that the power is ON (p. 13) and the unit is in the standby mode.
<Standby mode> |
<Function menu>* |
|
|||||||||||
Base 1 |
|
|
|
|
|
|
|
New Phonebook |
|
||||
12 New Calls |
|
|
|
|
|
|
|
|
|||||
|
|
|
H Setting |
Handset |
|
||||||||
1 2 . 0 5 1 3 : 5 8 |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Press |
|
|
|
. |
Setting |
Base |
Press . |
||
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
|||||||||||||
|
|
|
|
|
|
|
|
||||||
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
While programming:
*To select a desired function item, press or until the arrow points to the item. Then press
to go to the next step.
• You can press to go to the next menu of the function menu instead of pressing .
• To return to the previous step during programming, press |
or C . |
•You can exit the programming mode any time by pressing .
•When programming is completed, a beep sounds.
16
KX-TCD715EM-2Preparation2 01.7.19 2:13 PM Page 17
Handset settings menu
|
Time Alarm |
To set the alarm time (p. 50) |
|
|
|
Set Alarm Time |
|
|
|
Alarm ON/OFF |
To set the time alarm mode ON/OFF (p. 50) |
|
|
||
|
Ringer Option |
To select the handset ringer volume (p. 20) |
|
|
|
Ringer Volume |
|
|
|
Ext Ring Type |
To select the external ringer type (p. 52) |
|
|
Int Ring Type |
To select the internal ringer type (p. 52) |
|
|
Paging Type |
To select the paging ringer type (p. 52) |
|
|
Private Ring |
To select the ringer type of private category (p. 36) |
|
|
Alarm Type |
To select the time alarm ringer type (p. 52) |
|
Tone Option |
To set the key tone ON/OFF (p. 54) |
|
|
|
Key Tone ON/OFF |
|
|
|
Call Waiting |
To set the call warning tone ON/OFF (p. 53) |
|
|
Range Alarm |
To set the range warning alarm ON/OFF (p. 53) |
|
|
Battery Alarm |
To set the battery low alarm ON/OFF (p. 53) |
|
Display Option |
To select the standby mode display (p. 64) |
|
|
|
Standby Display |
|
|
|
Talk Display |
To select the talk mode display (p. 51) |
|
|
Select Language |
To select the display language (p. 18) |
|
|
Backlight Color |
To select the display backlight color (p. 54) |
|
|
Private Color |
To select the private category backlight color (p. 36) |
|
Call Option |
To set the call prohibition mode (p. 47) |
|
|
|
Call Bar |
|
|
|
||
|
|
Direct Call No. |
To set the direct call number (p. 46) |
|
|
Direct ON/OFF |
To set the direct call ON/OFF (p. 46) |
|
|
||
|
Other Option |
To change the handset PIN (p. 55) |
|
|
|
Change Hset PIN |
|
|
|
||
|
|
Auto Talk |
To set the auto talk feature (p. 18) |
|
|
Battery Type |
To select the battery type (p. 70) |
|
|
||
|
Registration |
To register a handset in the base unit (p. 59) |
|
|
|
Register H/set |
|
|
|
||
|
|
Cancel Base |
To cancel the base unit (p. 61) |
|
|
||
|
Select Base |
To select the base unit access (p. 60) |
|
|
Reset Handset |
To clear the handset setting (p. 56) |
|
|
|
|
|
|
|
|
|
1 Chapter
17
KX-TCD715EM-2Preparation2 01.7.19 2:13 PM Page 18
Programmable Settings
Selecting the Display Language
You can choose one of 18 display languages. The factory preset is English.
Make sure that the power is ON (p. 13) and the unit is in the standby mode.
1Press .
2Press or until the arrow points to “Setting Handset”, then press .
3Press or until the arrow points to “Display Option”, then press .
4Press or until the arrow points to “Select Language”, then press .
•The current setting is at the arrow.
5Press or to select the desired language.
6Press .
•A beep sounds.
•The display shows in the selected language.
•To return to the standby mode, press
.
Selecting the Auto Talk Feature
The Auto Talk feature allows you to answer a call by lifting the handset off the base unit without pressing or . If you want to use this feature, turn the feature ON by programming.
The factory preset is OFF. In order to to view Caller ID information before answering a call, leave the auto talk feature OFF.
Make sure that the power is ON (p. 13) and the unit is in the standby mode.
1 |
Press |
|
|
|
. |
|
|
5 |
Press |
|
|
|
or |
to select “ON” or |
|
|
|
||||||||||||
|
|
|
|
|||||||||||
|
|
|
|
|
||||||||||
2 |
|
|
|
|
|
|
|
|
“OFF”. |
|
|
|
|
|
Press |
|
|
|
or |
until the arrow points to |
6 |
Press |
|
|
|
. |
|
||
|
“Setting Handset”, then press |
. |
|
|
|
|
||||||||
|
|
|
|
|||||||||||
|
|
|
|
|
||||||||||
|
|
• A beep sounds. |
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|||||
3 |
Press |
|
|
|
or |
until the arrow points to |
|
• To return to the standby mode, press |
||||||
|
“Other Option”, then press |
. |
|
|
. |
|
|
|
||||||
|
|
|
|
|
|
|
|
4 Press or until the arrow points to “Auto Talk”, then press .
• The current setting is at the arrow.
18
KX-TCD715EM-2Preparation2 01.7.19 2:13 PM Page 19
Setting the Date and Time
After setting the date and time, the current date and time will be displayed on the handset in the standby mode. You can set 24-hour clock by programming.
Make sure that the power is ON (p. 13) and the unit is in the standby mode.
Setting time
1Press .
2Press or until the arrow points
to “Setting Base”, then press .
• “Input Command” is displayed.
3 Press .
Input Command
__–__
•If already set, the current setting is displayed.
4Enter the current time (24 hour time) using a 4–digit number.
Ex. To set 9:30, enter “0930” .
Input Command
09–30
5Press .
•A beep sounds.
•To return to the standby mode, press
.
Setting date
1Press .
2Press or until the arrow points
to “Setting Base”, then press .
• “Input Command” is displayed.
3 Press TWICE.
Input Command
__–__–__
•If already set, the current setting is displayed.
4Enter the current date (day, month, year) using a 6-digit number.
Ex. To set 5. August, 2001, enter “010801”.
Input Command
05–08–01
5Press .
•A beep sounds.
•To return to the standby mode, press
.
If a power failure occurs, the adjusted day/time will be erased. Readjust the date and time.
1 Chapter
19
KX-TCD715EM-2Preparation2 01.7.19 2:13 PM Page 20
Programmable Settings
Selecting the Handset Ringer Volume
6 levels are available. The lowest level is 1. The highest level is 6. The factory preset is 3. When set to OFF, the handset will not ring.
Press or to select “Setting Handset” then or to select “Ringer Option” then or to select “Ringer Volume” then
or to select the desired level
• To turn the ringer OFF, erase “ ” by pressing until “OFF” is displayed.
Selecting the Base Unit Ringer Volume
4 levels (HIGH, MEDIUM, LOW, OFF) are available. The factory preset is MEDIUM. When set to 0 (OFF), the base unit will not ring.
Press |
or |
to select “Setting Base” then |
2 |
2 |
Volume level (0–3) |
|
|
|
20
KX-TCD715EM-3Basic1 01.7.19 2:13 PM Page 21
Making Calls
With the Handset
Make sure that the power is ON (p. 13).
1Press .
•“ ” is displayed.
2Dial a phone number.
•The dialled number is displayed.
12345678
•After a few seconds, the display will show the length of the call.
00-00-00
3To hang up, press or place the handset on the base unit.
•The handset will return to the standby mode.
To dial after confirming the entered number
1 Enter a phone number.
• The entered number is displayed.
• If you misdial, press C . Digits are erased from the right.
•To cancel, press and hold C or press
.
2Press .
•“ ” is displayed.
•After a few seconds, the display will start showing the length of the call.
3To hang up, press or place the handset on the base unit.
•The handset will return to the standby mode.
To have a hands-free phone conversation (Using Digital Speakerphone)
1Press .
•The button lights.
2Dial a phone number.
•The dialled number is displayed.
•After a few seconds, the display will show the length of the call.
3When the other party answers, talk into the microphone.
4To hang up, press or place the handset on the base unit.
Hands-free Digital Speakerphone
For best performance, please note the following:
•Talk alternately with the caller in a quiet room.
•If the other party has difficulty hearing you, press to decrease the speaker volume.
•If the other party’s voice from the speaker
cuts in/out during a conversation, press
to decrease the speaker volume.
•While talking, you can switch to the hands-
free phone conversation by pressing
. To switch back to the receiver,
press or .
•If “” flashes and an alarm tone sounds after pressing or , move closer to the base unit. Then try again.
•You can choose whether to display either the length of the call or phone number in the talk mode by programming (p. 51).
Operations Basic 2 Chapter
21
KX-TCD715EM-3Basic1 01.7.19 2:13 PM Page 22
Making Calls
To select the receiver volume (HIGH, MEDIUM or LOW) or speaker volume (6 levels) while talking
To increase, press .
To decrease, press .
Ex. Receiver volume: HIGH
Speaker volume: level 6
Receiver Volume
LOW 123456 |
HIGH |
•Each time you press or , the volume level will change.
•The display will return to the length of the call.
To redial the last number dialled
1Press or .
2Press .
HRedial Go Back
3While “Redial” is at the arrow, press .
•The last number dialled is automatically redialled.
Automatic Redial:
When using the hands–free degital speakerphone on the handset, the unit redials the last dialled number up to 12 times (every 40 seconds) if the line is busy. The digital speakerphone button
lights and “–Muting–” is displayed while redialling.
To redial using the redial list
The last 10 numbers dialled are stored in the redial list.
1 Press .
• The last number dialled is displayed.
2Press or until the desired number is displayed.
•To search from the most recent to the oldest number, press . To search from the
oldest to most recent number, press |
. |
• To exit the list, press C . |
|
3Press or .
•The number is dialled automatically.
•If “No Stored Memory” is displayed in step 1, the redial memory is empty.
•If the same phone number is stored in the phonebook (p. 32), the name will be displayed.
22
KX-TCD715EM-3Basic1 01.7.19 2:13 PM Page 23
To store a redial number in the phonebook
While the desired number is displayed, press , then see “To store an entered number
in the phonebook”, from step 3.
To clear a number in the redial memory
1While the desired number is displayed, press .
2Press or until the arrow points to “Clear”, then press .
3Press or to select “YES”, then press .
To clear all numbers in the redial memory
Select “All Clear” in step 2 above.
To store an entered number in the phonebook
1 Enter a phone number.
• The entered number is displayed.
• If you misdial, press C . Digits are erased from the right.
•To cancel, press and hold C or press
.
2Press .
3While “Save Phonebook” is at the arrow, press .
•The display shows the number of remaining phonebook items, then “<Enter Name>”.
4Enter a name, up to 16 characters with the dialling buttons, or .

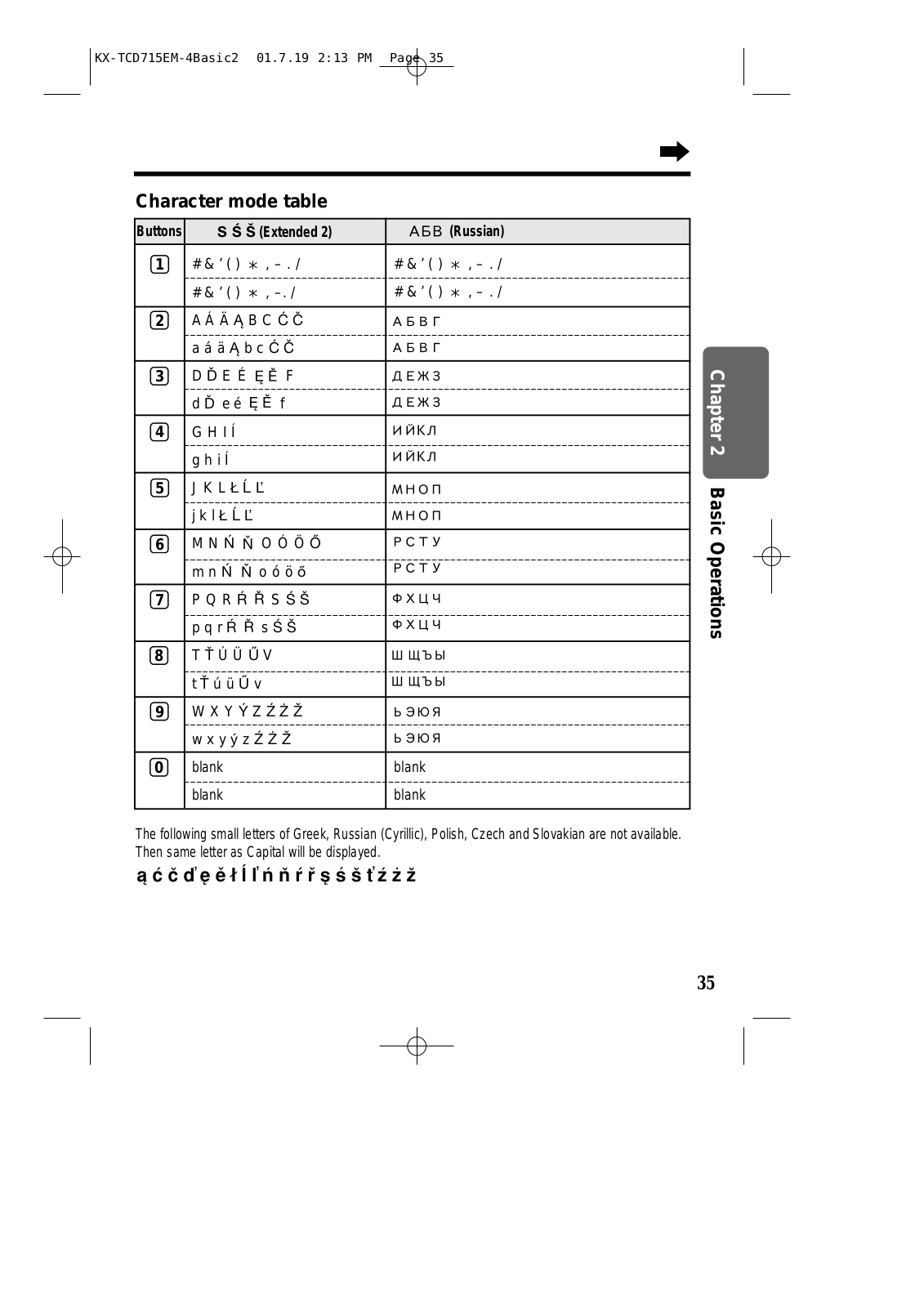

•See the steps for entering names and symbols (p. 33).
5To select the private category, see page 32, from step 6.
2 Chapter
23
KX-TCD715EM-3Basic1 01.7.19 2:13 PM Page 24
Making Calls
With the Base Unit (Digital Speakerphone)
1 Press .
• The indicator lights.
2Dial a telephone number.
•If you misdial, press then dial again.
3When the other party answers, talk into the MIC.
4To hang up, press .
•The indicator light goes out.
•The base unit speaker phone cannot be used while a handset is in use. Wait until the in use indicator ( ) goes out.
To adjust the speaker volume (8 levels)
To increase, press .
To decrease, press .
To redial the last number dialled on the base unit
Press .
Hands-Free Digital
Speakerphone
The digital speakerphone enhances your telephone conversation. For best performance, please note the following.
•Talk alternately with the caller in a quiet room.
•If the other party has difficulty hearing you, press to decrease the speaker volume.
•If the other party’s voice from the speaker
cuts in/out during a conversation, press
to decrease the speaker volume.
To mute your conversation
Press while talking.
•The mute indicator ( ) lights.
•The other party cannot hear your voice but you can hear theirs.
•To resume the conversation, press again.
24
