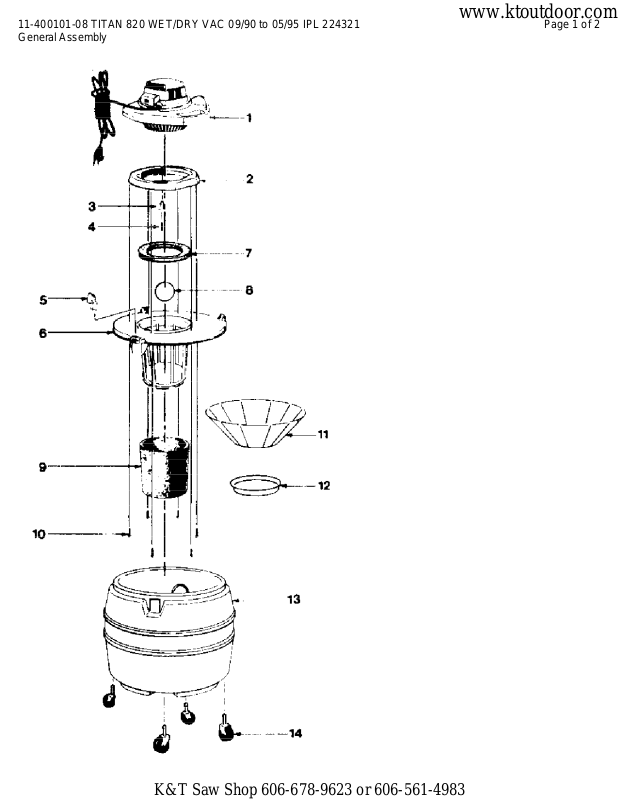

11-400101-08 TITAN 820 WET/DRY VAC 09/90 to 05/95 IPL 224321 Page 1 of 2
www.ktoutdoor.com
General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400101-08 TITAN 820 WET/DRY VAC 09/90 to 05/95 IPL 224321 Page 2 of 2
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 224540 Power Unit1
2 224541 Adapter1
3 224542 Release Lever1
4 224543 Spring1
5 224544 Latch on Lid Cage3
6 224545 Lid Cage & Latches1
7 224546 Gasket1
8 224547 Ball Float1
9 224548 Foam Filter1
10 224549 Screw #10 x 3/4 Hex Head Type AB6
11 224667 Reusable Filter Disc Pkg. of 3, Includes mounting ring1
12 224551 Mounting Ring1
13 224552 Tank Assembly1
14 224553 Caster Ea.4
224554 2-1/2" Wand Not shown on diagram2
224555 Blower Nozzle Not shown on diagram1
224556 2-1/2" Connector Not shown on diagram1
224557 6' x 2-1/2" Hose Not shown on diagram1
224558 1/4" Wand Not shown on diagram2
224559 6" Square Nozzle 2-1/2" Not shown on diagram1
224560 7' x 1-1/2" Hose Not shown on diagram1
224561 10" Nozzle Not shown on diagram1
224562 10" Squeegee Insert Not shown on diagram1
224563 Exhaust Diffuser Not shown on diagram1
K&T Saw Shop 606-678-9623 or 606-561-4983
