11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 1 of 14
www.ktoutdoor.com

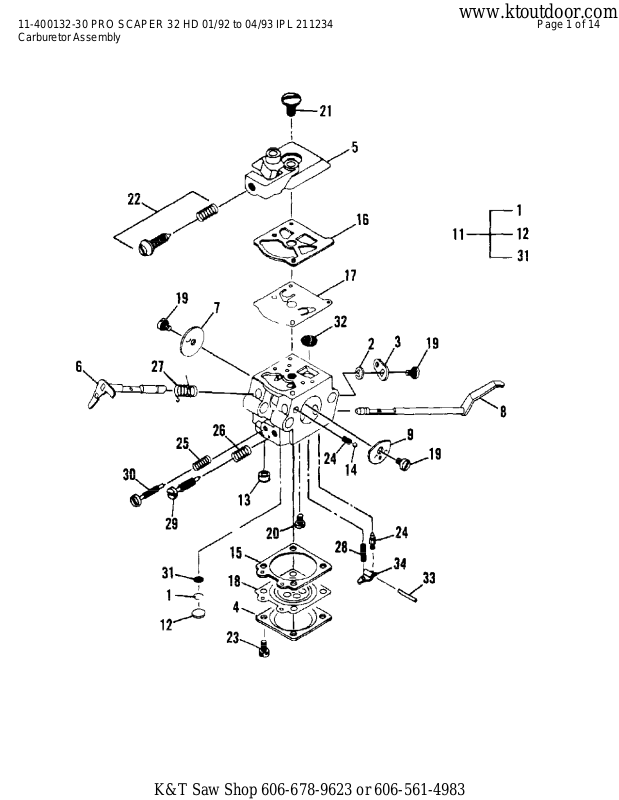

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 2 of 14
www.ktoutdoor.com

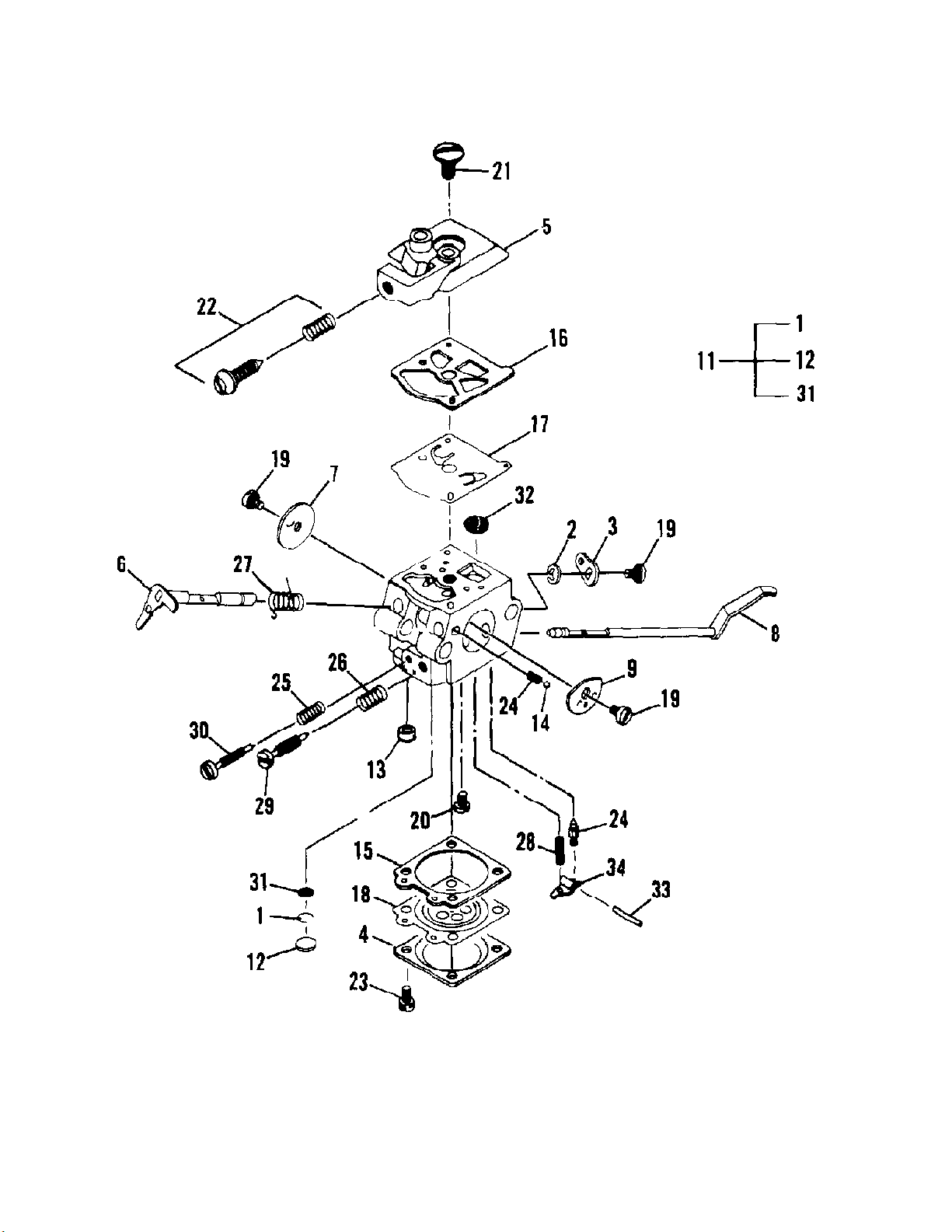

Carburetor Assembly
Ref # Part Number DescriptionQty
224033-02 Carb w/Choke, Walbro WT-231A
1 Ring, Screen Retainer1
2 Ring, Shaft Retainer1
3 Lever, Throttle1
4 Cover, Metering Lever1
5 Cover, Fuel Pump1
6 Shaft Assembly, Throttle1
7 Valve, Throttle1
8 Shaft Assembly, Choke1
9 Valve, Choke1
10 Valve, Inlet Needle1
11 Seat Assembly, Check Valve1
12 Plug, Cup 5mm1
13 Plug, Welch 5/161
14 Ball, Choke Friction1
15 Gasket, Metering Diaphragm1
16 Gasket, Fuel Pump1
17 Diaphragm, Fuel Pump1
18 Diaphragm Assembly, Metering1
19 Screw, Valve3
20 Screw, Metering Lever Pin1
21 Screw, Pump Cover1
22 Screw, Idle Adjust Kit1
23 Screw, Metering Cover4
24 Spring, Choke Friction1
25 Spring, Idle Needle1
26 Spring, High Speed Needle1
27 Spring, Throttle Return1
28 Spring, Metering Lever1
29 Needle, High Speed1
30 Needle, Idle1
31 Screen, Check Valve1
32 Screen, Fuel Inlet1
33 Pin, Metering Lever1
34 Lever, Metering1
300457 Kit, Carburetor Repair
224460 Kit, Gasket/Diaphragm
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 3 of 14
www.ktoutdoor.com

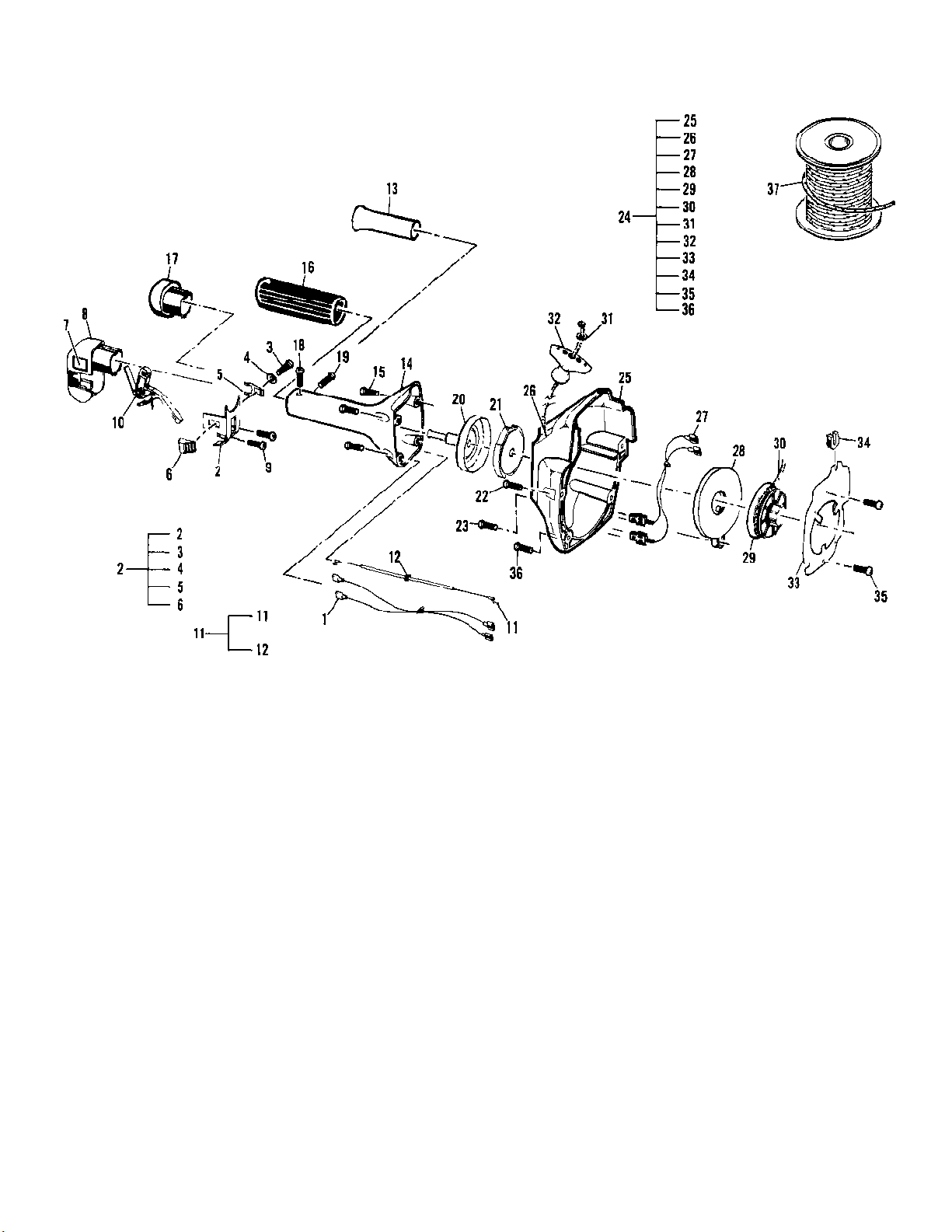

Clutch/Starter Housing Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 4 of 14
www.ktoutdoor.com
Clutch/Starter Housing Assembly
Ref # Part Number DescriptionQty
1 224204 Wire Assembly, Switch1
2 300064 Cover Assembly, Switch1
3 111069 Screw, 8-16 x .3751
4 105497 Washer,1
5 224246 Contact, Switch1
6 224245 Button, Stop Switch1
7 322081 Label, ON-OFF Switch1
8 224205 Trigger Housing Assembly1
9 111061 Screw, 6-19 x .622
10 300361 Trigger, Throttle1
11 300372 Throttle Cable Assembly1
12 111074 Nut, Speed .188 ID1
13 322234 Sleeve, Protecting1
14 224249 Housing, Clutch 1" (Yel)1
300015 Housing, Clutch 1" (Grey)1
15 224919 Screw, 10-14 x 1.04
16 322140 Grip1
17 224920 Plug, Handle1
18 111070 Screw, 12-11 x .50 Torx (top)1
19 223200 Screw, 10-16 x .50 Torx (side)1
20 224045 Drum Assembly, Clutch1
21 300459 Kit, Clutch1
22 111060 Screw, 10-24 x 1.38 TR HD. TAP1
23 223357 Screw, 8-161
24 224916 Starter Housing Assembly (Yel)1
25 300616 Housing / Guide, Rope1
300013 Starter Housing Assembly (Grey)1
300618 Housing / Guide, Rope1
26 Guide, Rope Not available separately.1
27 300369 Wire Assembly1
28 300475 Package, Spring/Starter Rewind1
29 219496 Pulley, Starter1
30 222869 Rope, Starter (46")1
31 218941 Washer, Nylon1
32 216792 Handle, Starter1
33 224927 Plate, Baffle1
34 215533 Grommet, H/T Lead1
35 223357 Screw,8-162
36 111054 Screw, 10-24 x .6254
37 300415 Rope, Bulk1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 5 of 14
www.ktoutdoor.com
Shaft/Shield/Handle And Cutter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 6 of 14
www.ktoutdoor.com

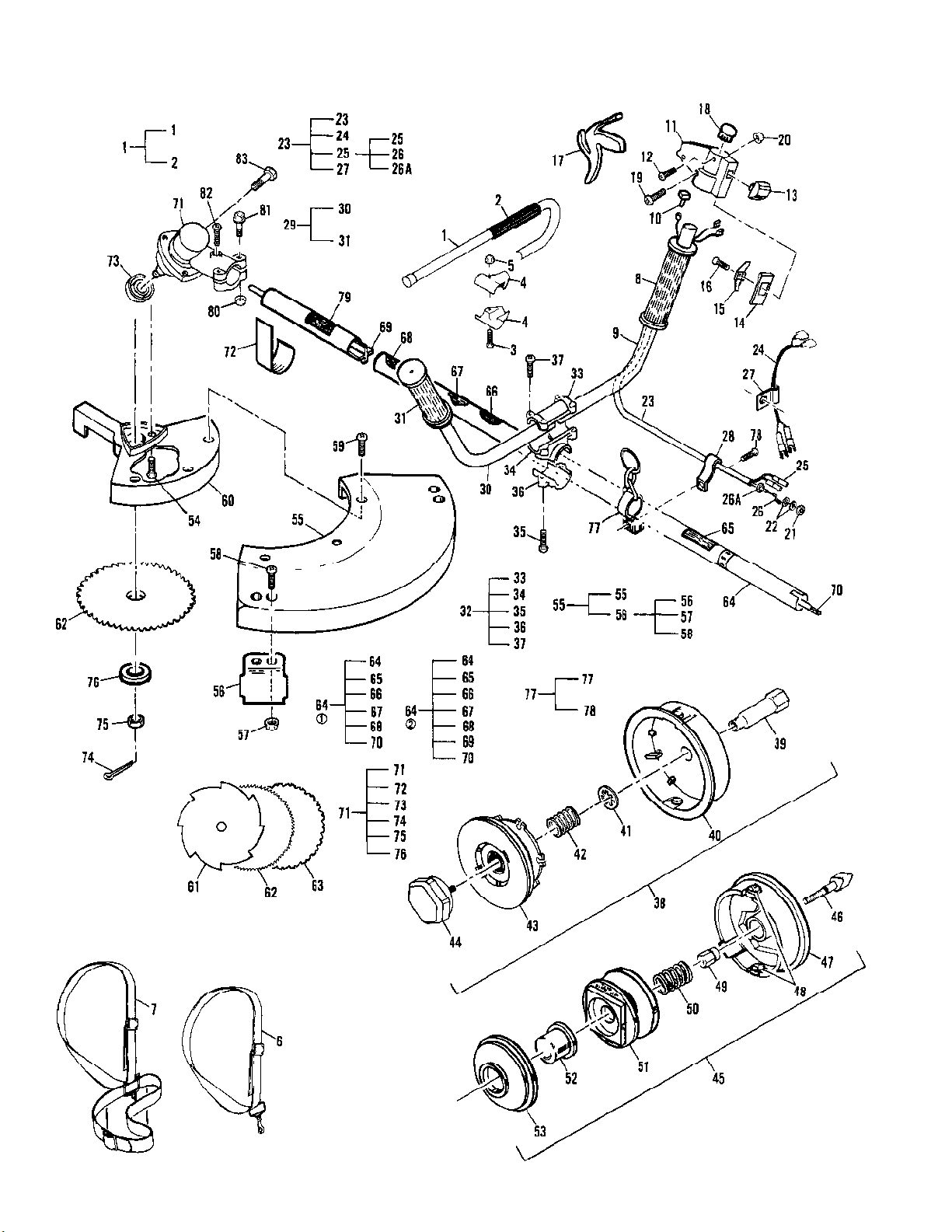

Shaft/Shield/Handle And Cutter Assemblies
Ref # Part Number DescriptionQty
1 300541 Handle Assembly, Barrier1
2 322139 Grip1
3 217935 Screw, 10-24 x 50 Torx2
4 217292 Clamp, Handle2
5 218315 Nut2
6 224083 Harness1
7 217956 Harness Assembly1
8 215322 Grip1
9 216787 Bar, Handle1
10 215323 Guide1
11 222794 Housing, Trigger Throttle1
12 223200 Screw, Self Tap 10-161
13 68846 Button, Stop Switch1
14 215319 Base, Stop Switch1
15 215320 Contact, Switch1
16 110706 Screw, 8-18 x .501
17 300361 Trigger, Throttle1
18 218328 Plug, Tubing1
19 216027 Screw M5 x 28.5 SEMS1
20 217159 Nut, Hex M51
21 217403 Nut, Hex M6 x 1.01
22 216596 Washer, Flat M62
23 300673 Kit, Wire / Cable1
24 300679 Wire, Ignition1
25 300681 Wire / Cable Assembly2
26 322273 Cable, Throttle1
26A 217403 Nut, Hex M6 x 1.01
27 322291 Clip1
28 216788 Clip, Wire Harness1
29 216868 Bar Assembly, Handle1
30 216787 Bar, Handle1
31 94212 Grip, Handle1
32 217974 Clamp Assembly1
33 Clamp, Top Not available separately.1
34 Centerpiece Not available separately.1
35 216782 Bolt, Hex M6 x 30.02
36 Clamp, Bottom Not available separately.1
37 216781 Bolt, Hex M5 x 25.04
38 300078 String Head Asy. (Mc- L/LT)1
39 322106 Stud, Left Hand Thread1
40 300091 Housing / Eyelet Assembly1
41 111073 Ring, Retainer1
42 225206 Spring, Left1
43 300690 Kit, Line on Spool1
44 300737 Kit, Knob Assembly (Large)1
45 224277 Stringhead Assembly1
46 224901 Bolt1
47 224902 Housing1
48 219759 Eyelets2
49 219760 Nut1
50 218907 Spring1
51 224903 Spool w/Line .0951
52 224904 Knob1
53 224905 Cover1
54 217935 Screw, 10-24 x .50 Torx3
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 7 of 14
www.ktoutdoor.com
Shaft/Shield/Handle And Cutter Assemblies
Ref # Part Number DescriptionQty
55 300318 Kit, Grass Shield (un-assem.)1
56 300626 Kit, Knife1
57 216682 Nut, Lock 10-24 Hex2
58 217935 Screw, 10-24 x .50 Torx2
59 224175 Screw, M6 x 153
60 224177-01 Shield, Blade1
61 216513-02 Blade, Brush 08 Tooth1
62 216514-02 Blade, Brush 80 Tooth1
63 224455 Pro Blade1
64 300432 Housing Asy, Outer 1" x 56"1
65 219030 Decal, Warning (S/T Shaft)1
66 223407 Decal, Eye / Ear Cover1
67 211214 Decal, Warning 15m1
68 211215 Decal, Thrown Objects1
70 217752 Shaft, Drive1
300419 Housing Asy, Outer 1" x 56" Flex1
219030 Decal, Warning (S/T Shaft)1
223407 Decal, Eye / Ear Cover1
211214 Decal, Warning 15m1
211215 Decal, Thrown Objects1
69 224090 Sleeve1
224091 Shaft, Flex1
71 224457 Kit, Gear Housing Assembly 1"1
72 224133 Decal, Foil1
73 224136 Collar1
74 218159 Pin, Cotter1
75 216751 Nut, Hex M10 LH1
76 218075 Flange, Spindle1
77 218002 Ring Assembly, Harness1
78 Bolt, M5 x 13 Not available separately.1
79 322099 Label, Debris Shield1
80 217159 Nut, Hex M52
81 216828 Bolt, Hex M5 x 402
82 216795 Screw, Phl M5 x 121
83 216832 Bolt, Hex M5 x 8.01
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 8 of 14
www.ktoutdoor.com
Powerhead/Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 9 of 14
www.ktoutdoor.com

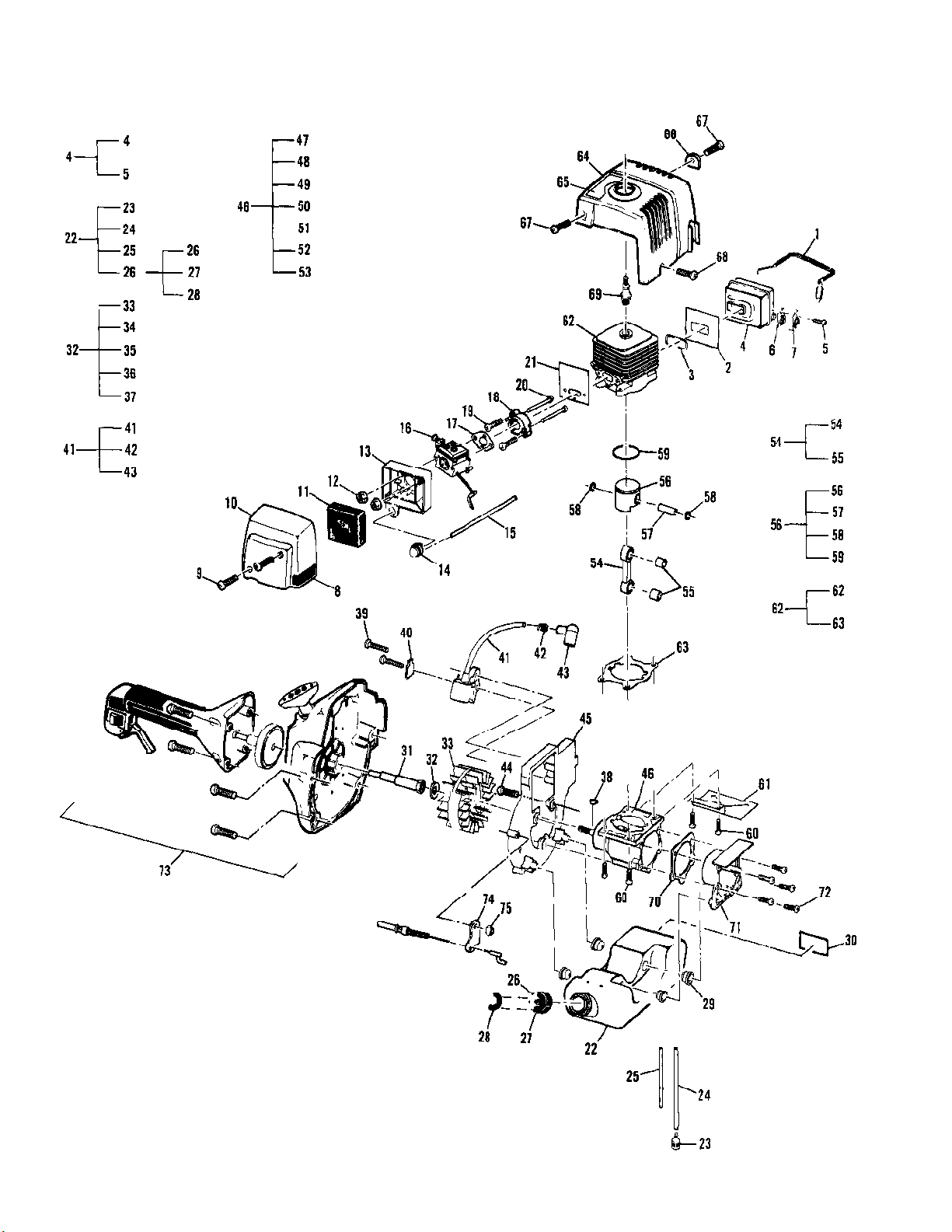

Powerhead/Engine Assembly
Ref # Part Number DescriptionQty
1 224044 Spring, Muffler1
2 224228 Gasket, Muffler1
3 224922 Gasket, Exhaust Port1
4 224034 Muffler Assembly1
5 111072 Screw, 8-18 x .31 PN HD Torx1
6 224040 Screen, Spark Arrestor1
7 322032 Cover, Spark Arrestor1
8 322101 Label, Choke1
9 111055 Screw, 10-14 x .6252
10 224236 Cover, Air Cleaner - Large (Blk)1
300302 Cover, Air Cleaner - Large (Grey)1
11 224239 Filter, Air1
12 111058 Nut 10 x 24 Flange Hex2
13 224238 Box, Air (Blk)1
300301 Box, Air (Grey)1
14 224242-02 Primer, Remote1
15 225163 Hose, Fuel1
16 CARBURETOR W/CHOKE See "Carburetor
1
Assembly" illustration and parts list.
17 218933 Gasket, Carburetor1
18 224041 Manifold, Carburetor1
19 111053 Screw, 10-24 x .882
20 111057 Screw, 10-24 SPL2
21 322031 Gasket, Manifold1
22 300670 Kit, Fuel Tank / Cap (Blk)1
300669 Kit, Fuel Tank / Cap (Natural)
23 216985 Pickup, Fuel1
24 225162 Hose, Fuel1
25 225163 Hose, Fuel Return1
26 300700 Kit, Fuel Cap1
27 211242 Decal (OPEN SLOWLY)1
28 322250 Decal (International)1
29 322105 Isolator, Fuel Tank4
30 322100 Label, Storage1
31 224025 Adapter, Clutch1
32 105989 Washer, .32 ID1
33 224021 Flywheel / Pawl Assembly1
34 Pin, Starter Pawl2
35 Pawl2
36 Spring, Starter Pawl2
37 Washer, Starter Pawl2
38 102164 Key, Flywheel1
39 111053 Screw, 10-24 x .882
40 300321 Terminal Tab1
41 300519 Ignition Assembly1
42 102556 Connector, Spark1
43 95266 Boot, Spark Plug1
44 111054 Screw, 10-24 x .6253
45 224042 Shroud, Engine (Machined)1
46 224020 Crankcase / Shaft Assembly1
47 Crankshaft Assembly1
48 Crankcase, Machined1
49 Bearing 62021
50 Bearing 6202RS1
51 Seal1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 10 of 14
www.ktoutdoor.com
Powerhead/Engine Assembly
Ref # Part Number DescriptionQty
52 Spacer1
53 "O" Ring1
54 224009 Connecting Rod Assembly1
55 91117 Bearing2
56 300661 Kit, Piston, 28cc Aluminum1
57 300482 Pin, Piston (10mm dia)1
58 215876 Ring, Retaining2
59 224224 Ring, Piston 35mm1
300663 Kit, Piston, 32cc Aluminum1
300482 Pin, Piston (10mm dia)1
215876 Ring, Retaining1
224217 Ring, Piston 38mm1
60 111065 Screw, 10-24 x .6884
61 322030 Shield, Muffler1
62 300452 Kit, Cylinder 28cc Chrome1
63 224022 Gasket, Cylinder1
300453 Kit, Cylinder 32cc Chrome1
224022 Gasket, Cylinder1
64 224235 Cover, Cylinder / Muffler (Blk)1
300304 Cover, Cylinder / Muffler (Grey)1
65 322097 Label, Start Instr'ns w/ ON-OFF1
66 322210 Washer, Plastic1
67 111067 Screw, 10-24 x .63 Torx2
68 111068 Screw. 10-14 x 1.38 Taptite1
69 62345 Spark Plug / DJ8J1
70 224023 Gasket, Crankcase1
71 224024 Plug, Crankcase1
72 111065 Screw, 10-24 x .6885
73 CLUTCH / STARTER ASSEMBLIES See
"Clutch/Starter Housing Assembly" illustration and
parts list.
74 322232 Bracket, "T" Cable1
75 111058 Nut, 10-24 Flange Hex1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 11 of 14
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 12 of 14
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235 Loctite Kit
322236 Retaining Compound 620 (10 ml)
322237 Thread Locker 242 (10 ml)
322238 Gasket eliminator 518 (50 ml)
322239 Black Max Adhesive 380 (01 oz)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 13 of 14
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400132-30 PRO SCAPER 32 HD 01/92 to 04/93 IPL 211234 Page 14 of 14
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
215432 Pressure Test Tool
217720 Kit, Torx Wrenches
222785 T-25 Torx Drive
K&T Saw Shop 606-678-9623 or 606-561-4983
